DC Fast Charger Cable Management System Ratchet Auto Lock Retractor Chademo Jae CCS 150kw Level 3 EV Charging Cable Retractor EV Charger Cable Retraction Device

Still deciding? Get samples of $ !
Order Sample

Product Description

Technical Specifications

Model NO.
FR
Type
Auto Hood
Application
EV Cable Retractor
Material
Steel
Color
Black/White
OEM
Yes
MOQ
1
Package
Cartons
Origin
China
HS Code
84242000

Packaging & Delivery

Package Size
40.00cm * 40.00cm * 40.00cm
Gross Weight
6.000kg

Product Description

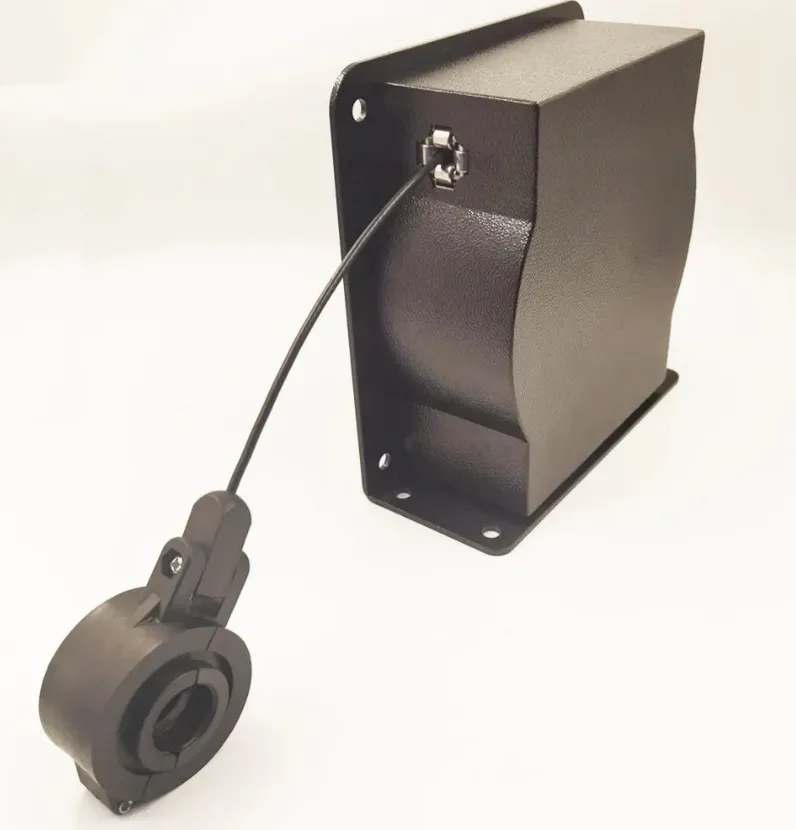

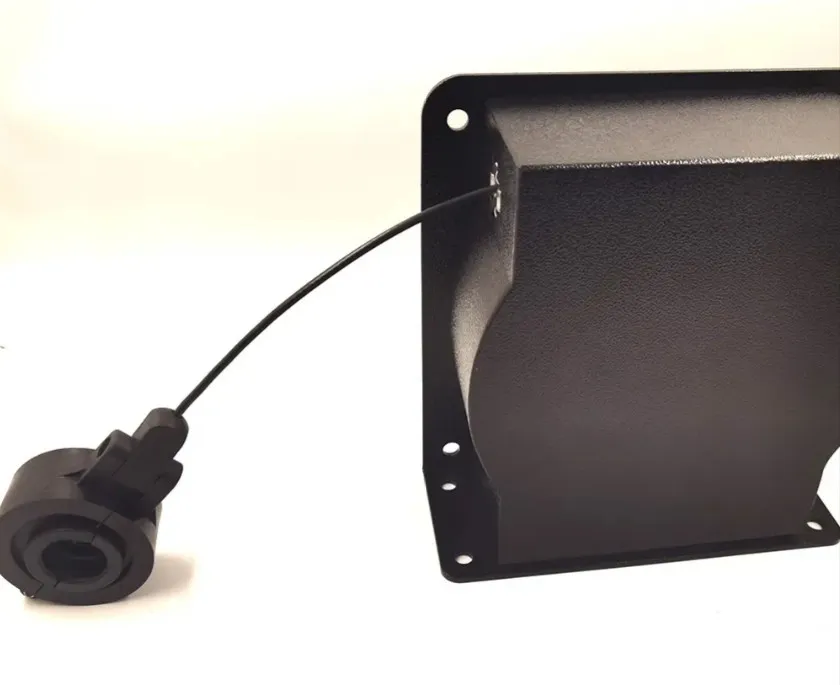

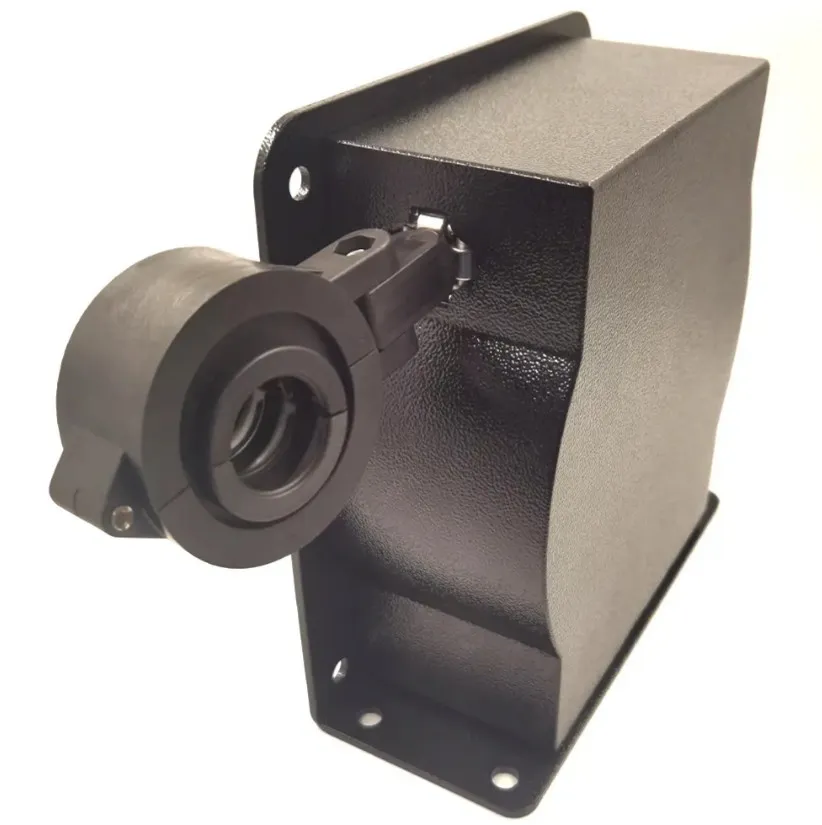

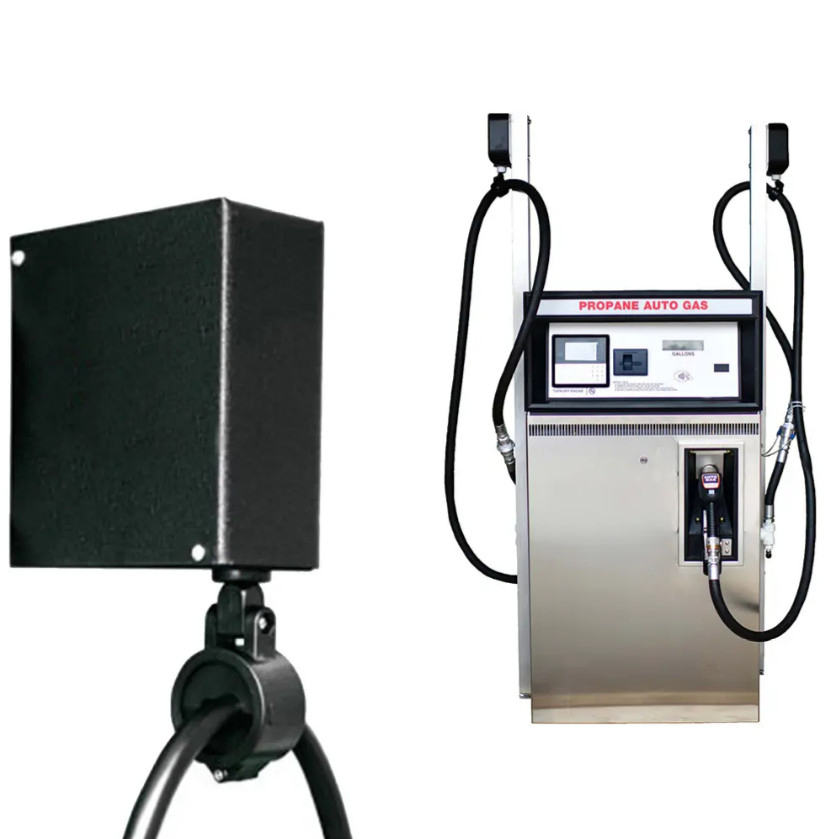

EV Charging Cable Retractor

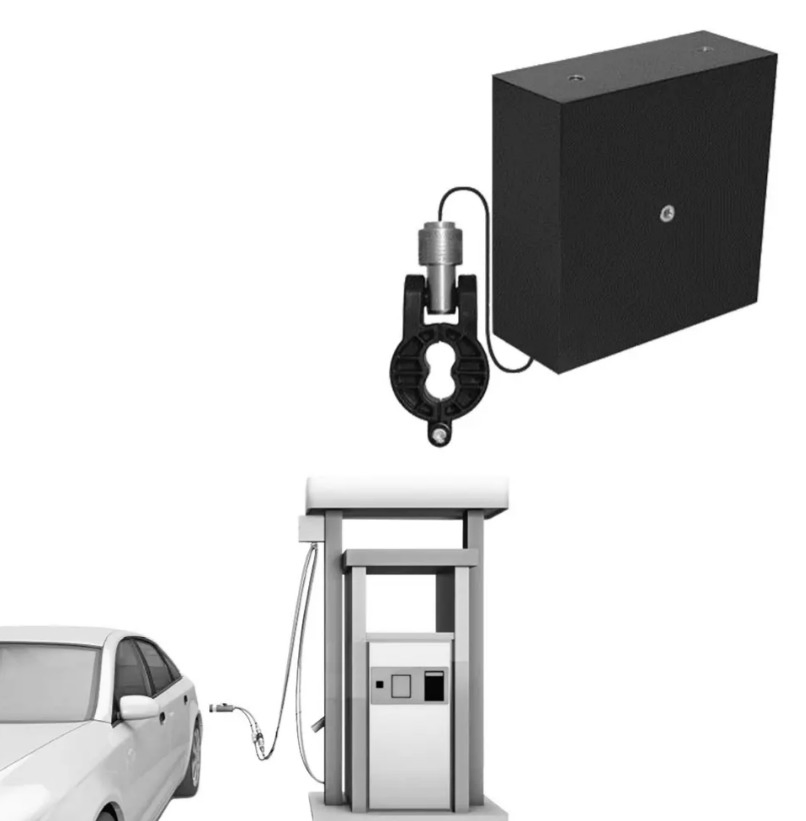

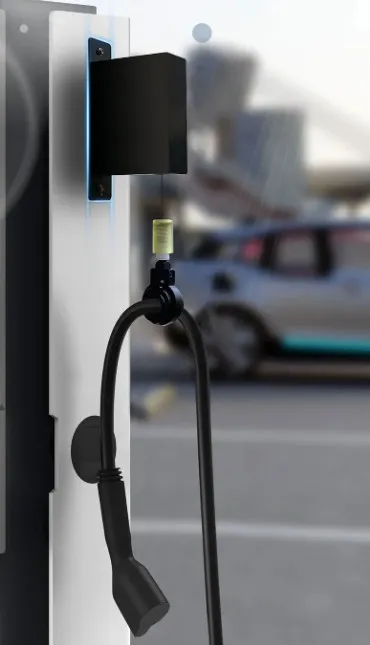

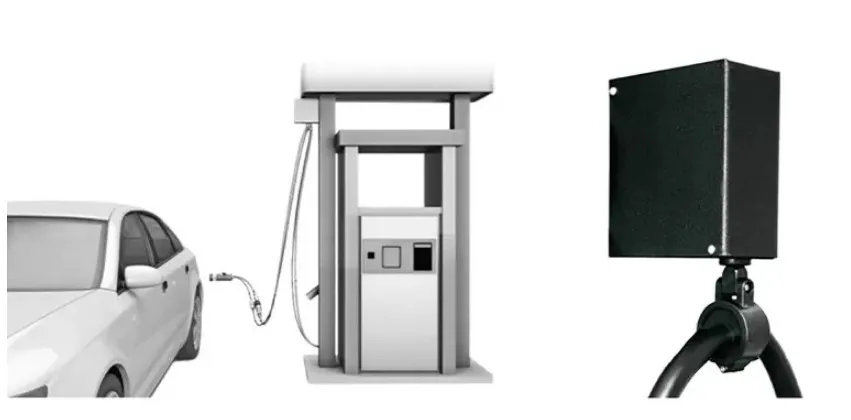

The device for rolling the EV charger cable is designed to maintain a "suspended" position for the cable, preventing it from touching the ground and minimizing friction. This effectively balances the tension from the coiled spring with the cable's own weight, enhancing the aesthetics of the charging station while also prolonging the lifespan of the cable.

Main Benefits:

  • The spring-loaded tether facilitates easy storage
  • Minimize cable wear and tear by keeping it off the floor
  • Prevents the cable from getting twisted and knotted
  • Compatible with cables up to 21mm in diameter

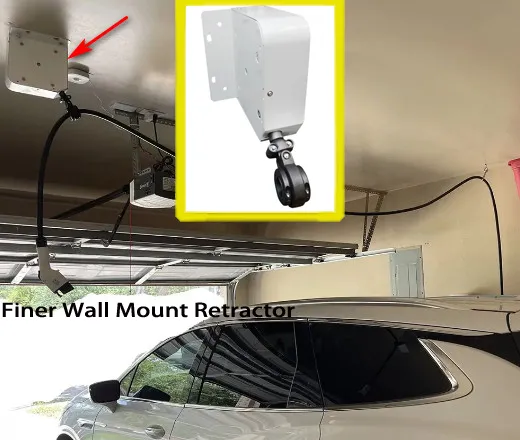

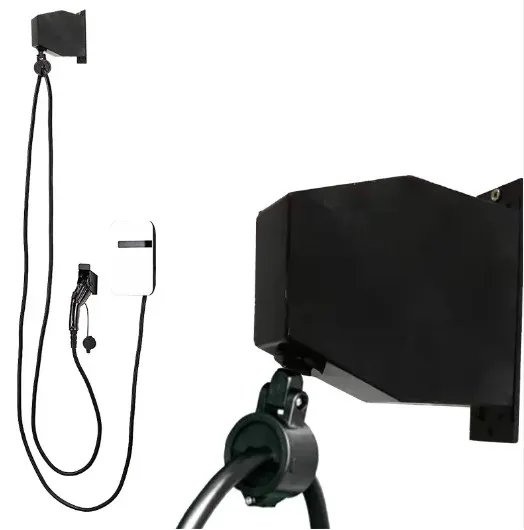

  • Straightforward installation (Wall or Pedestal mount)
Feature Details
Retract Tension5.0KG @Top Lifting / 4.0KG @Charging
Retract Range400CM
Fittable EV Cable0.82'' OD 5-7M / 0.59'' 7M

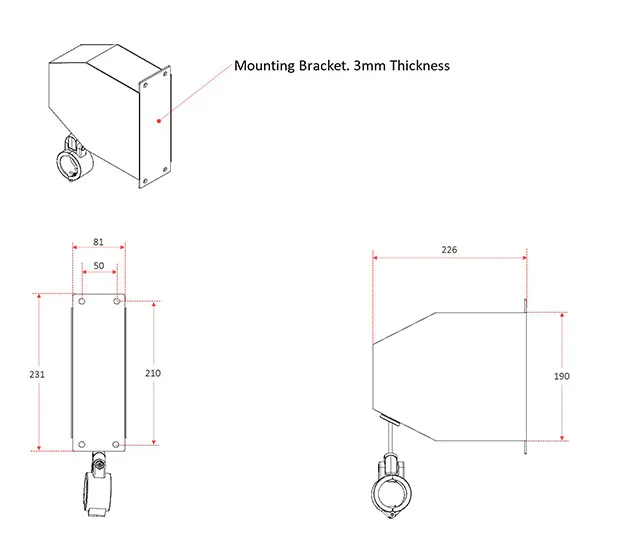

Housing MaterialSteel, Powder Coating
Paracord MaterialNylon, 500LBS

Charging Level Compatibility:

  • Level 1: Standard 120-volt charger cords.
  • Level 2: 240-volt chargers (Requires professional installation).
  • DC Fast Charging: High-powered public site charging systems.

Service & Warranty

Lead Time: Ships in 10 workdays via Sea, Air, or Express Courier (UPS, FedEx, DHL).

Warranty: One-year warranty covering quality problems. We offer free replacements for machines or accessories or a full refund if issues occur within the warranty period.

Frequently Asked Questions

1. What is the primary function of the EV cable retractor?
It uses a spring-loaded tether to hold the charging cable aloft, preventing it from touching the ground, reducing wear and tear, and keeping the charging area organized.
2. Does the product include the EV charger and cord?
No, the retractor is a cable management device only. The EV charger and charging cord are not included.
3. What size cables are compatible with this device?
The system is compatible with EV charging cables up to 21mm in diameter and supports retract ranges up to 400cm.
4. How is the retractor installed?

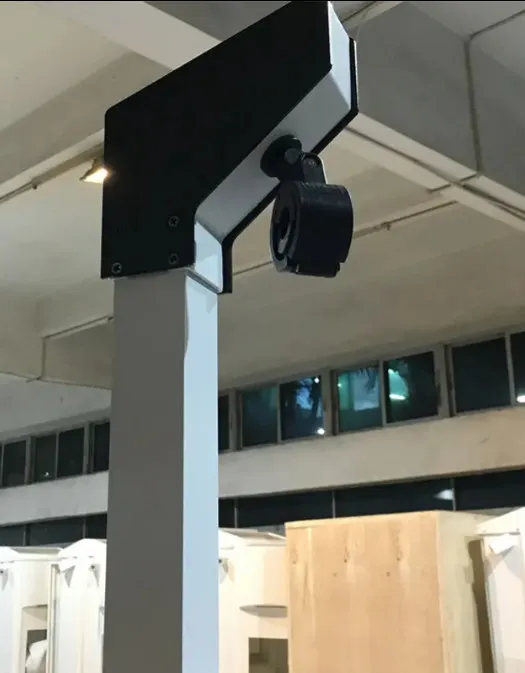

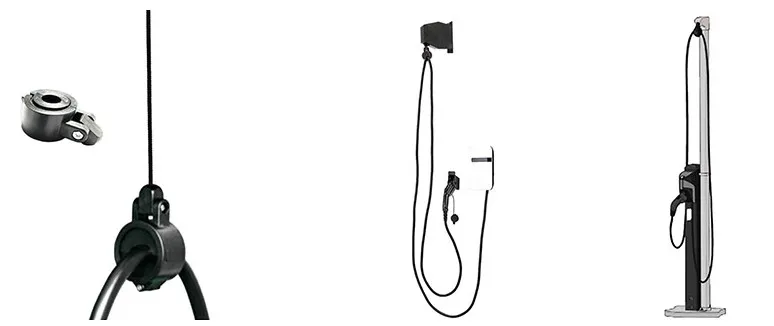

It offers flexible mounting options including wall-mount, pole-mount, or pedestal/ground installation using a straightforward screw-in design.
5. What is the tension strength of the retraction spring?
It provides a top lifting tension of 5.0KG and a charging state tension of 4.0KG to protect the plug while in use.
6. What kind of warranty is provided?
The product comes with a one-year warranty. If any quality issues arise within this period, we provide free replacement parts or a full refund.
