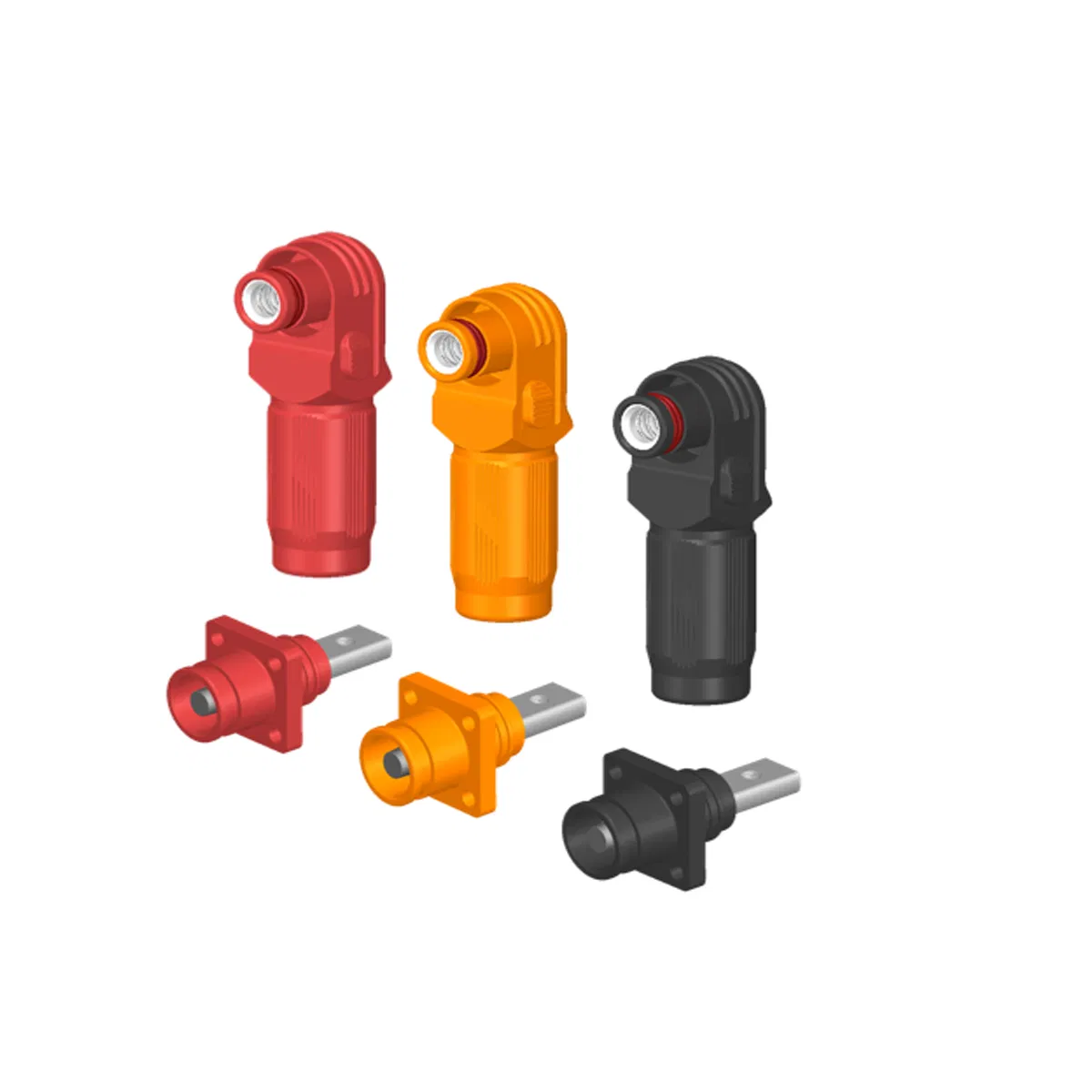

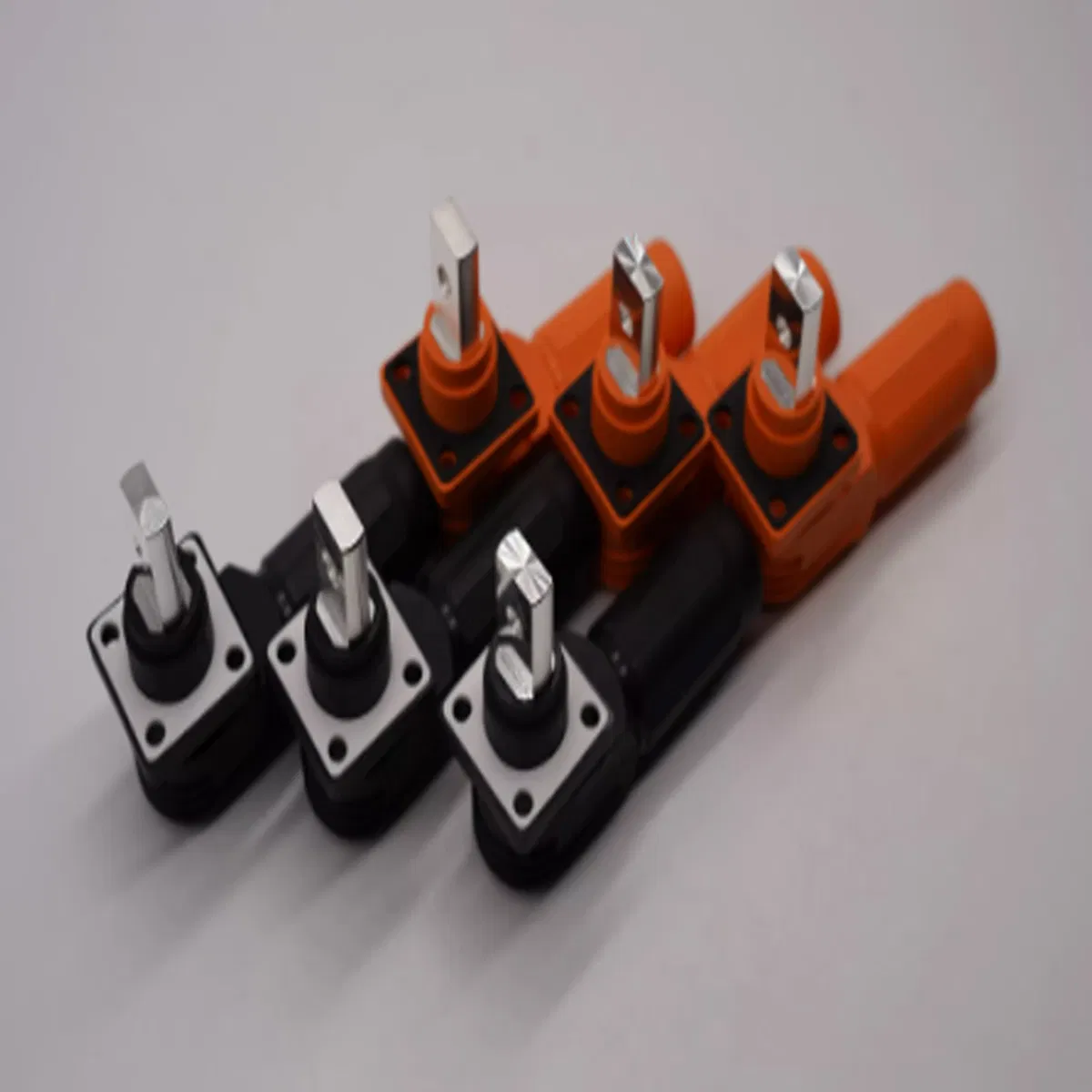

IP67 Waterproof and Dustproof 150A High Current Energy Storage Connector
IP67 Waterproof and Dustproof 150A High Current Energy Storage Connector
IP67 Waterproof and Dustproof 150A High Current Energy Storage Connector
IP67 Waterproof and Dustproof 150A High Current Energy Storage Connector
IP67 Waterproof and Dustproof 150A High Current Energy Storage Connector
1 / 5
IP67 Waterproof and Dustproof 150A High Current Energy Storage Connector
IP67 Waterproof and Dustproof 150A High Current Energy Storage Connector
IP67 Waterproof and Dustproof 150A High Current Energy Storage Connector
IP67 Waterproof and Dustproof 150A High Current Energy Storage Connector
IP67 Waterproof and Dustproof 150A High Current Energy Storage Connector

IP67 Waterproof and Dustproof 150A High Current Energy Storage Connector

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚙️

Basic Info & Specifications

Model NO.
GV-302
Electrolyte
Li-ion
Rated Voltage
1000V DC
Rated Current
150A 200A 250A 350A 500A
IP Grade
IP67 Waterproof
Dielectric Strength
3000V AC
Durability
100,000 Times
Insulation Resistance
1000ohm Min
Origin
China
Capacity
500,000 PCS/Year

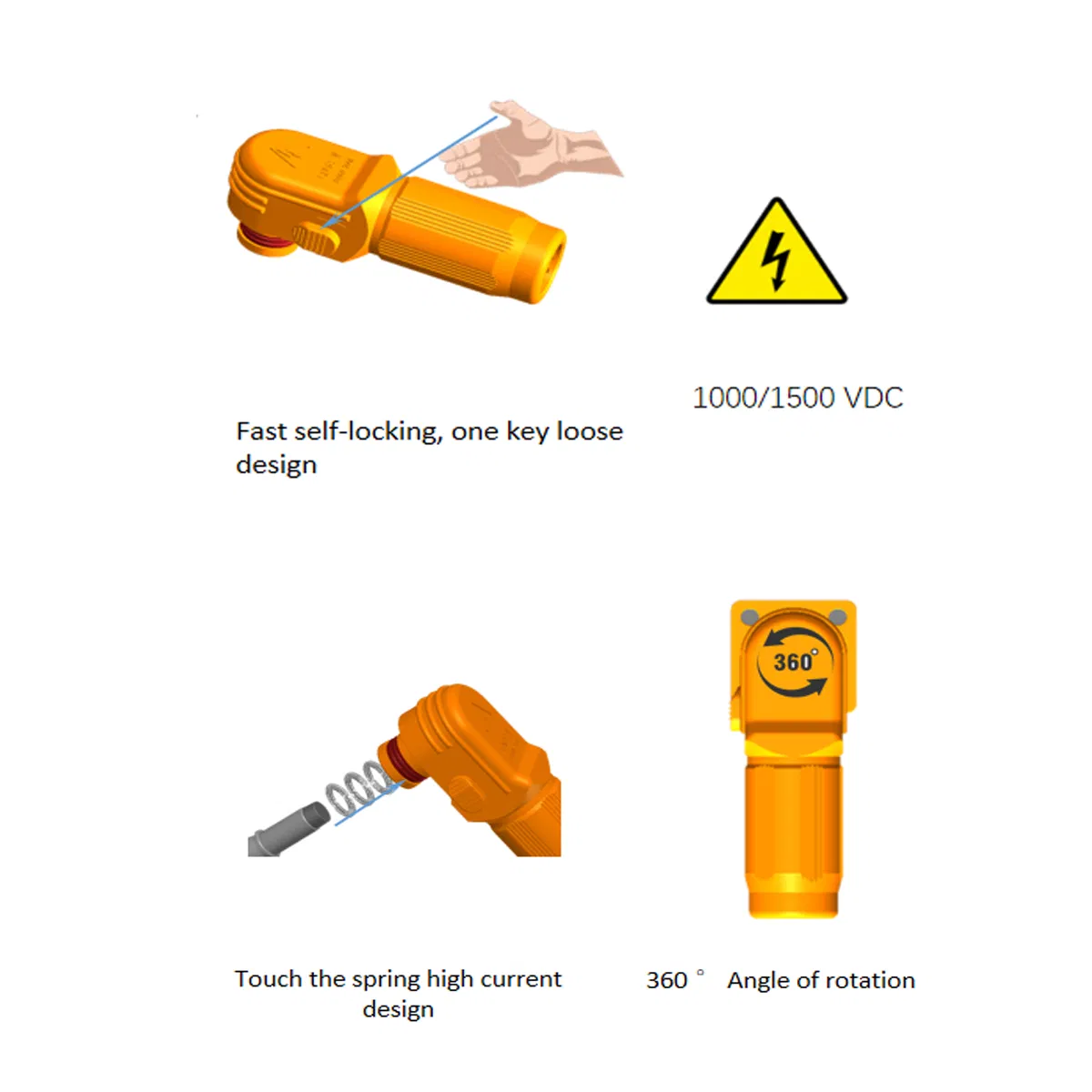

🔄 360° Rotation

Flexible installation

🛡️ IP67 Rated

Water & Dust proof

🔌 Quick Release

Side press release

💎 Crown Spring

Stable connection

📝

Product Description

The T4.2×8.2-25 6mm type energy storage connector series is designed for high-performance power management, primarily featuring 60A, 80A, and 120A ratings. It incorporates critical safety features including key position error prevention and positive/negative color coding to ensure secure operation.

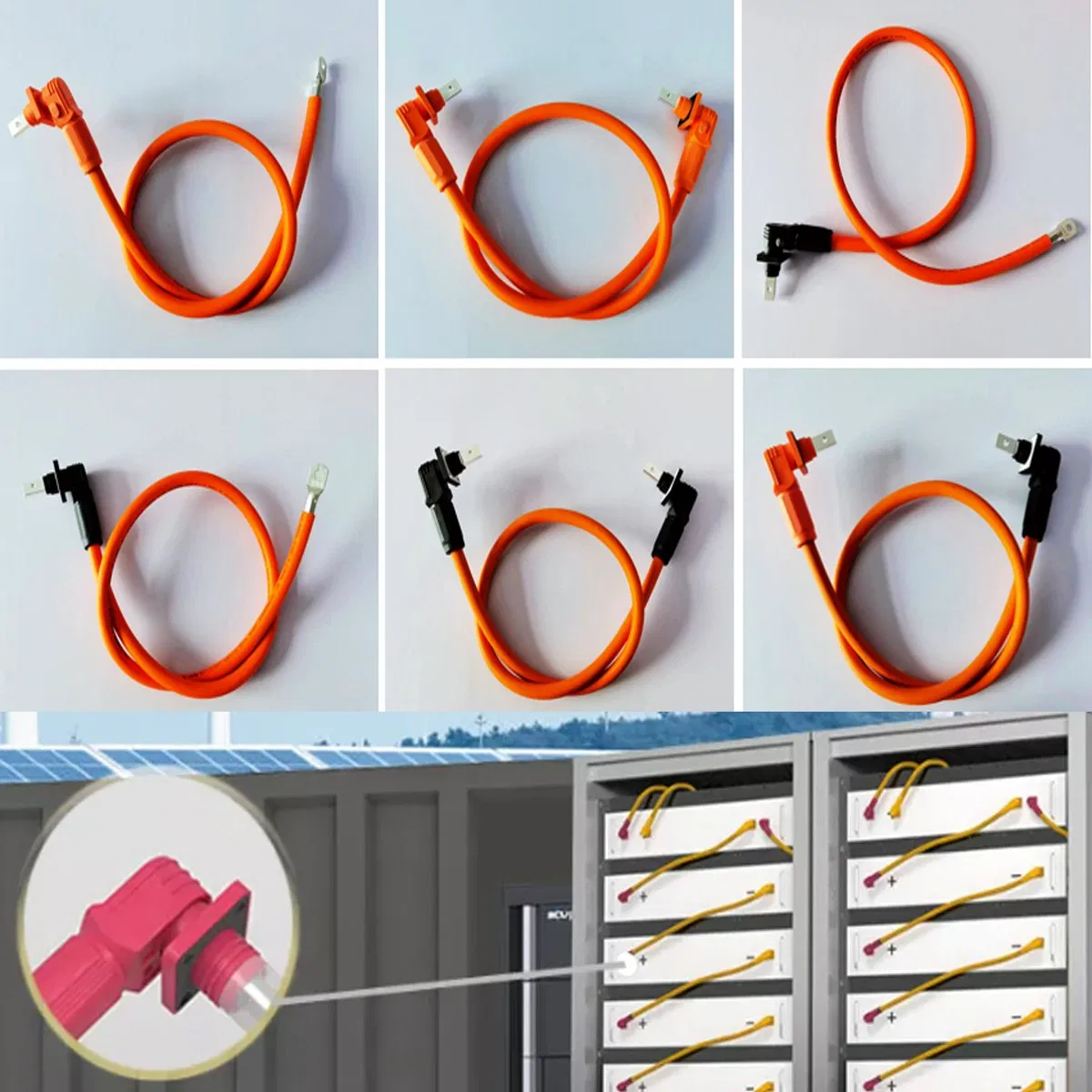

Compatible with 10 mm², 16 mm², and 25 mm² high-voltage cables, it is the ideal solution for high-voltage connections in energy storage cabinets, storage stations, mobile energy vehicles, and photovoltaic power stations.

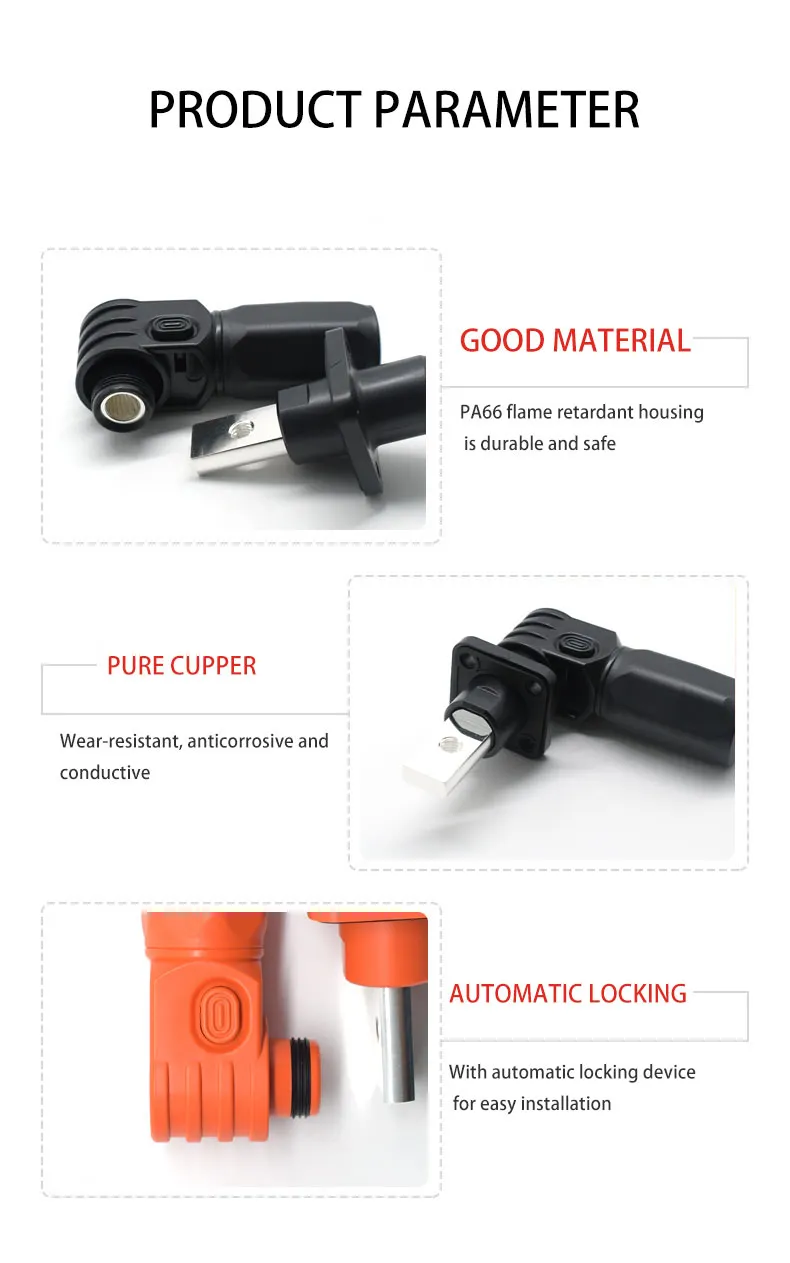

Lamp MaterialPA66 plastic

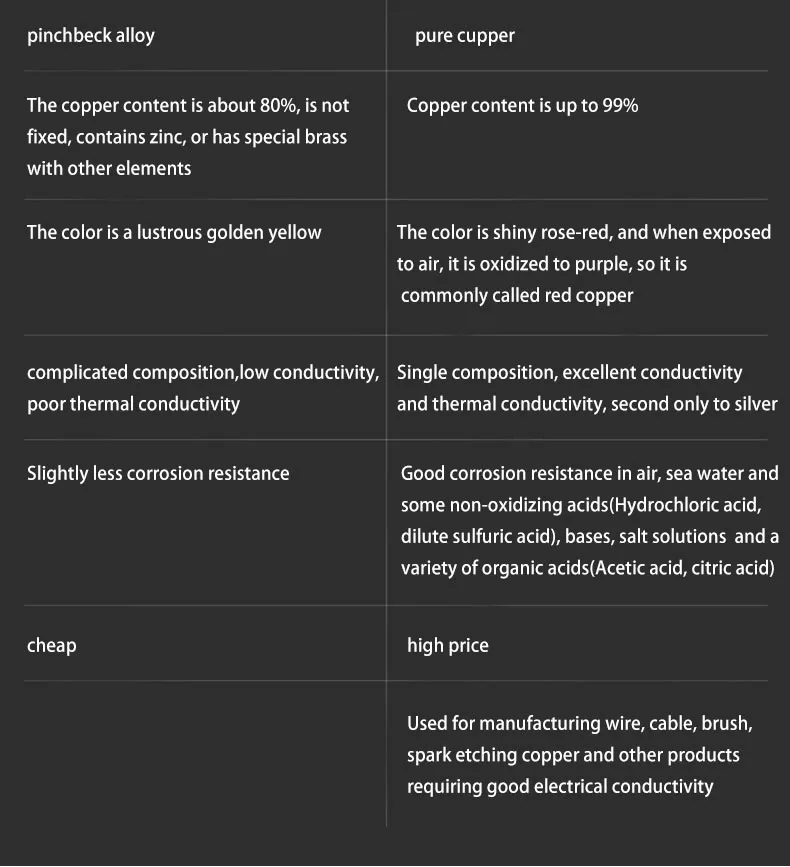

ConductorRed copper
Corrosion ResistanceExceedingly good
Current Rating60~350A
Temperature Rise30K
Rated Voltage1000V DC
Durability100,000 times
🖼️

Product Showcase

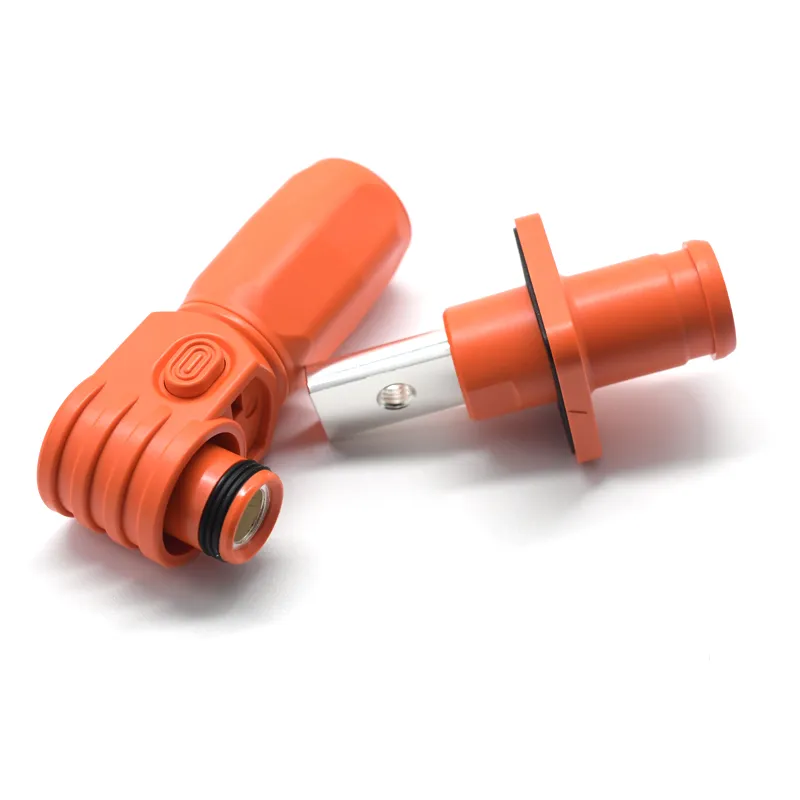

Energy Storage Connector 1

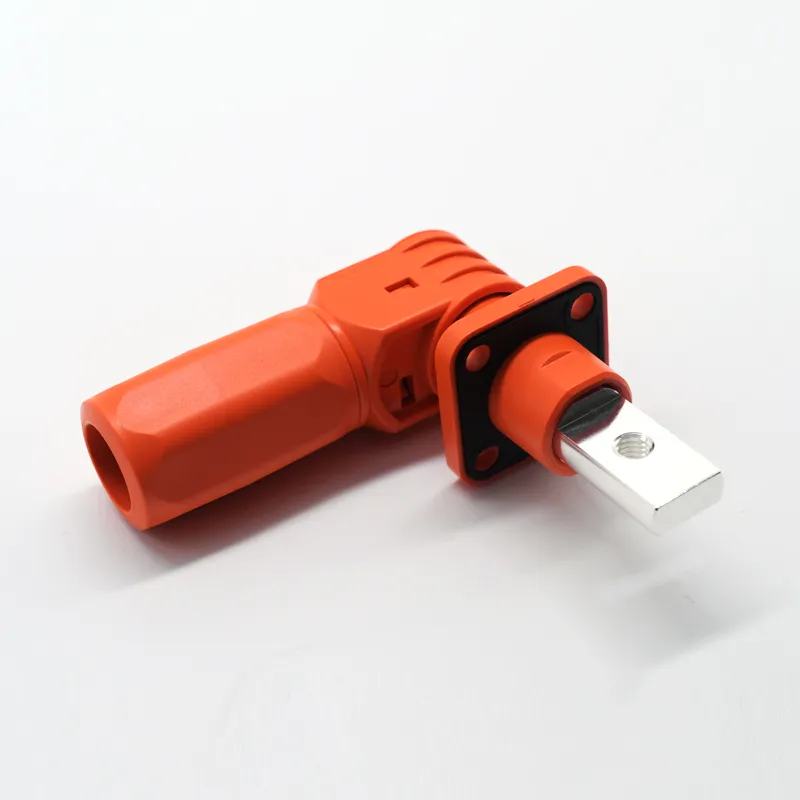

Energy Storage Connector 2

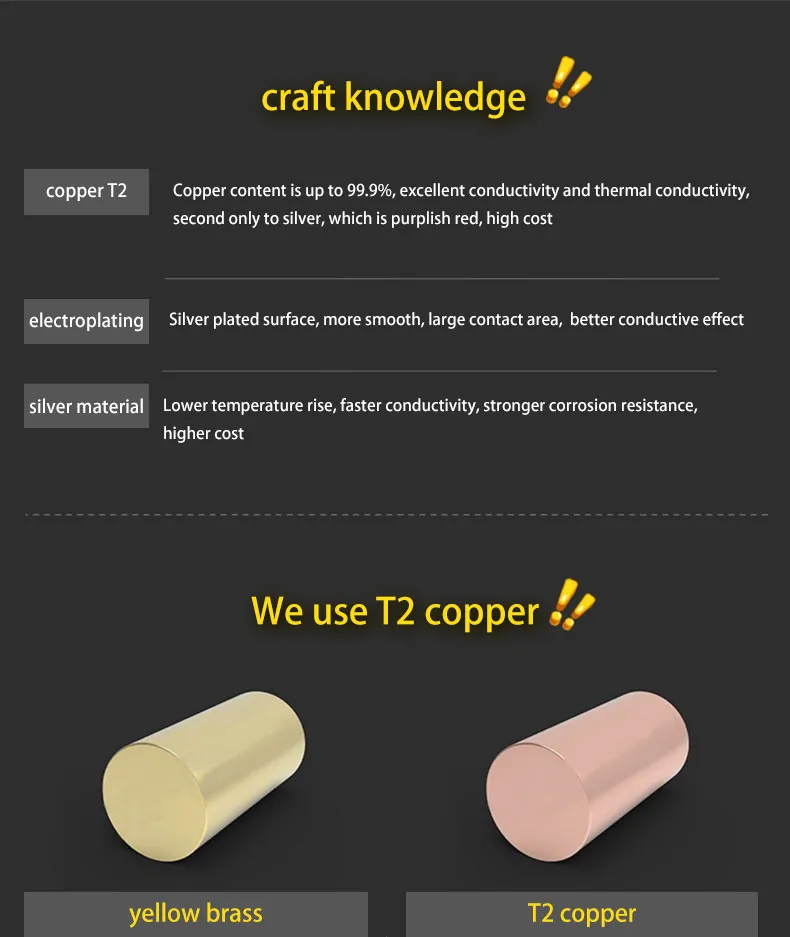

Energy Storage Connector 3
Energy Storage Connector 4
Energy Storage Connector 5
Energy Storage Connector 6
Energy Storage Connector 7

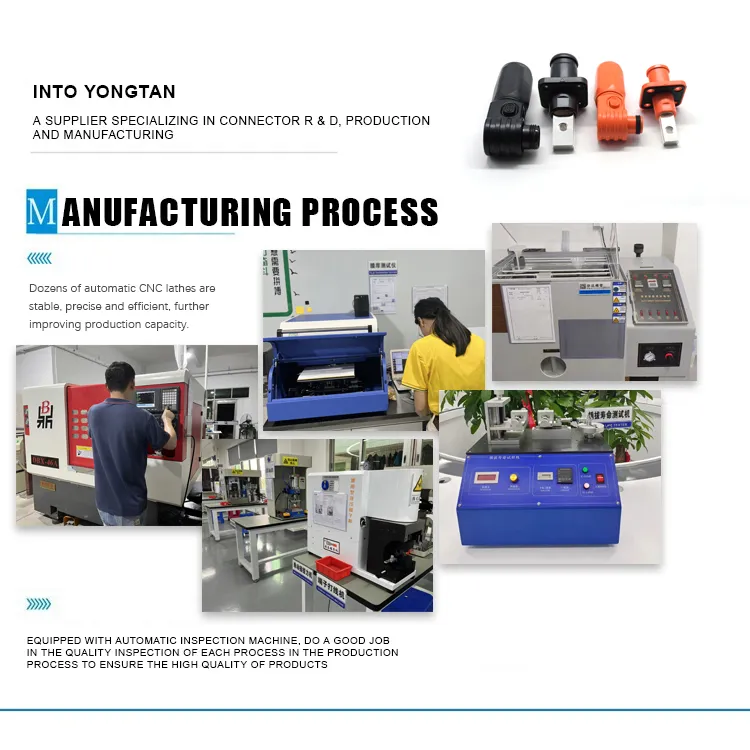

Energy Storage Connector 8
❓

Frequently Asked Questions

1. What is the IP rating of this energy storage connector?
The connector is rated IP67, making it highly resistant to both dust and water immersion.
2. Can the plug be rotated after installation?
Yes, it features a rectangular structure that allows for 360° free rotation, making it easy to install in various orientations.
3. What cable sizes are compatible with this series?
It is designed to correspond with 10 mm², 16 mm², and 25 mm² high-voltage cables.
4. What materials are used for the conductor and housing?
The housing is made of PA66 plastic for high durability, and the conductor is made of high-quality red copper.
5. What is the rated voltage and durability?
The connector is rated for 1000V DC and has a mechanical durability of up to 100,000 plug cycles.
6. How does the safety release mechanism work?
The device utilizes a side press one-key release system for quick and safe disconnection.
