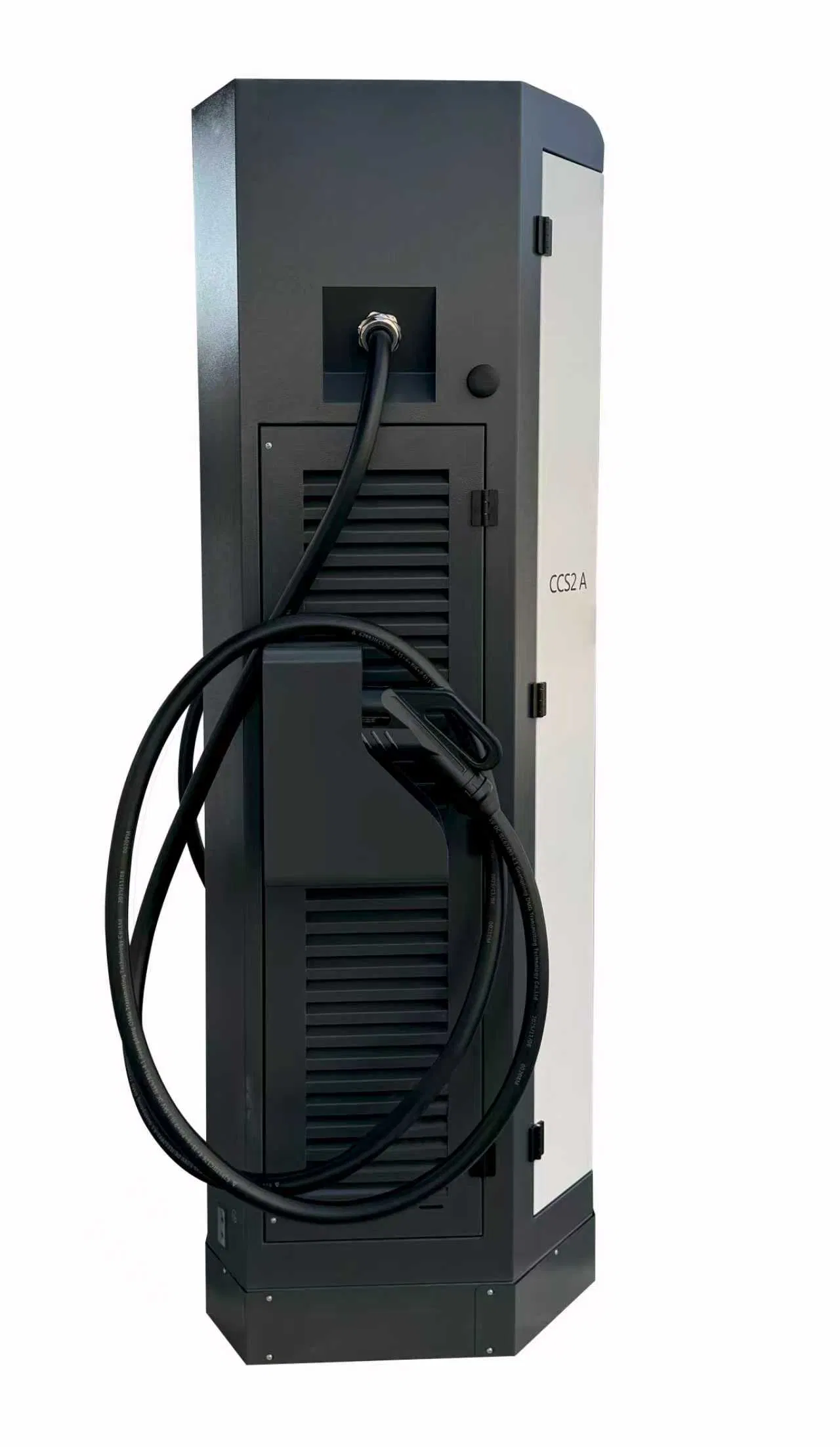

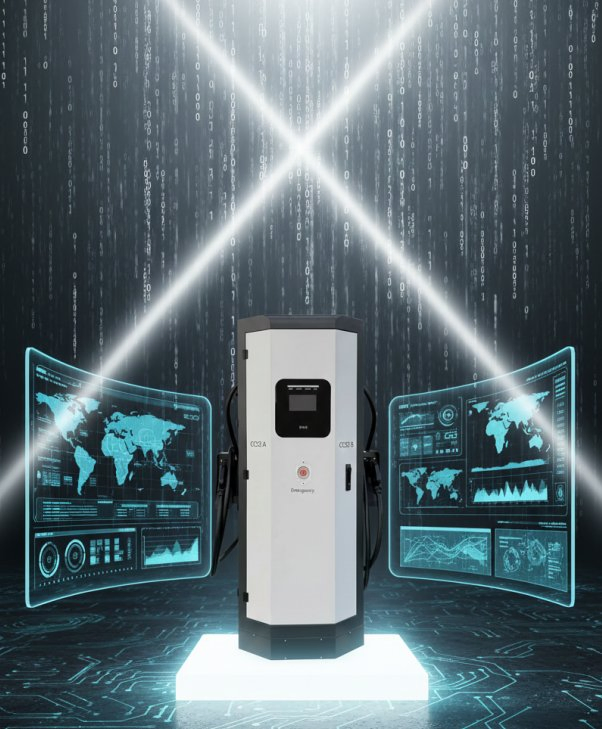

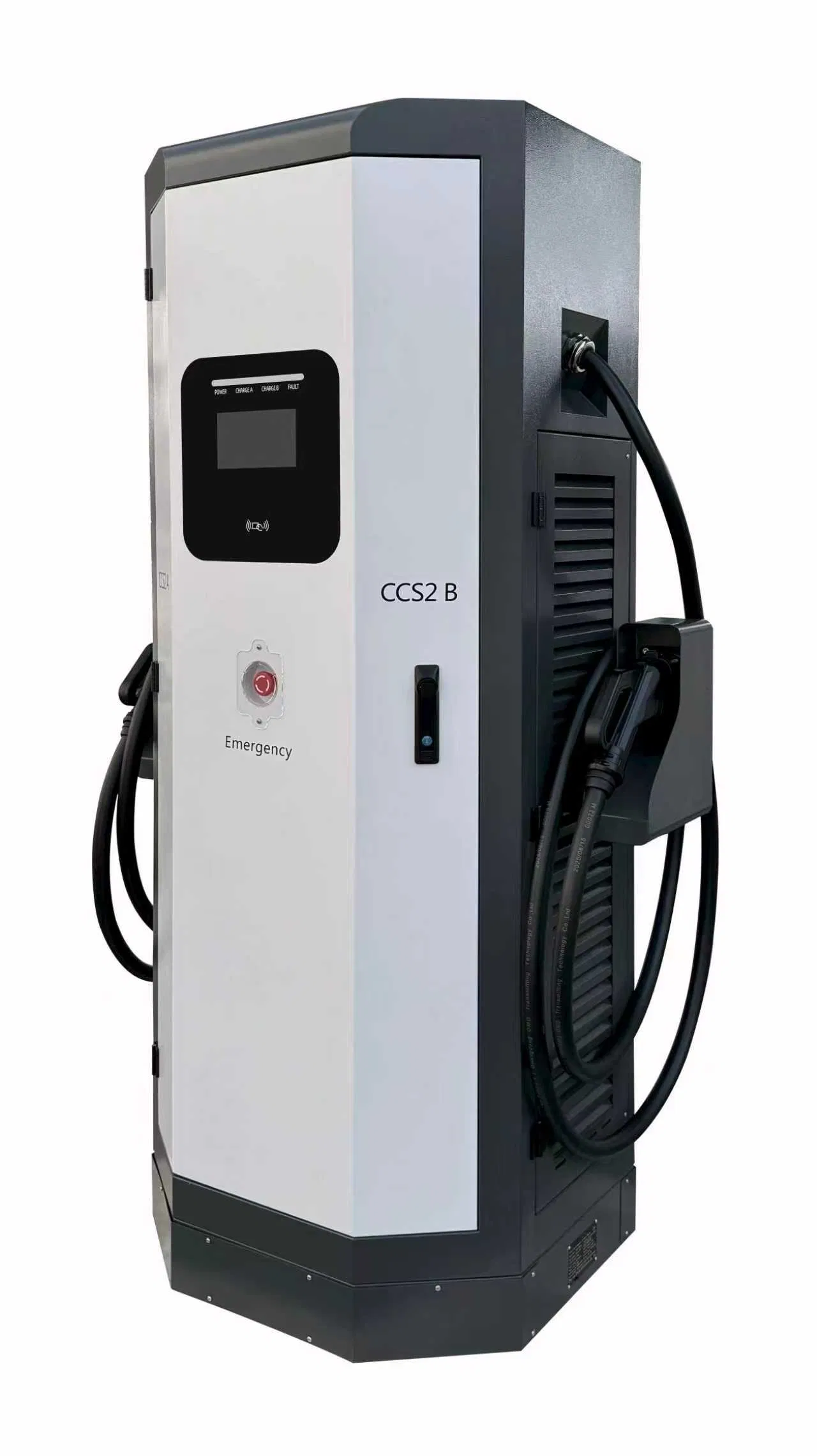

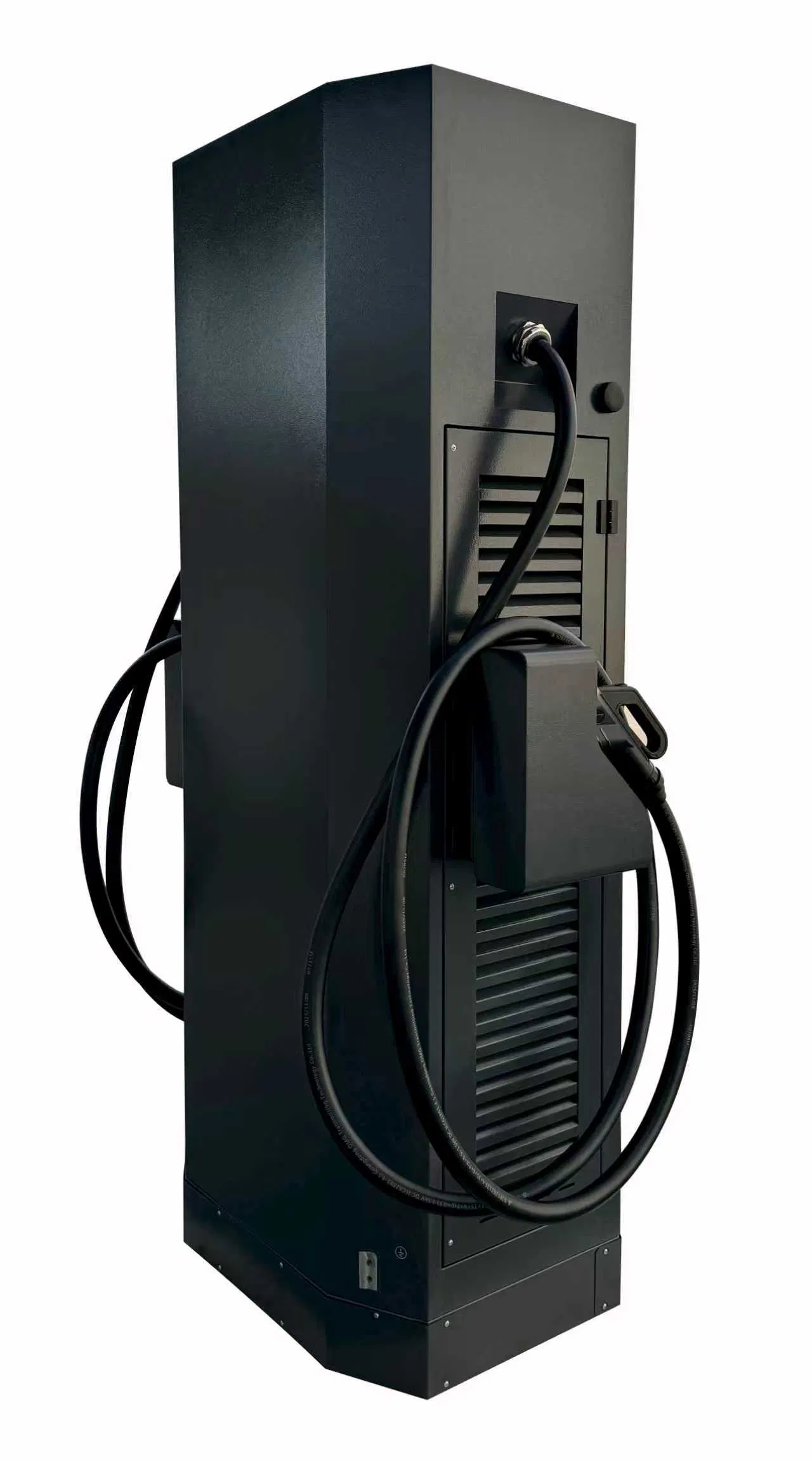

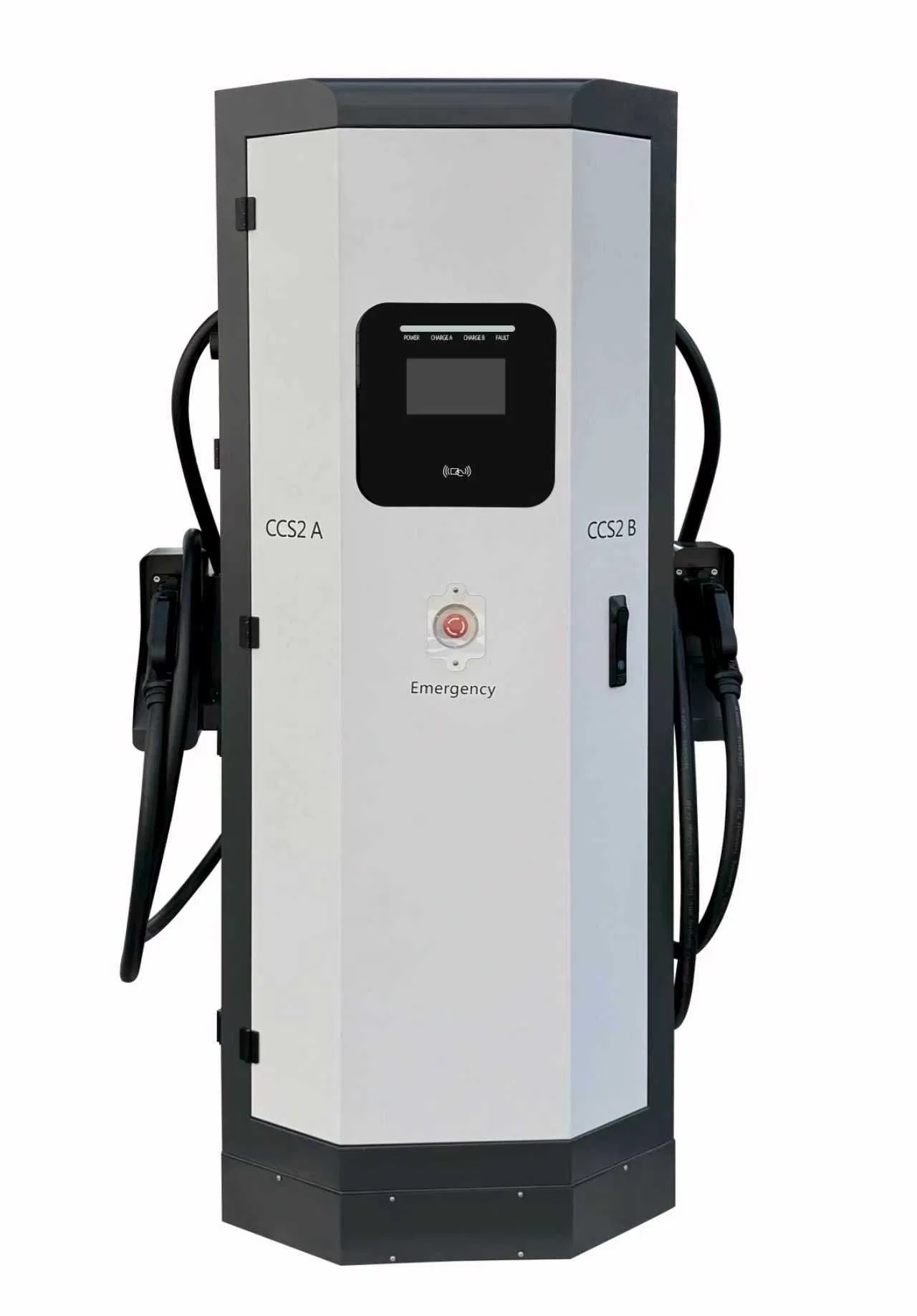

K061 Commercial EV Charging Equipment with Dual Front-End Power Interfaces

i

Basic Information

Model NO.

K061 DC Charging with Double Front Guns

Start Mode

Credit Card, RFID, Scanning Codes

Input Voltage

AC 380V±20% 3 Phase

Output Voltage

DC 120-320kw

Protection Level

IP54

Certification

CCC, CE, ISO, TUV

P

Product Description

S

Technical Specifications

Power Range	DC 120-320KW
Input Voltage	AC 380V±20% 3 Phase
Rated Output Voltage	DC 150-1000V
Frequency	50-60Hz
Communication Protocol	OCPP 1.6J
HMI Display	7-Inch Touch Screen
Cable Length	5m
Charging Method	4G / Ethernet / RFID
Connector Type	CCS1 / CCS2 / CHADEMO / GBT
Operating Temperature	-30°C to +60°C
Product Size	800 x 720 x 1900 mm
Net Weight	320 KG

C

Profile & Capabilities

We are an intelligent EV charging station manufacturing technology center demonstration enterprise. Our product range covers power outputs from 7kw up to 360KW. We provide comprehensive OEM and ODM services with over 5 years of specialized experience in the global market. All products meet CE, ISO, and IP54 testing standards, ensuring reliability and performance in various environments.

F

Frequently Asked Questions

What charging interfaces are supported by this station?

The charging station is highly compatible, supporting CCS1, CCS2, CHADEMO, and GBT connectors to accommodate various electric vehicle models.

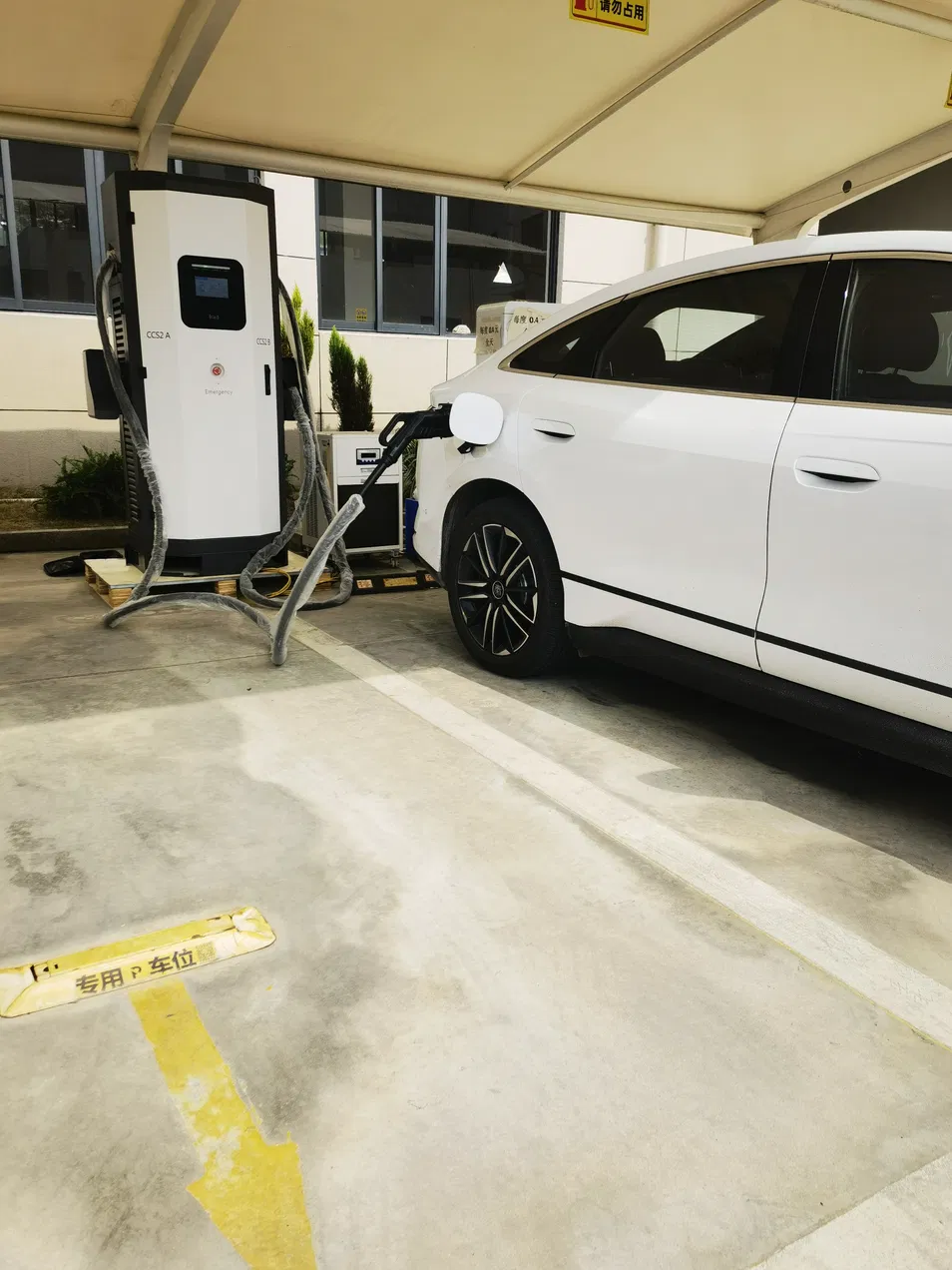

Is the station suitable for outdoor public use?

Yes, the station is designed with an IP54 protection level and can operate in temperatures ranging from -30°C to +60°C, making it ideal for outdoor and public environments.

How can users initiate the charging process?

Users can start charging through multiple convenient methods, including RFID cards, credit card payments, or by scanning QR codes via a mobile app.

Does the system support remote monitoring?

Yes, it utilizes the OCPP 1.6J communication protocol and supports 4G and Ethernet connections for remote management and monitoring.

What is the standard packaging for shipping?

Generally, the products are fixed and transported using high-durability cardboard shells combined with wooden stakes or wood cartons to ensure safety during transit.

What kind of after-sales service is provided?

The product comes with a standard 24-month (2 year) warranty and after-sales support to ensure long-term operational stability.
