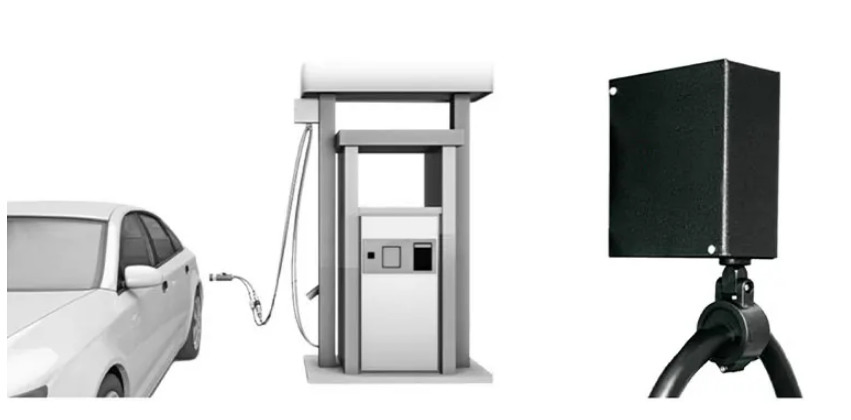

Level 2 AC EV Charger Cable Management System Cord Retractor Pedestal Wall Mount Spring Reel Balancer EV Charger Cable Retractor Level 2 Charging Station Cable

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
FR
Type
Auto Hood
Position
EV Cable Retractor
Material
Steel
Color
Black/White
OEM
Yes
MOQ
1
Package
Cartons
HS Code
84242000
Origin
China

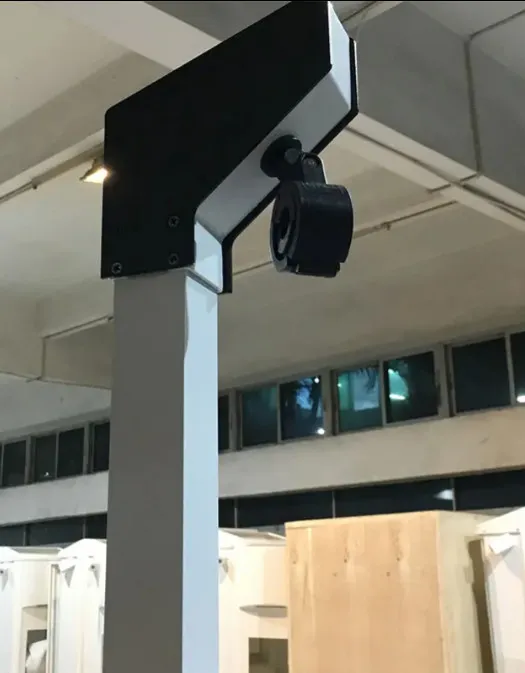

EV Charger Cable Management System

The device for rolling the EV charger cable is designed to maintain a "suspended" position for the cable, preventing it from touching the ground and minimizing friction. This effectively balances the tension from the coiled spring with the cable's own weight, enhancing the aesthetics of the charging station while also prolonging the lifespan of the cable.

⚙️
Functionality: The EV Cable Retractor helps to manage and store your Level 1 or Level 2 charging cable by holding it aloft and keeping it tidy. This device uses a spring-loaded tether to hang and store the cable, ensuring a safe, neat, and orderly environment.

Key Benefits

  • Spring-loaded tether facilitates easy storage
  • Minimizes cable wear and tear by preventing floor dragging
  • Prevents the cable from getting twisted and knotted
  • Enhances charging safety by reducing tripping hazards
  • Straightforward installation (Wall mount or pedestal)
  • Compatible with cables up to 21mm in diameter
Cable Retractor Benefits

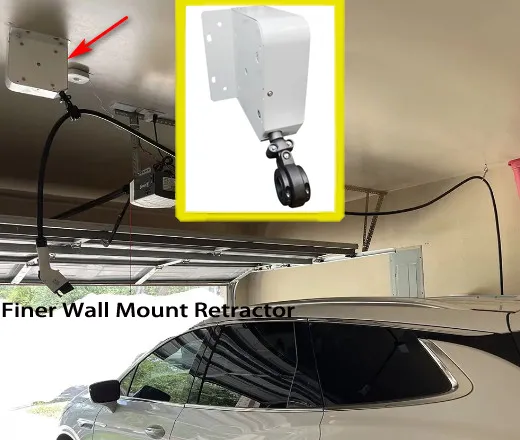

Level 1 and Level 2 Charger Support

Technical Data

Retract Tension5.0KG @Top Lifting / 4.0KG @Charging
Retract Range400CM
Fittable EV Cable0.82'' OD 5-7M / 0.59'' 7M
Housing Enclosure MaterialSteel, Powder Coating
Paracord MaterialNylon, 500LBS

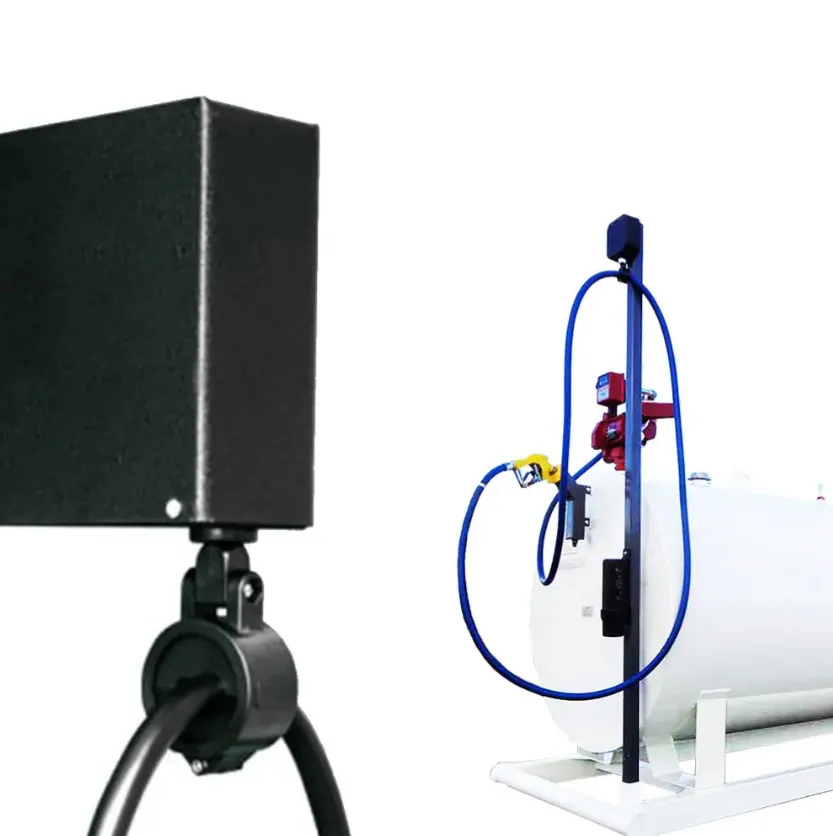

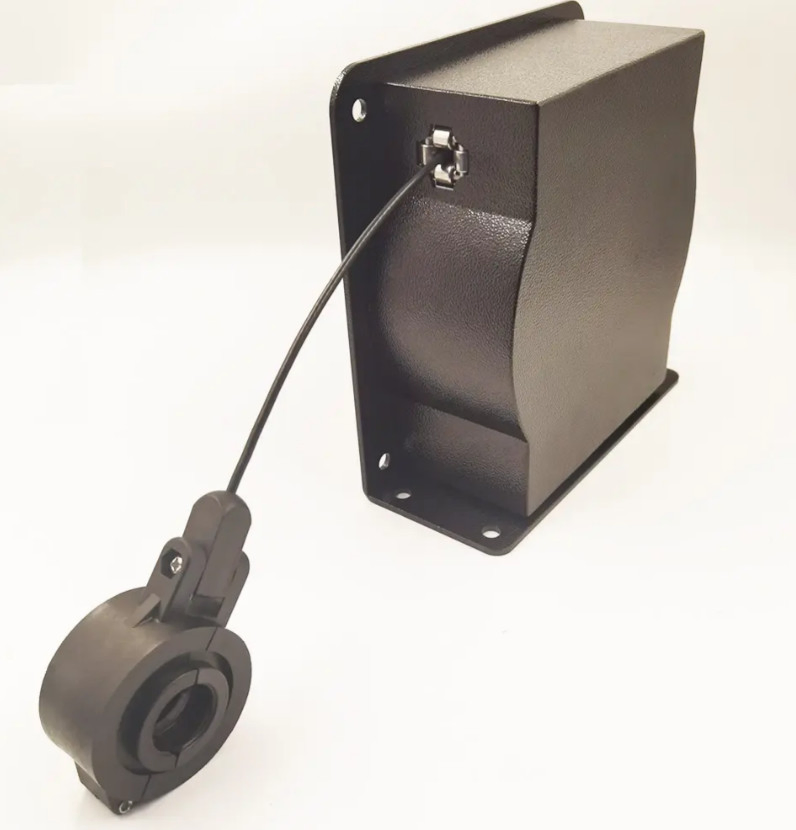

Retractor Details 1
Retractor Details 2
💡
Versatile Compatibility: Suitable for Level 1 (120V), Level 2 (240V), and managed cord solutions. The retractor keeps the area clean and uncluttered, decreasing the chance of driving over your cable.

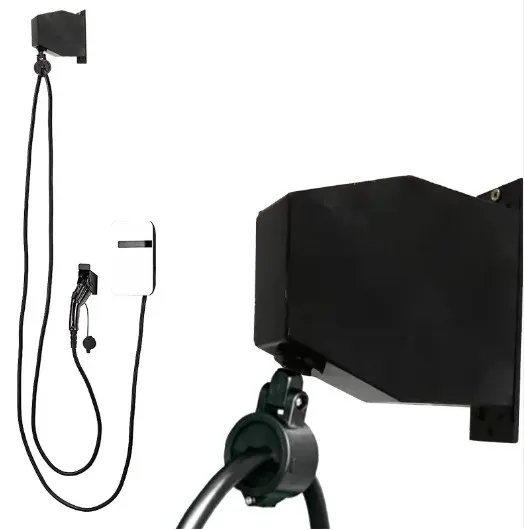

Installation View

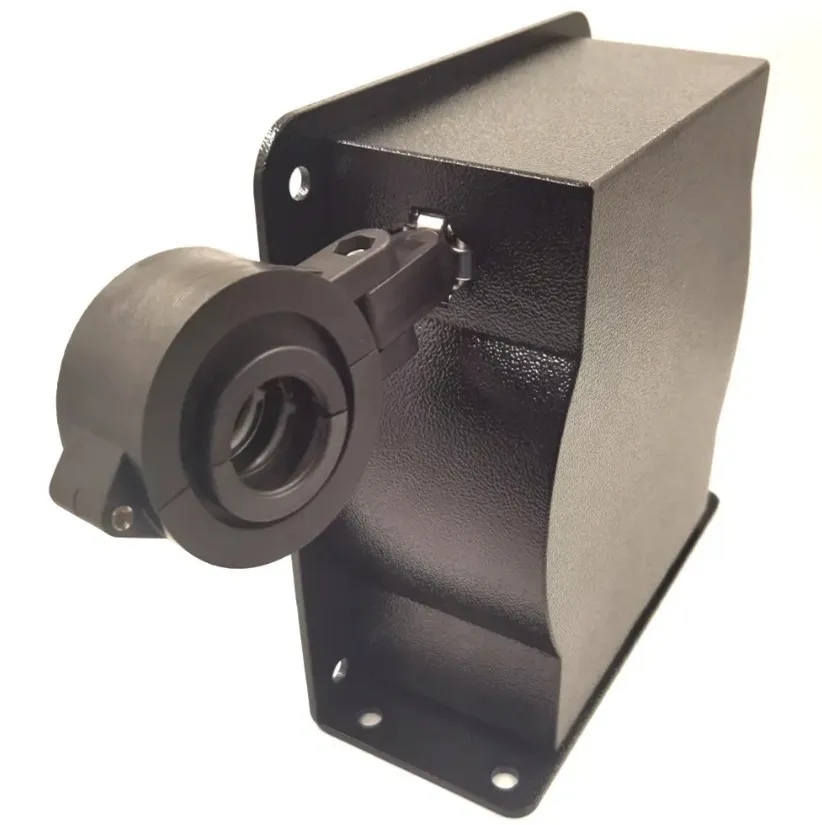

Cable Elevation

Shipping & Warranty

Lead Time: Ships in 10 workdays via Sea, Air, or Express (UPS, FedEx, DHL).

Warranty: One-year quality assurance. Within one year, any quality problems will be handled with free accessories or replacement.

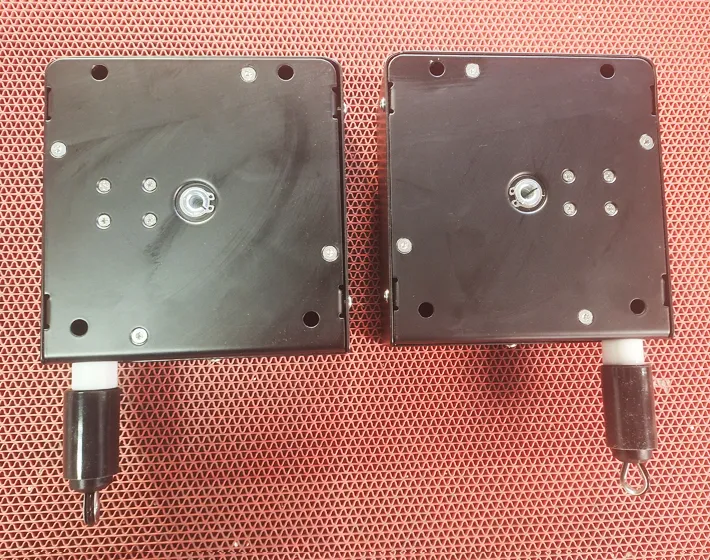

Packaging

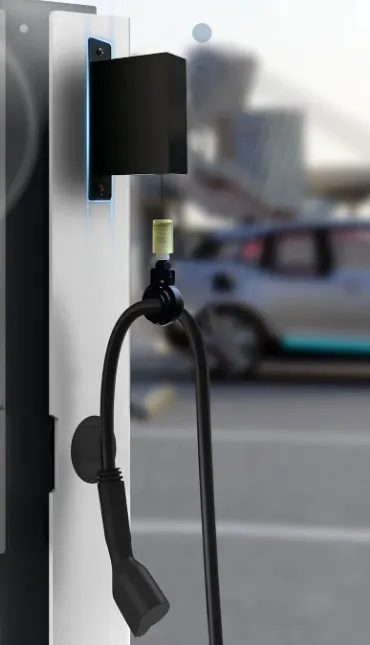

Support Structure

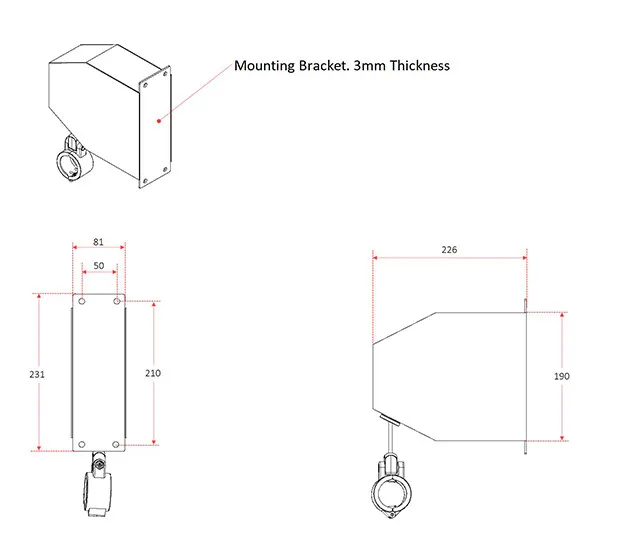

Retractable Device

The EV charger cable winder balances the accumulated elastic force of the scroll spring with the cable gravity. This creates a "suspended" state to avoid ground friction and extends the cable life. The system supports Wallmount, Polemount, or Pedestal/Ground installation.

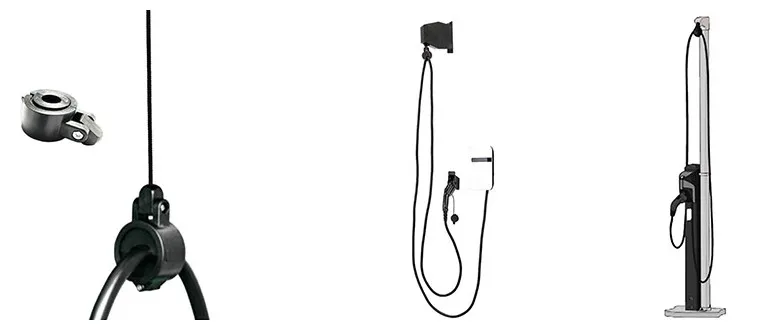

Mounting Options 1

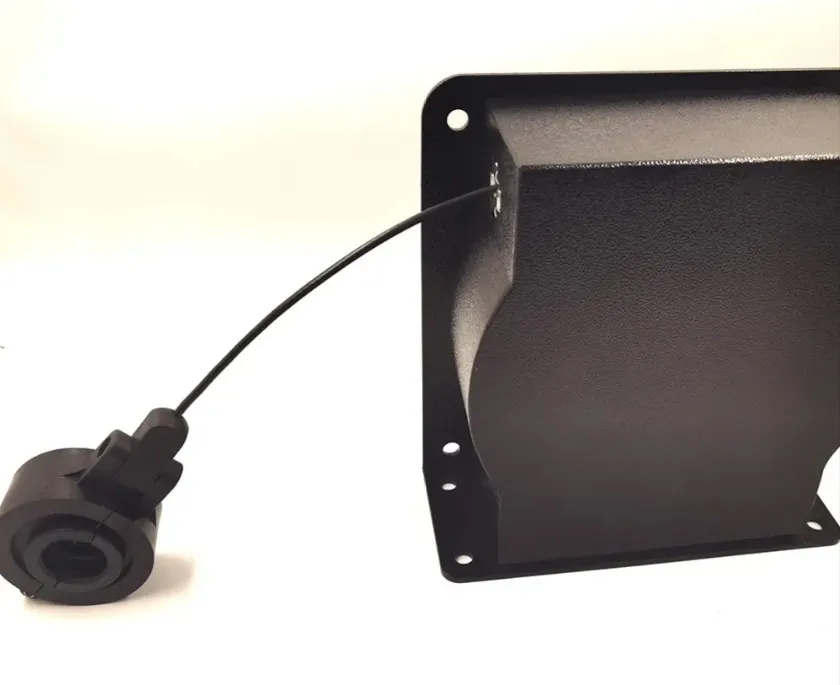

Mounting Options 2

Frequently Asked Questions

Q: Does the retractor include the EV charger and cable? A: No, the retractor is a cable management system and does not include the charger or the charging cord itself.
Q: What cable sizes are compatible with this device? A: It is compatible with EV charging cables that are up to 21mm in diameter.
Q: How does the "suspended" state benefit the cable? A: It keeps the cable off the ground, preventing wear and tear from friction, moisture, and being stepped on or driven over.
Q: What are the installation options for this retractor? A: The device offers flexible mounting options, including wall-mount, pole-mount, or pedestal/ground installation.
Q: What is the retract tension range? A: The system provides 5.0KG of tension at top lifting and decreases to 4.0KG during charging to protect the charging plug.
Q: What materials are used for the housing? A: The housing is made of durable steel with a powder-coated finish for long-lasting protection.
