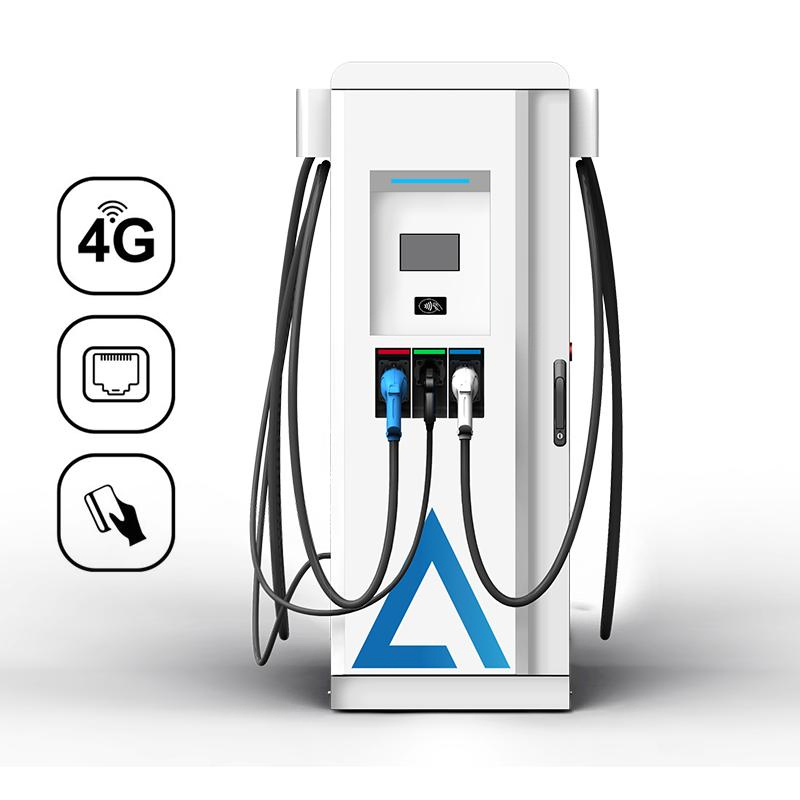

OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station

Customization: Available
Installation: Floor Type
Location: Public Use

Product Description

📋 Basic Information
Model NO. EF160 Charging Interfaces One Pile with Multiple Charges
Function RFID Supported OCPP Ocpp1.6j Supported
Screen 7 Inch Touch Screen Protection Grade IP54, IK10
Charging Type Mode 4 Charging Standard IEC 61851-1, IEC 61851-23, Chademo
Certification CE, TUV Warranty 12 Months
Product Description

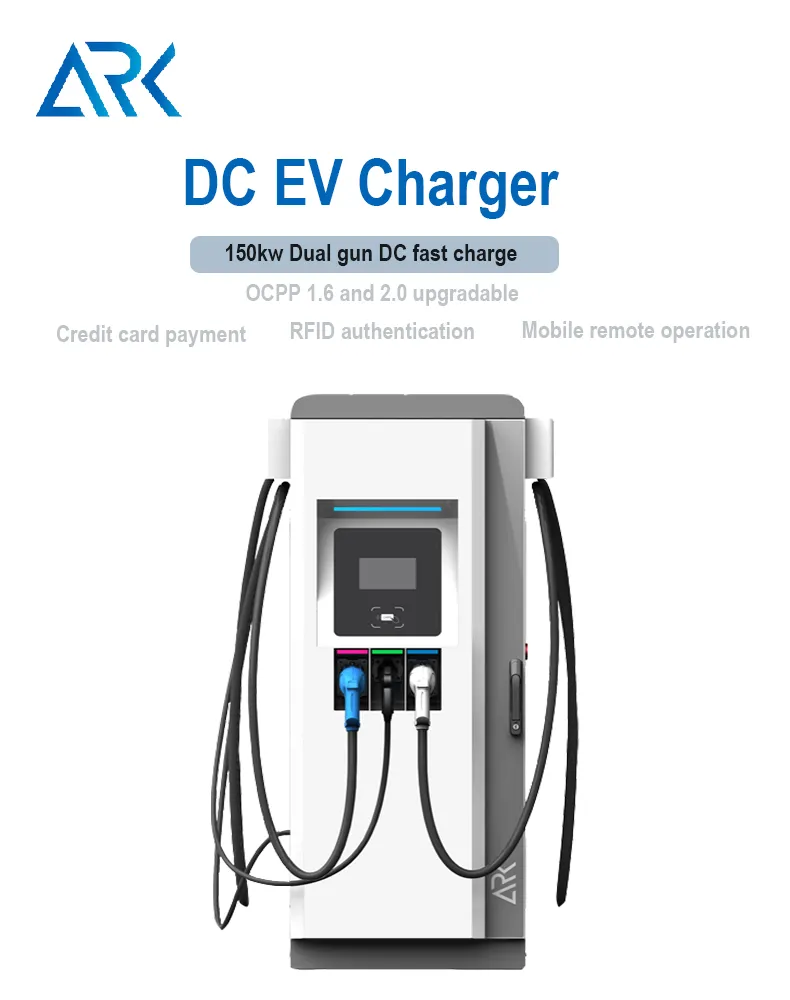

DC Fast Charger
EV Charging Station

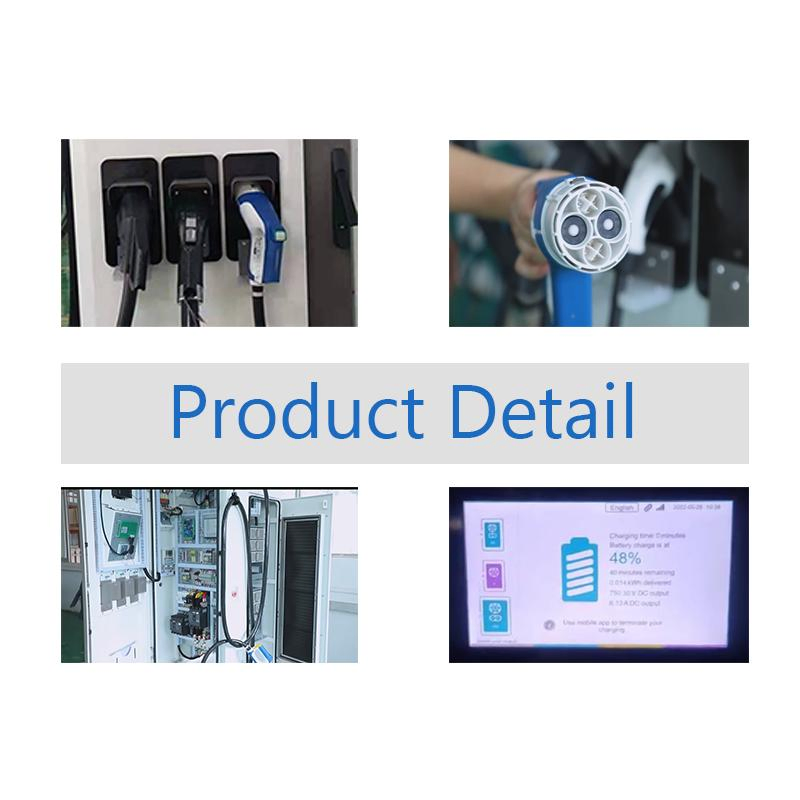

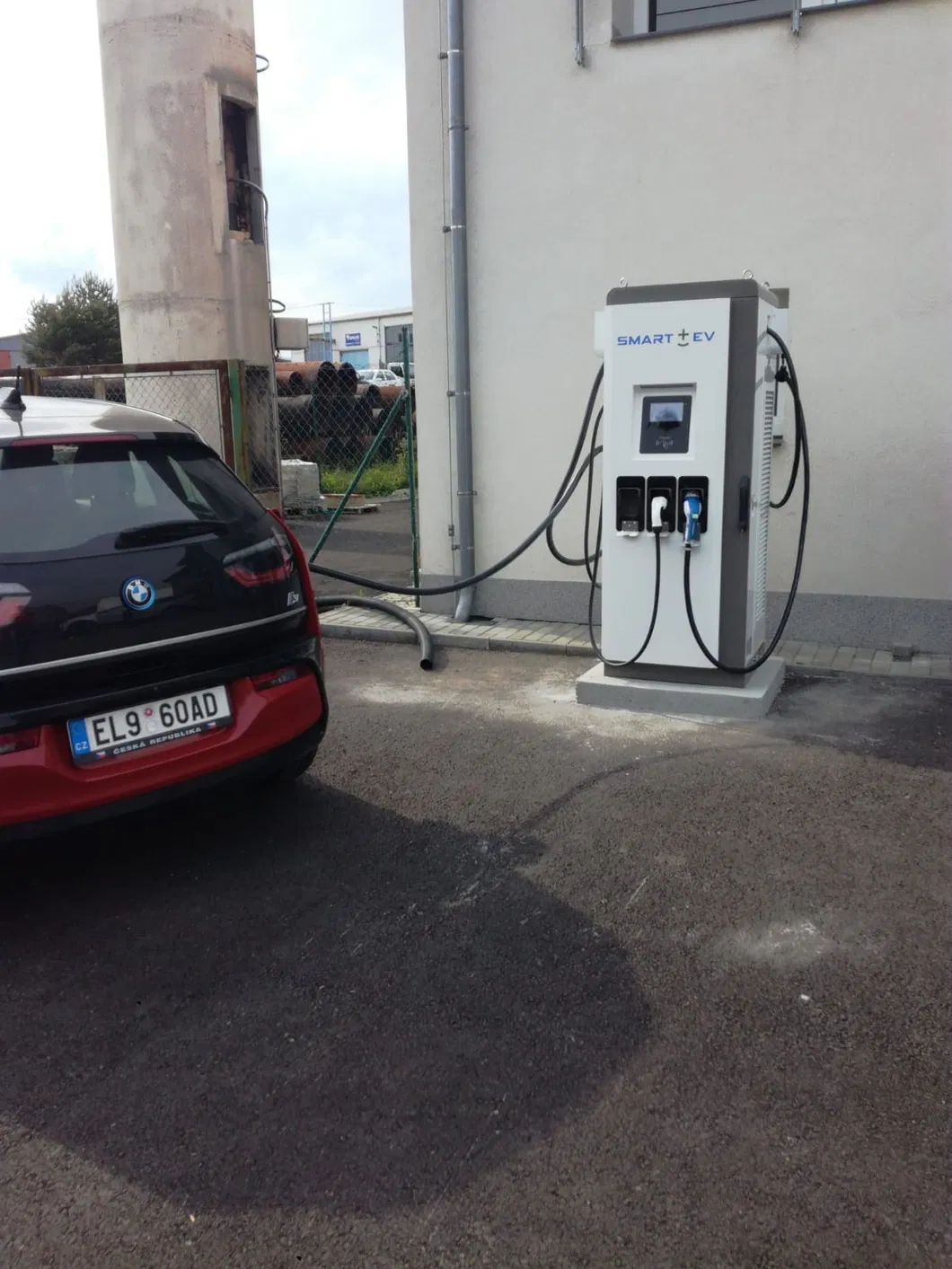

Fast Charger Details

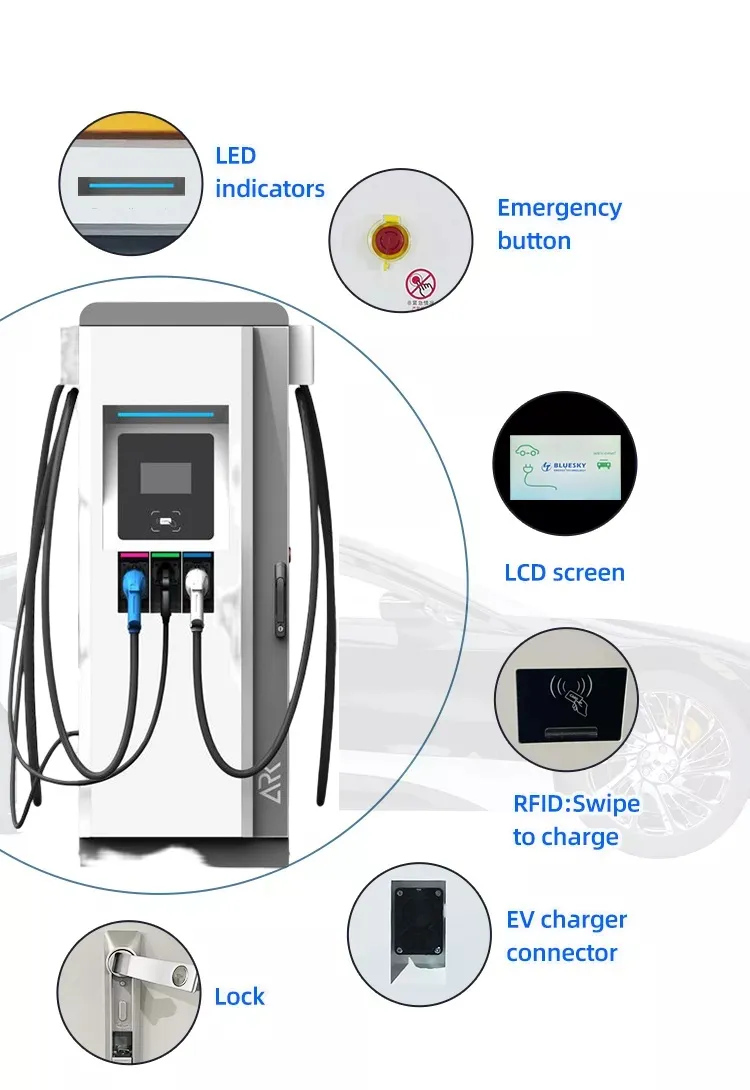

Technical Layout

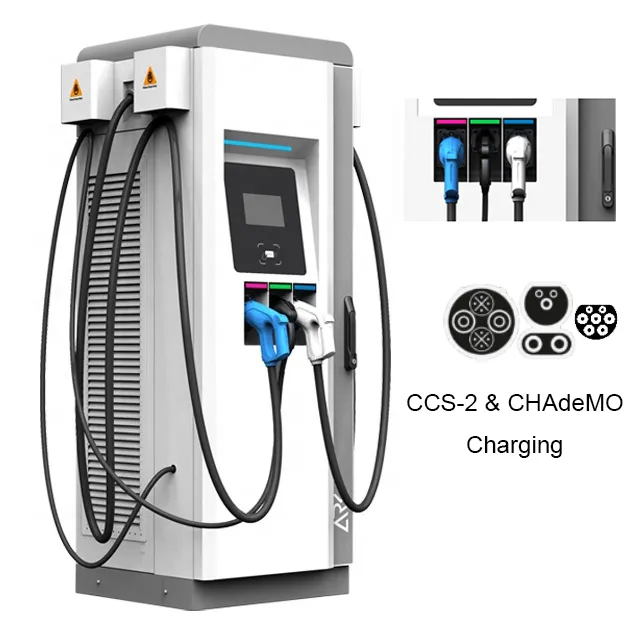

Interface View

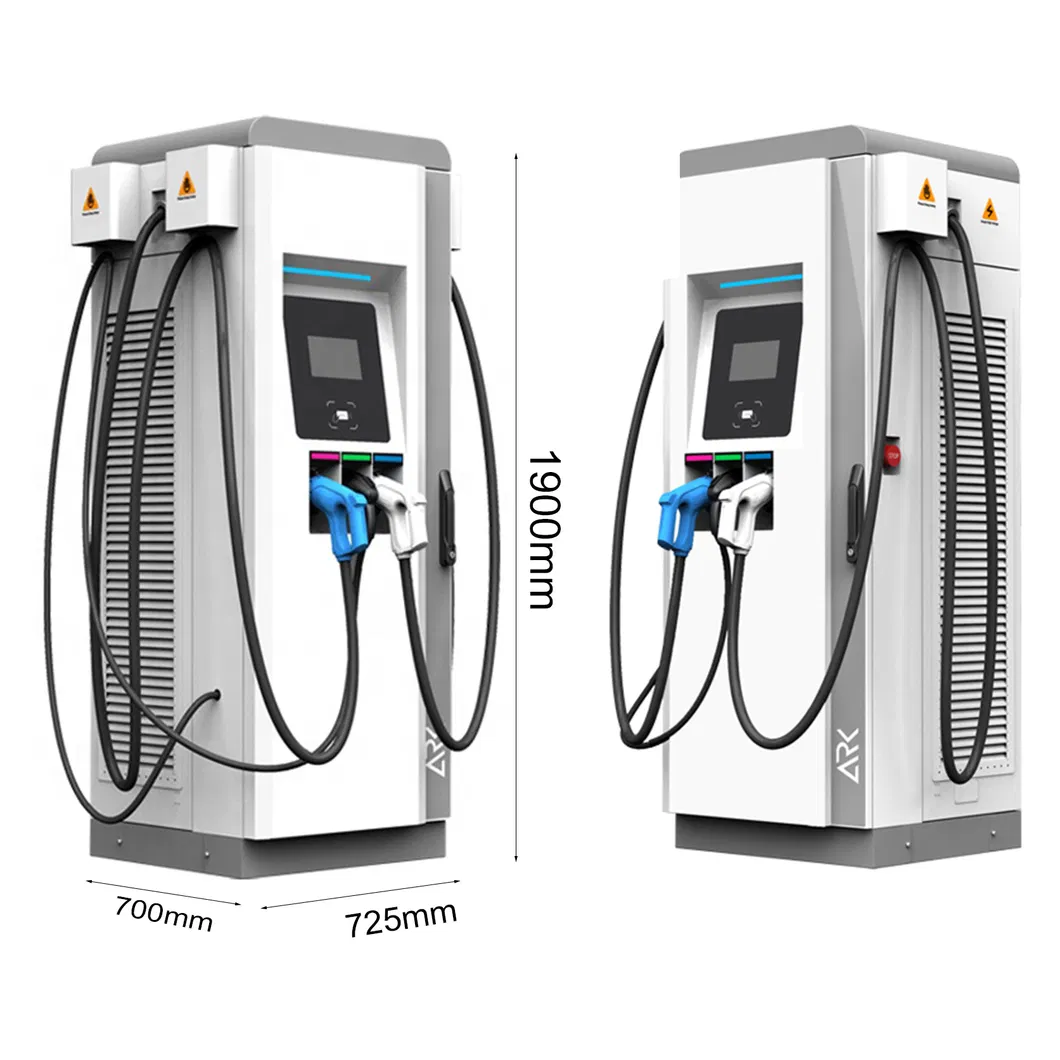

Unit Dimension
⚙️ Product Parameters
Specification Item Details
Electrical Specifications Input Voltage 400Vac 3-phase
Input Frequency 50Hz/60Hz
Rated Power 60kW or 120KW DC
Output Voltage CCS: 200 - 1000VDC, CHAdeMO: 200 - 500VDC
Output Current CCS: 0 - 200A, CHAdeMO: 0 - 125A
Efficiency ≥ 94%
Power Factor ≥ 0.99
Structure Material Metal Case
Dimension 1900 x 725 x 700mm
Installation Floor-stand type
Weight 380kgs
Environment Working Temp -30°C to +55°C
Protection IP54
Security Design Over/under voltage, overload, leakage, grounding, over temp, surge protection

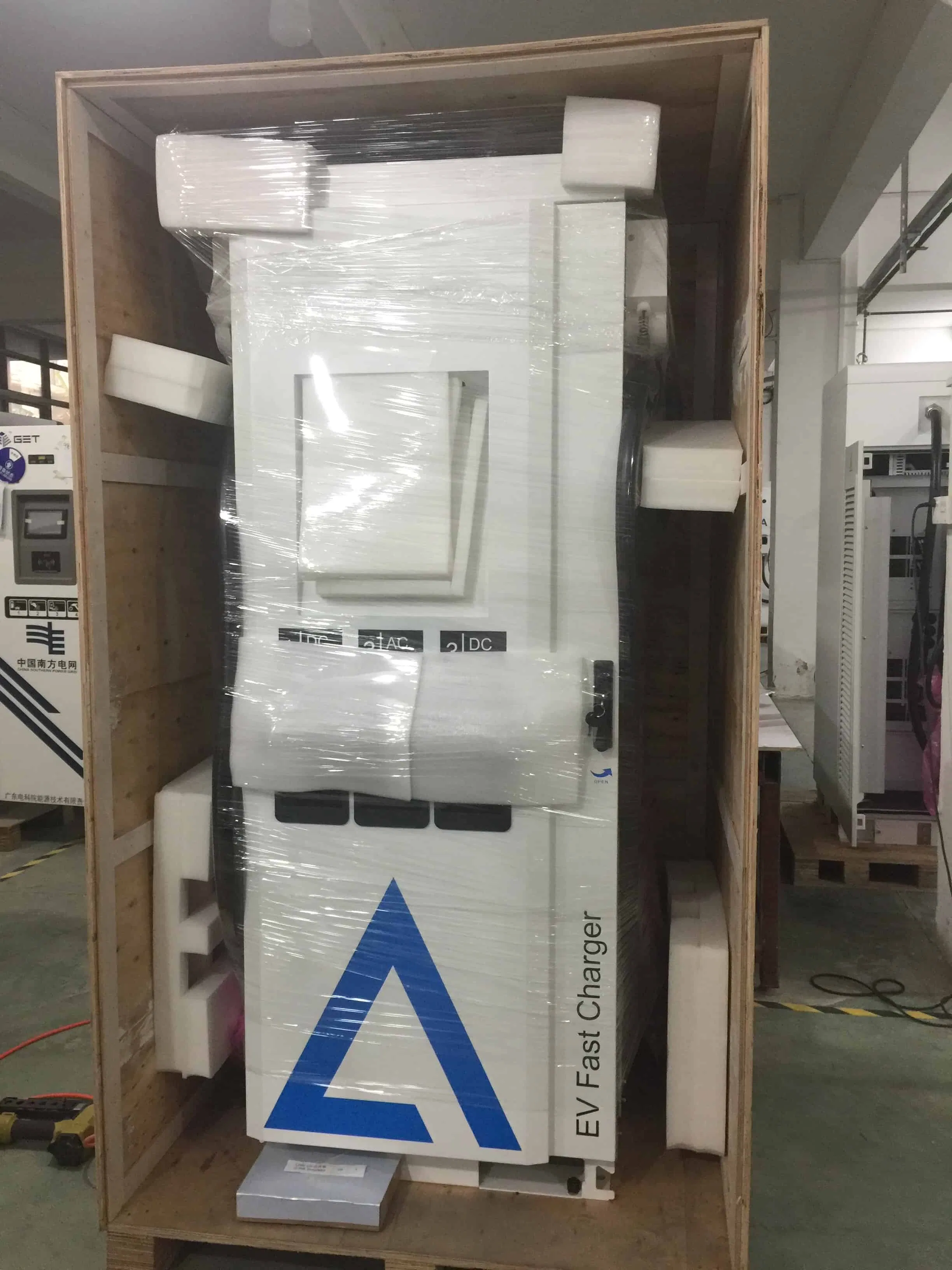

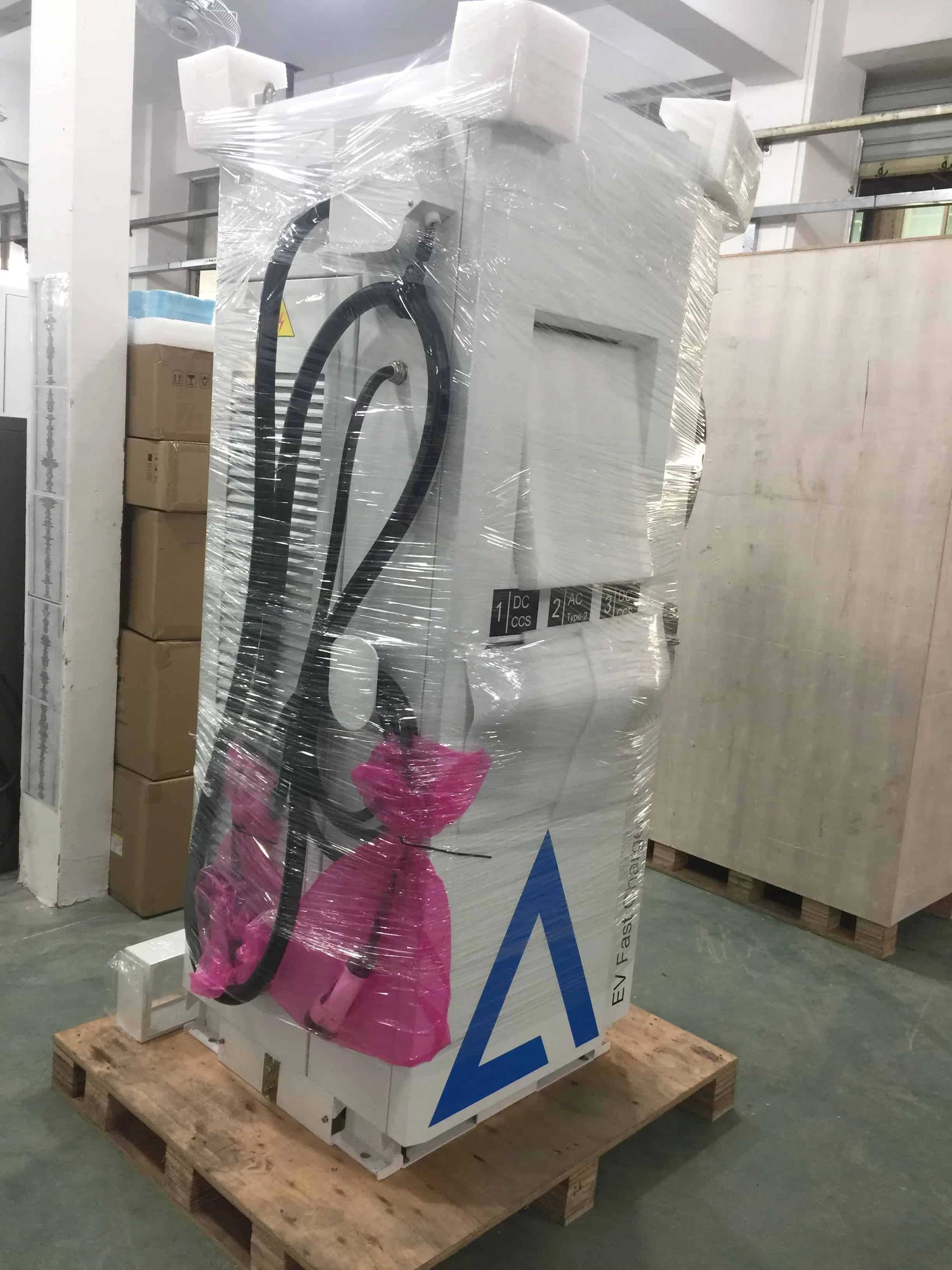

📦 Packaging & Shipping

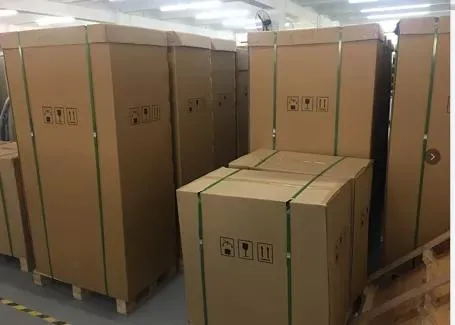

Packaging Step 1

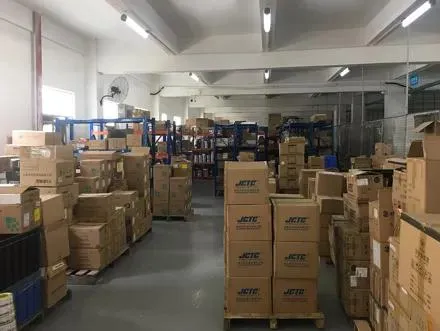

Packaging Step 2

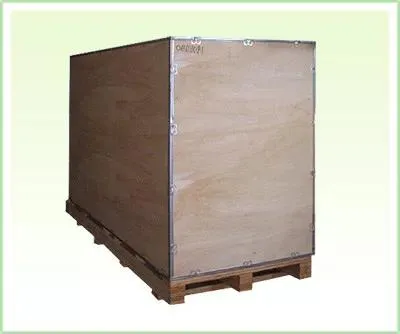

Packaging Step 3
Frequently Asked Questions
Why choose our EV Charger solutions?
Our technical team ensures industry-leading positions with a wide range of charging standards and smart back-end services. All products undergo rigorous laboratory and scenario testing, achieving certifications like CE and UL.
Do you have experience with international projects?
Yes, we have implemented numerous overseas projects, including integrating EV chargers with PV systems in the UK, highway fast-charging installations in the US, and supporting automaker fleets with DC fast charging services.
What are the main advantages of your DC chargers?
Our products feature telecom-level design, supporting multiple standards (CCS-1/2, CHAdeMO, GB/T). They offer a wider voltage range, superior temperature adaptation, high protection grades, and a modular design for future-proofing.
What are the global DC fast charging standards?
There are five main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla. We provide solutions that cater to these various regional requirements.
Does higher output power always mean faster charging?
Not necessarily. Charging speed is often limited by the vehicle's battery management system. However, high-power chargers are significant as they can support dual connectors to charge two vehicles simultaneously at high speeds.
What kind of after-sales support is provided?
We provide comprehensive technical training, including manuals and videos. For urgent situations, professional technicians are available to provide support for maintenance and parts replacement.
