Zap Charger
1 / 5
| Model NO. | QD10 | Location | Private Use |
|---|---|---|---|
| Interfaces | One Pile with One Charge | Start Mode | APP, Remote, Plug and Charge |

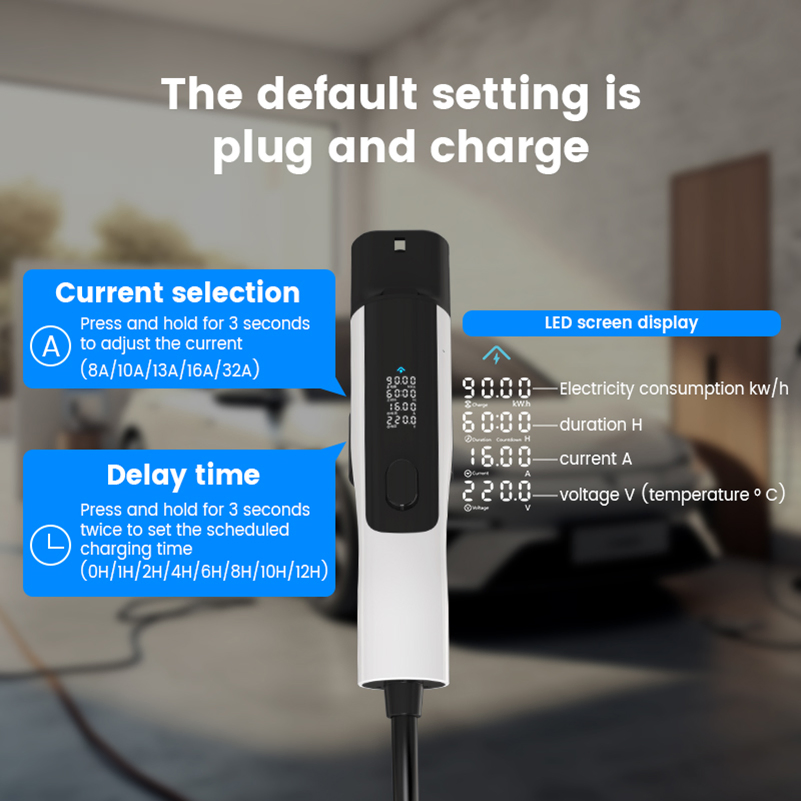

| Current Range | 8-10-13-16-32A | Delay Charging | 0~12 Hour |
| Rated Current | 16A / 32A | Rated Voltage | 230V±10% |
| IP Grade | IP65 | IK Level | IK10 |
| Cable Length | 5 Meters / OEM | RCD Type | Type A + 6mA DC |
| Plug Type | Type 2 / Type 1 / GBT | Altitude | ≤ 2000 Meters |

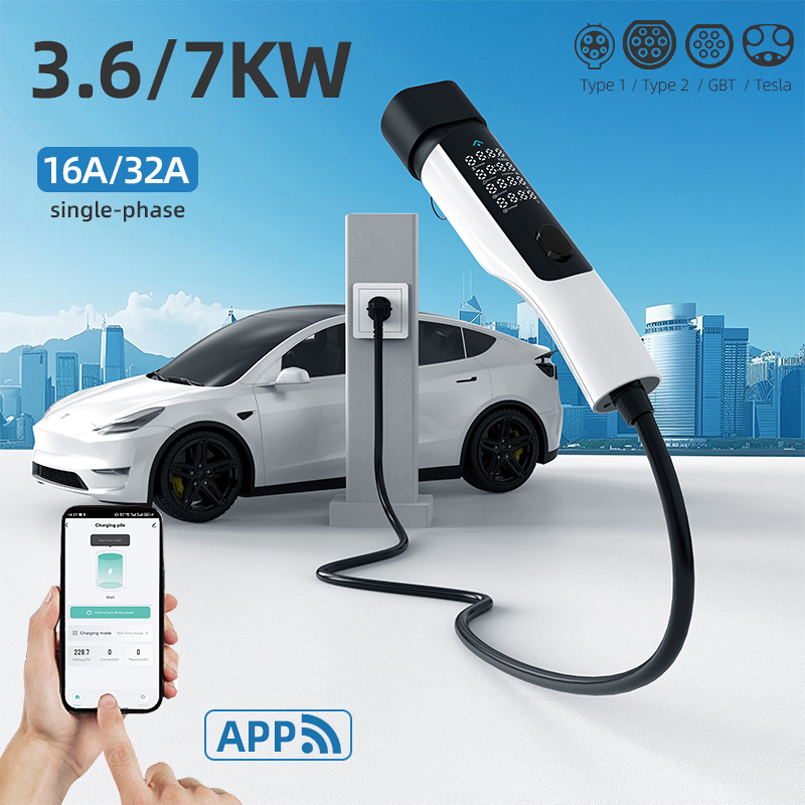

The QD10 fits all electric cars with Type 1/Type 2/GBT plugs. It features 30mA AC+6mA DC RCD detection, surge protection, and leading thermal management to keep components cooler. It extends battery life by 20%, carries IP65 waterproof/dustproof protection, and an IK10 impact rating (the highest IEC 62262 standard). Control options include Plug and Charge, Bluetooth, or WiFi via a free multi-language APP.

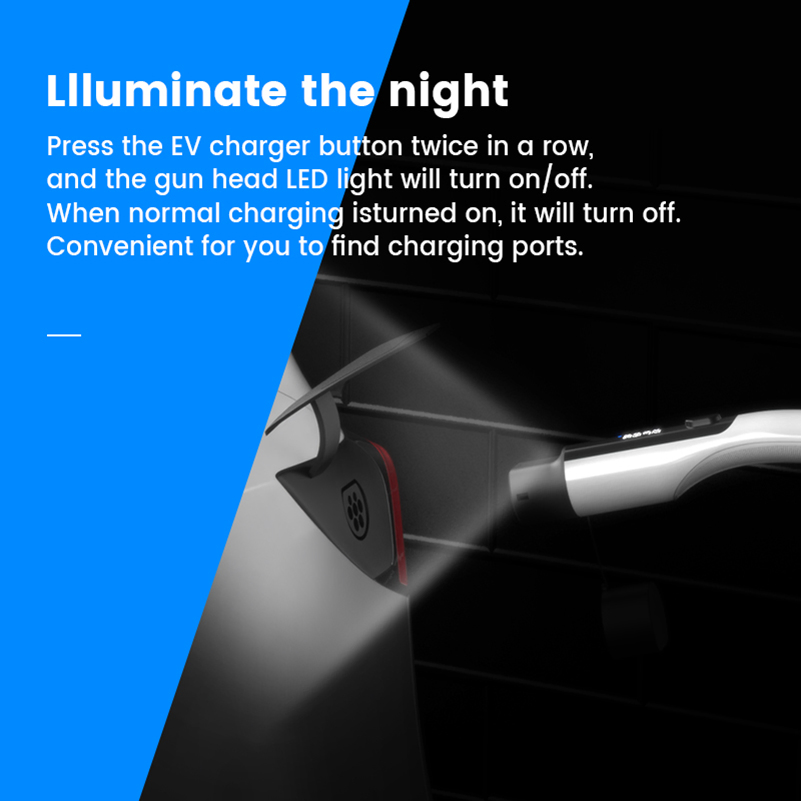

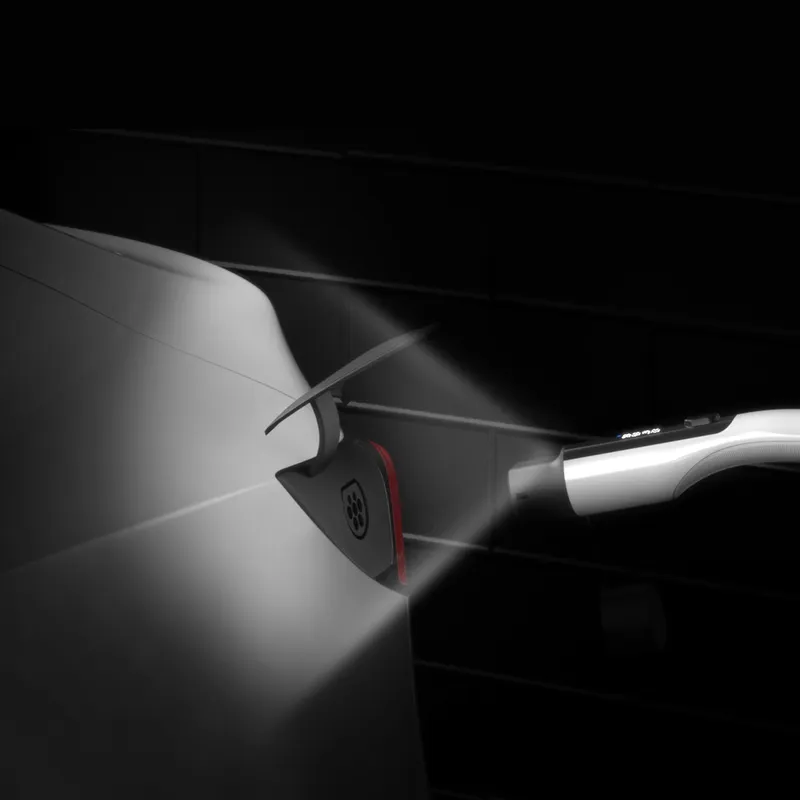

Integrated LED Lighting: The gun head features an LED light for easy charging port location at night. Press the button twice to toggle.

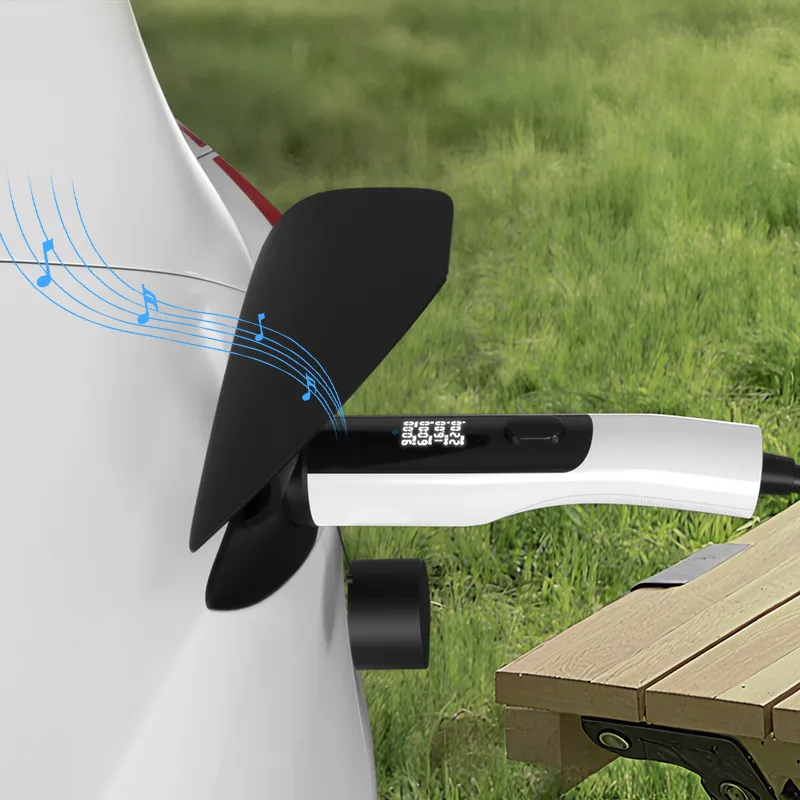

Sound Prompts: Intuitive audio feedback for start, disconnect, and error alerts.
App Control: Connect via WiFi/Bluetooth to monitor charging power, schedule sessions, and share access with family.
| Electrical Specification | |
|---|---|
| Rated Voltage | 100V/240V AC ± 10% |
| Rated Power | 3.5kW / 7kW |
| Input Frequency | 47~63Hz |
| Interface Standards | IEC 62196-2, SAE J1772, GB/T 18487 |
| Functions and Environment | |
| RCD Protection | Type A 30mA AC + 6mA DC |
| Protection / Impact Rating | IP65 / IK10 |
| Operating Temperature | -20ºC to +55ºC |
| Cooling Method | Natural Air Cooling |
