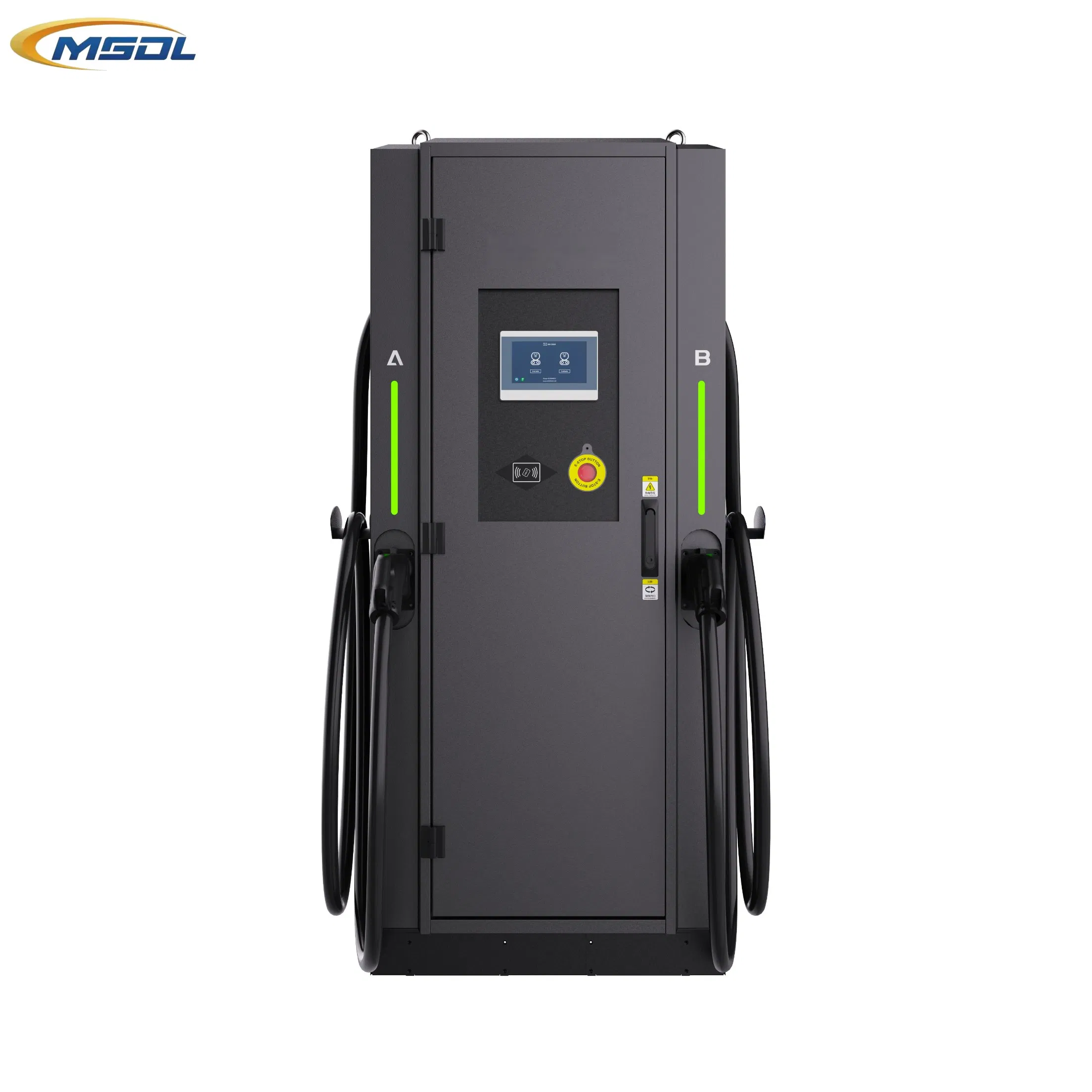

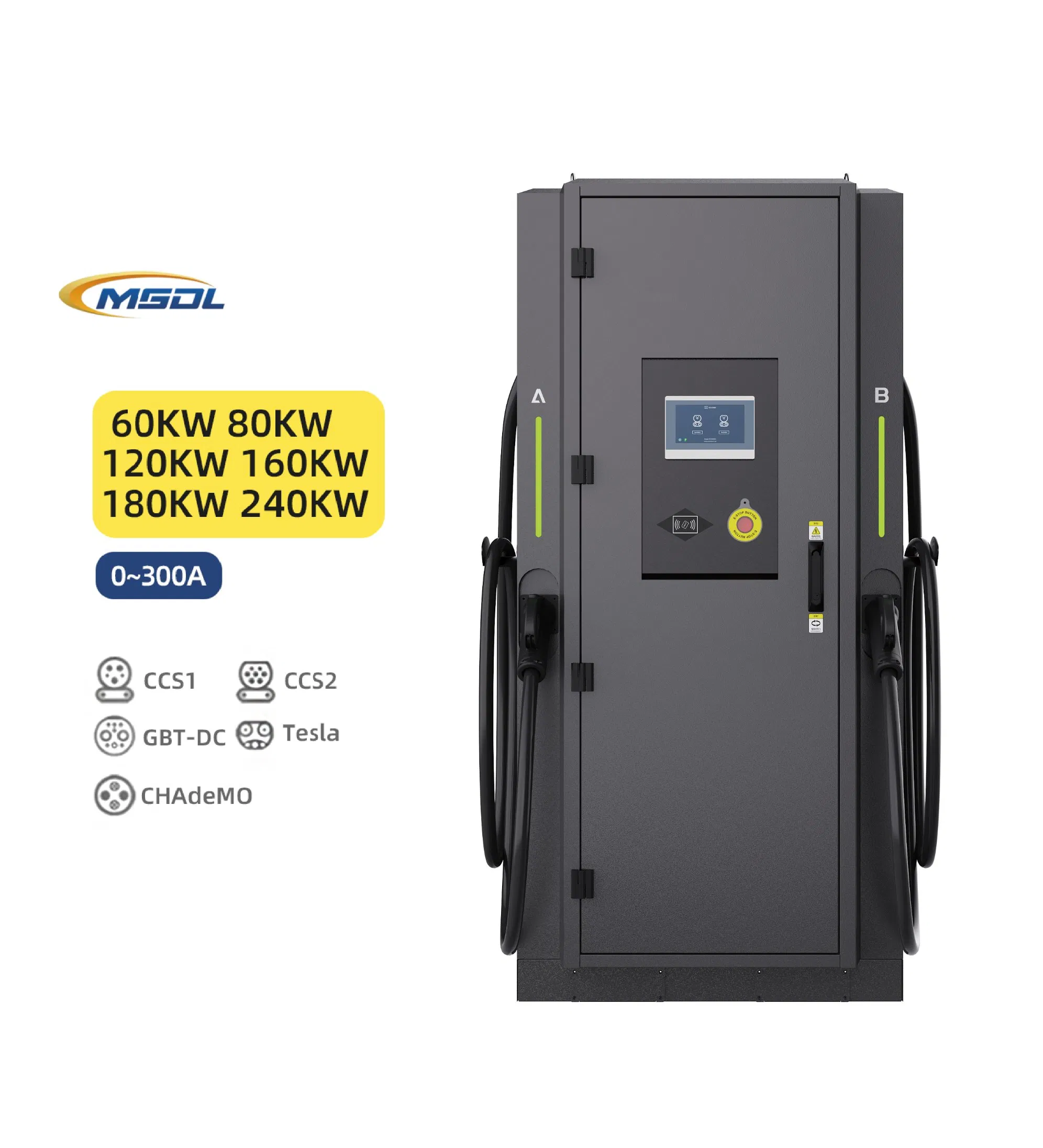

Powerful DC EV Charger Charging Station with 5-7m Cable for Fast Charging

Still deciding? Get samples of $ !
Order Sample

Product Description

DC EV Charger High Power Charging
Basic Information
Model NO.
MS08A-10A
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
RFID, Credit Card, Mobile App
Dimensions
900mm x 700mm x 1900mm
Weight
440kg
Cable Length
5m-7m

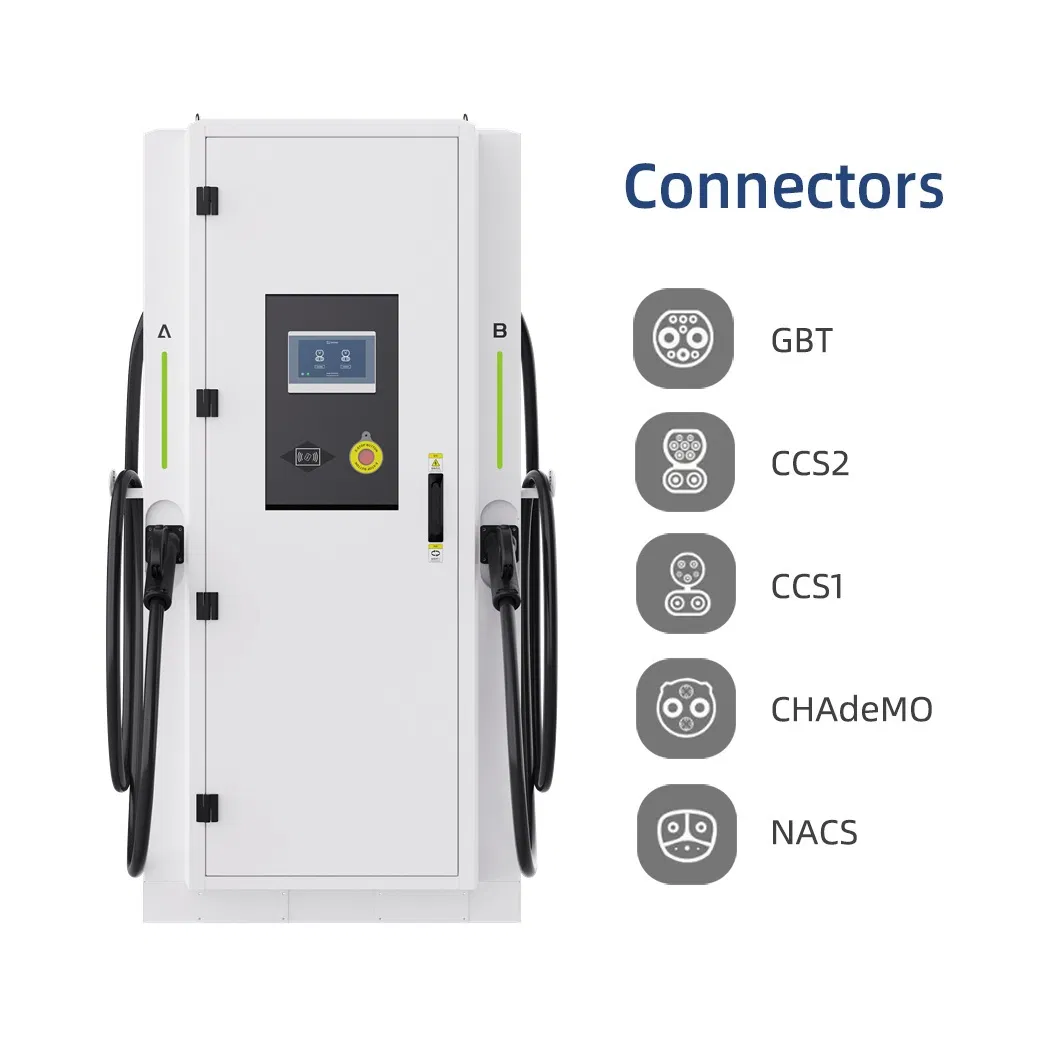

Connectors
GBT, CCS2, CCS1, CHAdeMO, NACS
Rated Power
240-480kW
Input Voltage
400VAC / 480VAC (3P+N+PE)
Output Voltage
200 - 1000VDC
Protection
IP54 IK10
Product Description
240kW-480kW High-Power Commercial/Heavy-Duty Truck Charging Station

Next-Generation Ultra-High-Performance DC Charging Station: Empowering the Future of Heavy-Duty Electrification. As the electric vehicle industry, particularly in the commercial vehicle sector, accelerates toward electrification, the demand for efficient, reliable, and high-power charging infrastructure grows increasingly urgent.

This charging station embraces the design philosophy of "functional aesthetics." Its overall form is bold and steady, with a rugged style. Clean, sharp lines and distinct angular contours exude industrial strength. Whether installed at busy highway supply stations or deployed in complex environments like mines and ports, it provides professional, reliable industrial character.

Adopted with a forward-thinking modular and highly scalable design, it comes standard with 12 high-efficiency power module slots. Power capacity offers exceptional scalability, smoothly expanding up to an impressive 480kW. This "configure-as-needed" model effectively protects investments and avoids rapid obsolescence.

Technical Specifications Details
StructureDimensions900mm x 700mm x 1900mm
Weight440kg
Cable Length5m-7m
ConnectorsGBT, CCS2, CCS1, CHAdeMO, NACS
ElectricalInput Voltage400VAC / 480VAC (3P+N+PE)
Output Voltage200 - 1000VDC
EfficiencyPeak efficiency ≥96%
Power Factor>0.99
ProtocolOCPP, State Grid, YKC, Xiao ju, etc.
EnvironmentTemperature-30°C to 75°C
Humidity≤ 95% RH (Non-condensing)
IP/IK RatingIP54 / IK10

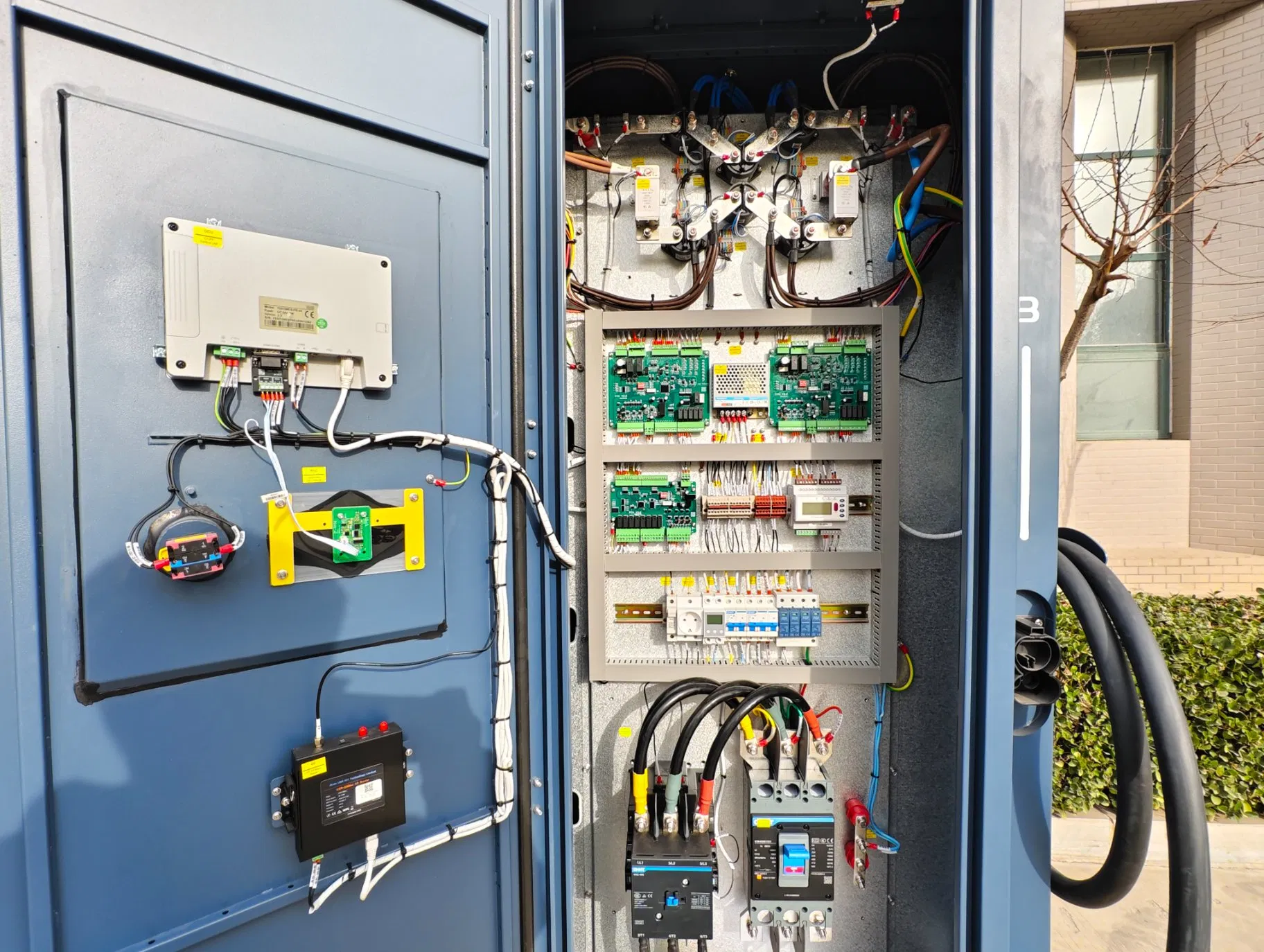

Internal view Power Module
Control System Display UI

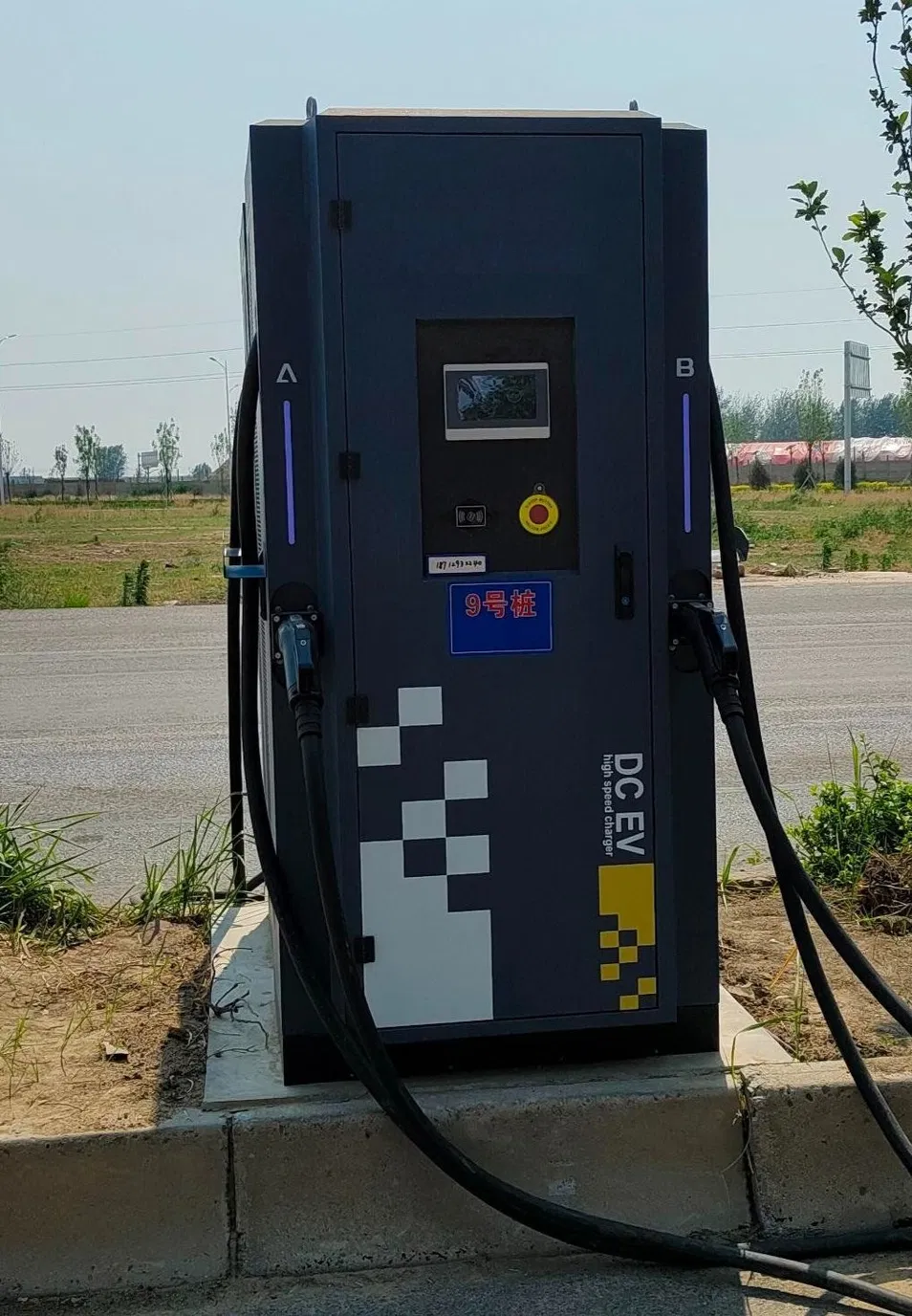

Exterior Design Connector Detail

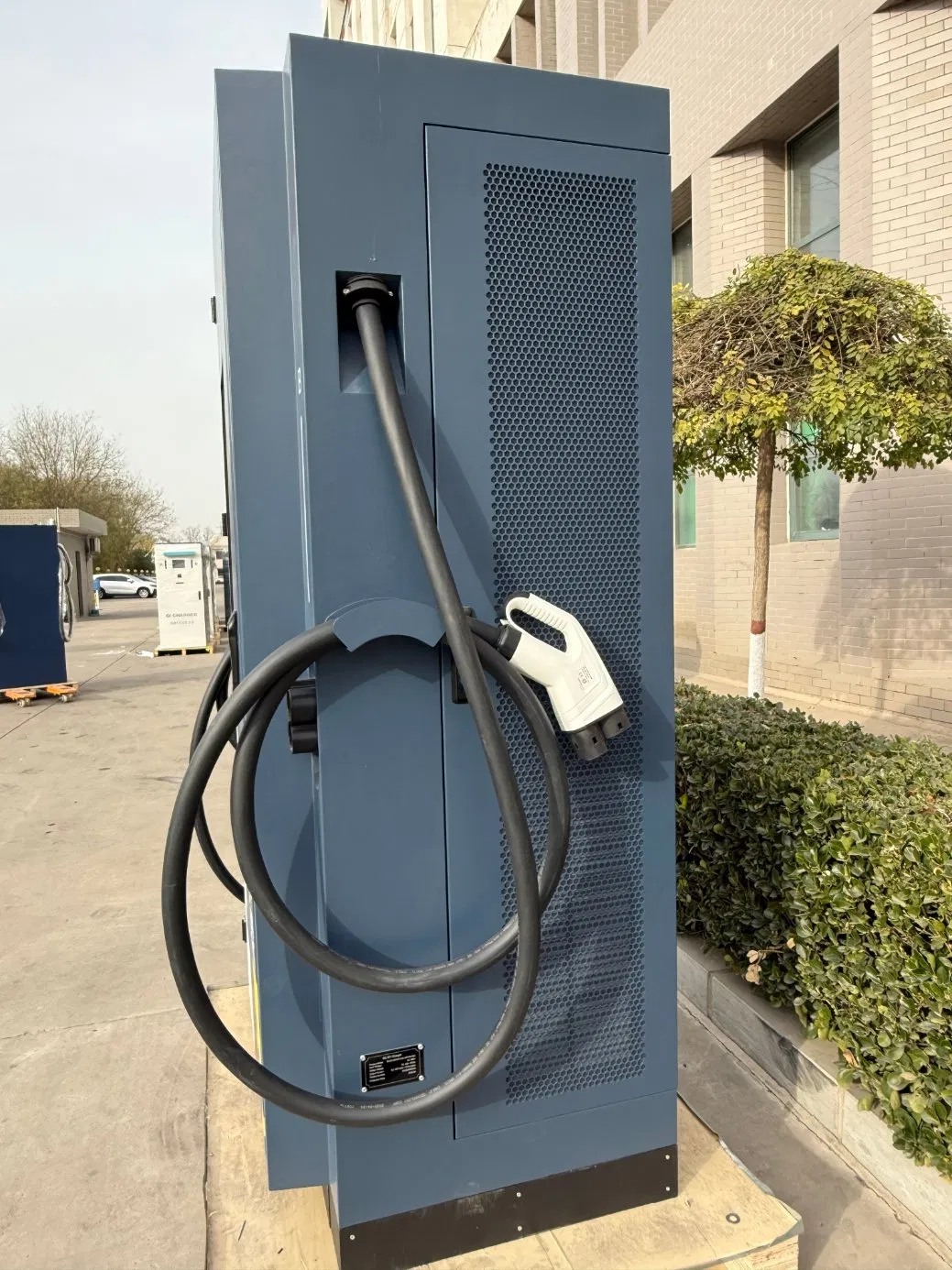

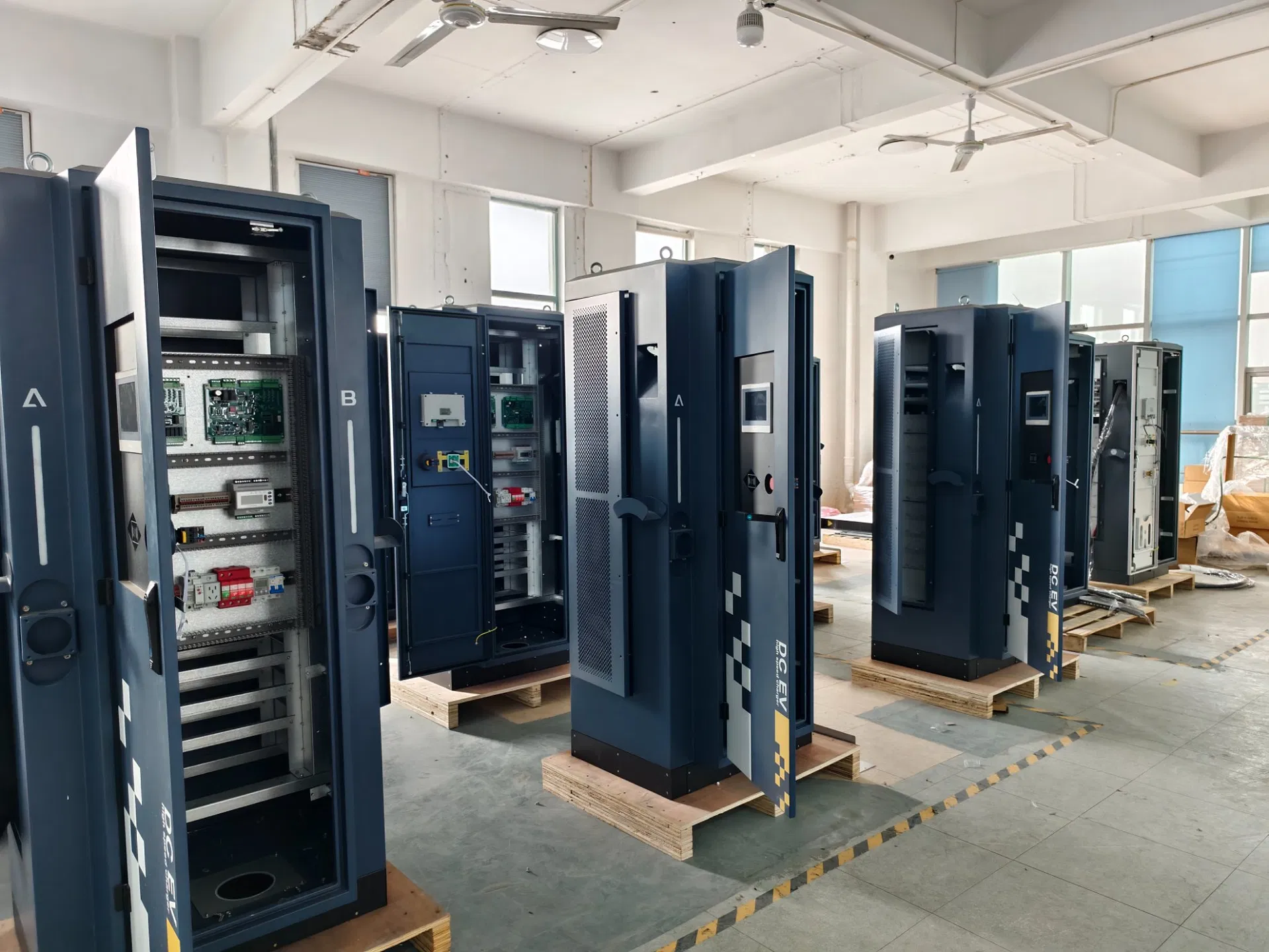

Charging Station Field Use Installation Setup
Footer Banner
Frequently Asked Questions
? What is the maximum power output of this station?
The station features a modular design that supports a scalable power output ranging from 240kW up to an impressive 480kW.
? Which electric vehicle connectors are compatible?
This unit is highly versatile and supports multiple standards including GBT, CCS2, CCS1, CHAdeMO, and NACS.
? Can it withstand harsh outdoor environments?
Yes, it is designed with an IP54 ingress protection rating and IK10 impact resistance, making it suitable for mines, ports, and public stations.
? What is the operating temperature range?
The charging station is engineered to operate reliably in extreme conditions, with a temperature range from -30°C to 75°C.
? How can users initiate a charging session?
Users can start charging via RFID cards, credit card payments (POS optional), or through mobile remote operation via App.
? What safety protections are included?
The system includes overvoltage, lightning, overcurrent, leakage, and waterproof protection, along with an emergency stop button.
