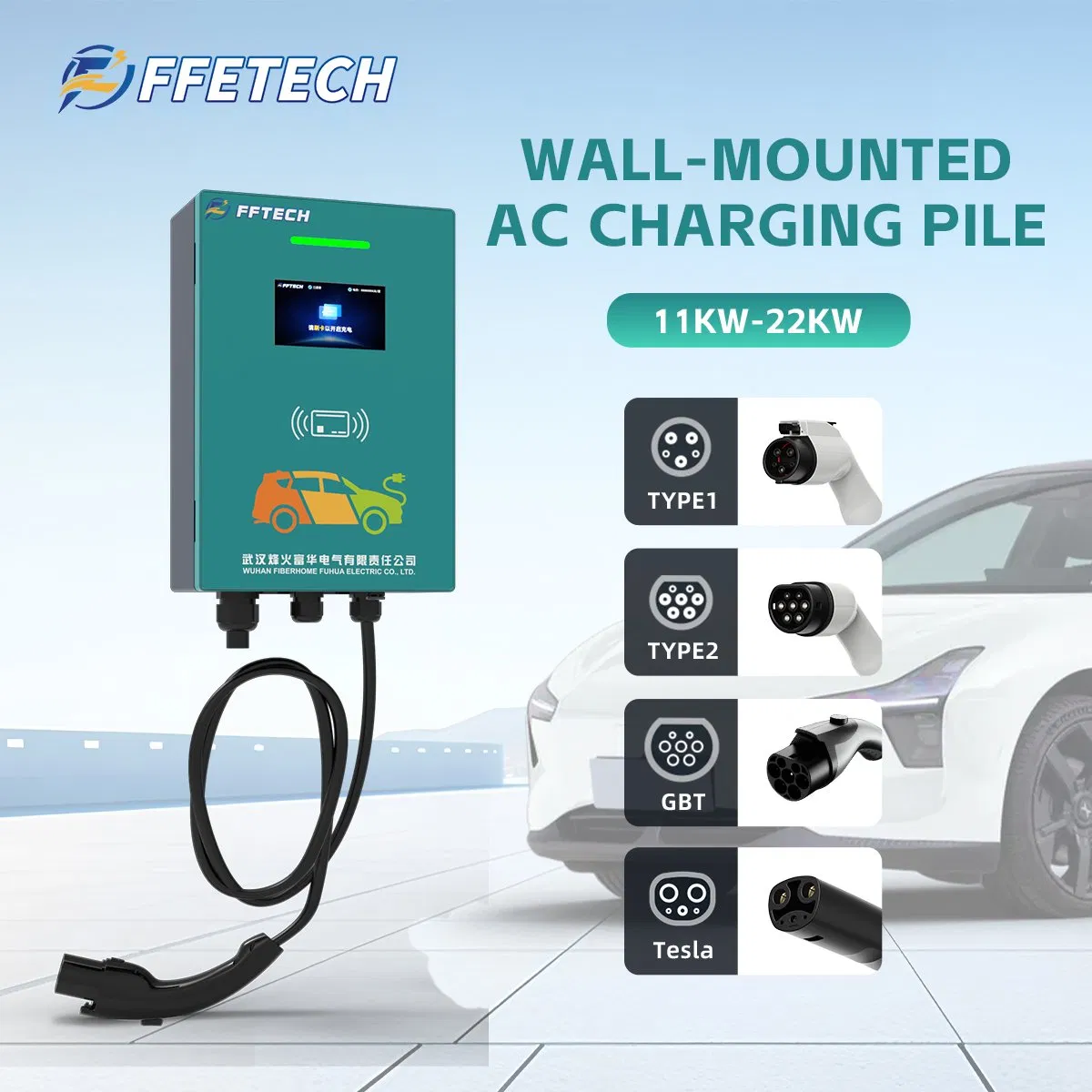

Smart Home 11/22kw Home EV Electric Car Charging Stations IEC62196 for Byd

Customization: Available
Connector Type: Type1, Type2, GB/T
Start Mode: APP Control, Book Charging, Remote Control, RFID Card

Product Description

Basic Information
Model No.
FH-EA-7kW, 11kW, 22kW
Installation
Wall Mounted / Stand Column
Output Power
7kW / 11kW / 22kW
AC Input Voltage
230VAC (Single) / 400VAC (Three Phase)
Protection Rating
IP54 High Reliability
Certification
TUV CE, EMC Class B, ISO, UL
Our Advantages

The FH-EA series represents a premier electric vehicle charging solution, featuring a classic design combined with modern smart technology for both private and public environments.

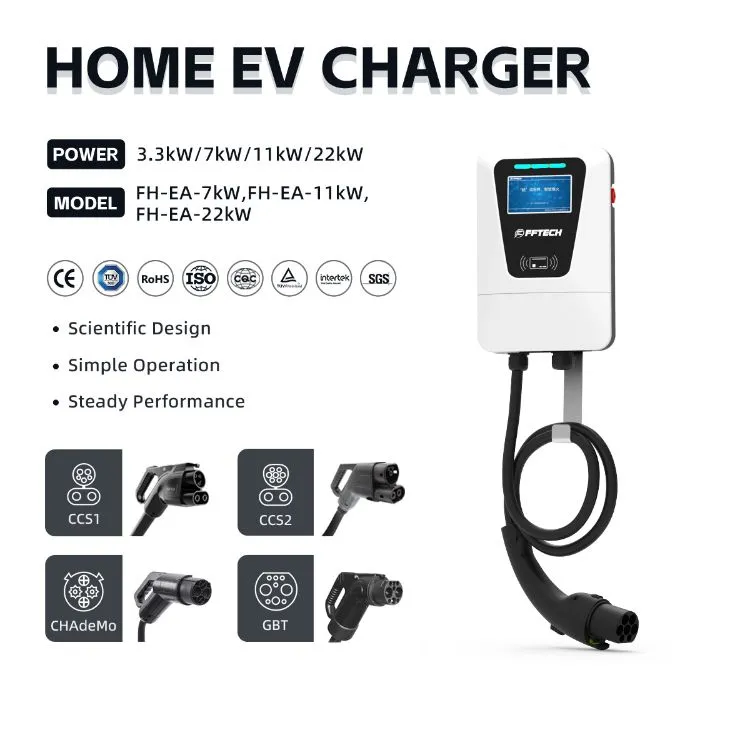

  • Supports TYPE1, TYPE2, or GBT connectors.
  • IP54 rated design for high reliability in harsh environments.

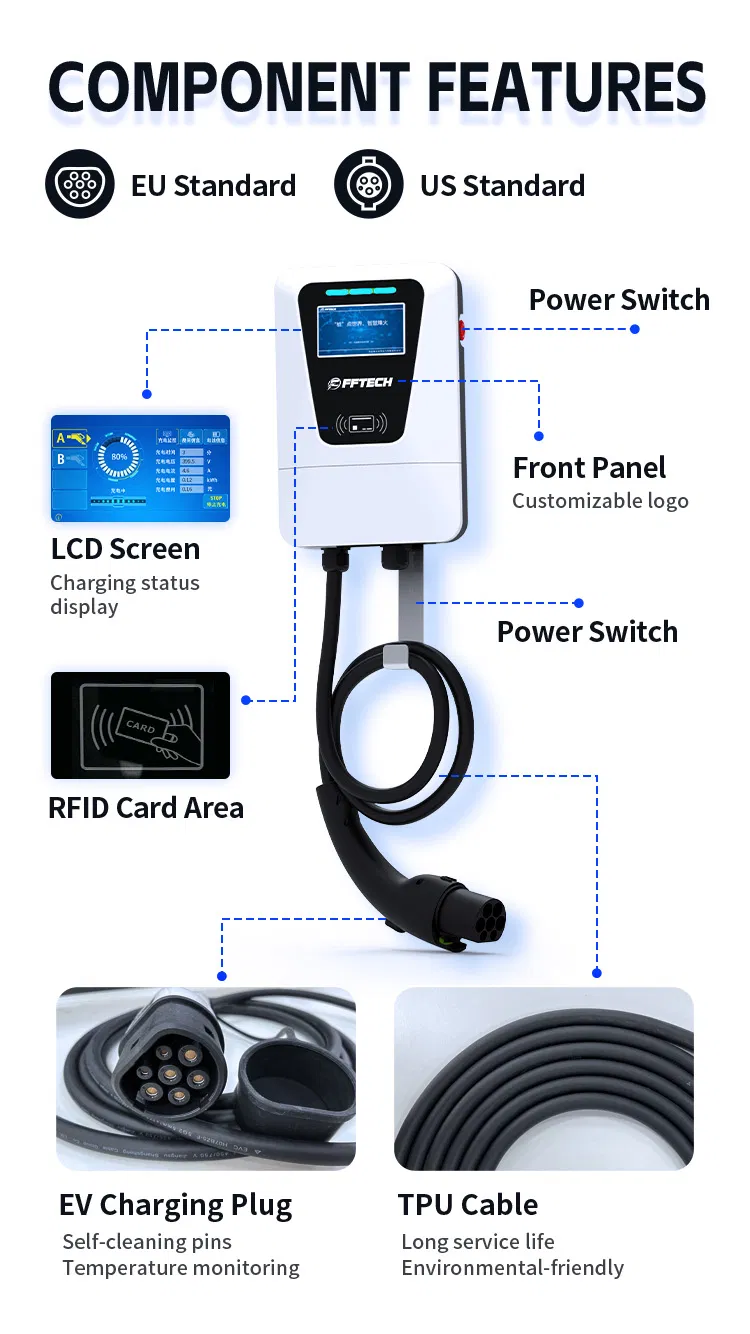

  • Tempered glass protective 7'' TFT capacitive touch screen LCD.
  • Multiple communication options: LAN, 4G, WiFi, Bluetooth, and RS485.
  • Advanced power distribution: Stand alone, Current switch, and Full hold.
  • Flexible charging modes: Auto, Amount, Energy, or SOC basis.
  • Internal high-precision AC and DC energy meters.
  • OTA support for remote updates and RFID authorization.
Product Parameters
Titles AC Charging Pile Specifications
Category 7kW AC 11kW AC 22kW AC
Model No. FH-EA-7kW FH-EA-11kW FH-EA-22kW
Input Voltage 220VAC±15% 380VAC±15%
Output Current 32A 16A 32A
Grid Connection L+N+PE 3P+N+PE
Mounting Wall Mount Landing Wall Mount Landing Wall Mount Landing
Safety Standards IEC 62196, IEC61851, GB/T20234, GB/T18487
Dimensions 234*312*90mm 300*315*120mm 300*315*120mm

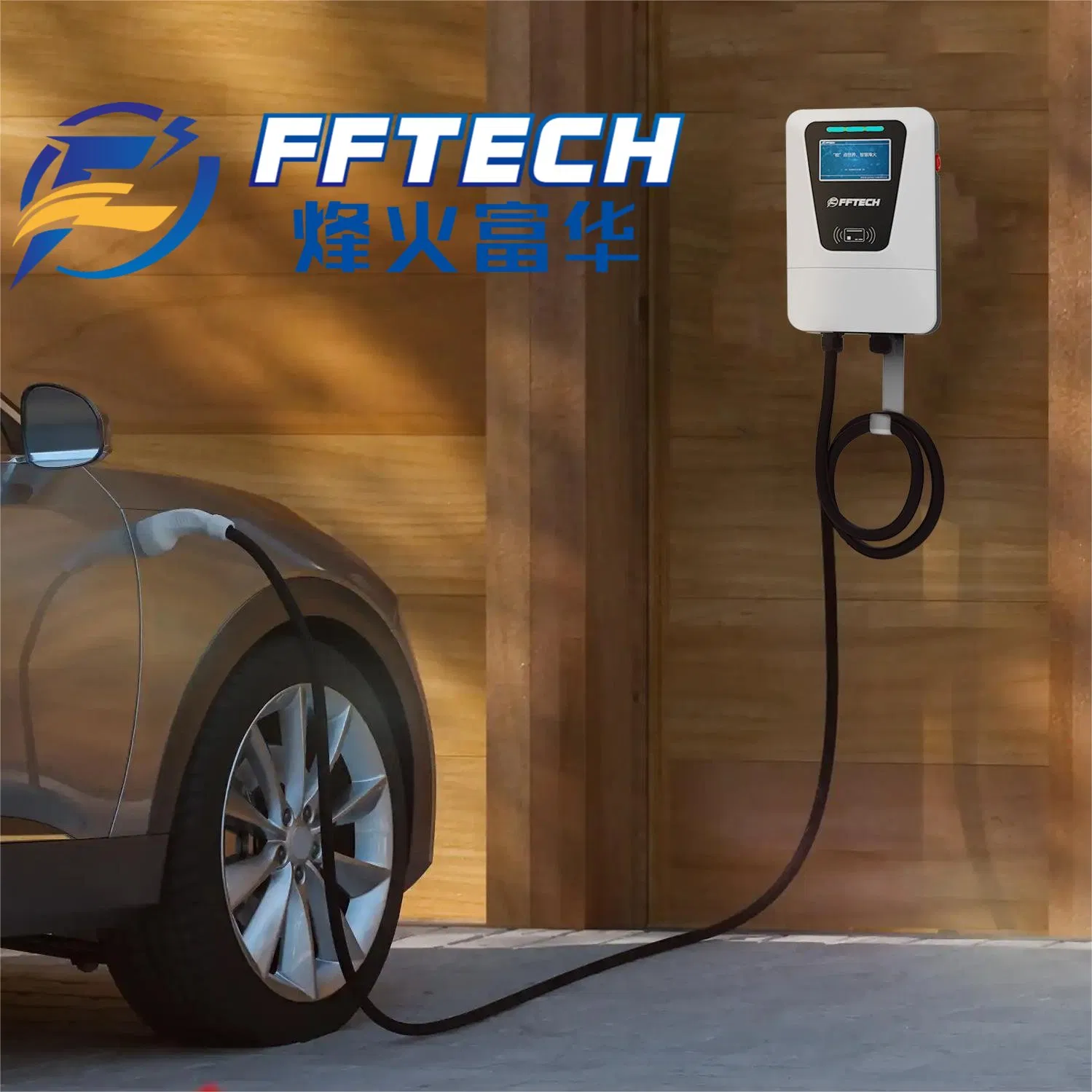

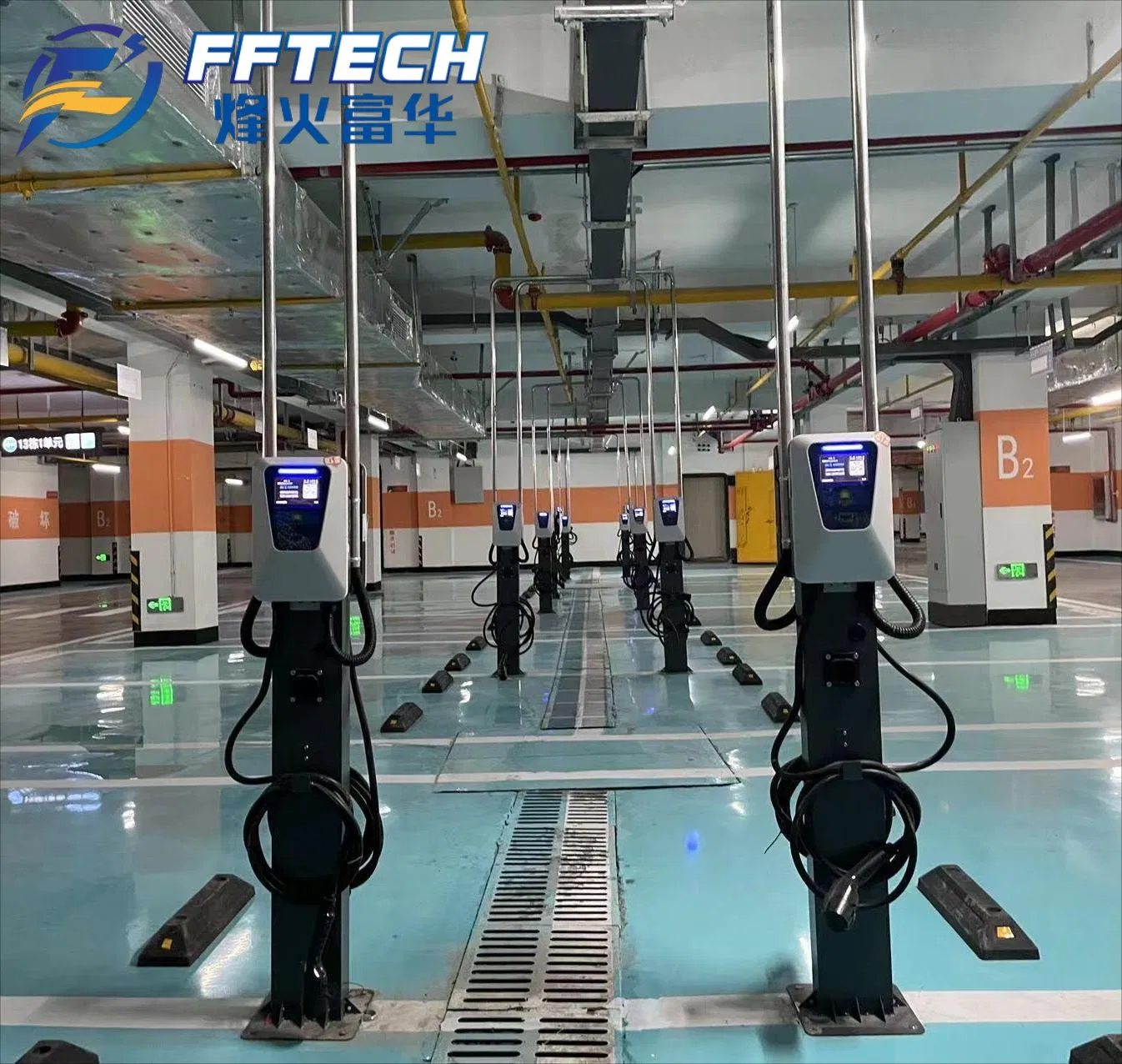

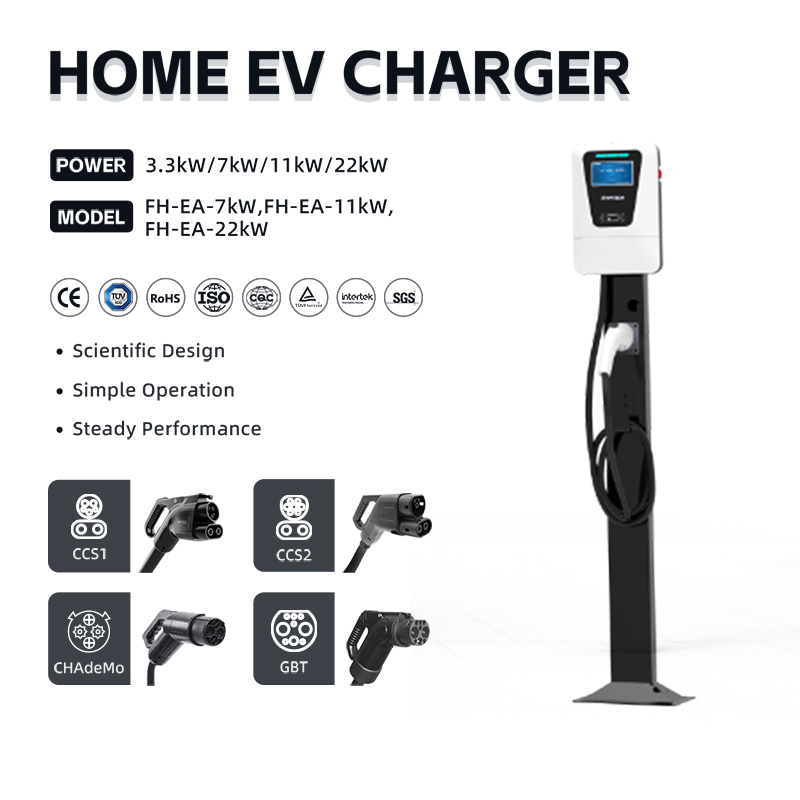

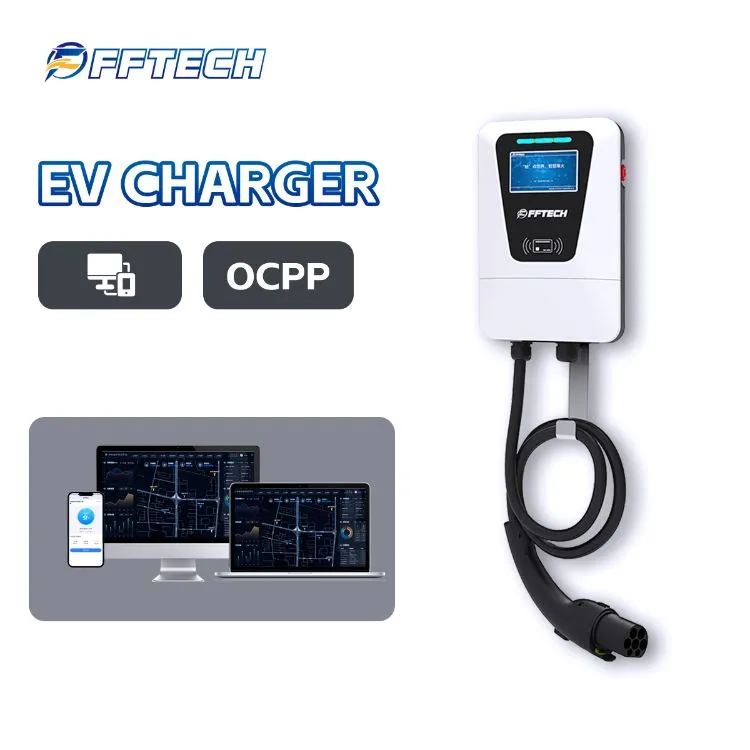

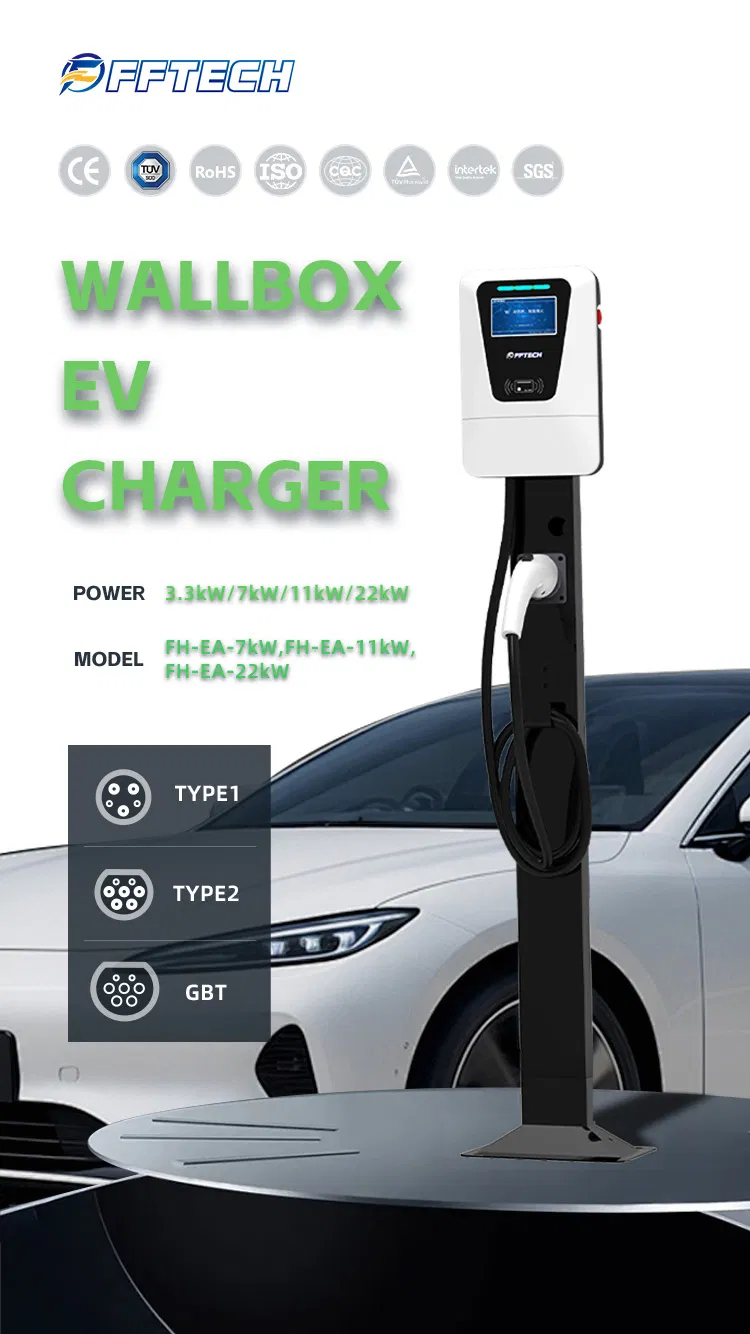

Product Display

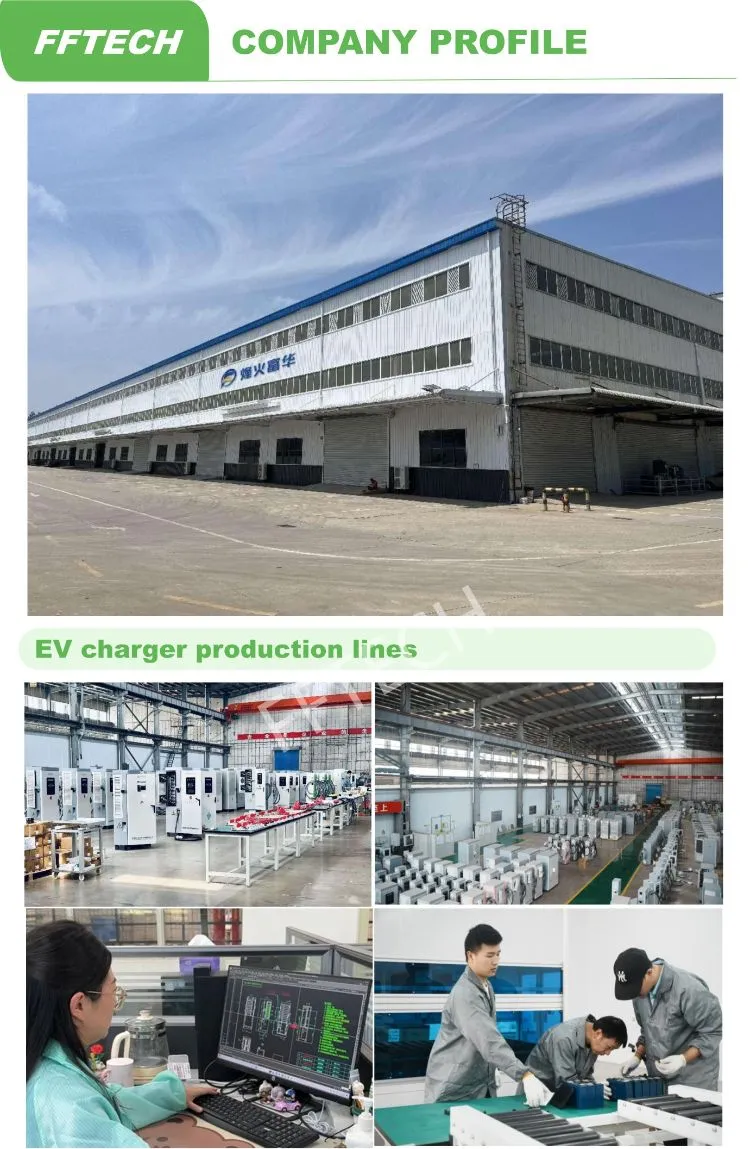

About Our Manufacturing

Established in 2008, we are a leading manufacturer and solution provider in Smart Energy. Our expertise spans a wide series of power-related products, including EV charging stations, portable power stations, ESS (energy storage systems), and lithium batteries.

With a decade of continuous innovation, we have gathered world-class talent in electricity, AI, and Cloud-computing to offer cutting-edge products. We maintain strategic alliances with multiple academic institutions to ensure our technology remains at the forefront of the industry.

Frequently Asked Questions
What output power options are available for this EV charger?
We offer three main power capacities: 7kW (Single Phase), 11kW (Three Phase), and 22kW (Three Phase) to meet various home and commercial charging needs.
Is the charging station suitable for outdoor installation?
Yes, it features an IP54 protection rating, which ensures high reliability and durability under harsh environmental conditions, protecting it from dust and water spray.
Which electric vehicle types are compatible?
The station supports IEC62196 TYPE2 standards, as well as TYPE1 and GBT connector options, making it compatible with most modern electric vehicles.
How can I monitor and control the charging process?
The charger features a 7-inch LCD touch screen for local control. It also supports remote management via WiFi, 4G, Ethernet, and Mobile App payment systems.
What safety certifications does the product have?
Our charging stations have undergone rigorous testing and hold TUV CE, EMC Class B, ISO, and UL certifications to ensure the highest safety standards.
What is the standard cable length?
The standard cable length is 5 meters, but we can provide customized lengths up to a maximum of 10 meters upon request.
