Zap Charger
1 / 5
| Model NO. | QSCDZ |
| Rated Current | 2A; 63A; 100A; 200A; 300A |
| Rated Power | 7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw |

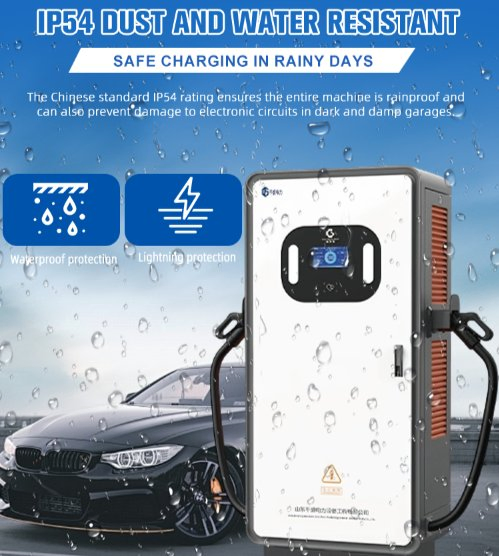

| IP Rating | IP54 / IP65 Universal Outdoor |
| Service Life | 8 - 10 Years |
| Charging Type | AC / DC / Integrated Charging |
| Efficiency | ≥93% (AC); ≥95% (DC) |
| Power Factor | ≥0.95 (Rated Load) |
| Transport Package | Wooden Box |
| Production Capacity | 5000 PCS/Year |

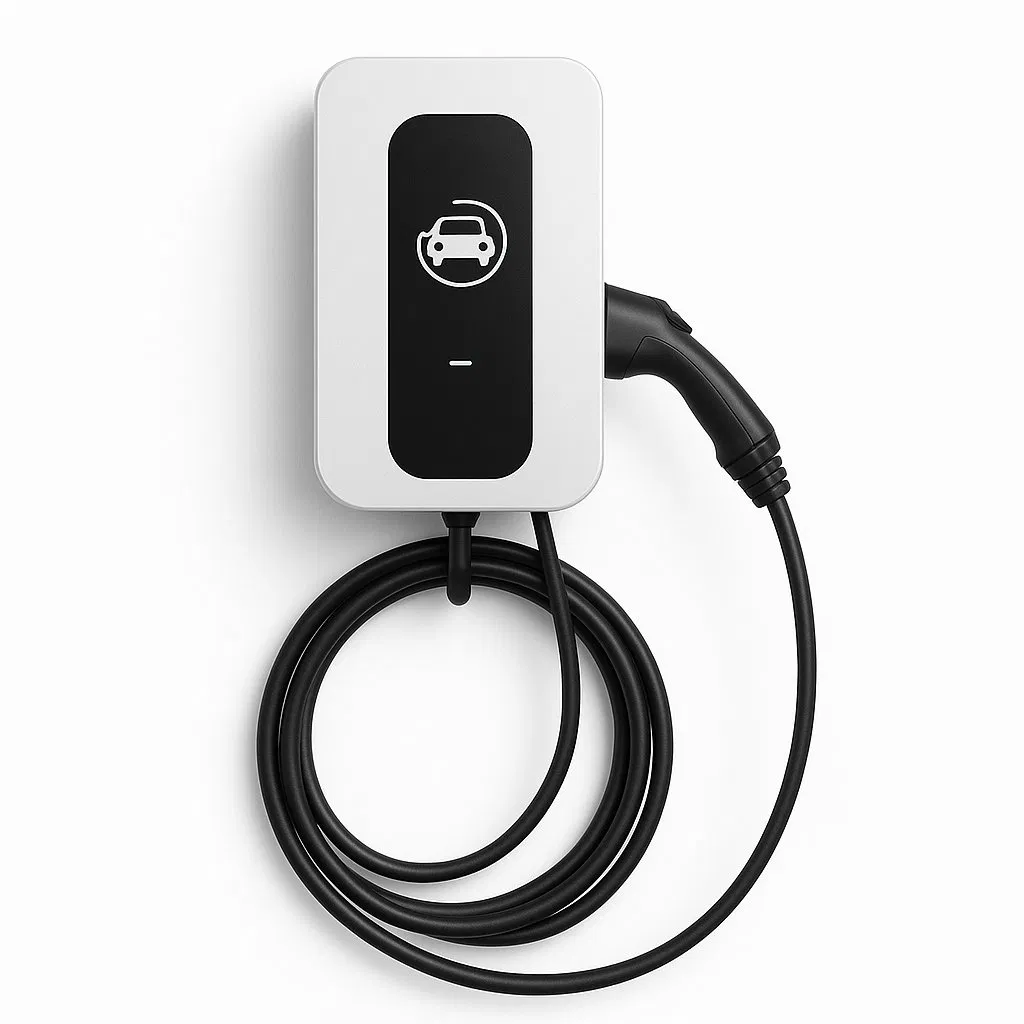

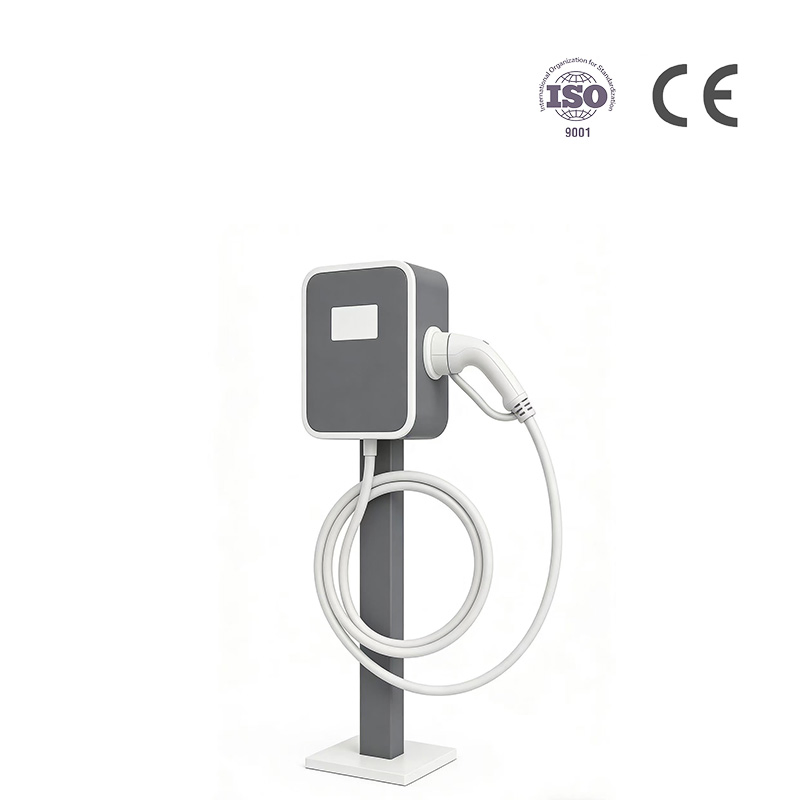

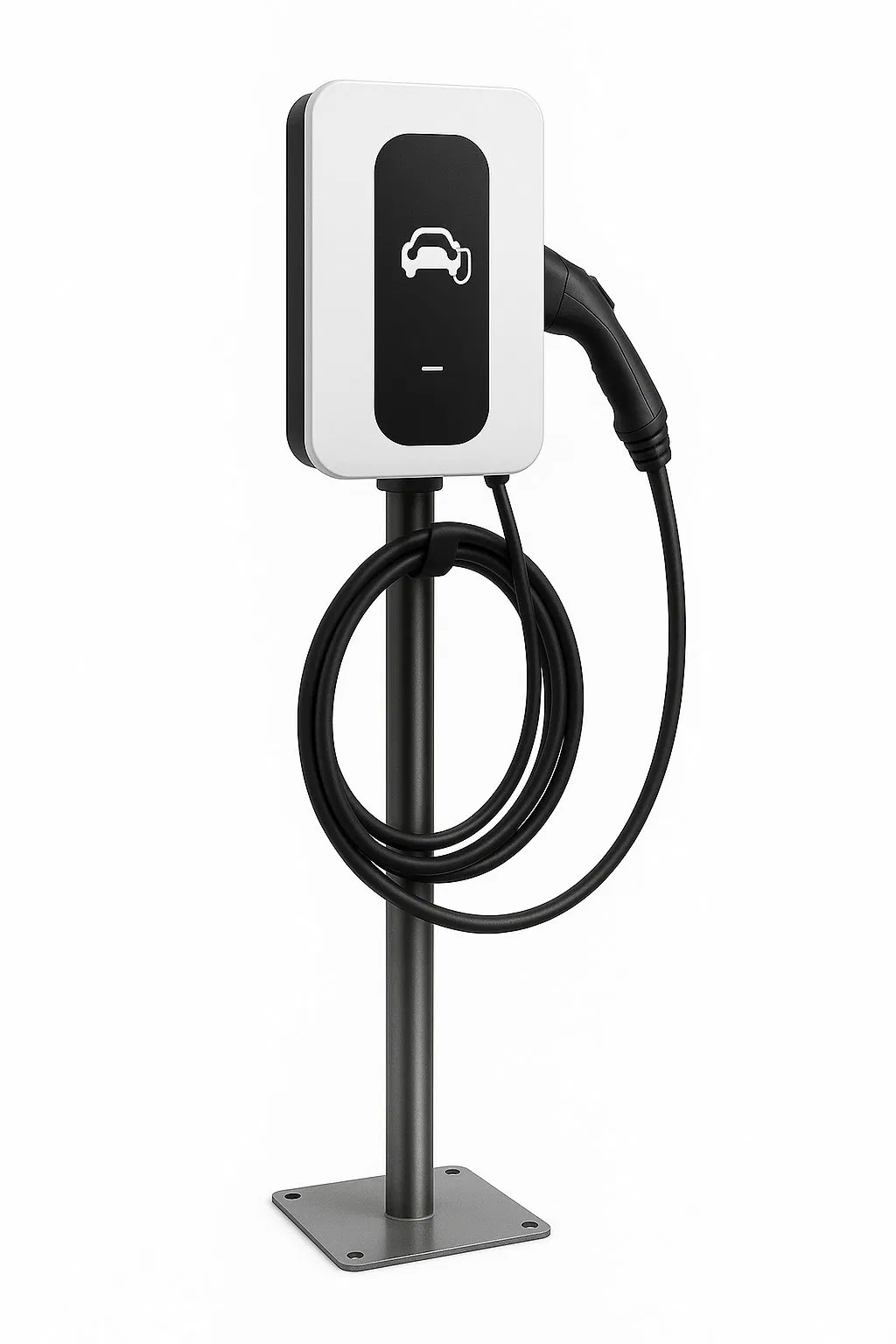

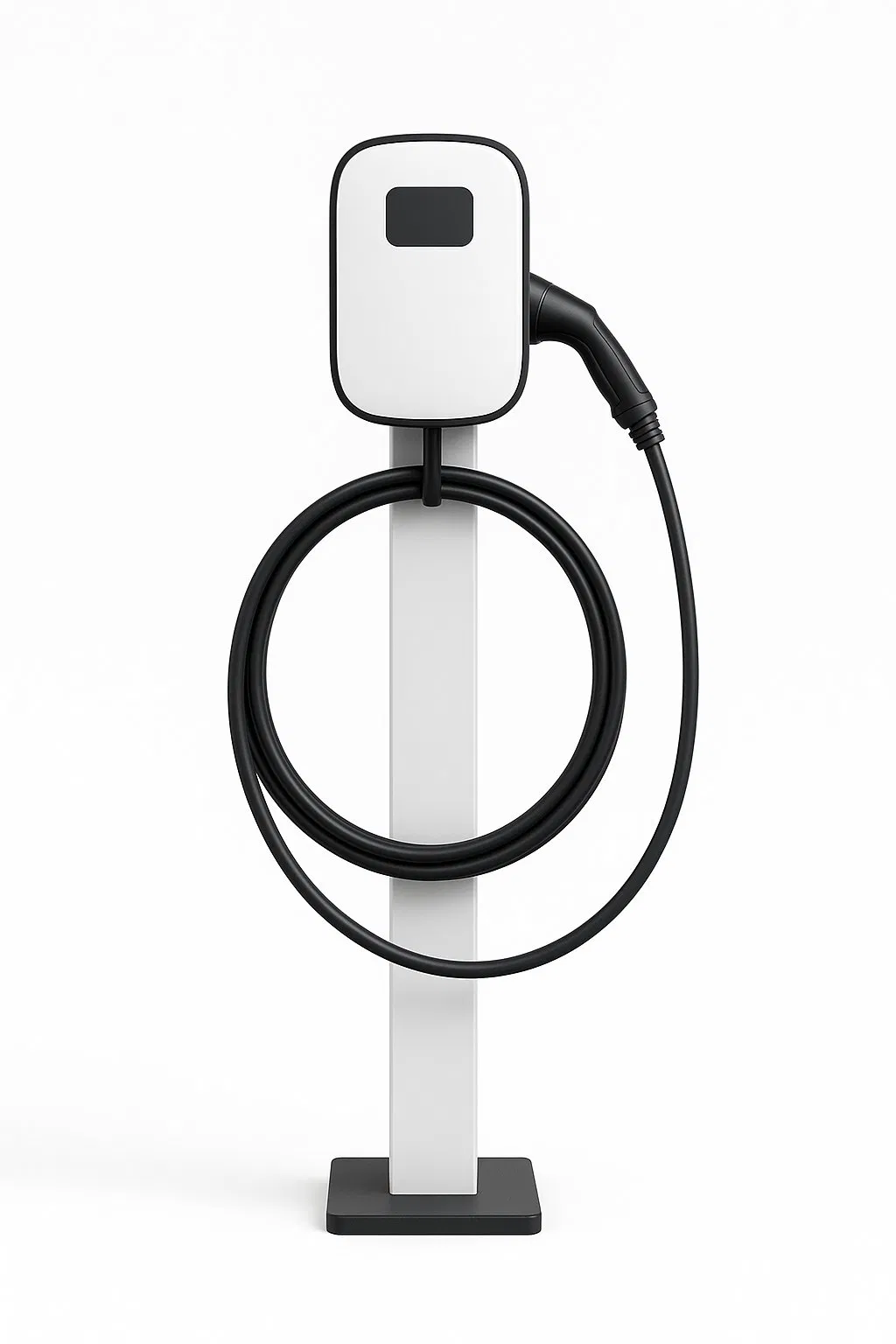

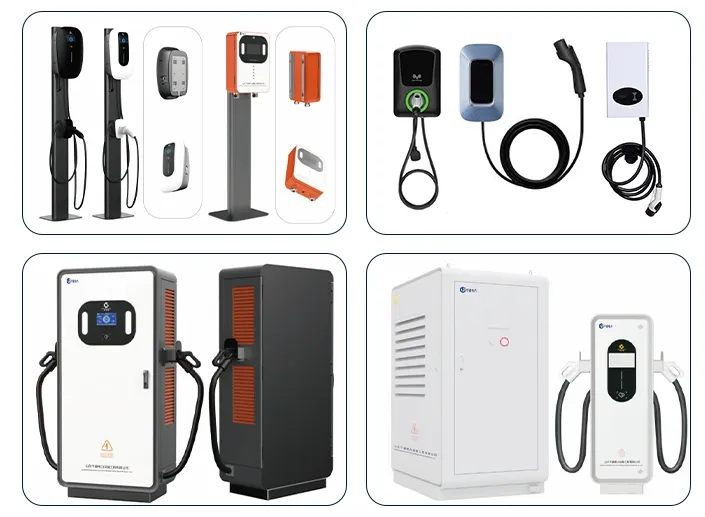

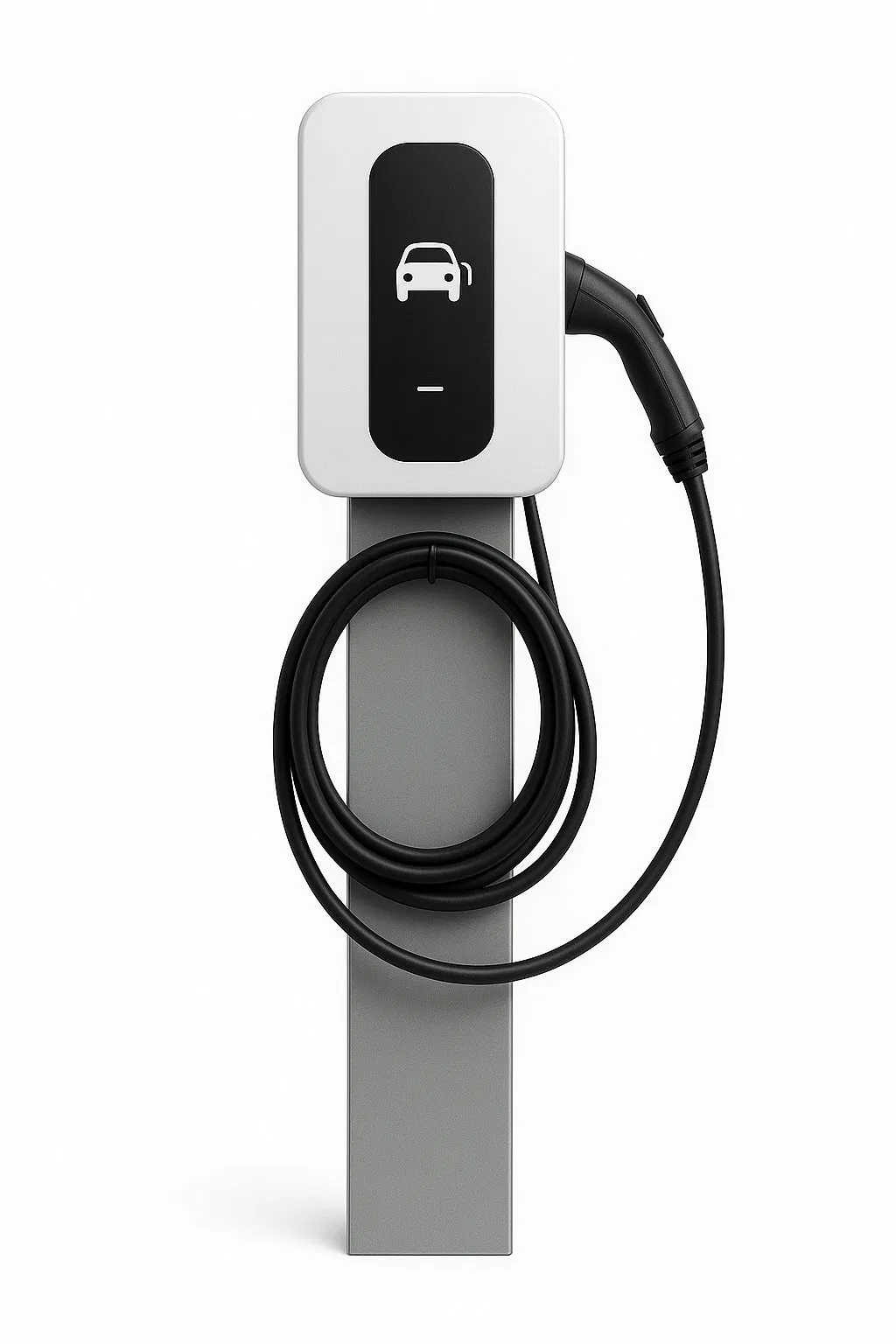

Our charging pile series includes multiple models, with wall-mounted and floor-standing options to meet different installation needs. Stylish designs, stable frameworks, and modular power configuration make them easy to maintain and suitable for both residential and commercial use.

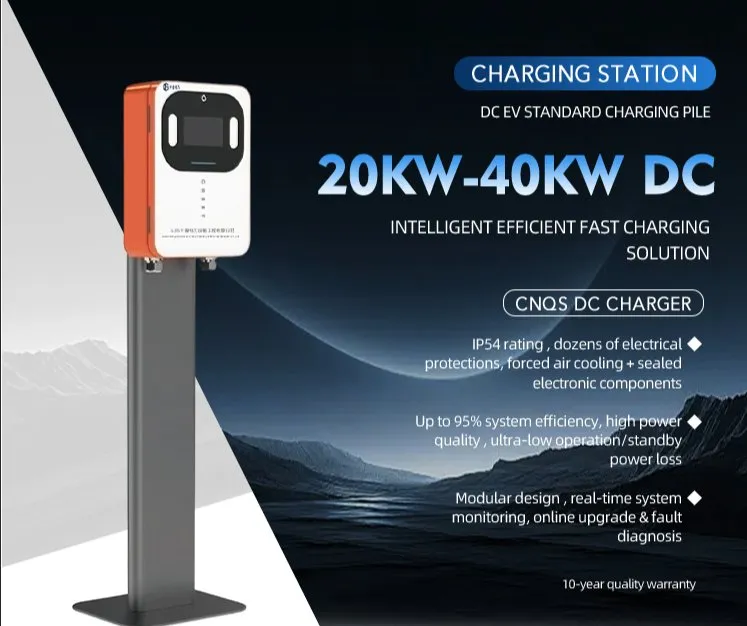

| Power Output | 20KW / 40KW / 120KW / 160KW / 240KW |
| Input Rating | 110V/220V/380V ±15% |
| Working Frequency | 50/60 ±10% |
| Output Voltage | 200V ~ 1000V |
| Connectors | CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO |
| Display | 7" LCD Touch Screen |
| Network | 4G / Ethernet |
| Protocol | OCPP1.6J (OCPP2.0 upgradable) |
| Operating Temp | -20℃ to +50℃ |
| Protection Grade | IP55 |
• Compatible with CE/UL/PSE/KC certifications.
• Supports ISO 15118 standard + PNC Plug & Charge.
• V2G protocol compliant for grid peak shaving.
• 80% power replenished in 30 mins.
• IP65 waterproof & wide temperature adaptation (-30℃ to 60℃).

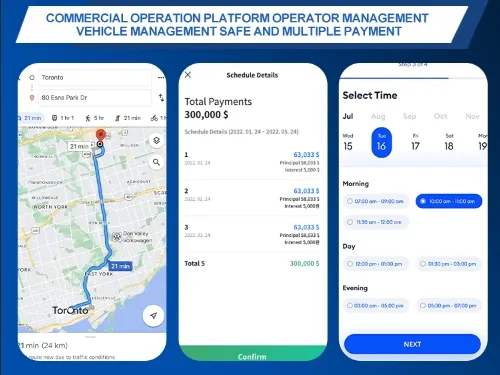

• Supports Apple Pay/Google Pay/Credit Card.
120kW Super Charging: 300+km range replenished in 30 mins.

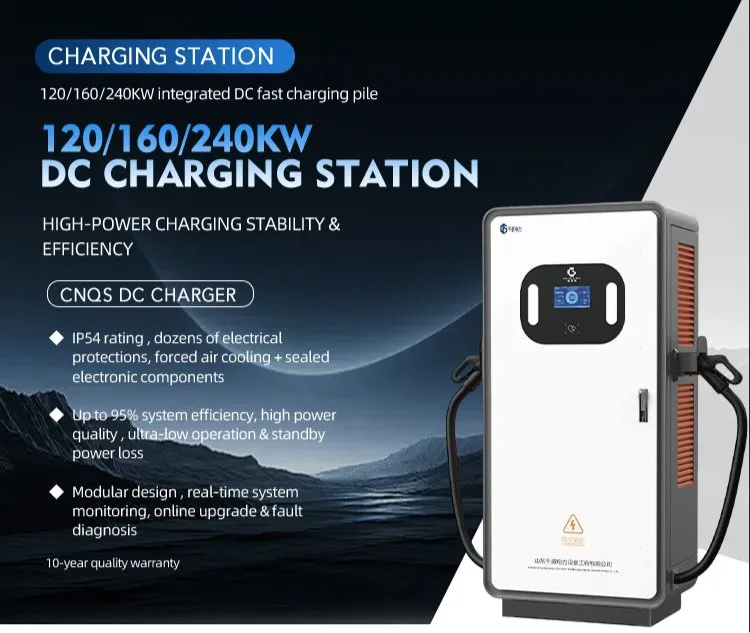

160kW Advanced Fast Charge: Dual-gun simultaneous charging + modular design.
240kW Ultra-Fast Charge: 80% battery in 15 mins; V2G supported.

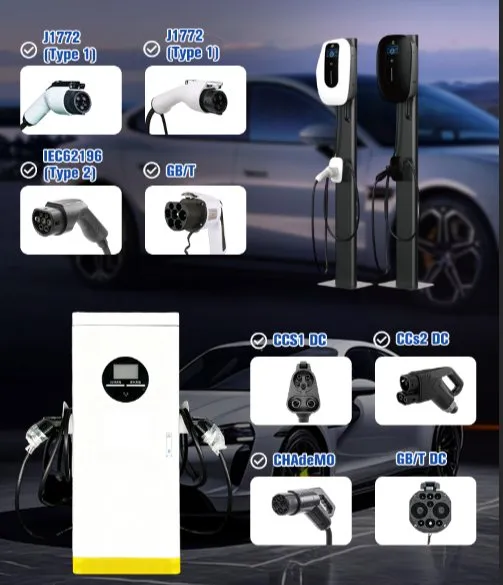

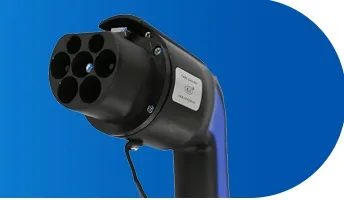

• Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).

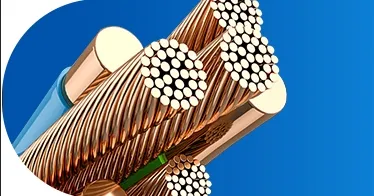

• Thickened high-temperature resistant cables, anti-aging & anti-stretching.
• Customizable cable length and self-locking connector anti-drop design.

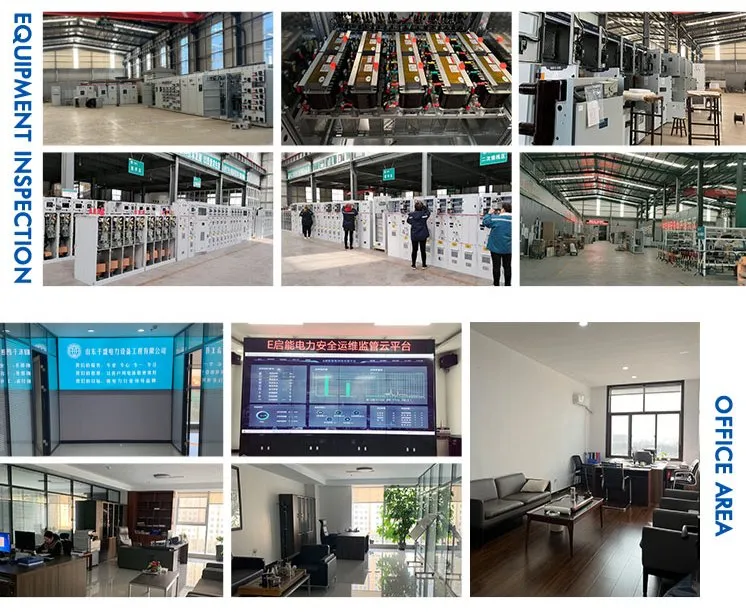

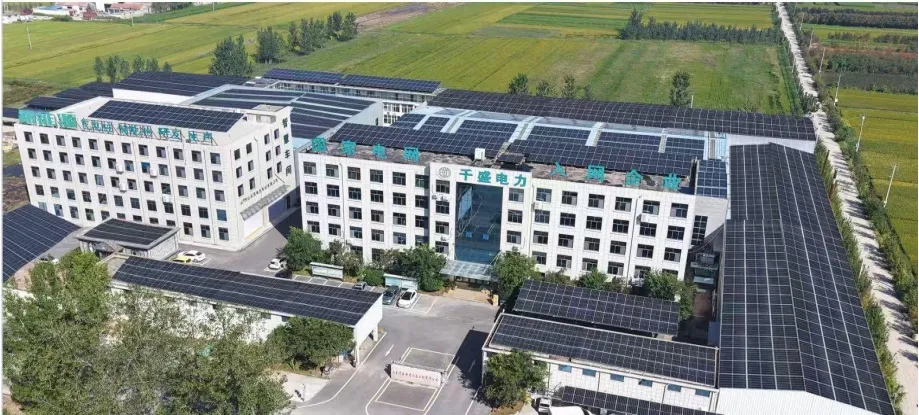

With over 20 years of industry expertise, we serve global markets with reliable power distribution and new energy solutions. Our facilities cover over 16,000 square meters, employing senior technicians with specialized degrees.
We hold ISO9001:2000, CCC, and CQC product certifications, ensuring safe production and quality first. Our range includes ring main units, distribution cabinets, transformers, and EV charging systems.
