20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Wall Mounted

Send Inquiry

Product Description

Basic Information

Model NO.

MD-ME-20KW/30KW/40KW

Location

Public Use

Charging Interfaces

One Pile with One Charge

Start Mode

RFID, Mobile Remote, Credit Card

Rate Power

20kw 30kw 40kw 60kw

Input Voltage

400V±15% (Three Phase)

Output Voltage

150-1000V

Protection

IP54 Waterproof / Flame Retardant

Product Overview

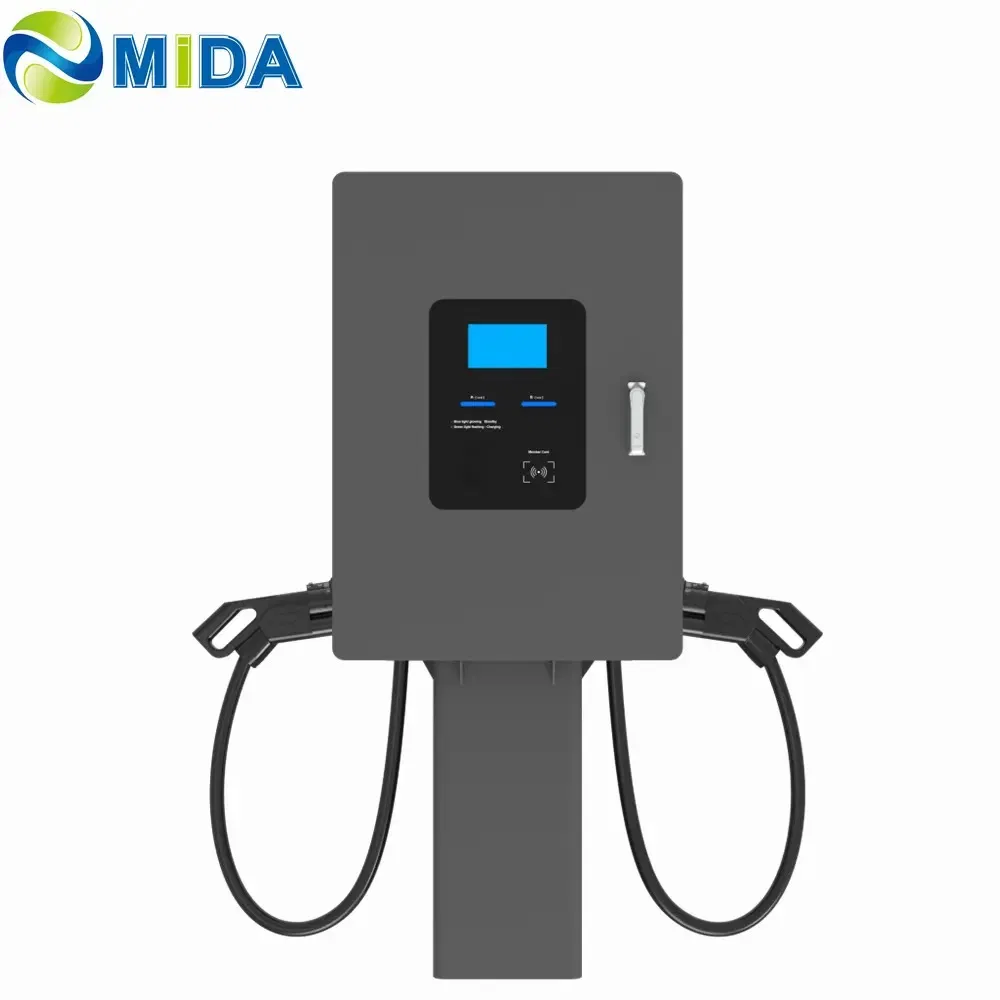

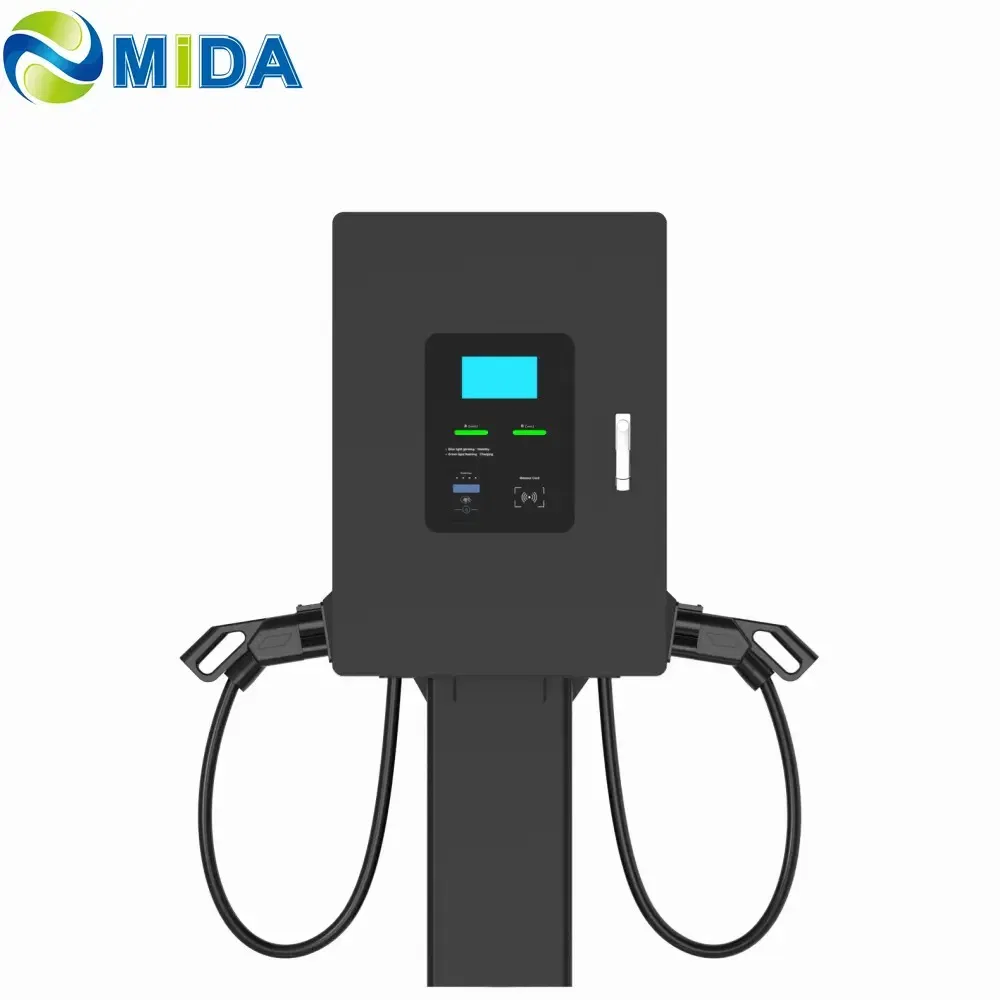

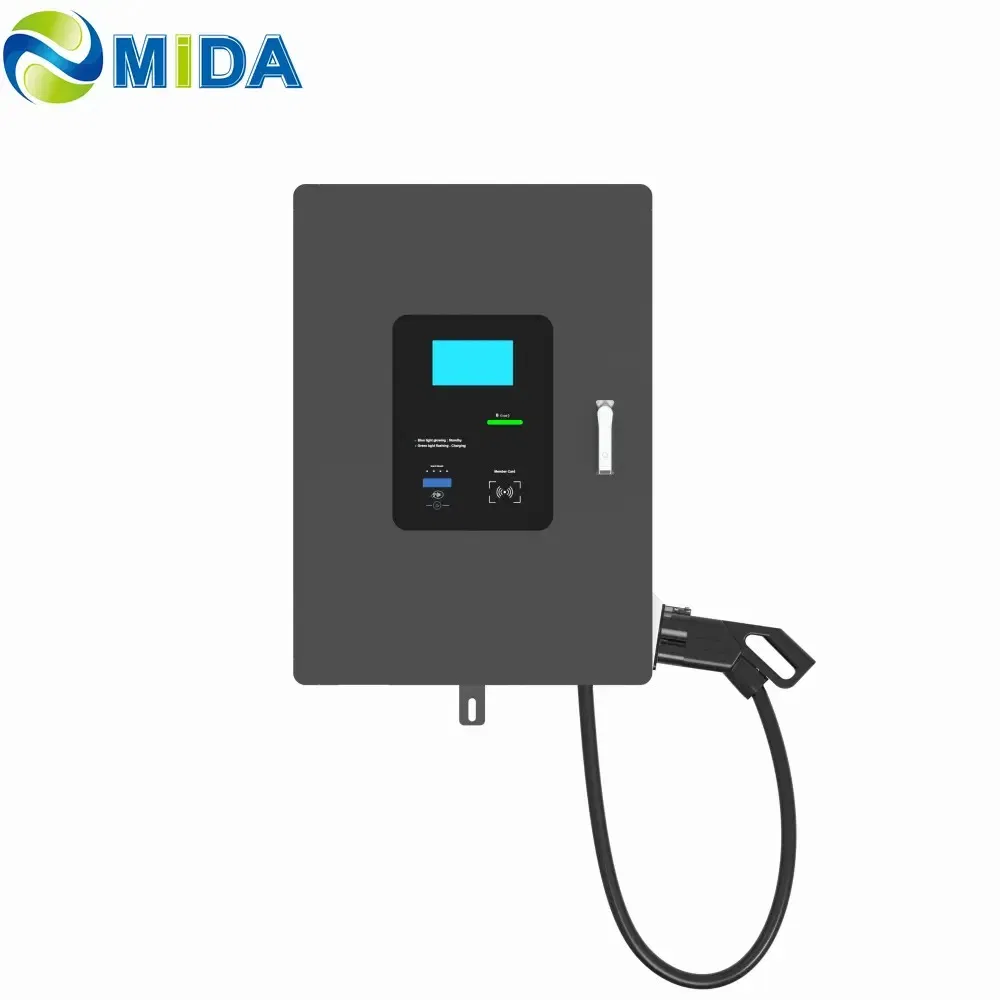

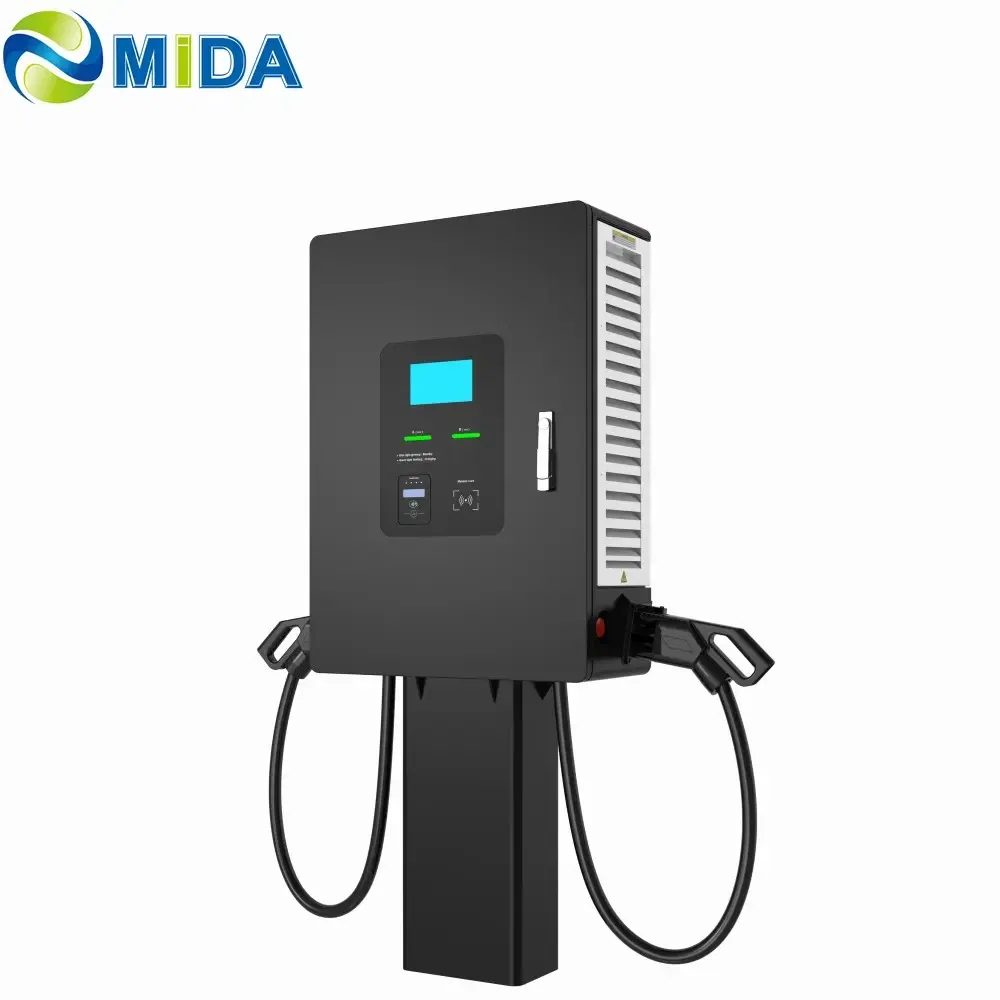

Wall-Mounted Commercial EV DC Charging Station

This quick charger station is designed for both household and commercial use, offering high efficiency and robust security for modern electric vehicles.

Guaranteed Security: IP54 rating, waterproof, dust-proof, and flame retardant components.
Comprehensive Protection: Built-in over temperature, overload, short circuit, and leakage protection.
Emergency Safety: Dedicated emergency stop function for immediate power cutoff.
Flexible Installation: Compact design supports both wall-mount and pedestal-mount options.
Smart Interface: LCD touch screen with multi-language support and secure RFID/App authentication.

Technical Specifications

Category	Item	20KW Parameter	40KW Parameter
Input	Voltage	3-phase 400V ± 15% AC (TN-S)
	Frequency	45~65Hz
	Power Factor	≥0.99
Output	Efficiency	≥94%
	Rated Voltage	CHAdeMO 500Vdc; CCS 750Vdc; GBT 750Vdc
	Max Current	66A	132A
User Interface	Display	8'' LCD Touchscreen (Multi-language)
User Interface	Payment	Mobile APP / RFID / POS
Environment	Protection	IP54 / Forced Air-Cooling
Environment	Temperature	-30°C ~ +55°C

Service & Support

Warranty Period

Enjoy a full 2-year warranty on all charging units, covering quality-related issues.

Trade Assurance

Guaranteed safe deals regarding money, product quality, and shipping reliability.

Technical Support

Free installation instructions, troubleshooting, and configuration advice from experts.

FAQ

Q1: What is the maximum power output of this charging station?

The station is available in multiple power configurations including 20kW, 30kW, 40kW, and up to 60kW to suit different charging speed requirements.

Q2: Can the charger be used in outdoor environments?

Yes, the unit features an IP54 protection rating, making it waterproof, dust-proof, and suitable for both indoor and outdoor commercial or residential locations.

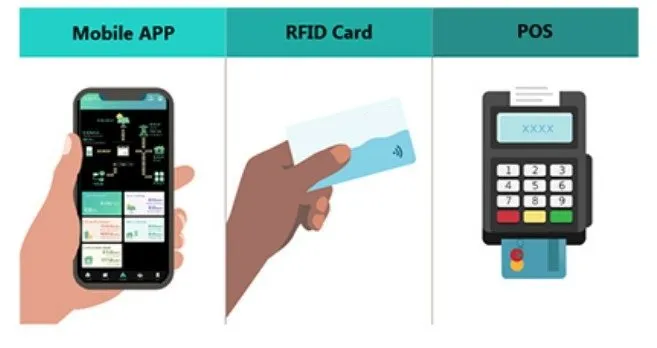

Q3: How do users pay for or start the charging process?

The station supports several authentication and payment methods, including RFID cards, mobile applications, and POS systems. It also has an optional Plug & Charge feature.

Q4: What types of charging connectors are supported?

The station is compatible with major international standards including CCS (Combined Charging System), CHAdeMO, and GBT, with output voltages up to 1000V.

Q5: What safety protections are included?

It includes a full suite of safety features: over-temperature protection, overload protection, short circuit protection, leakage protection, and a manual emergency stop button.

Q6: What is the standard warranty and after-sales service?

The product comes with a 2-year warranty. We provide free installation instructions, troubleshooting support, and free replacement parts within the warranty period.
