High current terminal connectors are essentially designed for safety and efficiency in Energy Storage Systems (ESS). They are widely used in energy storage, new automotive, and other industries requiring robust power distribution.
| Technical Specifications | |||
|---|---|---|---|

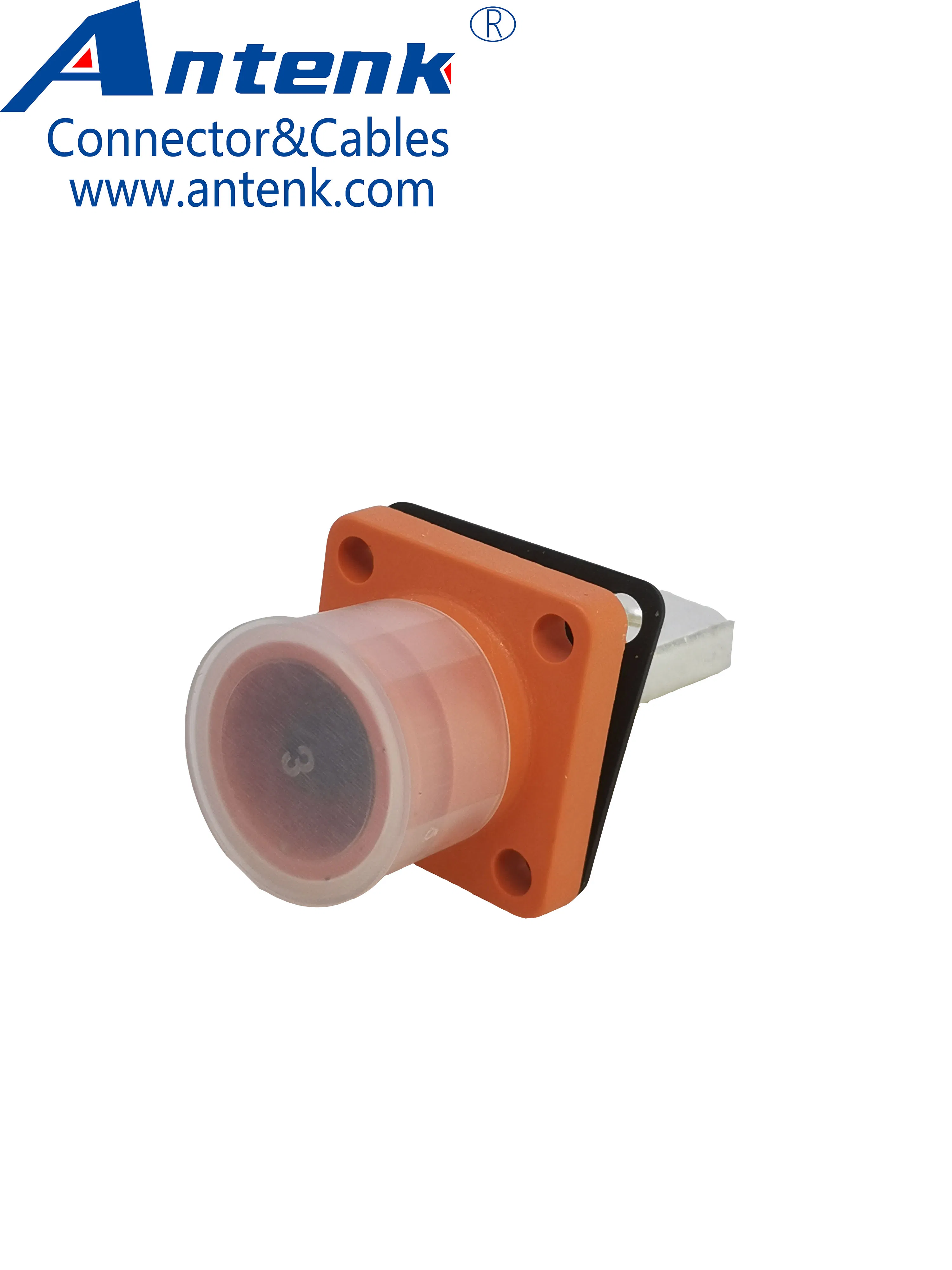

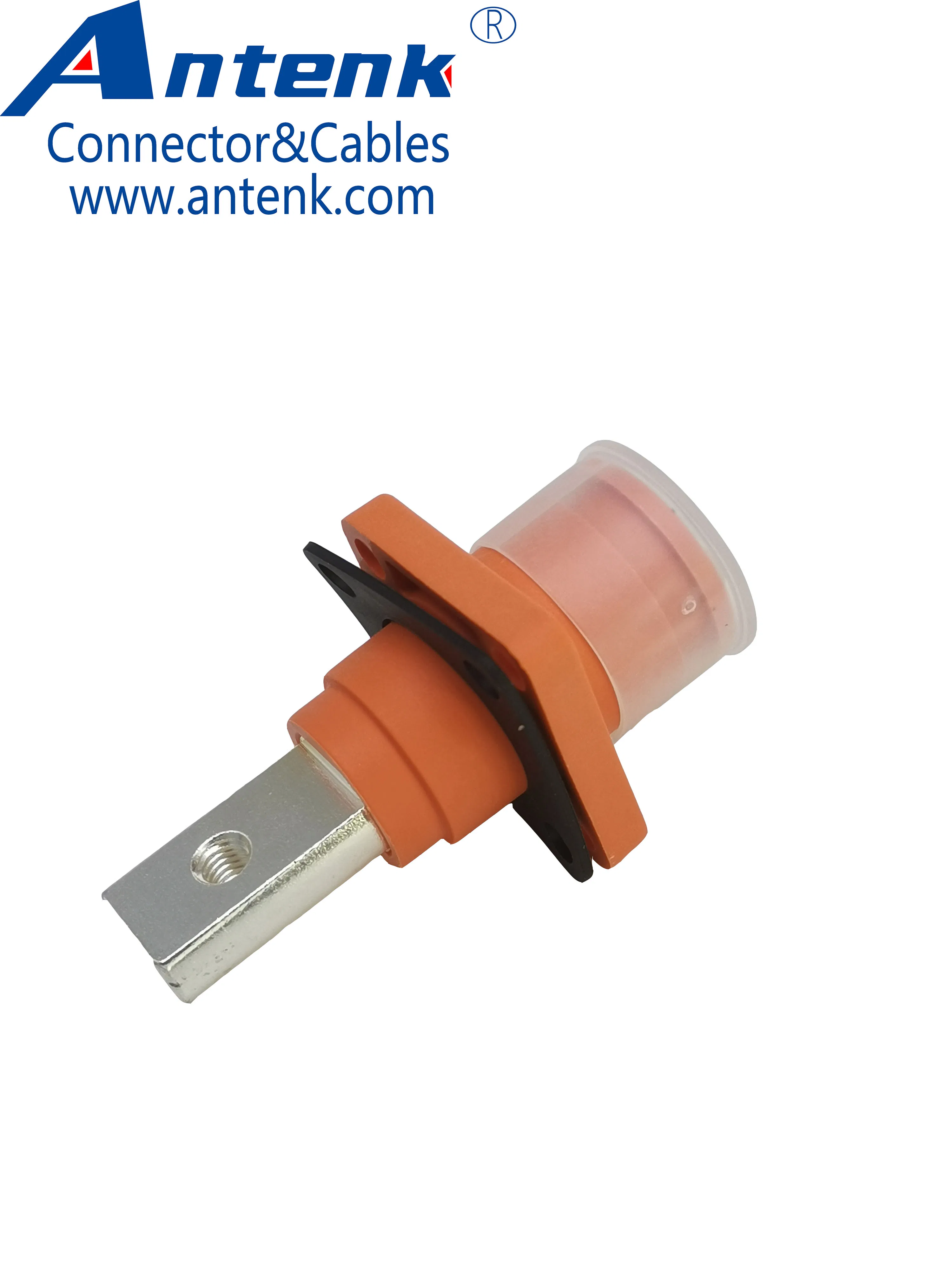

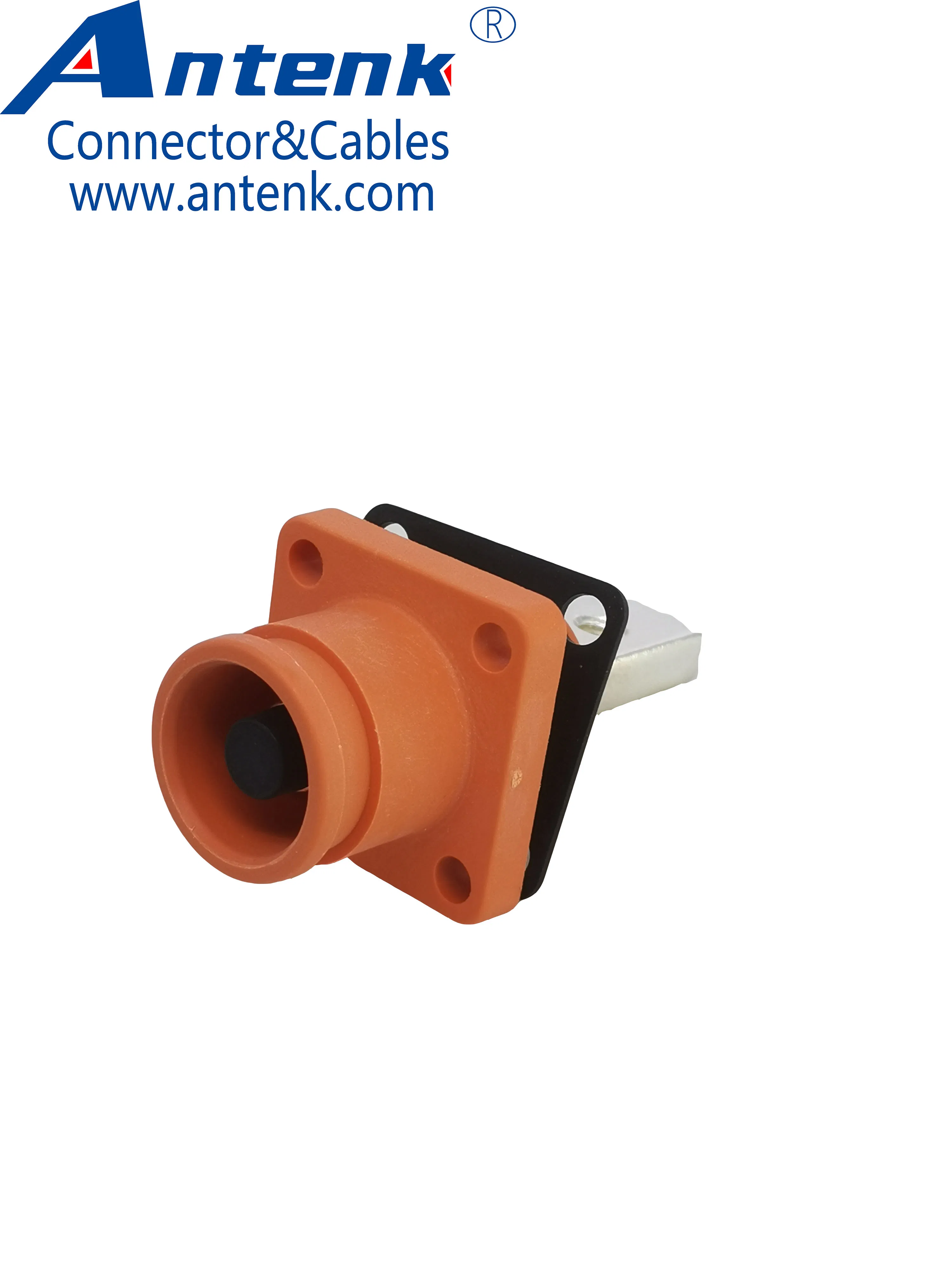

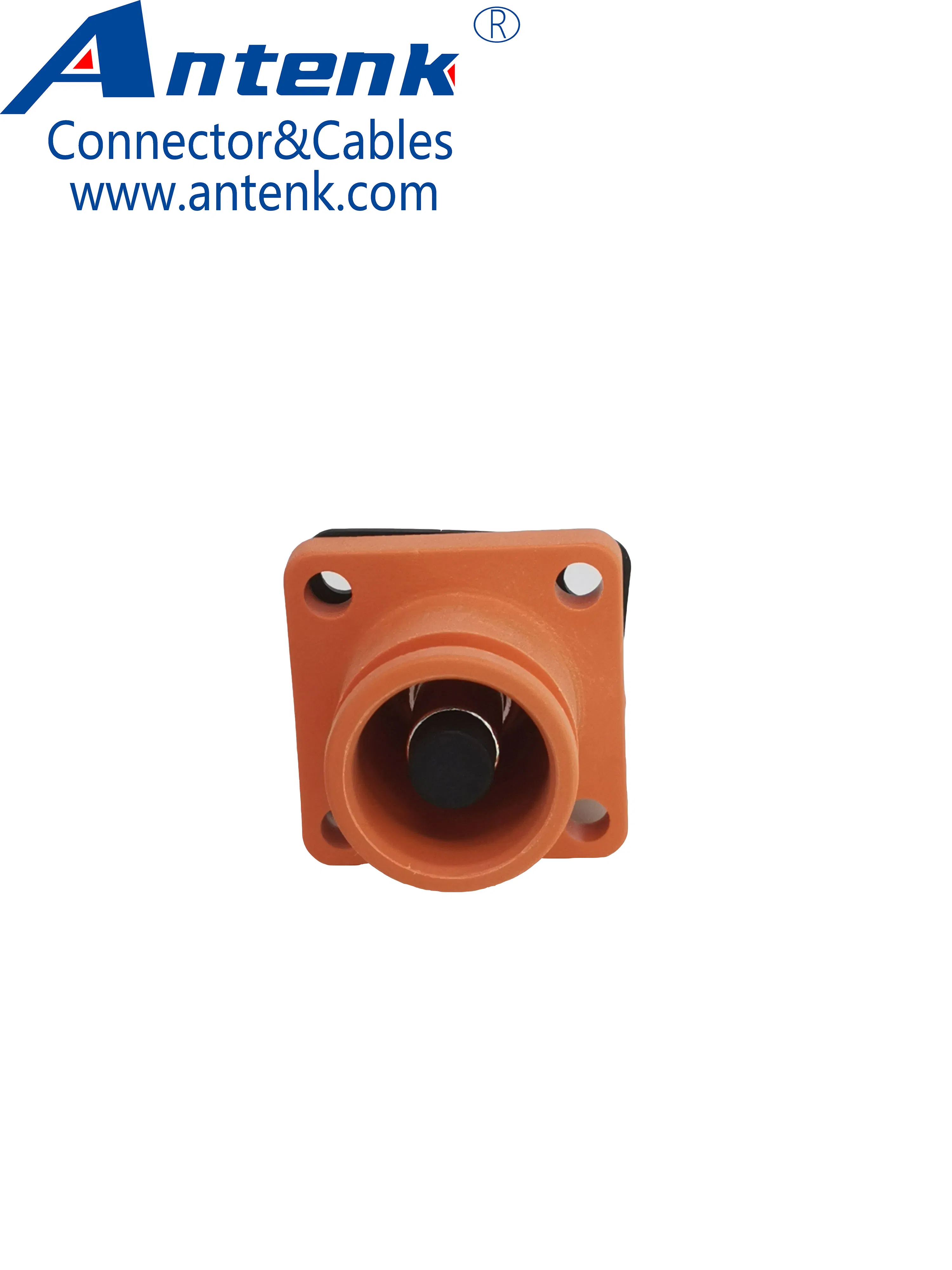

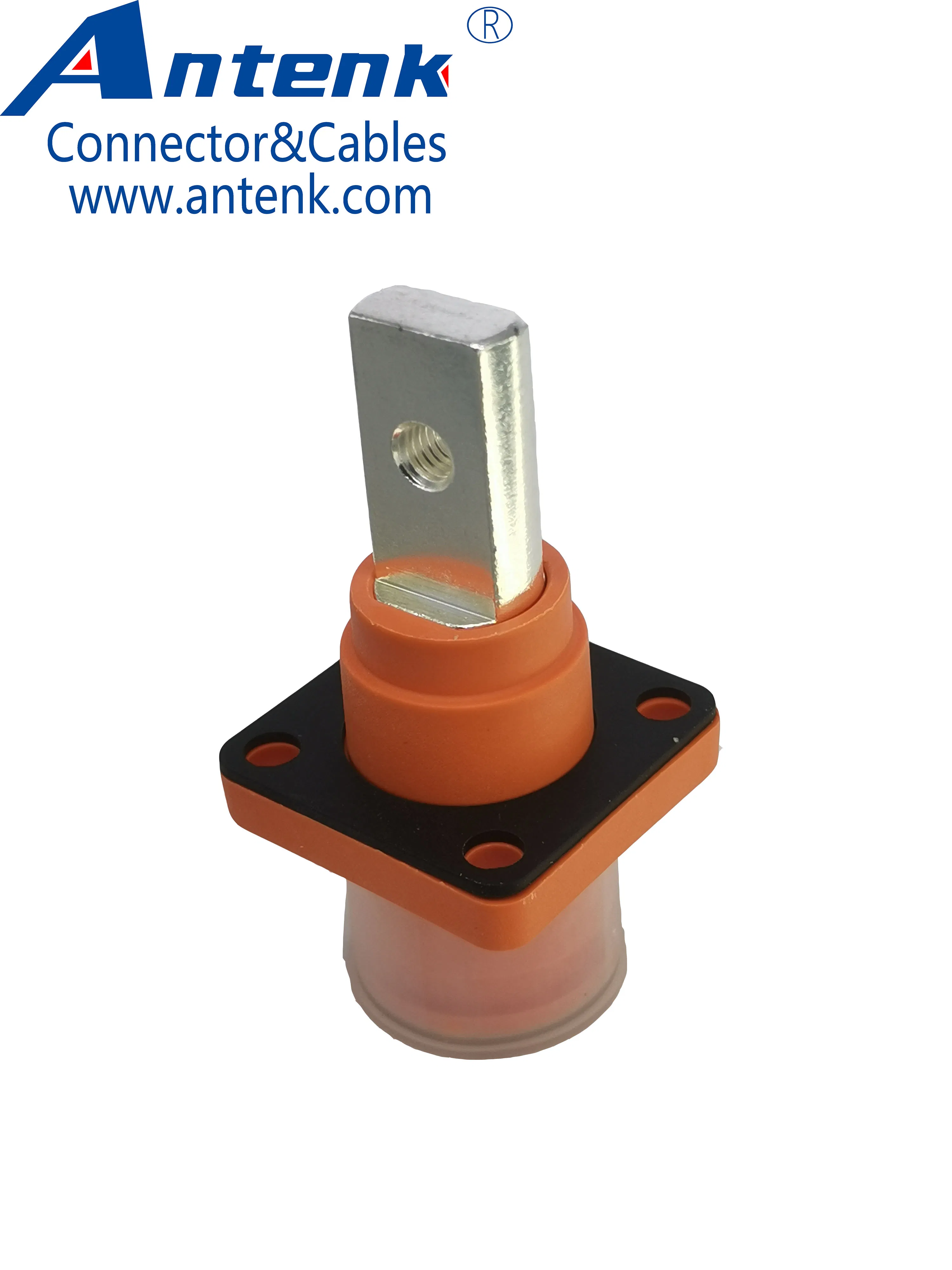

| Product Type | 120A/200A Socket Busbar Terminal (M6/M8 screw) | ||
| Connector Type | Socket | Orientation | Straight |
| Color | Orange | Terminal | 6mm / 8mm |
| Rated Current | 120A / 200A | Rated Voltage | 1000V |
| Contact Material | T2 Copper | Contact Finish | Silver Plating |
| Shell Material | Nylon | Mounting Type | Panel Mount (Flange) |
| Temperature | -40ºC ~ 125ºC | Protection | IP54 / UL94 V-0 |
Energy storage connectors are mainly used to connect battery modules of energy storage systems in series. These connectors can be rotated 360 degrees, allowing them to be adapted to the best angle for heavy cables.
The battery storage connectors feature a drawer-style slide-in connection that eliminates the need for field wiring. This modular connection system can be scaled to meet various application requirements, allowing for higher power distribution.
These connector products are widely used in multiple fields including:
