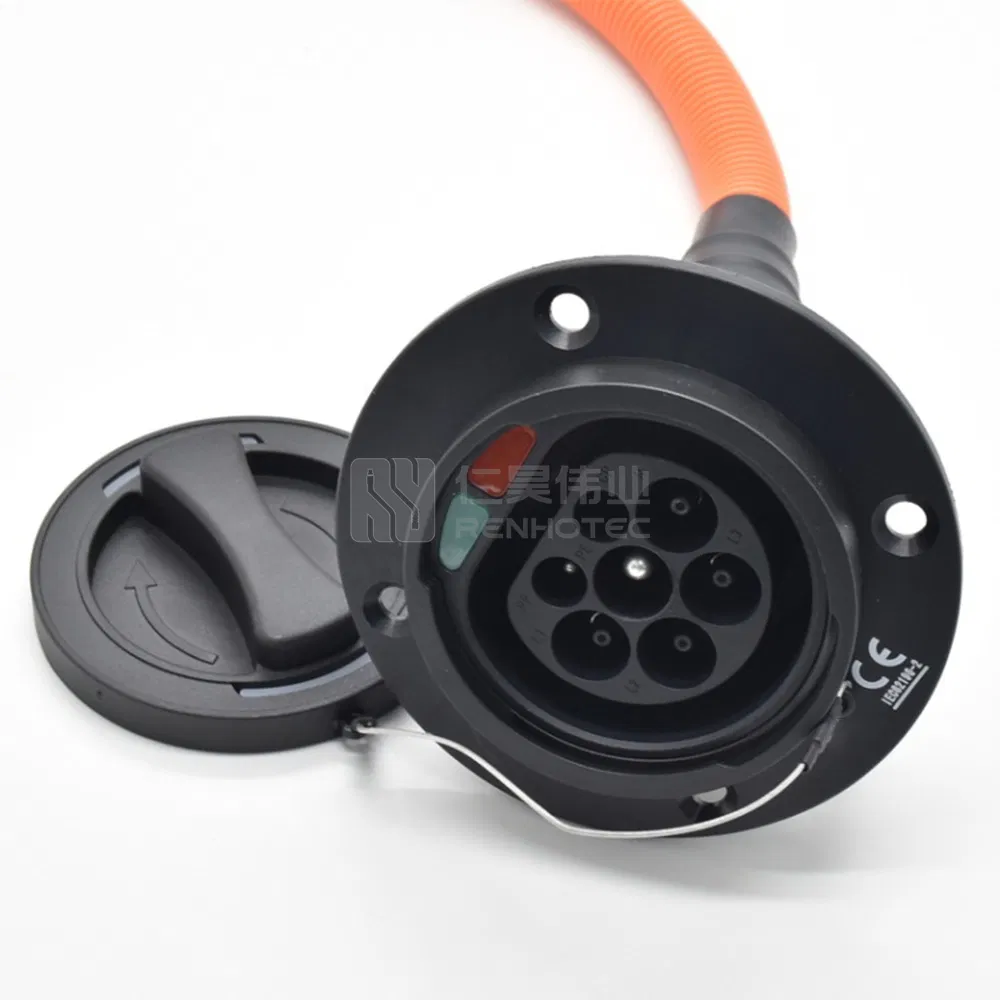

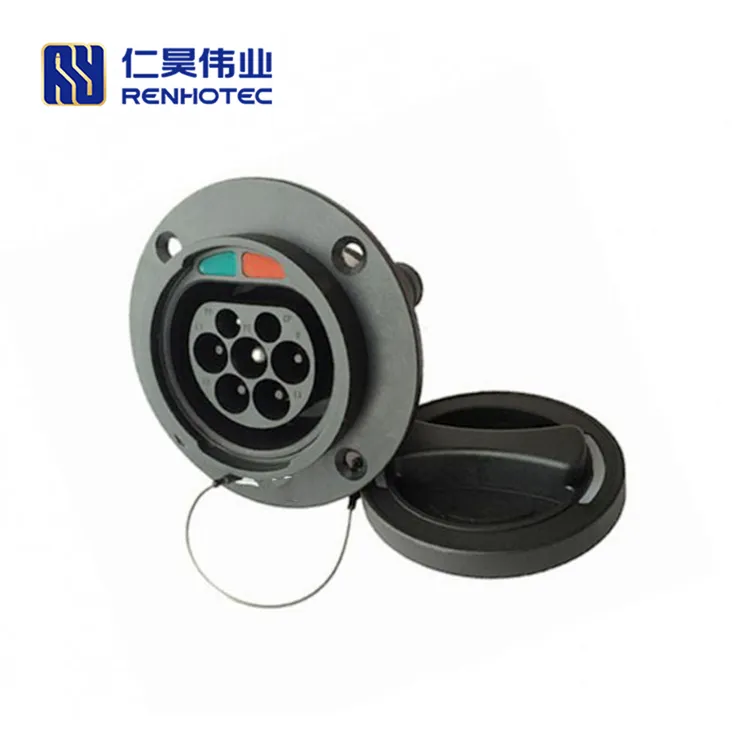

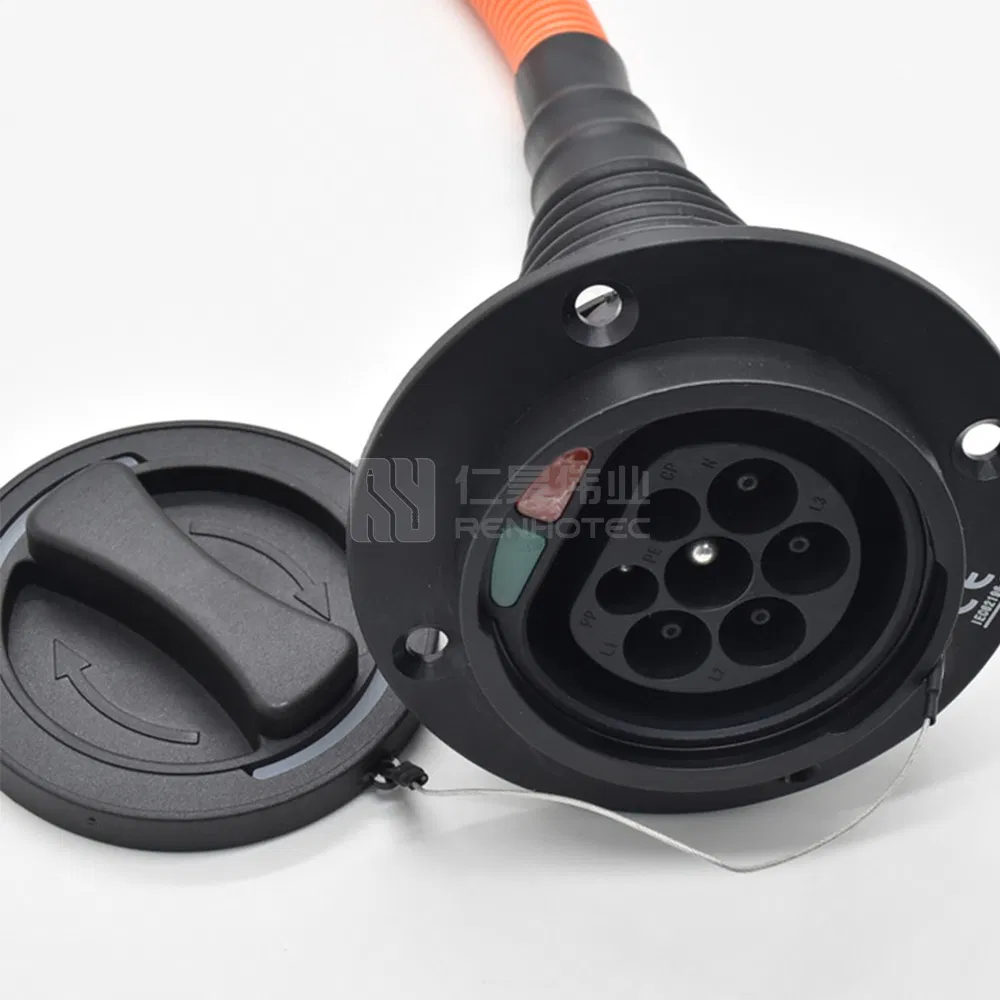

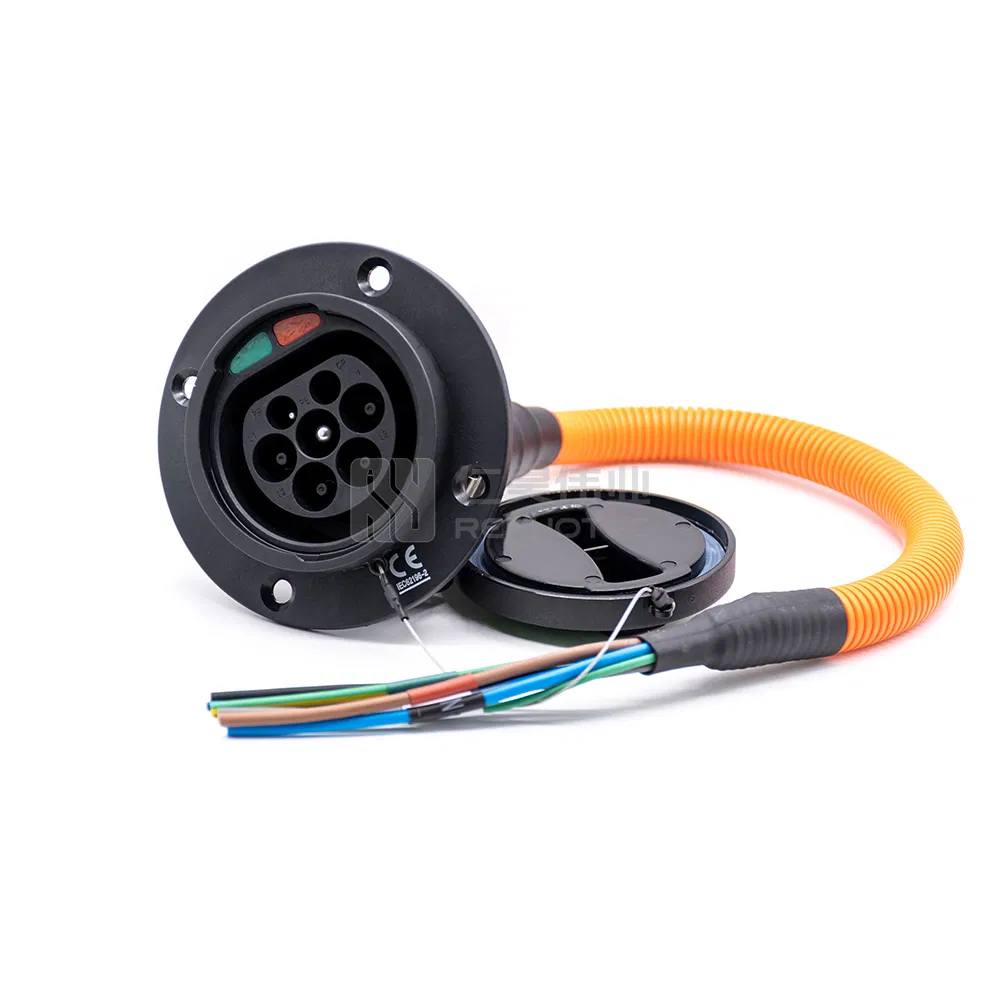

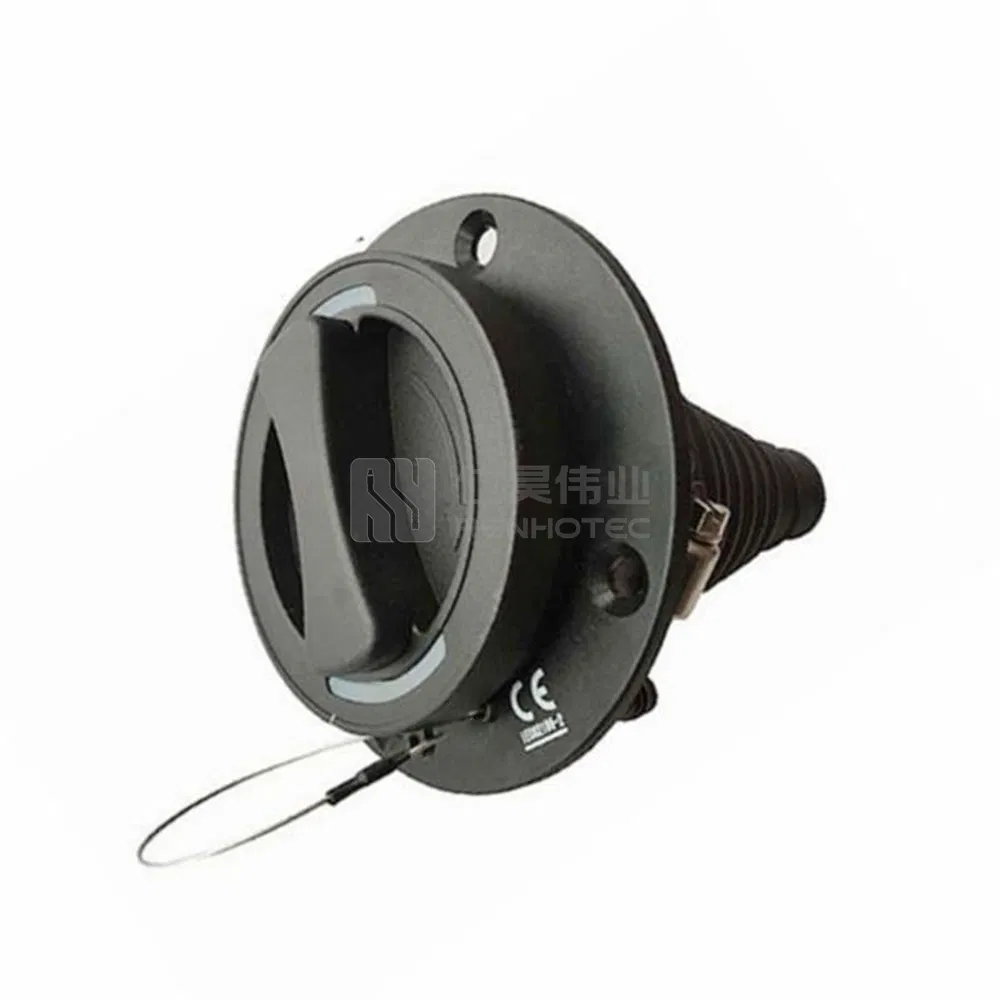

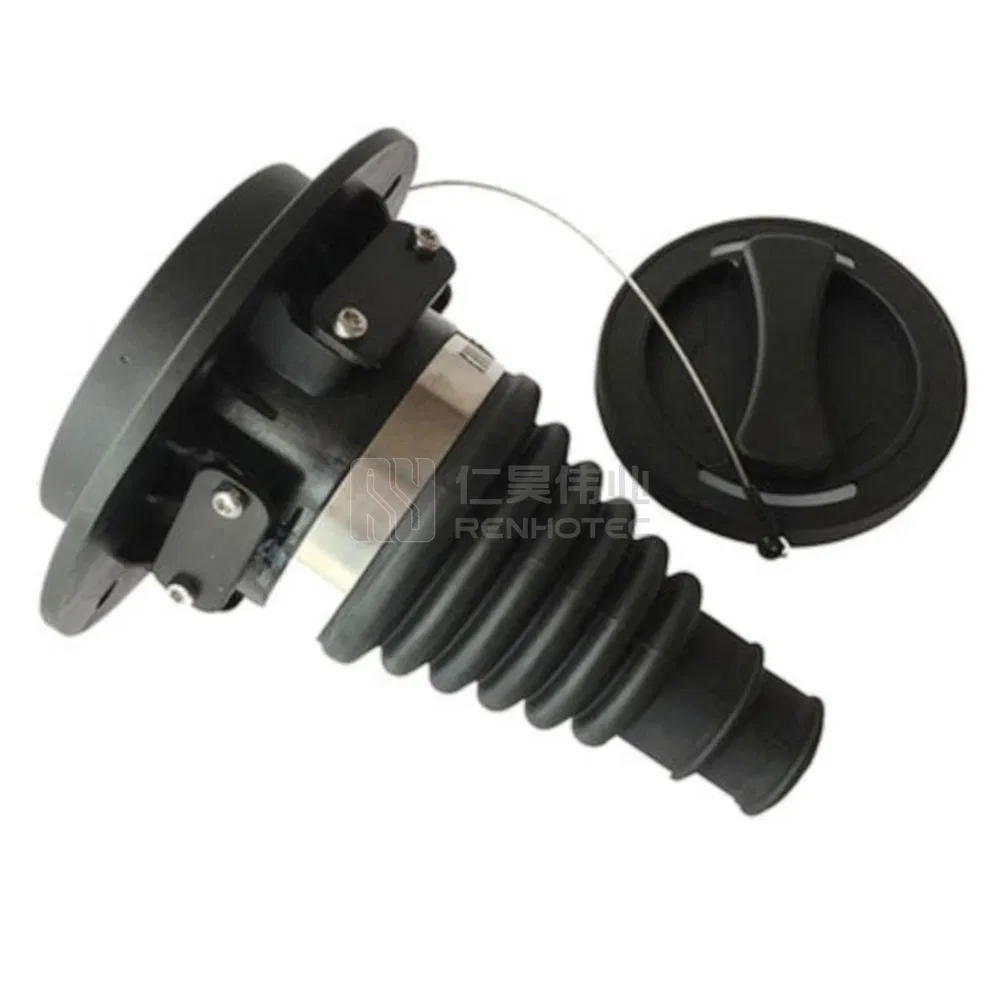

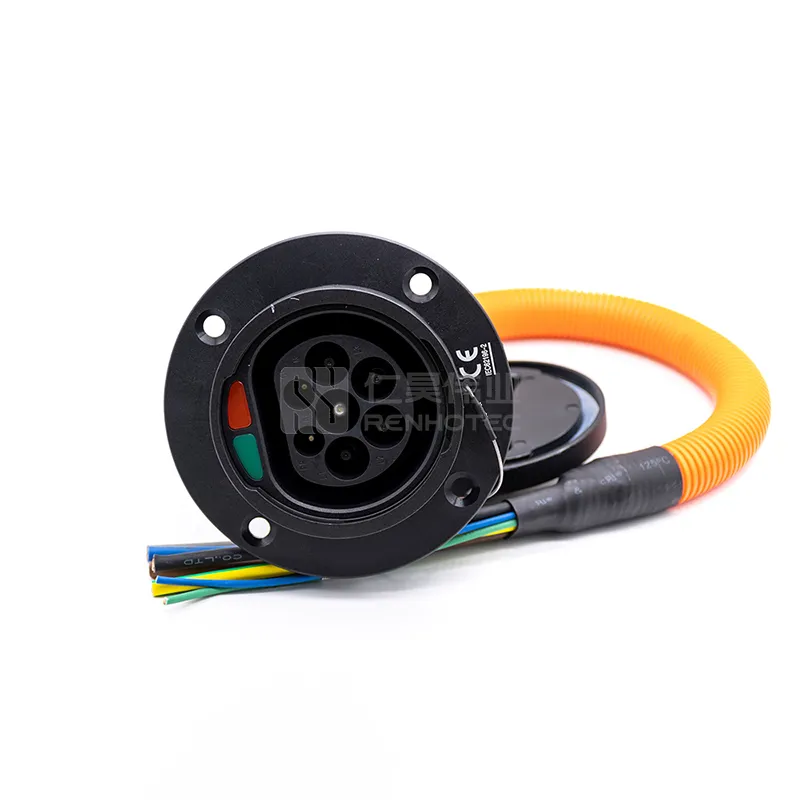

Type 2 EV Charging Connector 16A 32A Socket with 0.5m Cables for Vehicle Side

1 / 5

Type 2 EV Charging Connector 16A 32A Socket with 0.5m Cables for Vehicle Side

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.

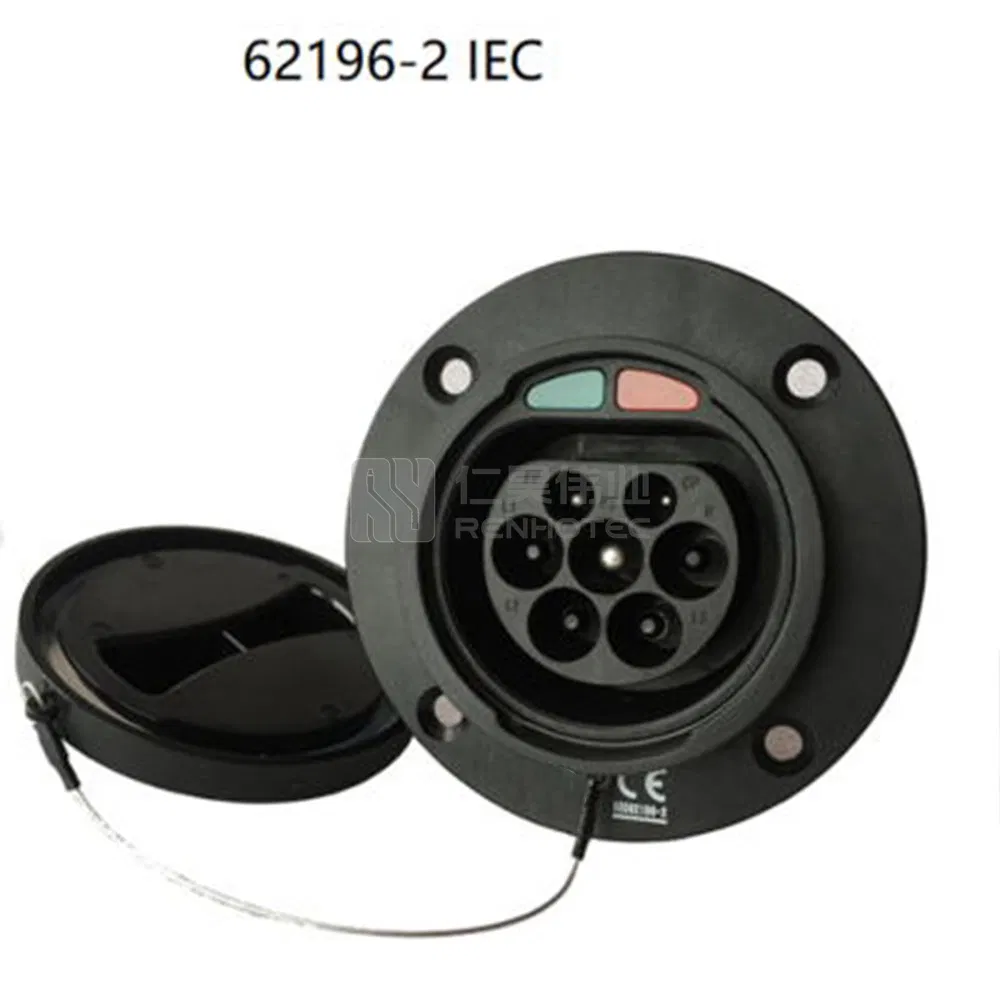

Type 2 IEC 62196 AC 16A 32A Socket

Rated Current

16A 32A

Rated Voltage

250V

IP Degree

IP65 / IP55

Mechanical Life

>10000 Times

Certification

CE, ISO, TUV, RoHS

Warranty

24 Months

Type

Fast EV Charging Station

Product Description

Full Series EV Charger Solution

High Voltage Connectors for EV Projects

Complies with GB/T20234-2011 standard.

Various types: DC charging (125A, 250A) and AC charging (16A, 32A).

Humanized design with a good grasp feel, easy to use.

Protection degree: IP55 / IP65.

Gold-plated power and signal contacts for superior conductivity.

Technical Features

EV Charger Specifications
Model Series	GB/T, Type 1, Type 2, SAE J1772
Connector Type	Plug / Receptacle / Dummy Socket
Charging Mode	AC / DC
Rated Current	16A / 32A / 70A / 80A / 125A / 200A / 250A
Application	Vehicle End / Power Supply Side

Material Quality:

Shell & Insulator: High-grade Thermoplastics (UL94-V0 Flame Retardant)
Sealing Ring: Premium Rubber Material
Contacts: Copper Alloy with Gold-plating

Environmental Performance:

Operating Temperature: -30ºC to +50ºC
Relative Humidity: 98% at 40ºC

Durability: Exceed 10,000 Times Mating Cycles

Quality Assurance

Packing & Shipping:

Standard PE bag with labels. Supports FedEx, DHL, UPS, TNT, and Sea/Air/Rail freight. Lead time: 1-7 days for samples, 7-15 days for mass production.

Frequently Asked Questions

Q1: What standards do these EV charging connectors comply with? Our products fully comply with the GB/T20234-2011 standard, ensuring safety and compatibility for electric vehicle charging.

Q2: What is the mechanical lifespan of the socket? The connector is designed for high durability, with a mechanical life exceeding 10,000 mating cycles in a non-charged state.

Q3: Are the connectors waterproof for outdoor use? Yes, the products feature IP65 and IP55 protection ratings (during charging) to ensure safe operation in various weather conditions.

Q4: What are the available current and voltage ratings? We offer AC charging connectors in 16A and 32A ratings at 250V, as well as DC charging options up to 250A.

Q5: What is the operating temperature range? The connectors are built to withstand extreme environments, operating reliably between -30ºC and +50ºC.

Q6: Do you provide a warranty for these products? Yes, we provide a 24-month warranty on our EV charging connectors to guarantee long-term performance and reliability.
