ISO Approved 12 Months Haosheng Wooden Box 160*280*398.5 (Wall mounted type) 181.5*280* Socket EV Charging
ISO Approved 12 Months Haosheng Wooden Box 160*280*398.5 (Wall mounted type) 181.5*280* Socket EV Charging
ISO Approved 12 Months Haosheng Wooden Box 160*280*398.5 (Wall mounted type) 181.5*280* Socket EV Charging
ISO Approved 12 Months Haosheng Wooden Box 160*280*398.5 (Wall mounted type) 181.5*280* Socket EV Charging
ISO Approved 12 Months Haosheng Wooden Box 160*280*398.5 (Wall mounted type) 181.5*280* Socket EV Charging
1 / 5
ISO Approved 12 Months Haosheng Wooden Box 160*280*398.5 (Wall mounted type) 181.5*280* Socket EV Charging
ISO Approved 12 Months Haosheng Wooden Box 160*280*398.5 (Wall mounted type) 181.5*280* Socket EV Charging
ISO Approved 12 Months Haosheng Wooden Box 160*280*398.5 (Wall mounted type) 181.5*280* Socket EV Charging
ISO Approved 12 Months Haosheng Wooden Box 160*280*398.5 (Wall mounted type) 181.5*280* Socket EV Charging
ISO Approved 12 Months Haosheng Wooden Box 160*280*398.5 (Wall mounted type) 181.5*280* Socket EV Charging

ISO Approved 12 Months Haosheng Wooden Box 160*280*398.5 (Wall mounted type) 181.5*280* Socket EV Charging

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
wall box
User Authentication
RFID ISO / IEC 14443 a/B
Standard
EU / US
IP Level
IP 54
Type
Slow EV Charging Station
Certification
CE, ISO
Warranty
12 Months
Origin
China
★

Product Description

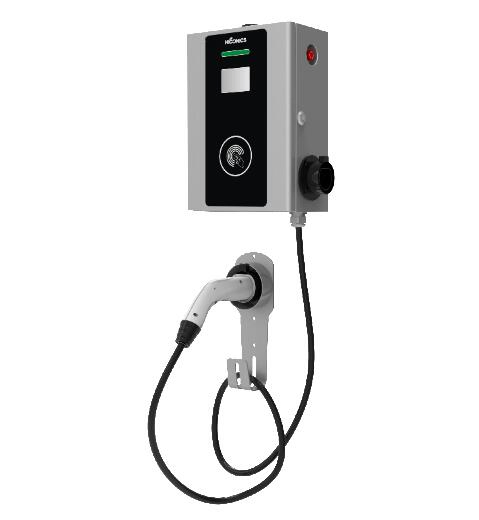

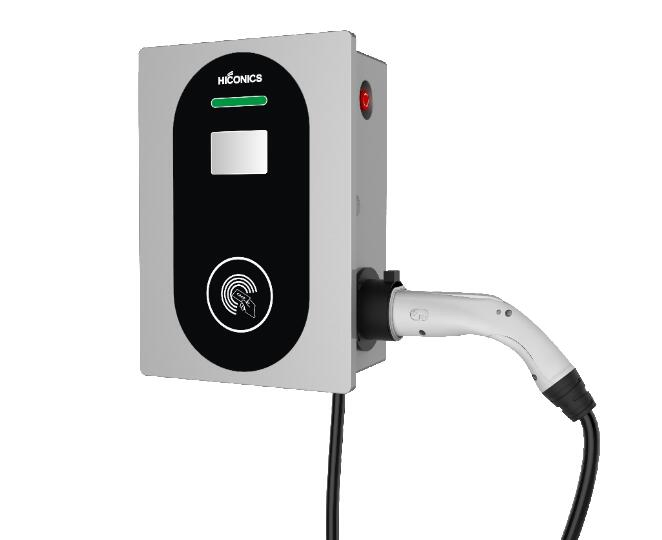

32A Wall Box EV Charger

EV Charger Product

Key Features

  • ✓ 1. Ideal choices for residential, community, and commercial AC EV charger.
  • ✓ 2. Wired/wireless connection for back office management.
  • ✓ 3. Optional RFID card reader for user identification and management.
  • ✓ 4. Input: 200Vac~240Vac / 400Vac±15%.
  • ✓ 5. IP54 rated for indoor/outdoor applications.
  • ✓ 6. Firmware updates through remote connection.

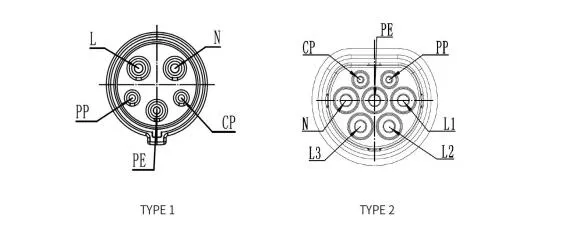

  • ✓ 7. Charging interface: SAE J1772 (Type 1) / IEC 62196-2 (Type 2).
Product Feature
📋

Technical Specifications

Specification Overview
Category EU Standard US Standard
AC Input Input Rating 230 Vac/Single Phase; 400Vac/Three Phase 208-240 Vac/1-phase; 400Vac/Three Phase
Connection L/N/PE, 3P/N/PE
Max Current 32A
Frequency 45 - 65 Hz
Interface Display 3.5 inch LCD
Authentication RFID ISO/IEC 14443A/B
Operating Temperature -30°C to 50°C
IP Level IP 54 NEMA TYPE 3R
Mechanical Dimensions 160*280*398.5mm (Wall mounted)
Cable Length 5 Meters
🖼

Product Details & Variants

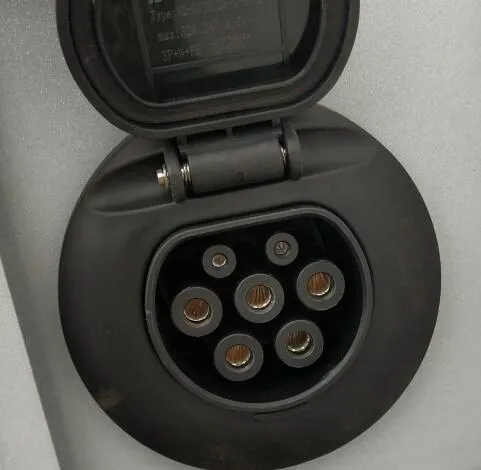

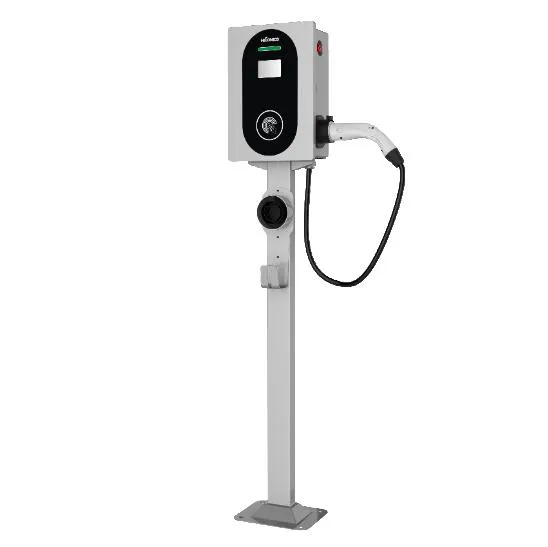

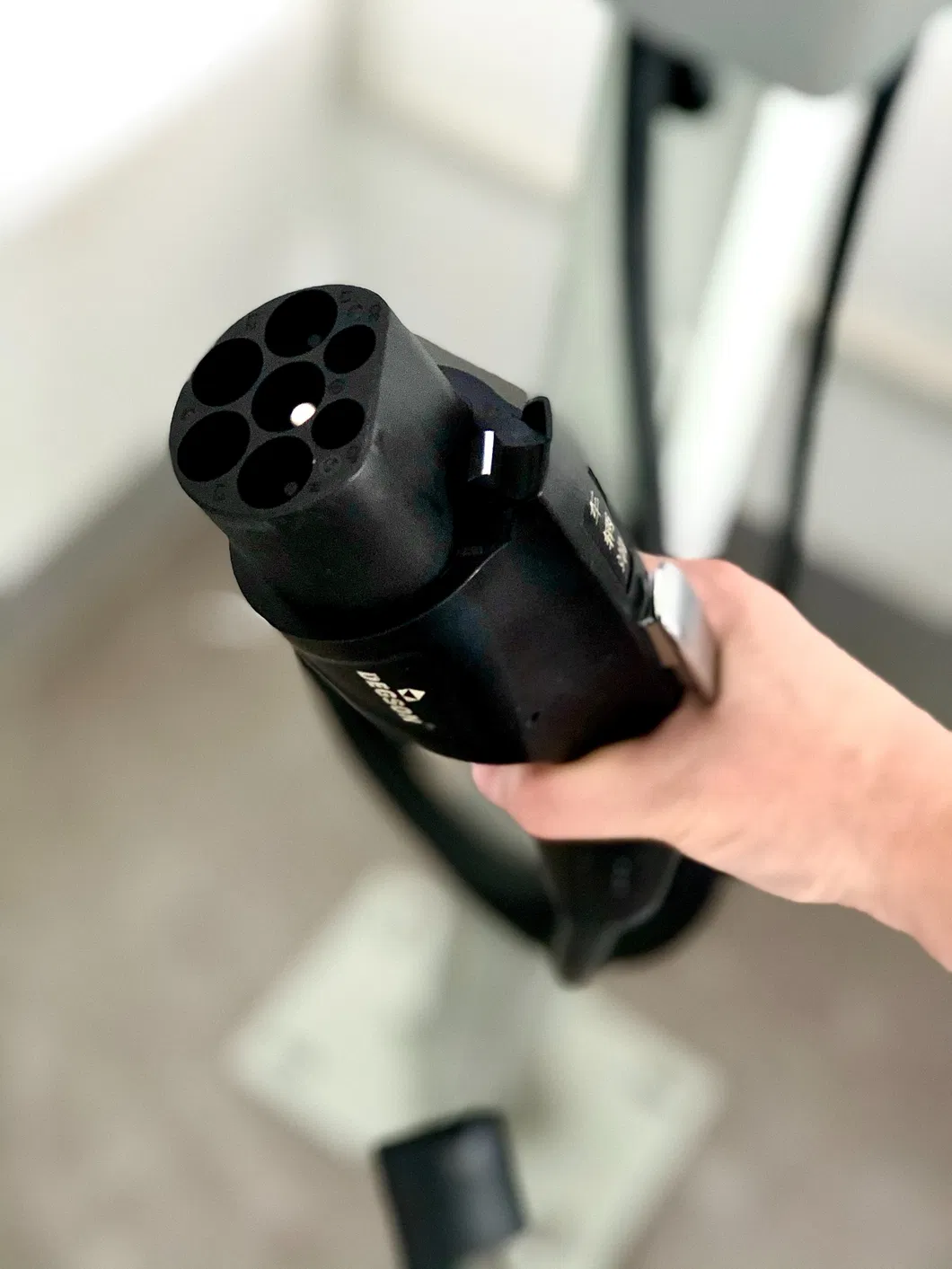

Detail 1 Detail 2 Detail 3

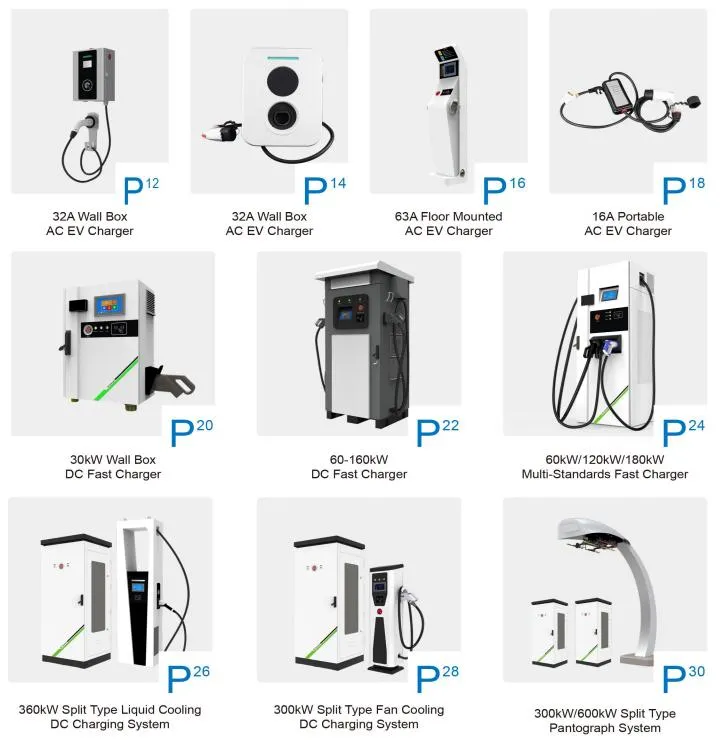

Different Models Available

Different Models
✔

Quality Assurance

Certificates Brands
Profile
?

Frequently Asked Questions

What types of EV charging interfaces do you provide?
We support major global standards including SAE J1772 (Type 1) for the US market and IEC 62196-2 (Type 2) for the European market.
How is the product quality guaranteed?
We maintain strict quality control with pre-production samples before mass production and a final 100% inspection before shipment. Our facility is ISO certified.
Is the wall box suitable for outdoor installation?
Yes, the charger is IP54 rated (and NEMA TYPE 3R for US versions), making it durable for both indoor and outdoor residential or commercial applications.
Does the charger support remote management?
Yes, the system supports OCPP 1.6 JSON protocol and can be connected via Ethernet, 3G, or 4G for remote firmware updates and back-office management.
What is the standard warranty period?
We provide a 12-month warranty on our EV charging stations, along with online technology guidance for after-sales support.
How can users be identified for charging?
The charger includes an optional RFID card reader (supporting ISO/IEC 14443A/B) for secure user authentication and management.
