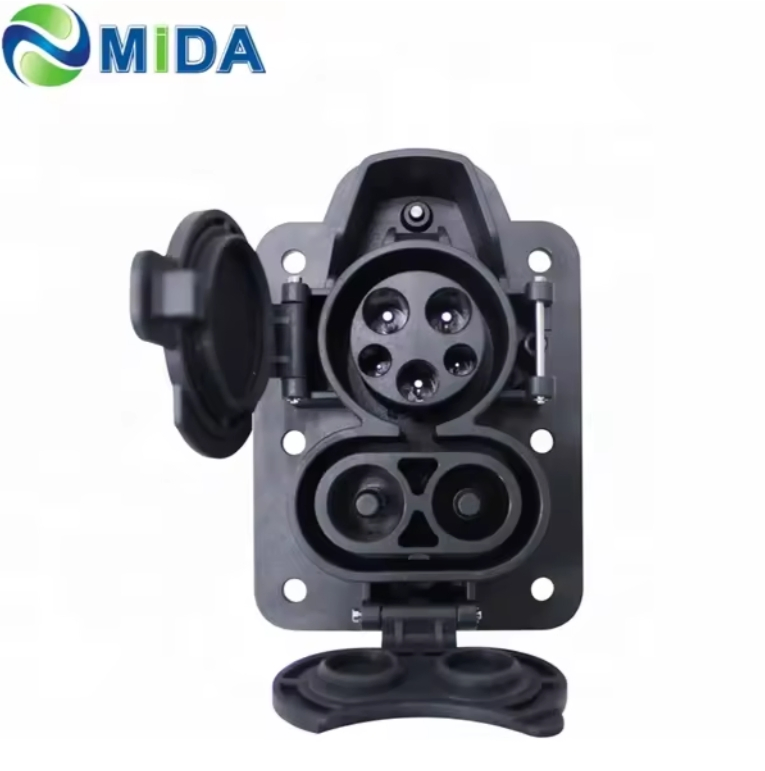

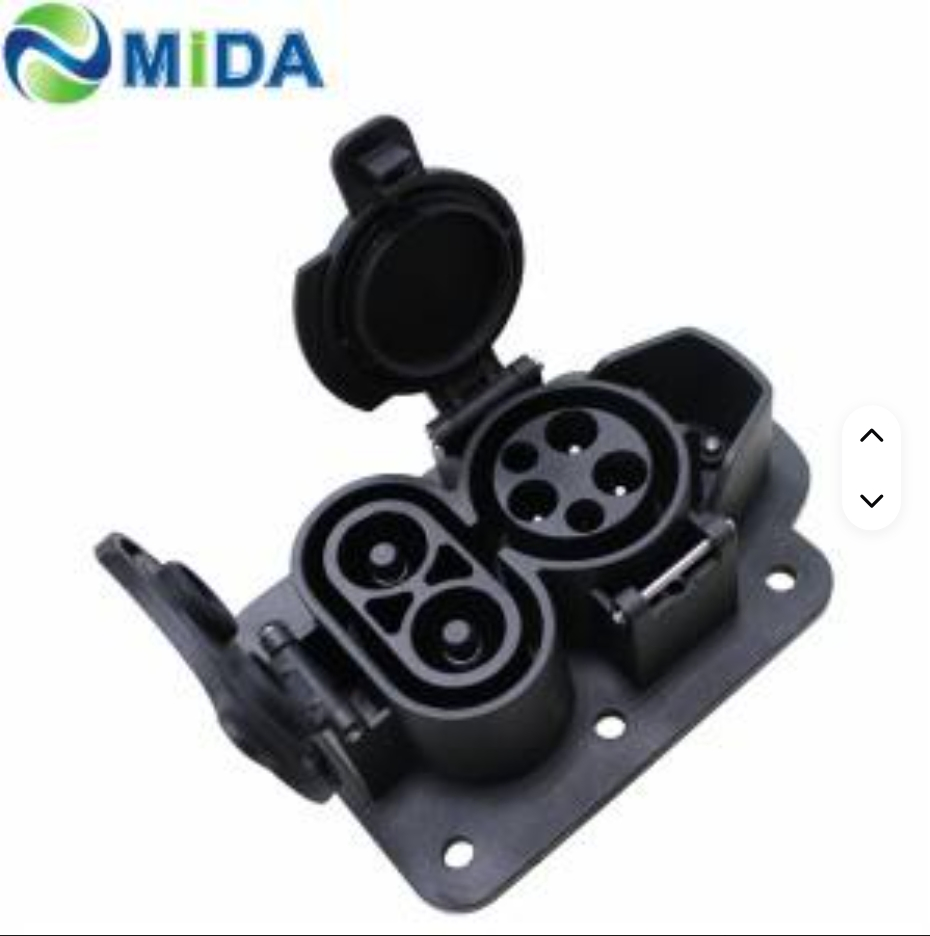

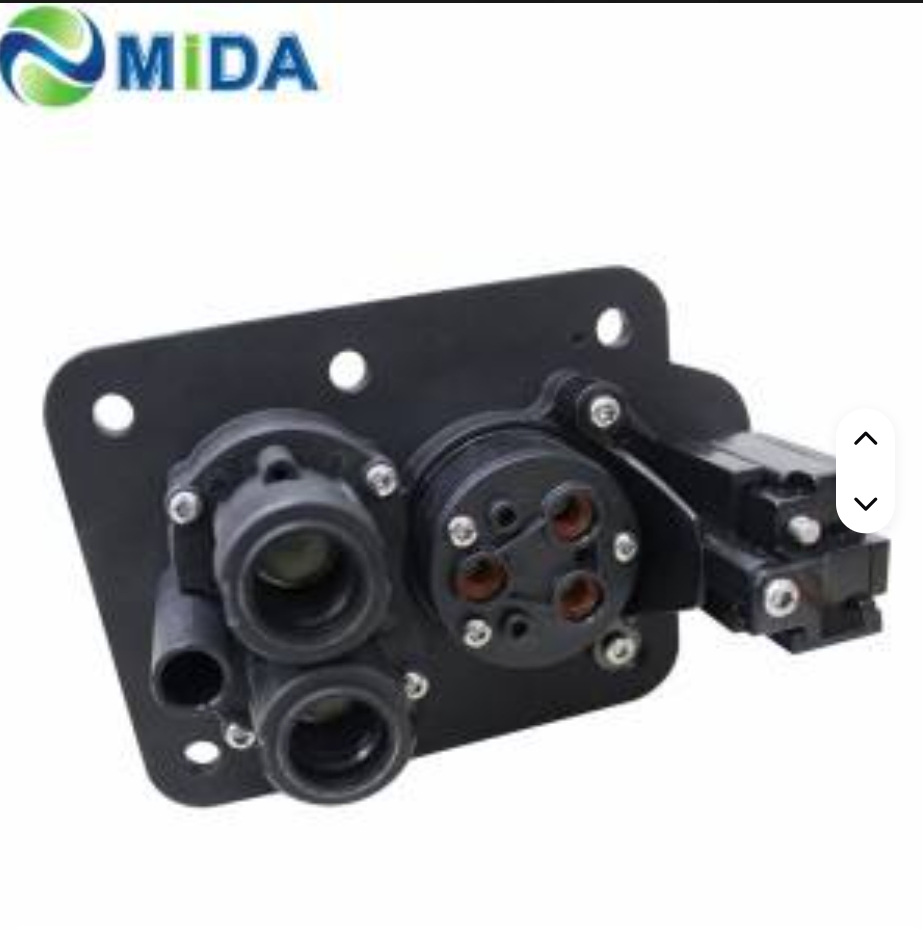

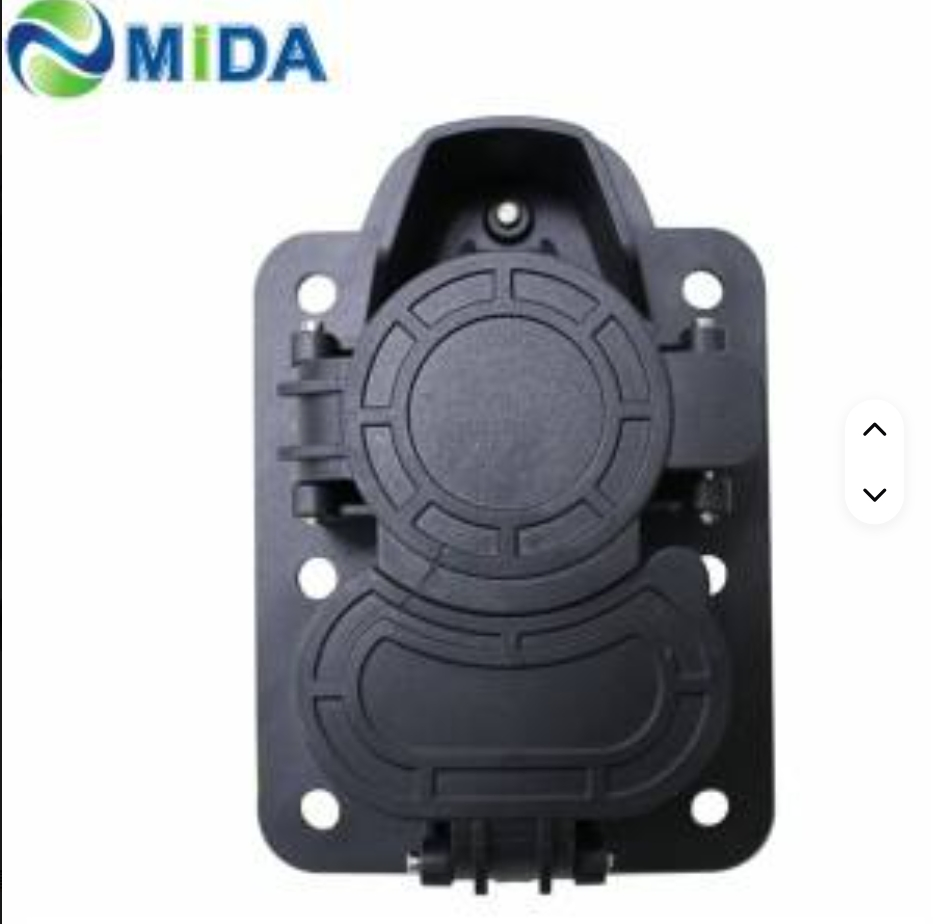

200A CCS1 Socket DC Fasr Charging Use for EV Charger
200A CCS1 Socket DC Fasr Charging Use for EV Charger
200A CCS1 Socket DC Fasr Charging Use for EV Charger
200A CCS1 Socket DC Fasr Charging Use for EV Charger
1 / 4
200A CCS1 Socket DC Fasr Charging Use for EV Charger
200A CCS1 Socket DC Fasr Charging Use for EV Charger
200A CCS1 Socket DC Fasr Charging Use for EV Charger
200A CCS1 Socket DC Fasr Charging Use for EV Charger

200A CCS1 Socket DC Fasr Charging Use for EV Charger

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
200A CCS1 Socket
IP Grade
IP54
Color
Black
Cable Length
1m
Terminal Temp Rise
<50K
Product Name
CCS2 Socket
Working Temp
-30°C ~ +50°C
Approved
CE Approved
Standard
CCS1 20234.3-2015
Operation Voltage
750V/1000V DC
Insulation Resistance
>2000MΩ (DC 500V)
Flame Retardant
UL94 V-0
HS Code
85366900
Production Capacity
50,000 pieces/Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 10.00cm
Gross Weight
5.000kg
Lead Time
7 days (1-10 pieces); Negotiable (>10 pieces)
Product Description
Product Name: CCS1 Fast Charging Socket 200A DC EV Charger CCS1 Socket

Compatible with a wide range of electric vehicles including: LEAF, eNV-2000, eGolf Volt, Bolt, Spark Prius Plug-In, Prius Prime, Rav4 EV Ioniq, Soul EV, B Class Electric Drive, i3 and i8, Focus Electric, C-Max Energy, Fusion Energy, 500e ZERO motorcycle, Smart Electric Drive, Karma Fisker, iMiev, ELR Cayenne S-E, Panamera S-E, Accord Plug-In Hybrid, Fit EV, Model S, Model X (*requires adapter).

200A CCS1 Socket Header
200A CCS1 Socket Detail
Technical Specifications
Rated Current200A
Operating VoltageAC 750V/1000V
Insulation Resistance>2000MΩ (DC 500V)
Withstand Voltage3500V
Contact PinCopper alloy, Silver plating
Working Temperature-30°C ~ +55°C
Flame Retardant GradeUL94 V-0
Contact Resistance0.5mΩ Max
Waterproof GradeIP65
CertificateCE Approved
200A CCS1 Socket Dimensions
Key Features
  • Conforms to IEC 62196-2 2016 2-IIb, SAE J1772-2012, and IEC 62196-2 2016 standards.
  • Riveting pressure process ensures a beautiful appearance without screws, ergonomic hand-held design for convenient plugging.
  • TPE cable insulation for enhanced aging resistance and durability.
  • TPE sheath improves bending life and wear resistance of the charging connector.
  • Excellent protection performance with a protection grade of IP65 in working conditions.
CCS1 Socket Drawing 1 CCS1 Socket Drawing 2 CCS1 Socket Drawing 3
CCS1 Socket Image A CCS1 Socket Image B CCS1 Socket Image C
Frequently Asked Questions
Q1: What is the maximum charging speed of the 200A CCS1 Socket?
A: The 200A socket supports high-speed DC charging, providing up to 150kW to 200kW depending on the operating voltage (750V/1000V).
Q2: Can I customize the cable length?
A: Yes, standard lengths are 1m, but we can offer customized lengths like 3m, 5m, or 10m to meet your specific installation requirements.
Q3: Is this socket compatible with Tesla vehicles?
A: Yes, it is compatible with Tesla Model S and Model X when used with the appropriate CCS1 to Tesla charging adapter.
Q4: What are the safety certifications for this product?
A: This CCS1 charging socket is CE approved and conforms to international standards including SAE J1772 and IEC 62196-2.
Q5: How does the socket handle extreme weather conditions?
A: The socket is designed for durability with an IP54/IP65 protection rating and a wide working temperature range of -30°C to +50°C.
Q6: What material is used for the contact pins?
A: The contact pins are made of high-quality copper alloy with silver plating to ensure superior conductivity and durability.
