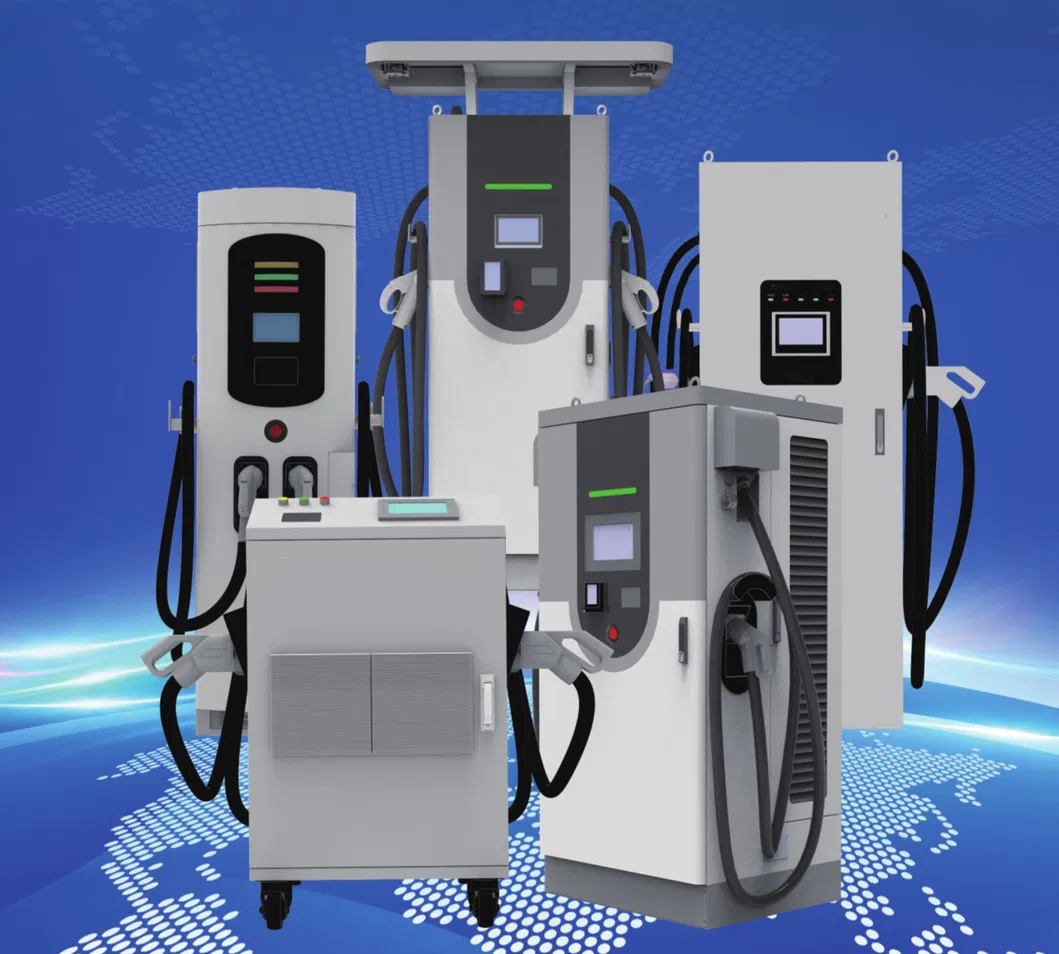

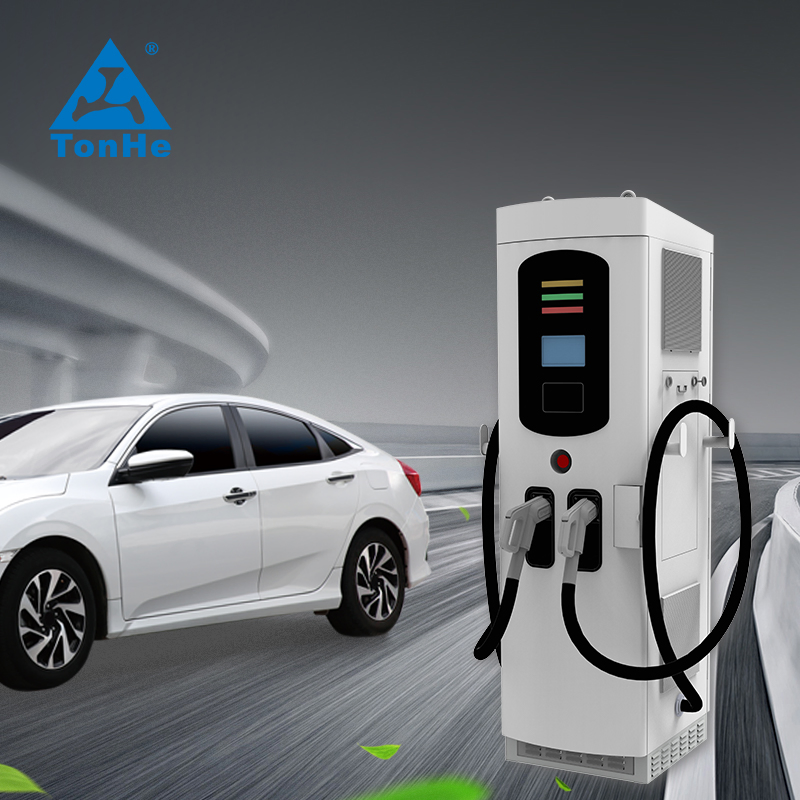

Product Description
Constant power from 200-1000VDC
Average efficiency ≥94%
Simultaneous dual-output charging
Ethernet/3G/4G Communication
High protection IP54 Grade
APP operation & RFID authentication
CE Certificate NB 1282
OEM/ODM & Logo Customized
| Technical Specifications |
Details |
| AC Input | Phases/Lines | 3 phases + neutral + PE |
| Voltage | 380VAC±20% |
| Frequency | 50Hz±10% |
| DC Output | Voltage | 200-1000VDC |
| Max Current | CCS 2: 200A, CHAdeMO: 125A, GB/T: 250A |
| Cable Length | 5m |
| Performance | Efficiency | ≥94% at nominal output power |
| Protection | Security | Over Current, Under Current, Over Voltage, Surge Protection, Short Circuit, Earth Fault, Emergency Shut-down |
🏭

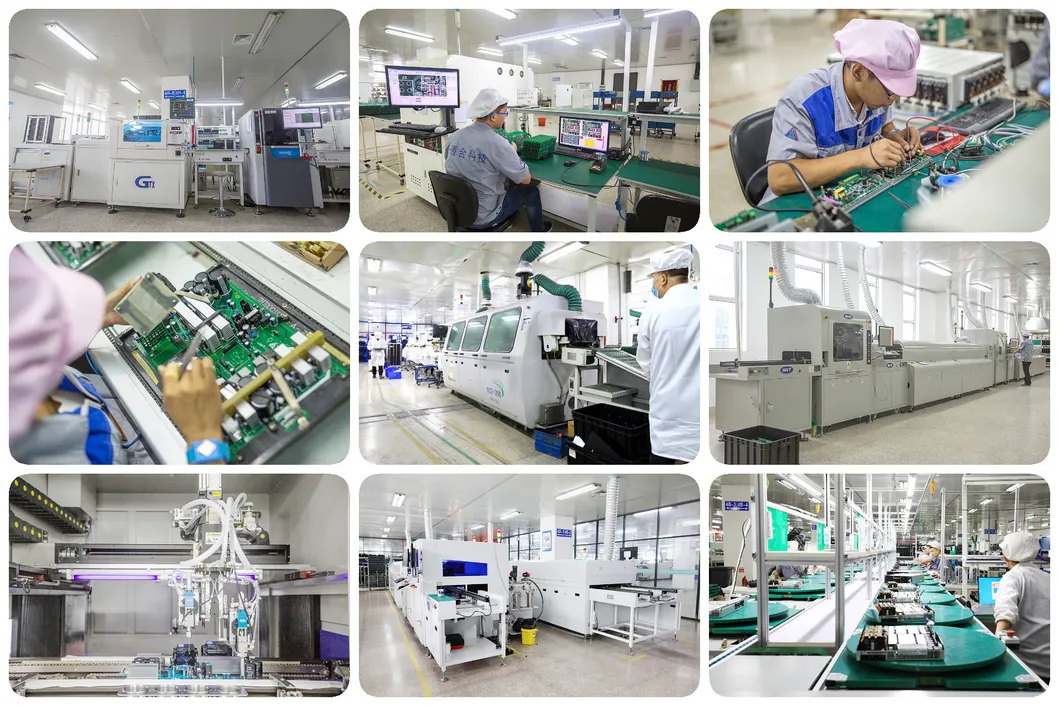

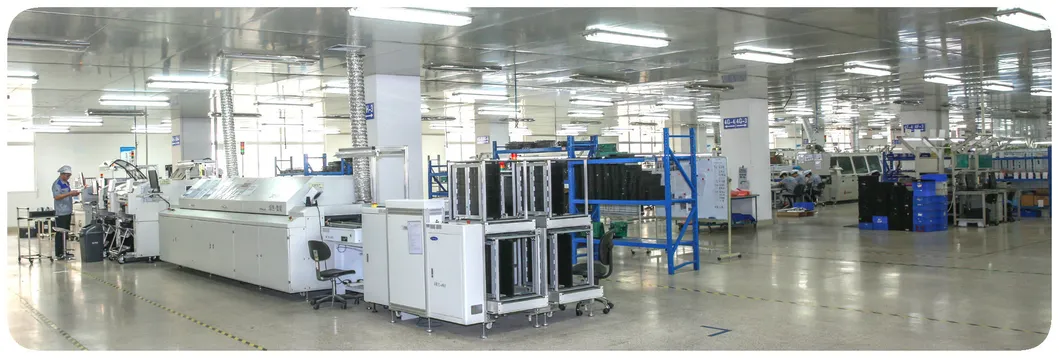

Manufacturing & Quality
Focusing on the field of high-frequency power conversion technology, we utilize soft switching technology for the entire process of power conversion. We provide "One-Stop Service" including R&D guidance, system solutions, technical training, and professional after-sales support.
🧪

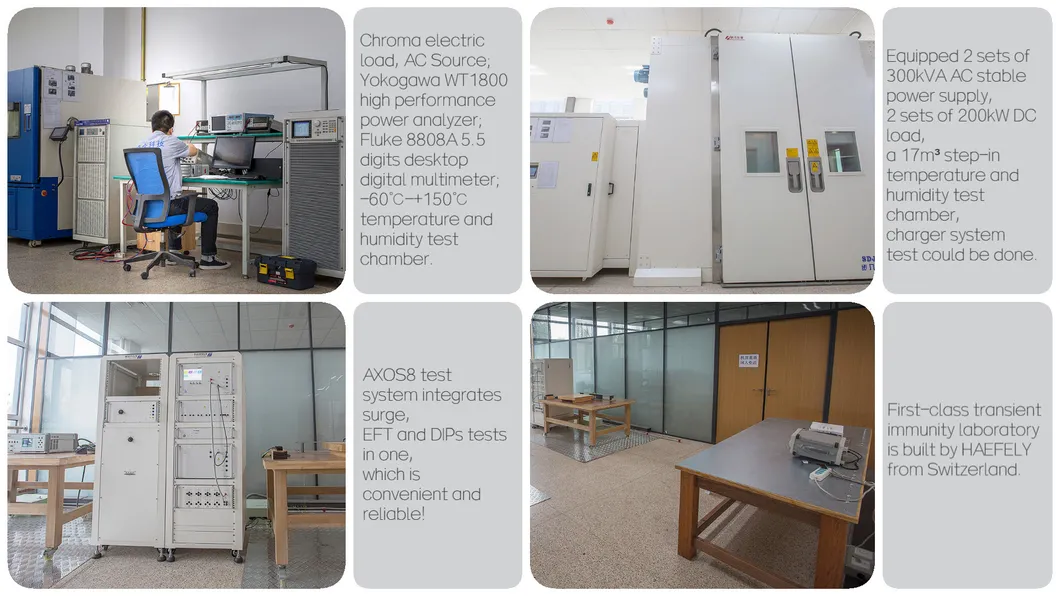

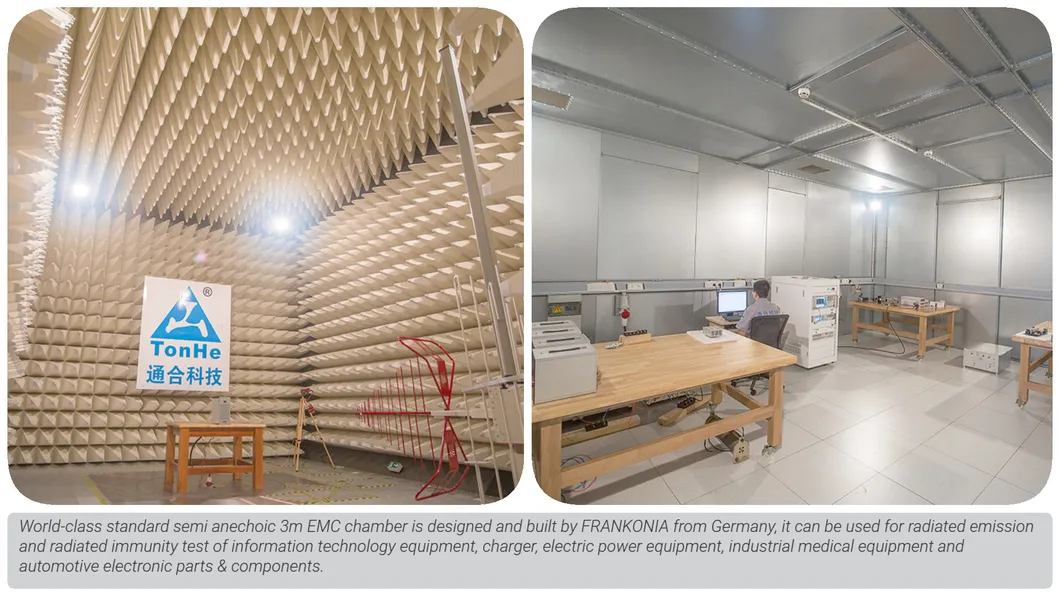

Testing Labs & Certifications
❓
Frequently Asked Questions
Do the modules support glue filling?
Yes, all series modules can support glue filling for enhanced protection.
What are the requirements for the installation method?
The charging module can be installed horizontally, side standing, or upside down. For upside-down installation, a customized front panel without a handle is recommended.
What is your standard delivery time?
Typically, we need about 7 days for modules and 35 days for standard piles. Customized or large orders require coordination for an accurate timeframe.
What kind of customized services do you provide?
We provide various OEM and ODM solutions tailored to specific customer requirements and branding.
How long is the product warranty?
The standard warranty is 12 months upon the receipt of the shipment.
What certifications have been obtained?
Our products are qualified under ISO, TUV, and CE standards. The production process follows IATF16949 automobile quality management systems.
