Zap Charger
1 / 5
| Category | Feature | Details |
|---|---|---|
| System | Model | AKEV44 |
| Housing material | Metal enclosure | |
| Dimension (H x W x D) | 1350*450*330mm | |

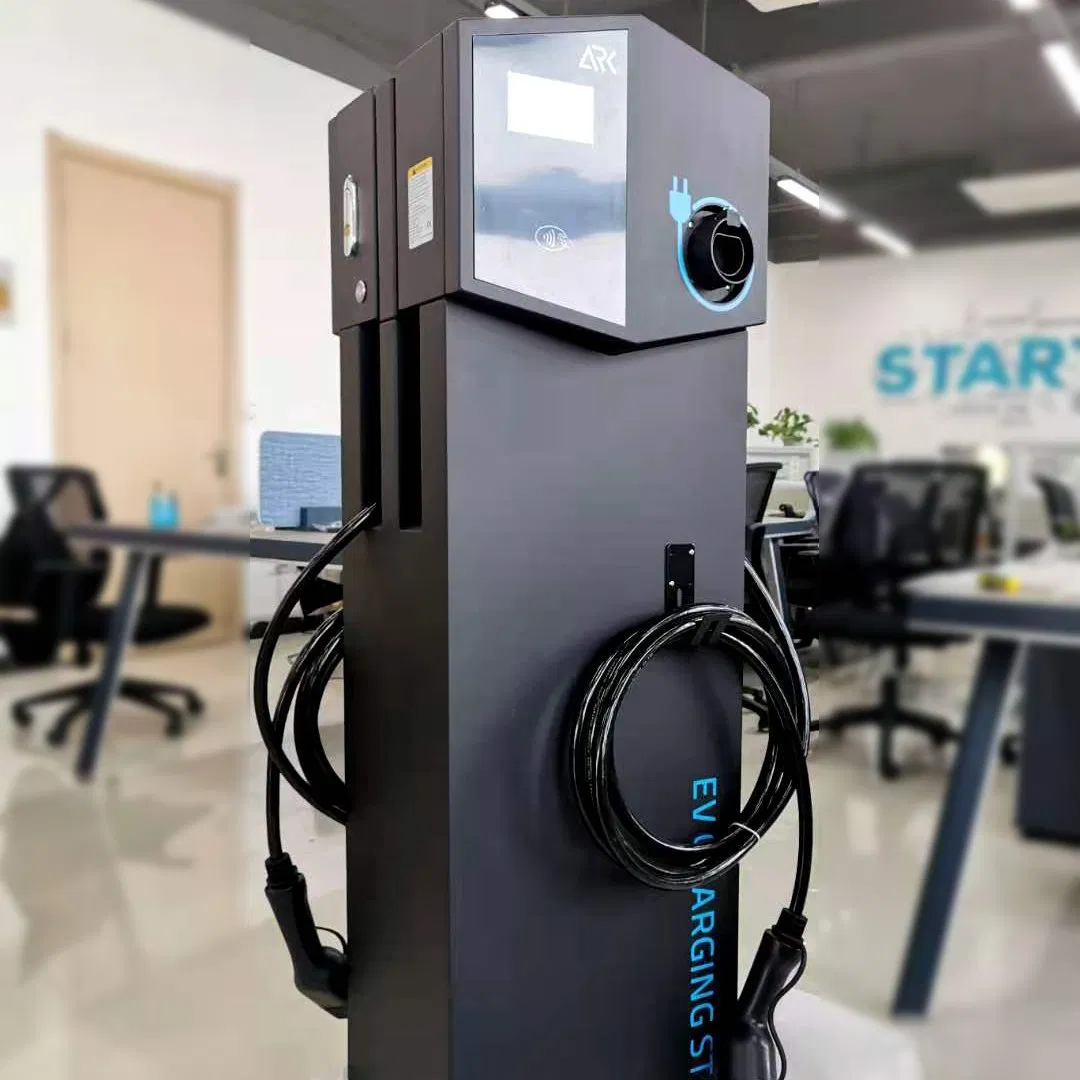

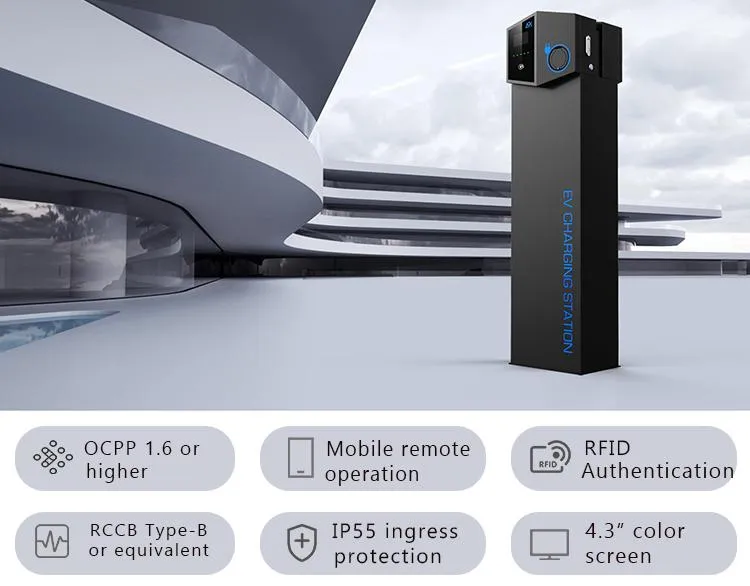

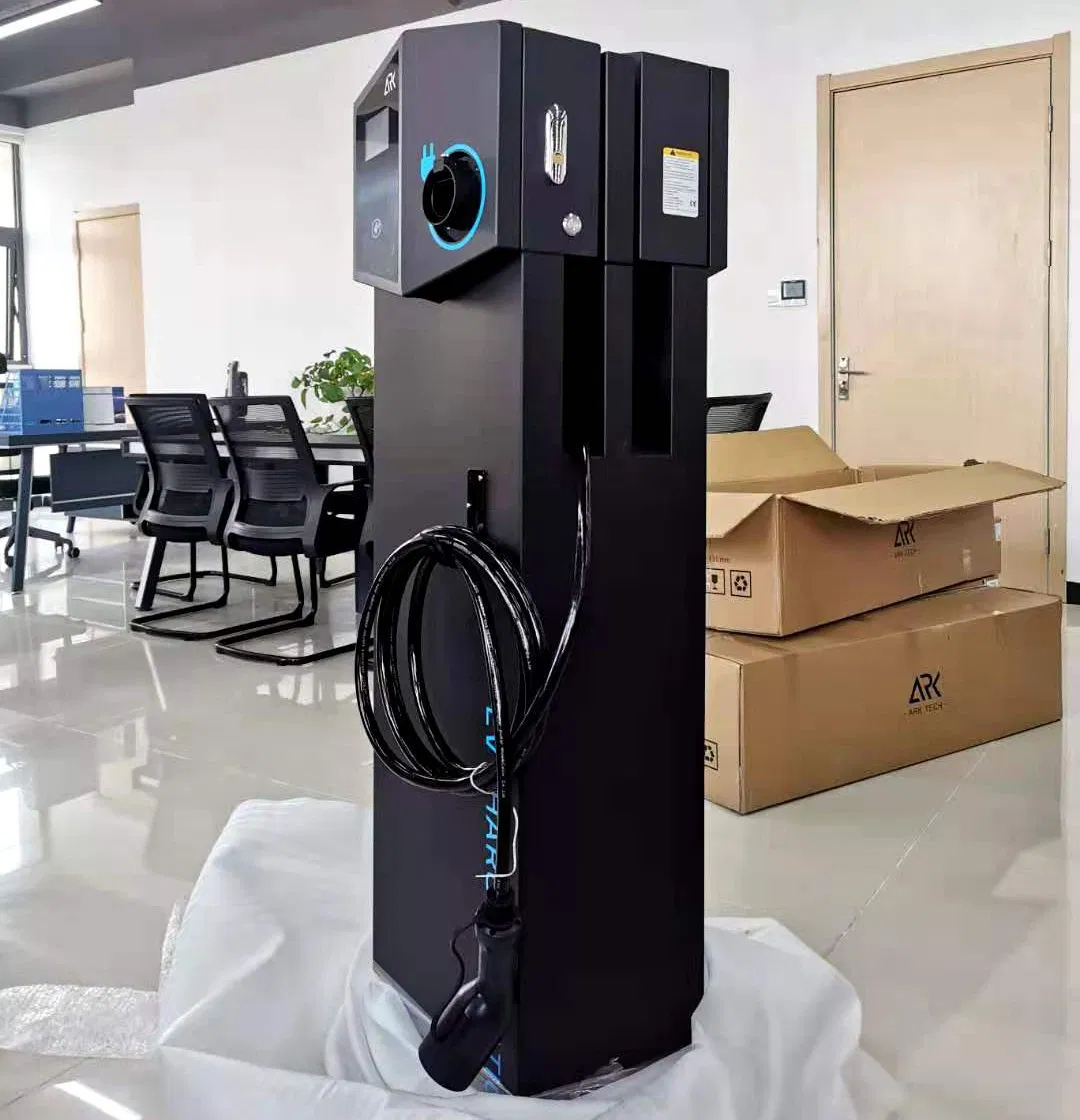

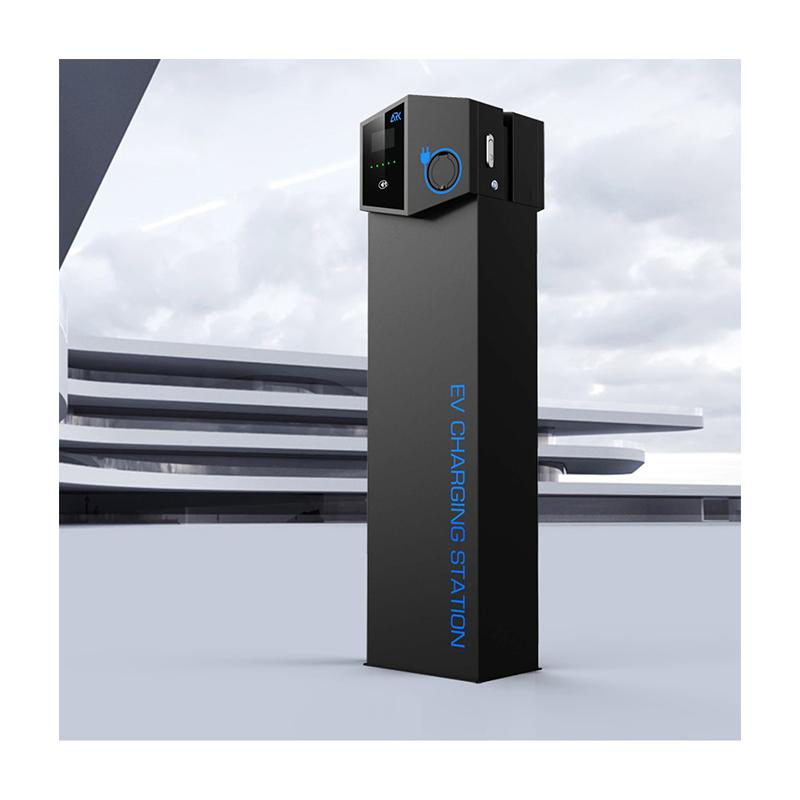

| Installation method | Pedestal mount | |
| Cable routing | Bottom inlet wiring | |
| Weight | N.W.: 55kg | |
| Charging standard | IEC 61851-22 | |
| Outlet configuration | 2x Type-2 sockets/connectors | |
| Input | Input voltage | 400Vac +/-10%, 3-phase |
| Input frequency | 50Hz/60Hz | |
| Output | Max output power | 44kW |
| Measuring accuracy | Level 0.5 | |
| Output voltage range | 400Vac +/-10%, 3-phase | |
| Output current range | 64A | |
| RCCB | Type-B, sensitivity: 30mA | |

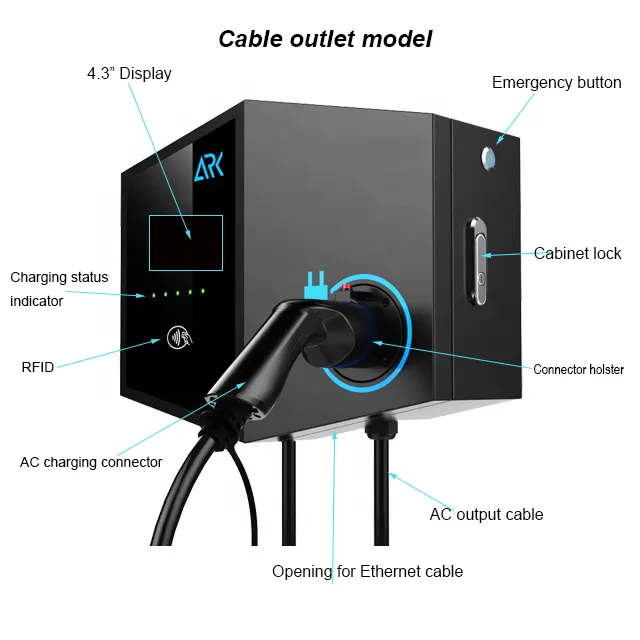

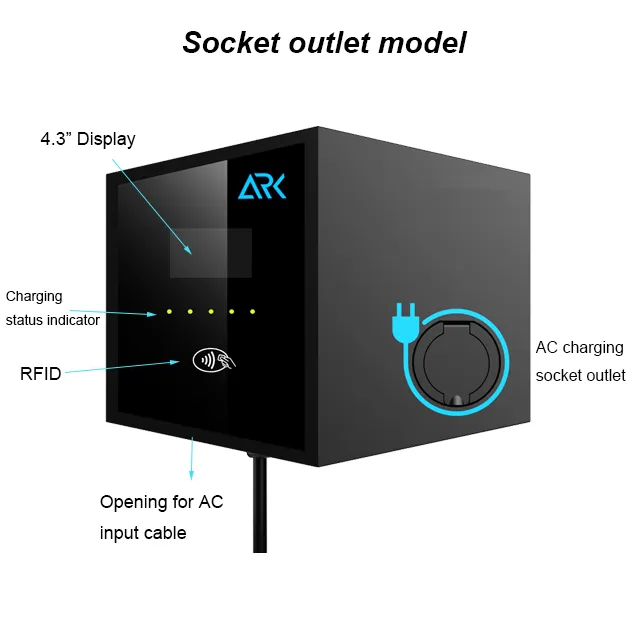

| General | User Interface | RFID, 4.3" LCD Display |
| Communication | PWM, Ethernet, LTE (optional), OCPP 1.6J | |
| Environment | IP55, Indoor/Outdoor, -25°C to +55°C | |
| Working humidity | 5% - 95% non-condensation | |
| Cooling | Natural cooling | |
| Safety standard | CE, EN 61851-1, EN 61851-22, EN 61851-21-2 | |
| Security design | Over/under voltage, overload, leakage, grounding, lightening surge protection |
