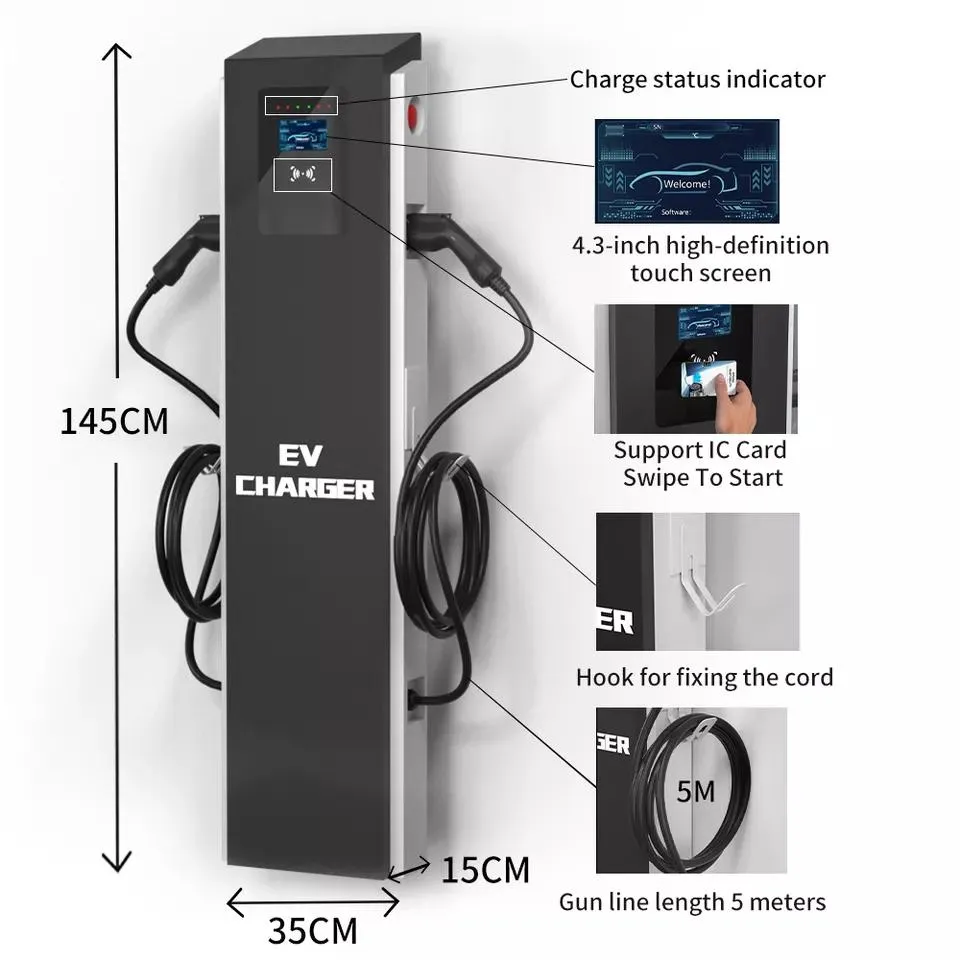

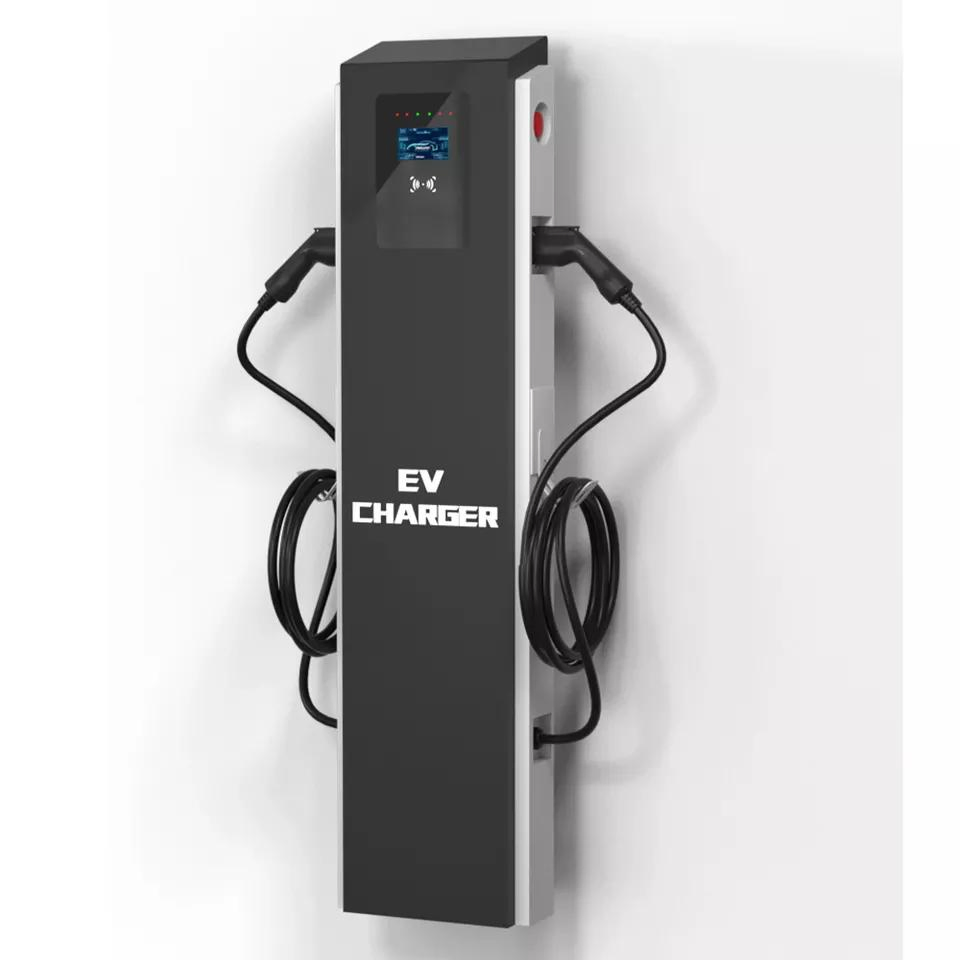

EV AC Slow Charger

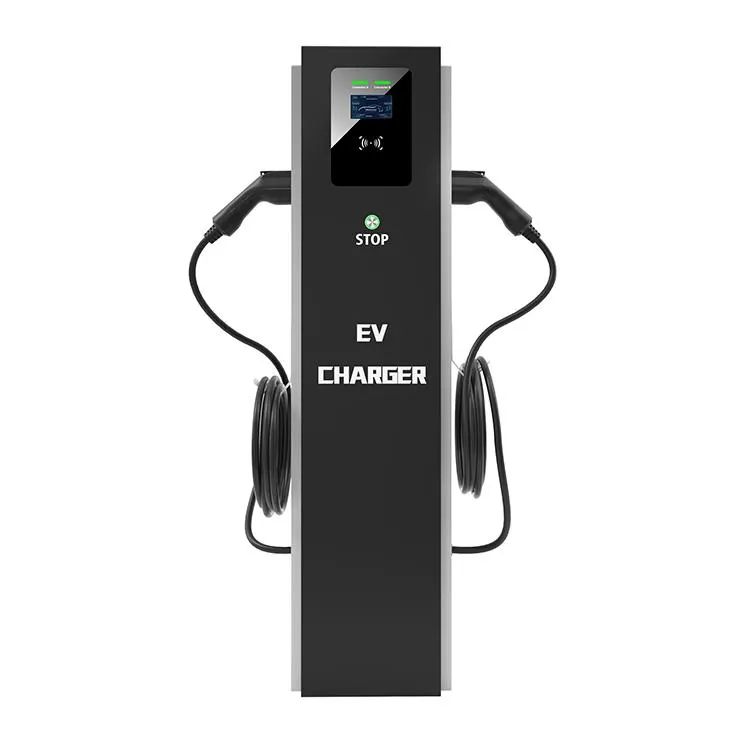

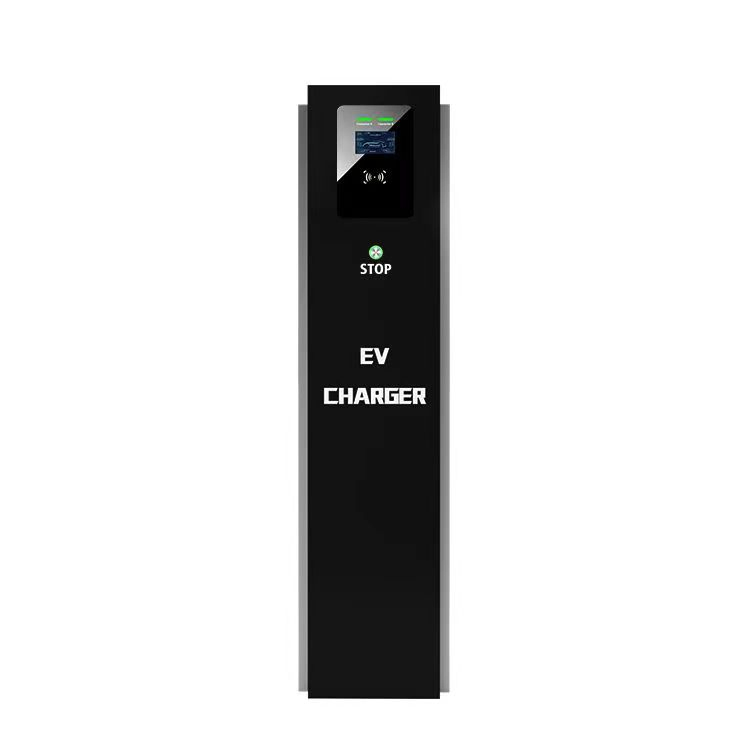

This AC charging station is primarily designed for the AC slow charging of electric vehicles. The system features a robust charging casing, wall-hanging backboard, and optional floor-to-ground column. It integrates advanced functions including charging protection, RFID card access, QR code scanning, mobile payment, and networking monitoring via Ethernet or OCPP services.

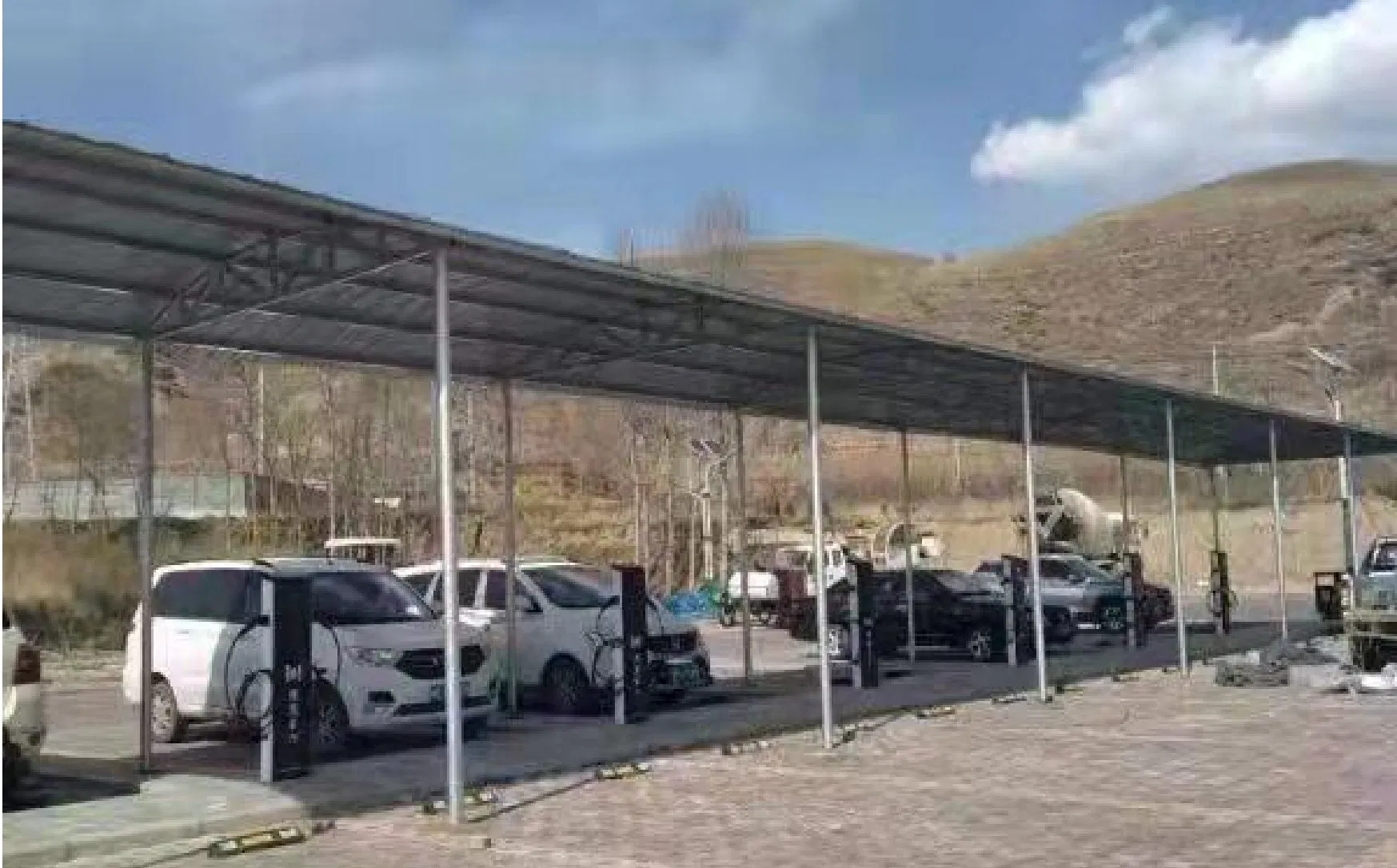

Compatible with all electric vehicles, including e-buses and e-trucks, these units are ideal for commercial locations such as car parks, retail parks, hotels, and fleet depots.
| Parameter | Specification (Model AC022K) | |
|---|---|---|
| Input | Power Supply | 3P+N+PE |
| Rated Voltage | 400V AC | |
| Frequency | 50/60Hz | |
| Output | Maximum Current | 2x32A |
| Rated Power | 2x22KW | |
| Interface | Connector | Type 2 socket |
| Enclosure | Galvanized steel / Temper glass | |
| Display | 2.7'' Black & White screen | |
| Start Mode | Plug & Play / RFID card / App | |
| Safety | Ingress Protection | IP54 / IK08 |
| RCD | 30mA Type A + 6mA DC | |
| Electrical Protection | Over/Under current, voltage, frequency, and temperature protection; Short circuit; Surge protection. | |
| Environment | Temperature | -30ºC to +50ºC |
| Humidity | 5% to 95% | |

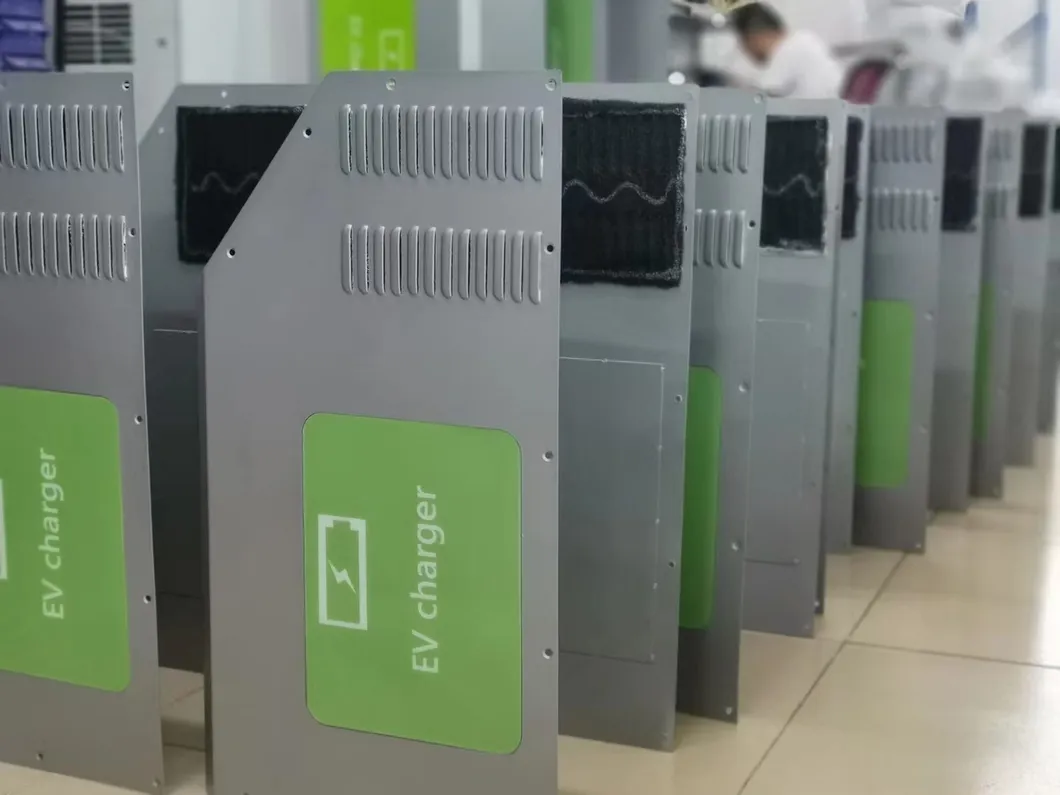

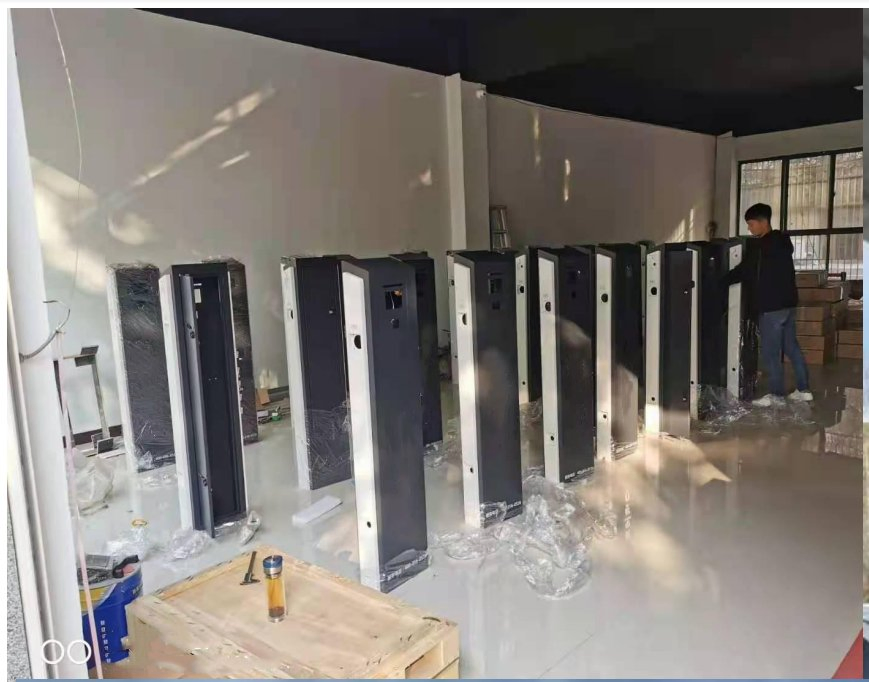

Our facility is dedicated to the professional manufacturing of AC/DC EV chargers, power supplies, and battery storage products. We focus on providing professional charging equipment that is safer, more efficient, and more stable for both household and commercial markets.

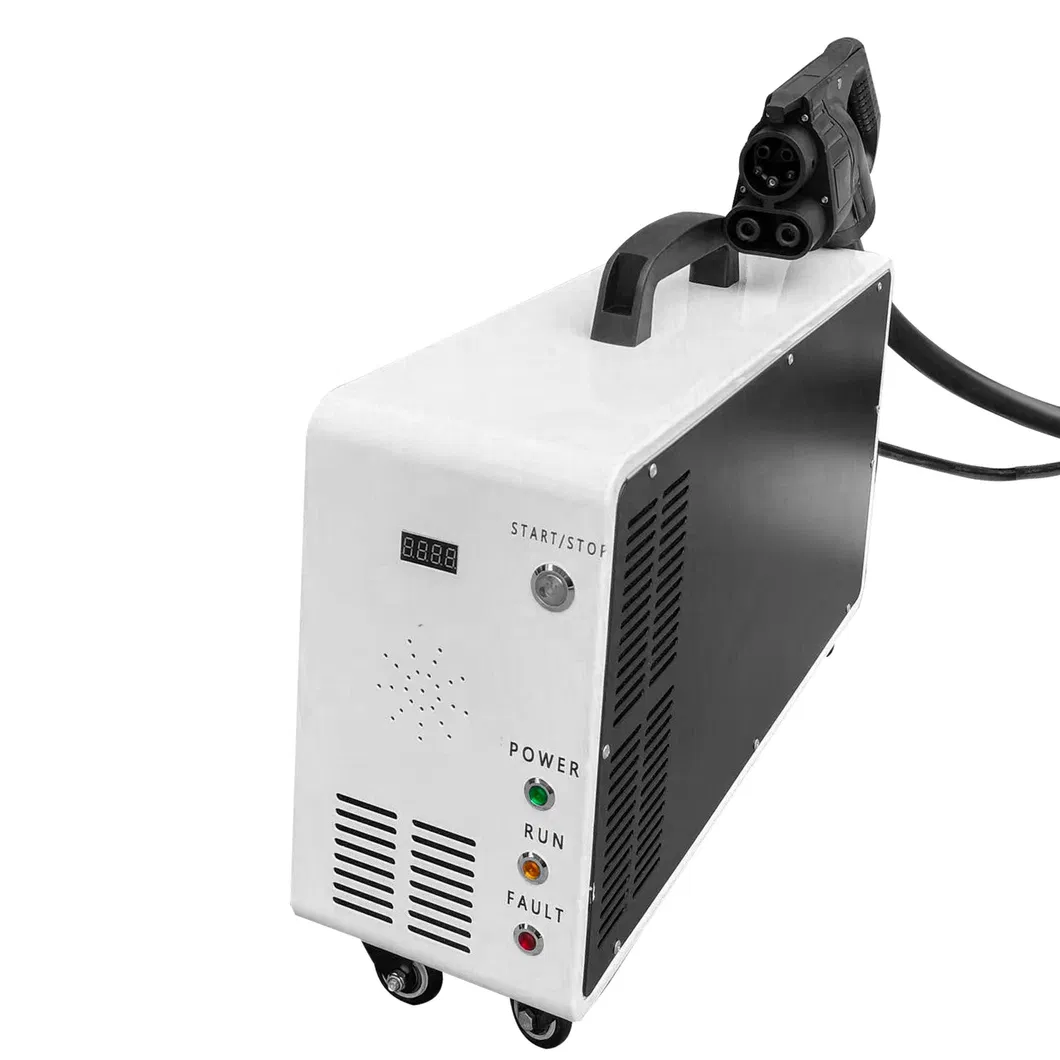

Our product range includes EV connectors, charging cables, emergency rescue systems, V2H/V2V chargers, Solar EV systems, and public multi-standard DC fast chargers.
