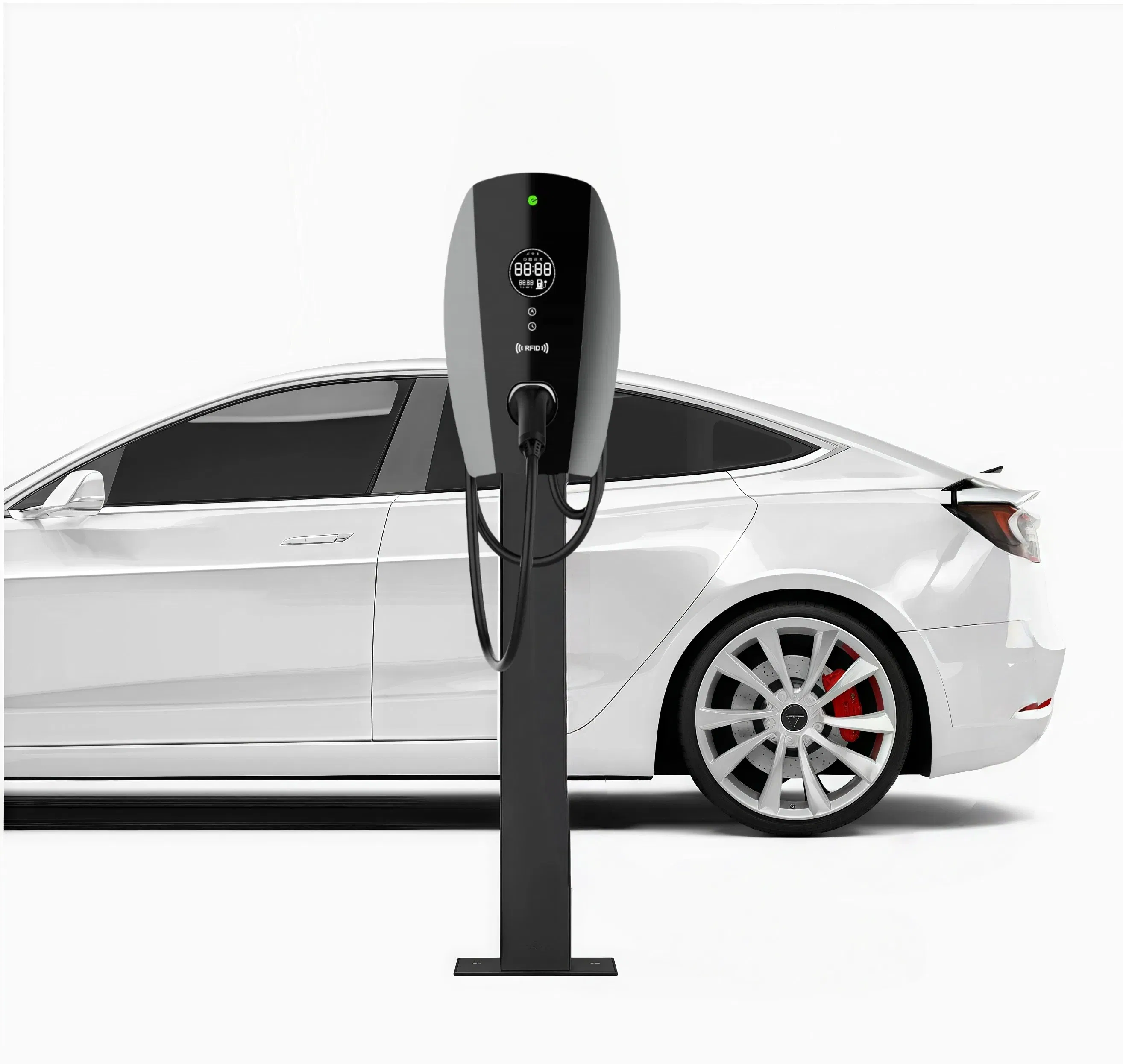

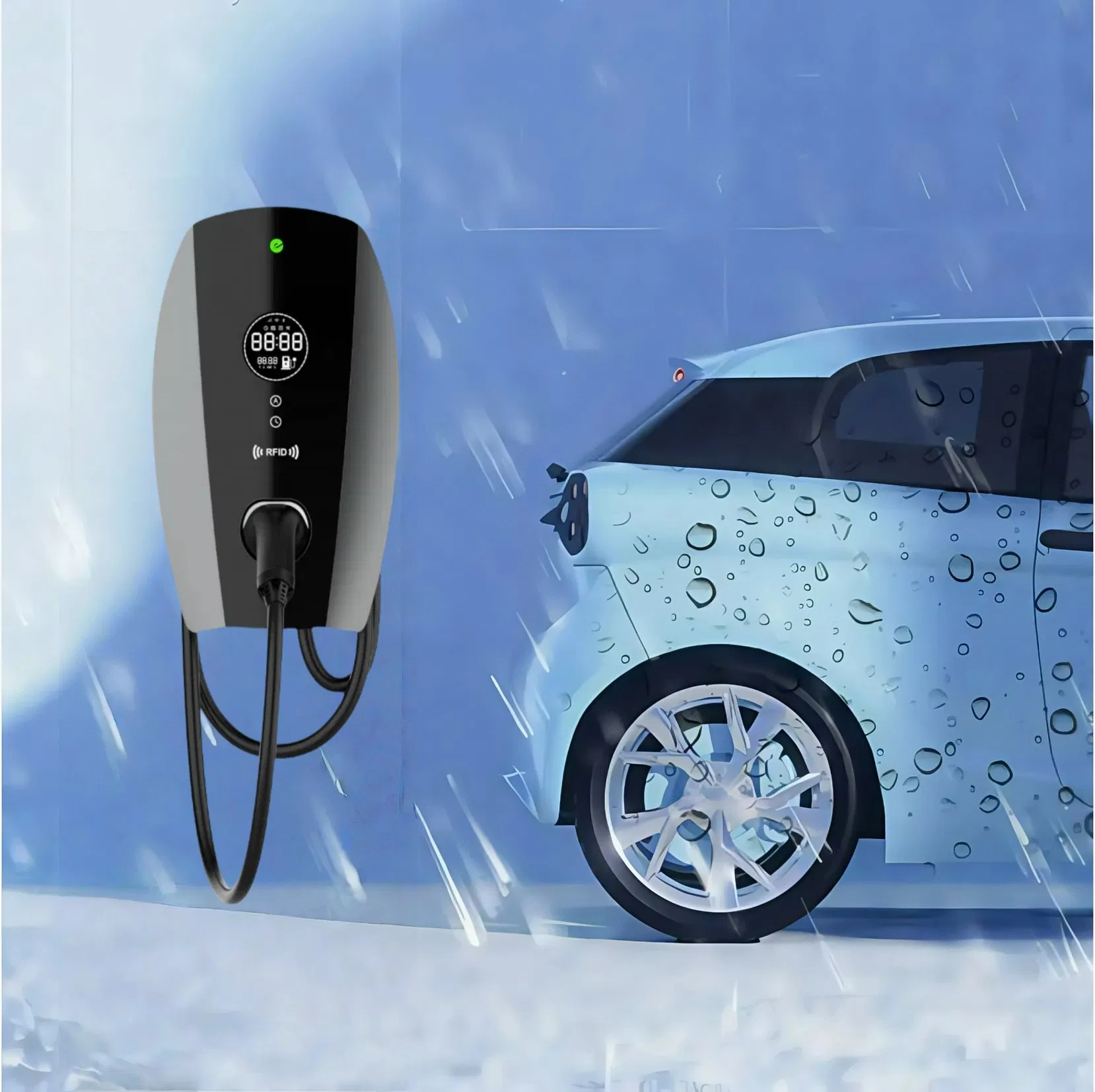

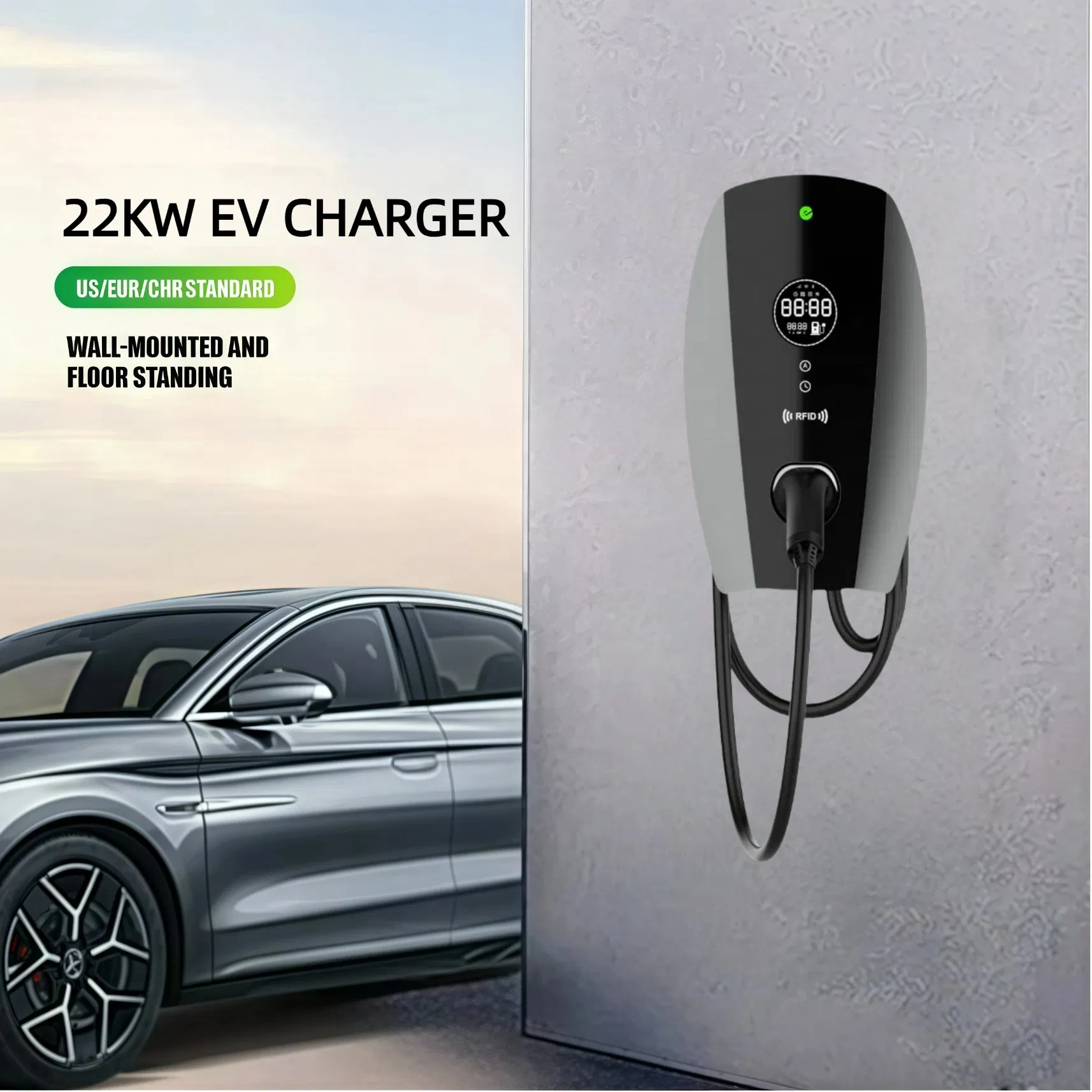

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox
400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox
400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox
400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox
400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox
1 / 5
400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox
400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox
400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox
400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox
400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information

Model: ZAU311C-CS

Interface: One Pile with One Charge

Installation: Wall Mounted

Method: Normal Charge

Capacity: 5000 Units/Month

Location: Private & Public

Package: Carton Box

Product Size: 405mm*220mm*95mm

Origin: China

HS Code: 8504409990

⚡ 22kW Smart AC EV Charger

32A, 22kW Smart Charger for Home or Commercial Use (with OCPP 1.6J)

Smart EV Charger Front View

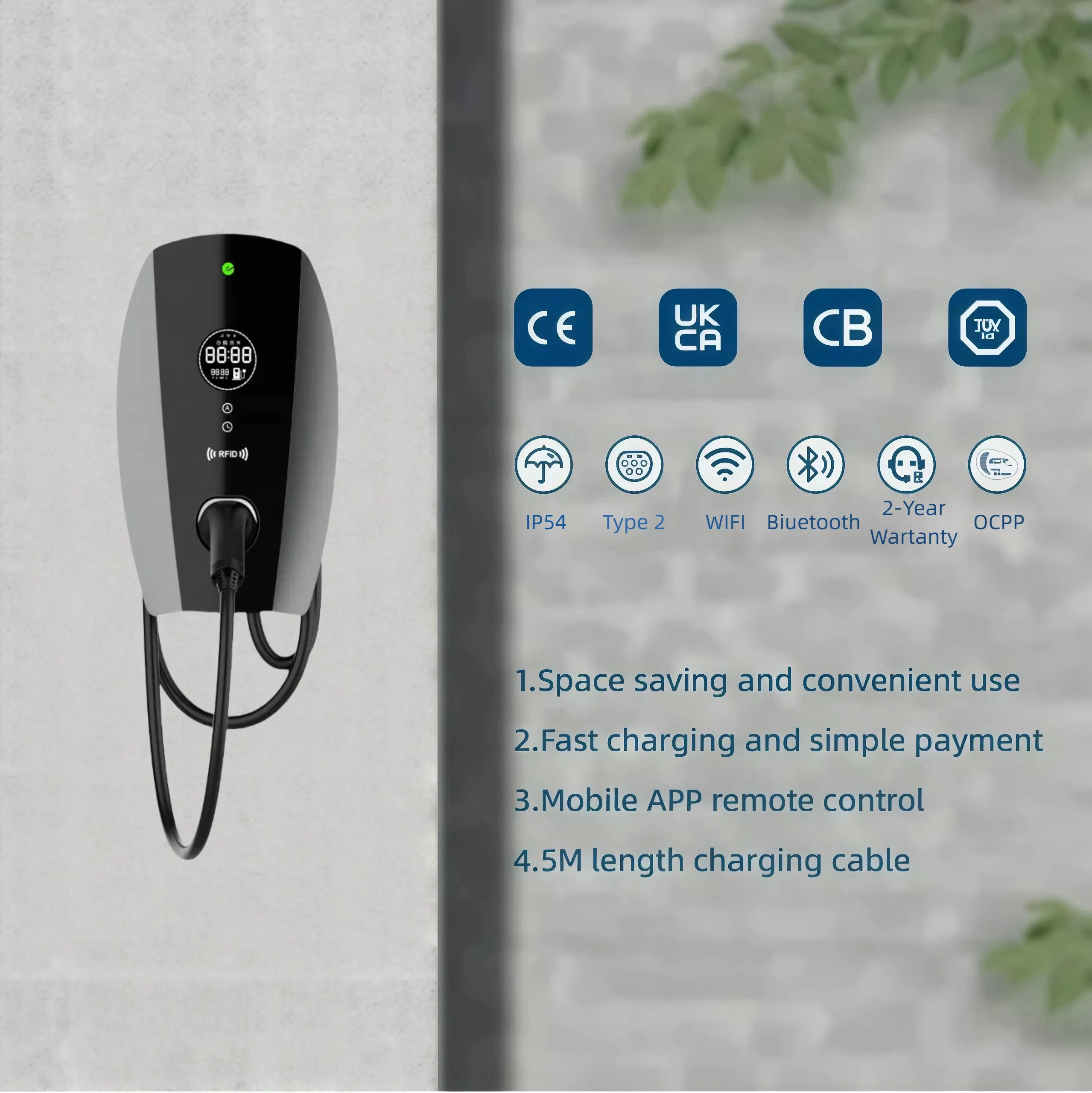

Smart EV Charger Side View
🛡️ Protection & Multiple Control
Internal Protection System

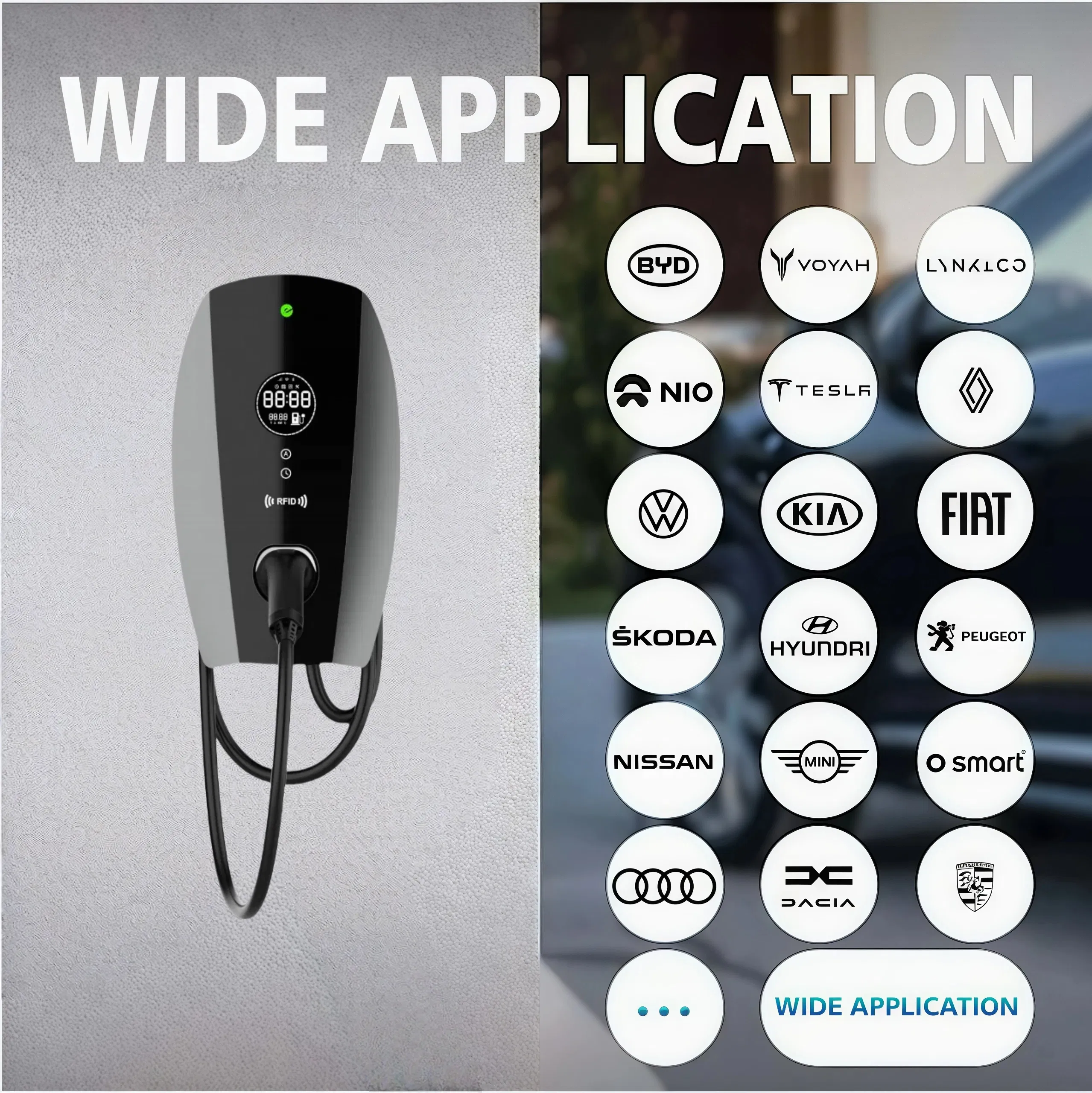

App Control Interface

✅ Multiple Protections:

  • IP54 for outdoor commercial use
  • Emergency Stop Button
  • Leakage Protection (AC 30mA & DC 6mA)
  • Over Temperature & Lightning Protection
  • Over Current, Over Voltage & Short Circuit Protection

📱 Multiple Control:

  • App Remote Control via WiFi & Bluetooth
  • RFID Card Control (2 cards included)
  • Plug-in & Charging Mode
📋 Technical Specification
Power22kW
Rated VoltageAC 400V ±15%
Rated Current32A
Operating Frequency50/60Hz
PhaseThree Phases
Communication ProtocolOCPP1.6 JSON
IP / Impact RatingIP54 / IK10
LCD Display4 inches VA Screen / 7 inches TFT Options
Cable Length5m (Standard)
Operating Temperature-20℃ to +55℃
Net Weight9.5Kg (22kW version)
📦 Packing & Accessories
Product Packaging

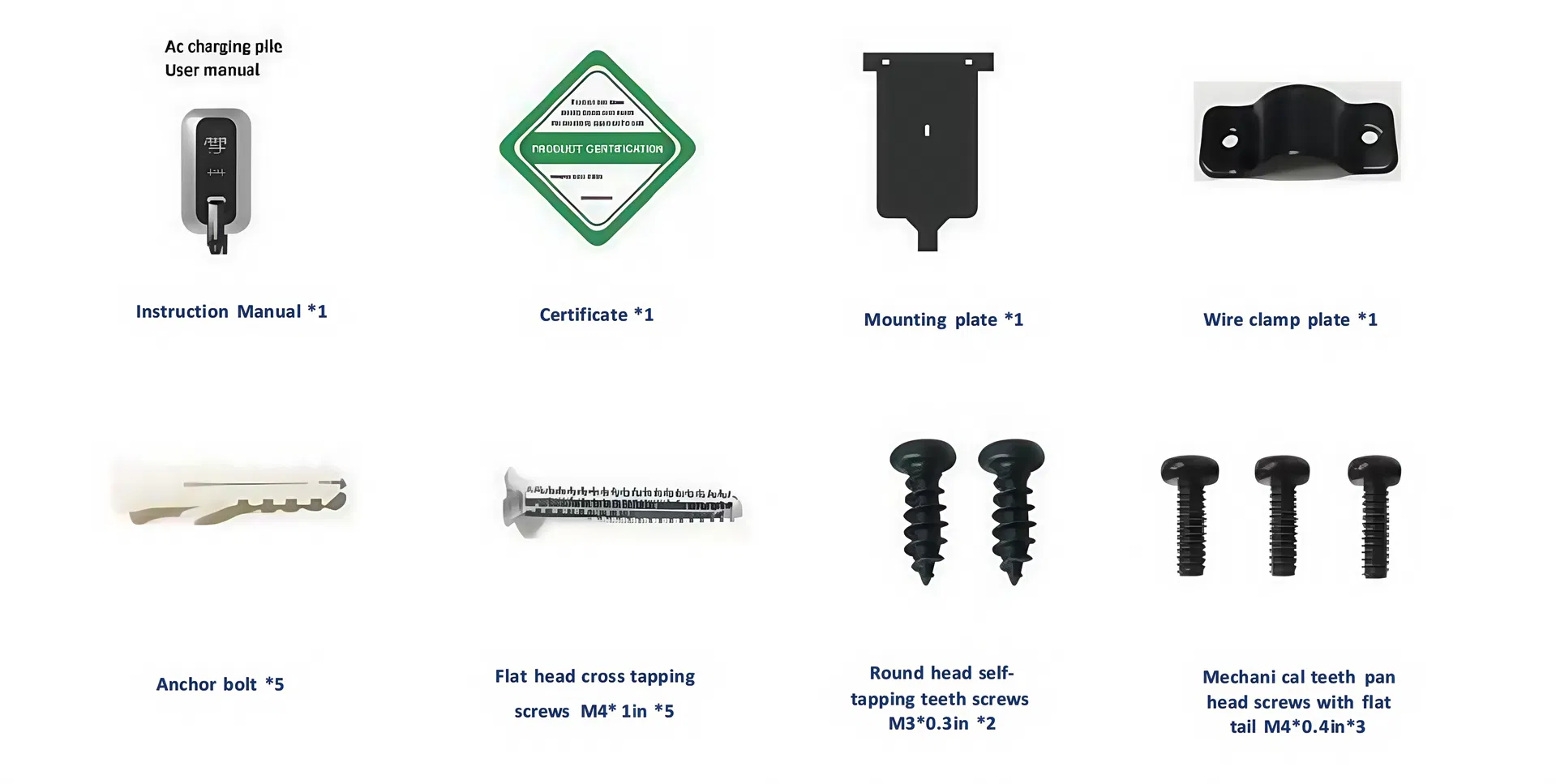

Standard Accessories Pack:

  • 1× Socket AC EV Charger
  • 1× Charger Instruction Manual
  • 1× Certificate Label
  • 1× Mounting Plate
  • 5× Anchor Bolts & M4 Screws
  • 1× Wire Clamp Plate
  • Installation Screw Kits
🛠️ After-Sales Service
🛡️ 24-Month Warranty
Against Manufacturing Defects
🔄 Core Components
Free Replacement Support
👨‍💻 Technical Support
Free Professional Guidance
🏭 Professional Manufacturing
Factory Overview

Industry Focus: New Energy Products, AC/DC Chargers, Power Storage.

Quality Assurance: ITAF 16949 Certified Factory with professional testing labs for 2-hour endurance tests.

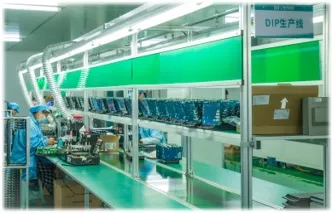

Testing Lab
Production Line
📜 Certifications

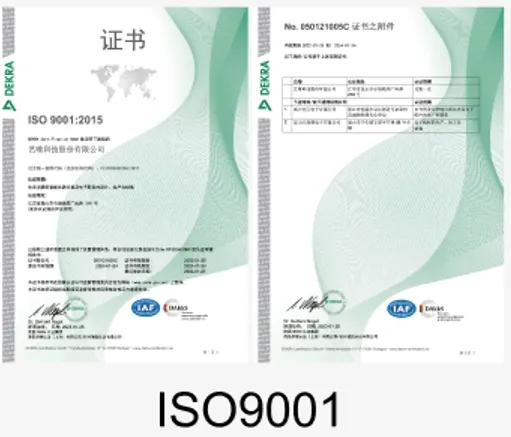

ISO9001

ISO9001

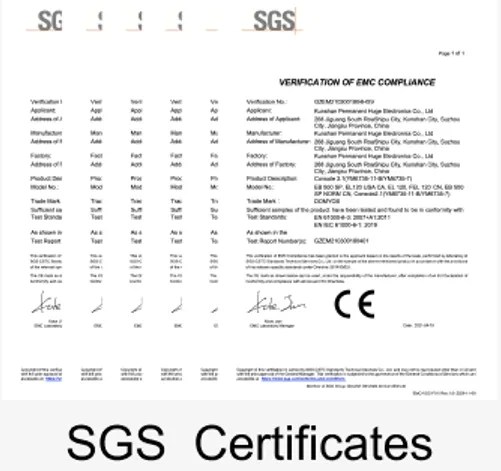

SGS

SGS Certified

TUV

TUV Certified

❓ Frequently Asked Questions
How long is the charging cable?
The standard charging cable is 5m, but we also offer customization for 7m, 10m, or longer lengths.
Is it possible to customize the charger?
Yes. We support customization for color, logo, RFID cards, and the APP interface to meet your branding needs.
How will you ship the products to us?
For orders under 5 units, we typically ship via express (DHL/SF). For larger orders over 5 units, sea freight is the standard method.
Is this charger compatible with all electric vehicles?
This is a Type 2 AC charger, which is the standard for most European and modern electric vehicles. Please check your car's interface type.
Does the charger support smart monitoring?
Yes, it features App remote control via WiFi or Bluetooth, allowing you to monitor and manage charging sessions easily.
What safety certifications does the product have?
The product and factory are certified with ISO 9001, CE, TUV, and SGS, ensuring high safety and quality standards.
