Zap Charger
1 / 5
| Power Specification | |||
| Charging Connector Type | IEC 62196-2 (Type 2) | ||
| AC Power Input Rating | 1 Phase: 230V±15% | 3 Phase: 380V±15% | |
| AC Power Output Rating | 3.5kw / 16A | 11kw / 16A | |
| 7kw / 32A | 22kw / 32A | ||
| - | 43kw / 63A | ||
| Frequency Rating | 50/60 Hz | ||
| User Interface & Control | |||
| Emergency Stop Button | Yes | Plug-and-Charging | Yes |
| RFID Card Charging | Yes | App Charging | Yes |
| Ethernet Interface | Yes | Wifi Function | Yes |

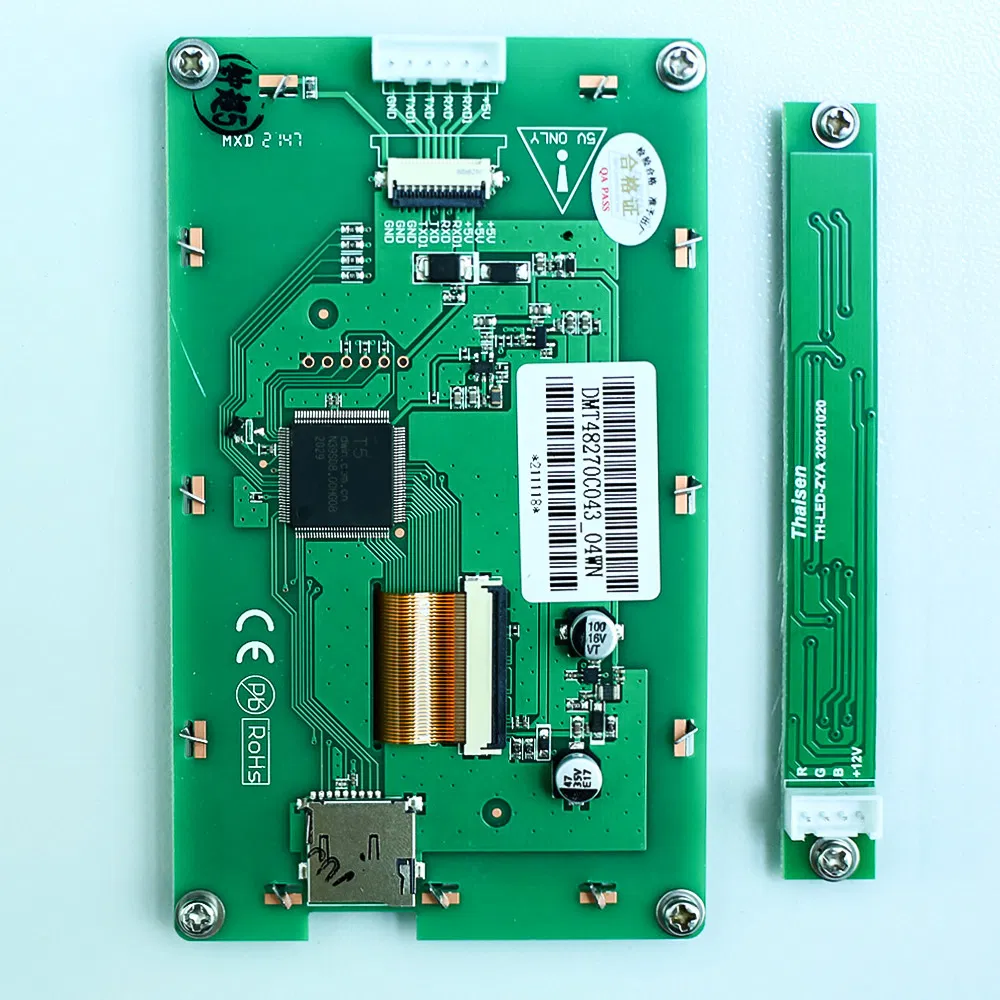

| OCPP Protocol | OCPP 1.6 | 4.3-inch LCD Screen | Optional |
| Protection | |||
| Over/Under Voltage | Yes | Over Load | Yes |
| Short Circuit | Yes | Earth Leakage | Yes |
| Ground Protection | Yes | Over-temp Protection | Yes |
| Surge Protection | Yes | RCD | Type B |
| Environmental | |||
| Storage Temp. | -40 ~ 75ºC | Operating Temp. | -30 ~ 55ºC |
| Operating Humidity | Up to 95% | Altitude | ≤2000m |
| Cooling Method | Natural Cooling | ||
| Mechanical Specification | |||
| IP Code | IP67 | Dimension (mm) | 410×260×164 |
| Weight | 12kg | Cable Length | 5m or Customize |
| Enclosure Material | Tempered Glass (Front), Plate Metal (Back) | ||
