32A EV Charger Extension Cable Electric Vehicle Charging Station J1772 Cord

Customization: Available
Type: Insulated
Conductor Type: Stranded

Product Description

i

Basic Specifications

Application
Underground, Construction Equipment Welding Machine
Conductor Material
Copper
Sheath Material
Rubber
Insulation Material
Rubber
Material Shape
Round Wire
Certification
CE, CCC
Advantage
Factory Direct
OEM&ODM
Available
HS Code
8544492100
Delivery Time
1 Month
P

Product Overview

T

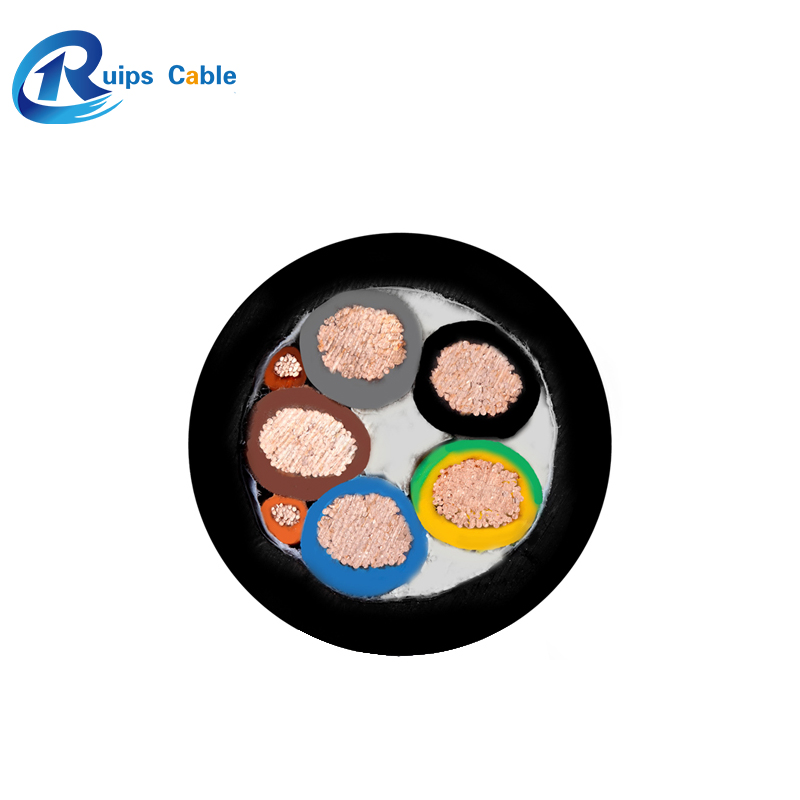

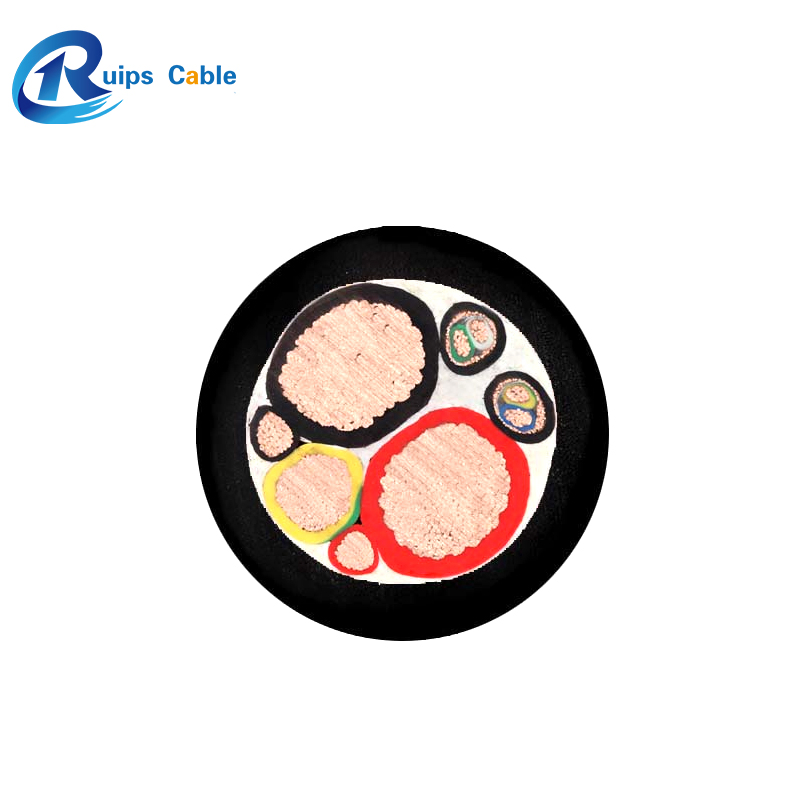

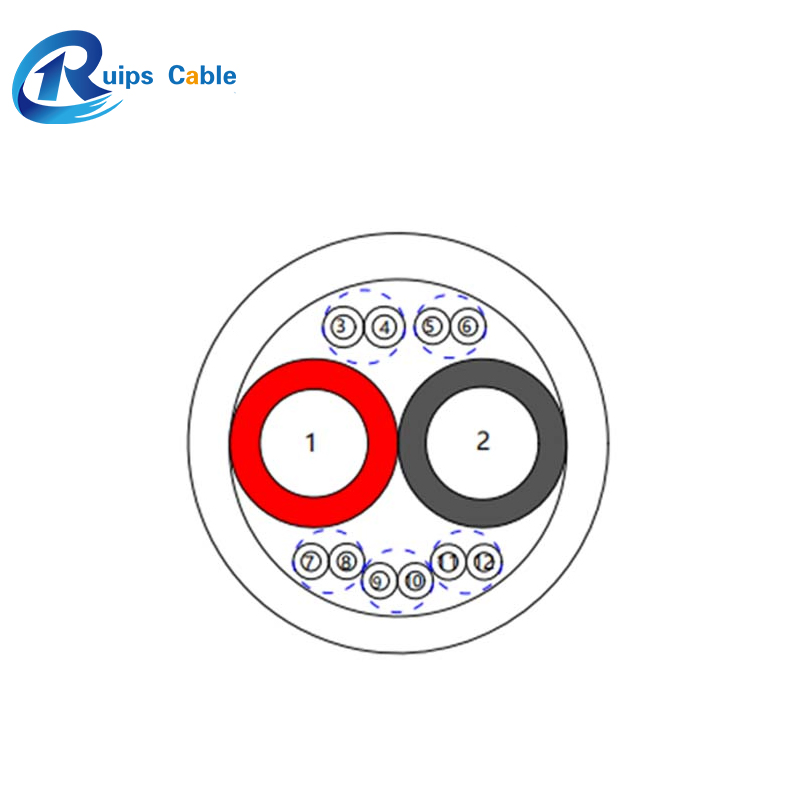

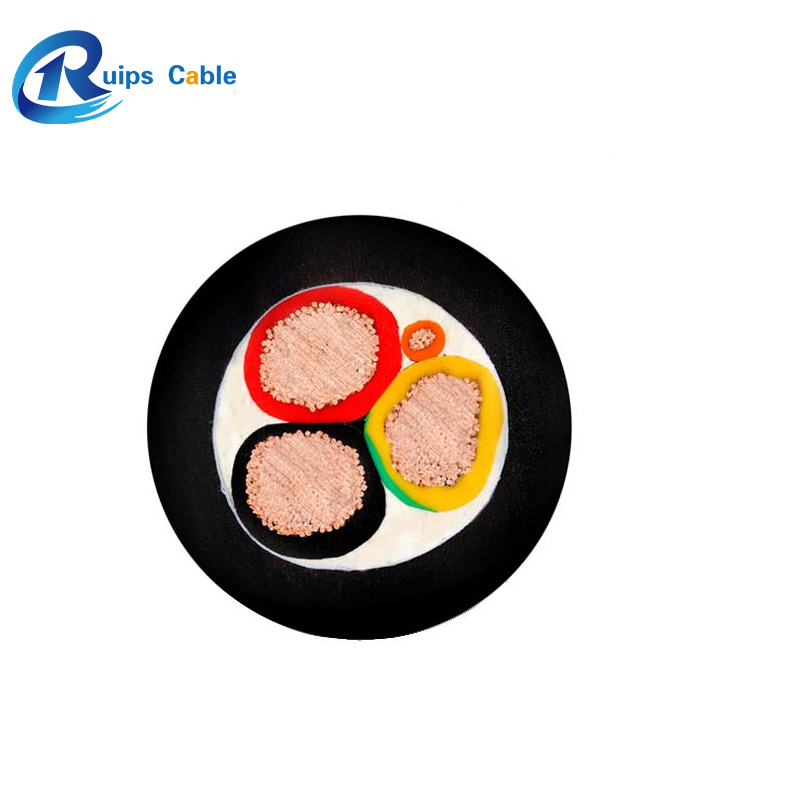

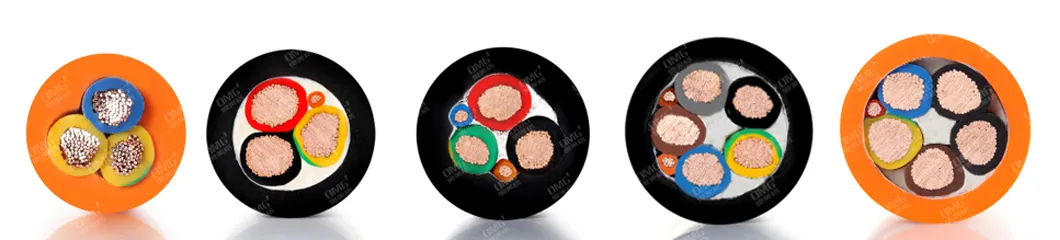

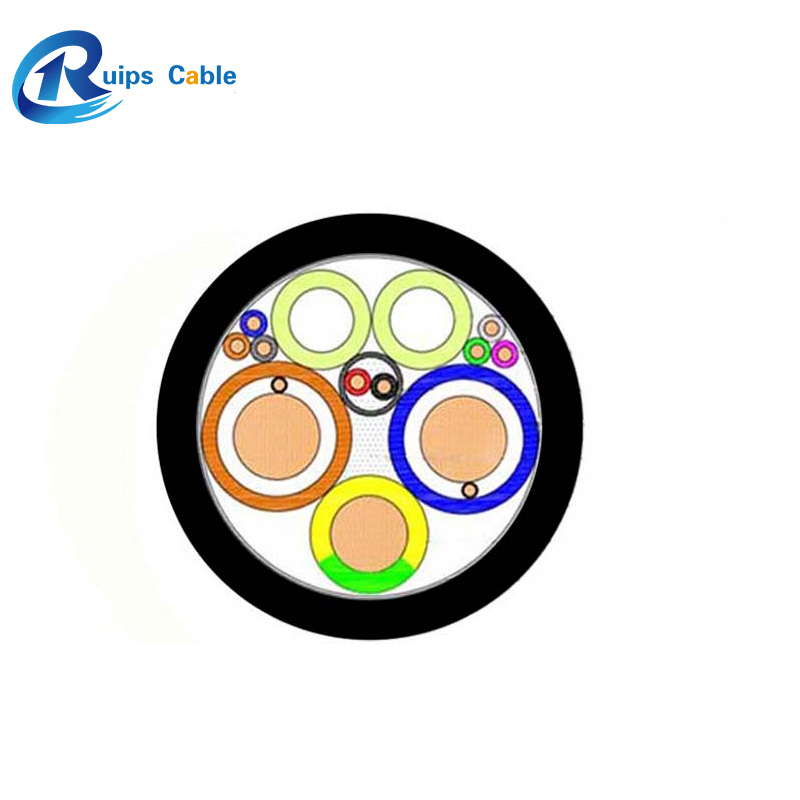

Construction & Features

Construction Details Technical Features
Conductor: Bare Copper Rated Temperature: -40ºC~90ºC
Insulation: EVI-2 (Brown, Blue, Y/G) Rated Voltage: AC 300/500V, 450/750V; DC 1000V
Filler: PP Cord Flame Test: EN 60332-1-2 compliant
Tape: Non-woven fabrics Min Bending Radius: ≥6*OD
Sheath: TPU (Custom Colors) Oil Resistance: IRM902 compliant
Environmental: RoHS & REACH compliant Acid/Alkali Resistance: High Stability
D

Dimensions & Parameters

Product ApplicationElectric vehicle
Mechanical LifeNo-load plug > 10000 times
Rated Current16A / 32A
Rated Voltage250V / 480V
Insulation Resistance> 1000MΩ (DC500V)
Operating Temperature-30 ºC ~ +50 ºC
Cable SpecificationH07BZ5-F 3x2.5mm² + 2x0.5mm²
Key Product Advantages
  • Conforms to provisions and requirements of IEC 621962-2016 2-I.
  • Using riveting pressure process with no screws for a beautiful, ergonomic appearance.
  • XLPO insulation prolongs aging resistance life span.
  • TPU sheath provides improved bending life and wear resistance.
  • Excellent protection performance with grade achieved IP55 (working condition).
?

Frequently Asked Questions

1. How can I place an order?
You can contact us via email regarding your order details or place an order through our online system.
2. Do you offer OEM and ODM services?
Yes, we provide full OEM and ODM services. We can manufacture cables based on your specific samples or technical drawings.

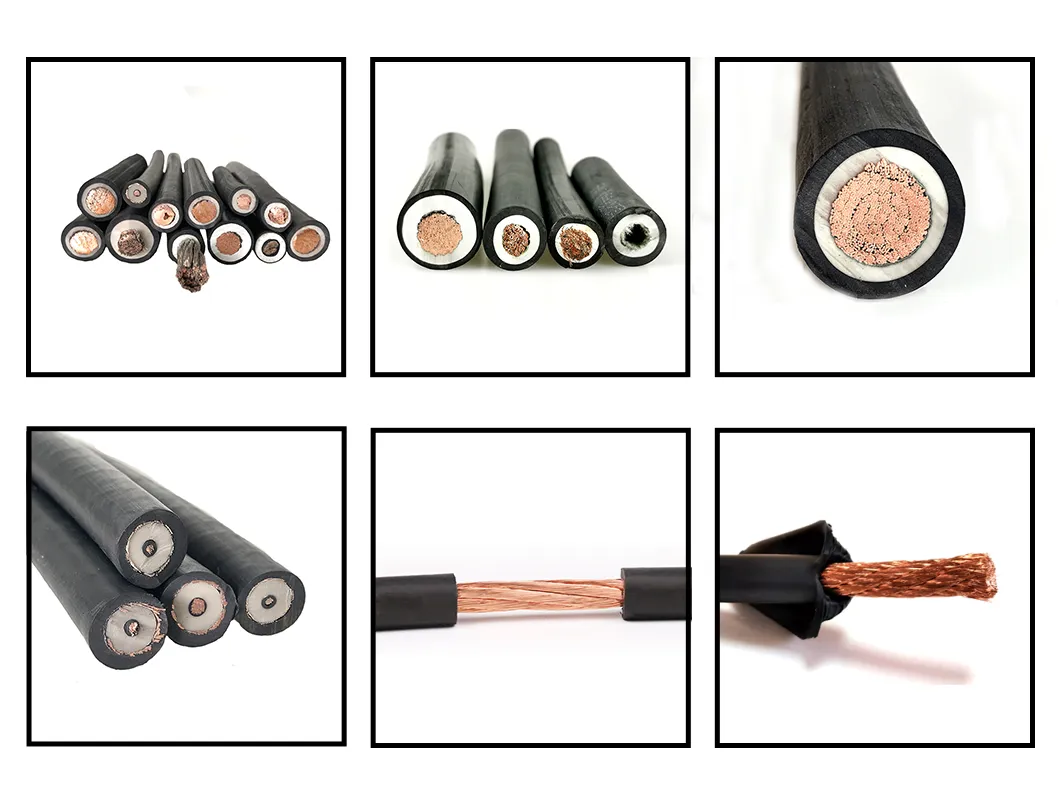

3. What are your quality control procedures?
We conduct 100% testing on all goods before delivery to ensure the stability and quality of every product.
4. Can I request product samples?
Yes, we can offer samples. Please contact us to discuss sample requirements and potential discounts based on your order volume.
5. What are the available payment and trade terms?
We typically accept T/T with a 30% deposit and 70% before delivery. Trade terms such as EXW, FOB, CFR, and CIF are all available.
6. What is the typical lead time for orders?
Our standard delivery time is approximately one month, depending on the specific order quantity and requirements.
