Zap Charger
1 / 5
| Model NO. | TYPE2-GBT |
| Contact Impedance | 0.5mω Max |
| Fireproof Grade | UL94V-0 |
| Waterproof Grade | IP55 (Mating) |
| Plastic Shell | Thermoplastic Plastic |
| Conductor | Copper Alloy, Silver Plated Surface |
| Environment Temperature | -30℃ to +50℃ |
| Insertion/Extraction Force | <100N |
| Cable Length | 5m (5000±100mm) |
| Certification | CE / ISO9001 / ISO14001 / ISO45001 |

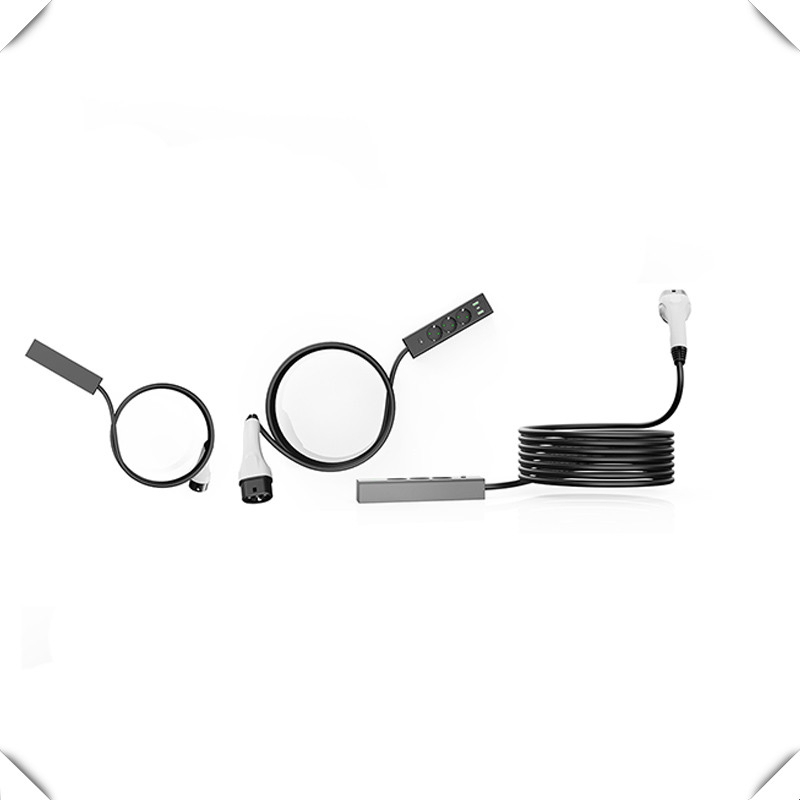

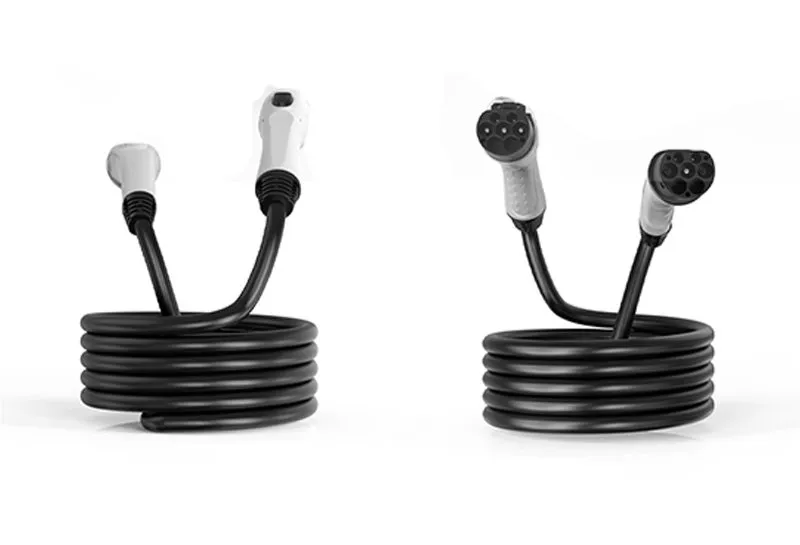

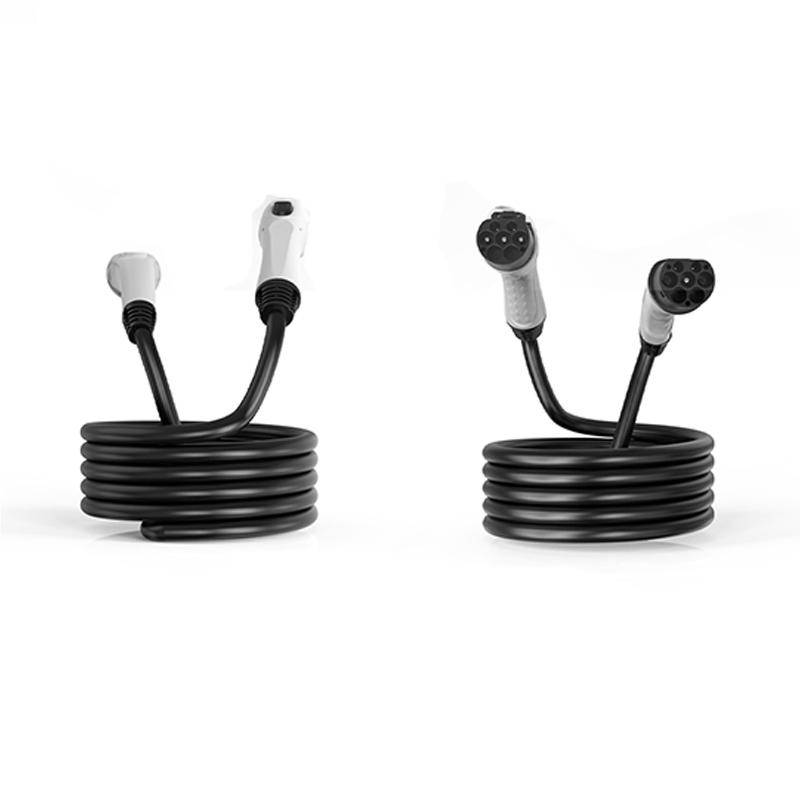

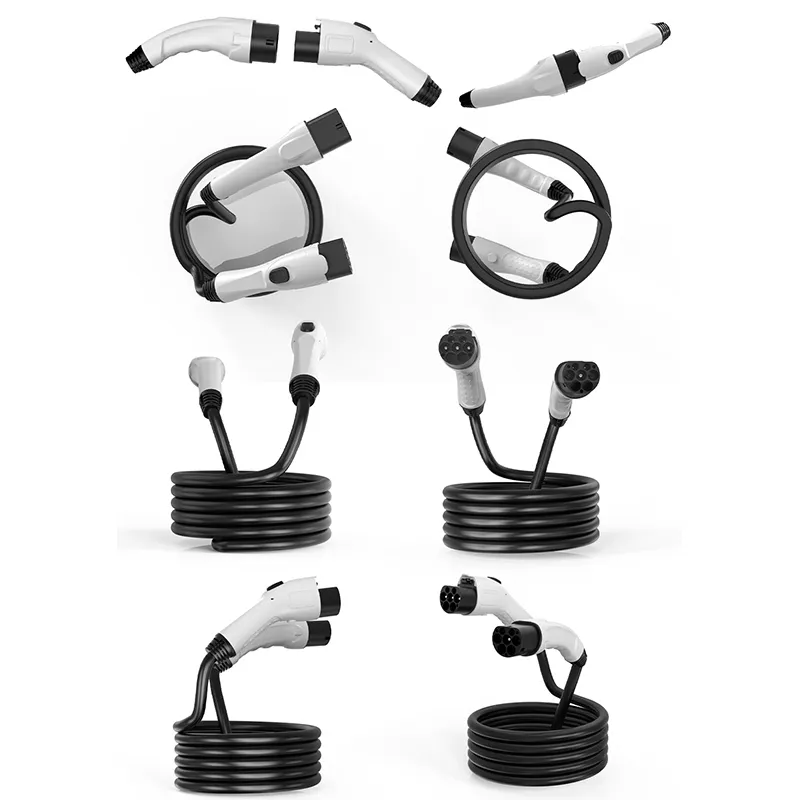

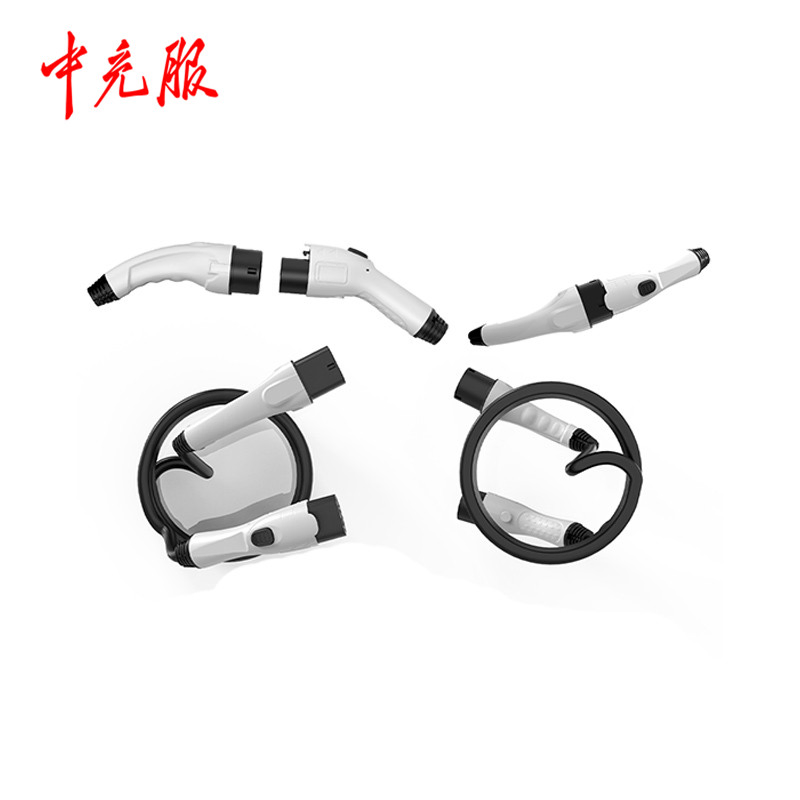

This extension cord bridges European Type 2 and Chinese GBT charging standards, enabling seamless AC power transfer (32A max, 250V AC) with ultra-low contact impedance (≤0.5mΩ) via silver-plated copper alloy conductors. Its UL94V-0 flame-retardant thermoplastic shell and IP55 waterproof coupling ensure safety in harsh environments (-30°C to +50°C).

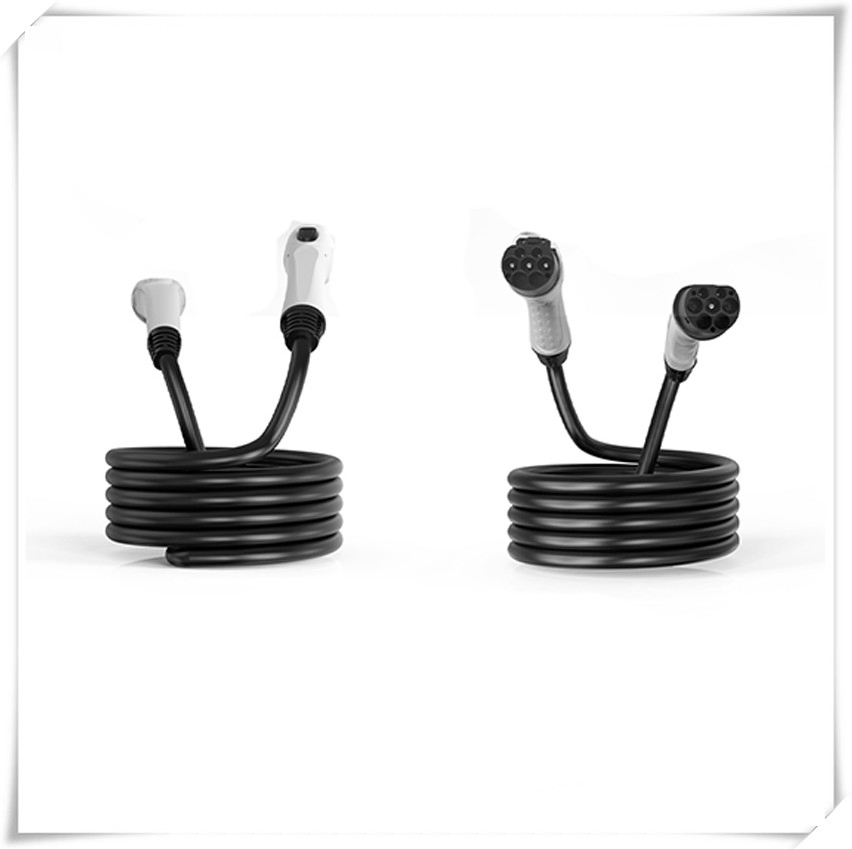

The 5-meter coiled cable offers flexible installation. The dual connectors guarantee compatibility with European chargers and Chinese EVs, supporting high-power charging (up to 8kW) with robust mechanical design.
| Rated Current | 32A |
| Rated Voltage | 250V AC |
| Weight | 0.35kg |
| Connector Size | 146 * 69.81 * 69.8mm |
| Package Size | 35.00cm * 35.00cm * 10.00cm |
| Package Gross Weight | 4.500kg |

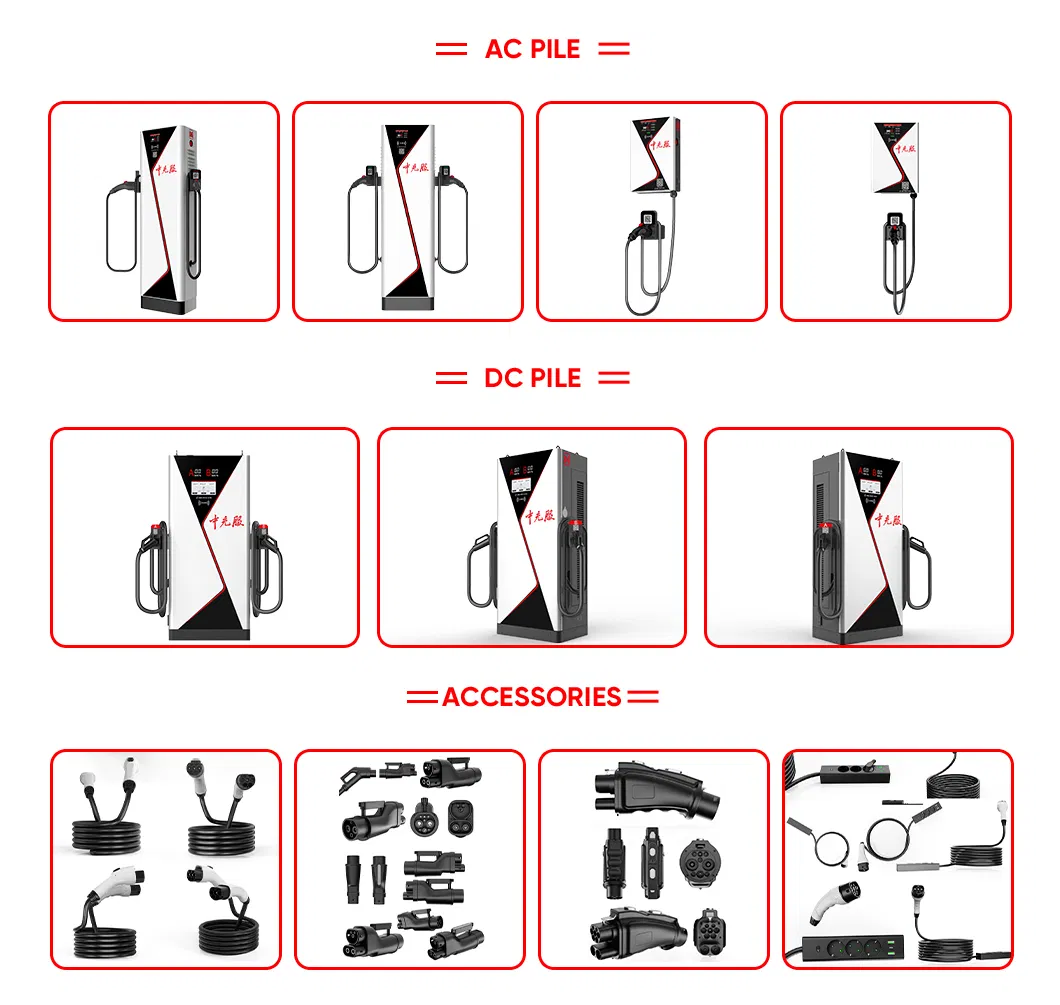

AC Charging Pile

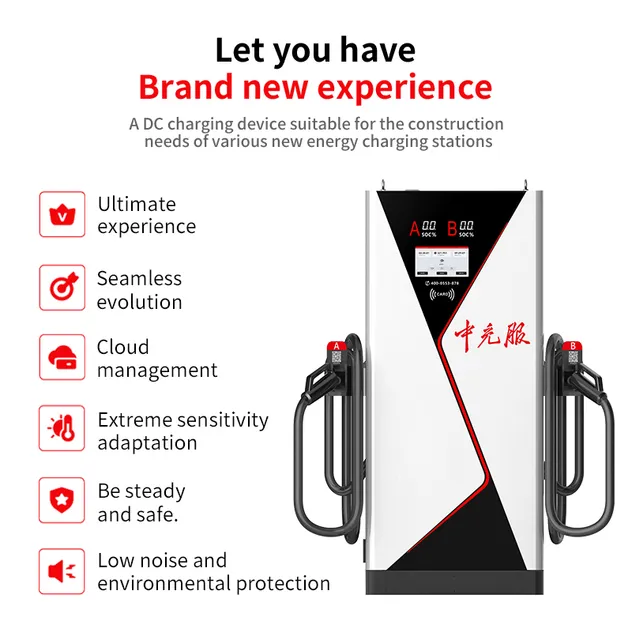

DC Charging Pile

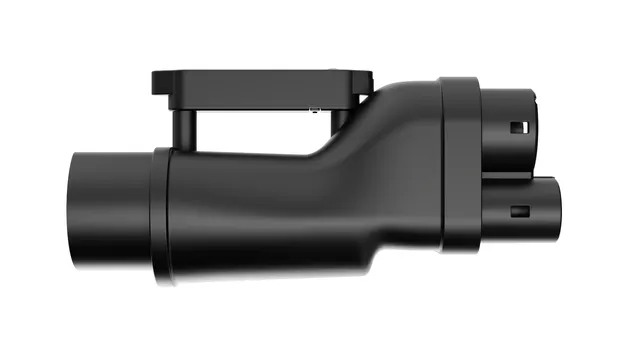

DC Charging Adapter

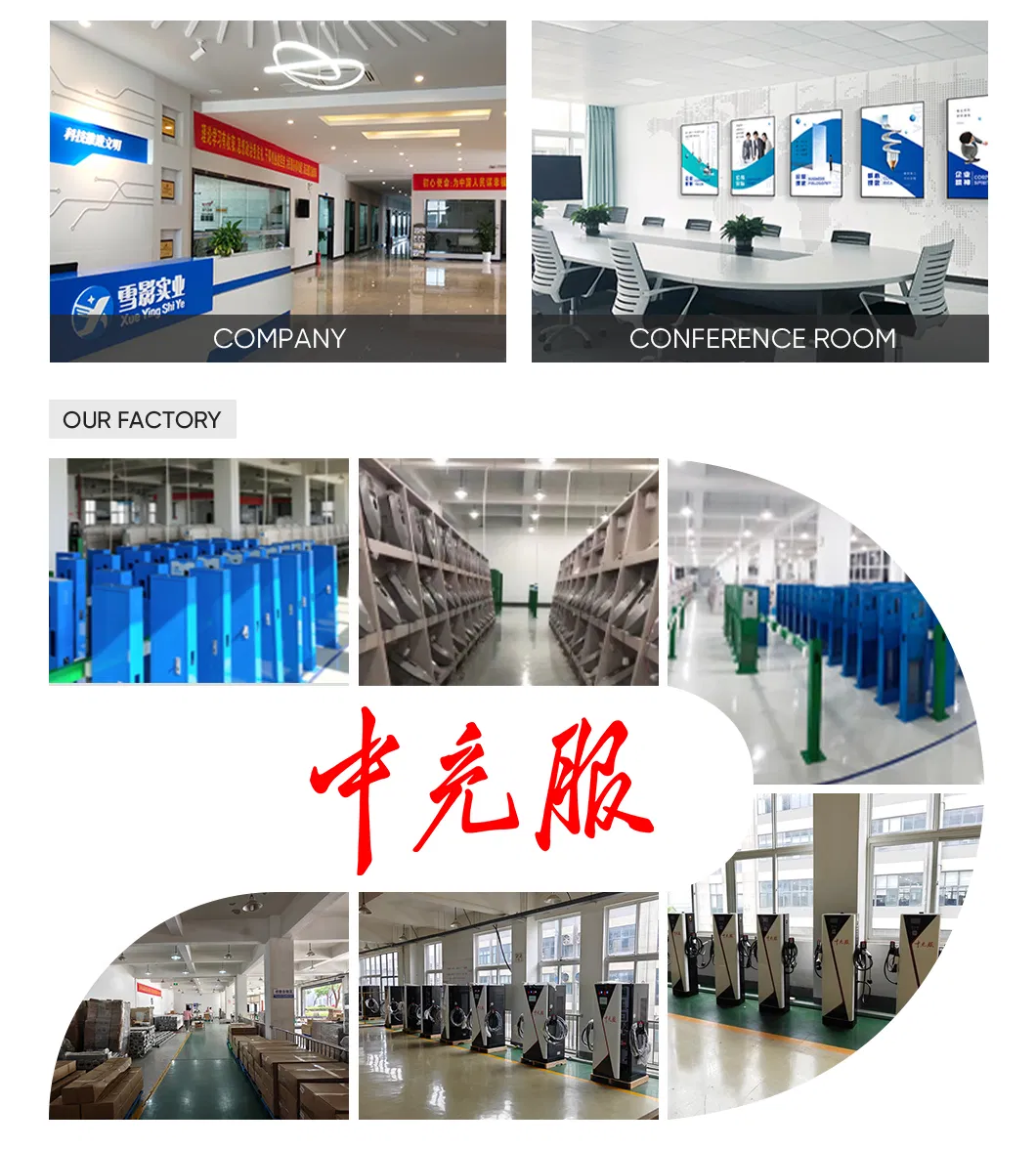

Our company focuses on IoT application services and technology R&D, aiming to become a comprehensive charging service solution provider. We integrate R&D of IoT platforms, development of smart self-service equipment, production, sales, installation, and operation & maintenance.
