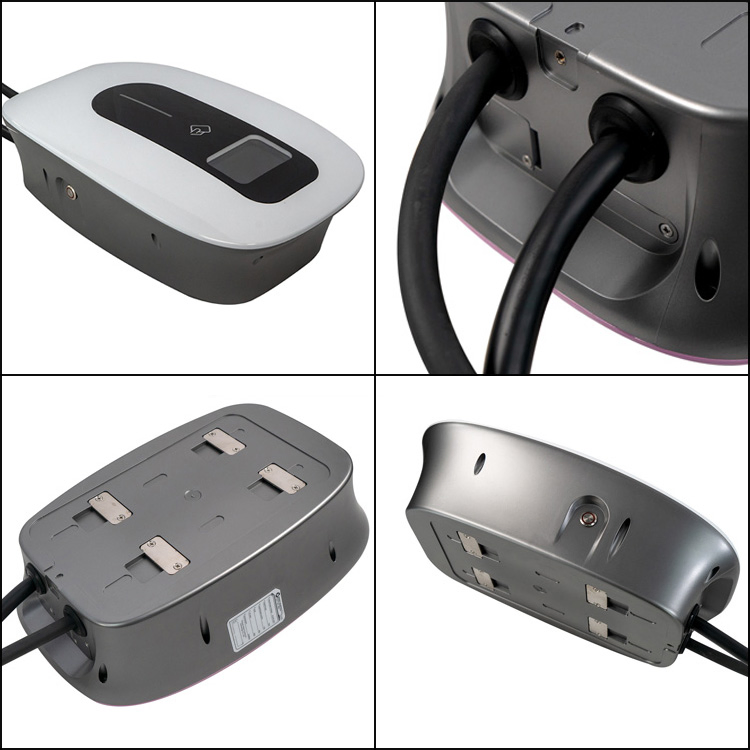

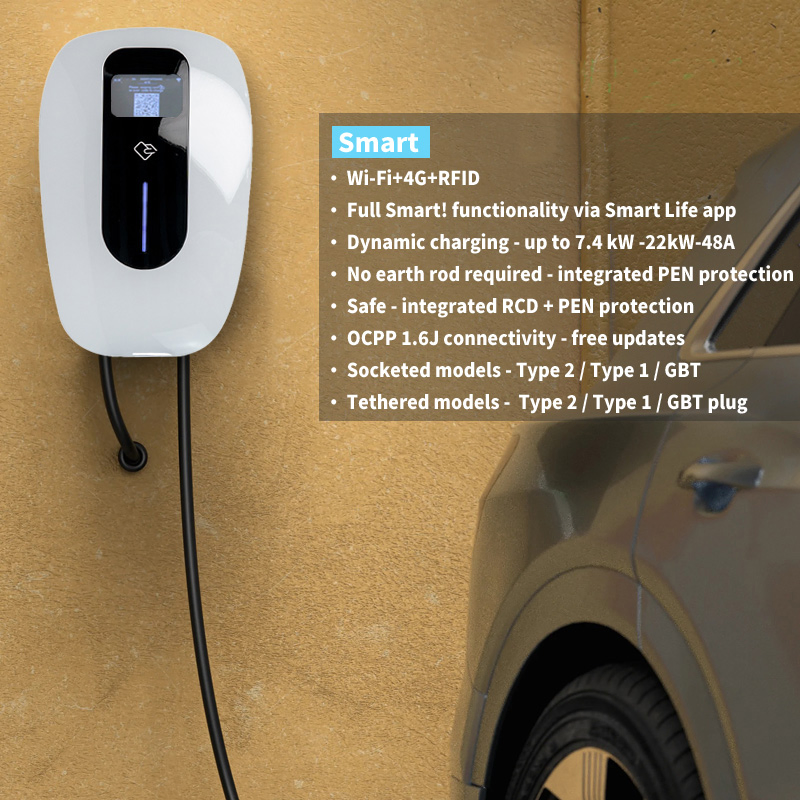

CE RoHS 7kw 11kw 22kw EV AC Charger with Ocpp APP Control

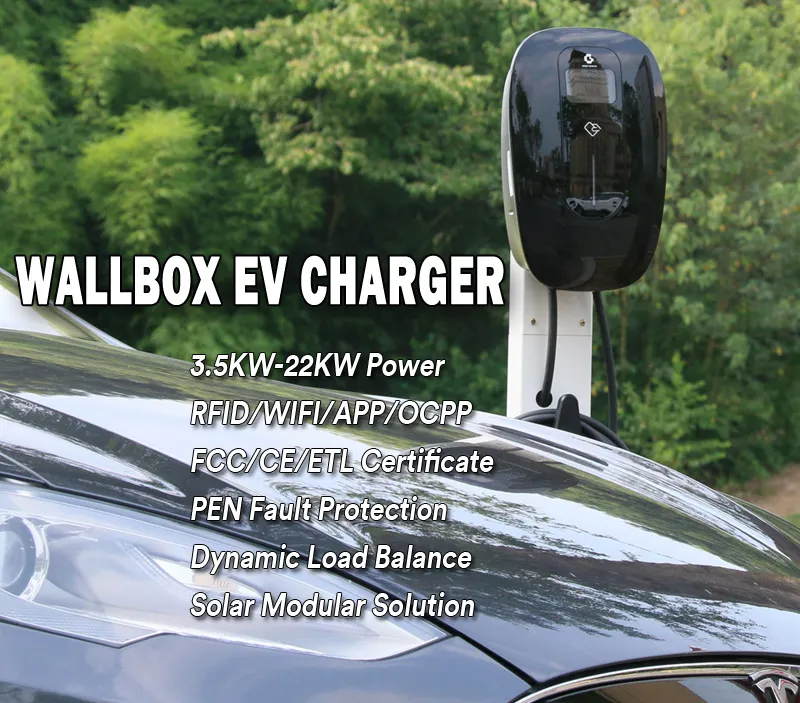

⚡ Product Overview

Model NO.

GS7-AC-B01

Interfaces

One Pile with One Charge

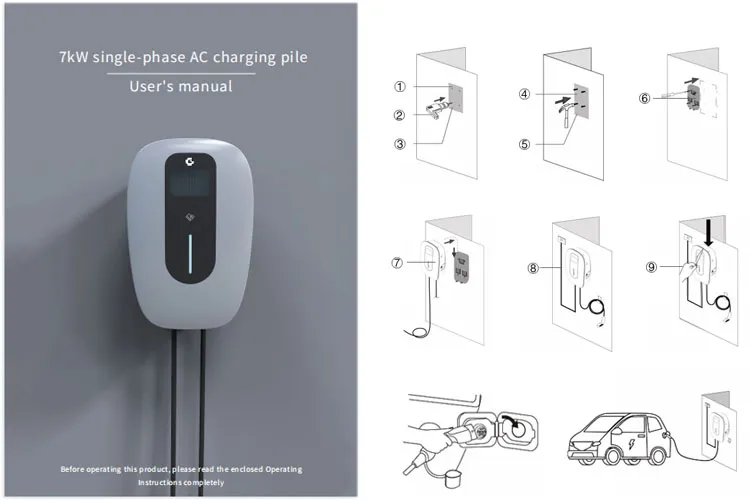

Installation

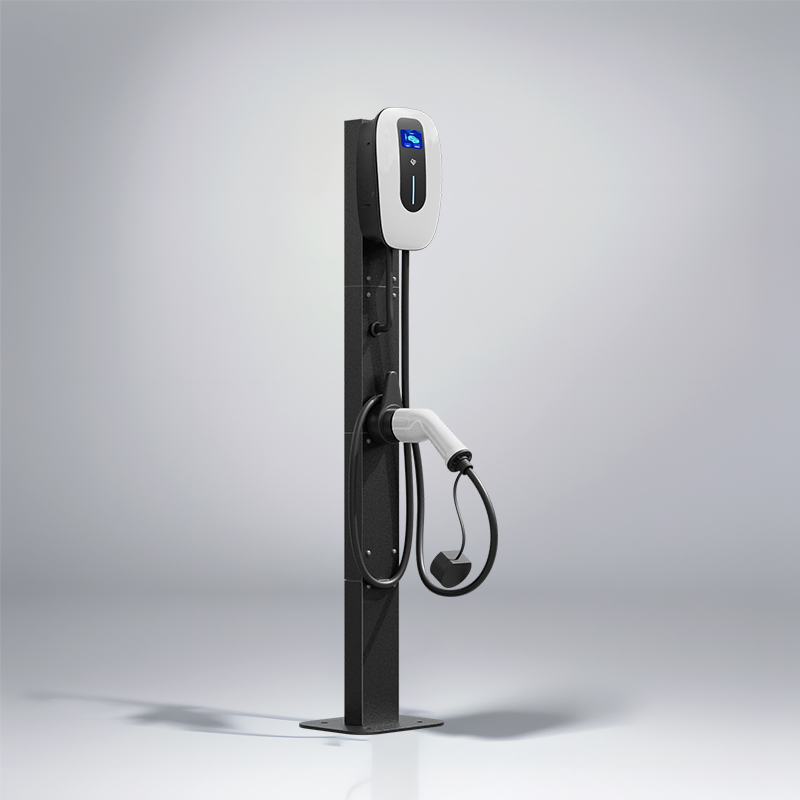

Wall-Mounted/Floor-Mounted

Input Voltage

230V/380V

Output Power

7kw/11kw/22kw

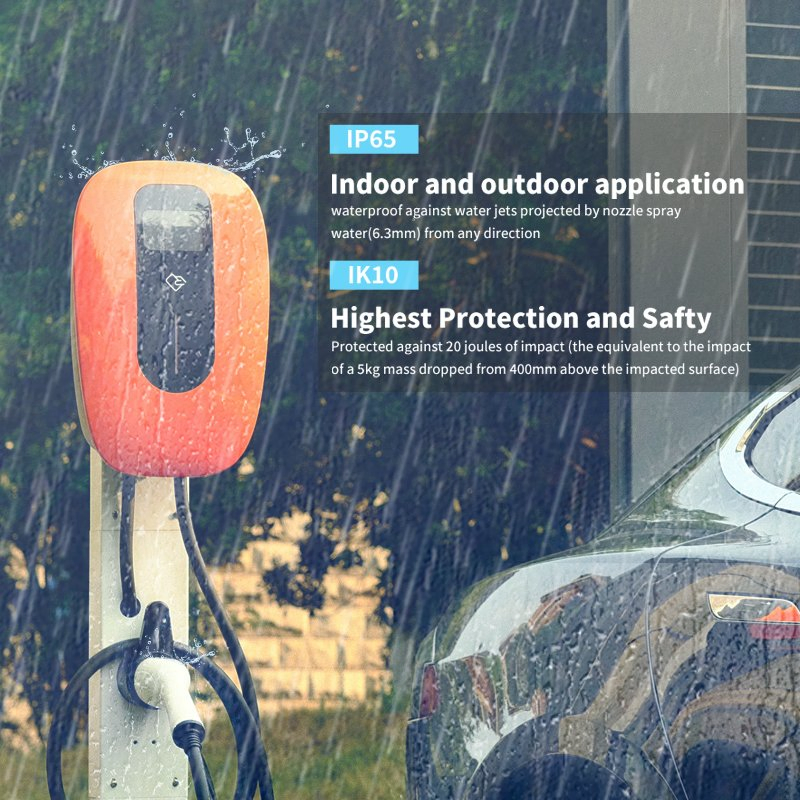

Protection

IP66 / IK10

Communication

RFID/Wi-Fi/4G/Ethernet

OCPP

1.6 Json (2.0 Optional)

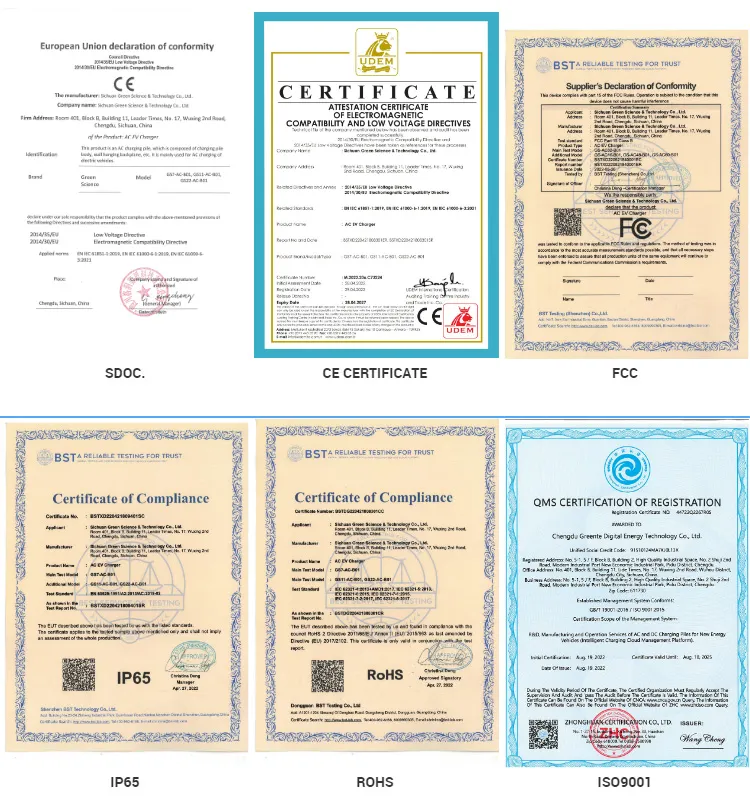

Certification

CE, ISO, RoHS

💎 Product Advantages

Suitable for every electric car with type1/type2/GBT plugs.
RDC Protection: 30mA AC+ 6mA DC Detection Safety circuit.
20% longer battery life span expected via smart charging.
IP65 Protection against water, oil, and dust.
Advanced thermal management for cooler operation.
Dynamic Load Balancing (DLB) built-in.
Convenient Mobile App for scheduling and status monitoring.
Over-the-air (OTA) updates support.

📊 Technical Datasheet

Model	GS7-AC-B01	GS11-AC-B01	GS22-AC-B01
Rated Power	7kW	11kW	22kW
Rated Current	32A	16A	32A
Input Voltage	230V AC (1P)	400V AC (3P)	400V AC (3P)
Frequency	50/60Hz
Charging Port	Type 2 Cable / GBT Cable
RCD	30mA Type A + 6mA DC
Operating Temp	-25ºC to +50ºC

🛡️ Safety & Smart Features

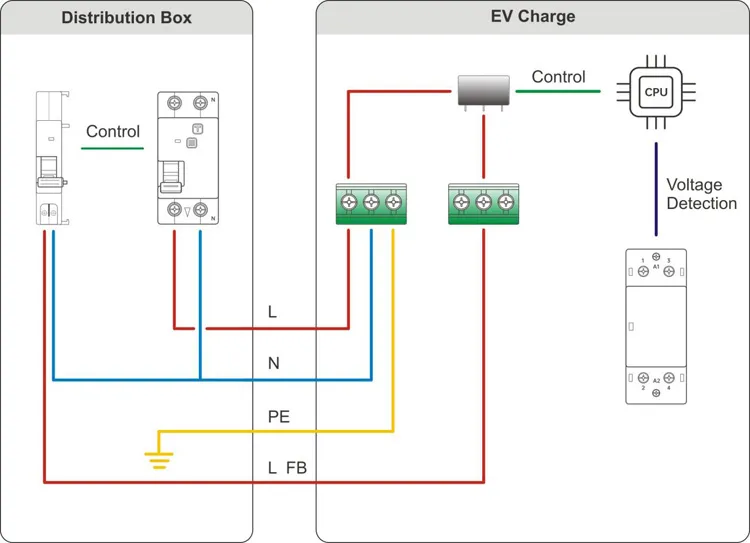

PEN Fault Detection

An additional CT is installed in the PE conductor to detect fault currents. If the threshold is reached, all conductors are switched off automatically, isolating the dangerous PE from the supply for ultimate safety.

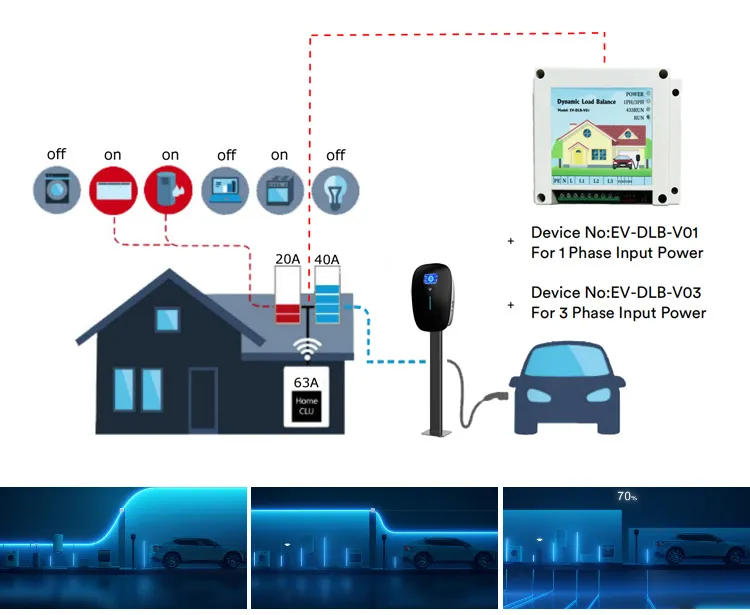

Dynamic Load Balance (DLB)

Safely balances energy usage between your electric car charger and other home appliances. DLB ensures your household appliances get electricity when needed without overloading the main fuse.

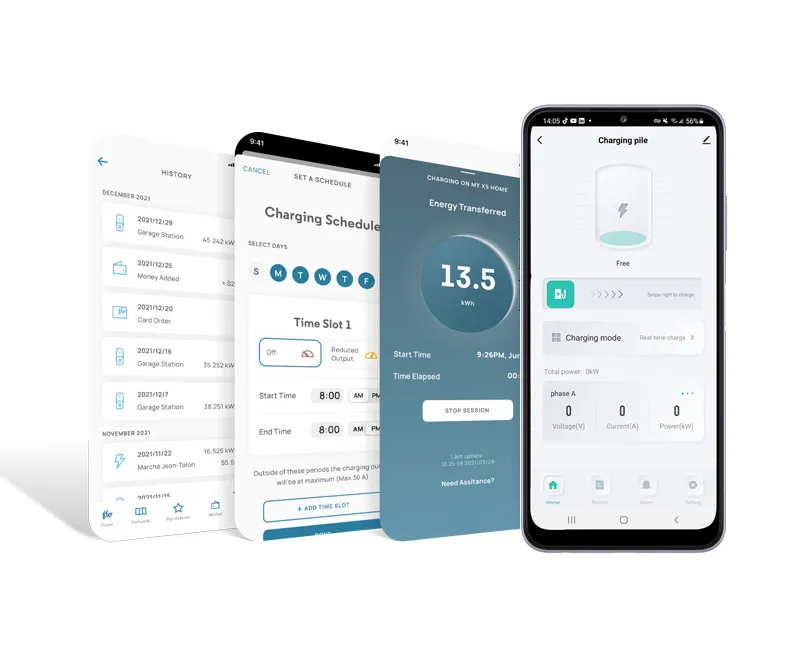

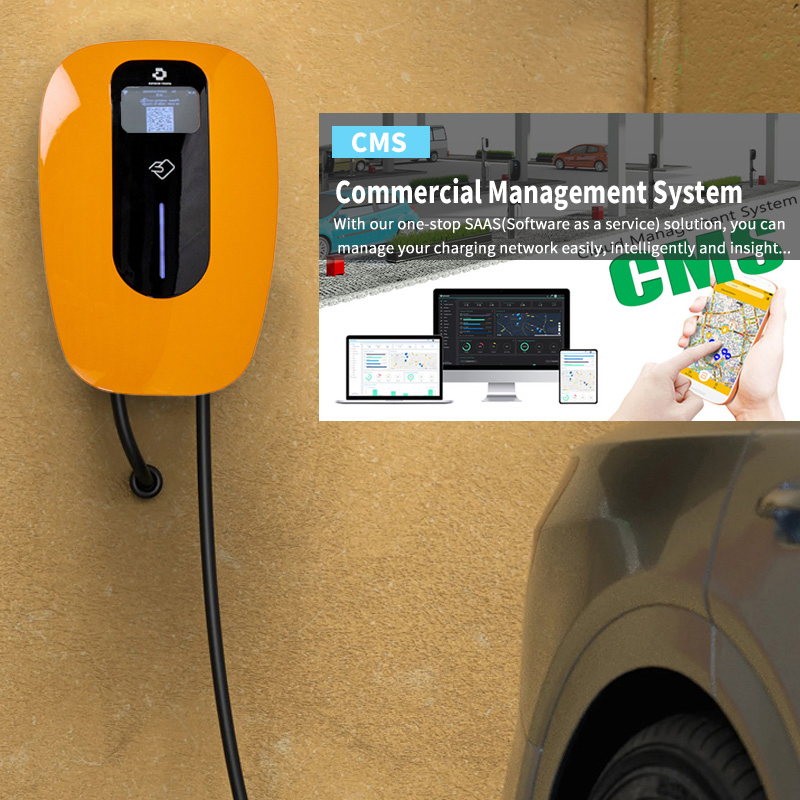

Smart Mobile App Control

1. Start, stop, and schedule charging remotely.
2. Receive real-time notifications.
3. Track EV battery health and charging history.
4. Customize the app interface as per requirements.

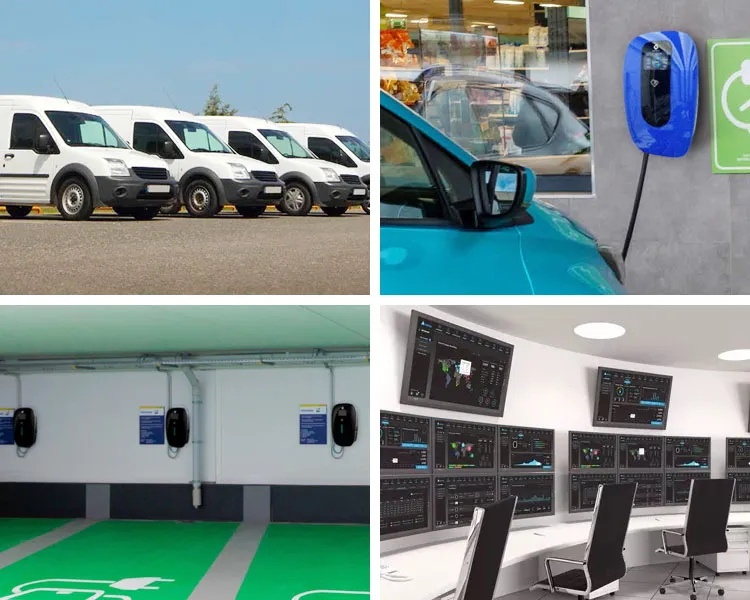

🏠 Charging Solutions

🌍 About Us & Quality

Founded in 2016, we provide professional package techniques and product solutions for intelligent, efficient, and safe application of energy resources. Our portfolio includes portable chargers, AC/DC chargers, and software platforms compatible with OCPP 1.6 protocols.

❓ Frequently Asked Questions

Are you a trading company or a factory?

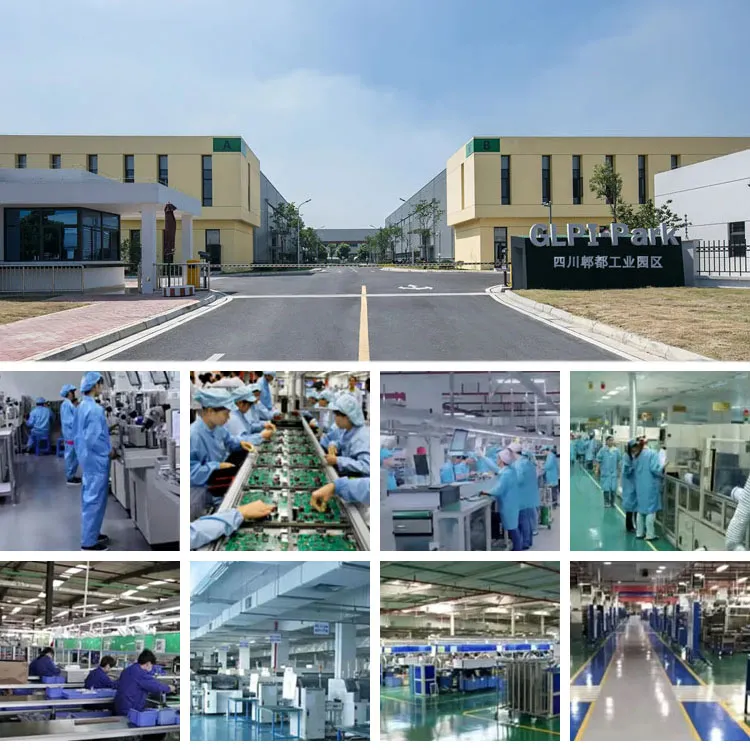

We are a high-tech enterprise with our own production plant, integrating design, R&D, and manufacturing for EV charging solutions.

What is the lead time for orders?

Standard batch orders typically take 1-2 weeks. For customized models, the production cycle is approximately 4-6 weeks.

What transportation methods do you provide?

We offer Express (DHL, FedEx, TNT, UPS), Air freight (5-10 days), and Sea freight (20-35 days) depending on your location and urgency.

Are OEM and ODM services available?

Yes, we provide comprehensive OEM/ODM services, including customized app names, logos, and specific functional modifications.

What is the warranty period for your chargers?

We provide a standard 1-year warranty. Personalized solutions for extended warranties can also be arranged based on local regulations.

Can I customize products with special features?

Yes, we have full technical reserves and can meet various functional requirements raised by customers within a reasonable engineering range.
