Zap Charger
1 / 5
| Product Highlights | |
|---|---|
| Bluetooth Remote Control | Optional Bluetooth remote control feature for convenient operation from a distance. |
| Emergency Stop Switch | Built-in mechanical emergency stop switch for immediate power cutoff ensuring safety. |
| Monitoring Modes | Reserved interfaces for RS485 and Ethernet for remote management and status monitoring. |
| Safety Protection | Equipped with ten protective mechanisms for reliable and safe operation. |
| User-Friendly | Simplified installation, operation, and maintenance design. |

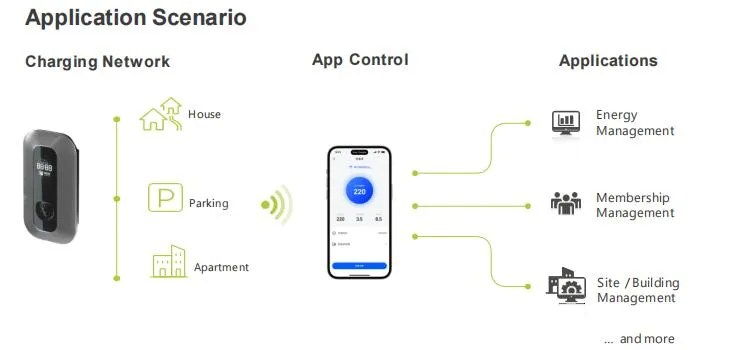

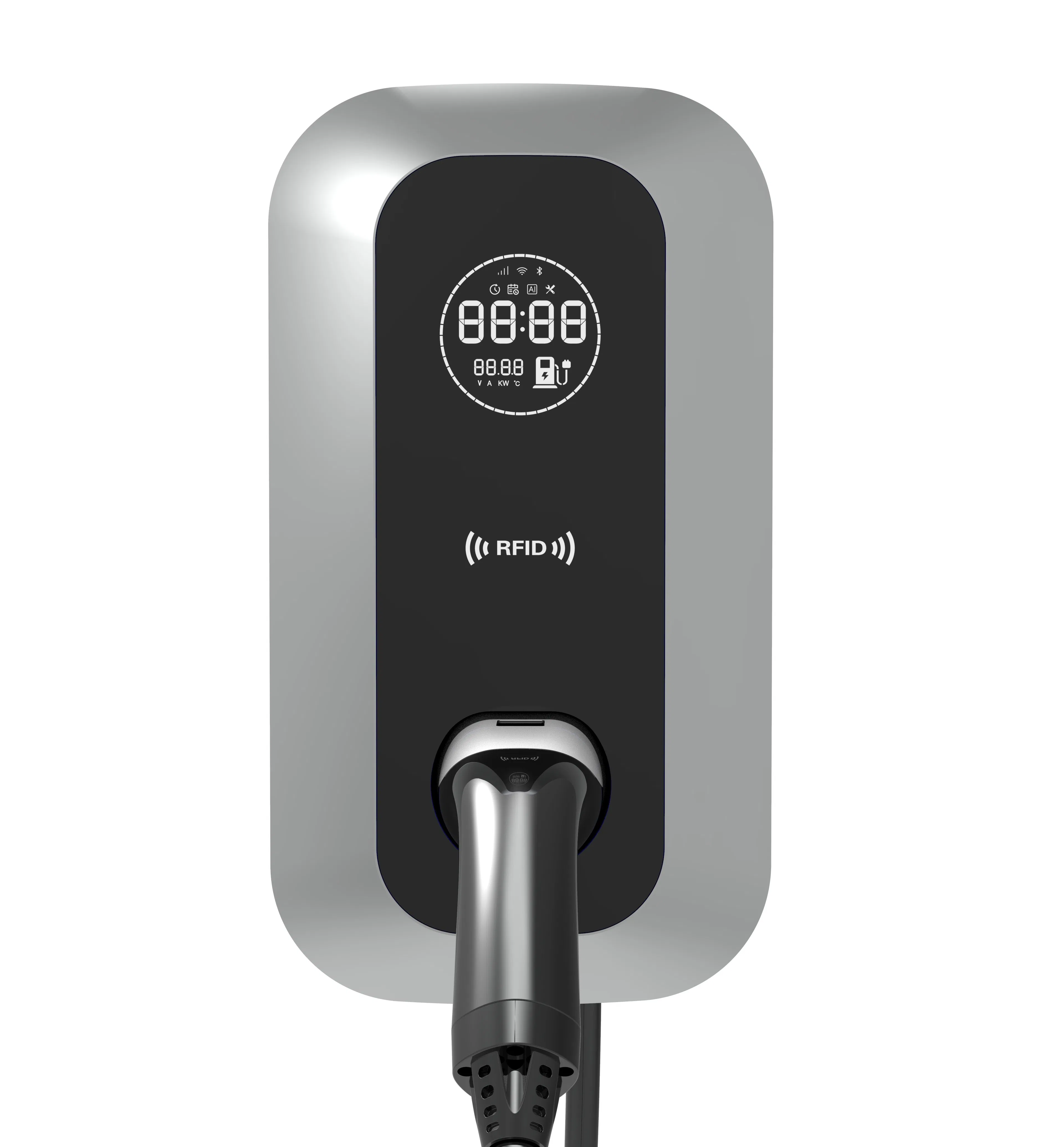

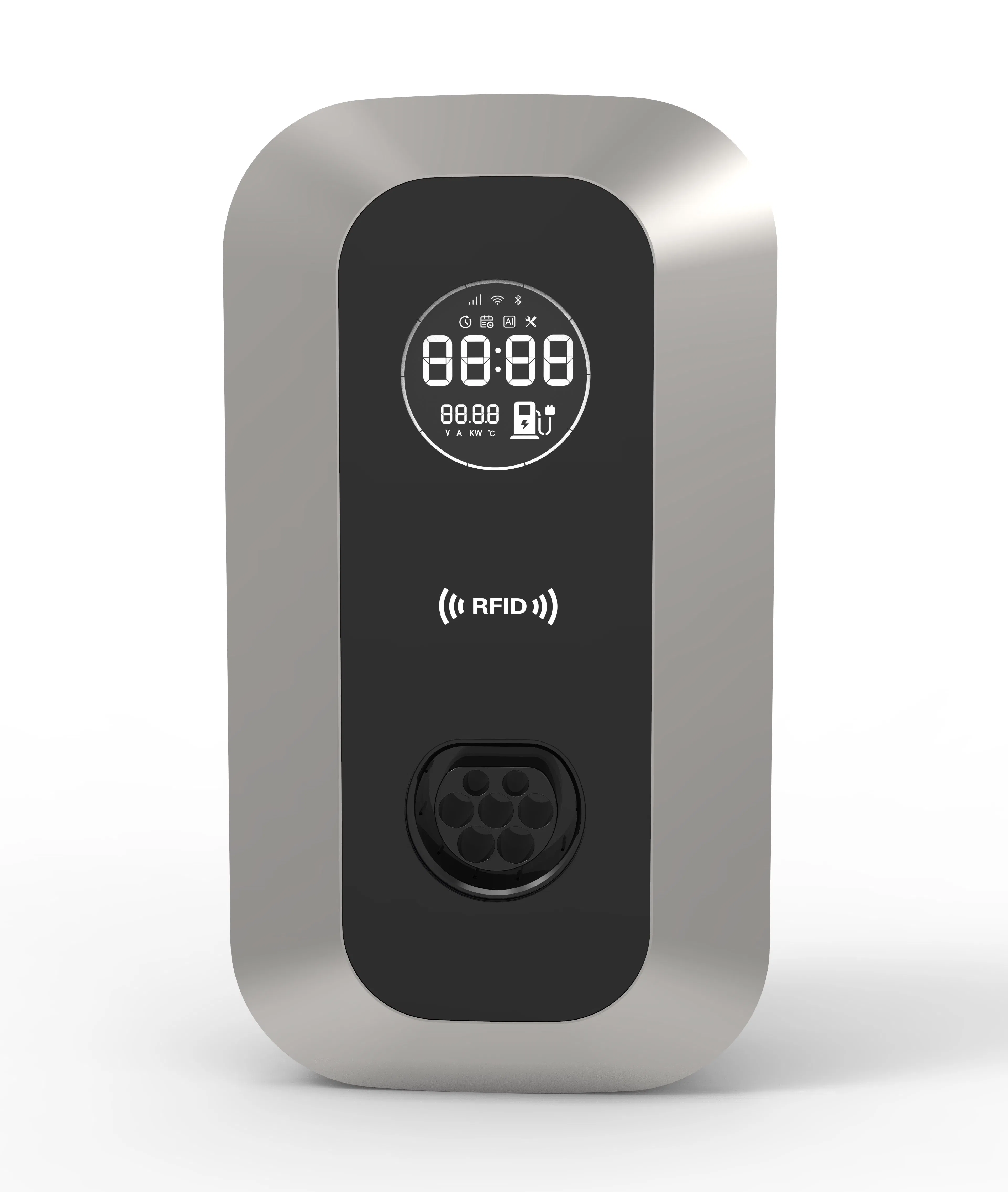

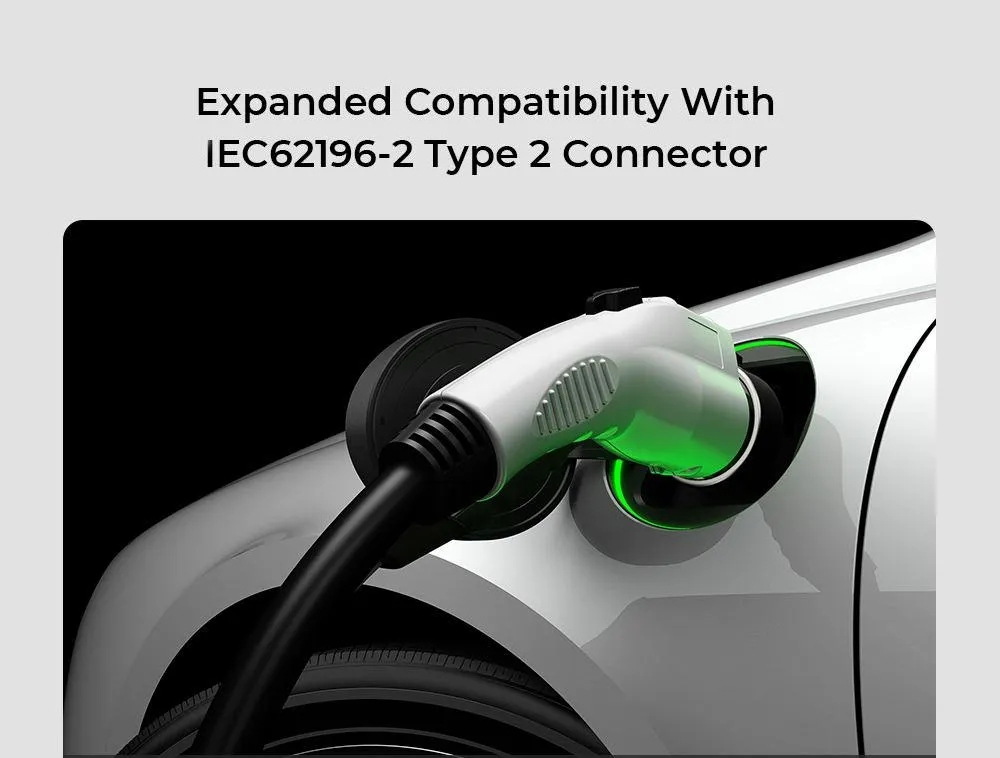

The EU version of the AMP07 is compatible with most European AC electric vehicles because of the IEC62196-2 Type 2, eliminating brand barriers. Set charging times during off-peak periods to save on electricity bills via App Control. Charging current and delay configurations make it adjustable for various situations.

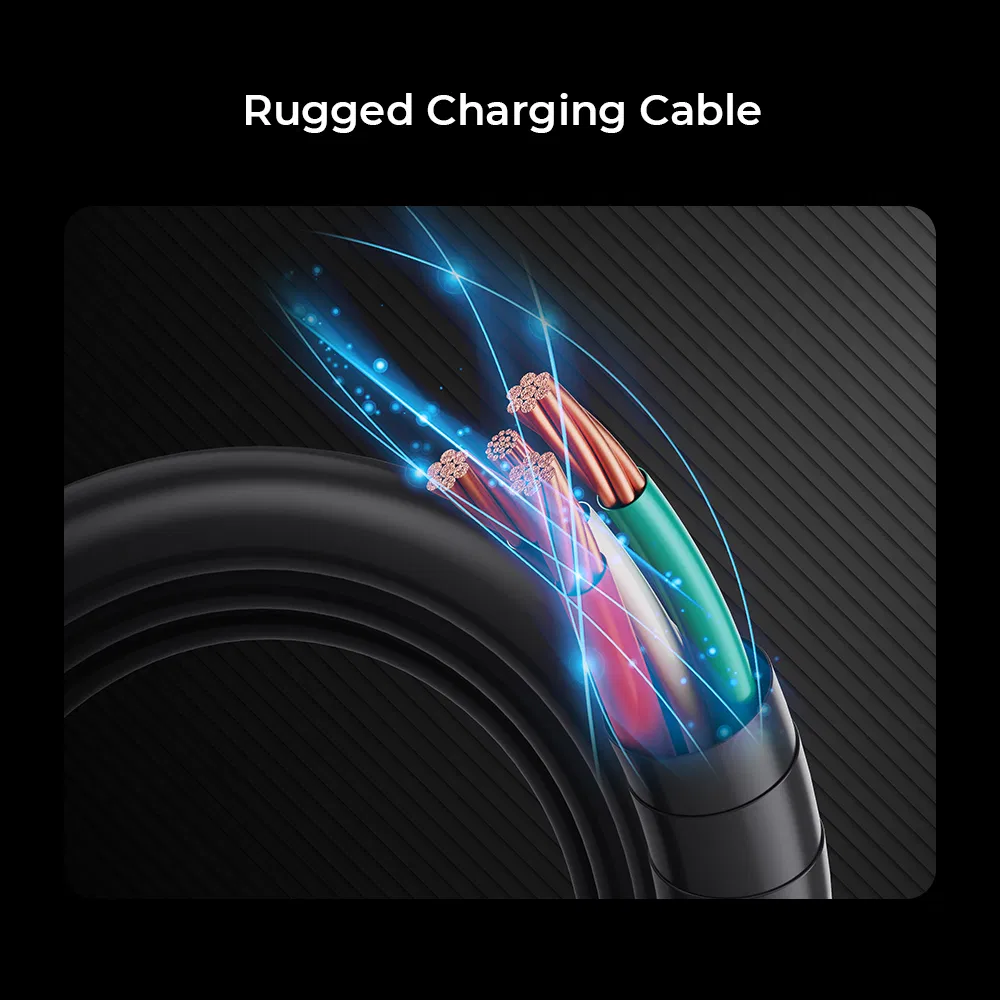

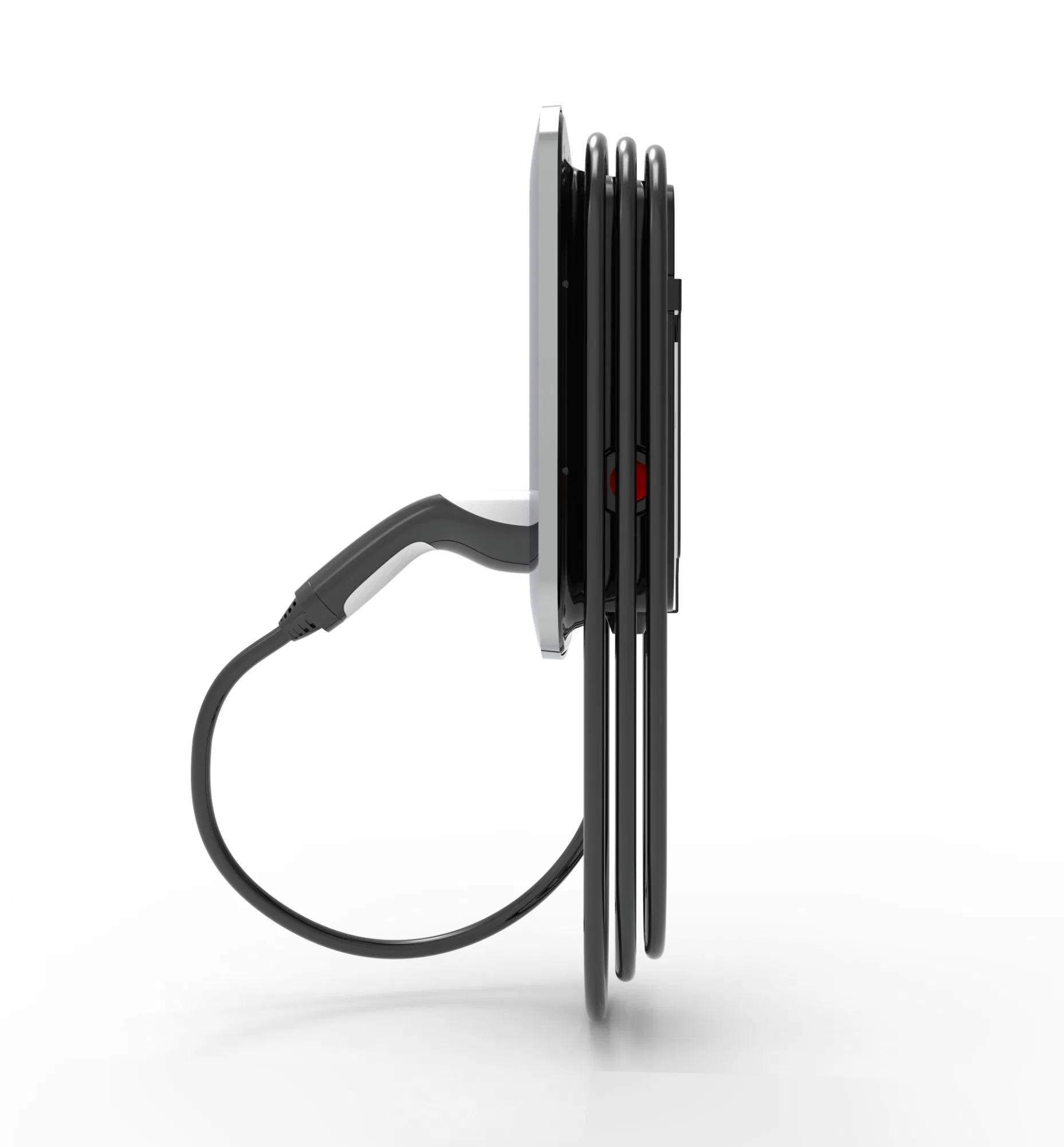

The AMP07 EV Charger comes with a rugged charging cable made of PVC and copper, accommodating up to 40A. This 5m cable allows maximum flexibility. In Plug-and-Play mode, charging begins as you slot the charger into the vehicle.
| System Specifications | |
|---|---|
| Charging Type | Mode 3 |
| Dimension (H x W x D) | 222 x 104 x 405mm |
| Enclosure Grade | IP65 |
| Net Weight | 3.62kgs |
| Charging Standard | IEC 61851-22 |
| Input & Output | |
| Input Voltage | 200Vac -240Vac, 50/60Hz |
| Output Power | 7kW Max |
| Output Current | 32A Max |
| Charging Outlet | 5m Cable, Type-2 |
| Environment | |
| Working Temperature | -25°C to +50°C |
| Protection | Over/under voltage, Overload, Leakage, Grounding, Lightening surge |
