Zap Charger
1 / 5

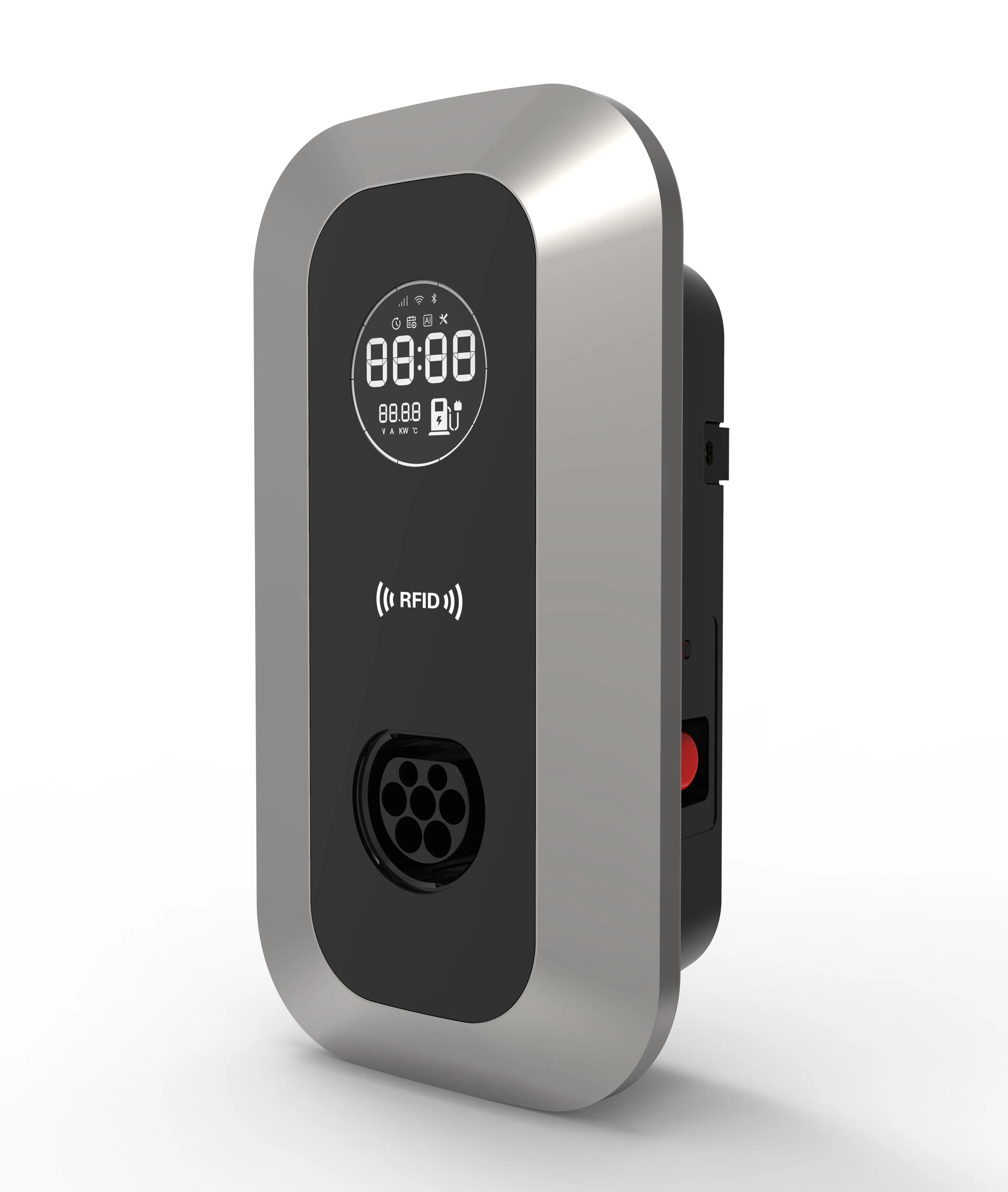

| Model NO. | AMP07-S |
|---|---|
| Type | Fast EV Charging Station |
| Charging Method | Quick Charge / Mode 3 |
| Interfaces | One Pile with One Charge |
| Installation | Wall or Floor Mounted |
| Protection Grade | IP54 / IP65 |
| Certification | CE, TUV, DEKRA |
| Network | Wi-Fi, Bluetooth, 4G(optional) |
| RCCB | Type-A + 6mA DC |
| Package Dimensions | 24.00cm * 12.00cm * 42.00cm |
| Gross Weight | 3.800kg |
Optional Bluetooth remote control feature for convenient operation from a distance.
Built-in mechanical emergency stop switch for immediate power cutoff.
Reserved RS485 and Ethernet interfaces for remote management and status tracking.
Equipped with ten protective mechanisms for reliable and safe operation.

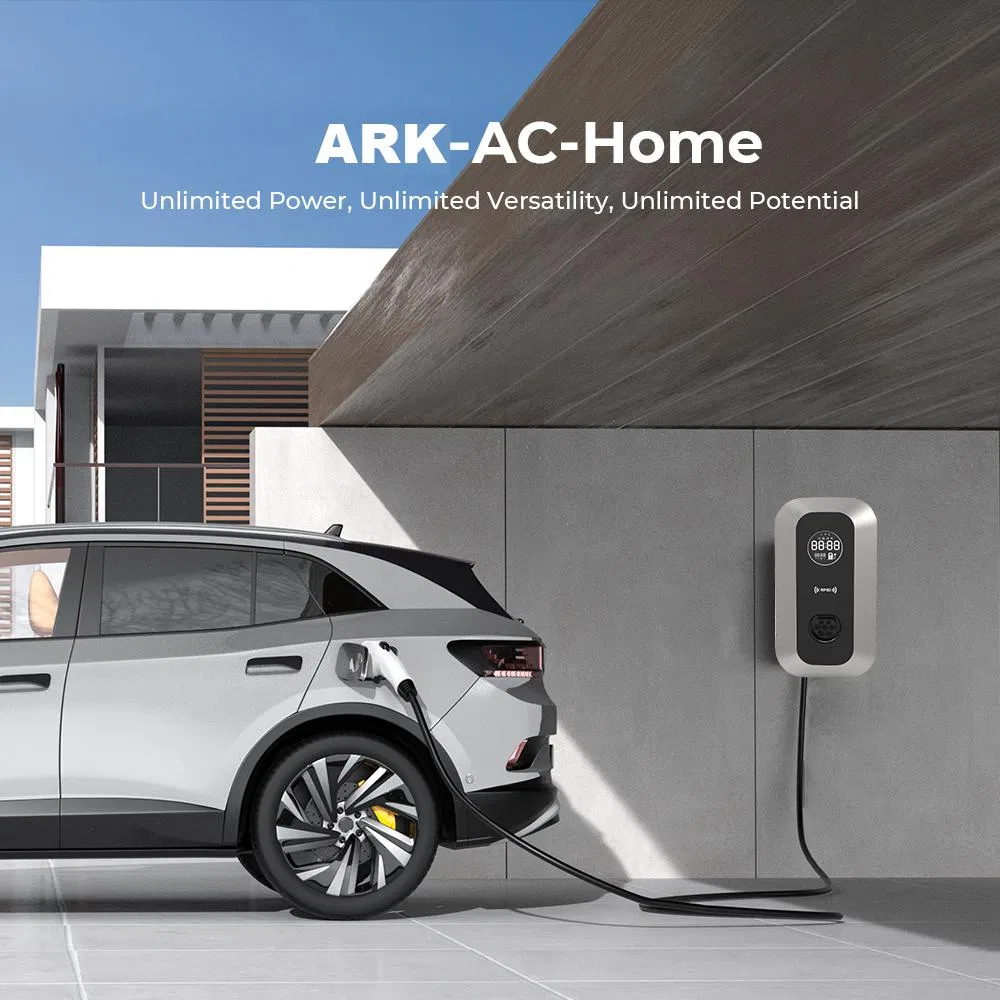

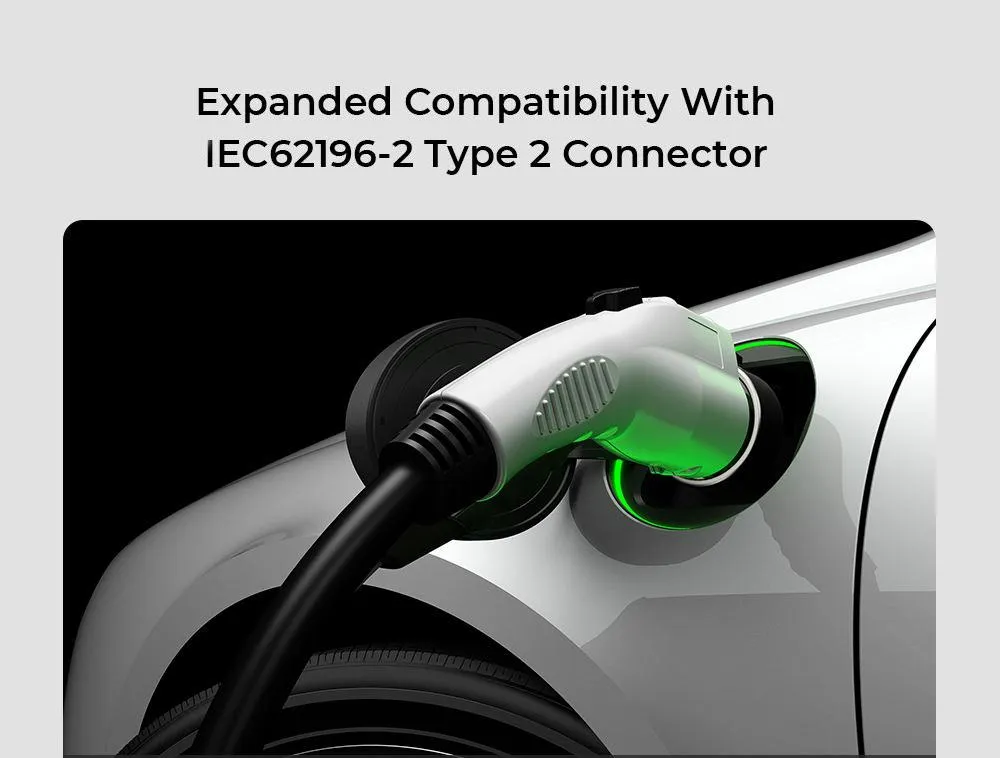

The EU version of the AMP07 is compatible with most European AC electric vehicles using IEC62196-2 Type 2 connectors, eliminating compatibility barriers for owners.

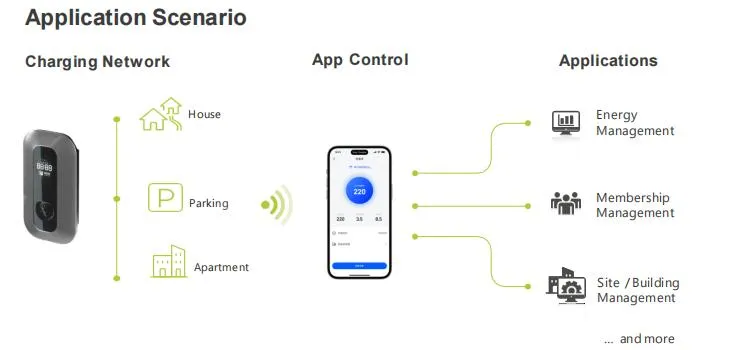

App Control Mode: Set charging times, adjust current, and track data via smartphone. Supports off-peak charging to save on electricity bills.

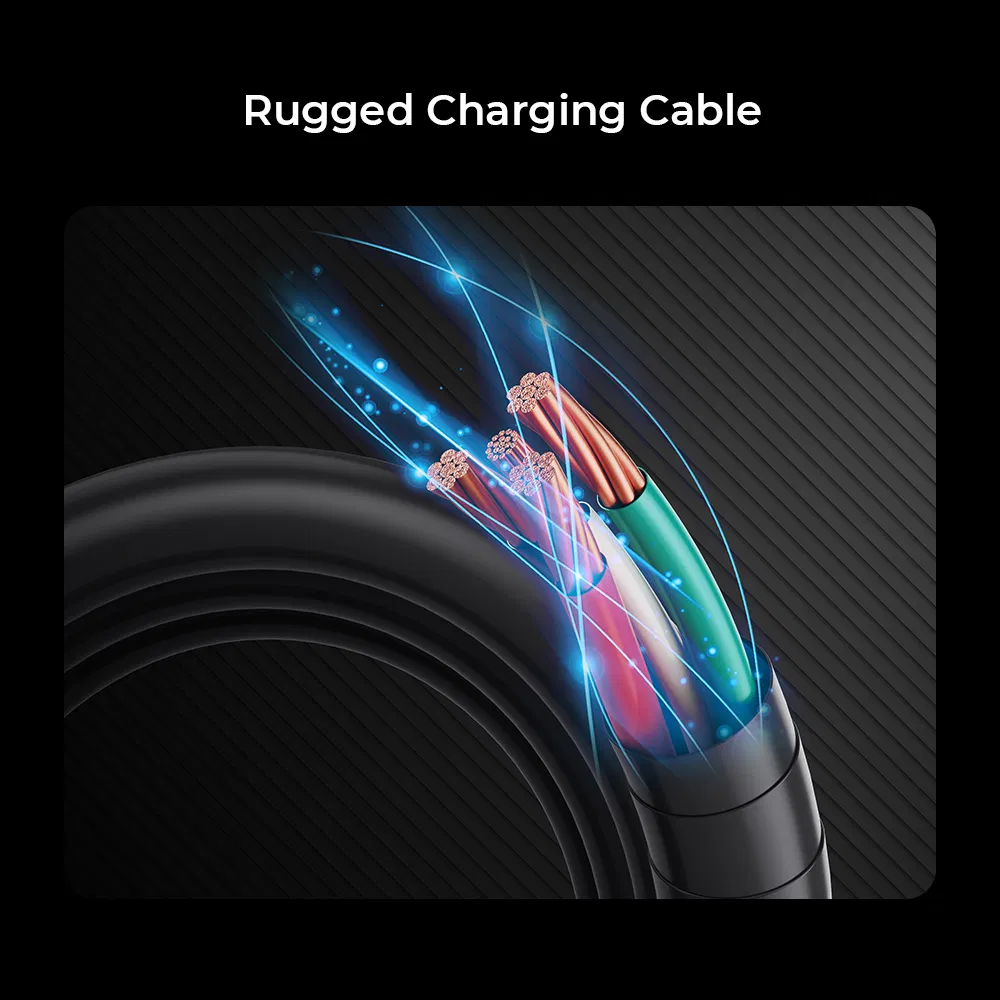

Rugged Cable: 5m high-quality PVC and copper cable supporting up to 40A, designed for maximum flexibility and durability.
| System Output & Input | |
|---|---|
| Output Power | 7kW Max |
| Input Voltage | 200Vac - 240Vac, 50/60Hz |
| Output Current | 32A Max |

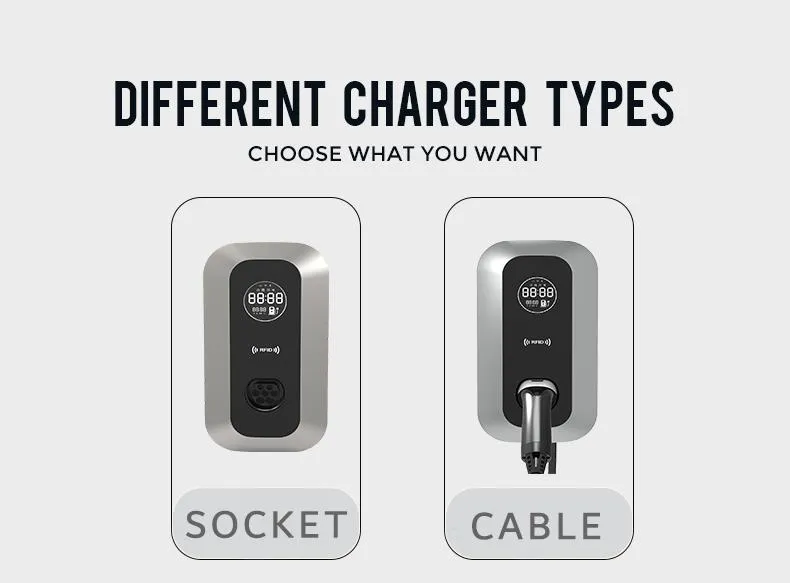

| Connector Type | IEC 62196 Type-2 Socket |

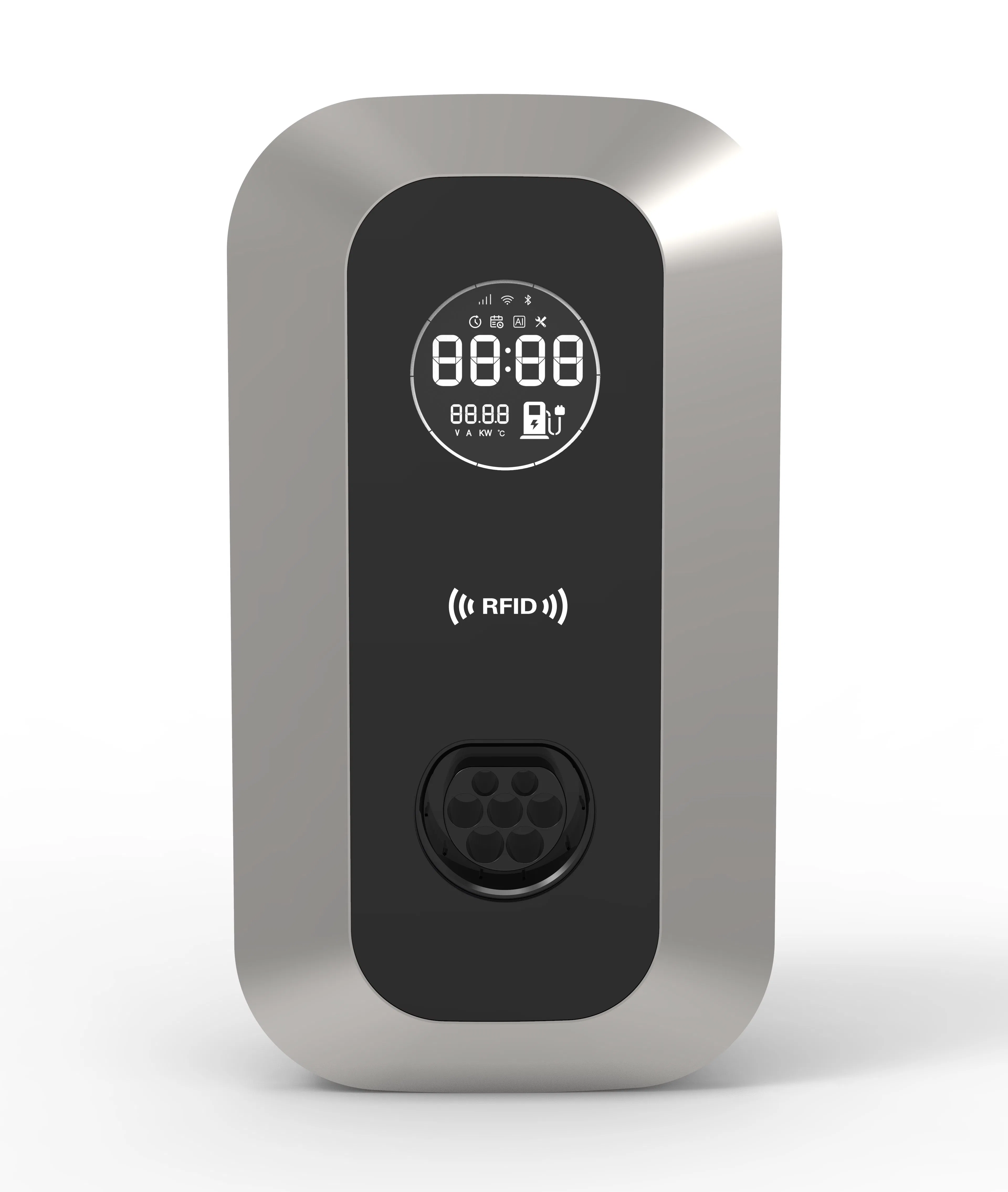

| User Interface | LCD or 7-inch TFT Display |
| Languages | English (others on request) |
| Environmental & Protection | |
| Temperature | Working: -25°C to +50°C | Storage: -25°C to +70°C |
| Impact Protection | IK10 |
| Cooling | Natural Cooling |
| Comprehensive Protection | Overvoltage, Undervoltage, Overcurrent, Leakage, Grounding, Temperature, Waterproof, Power-off, and Data protection. |
