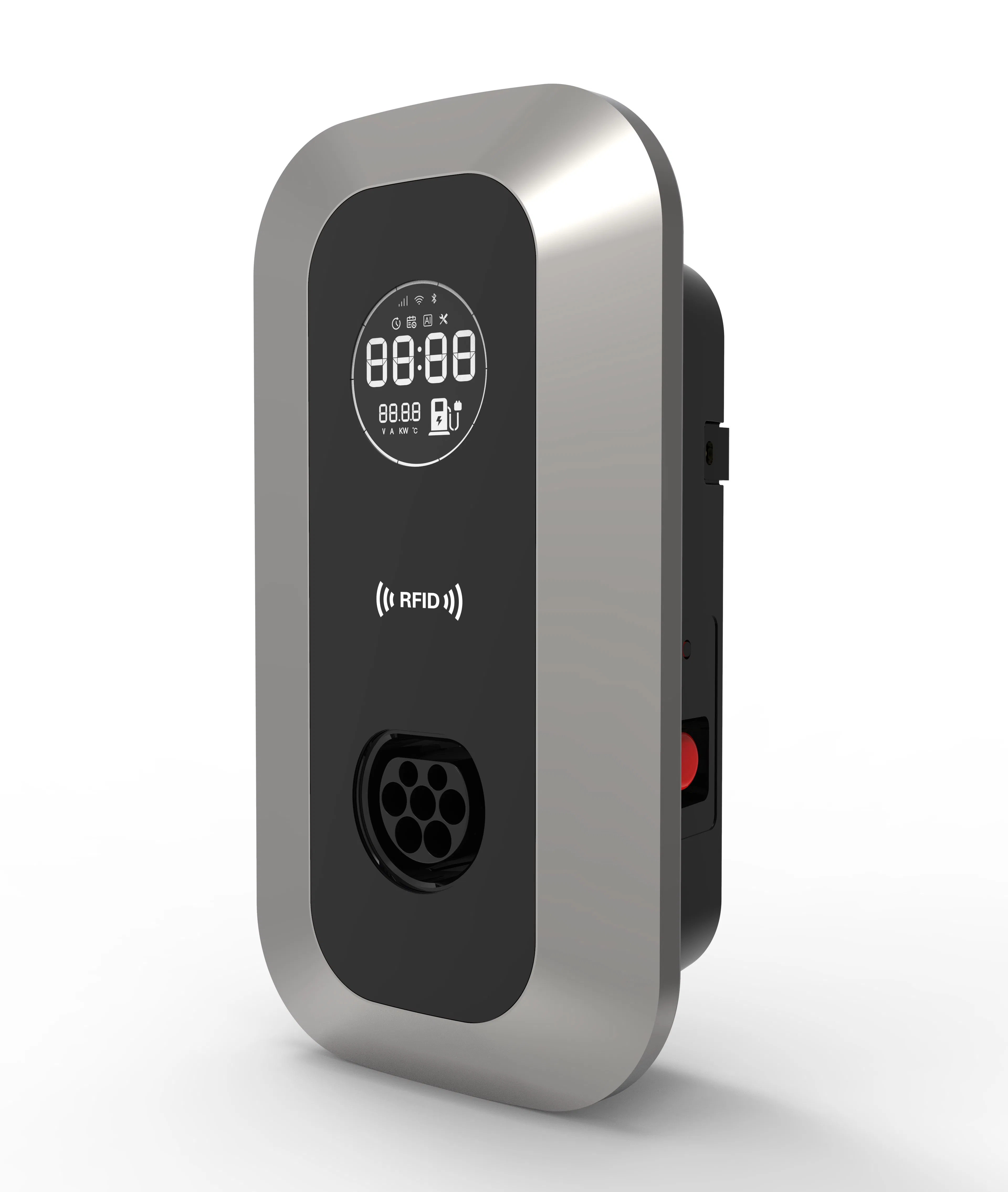

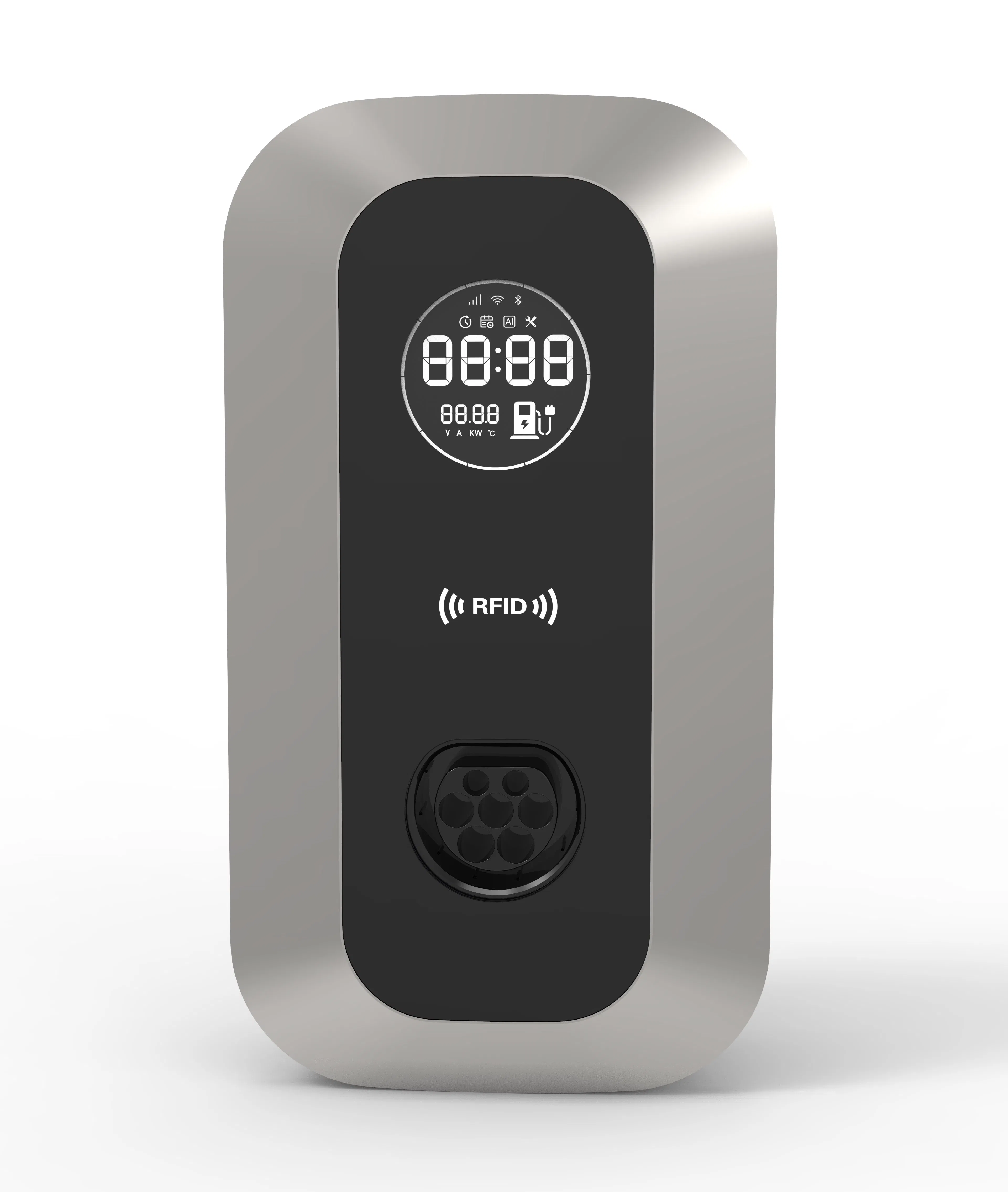

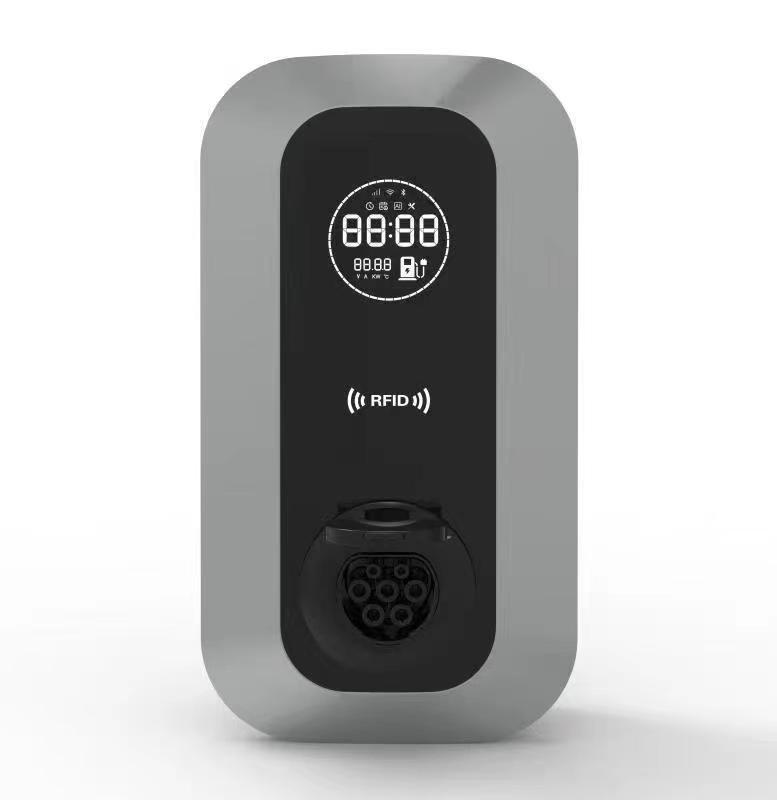

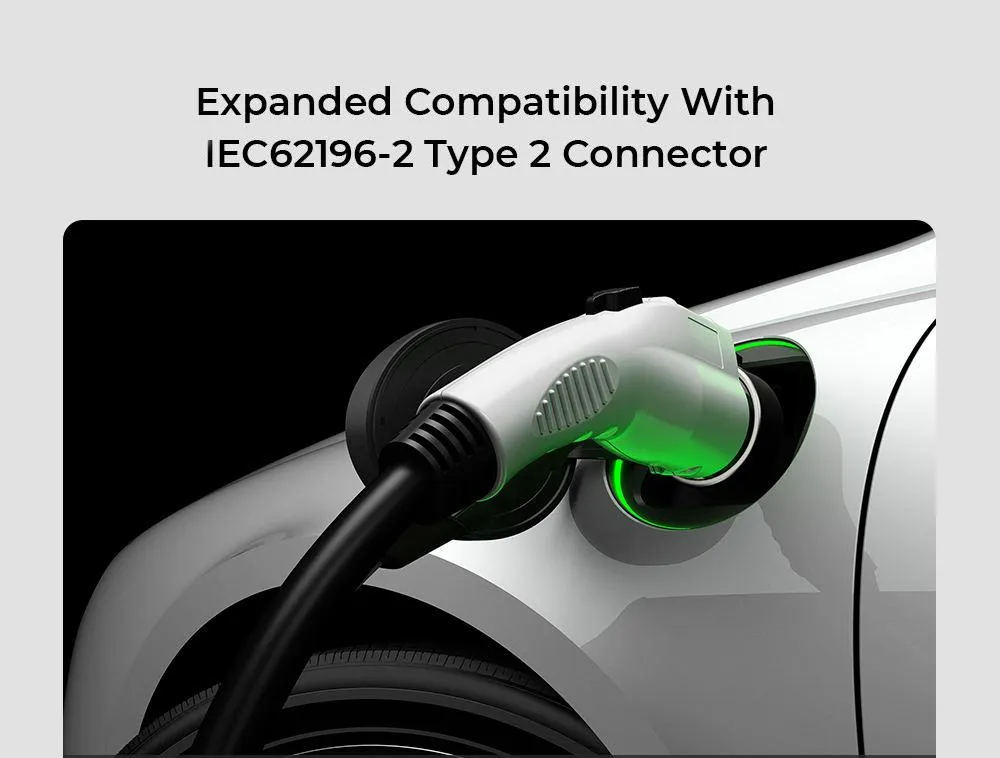

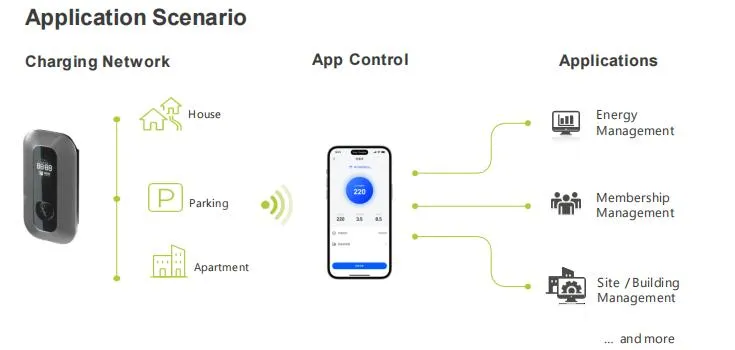

The EU version of the AMP07 is compatible with most European AC electric vehicles thanks to the IEC62196-2 Type 2 standard, eliminating brand barriers for owners. It allows vehicles to be charged during off-peak periods via scheduled times, saving on electricity bills. Users can monitor charging status and make appointments via smartphone App control.

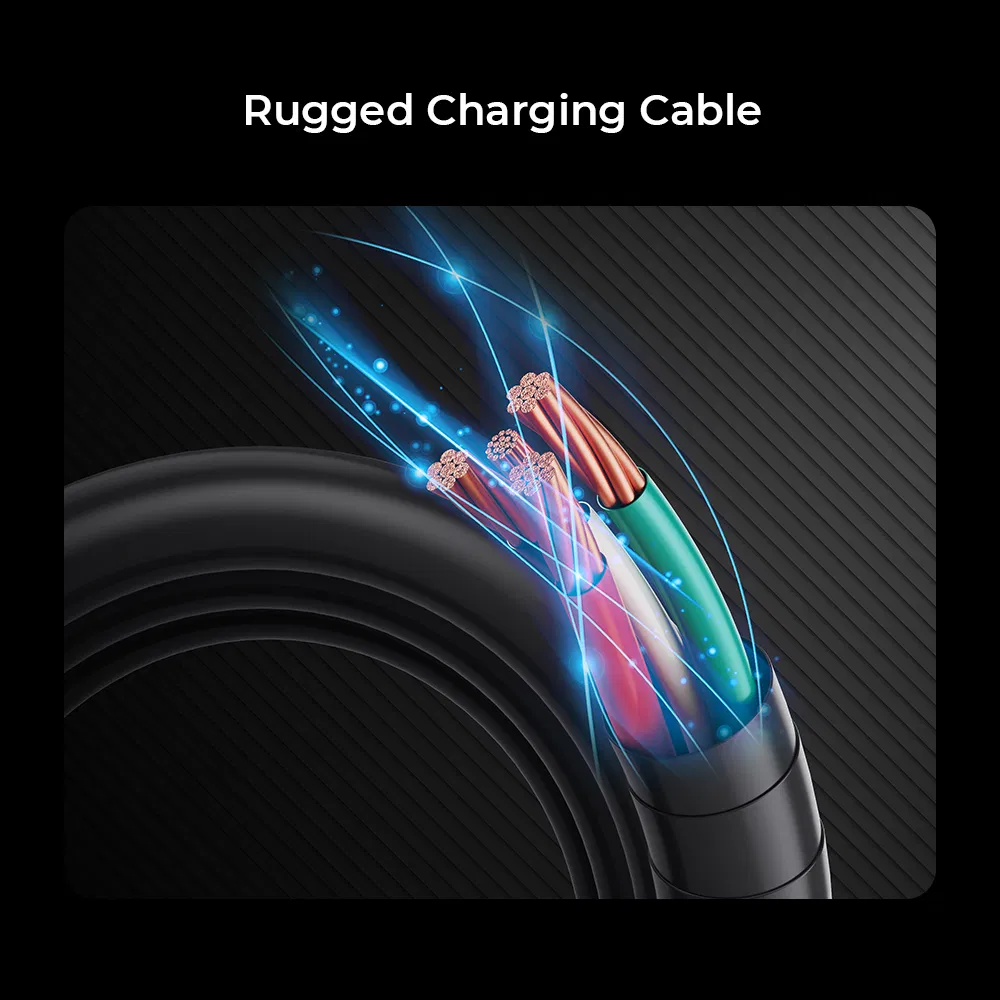

The AMP07 EV Charger features a rugged PVC and copper cable supporting up to 40A. The 5m cable offers maximum flexibility, and the unit includes a neat storage design for coiling the cable when not in use.
| Category | Parameter | Specification (AMP07-S) |
|---|---|---|
| System | Charging Type | Mode 3 |
| Dimension | 222 x 104 x 405mm | |
| Protection Grade | IP65 / IK10 | |
| Net Weight | 3.62 kgs | |
| Input | Input Voltage | 200Vac - 240Vac, 50/60Hz |
| RCCB | Type-A + 6mA DC | |
| Output | Output Power | 7kW Max |
| Outlet Type | IEC 62196 Type-2 | |
| Output Current | 32A Max | |
| Interface | Authentication | App Interface |
| Display | LCD or 7 inch TFT | |
| Env. | Working Temp. | -25°C to +50°C |
