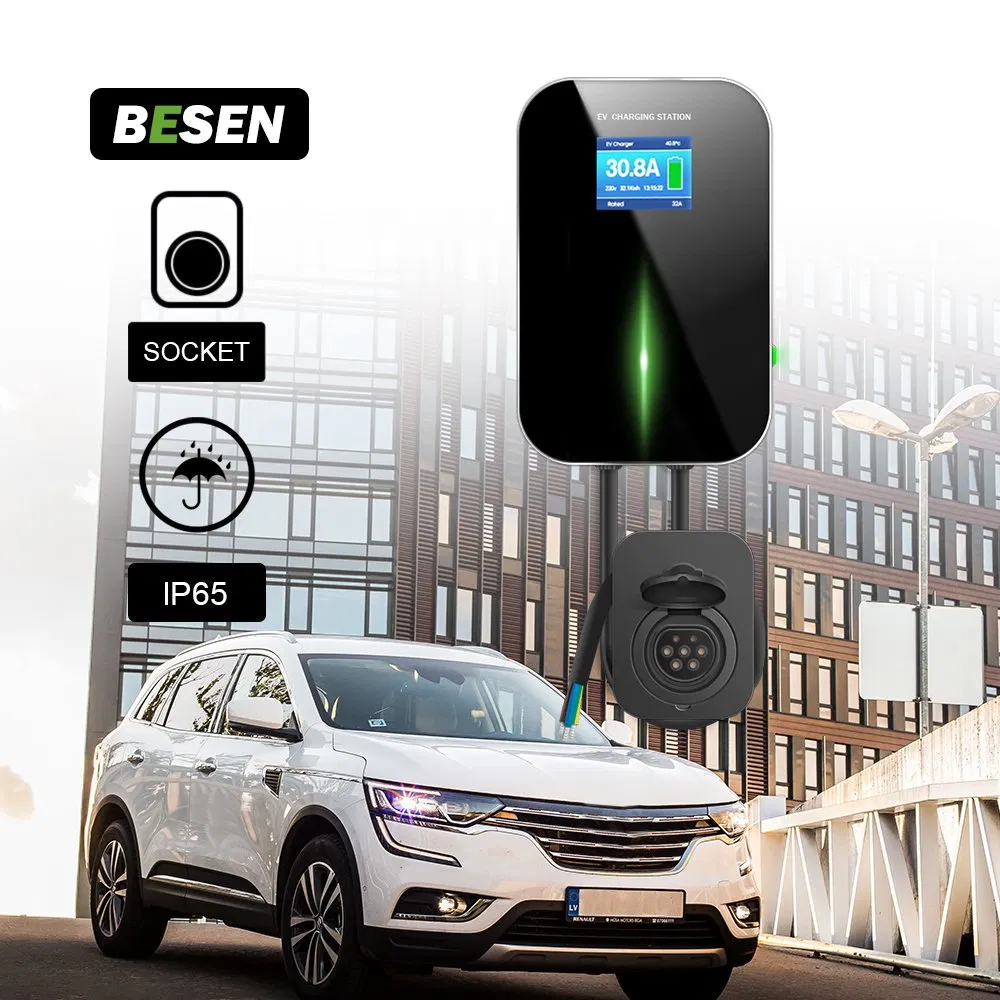

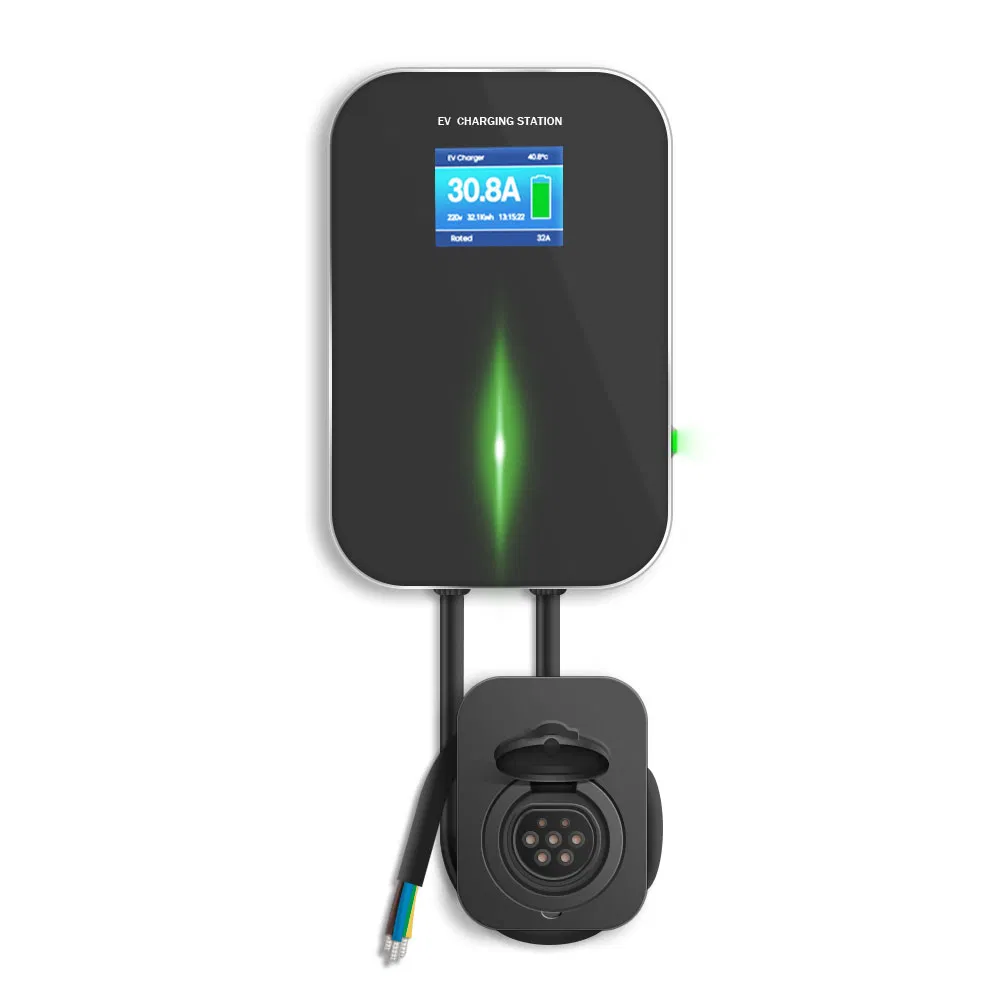

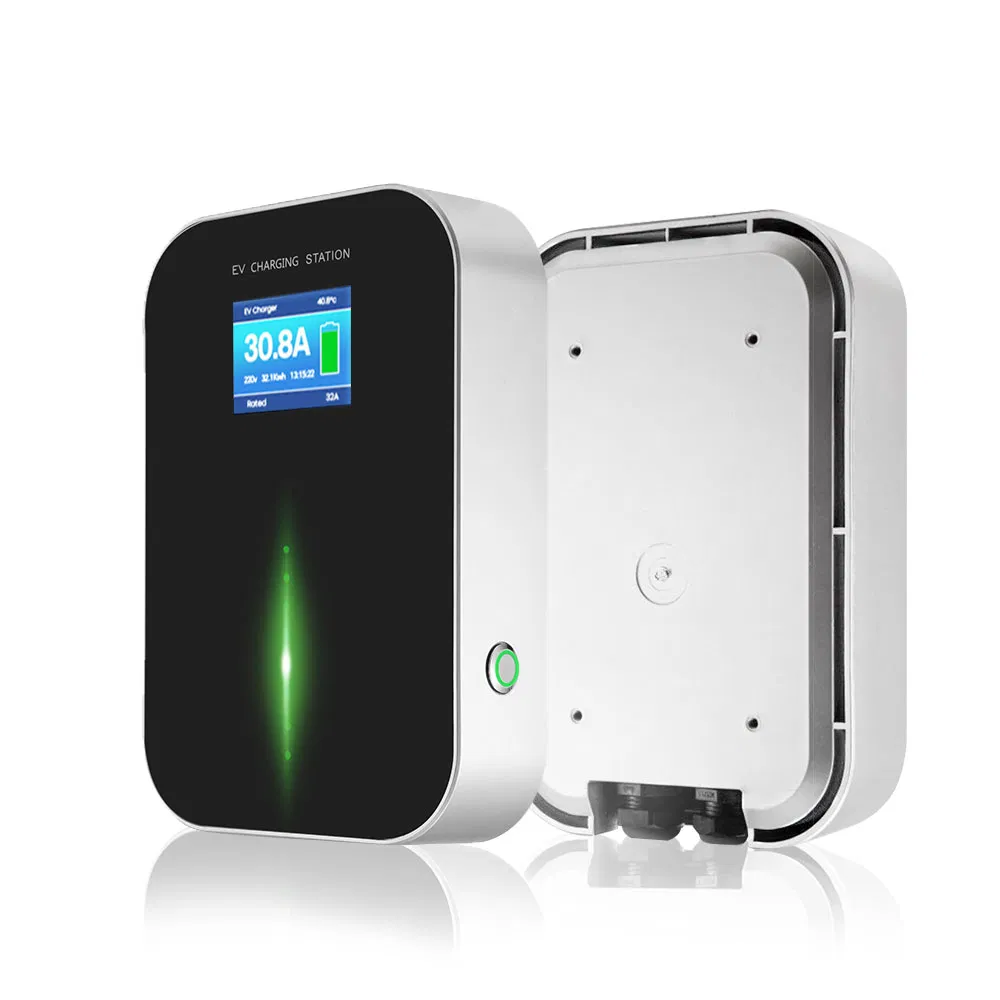

Besen EV Charging Unit 7kw 32A with Type 2 Socket
Besen EV Charging Unit 7kw 32A with Type 2 Socket
Besen EV Charging Unit 7kw 32A with Type 2 Socket
Besen EV Charging Unit 7kw 32A with Type 2 Socket
Besen EV Charging Unit 7kw 32A with Type 2 Socket
1 / 5
Besen EV Charging Unit 7kw 32A with Type 2 Socket
Besen EV Charging Unit 7kw 32A with Type 2 Socket
Besen EV Charging Unit 7kw 32A with Type 2 Socket
Besen EV Charging Unit 7kw 32A with Type 2 Socket
Besen EV Charging Unit 7kw 32A with Type 2 Socket

Besen EV Charging Unit 7kw 32A with Type 2 Socket

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
B20-BA-7KW
Size
500*350*25 mm
Weight
6kg
Rated Voltage
220V-240V
Color
Black
Type
Fast EV Charging Station
Certification
CE
Warranty
12 Months
Standard
IEC 62196-2
Origin
China
HS Code
8504409999
Production Capacity
3000
✓

Product Presentation

EV Charging Unit 7kw 32A

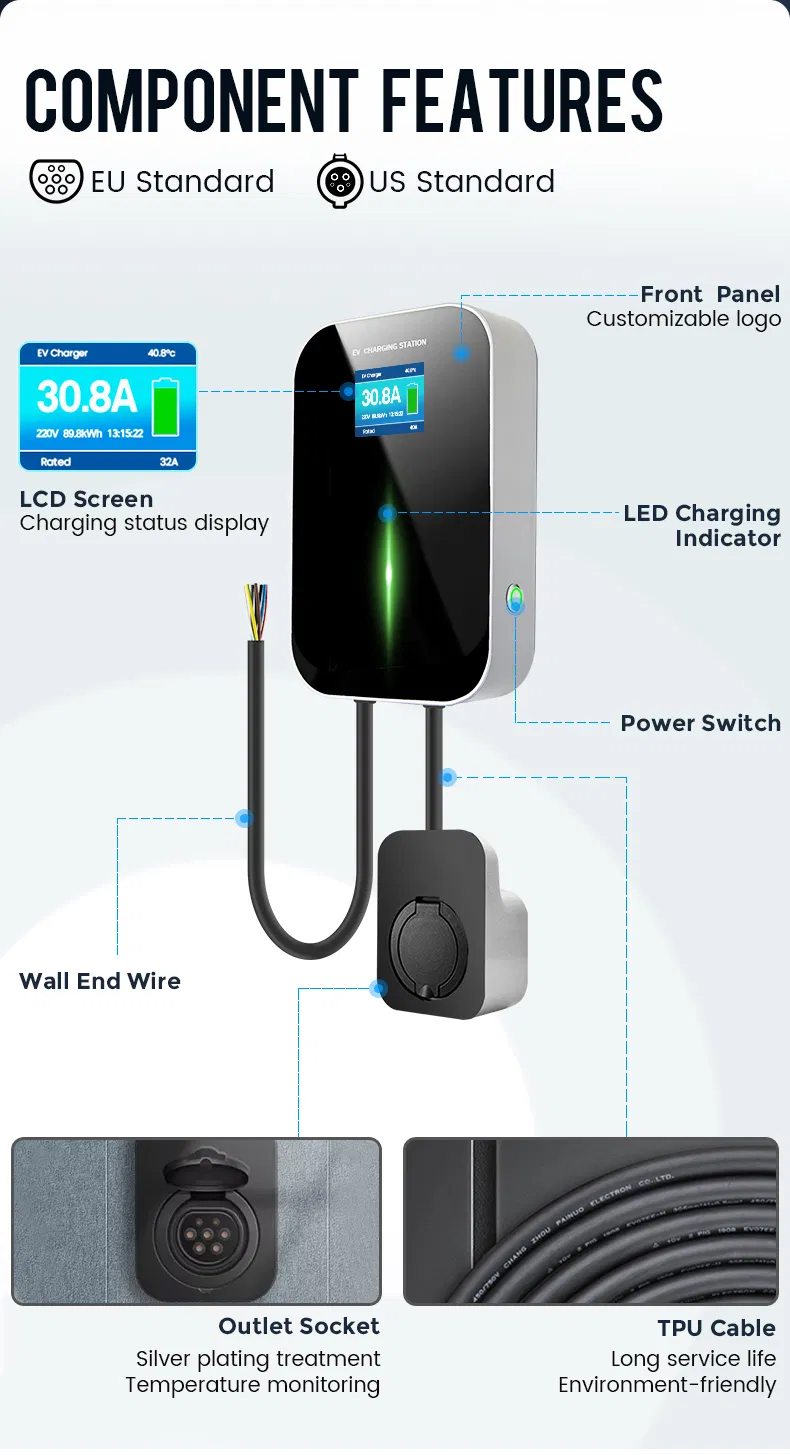

EV Charging Station Features
⚙

Technical Parameters

Electrical Specification
Product Name32A 7.5kW EV Charger wallbox
Input/Output Voltage100V / 250V
Input Frequency47~63Hz
Max. Output Power7.5kW (Single Phase)
Max. Output Current32A
Charging InterfaceIEC 62196-2
Function and Accessory
LCD Display3.5-inch color display
RCD ProtectionType A / Type A+ 6mA DC
LED IndicatorYes
Intelligent AdjustmentYes
Working Environment
Protection DegreeIP 66
Temperature Range-40ºC ~ +80ºC
Relative Humidity0-95% non-condensing
Cooling MethodNatural air cooling
Standby Consumption<8W
Compliance & Certificates
CertificatesCE, FCC, ROHS, CCC, CSA
Impact ResistanceIK 10
Technical details

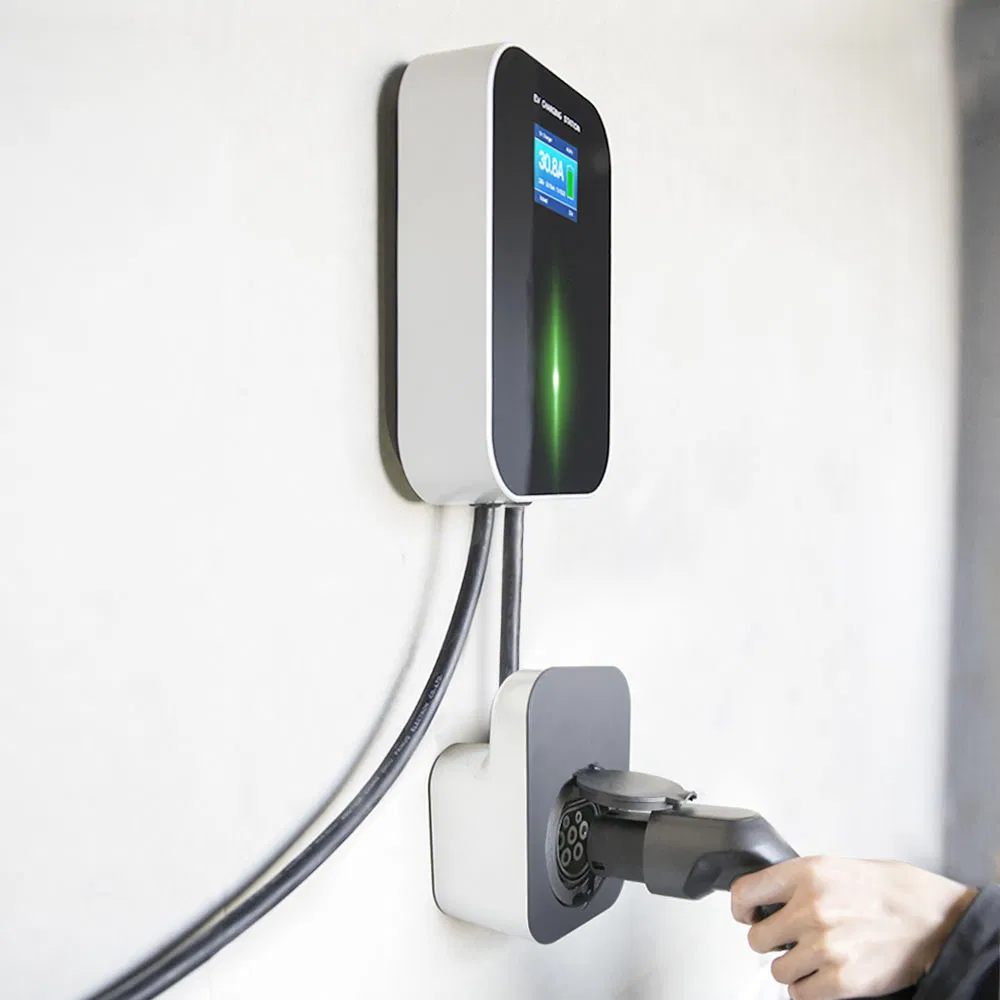

Installation view

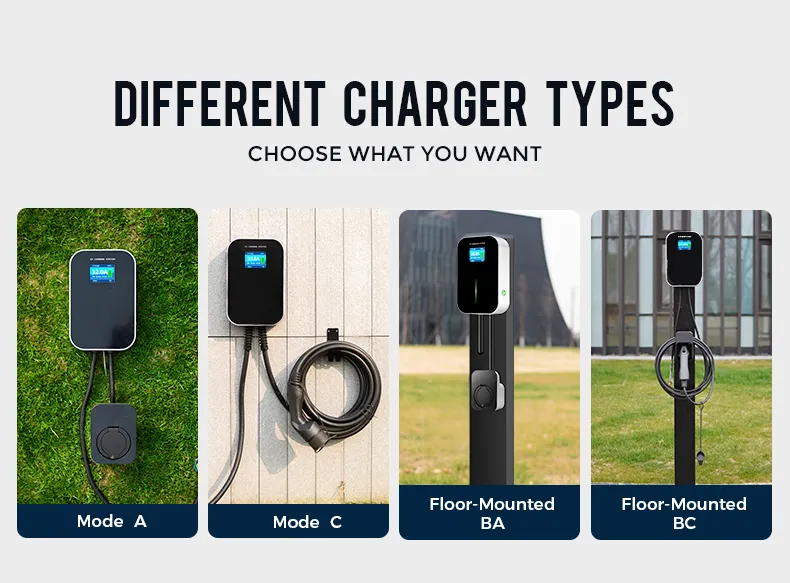

Interface display
Component details
Safety testing

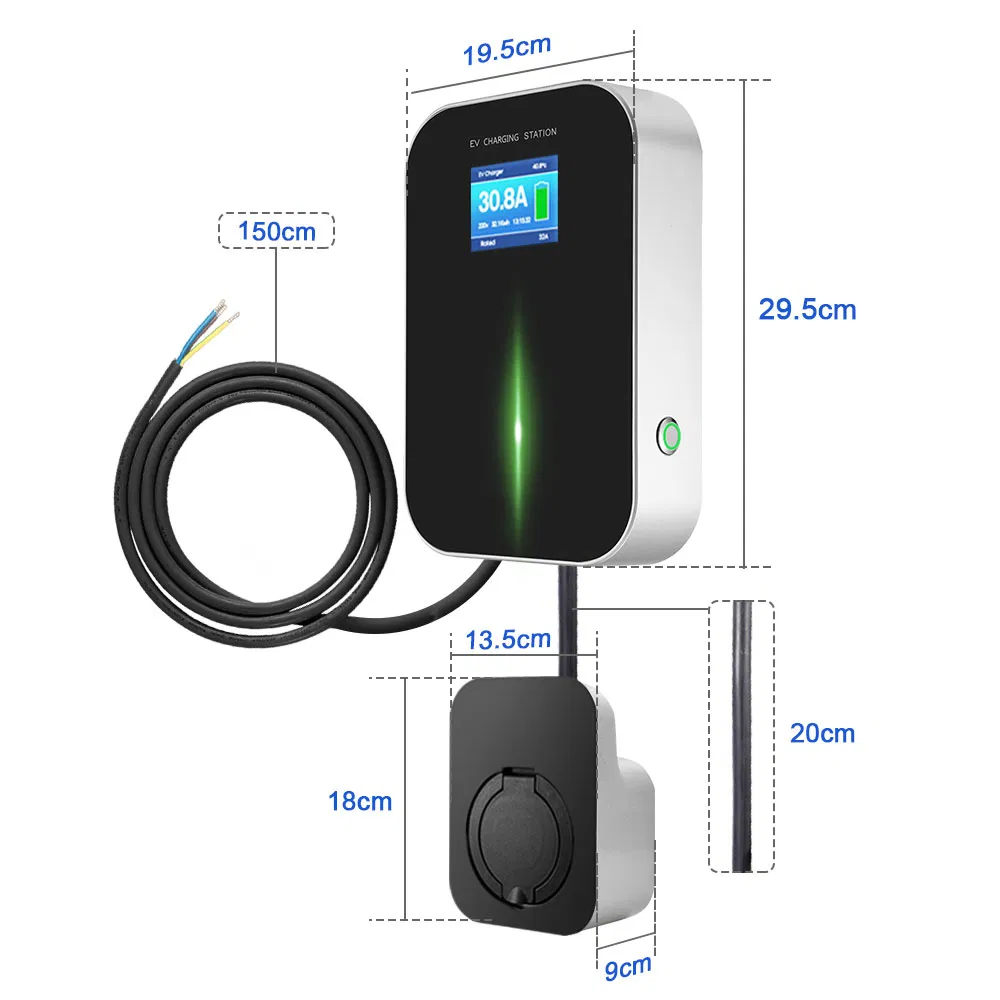

Final product dimensions
?

Frequently Asked Questions

What is the maximum charging speed of this wallbox?
This charging station provides a maximum output of 7.5kW at 32A, offering fast single-phase charging for compatible electric vehicles.
Can this charger be installed outdoors?
Yes, it features an IP66 protection rating and is designed to operate in extreme temperatures ranging from -40ºC to +80ºC, making it suitable for various outdoor environments.
Does the unit show real-time charging data?
Absolutely. It is equipped with a 3.5-inch color LCD display that shows real-time charging status, voltage, current, and power consumption.
What safety protections are included?
The charger includes RCD (Type A + 6mA DC) protection, an IK10 impact resistance rating, and intelligent power adjustment to ensure safe and stable charging.
Is it compatible with all Type 2 electric vehicles?
Yes, the charging interface follows the IEC 62196-2 standard, which is the standard connector type for most European and international electric vehicles.
What is the warranty period for this product?
The product comes with a standard 12-month (1 year) warranty covering manufacturing defects and technical performance.
