Product Description

i

Basic Information

Model NO.
JL-AC-T2-A-22
Certification
TUV, CE
Color
Black
Type
ODM
Internal Structure
Mate
Connection
Plug In
Power
22kw
Transport Package
Carton
Origin
China
Production Capacity
50,000
★

Product Description

EV Charging Socket TYPE 2 Male (Car-Side) | 32A - 22kW | TUV Certified

The type 2 male charging socket is constructed from high-quality thermoplastic and features a UL94 V-0 flammability insulator. It supports charging at a current of 32A, providing a total charging power of 22kW. The socket complies with all requirements outlined in the test and certification for JDQ 53.3 electronic devices.

Available with an electromagnetic lock bundle for enhanced security.

EV Charging Socket Type 2 Male
EV Charging Socket Detail 1
EV Charging Socket Detail 2

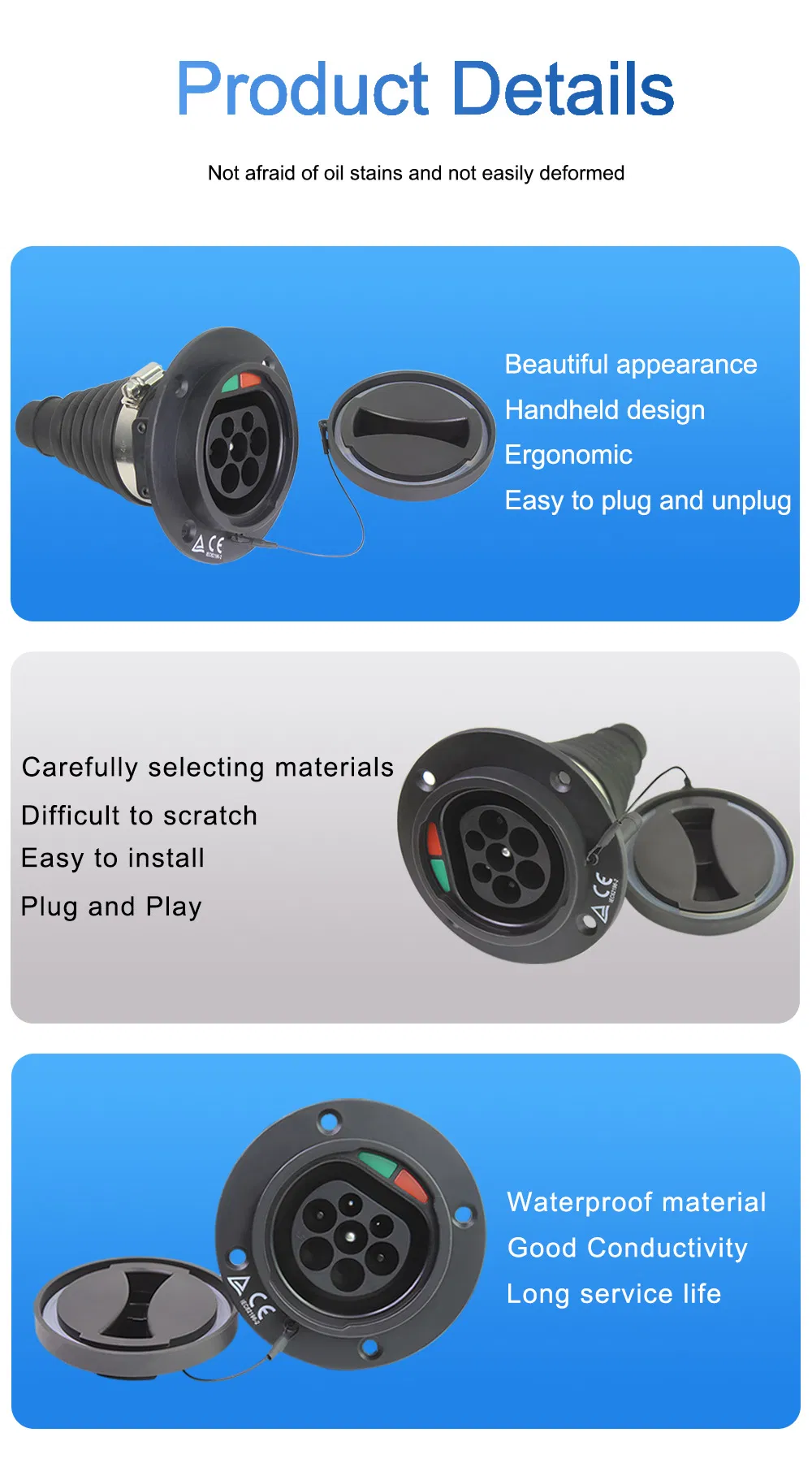

EV Charging Socket Detail 3
EV Charging Socket Detail 4

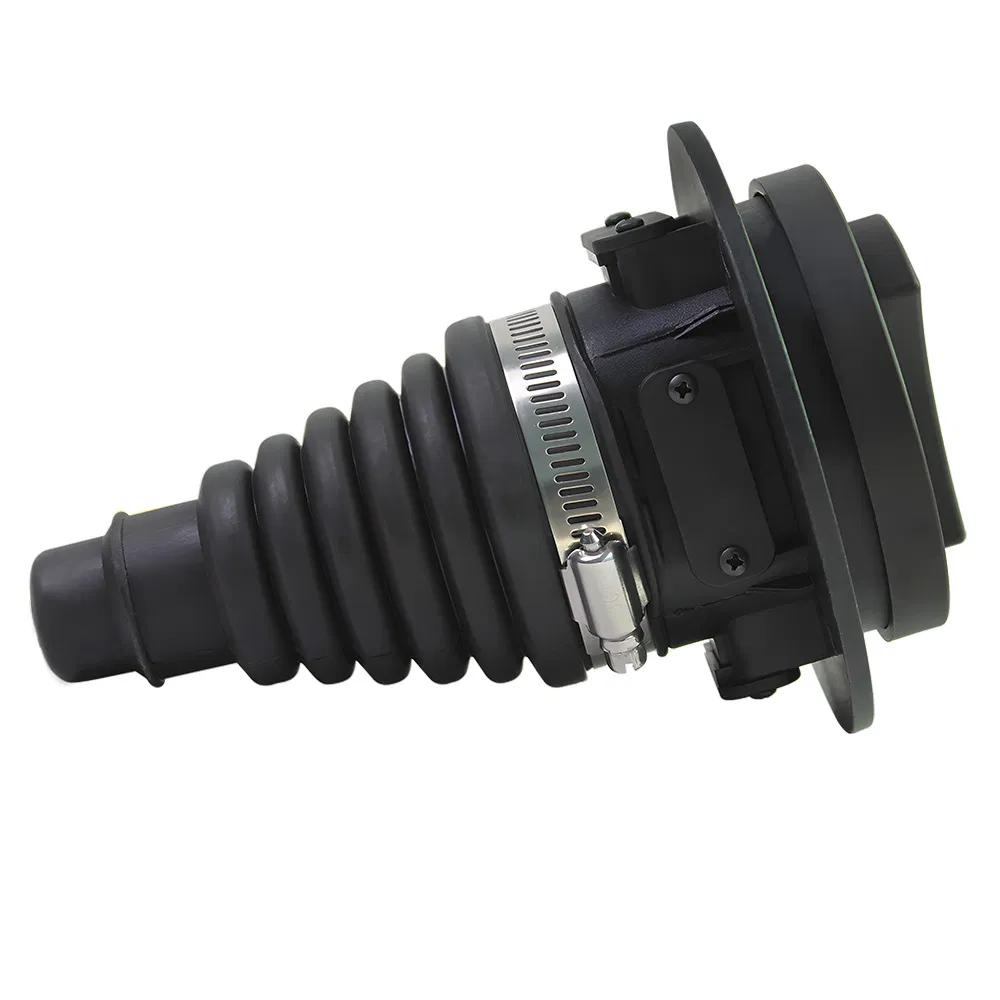

EV Charging Socket Detail 5

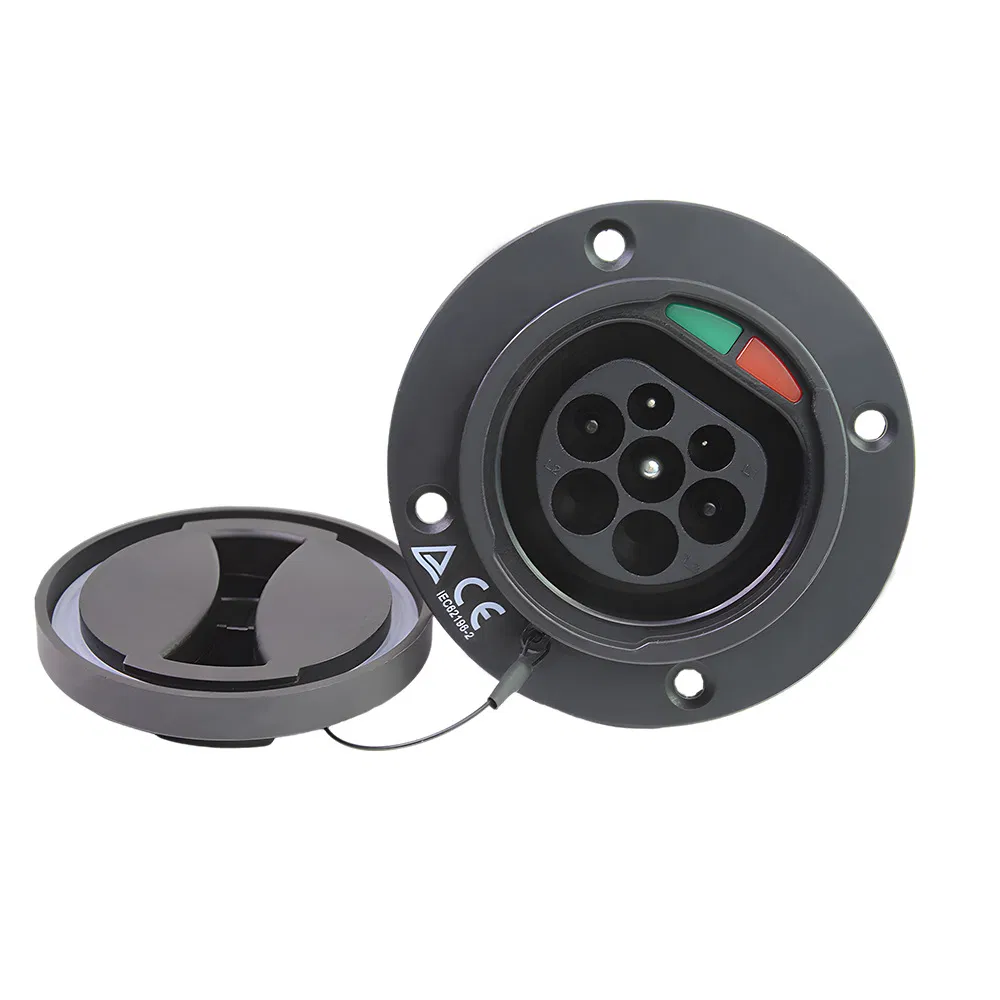

EV Charging Socket Detail 6

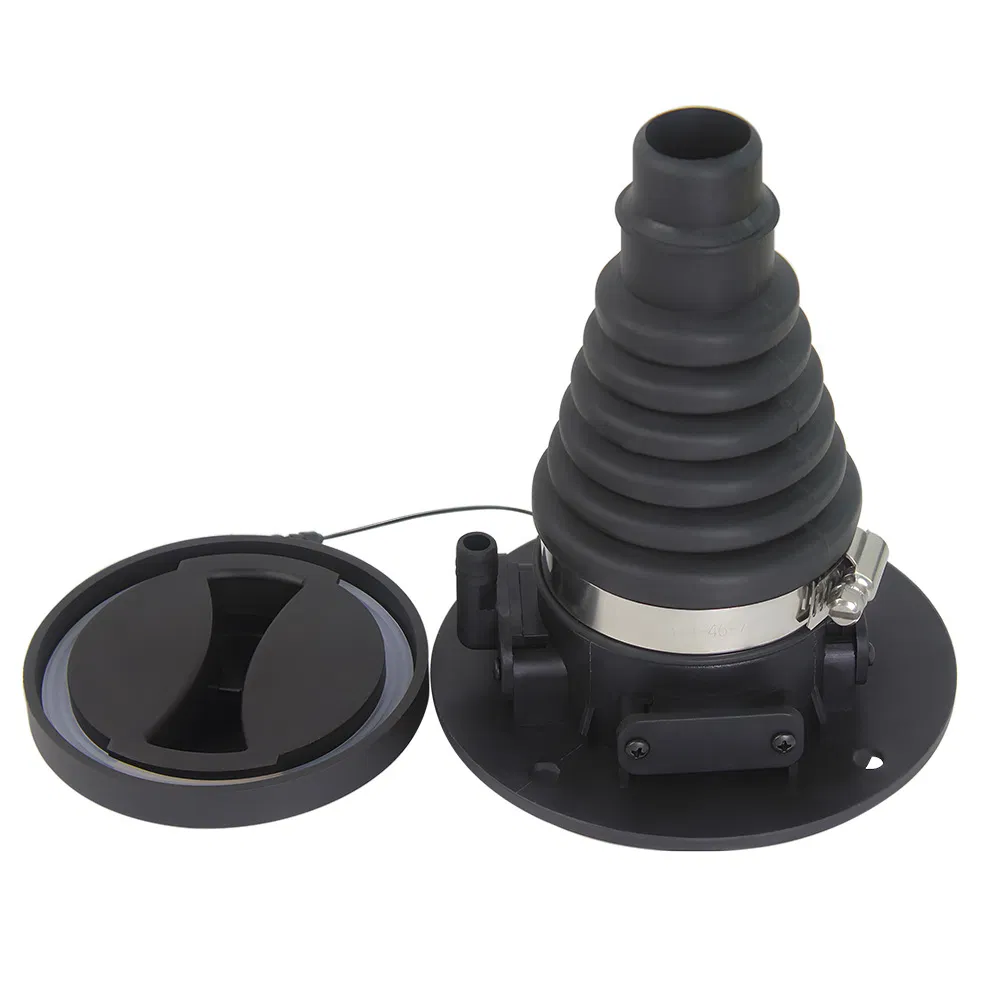

EV Charging Socket Detail 7

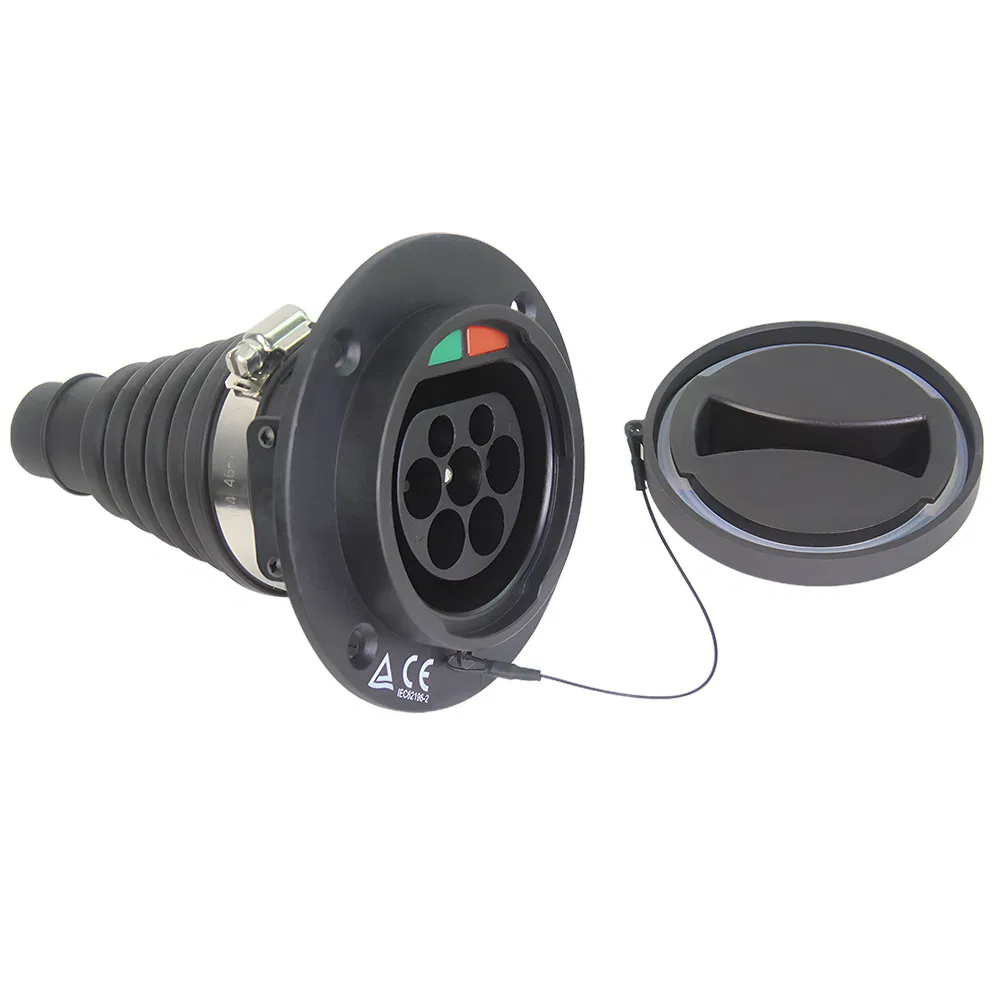

EV Charging Socket Detail 8

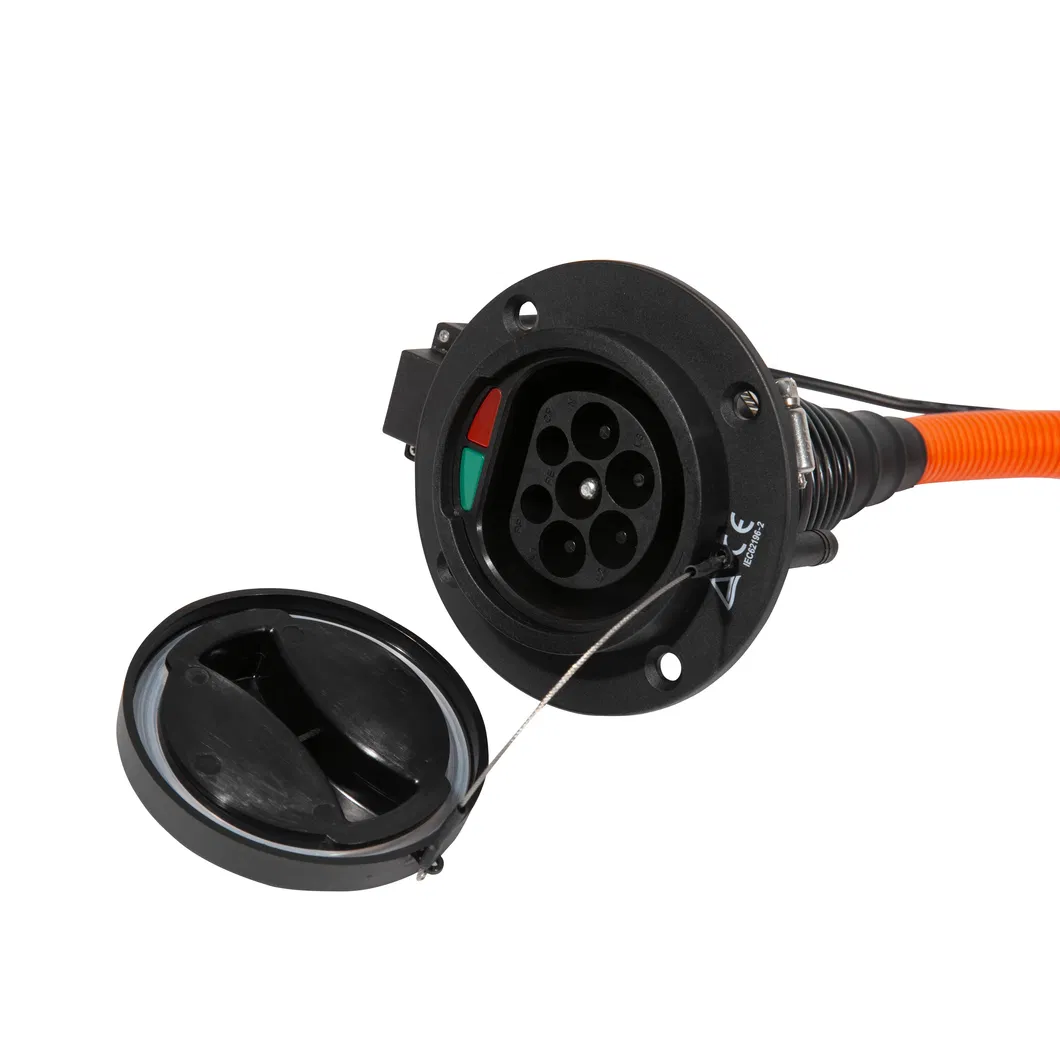

EV Charging Socket Detail 9

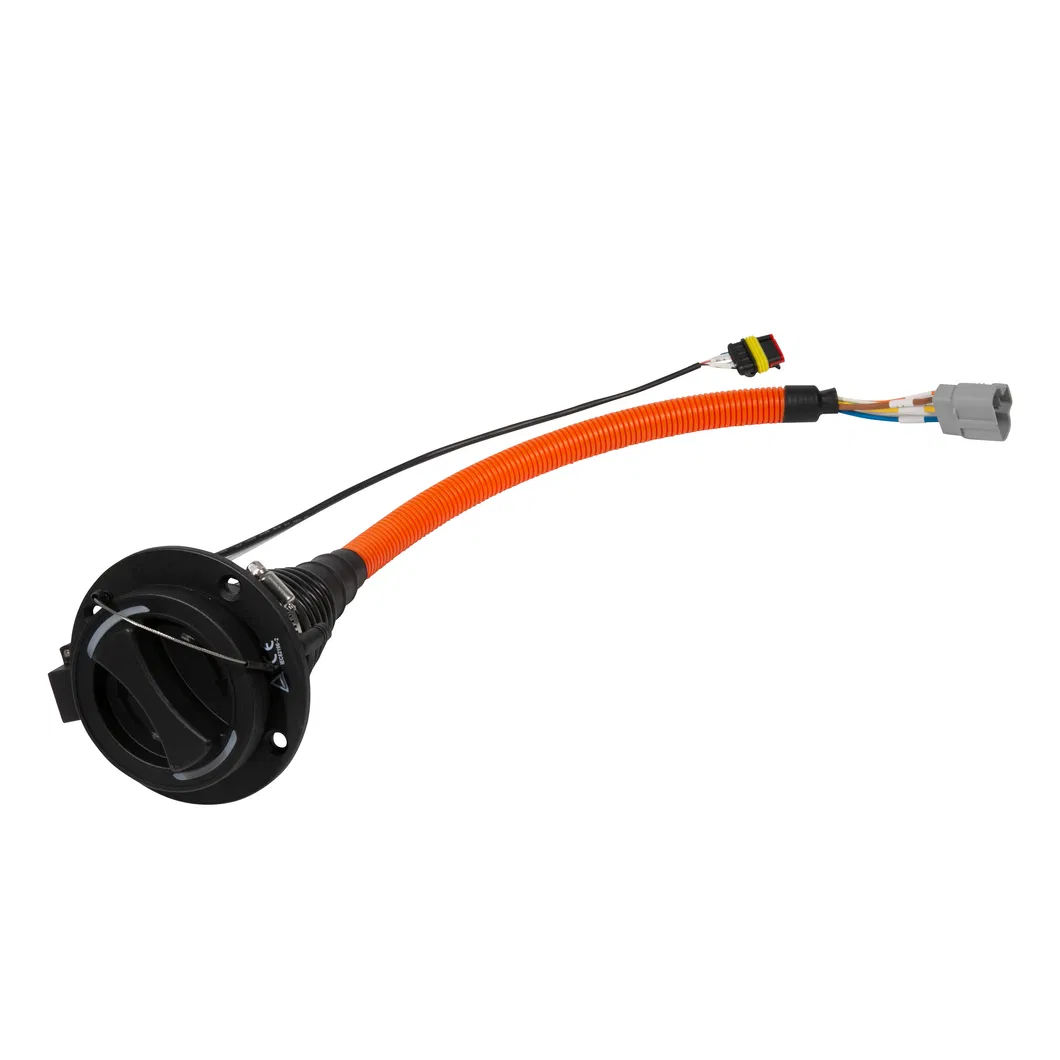

EV Charging Socket Detail 10
⚙

Technical Specifications

Model NumberJL-AC-T2-A-22
DescriptionEV charging socket inlet
FeaturesAC
Amp32 A
Volt480V
Power22kW
Plastic MaterialPC+ABS (UL94 V-0)
Work Temp-20 ºC ~ +55 ºC
Copper Material99% pure copper + silver plated
ApplicationCharging for electric vehicle
Dimension130*130*180mm
Net Weight0.4KG
Custom CableYes, length can be customized
?

Frequently Asked Questions

What is the maximum charging power of this Type 2 socket?
This socket supports a maximum charging power of 22kW at a current of 32A (Three-phase).
Does this product carry official safety certifications?
Yes, the EV charging socket is TUV and CE certified, ensuring it meets strict European safety standards.
What materials are used for the contacts?
The contacts are made of 99% pure copper with silver plating for superior conductivity and durability.
Can the cable length be customized for this inlet?
Yes, we provide customization options for the cable length to meet your specific installation requirements.
What is the fire resistance rating of the housing?
The socket is made from thermoplastic with a UL94 V-0 flammability insulator, which is the highest level of flame retardancy for plastics.
Is an electromagnetic lock included?
An electromagnetic lock is available as a bundle option to ensure the plug remains secure during the charging process.
