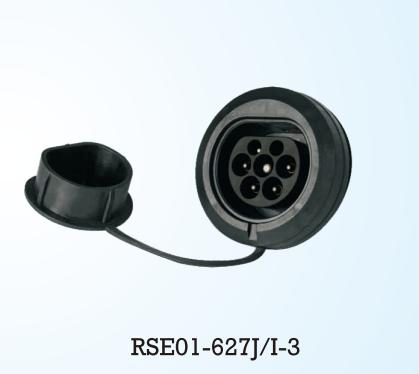

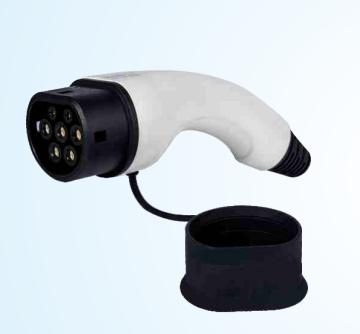

IEC 62196-2 EV Charger European Standard Socket for Vehcle EV Charger for Europe Factory Price
IEC 62196-2 EV Charger European Standard Socket for Vehcle EV Charger for Europe Factory Price
IEC 62196-2 EV Charger European Standard Socket for Vehcle EV Charger for Europe Factory Price
IEC 62196-2 EV Charger European Standard Socket for Vehcle EV Charger for Europe Factory Price
IEC 62196-2 EV Charger European Standard Socket for Vehcle EV Charger for Europe Factory Price
1 / 5
IEC 62196-2 EV Charger European Standard Socket for Vehcle EV Charger for Europe Factory Price
IEC 62196-2 EV Charger European Standard Socket for Vehcle EV Charger for Europe Factory Price
IEC 62196-2 EV Charger European Standard Socket for Vehcle EV Charger for Europe Factory Price
IEC 62196-2 EV Charger European Standard Socket for Vehcle EV Charger for Europe Factory Price
IEC 62196-2 EV Charger European Standard Socket for Vehcle EV Charger for Europe Factory Price

IEC 62196-2 EV Charger European Standard Socket for Vehcle EV Charger for Europe Factory Price

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

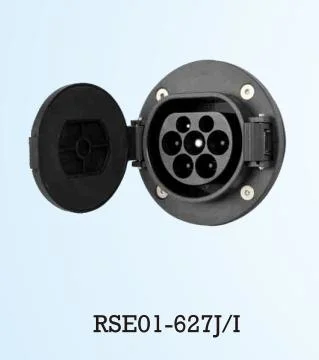

Model NO.:RSE01-627J/I
Contact Material:Brass
Insulation Resistance:440V
After-sales Service:24 Months
Type:Slow EV Charging Station
Certification:CE, CB, CQC, TUV, Dekra
Warranty:12 Months
Transport Package:Standard Export Carton
Specification:Three phase
Origin:China
HS Code:8536690000
Production Capacity:10000PCS/Month
Technical Parameters
Rated current16A/32A/63A
Rated voltage240V/415V AC
Insulation resistance≥500MΩ (DC500V)
Power frequency withstand voltageL1/L2/L3/N/PE > 2000V AC
Operating temperature-30ºC ~ +50ºC
Flammability ratingUL94 V-0
Mechanical life10,000 times (no load)
Product mating and unmating force45N < F < 80N
Protection classIP54 / IP55 (after plugging)
Terminal temperature rise< 50k
Contact impedance0.5mΩ Max

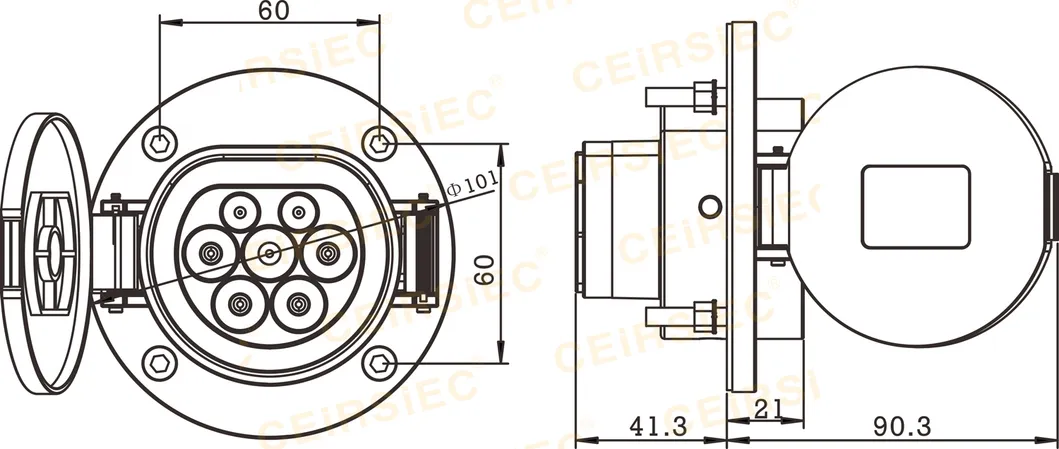

EV Charger Parameter

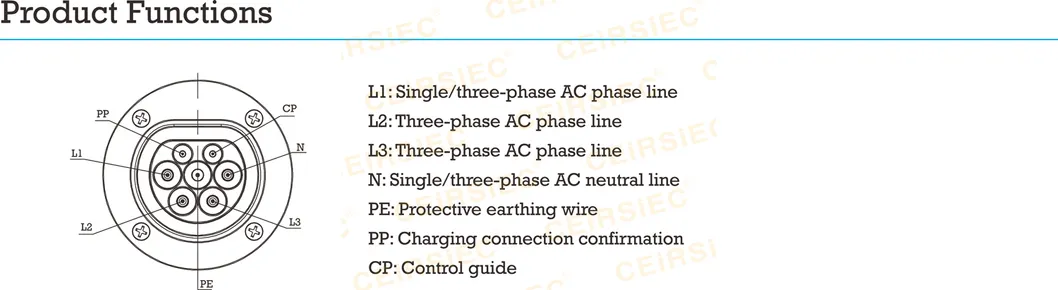

EV Charger Standard

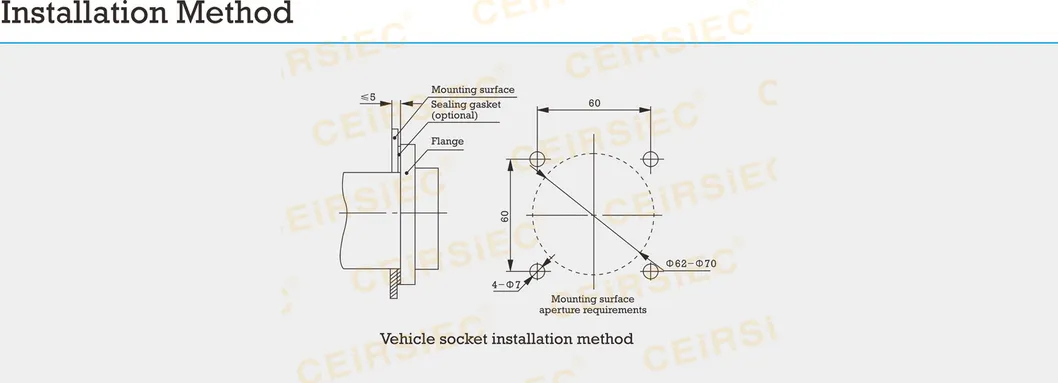

EV Charger Technical

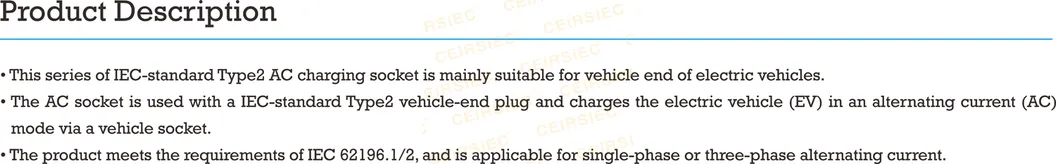

EV Charger Dimension

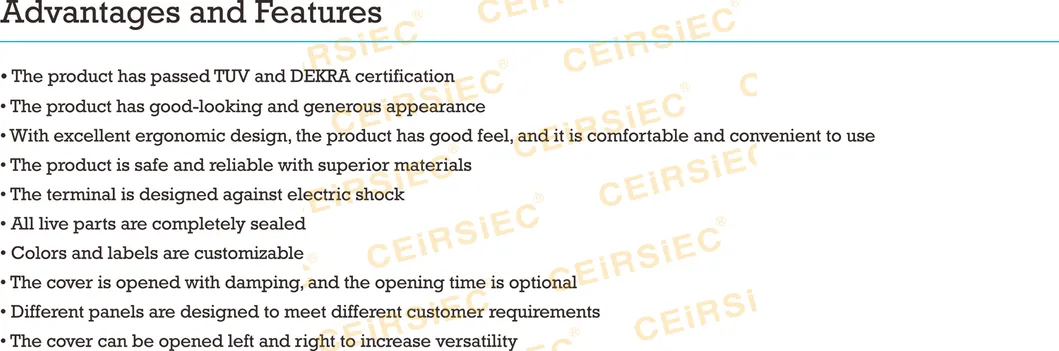

EV Charger Quality
Key Functions & Features
✔ Extreme Condition Tested: Undergone rigorous tests for cold, heat, dust, and water immersion.
✔ International Certifications: Fully compliant with TUV, CB, UKCA, CE, ISO9001, and CQC.
✔ Industry Standards: Meets DIN VDE6032, EN/IEC 60309.1/2, UL1682, and BS4343 requirements.
✔ Wide Application: Ideal for steel, chemical, electrical fields, ports, airports, subways, and mining.
✔ Durable Construction: Impact-resistant, anti-aging, flame-proof, and high-temperature resistant with flexible soft contact.
Quality Assurance & Advantages

Quality is our core faith. Equipped with advanced inspection devices, we ensure every product matches international standards such as EN/IEC 60309.1/2 and GB 11918.1/2-2014. Our products utilize high-quality copper parts to ensure long mechanical life and resistance to severe weather, aging, and alkaline environments.

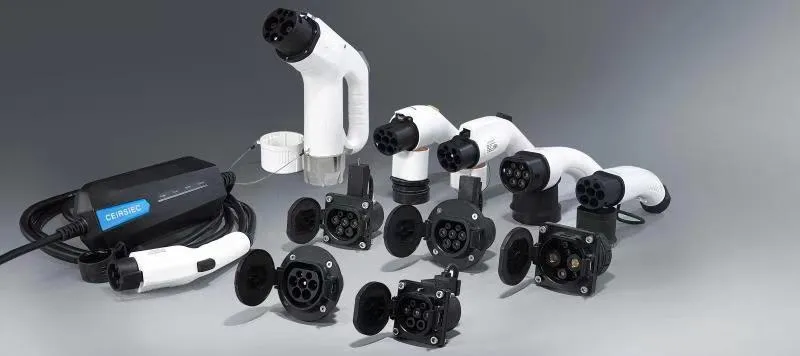

Testing Process

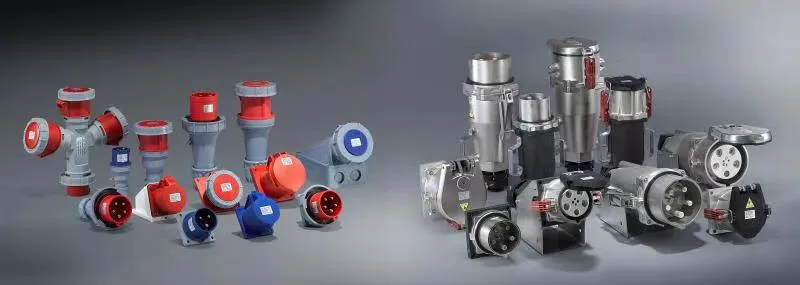

Material Quality

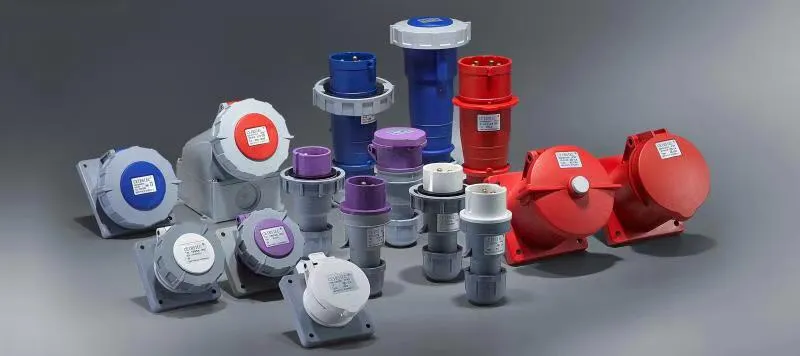

Production Line

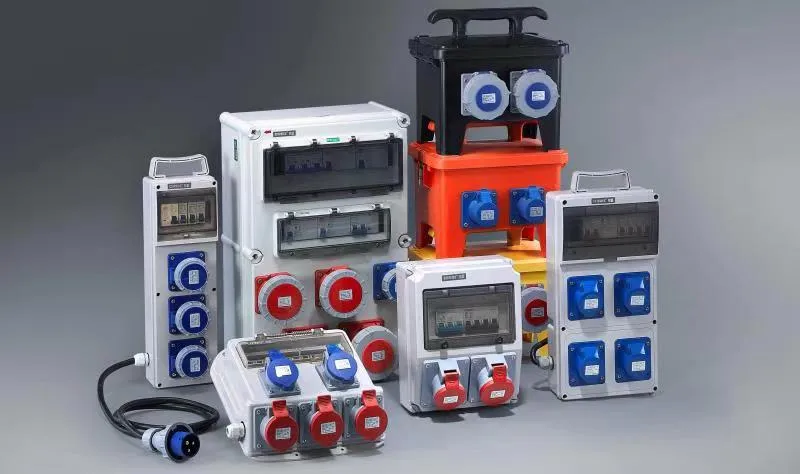

Certificates Display

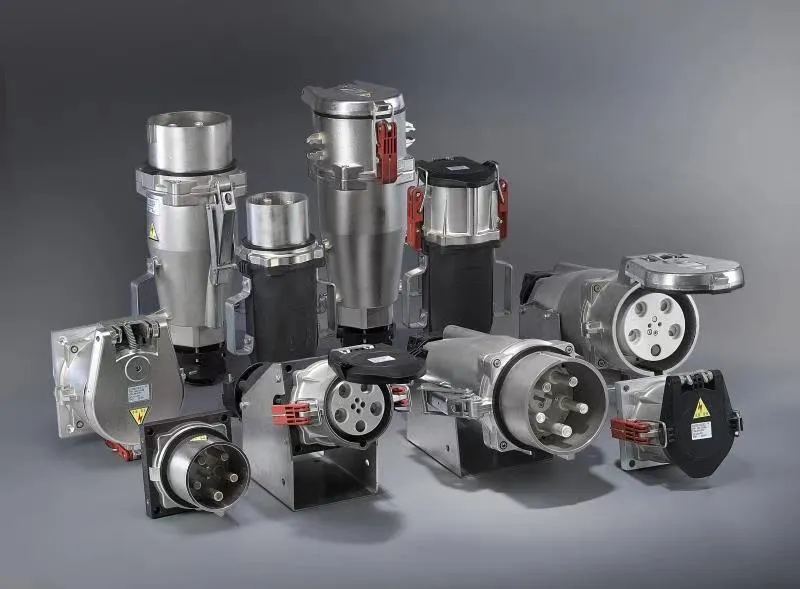

Packaging Detail
Frequently Asked Questions
Q1: What is the protection rating of this EV charging socket? A: The product is rated IP54 or IP55 after plugging, providing excellent protection against dust and water splashes.
Q2: Can this socket handle extreme outdoor temperatures? A: Yes, it is designed to operate reliably in a wide temperature range from -30ºC to +50ºC.
Q3: What certifications does this product hold? A: Our products have obtained international certifications including CE, TUV, CB, UKCA, ROHS, and CQC.
Q4: What is the mechanical life expectancy of the mating parts? A: The socket is tested for a mechanical life of over 10,000 mating cycles under no-load conditions.
Q5: Is this model suitable for three-phase power systems? A: Yes, this specific model is designed for three-phase power specifications with rated voltages up to 415V AC.
Q6: What materials are used for the conductive contacts? A: The contacts are made of high-quality brass, ensuring low impedance (0.5mΩ Max) and high durability.
