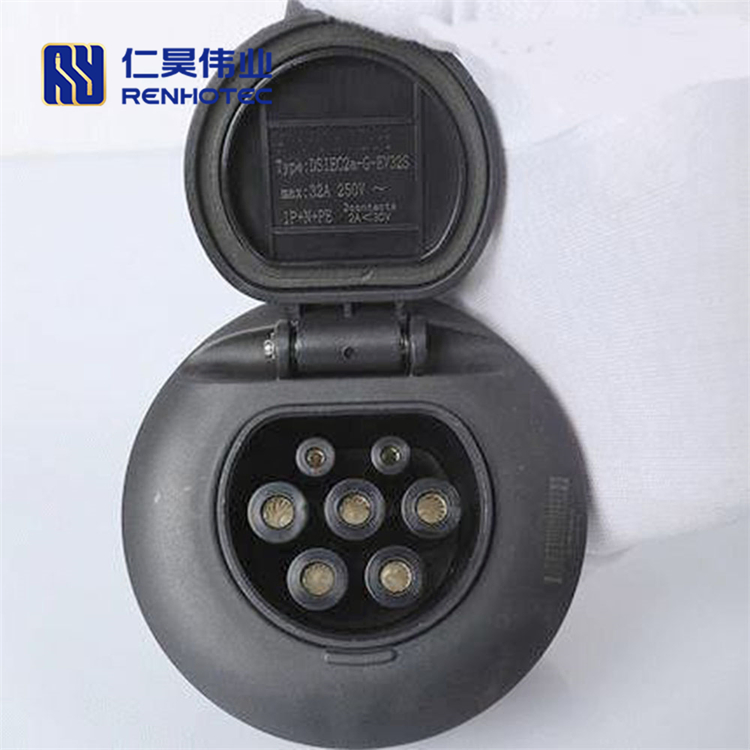

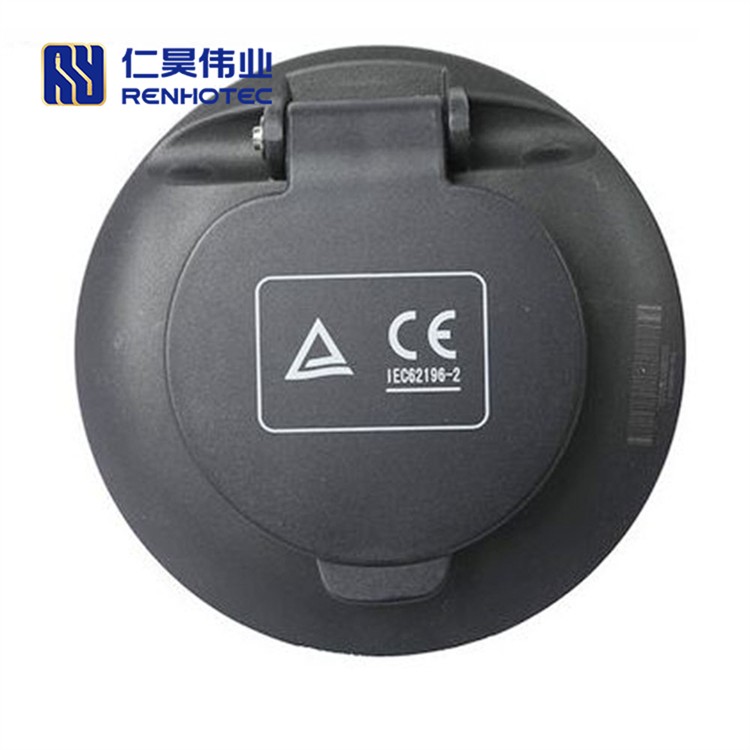

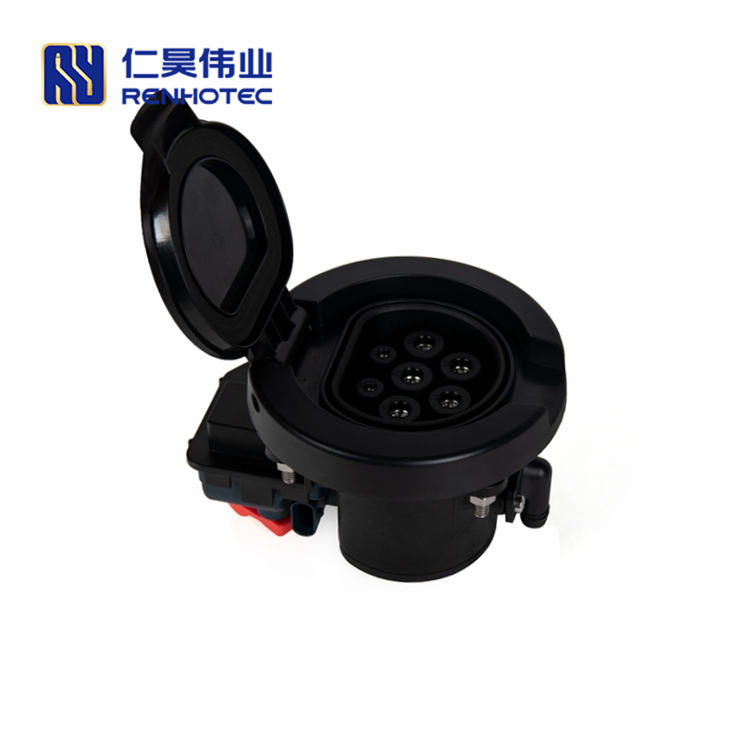

Electric Vehicle EV Type 2 Connector Power Charging Socket for Charging Pile IEC 62196 16A 32A
Electric Vehicle EV Type 2 Connector Power Charging Socket for Charging Pile IEC 62196 16A 32A
Electric Vehicle EV Type 2 Connector Power Charging Socket for Charging Pile IEC 62196 16A 32A
Electric Vehicle EV Type 2 Connector Power Charging Socket for Charging Pile IEC 62196 16A 32A
Electric Vehicle EV Type 2 Connector Power Charging Socket for Charging Pile IEC 62196 16A 32A
1 / 5
Electric Vehicle EV Type 2 Connector Power Charging Socket for Charging Pile IEC 62196 16A 32A
Electric Vehicle EV Type 2 Connector Power Charging Socket for Charging Pile IEC 62196 16A 32A
Electric Vehicle EV Type 2 Connector Power Charging Socket for Charging Pile IEC 62196 16A 32A
Electric Vehicle EV Type 2 Connector Power Charging Socket for Charging Pile IEC 62196 16A 32A
Electric Vehicle EV Type 2 Connector Power Charging Socket for Charging Pile IEC 62196 16A 32A

Electric Vehicle EV Type 2 Connector Power Charging Socket for Charging Pile IEC 62196 16A 32A

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
EV Type 2 Connector
Rated Current
16A 32A
Rated Voltage
250V
IP Degree
IP65
Mechanical Life
>10000 Times
Cable Length
5m / 10m / Customized
Certification
CE, ISO, TUV, RoHS
Warranty
24 Months
Type
Fast EV Charging Station
Origin
China
EV Type 2 Connector
Product Description

Full Series EV Charger Solution

Reliable EV Charger manufacturer to support your project. High voltage connectors from OEM manufacturer in China.

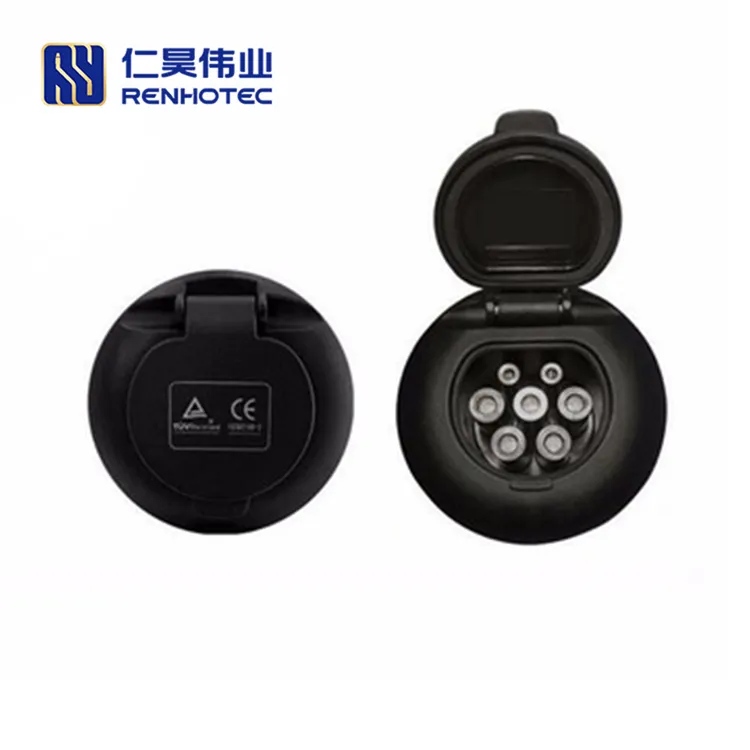

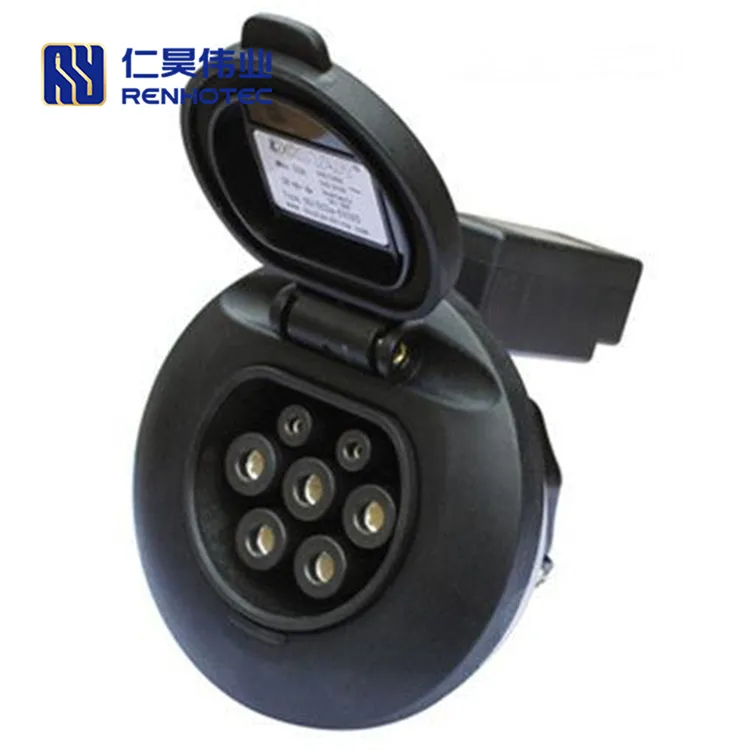

EV Connector Series 1 EV Connector Series 2 EV Connector Series 3

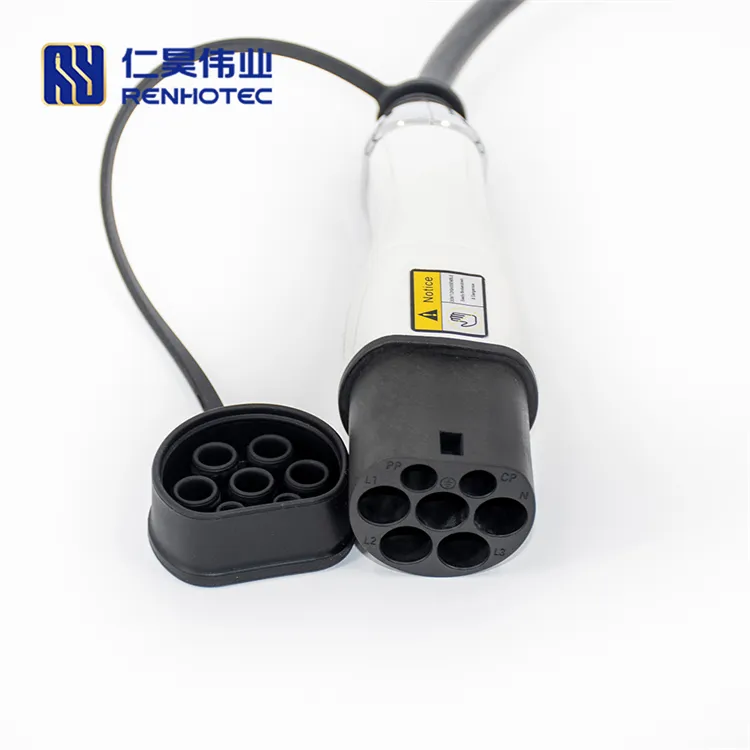

Product Overview
  • Complies with GB/T20234-2011 standard.
  • Includes DC charging connectors (125A, 250A) and AC charging connectors (16A, 32A).
  • Humanized design with excellent grasp feel, easy to operate.
  • Multiple accessories available: protection caps, damping caps, metal string caps.
  • Wire crimping termination type for plug and socket.
  • High protection degree: IP55.
Technical Specifications
ModelGB/T Series / SAEJ1772 / Type1 Series / Type2 Series
Connector TypePlug / Receptacle / Dummy Socket
TypeAC / DC
Rated Current16A / 32A / 70A / 80A / 125A / 200A / 250A
ApplicationVehicle End / Power Supply Usage
MaterialThermoplastics (Shell/Insulator), Rubber (Sealing Ring)
Flame RetardantUL94-V0
Operating Temp-30ºC to +50ºC

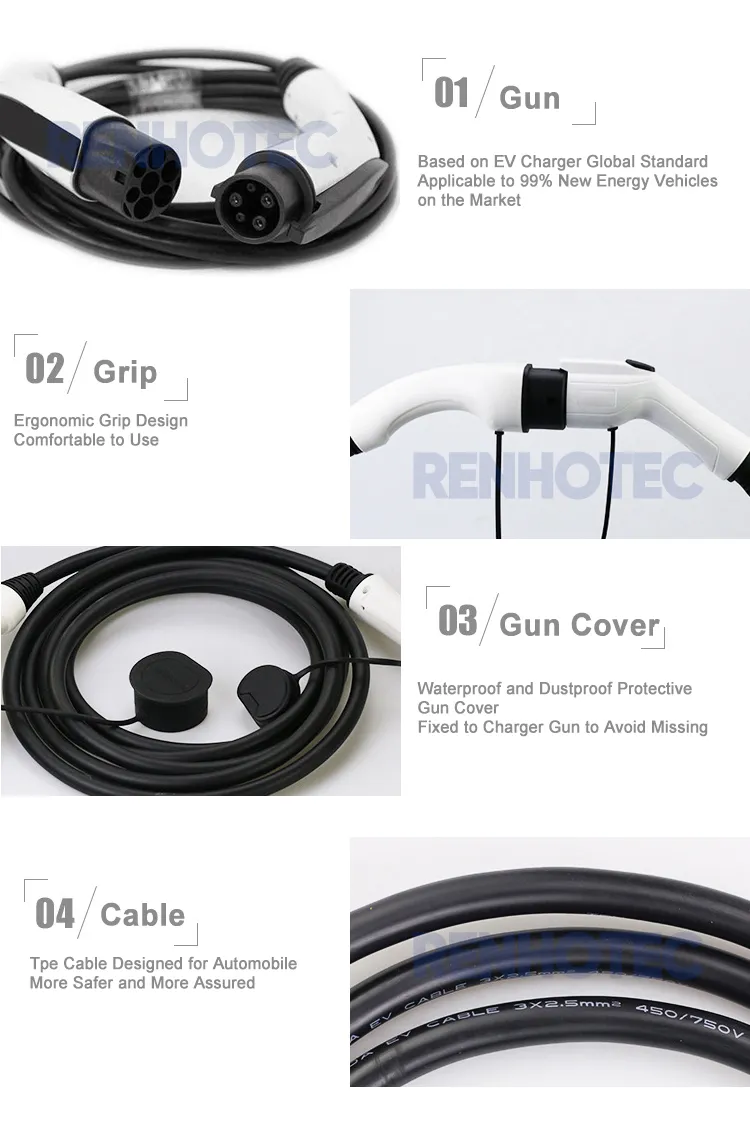

Product Dimensions
Material & Durability:
Contacts: Copper Alloy with Gold-plated power and signal contacts.
Mechanical Life: Exceed 10,000 times (Non-charged state).
Insulation Resistance: ≥1000mΩ (AC Charging Connector).

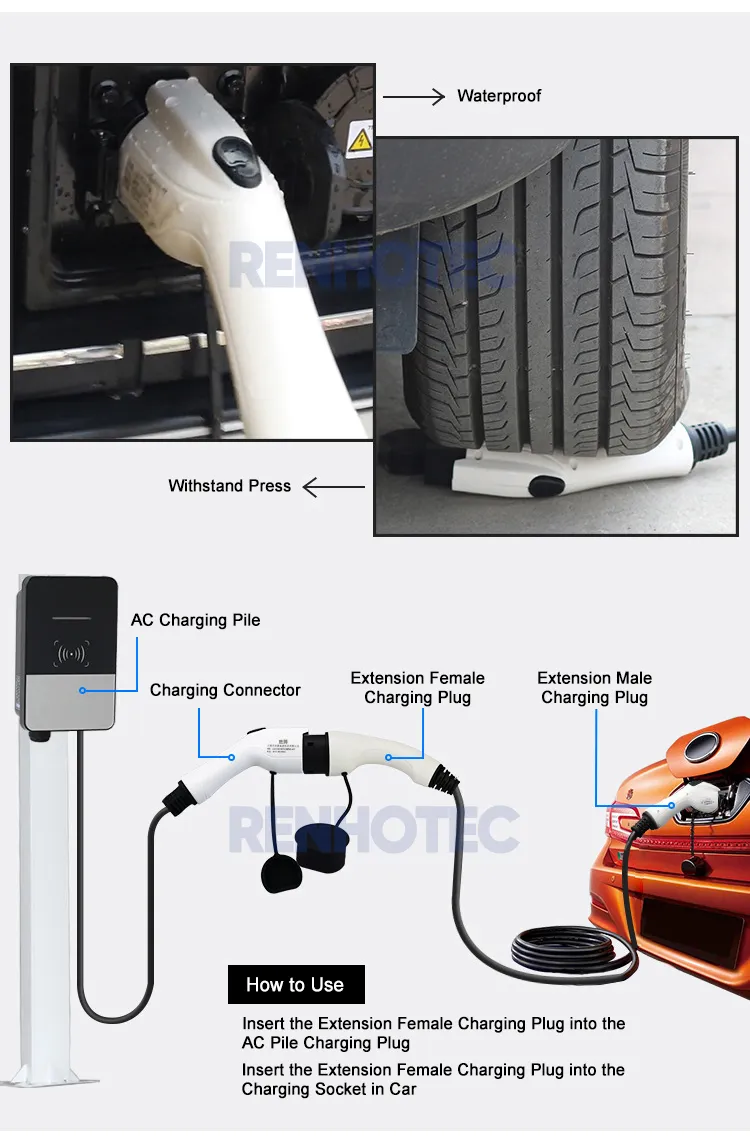

Internal Connection
Quality & Production

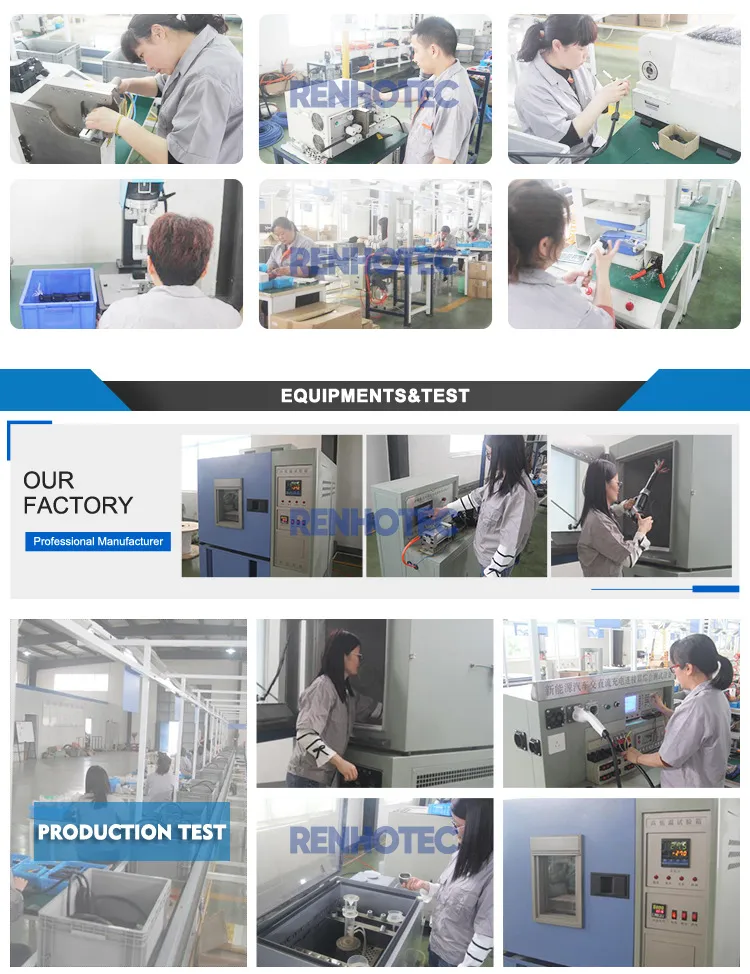

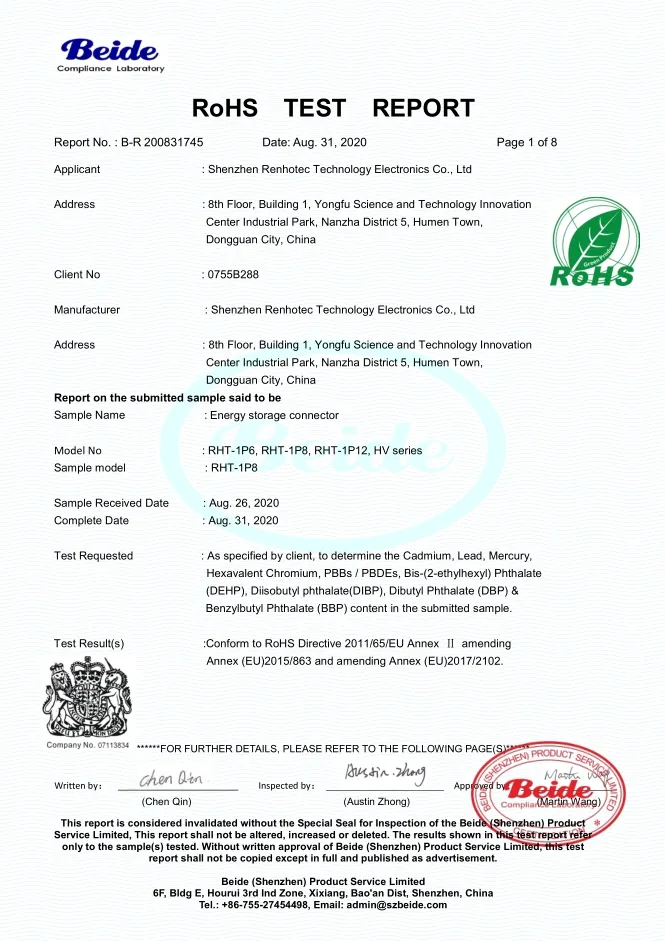

Certificates Production Equipment

Packing Details: Standard packing includes individual parts in transparent PE bags with labels. OEM packaging is available upon request.

Shipping Methods: Support for FedEx, DHL, UPS, TNT, SF (Door to Door), Air, Sea, or Rail. Lead time: 1-7 working days for samples; 7-15 working days for mass production.

Frequently Asked Questions
1. What is the standard for these EV connectors?
Our products comply with the GB/T20234-2011 standard and IEC 62196 requirements for Type 2 connectors.
2. What current ratings are available for AC charging?
We offer both 16A and 32A current ratings for AC charging connectors, suitable for various power supply needs.
3. How durable is the connector for long-term use?
The mechanical life of our connectors exceeds 10,000 plugging and unplugging cycles in a non-charged state.
4. What is the waterproof and protection rating?
The connectors achieve an IP55 or IP65 degree of protection, ensuring safety and reliability during the charging process.
5. Can the cable length be customized?
Yes, while our standard lengths are 5m and 10m, we provide customized cable length services to meet your specific project requirements.
6. What materials are used for the contacts?
The contacts are made of high-quality copper alloy. Both power and signal contacts are gold-plated for superior conductivity and corrosion resistance.
