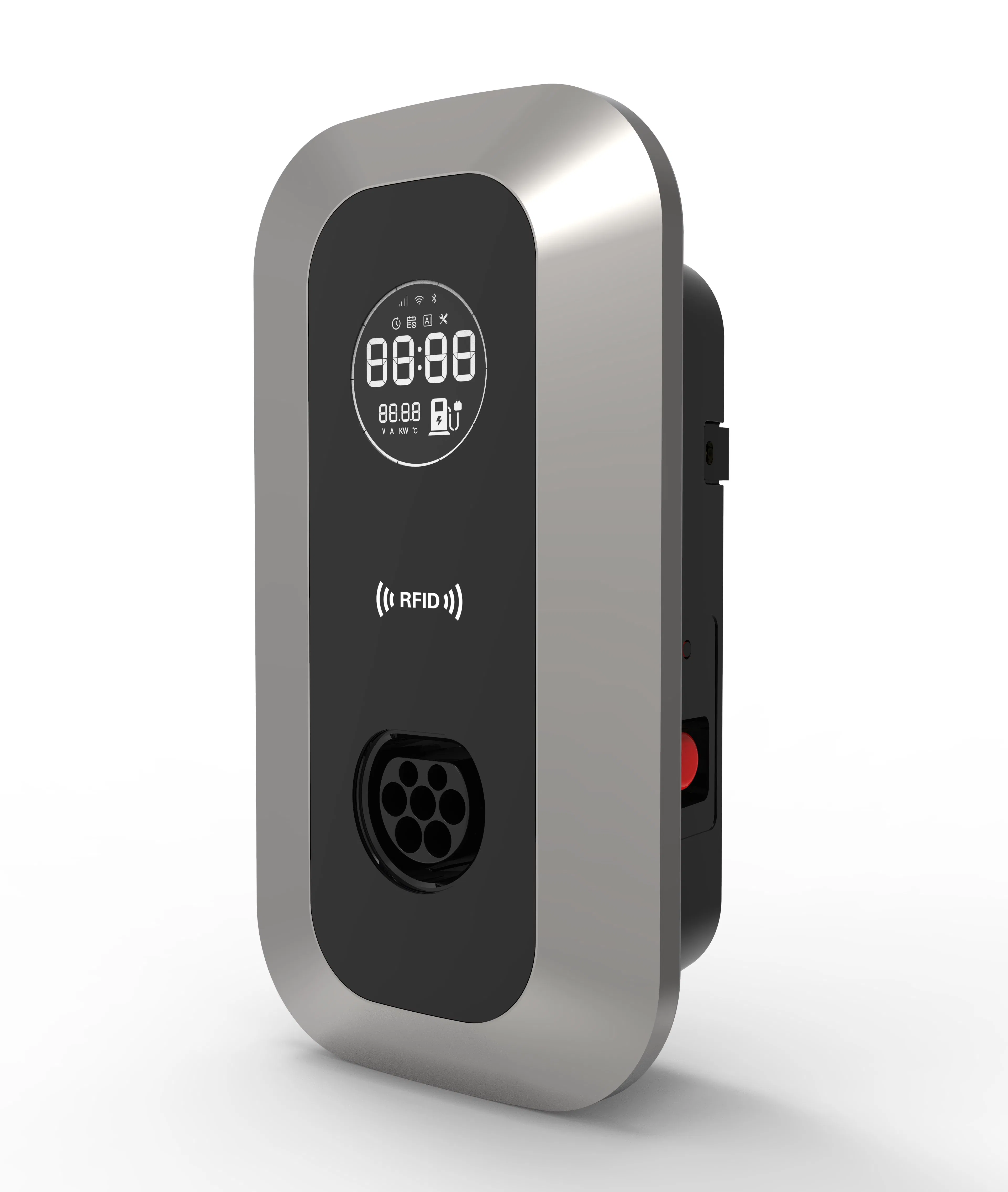

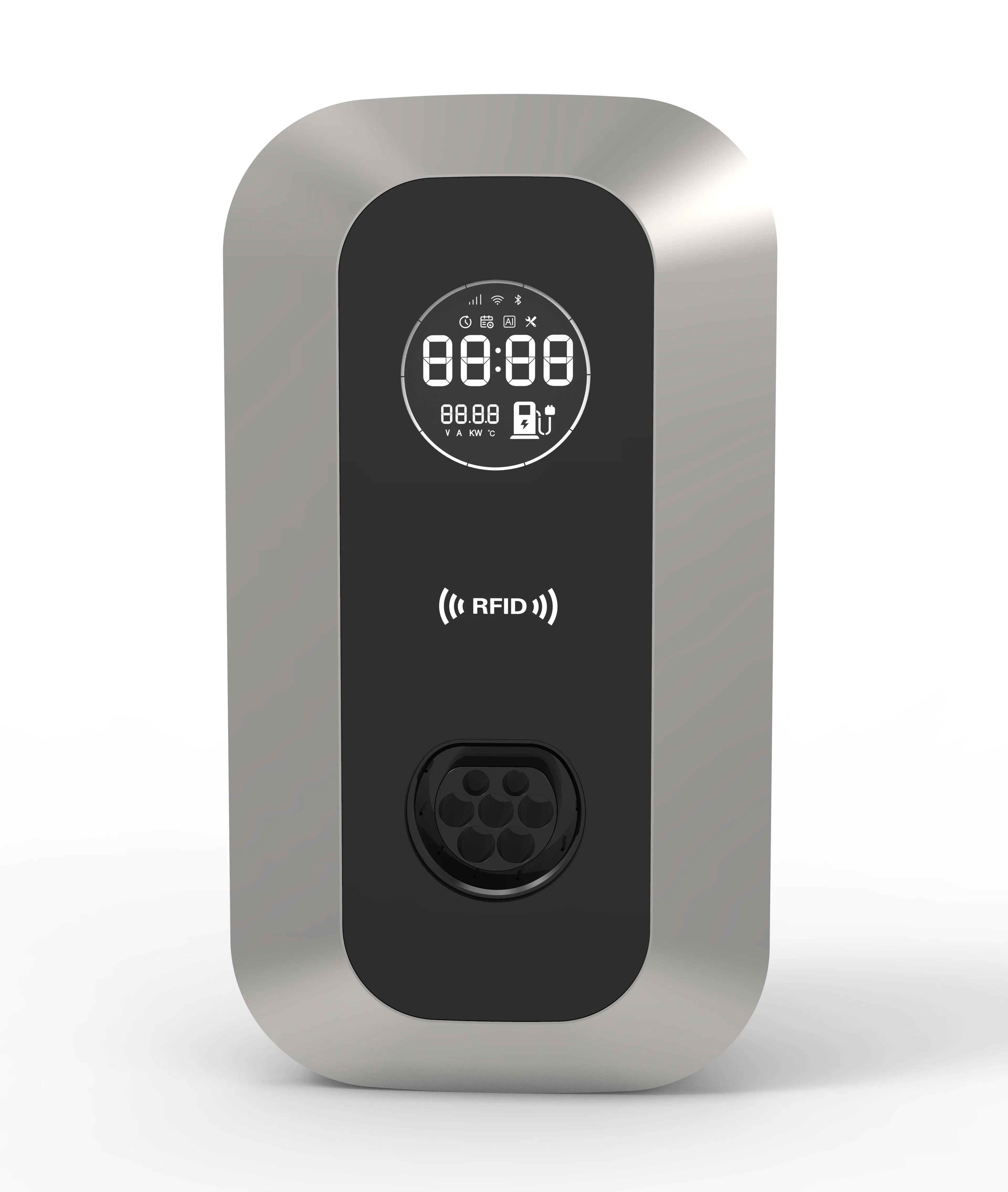

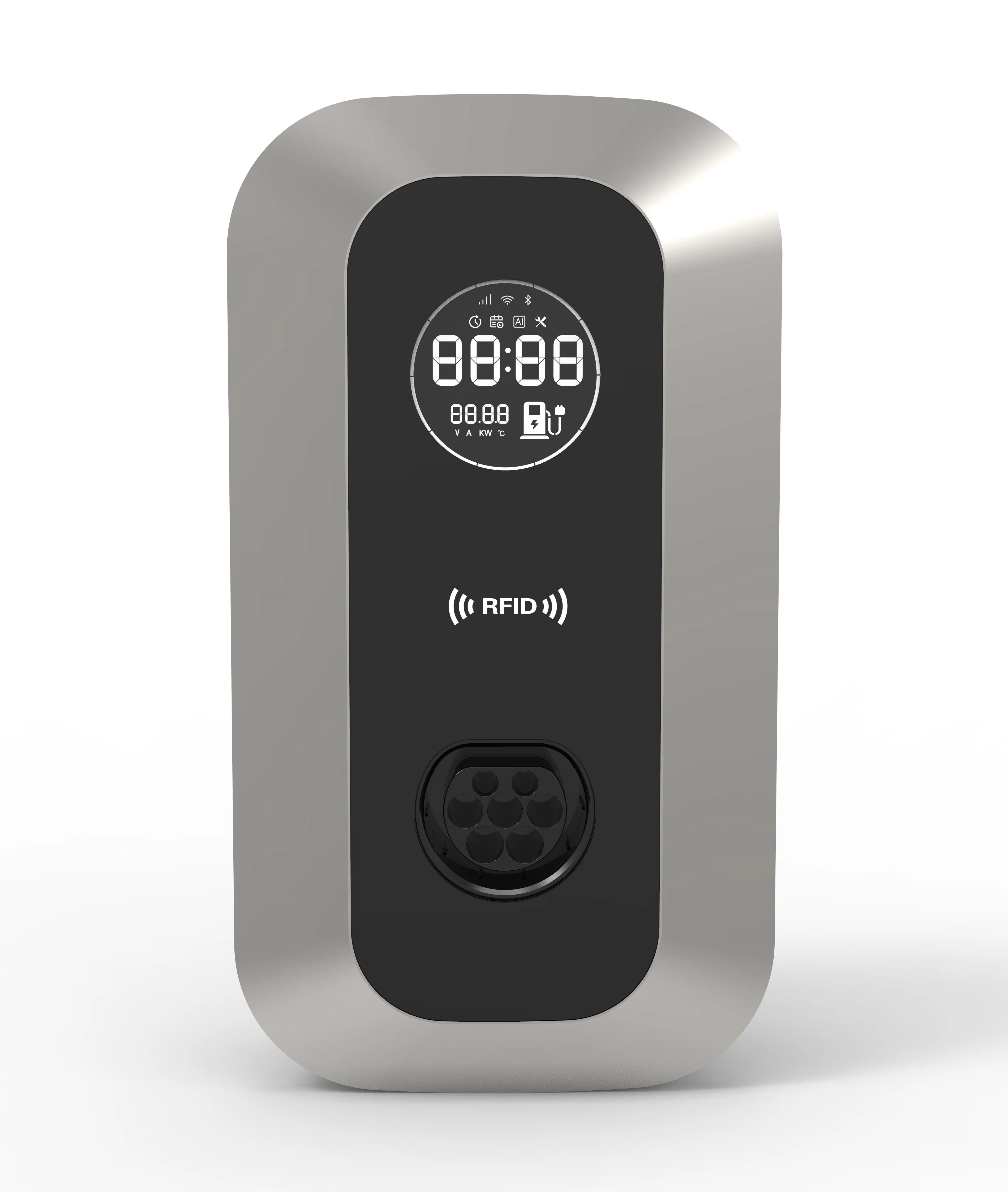

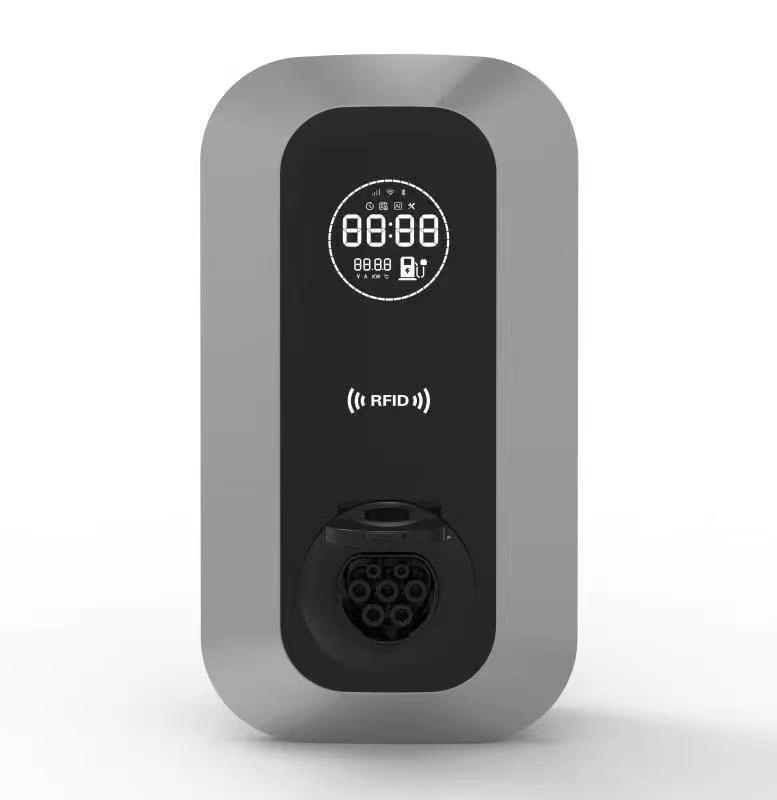

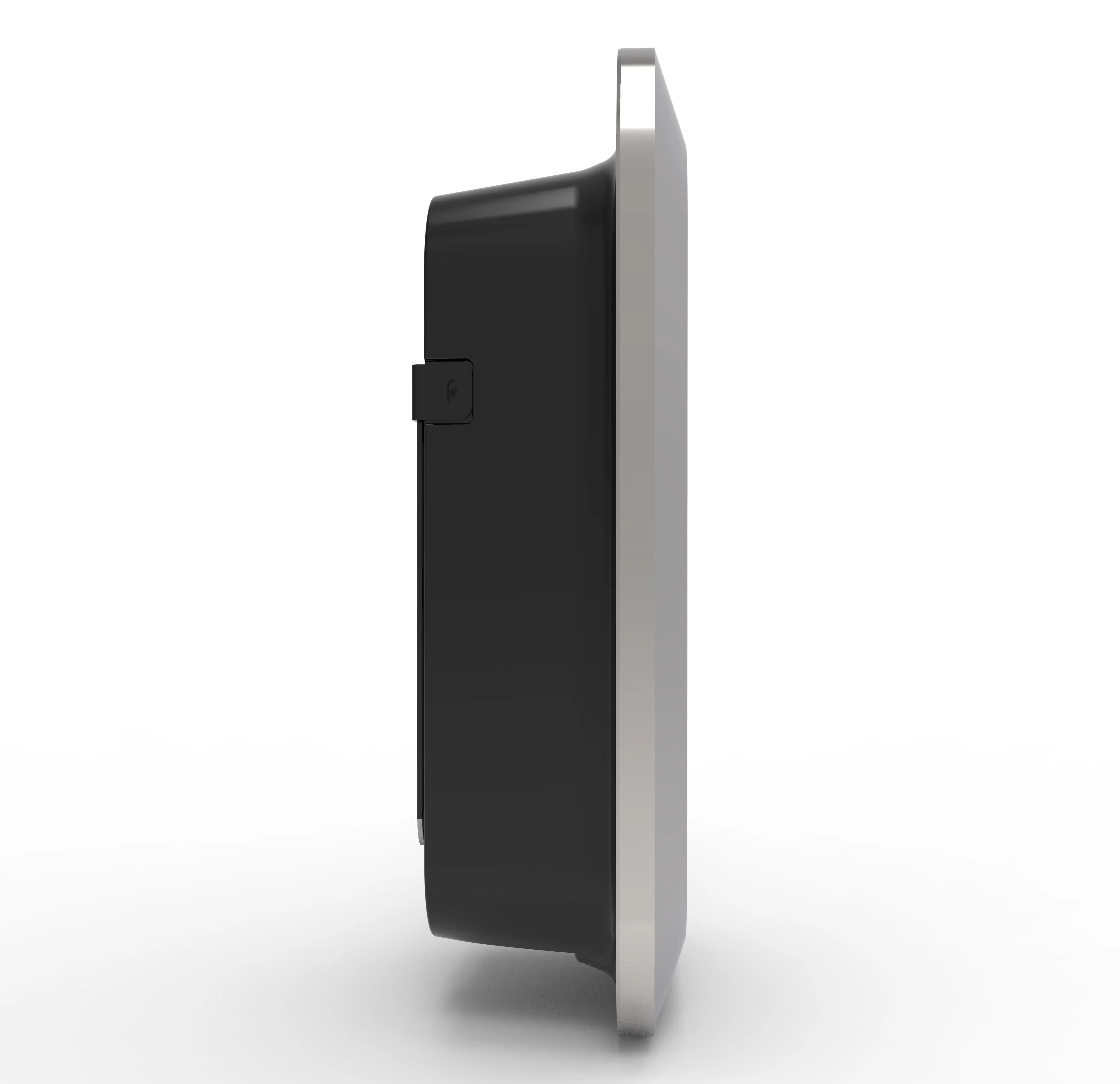

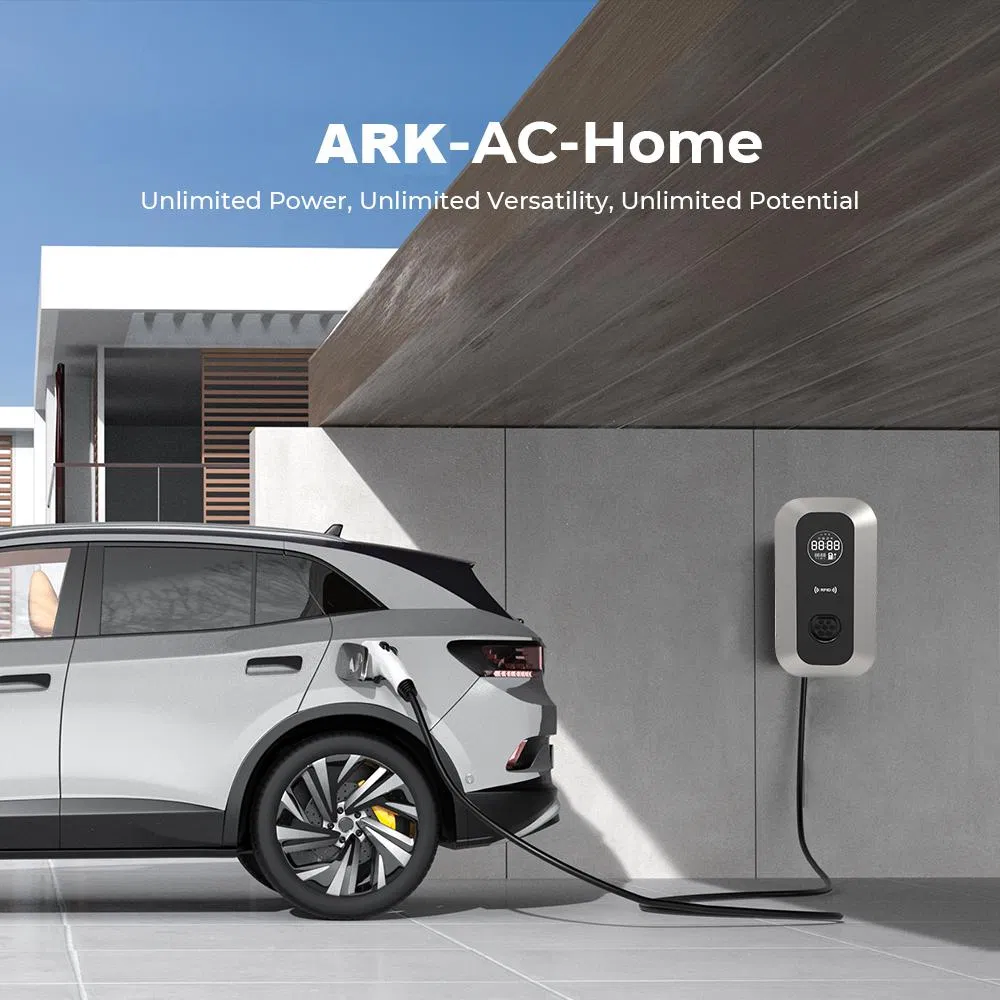

Modern AMP07-S AC EV Charger with Integrated Safety Features

1 / 5

Modern AMP07-S AC EV Charger with Integrated Safety Features

Customization:	Available
Connector Type:	Type2
Start Mode:	APP Control, Remote Control, RFID Card

Send Inquiry

Product Description

📊

Basic Info.

Model NO.

AMP07-S

Charging Interfaces

One Pile with One Charge

Location

Home & Company

Installation

Wall or Floor Mounted

Charge Method

Quick Charge

Charging Type

Mode 3

Protection Grade

IP54

Certificate

CE, TUV

RCCB

Type-a + 6mA DC

Network

Wi-Fi, Bluetooth

Warranty

12 Months

HS Code

8504409999

💡

Product Highlights

Feature	Details
Bluetooth Remote Control	Optional Bluetooth remote control feature for convenient operation from a distance.
Emergency Stop Switch	Built-in mechanical emergency stop switch for immediate power cutoff, ensuring safety.
Communication Modes	Reserved interfaces for RS485 and Ethernet, facilitating remote management and monitoring.
Protection Functions	Equipped with ten protective mechanisms for safety and reliability during use.
User Experience	Designed for easy installation, operation, and user-friendly maintenance.

The EU version of the AMP07 is compatible with most European AC electric vehicles because of the IEC62196-2 Type 2, eliminating most brand barriers to electric vehicle owners.

AMP07 allows your vehicles to be charged during off-peak periods by allowing you to set charging times, saving money on electricity bills. App Control mode allows you to track all useful data about your car's charging status with your smartphone.

⚙️

Product Parameters

System Specification
Charging Type	Mode 3
Dimension	222 x 104 x 405mm
Protection Grade	IP65 / IK10
Input Voltage	200Vac - 240Vac, 50/60Hz, L1+N+PE
Output Power	7kW max
Output Current	32A max
User Interface	LCD or 7 inch TFT display, App interface
Connectivity	Wi-Fi, Bluetooth, 4G (optional)
Temperature	-25°C to +50°C (Working)

🏆

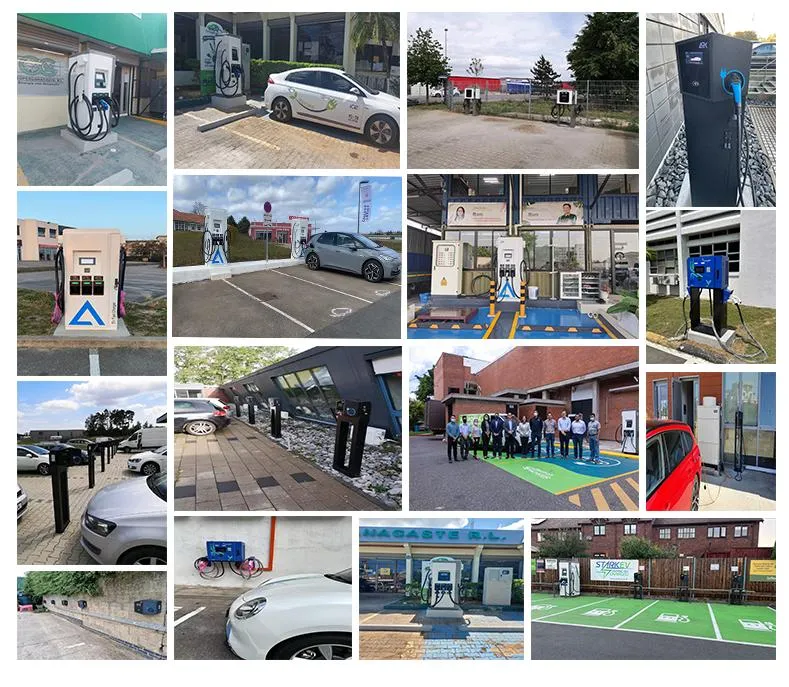

Why Choose Us

❓

FAQ

1. Why choose us as your preferred EV Charger supplier?

We offer professional technical teams, international standard designs, and smart back-end services. Our products have passed various laboratory standard tests, and we are capable of achieving CE and UL certification.

2. Is there experience in implementing overseas projects?

Yes, we are pioneers in overseas projects, cooperating with UK power companies for PV integration and US operators for freeway DC charging networks.

3. What are the main advantages of your products?

We provide telecom-level design, support multiple standards (CCS-1/2, CHAdeMO, GB/T), and offer superior temperature adaptation and protection grades with advanced modular design.

4. What are the differences in global DC fast charging standards?

There are 5 main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla (Proprietary). Our chargers support the primary international standards.

5. Does higher output power always mean faster charging?

Not necessarily. It depends on the car battery's power limit. However, high-power chargers can support dual connectors to charge two vehicles simultaneously and are future-proof for next-gen batteries.

6. How is after-sales support handled?

We provide comprehensive technical training, including materials and videos. For urgent situations, we provide professional technical support to help customers master maintenance and parts replacement.
