Cabinet Perfluorohexanone Fire Protection Unit for Pharmaceutical Factories

Customization:	Available
Agent:	Hfc-227ea
Type:	Automatic Fire System

Send Inquiry

Product Description

Basic Product Information

Model NO.

YF40/2.5-N-Y-ZY

Certification

CCCF, GB8013-2005, CCC, CE

Portable Extinguisher

Automatic

Effective Range

4.5m

Retirement Life

10 Years

Dry Powder Type

Superfine Powder

Material

Stainless Steel

Product Name

Hfc-227ea Fire Suppression System

Filling Pressure

2.5MPa/4.2MPa/5.6MPa

OEM

Support

Packaging & Delivery

Package Size

68.00cm * 21.00cm * 71.00cm

Gross Weight

60.000kg

Product Description

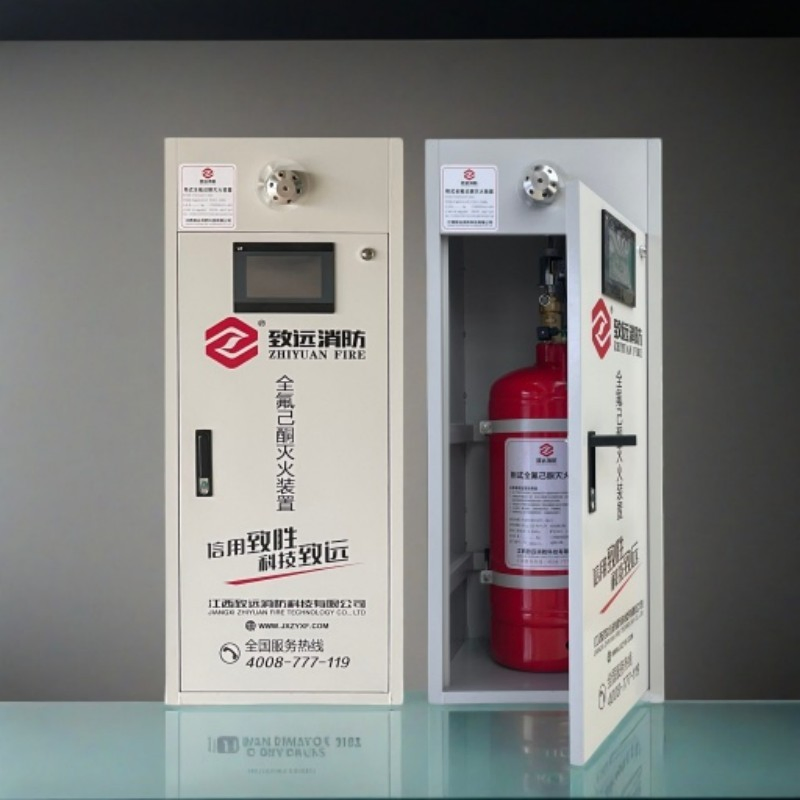

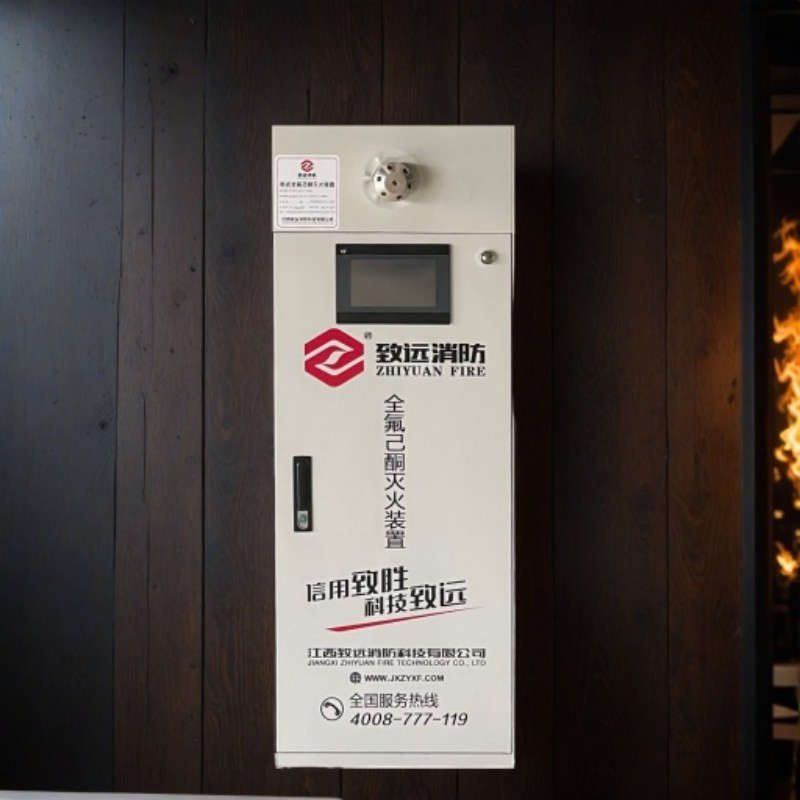

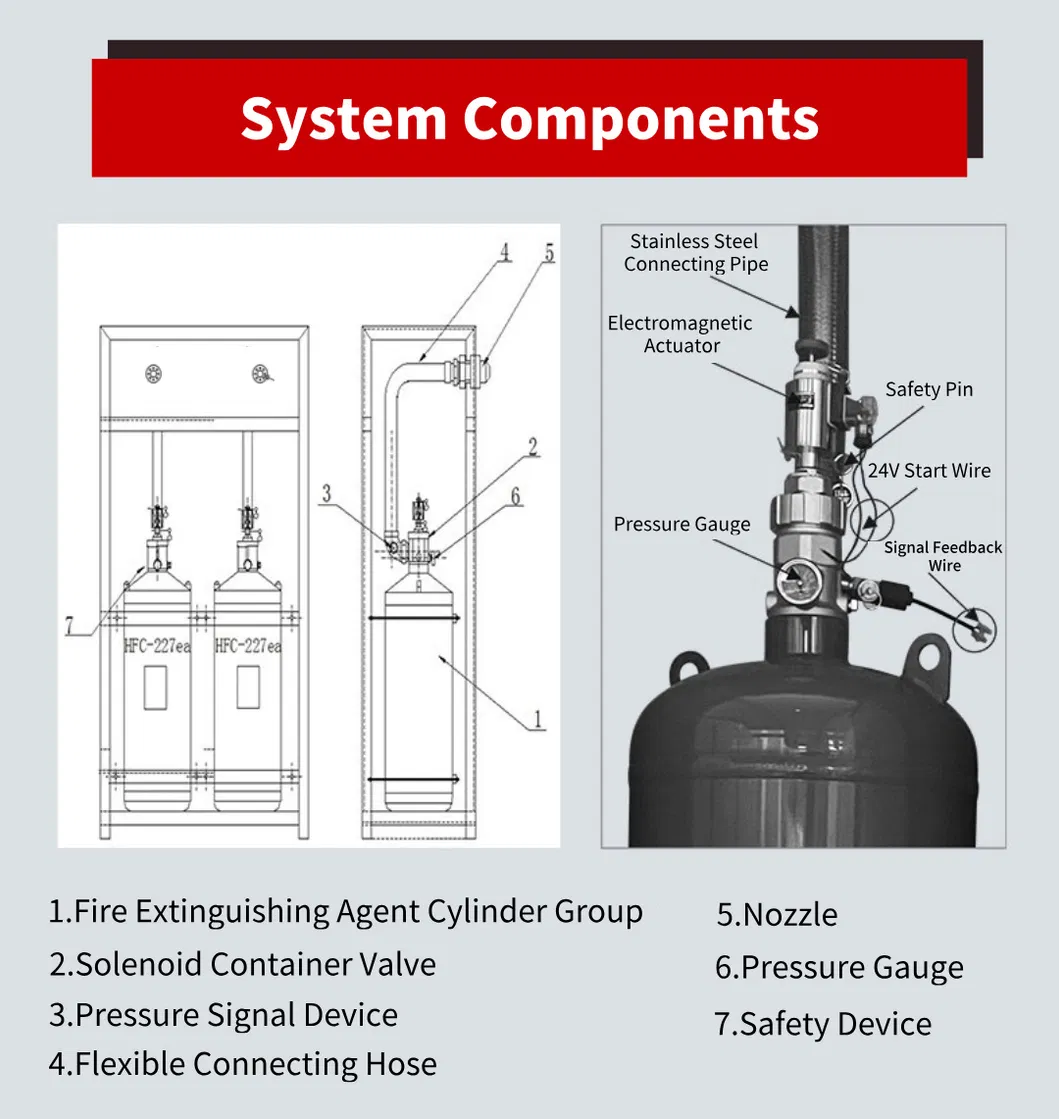

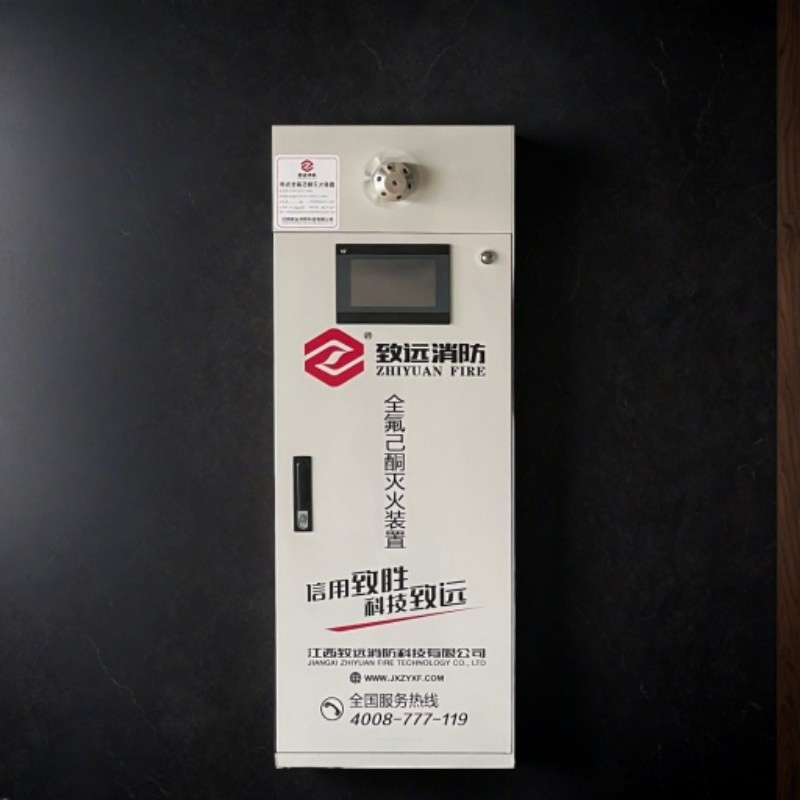

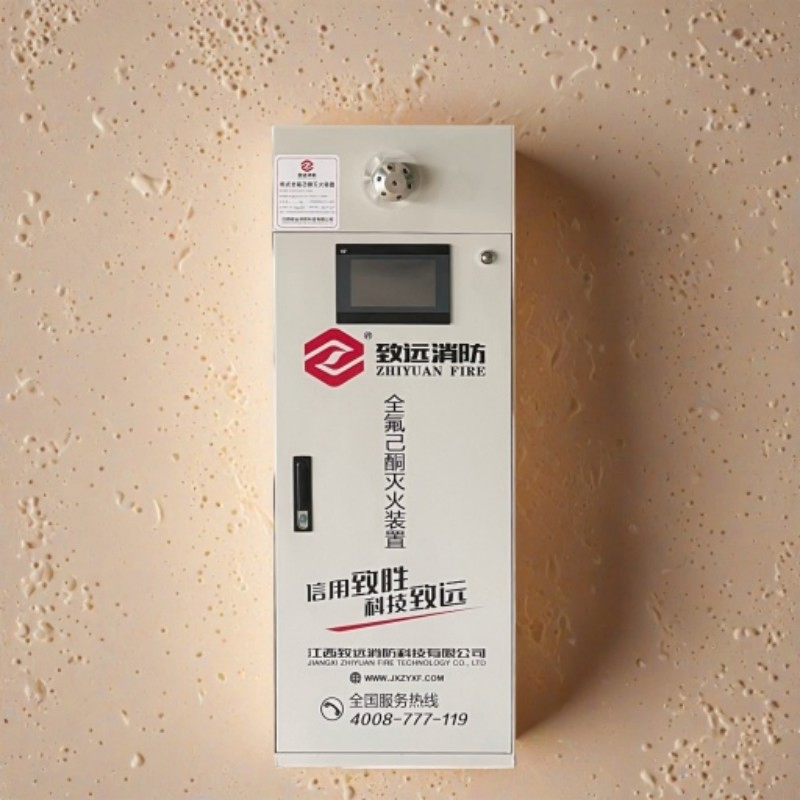

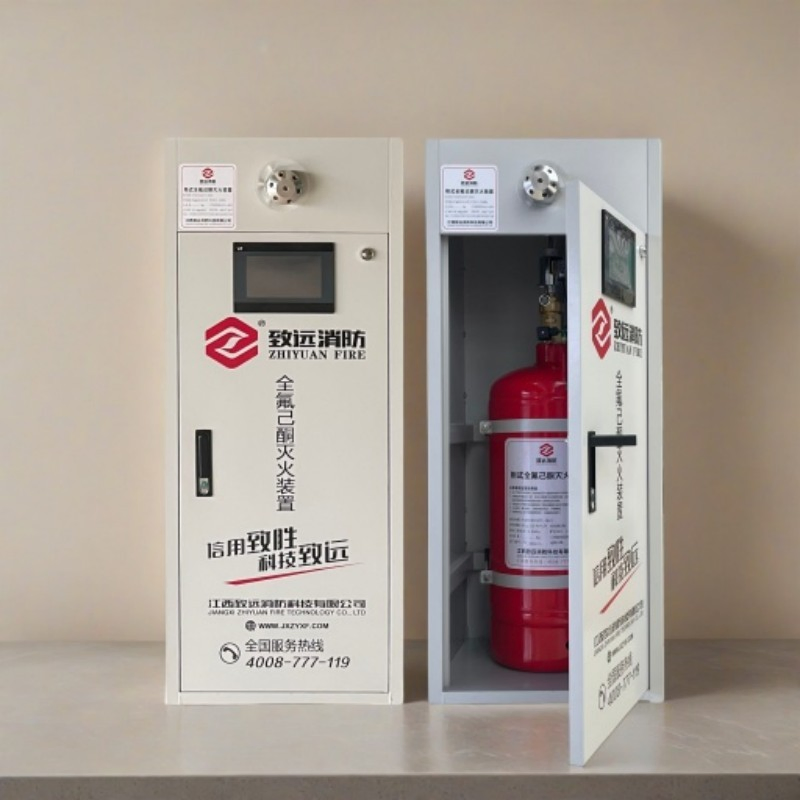

Single & Double Cabinet HFC-227ea Fire Suppression System

The Cabinet Type HFC-227ea Fire Extinguishing System is an advanced, clean agent fire suppression system that excels in protecting precision equipment and vital facilities. This system is celebrated for its safety, efficiency, and eco-friendly attributes, leaving no residue after activation.

Ingeniously compact cabinet design eliminates the necessity for a separate cylinder room.
Standalone system guarantees effortless installation and minimal maintenance, ensuring convenience and reliability.
Effectively combats A, B, and C class fires, offering robust protection across various scenarios.
Ideally suited for use in IT rooms, data centers, archives, distribution rooms, and storage facilities.

Technical Specifications

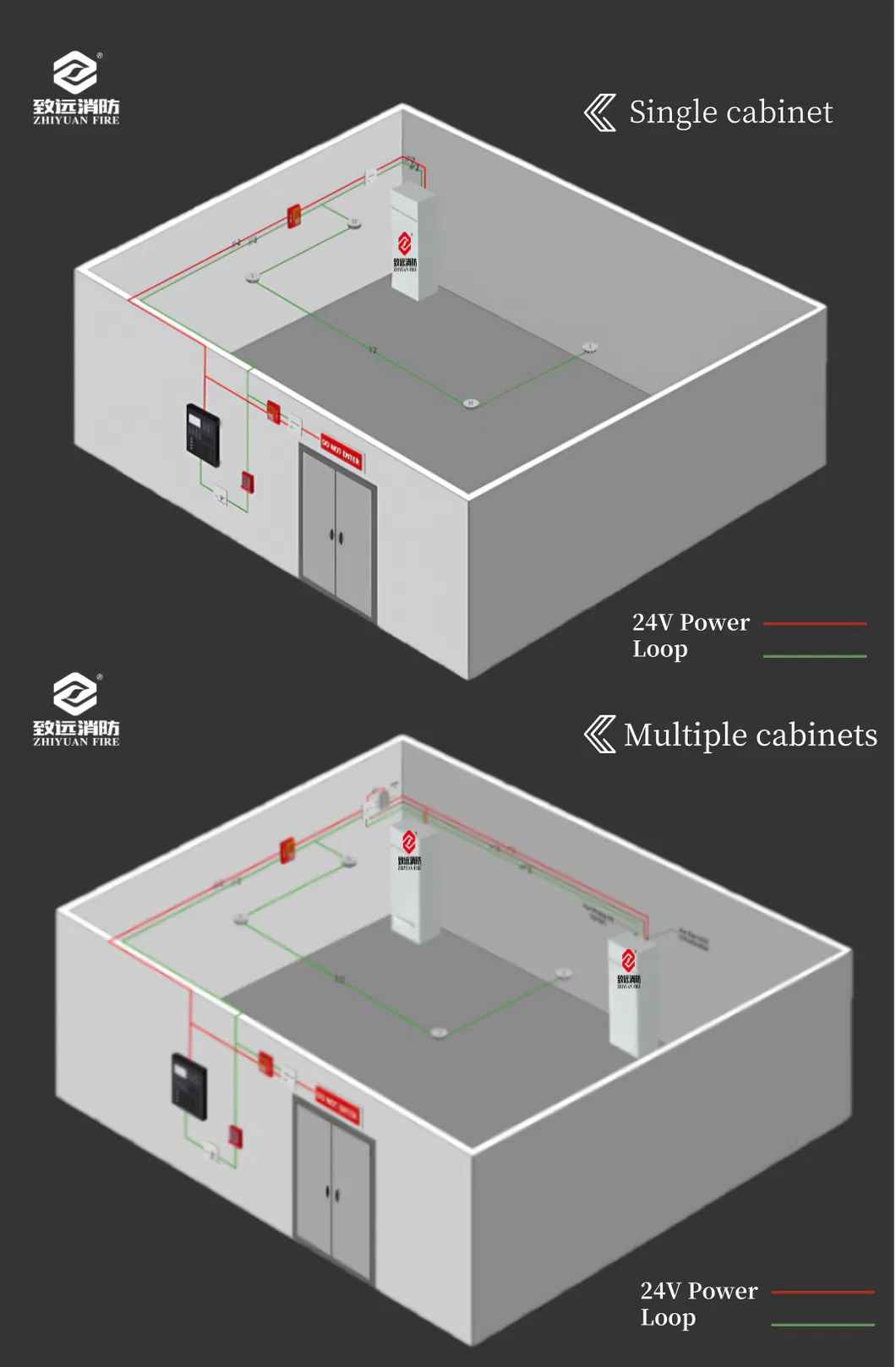

Single Cabinet Type

Model	Dimensions (mm)	Agent Weight (kg)	Protection Vol (m³)	Ext. Conc.	Working Temp.	Actuation	Pressure
GQQ40/1.2-5.2Y	500×450×1200	0-44.8	≤58	6.0-8.0%	0-50°C	Auto/Manual	2.5MPa
GQQ70/1.2-5.2Y	500×450×1400	0-74.8	≤102
GQQ90/1.2-5.2Y	500×450×1700	0-100.8	≤131
GQQ120/1.2-5.2Y	500×450×1700	0-112.9	≤145

Double Cabinet Type

Model	Dimensions (mm)	Agent Weight (kg)	Protection Vol (m³)	Ext. Conc.	Working Temp.	Actuation	Pressure
GQQ40×2/2.5-ZY	980×450×1200	0-89.6	≤116	~6.0-8.0%	0-50°C	Auto/Manual	2.5MPa
GQQ70×2/2.5-ZY	980×450×1400	0-156.8	≤204
GQQ90×2/2.5-ZY	980×450×1700	0-201.6	≤262
GQQ120×2/2.5-ZY	980×500×1950	0-224	≤295

Product Showcase

Profile & Capabilities

Standing as a paragon of excellence with two decades of distinguished heritage, our enterprise is renowned for a 'high starting point, high standard, high quality' ethos. We seamlessly integrate research, development, design, manufacturing, sales, engineering, and service. Our credentials include professional contracting qualifications and special equipment inspection approval certificates.

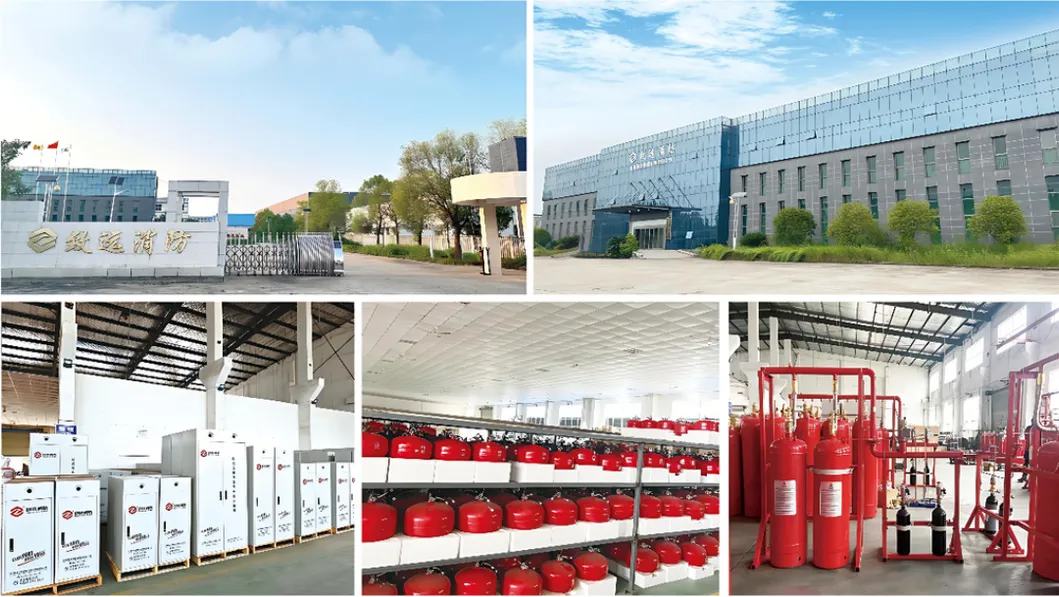

Specializing in seamless, welding, and fiber winding cylinders, we are a pioneering leader within the fire industry, proudly holding an AAA credit rating. Our expansive modern workshop and laboratory house cutting-edge testing apparatus. With continuous investment in top-tier talent, we boast an exceptional R&D team distinguished as industry trailblazers.
