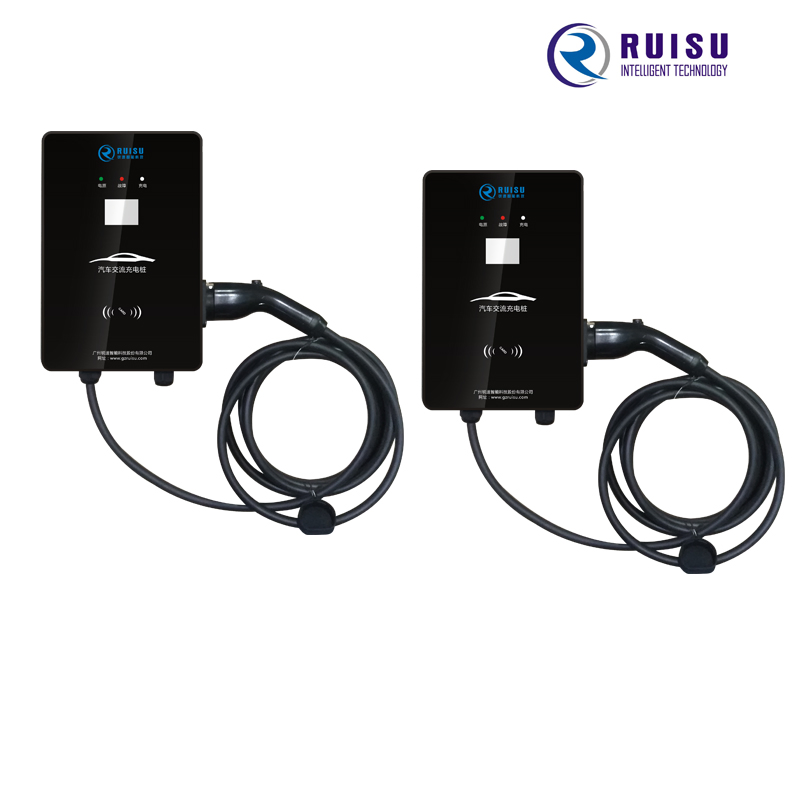

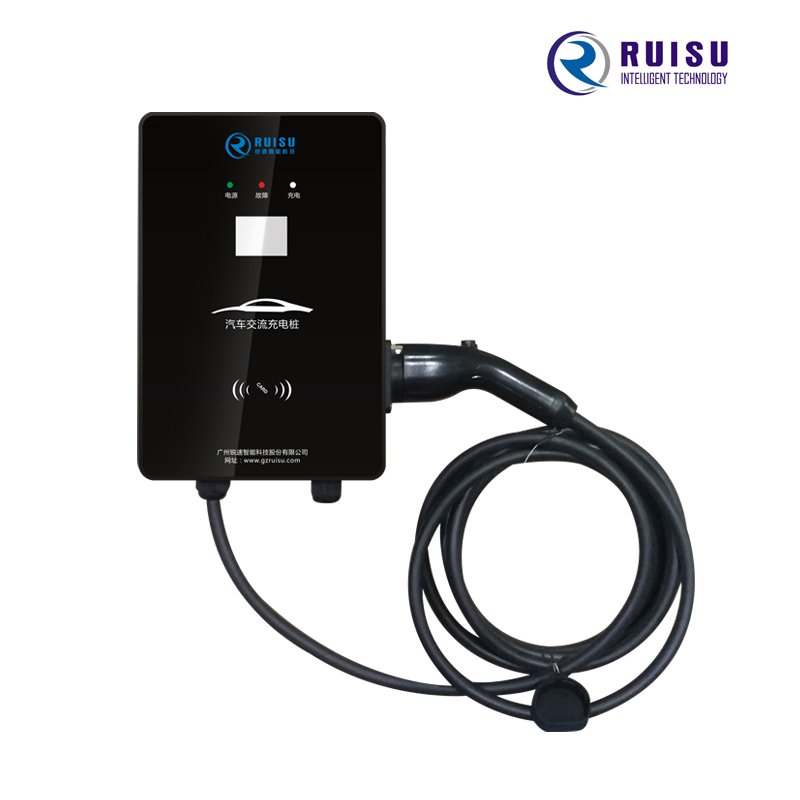

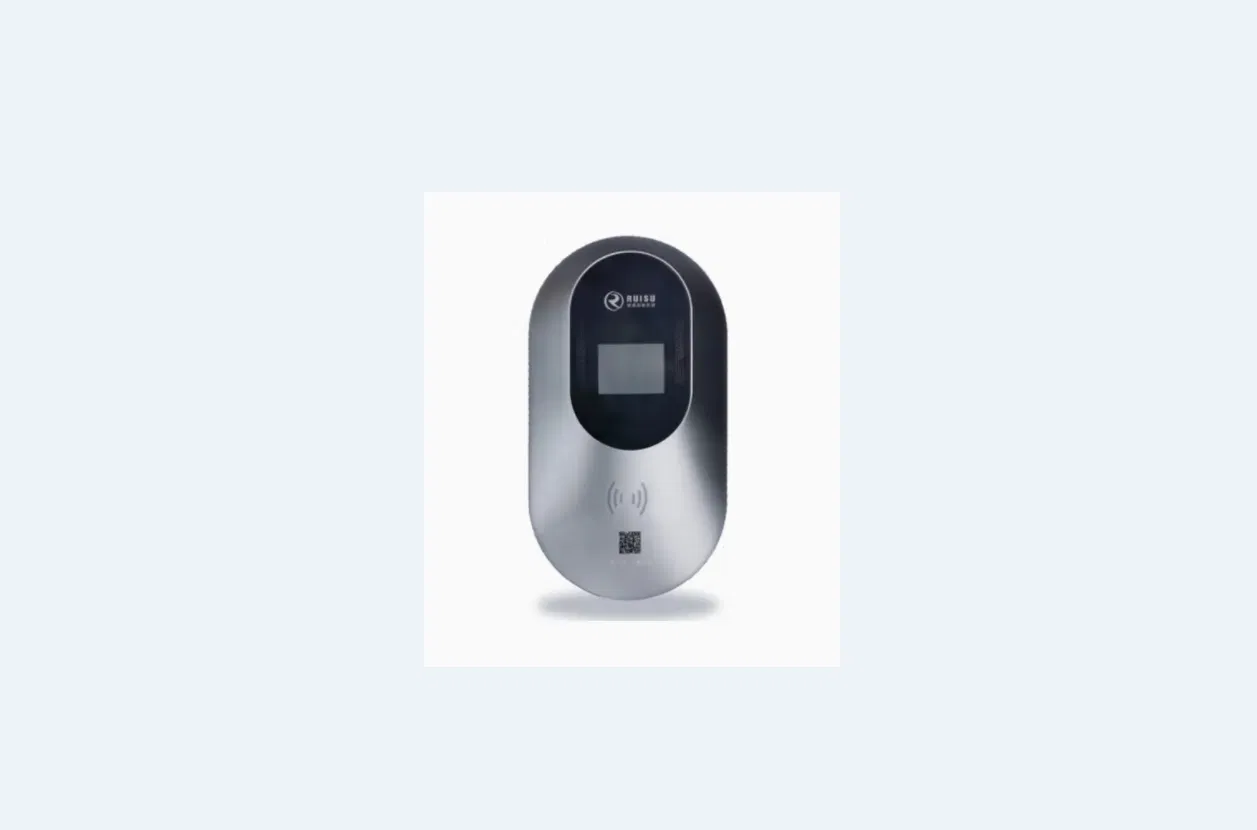

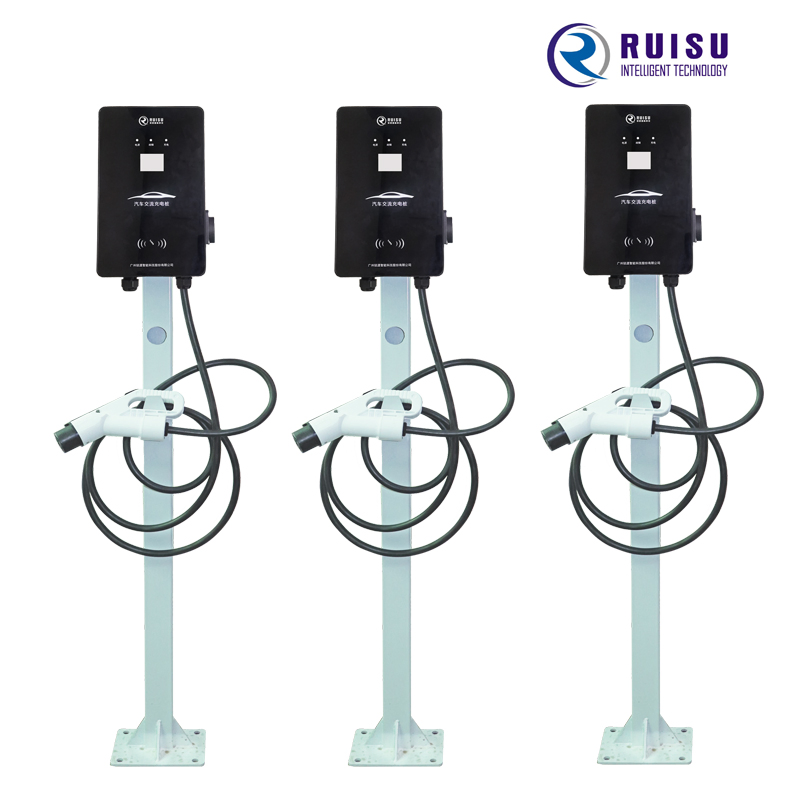

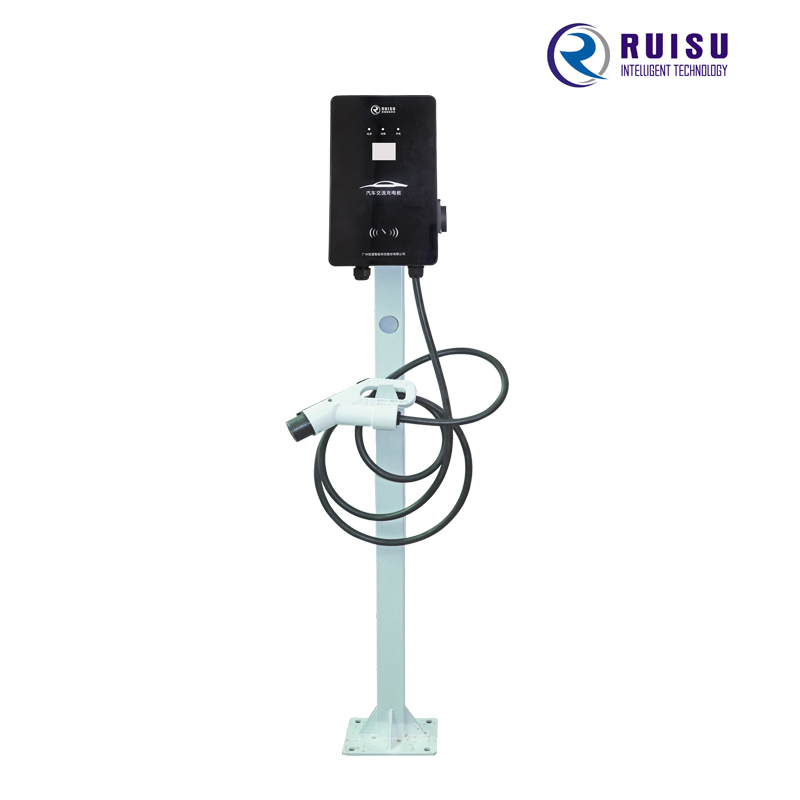

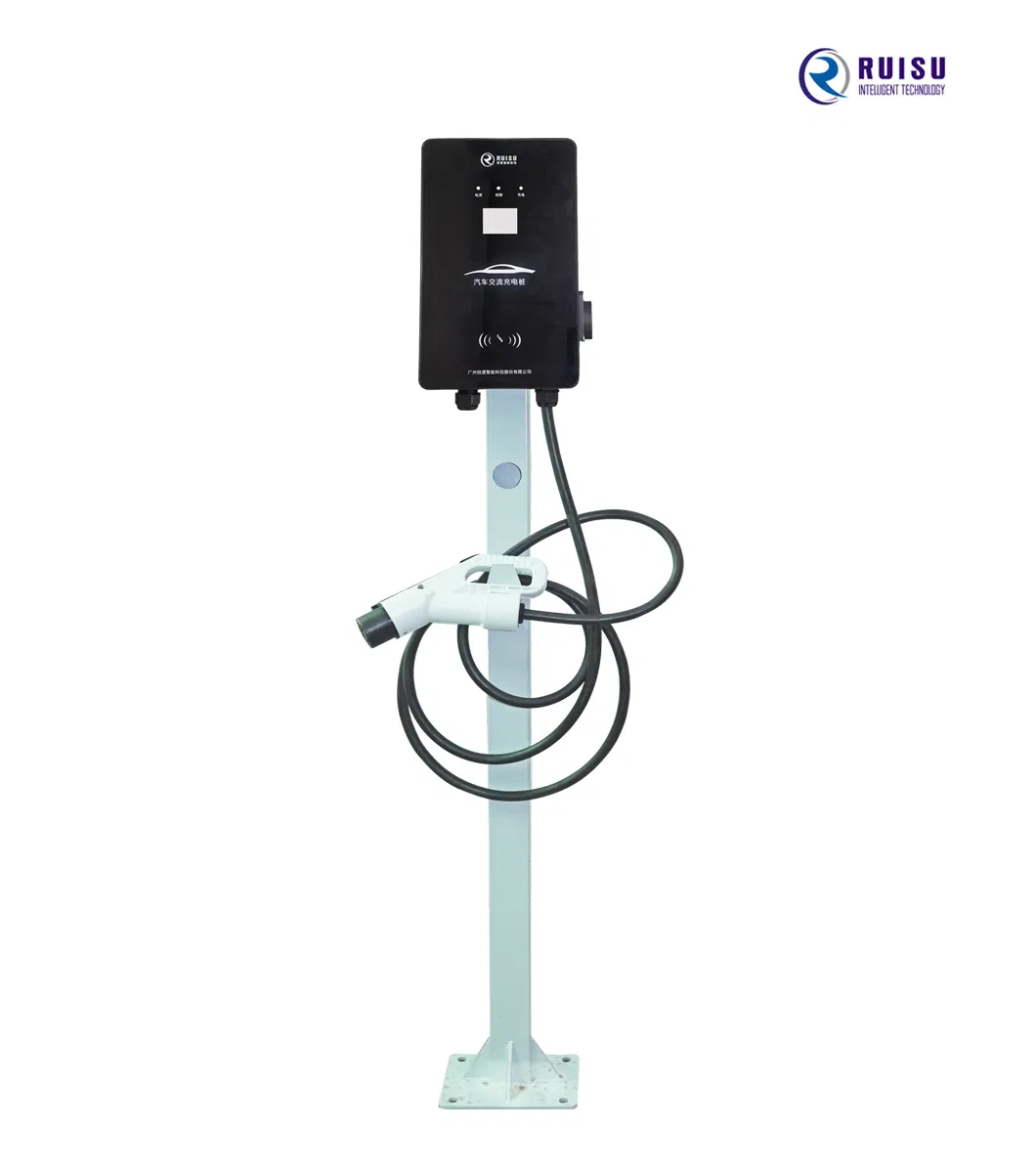

Smart Ruisu 7kw Single-Phase EV Charging Wall Unit

1 / 5

Smart Ruisu 7kw Single-Phase EV Charging Wall Unit

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

RSAC220-7KW

Charging Interface

One Pile with One Charge

Installation

Floor Type/ Wall Mounted

Charge Method

Normal Charge (Slow EV)

Certification

CCC, CE, ISO

Warranty

24 Months

Safety

Emergency Stop Button

Origin

China

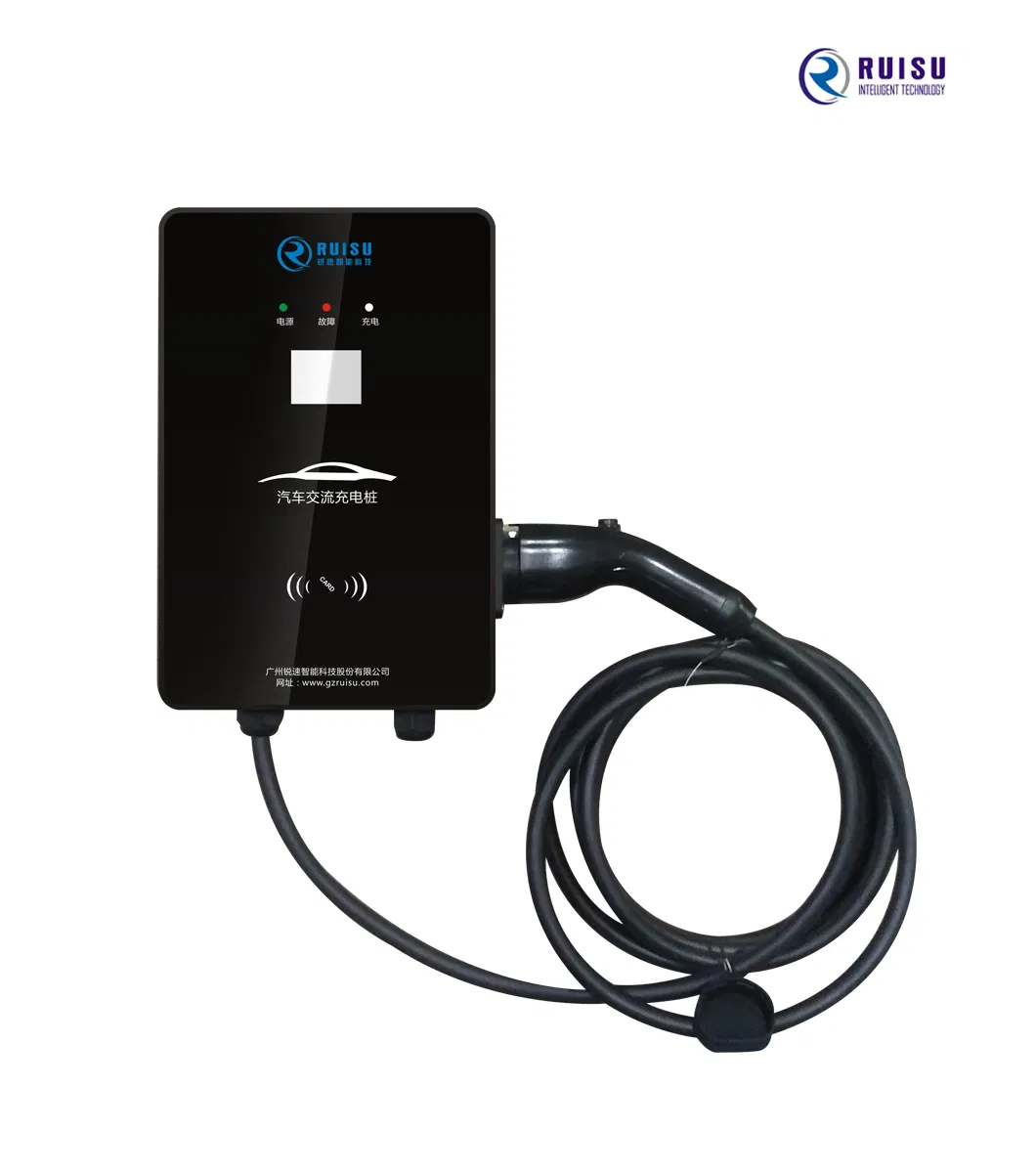

Smart 7kw Single-Phase EV Charging Wall Unit

🛠️

Technical Specifications

Product Type	7KW AC Charger
Product Model	RSAC220-7KW
Dimension (HWD)	31520092.5 mm
Display Mode	LED / 4.3" Color Screen
Input Voltage	220VAC, 1 phase + N+PE
Output Power	7 KW
Max. Output Current	32 A
Cable Length	5 Meters
Leakage Protection	30 mA
Charging Operation	Swiping card / Scanning code
Protection Grade	Outdoor IP54
Material	Sheet Metal Shell

🌟

Key Features

📱 Intelligent ControlRemote monitoring, fault tracking, and accounting via phone APP.

🛡️ Multi-ProtectionEquipped with lightning, over-load, short-circuit, and leakage protection.

🌧️ Weather ResistantIP54 rated sheet metal shell designed to withstand complex outdoor environments.

💳 Flexible PaymentSupports RFID card, and various mobile payment/scanning options.

❓

Frequently Asked Questions

What is the charging capacity of this EV station?

This unit provides 7KW AC charging power with a maximum output current of 32A, suitable for standard home and public slow charging.

Can it be installed outdoors?

Yes, the charger features a rugged sheet metal shell with an IP54 protection grade, making it resistant to water and dust in outdoor environments.

What safety protections are built-in?

The system includes lightning protection, over-load protection, short-circuit protection, over-temperature protection, and 30mA electric leakage protection.

How do I start and stop the charging process?

Charging can be initiated via RFID card swiping, scanning a code via phone APP, or setting appointments for scheduled charging.

What is the length of the charging cable?

The unit comes with a standard 5-meter charging gun/cable, which is sufficient for most parking configurations.

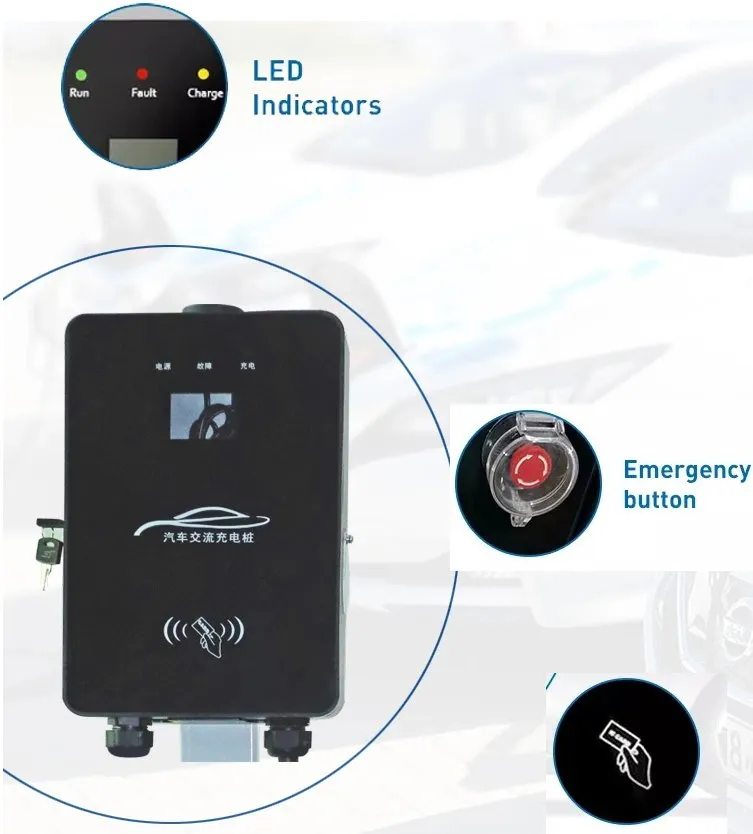

Is the charging status visible?

Yes, the device features a 4.3-inch color screen and LED indicators to show real-time power supply, charging status, and any potential faults.
