Home > EV Charging Sockets > Type 2 62196-2 Socket for EV Charging Holder
Type 2 62196-2 Socket for EV Charging Holder
Type 2 62196-2 Socket for EV Charging Holder
Type 2 62196-2 Socket for EV Charging Holder
Type 2 62196-2 Socket for EV Charging Holder
Type 2 62196-2 Socket for EV Charging Holder
1 / 5
Type 2 62196-2 Socket for EV Charging Holder
Type 2 62196-2 Socket for EV Charging Holder
Type 2 62196-2 Socket for EV Charging Holder
Type 2 62196-2 Socket for EV Charging Holder
Type 2 62196-2 Socket for EV Charging Holder

Type 2 62196-2 Socket for EV Charging Holder

Customization: Available
After-sales Service: 1 Year Warranty
Usage: Car Charge
Send Inquiry

Product Description

Basic Information
Model NO.
DS-IEC
Interface
IEC6296-2
Color
Black
Plug Standard
Type 2 / Yazaki
Case Material
Thermoplastic
Mechanical Life
>50000 Times
Transport Package
Carton
Specification
10*10*4.5CM
Origin
China
HS Code
3926909090
Production Capacity
50000/Month
Product Description

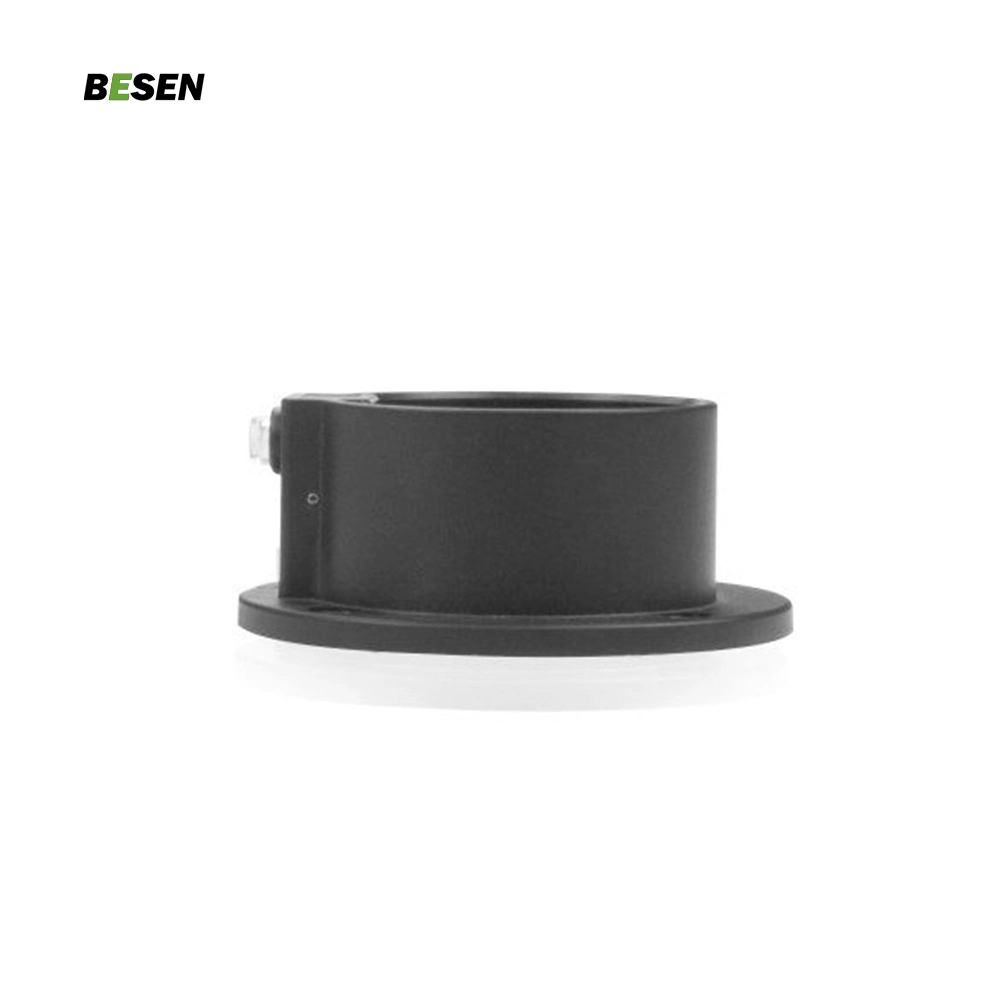

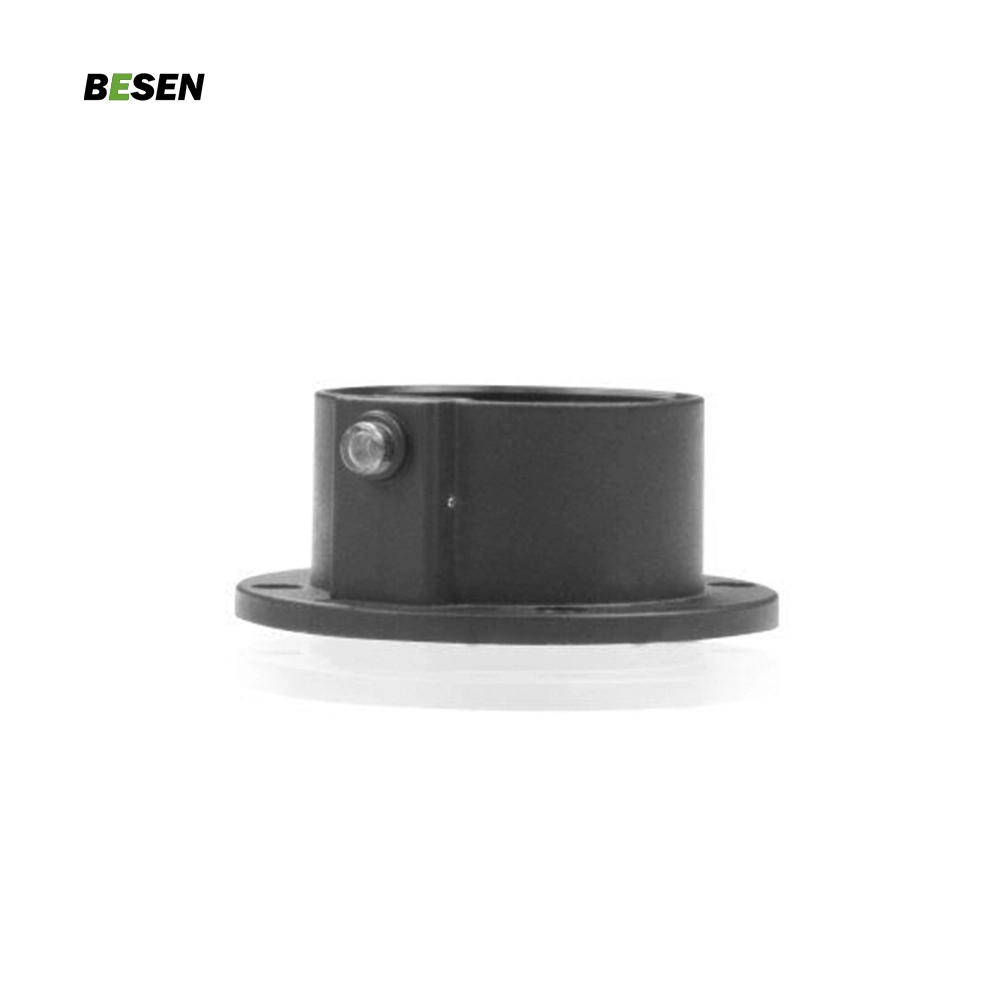

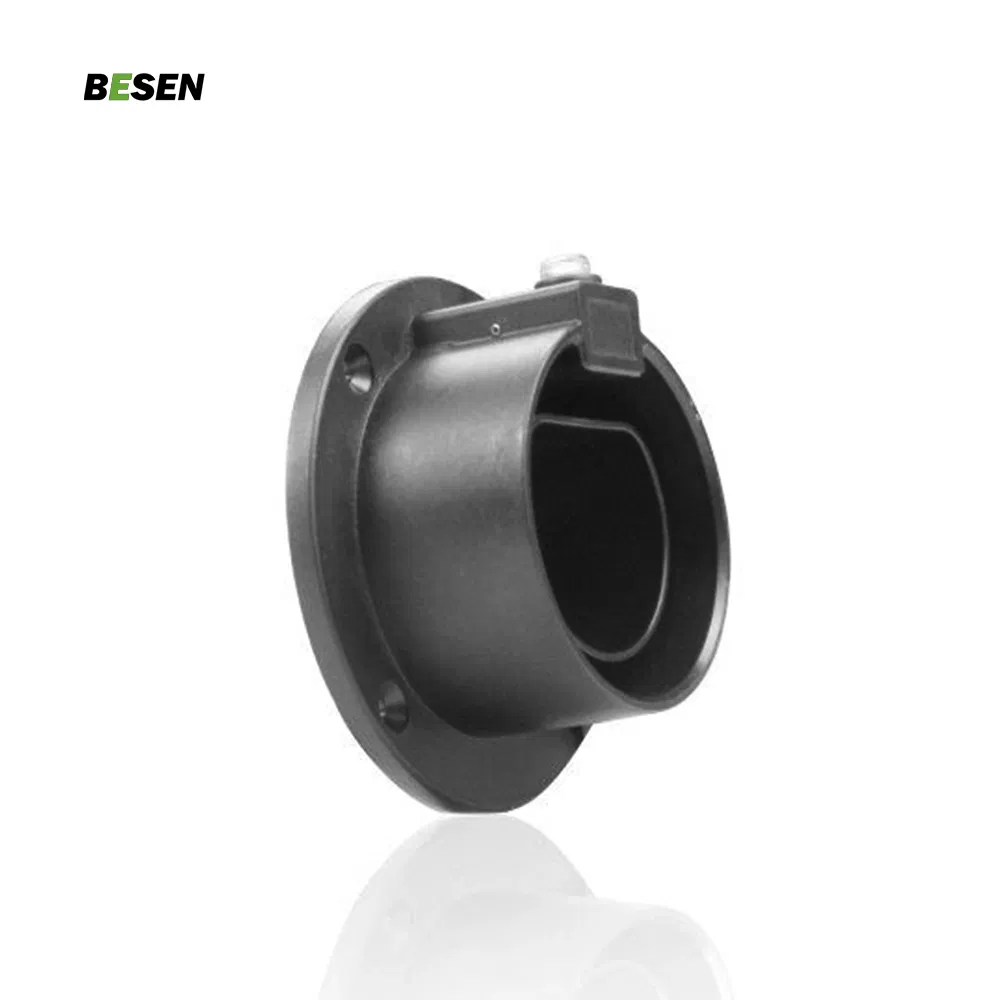

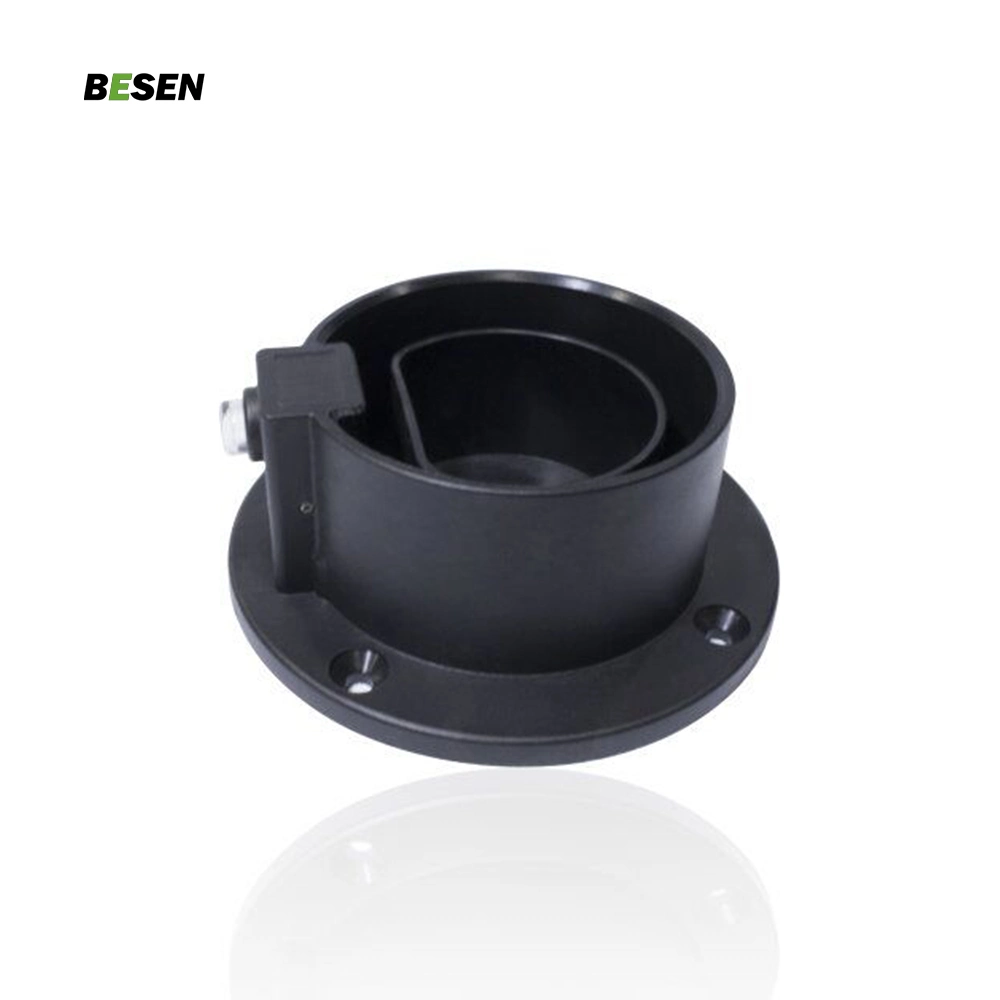

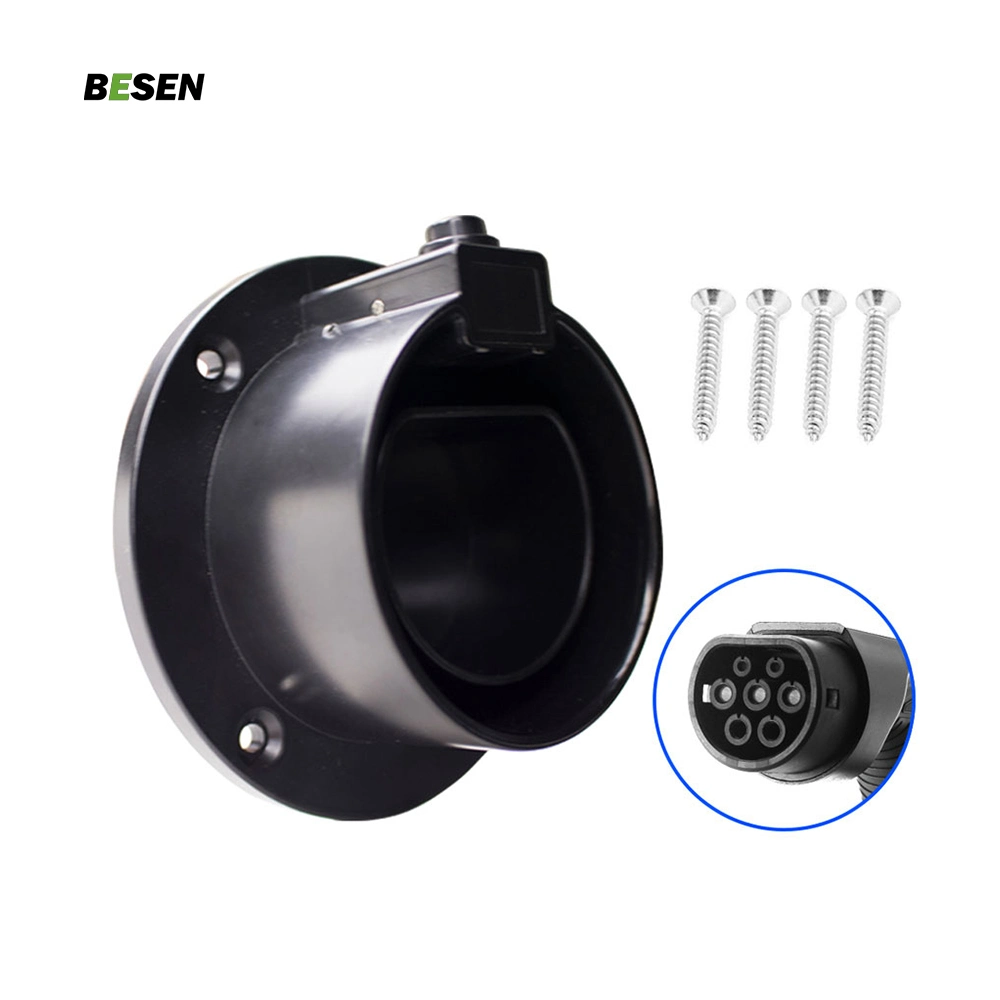

IEC 62196-2 (Type 2, Mennekes) Female (EV End) Plug Holder / Dock for EV Charging Station/Connector

This professional holder is designed to securely hang your Type 2 female (EV end) plug near the charging station or charger when not in use, ensuring a clean and organized charging environment.

  • Compatible with Type 2 Female Plug 16A and 32A
  • Constructed from high-grade, durable ABS plastic
  • Integrated locker mechanism with quick-release button

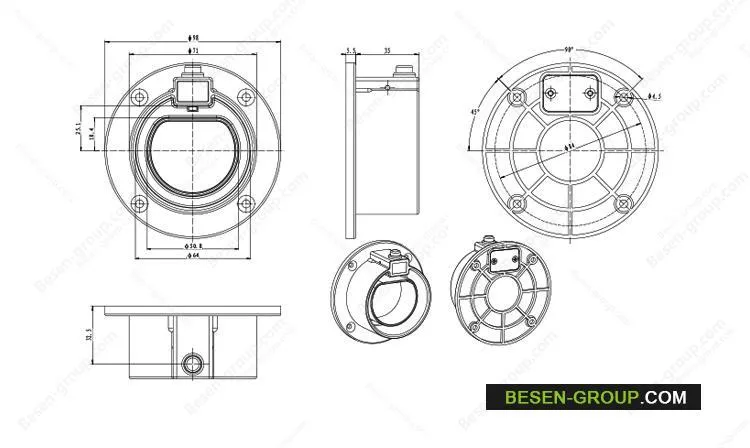

  • Compact dimensions: 98.5mm x 98.5mm x 40.6mm
  • Standardized screw hole size: 4.5mm for easy installation
Type 2 62196-2 Socket for EV Charging Holder
Type 2 62196-2 Socket Detail

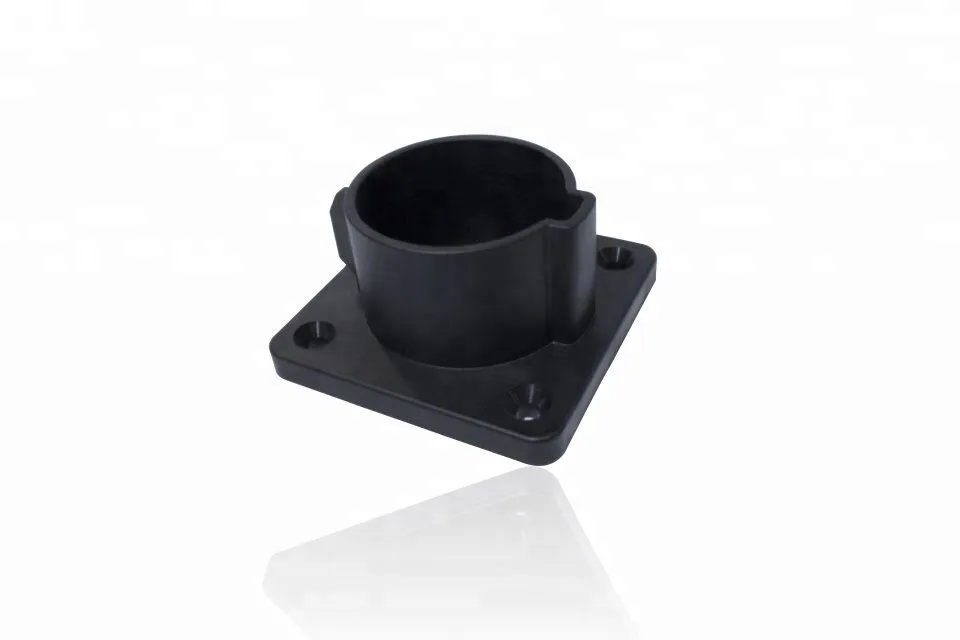

Type 2 62196-2 Socket Installation
Technical Specifications
Model Number BS-DS-IEC Type Electrical Plug, Type 2
Rated Voltage 230V Rated Current 16A / 32A / 63A
Protection Class IP54 Grounding Standard Grounding
Application Automotive / EV Charging Working Life More than 10,000 times
Certification CE, TUV Material ABS Thermoplastic
EV Charging Connector Parts
Frequently Asked Questions
What is the main purpose of the IEC 62196-2 Plug Holder?
The holder is designed to securely store and hang the Type 2 female (EV end) charging plug when it is not in use. It helps protect the connector from dirt, moisture, and accidental damage while keeping the charging area tidy.
Is this holder compatible with all Type 2 charging cables?
Yes, it is designed to fit standard IEC 62196-2 (Type 2) female plugs, supporting various current ratings including 16A, 32A, and 63A.
What material is used for the construction of the dock?
The holder is made of high-quality, durable ABS thermoplastic, which provides excellent mechanical strength and resistance to environmental factors.
Does the holder have a locking mechanism?
Yes, it features an integrated locker with a push-button release, ensuring the plug stays firmly in place and can be easily removed when needed.
What are the installation requirements?
The holder measures 98.5mm x 98.5mm and features standard 4.5mm screw holes, making it easy to mount on walls or charging station pedestals.
What certifications does the product hold?
The product is CE and TUV certified, ensuring it meets the required safety and quality standards for automotive electrical accessories.
