Basic Info

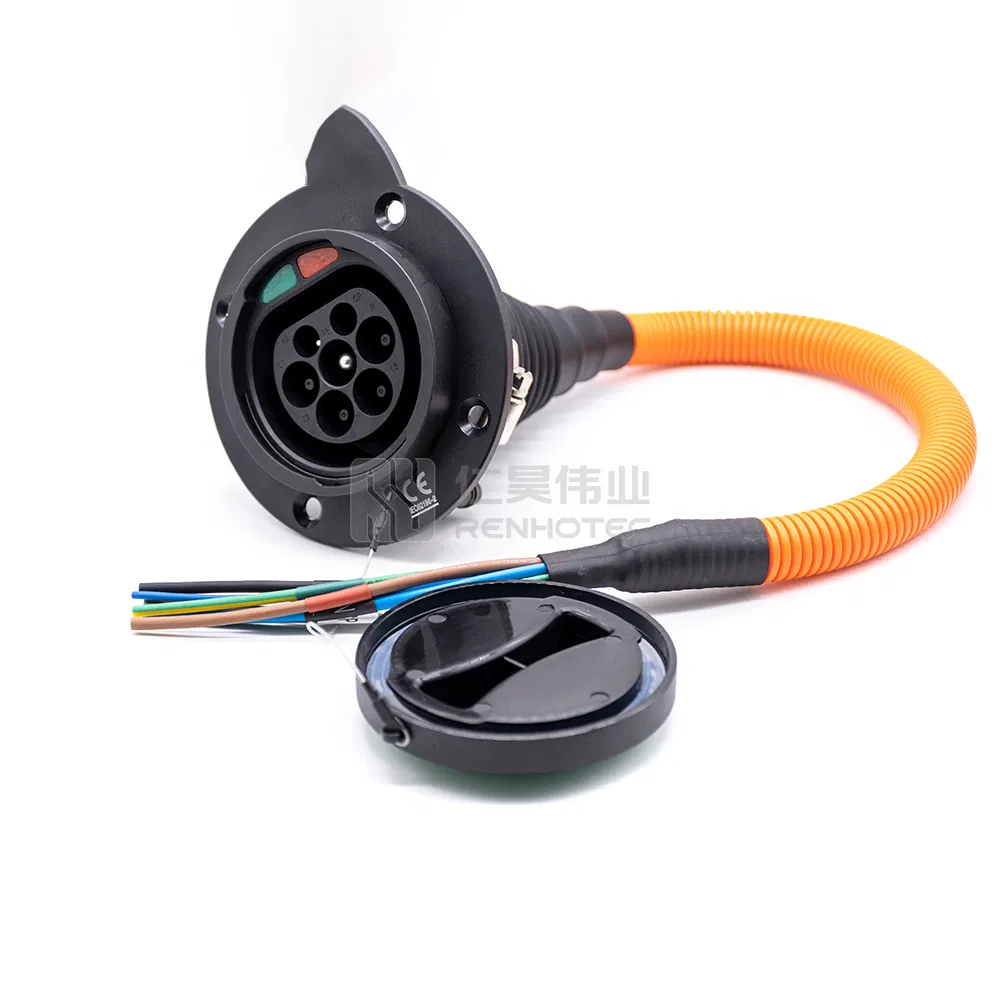

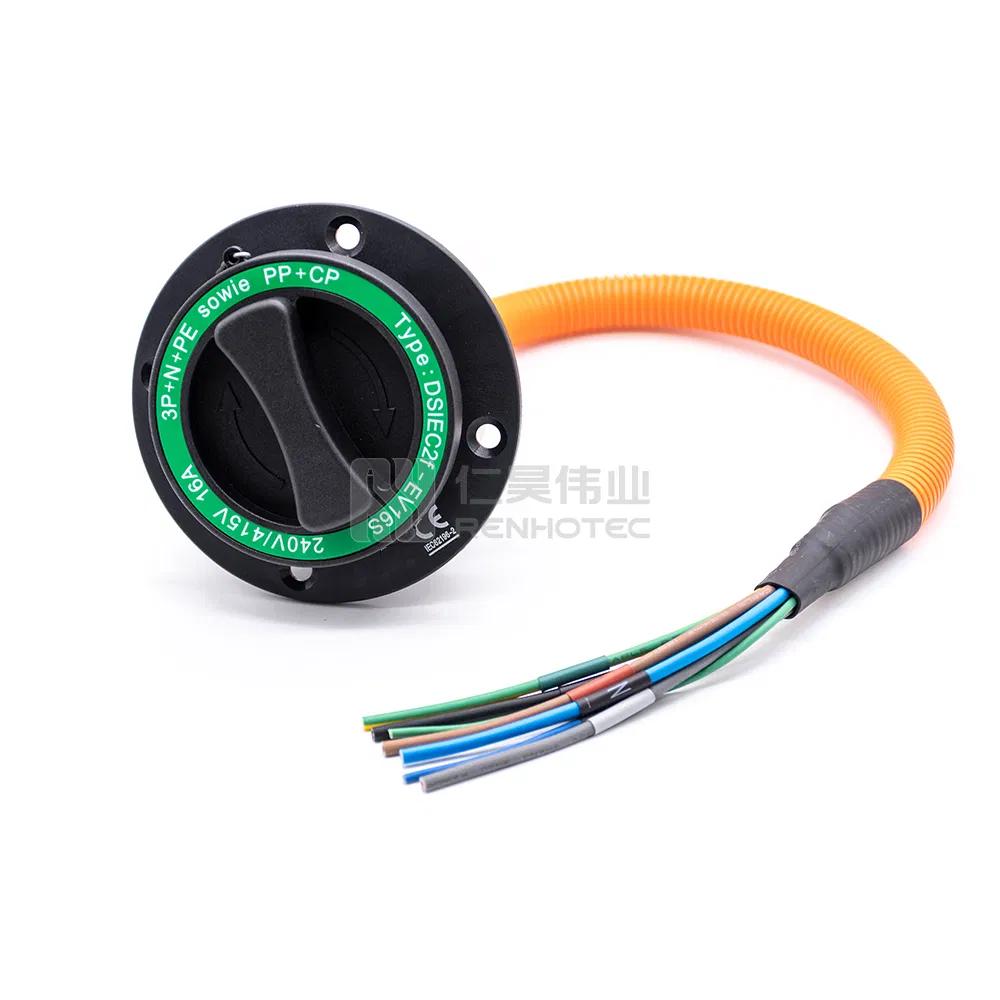

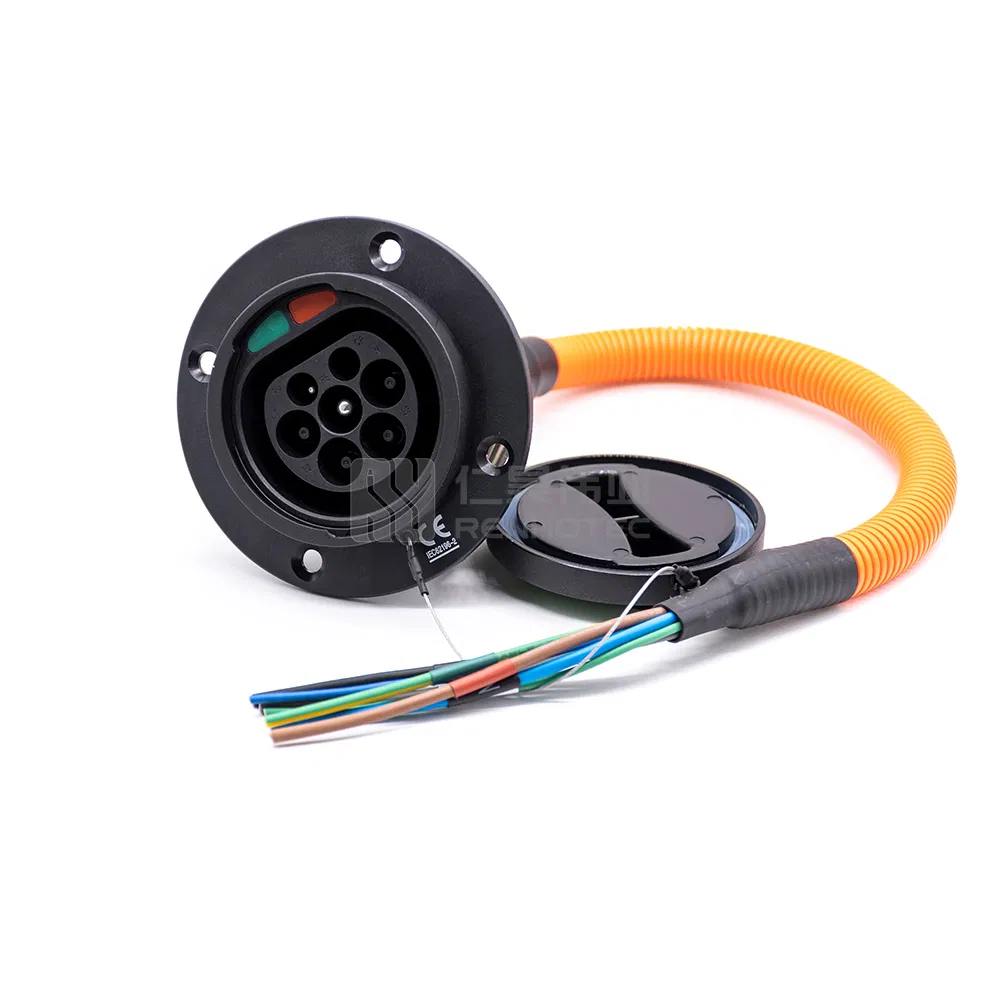

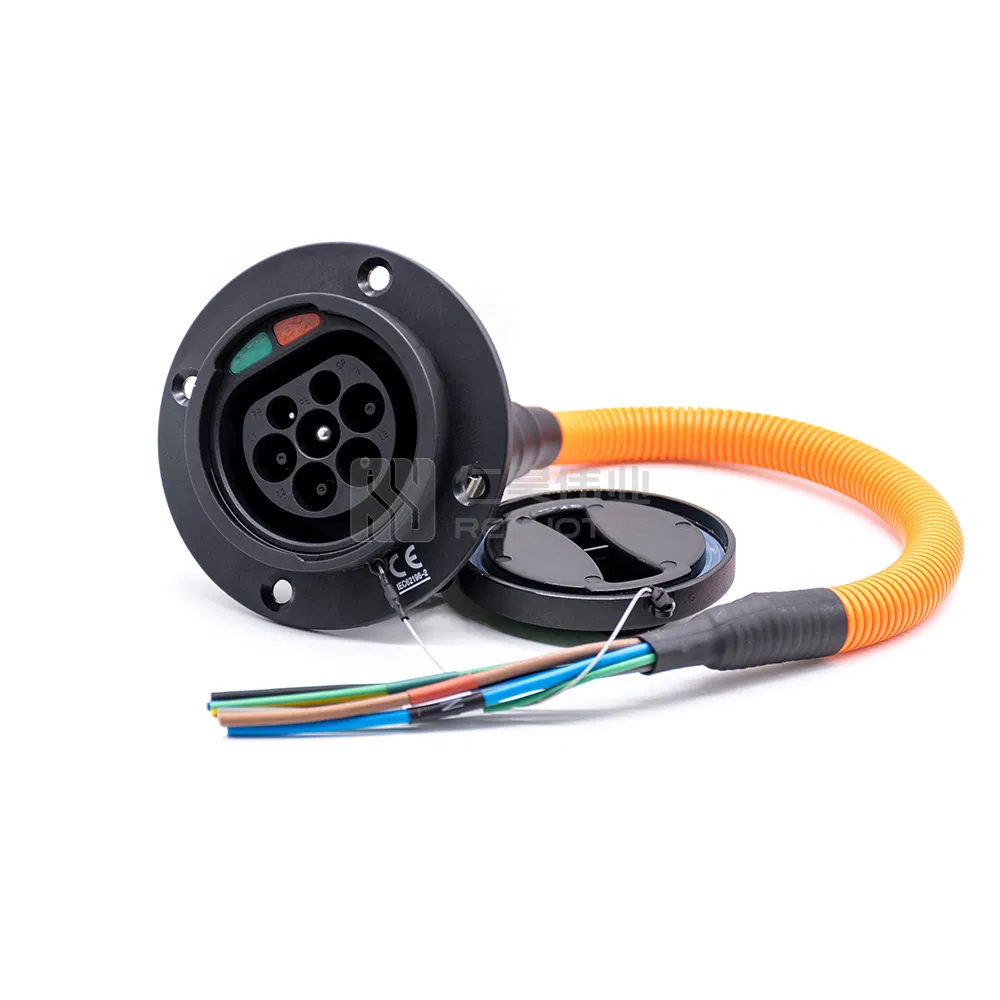

Model NO.Type 2 male socket
Customized ServicesAcceptable
Rated Current16A 32A 63A
Rated Voltage250V
GenderMale / Female, Plug/Socket
IP DegreeIP65 / IP55
Mechanical Life>10000 Times
Cable Length5m / 10m / Customized
CertificationCE, ISO, TUV, RoHS
Warranty24 Months
Product Description
Reliable EV Charger Solutions for Your Projects
◈
Standard Compliance: Products comply with GB/T20234-2011 standard.
◈
Versatile Selection: Various types include DC charging connectors (125A, 250A) and AC charging connectors (16A, 32A).
◈

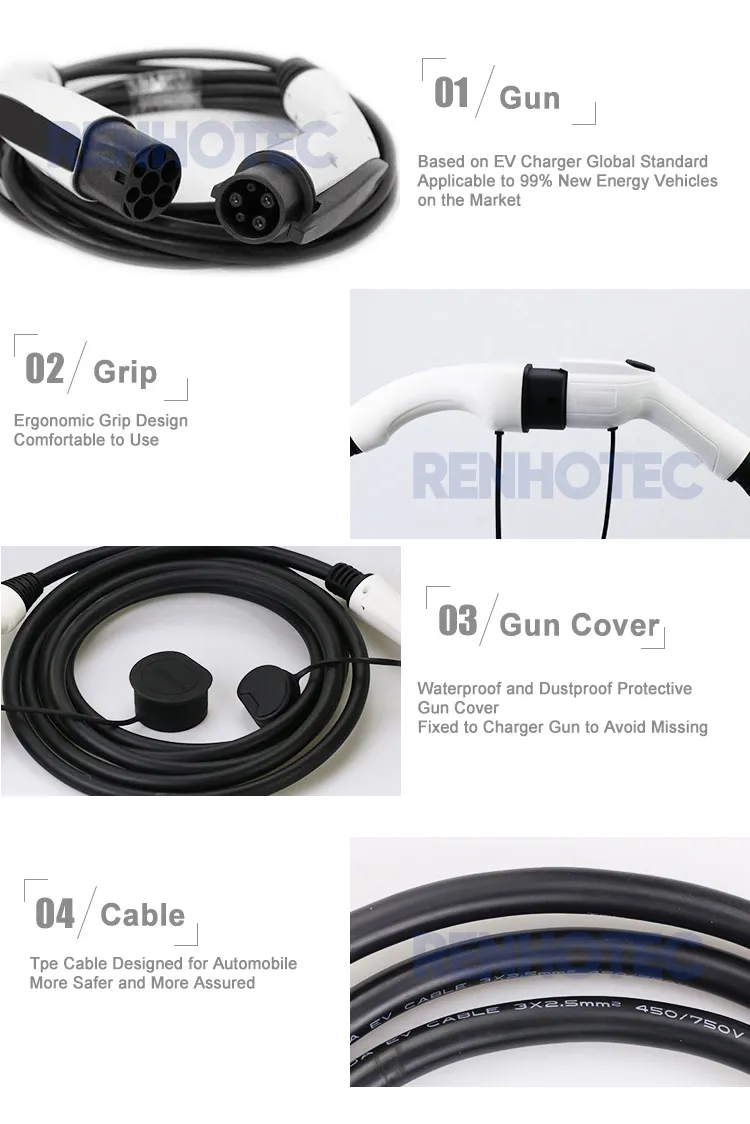

Ergonomic Design: Humanized design with a superior grasp feel and easy-to-use interface.
◈
Advanced Protection: Degree of protection reaches IP55/IP65 with various accessory caps available (damping, metal string).
| Technical Specifications |
| Model Series | GB/T Series / SAEJ1772 / Type1 / Type2 / Cable Assembly |
| Connector Type | Plug / Receptacle / Dummy Socket |
| Charging Type | AC / DC |
| Rated Current | 16A / 32A / 70A / 80A / 125A / 200A / 250A |
| Application | Vehicle End / Power Supply side |
Material & Performance
Shell MaterialThermoplastics (UL94-V0)
Contact MaterialCopper Alloy, Gold-plated
Sealing RingHigh-grade Rubber
Operating Temp.-30ºC to +50ºC
DurabilityExceed 10,000 mating cycles
Insulation Res.≥1000mΩ

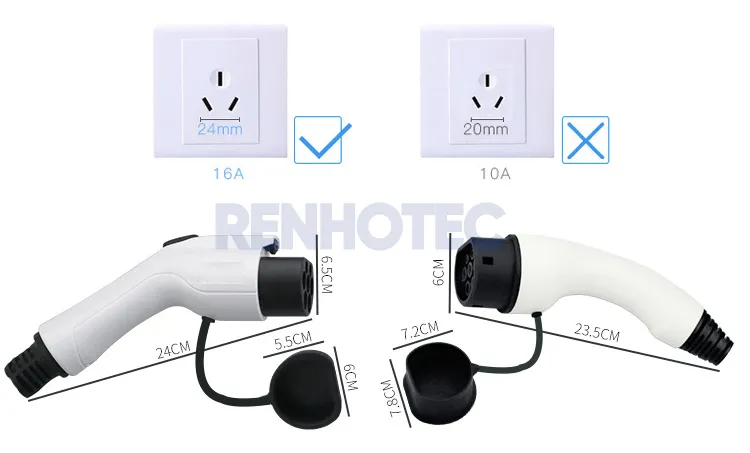

* Note: Sizes are manually measured. Please refer to the actual product.
Frequently Asked Questions
Q1: What is the rated current for this Type 2 male socket?
The socket is available in 16A, 32A, and 63A current ratings to suit different charging power requirements.
Q2: Is this EV charger connector waterproof?
Yes, it has an IP65 or IP55 protection degree, ensuring safety and reliability during charging in various weather conditions.
Q3: What is the mechanical life of the connector?
The connector is designed for high durability, exceeding 10,000 mating cycles in a non-charged state.
Q4: Does it support customized cable lengths?
Yes, we provide standard 5m and 10m cables, but we can also customize the length based on your specific project needs.
Q5: What certifications do these products have?

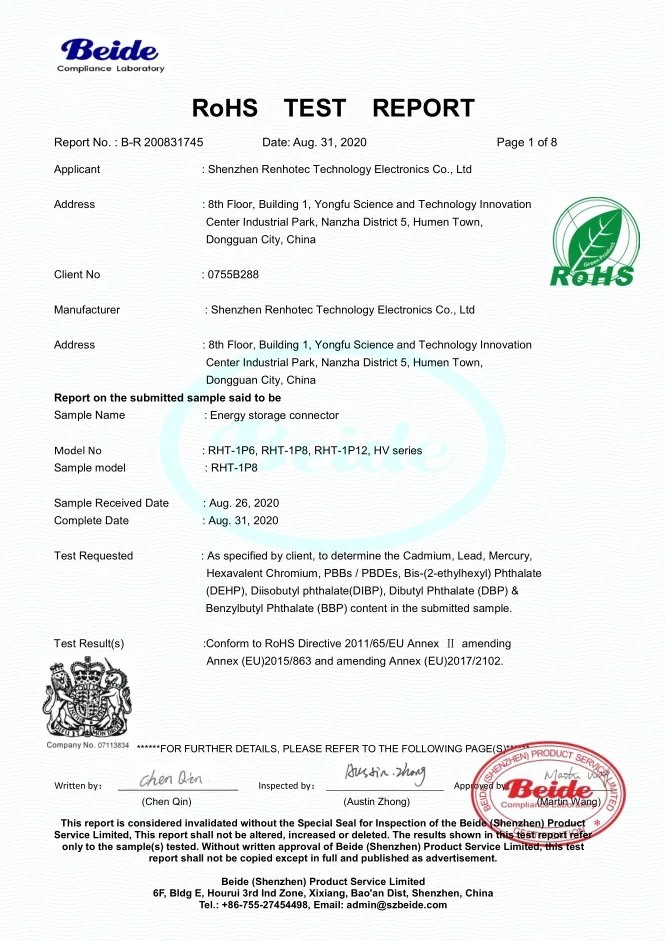

Our products are fully certified with CE, ISO, TUV, and RoHS standards to ensure high quality and international compliance.
Q6: What is the warranty period for the EV charging connector?
We offer a 24-month warranty and provide 24-hour online after-sales support for all our products.
