Model NO.JL-AC-T2-A-22
CertificationTUV, CE
ColorBlack
TypeODM
Power22kw
ConnectionPlug In
OriginChina
Capacity50000 Unit/Year

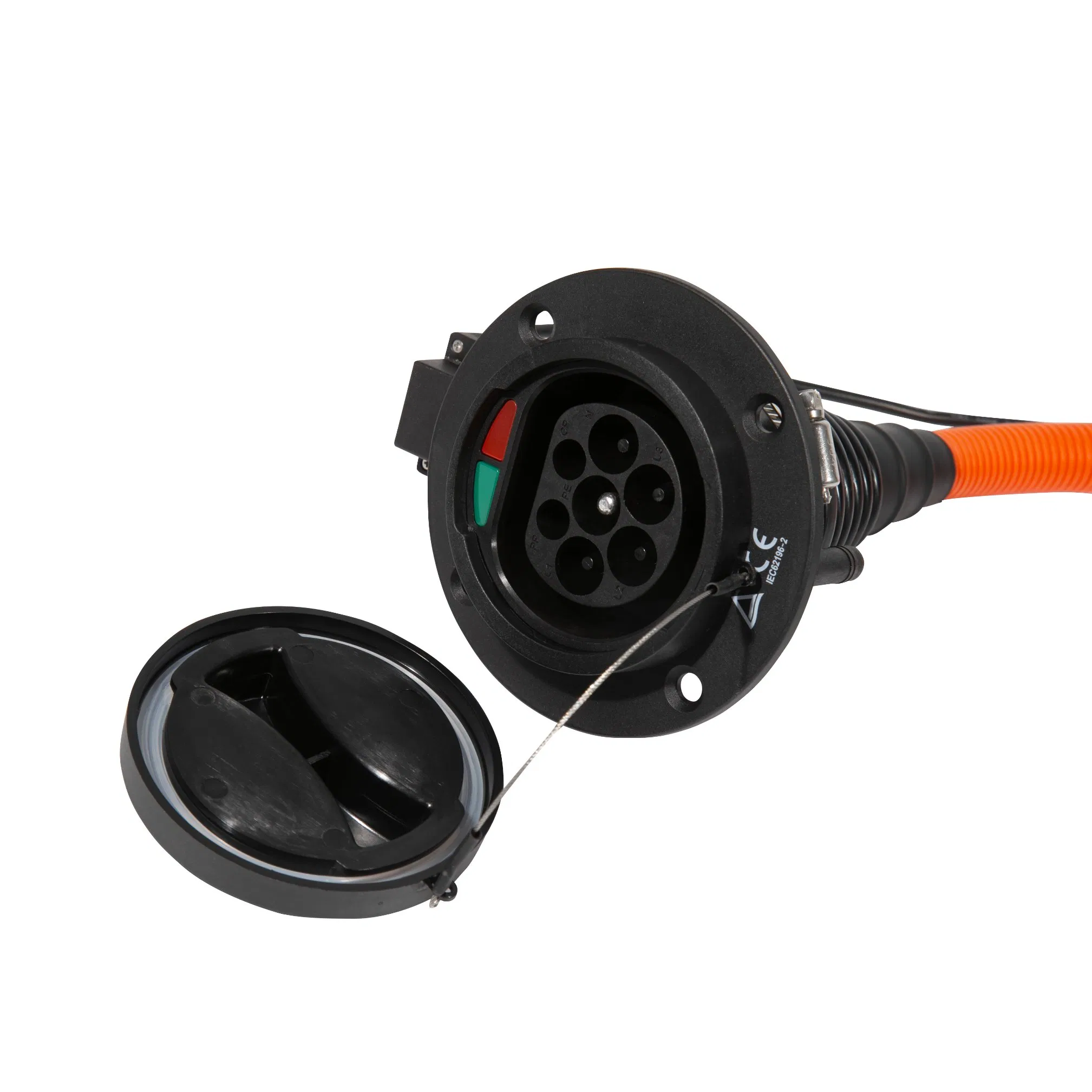

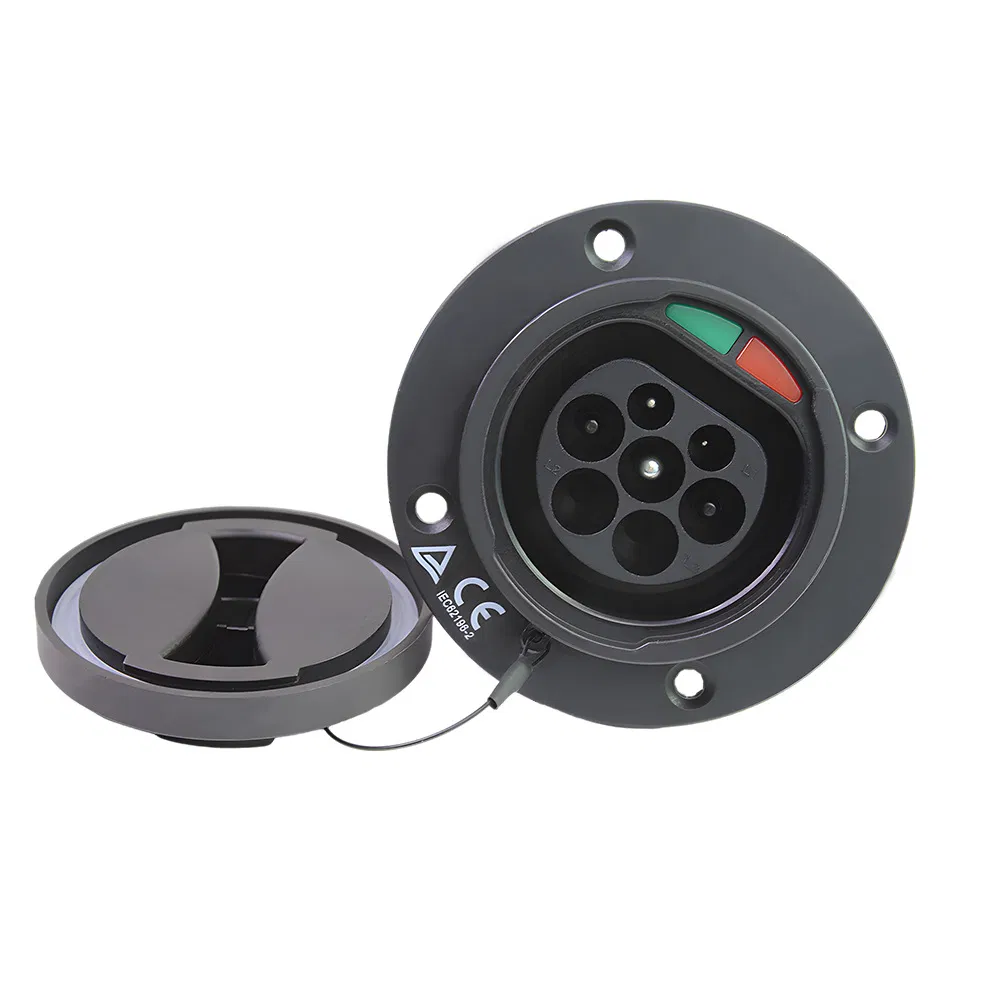

EV charging Socket TYPE 2 male (car-side) | 32A - 22kW | TUV Certified
The type 2 male charging socket is constructed from high-quality thermoplastic and features a UL94 V-0 flammability insulator. It supports charging at a current of 32A, providing a total charging power of 22kW. The socket complies with all requirements outlined in the test and certification for JDQ 53.3 electronic devices. It is also available with an electromagnetic lock bundle for enhanced security.
| Model Number | JL-AC-T2-A-22 |
| Description | EV charging socket inlet |
| Current / Amp | 32 A |
| Voltage | 480V |
| Power Rating | 22kW |
| Plastic Material | PC+ABS (UL94 V-0) |
| Contact Material | 99% pure copper + silver plated |
| Working Temp | -20ºC ~ 55ºC |

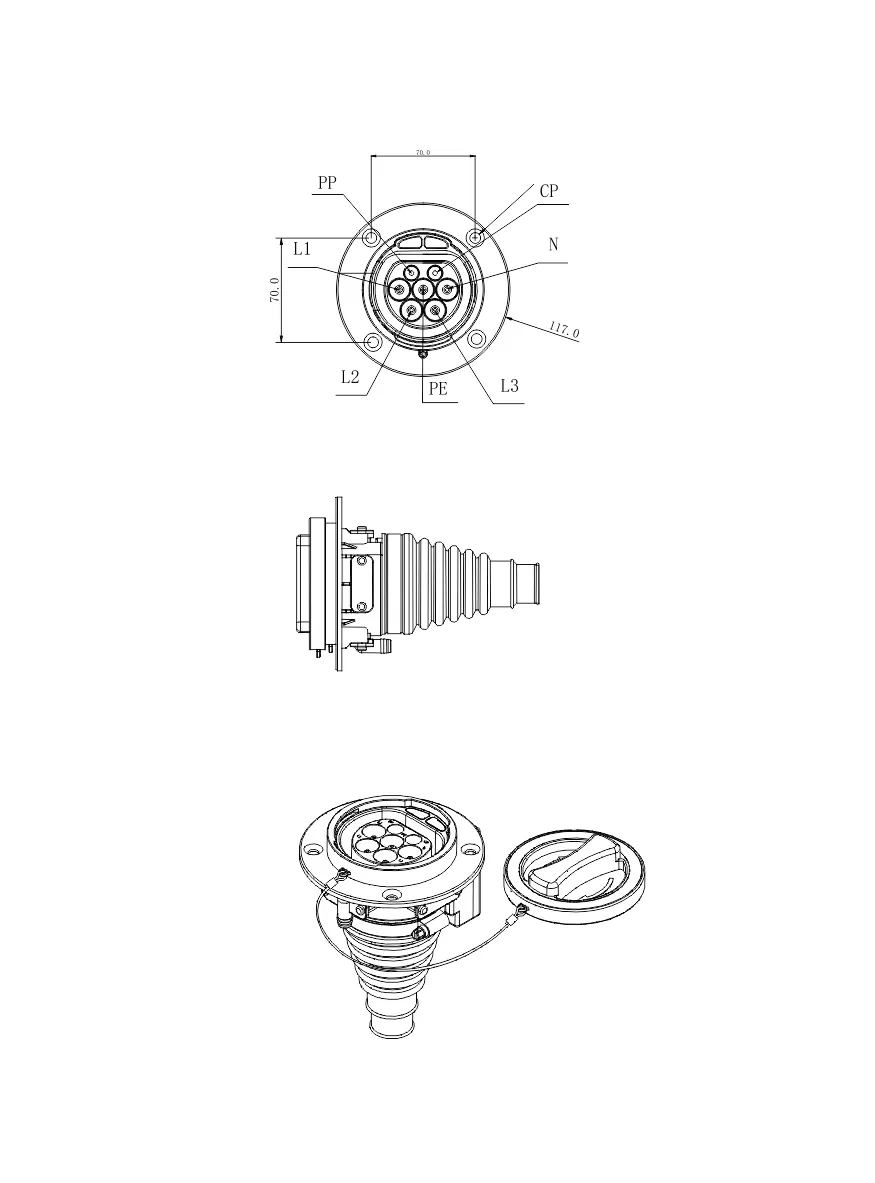

| Dimensions | 130*130*180mm |
| Net Weight | 0.4KG |

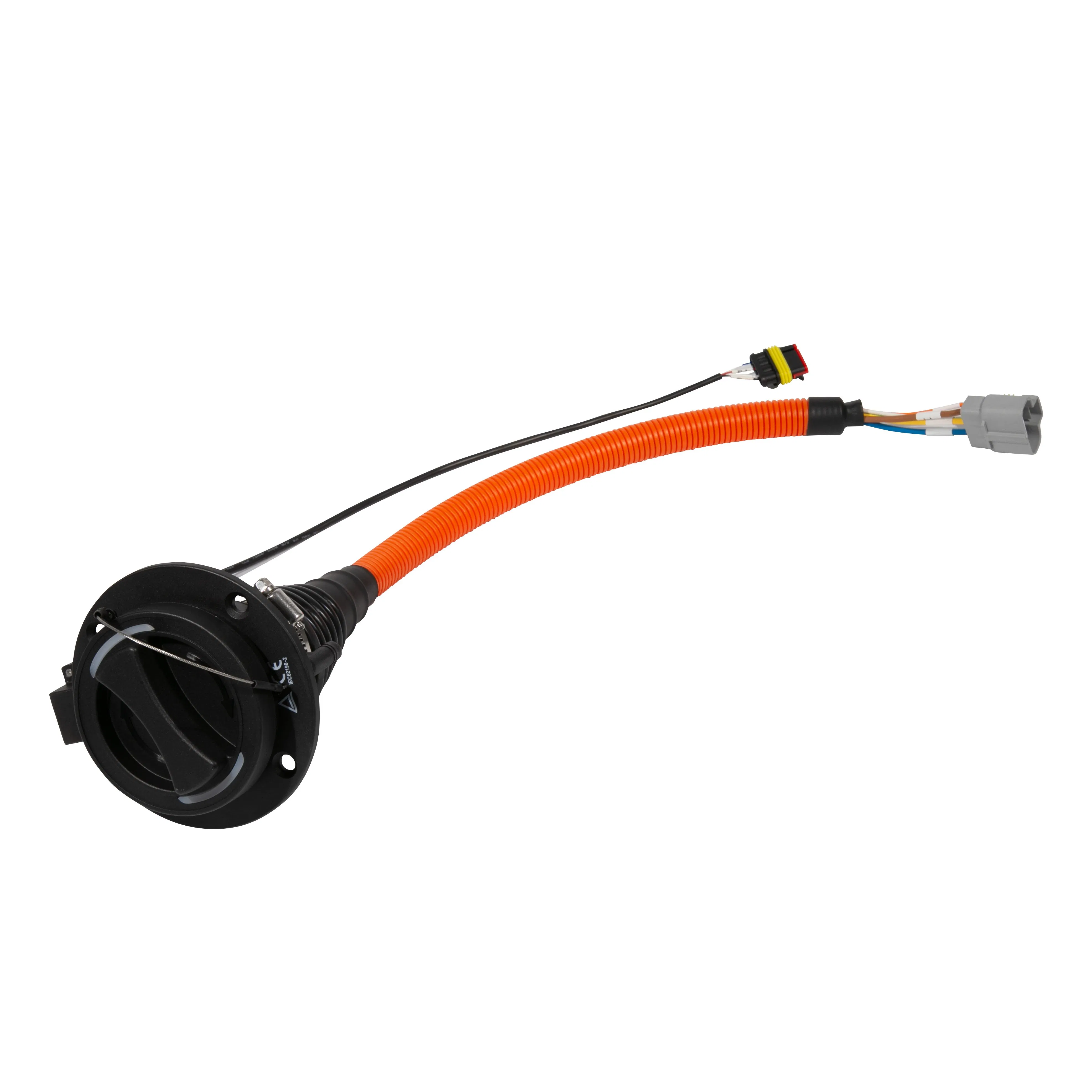

| Cable Connection | Yes, length can be customized |
?
Frequently Asked Questions
What is the maximum charging power of this socket?
This Model JL-AC-T2-A-22 supports up to 22kW charging power at a 32A current rating.
Is this charging socket TUV certified?
Yes, it is fully certified by both TUV and CE, ensuring high safety and quality standards for electric vehicle charging.
What material is used for the insulator and contacts?
The insulator is made of high-quality thermoplastic (PC+ABS) with a UL94 V-0 flammability rating. The contacts are 99% pure copper with silver plating for optimal conductivity.
Does it come with a locking mechanism?
It is available with an optional electromagnetic lock bundle to secure the plug during the charging process.
Can the cable length be customized for this socket?
Yes, the socket is designed to allow cable connection and the length can be customized according to specific requirements.
What are the operating temperature limits?
The socket is designed to operate reliably in a temperature range from -20ºC to 55ºC.
