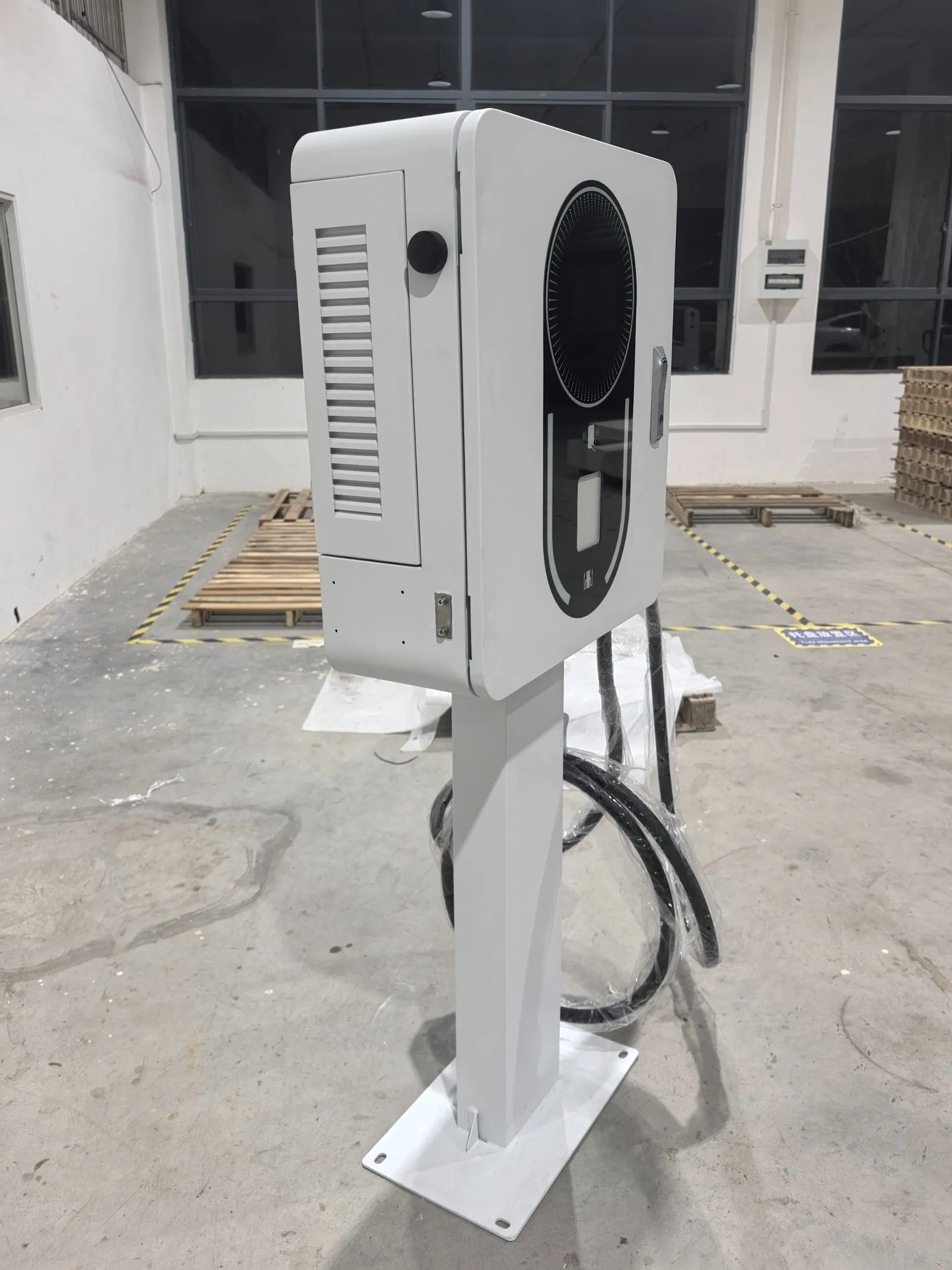

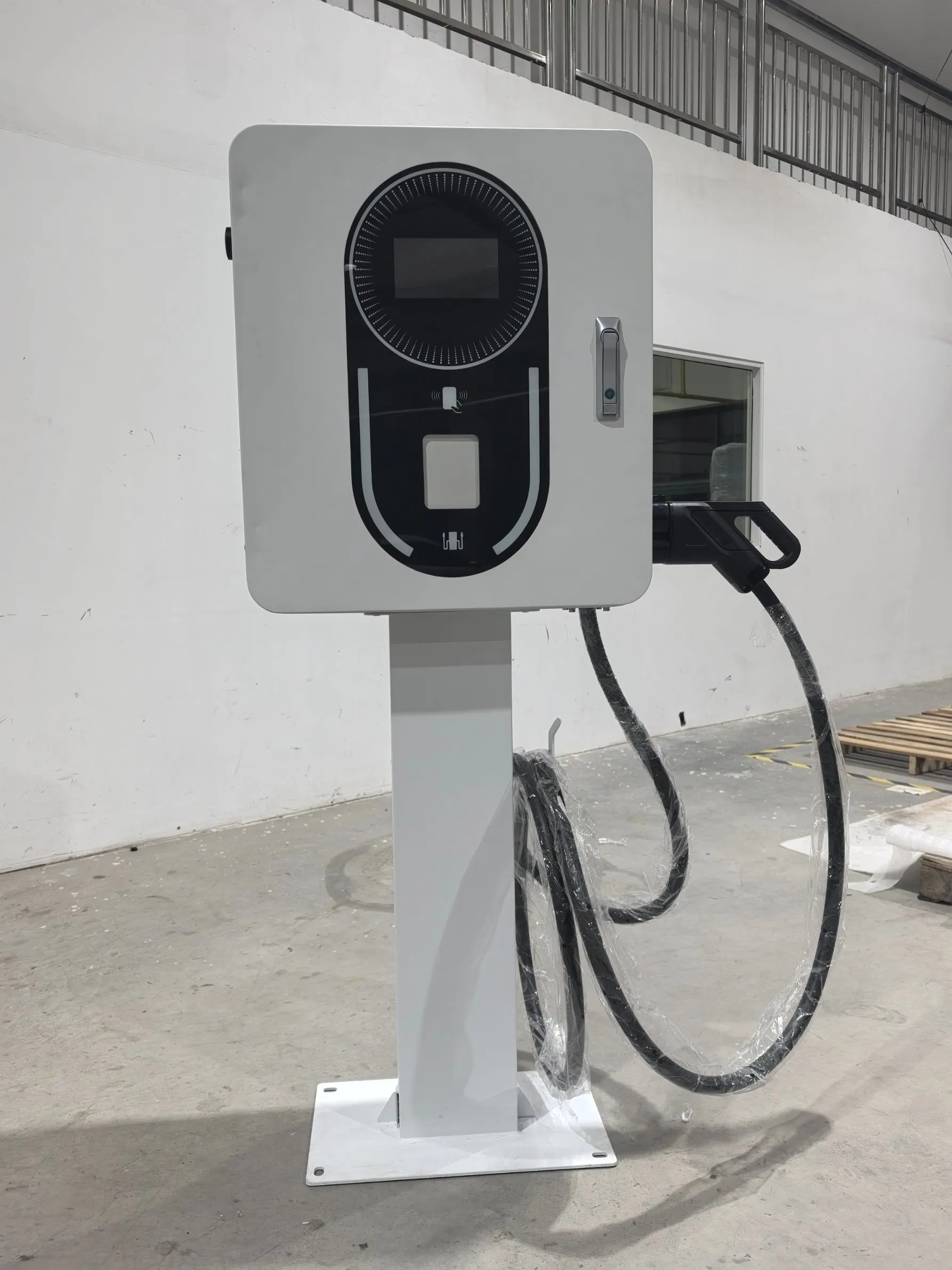

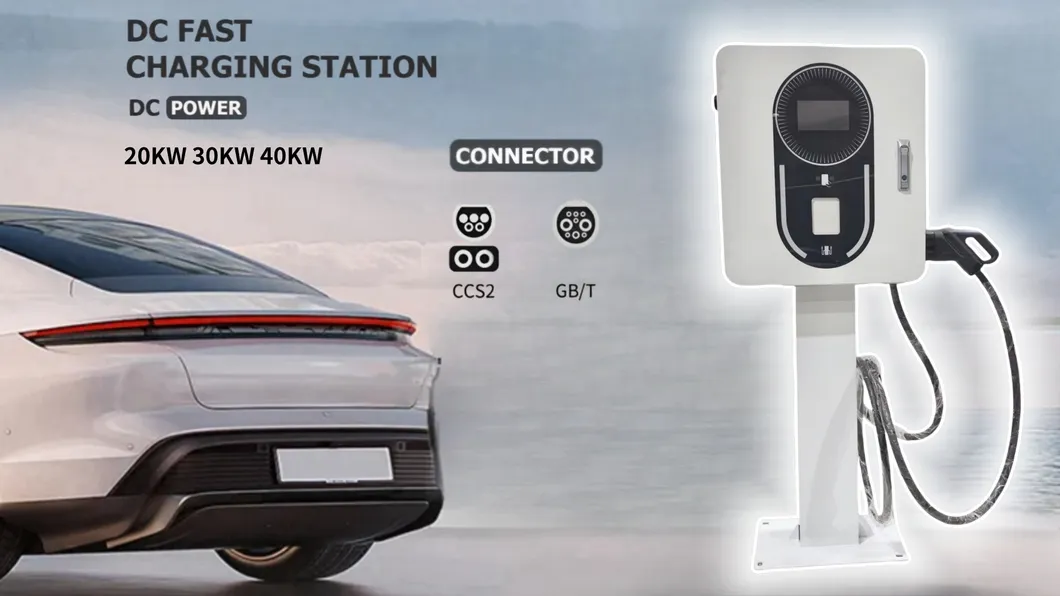

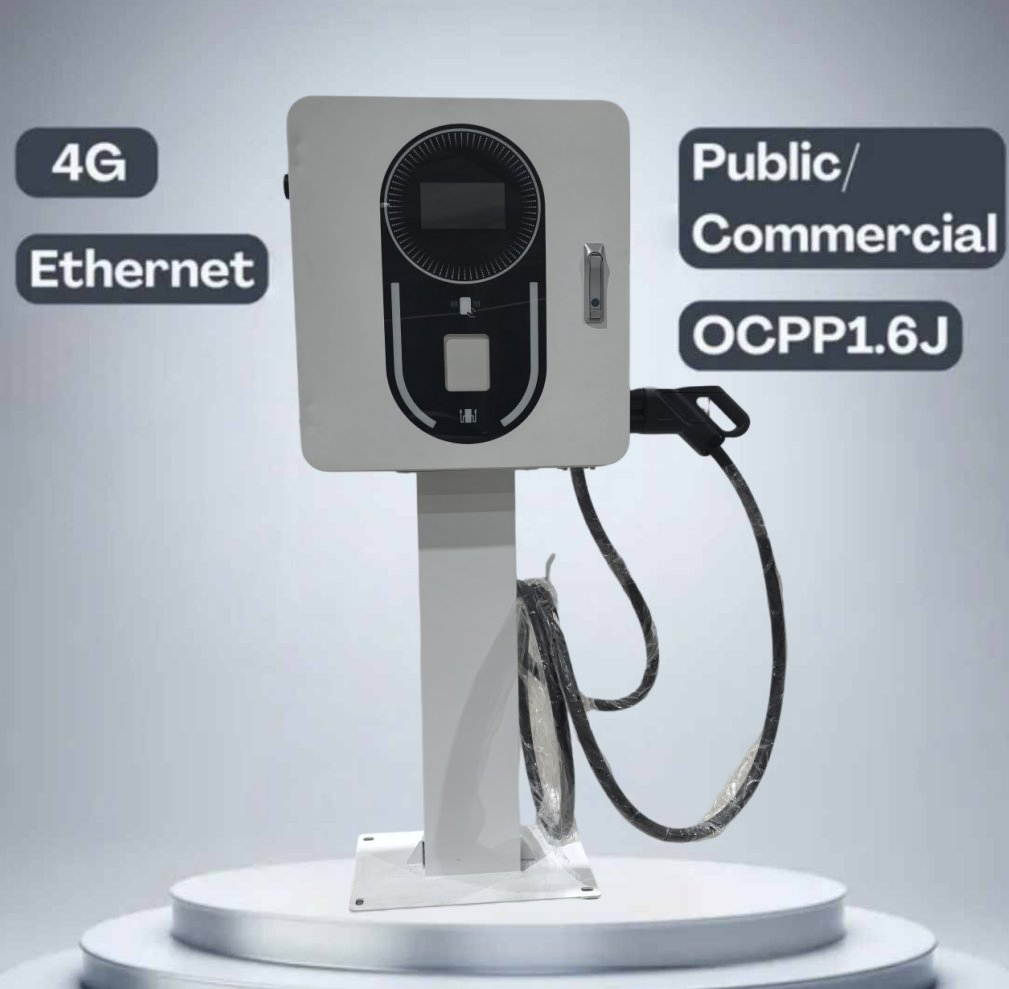

Wall Mounted Commercial Home Use Ocpp1.6 20kw 30kw 40kw Electric Car Battery Fast DC EV Charger Solution

Customization: Available
Connector Type: CCS1, CCS2, CHAdeMO, GB/T
Installation: Wall Mounted

Product Description

Basic Specifications

Model:
20/30/40kw DC EV Charging Station
Location:
Public/Private
Charging Interfaces:
One Pile with One Charge
Start Mode:
RFID, Credit Card, Mobile App
Output Power:
20kw / 30kw / 40kw
Output Voltage:
200V-1000V
Protection Rating:
IP54
Cooling:
Forced Air Cooling
Cable Length:
5 Meters (Customizable)
Network:
Ethernet / 4G

Product Description

Nuclear safety-grade high-power power module platform, offering high safety and reliability. Adopts efficient three-phase PFC circuit with a power factor >0.99 and harmonic distortion rate <5%. The high-frequency module utilizes full-bridge phase-shifting soft-switching technology for high efficiency. Digital flow technology improves accuracy and anti-interference. Pioneering module sleep and rotation technology ensures efficient system operation. Intelligent charging control for easy operation, supporting timed, quantitative, fixed-amount, and automatic charging modes. Real-time display of charging information, with RS-485 and GPRS communication options. Hot-swappable module design for easy maintenance, suitable for working environments from -20 to +50°C.
📊

Technical Parameters

Parameter 20kW Model 30kW Model 40kW Model
Product ModelEVSED29A-1Q EUEVSED43A-1Q EUEVSED58A-1Q EU
User Interface7-inch LCD color display touch screen
Input VoltageAC400V±15%
Output Voltage1000V
Output Current0-125A
Efficiency≥94.5%
Power Factor≥0.99 (Above 50% load)
Safety StandardsIEC/EN 61851, IEC/EN 62196
🛡️

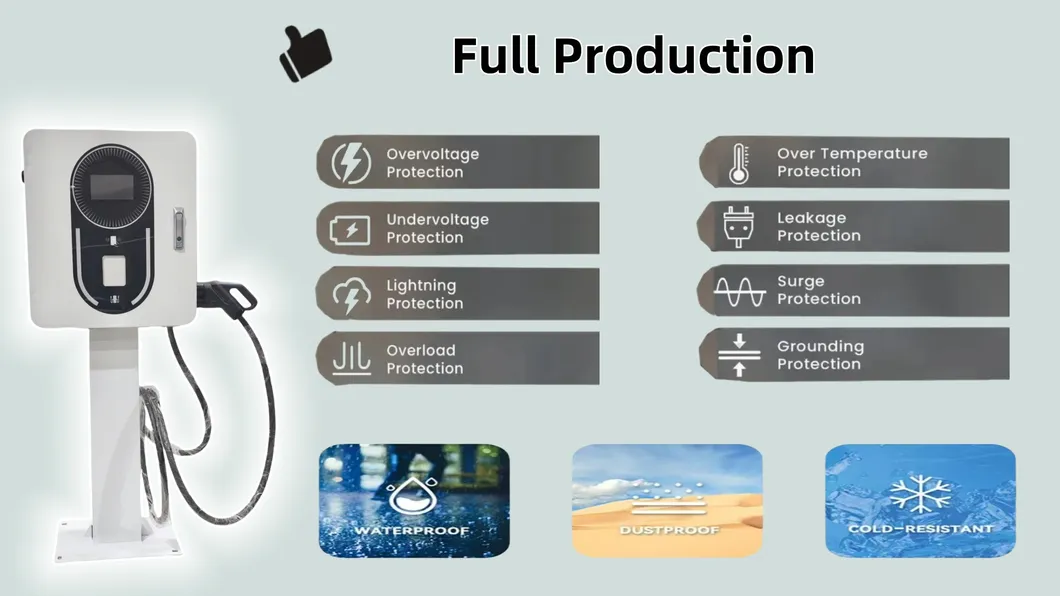

Safety Functions

Overvoltage Protection
Short Circuit Protection
Insulation Monitoring
Lightning Protection
Emergency Stop
Leakage Protection
📦

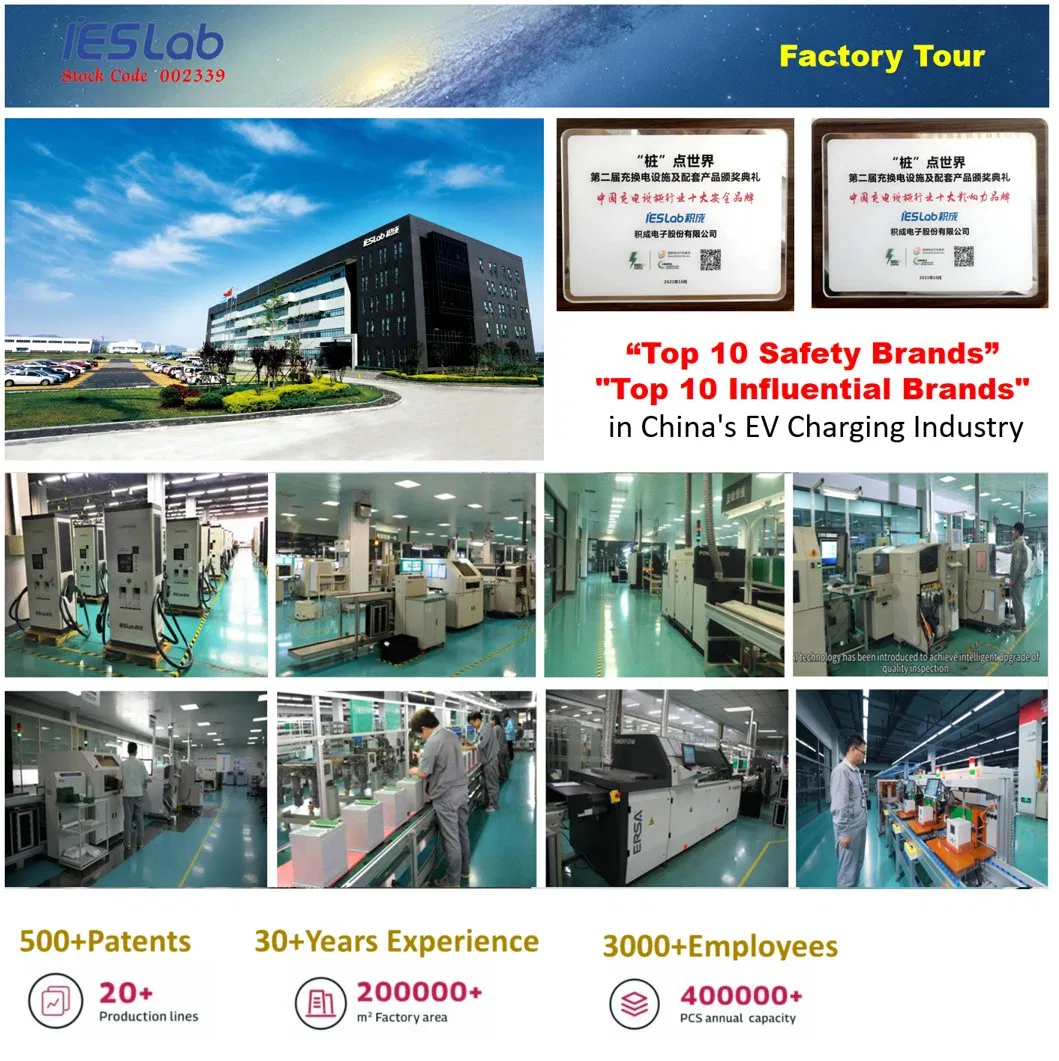

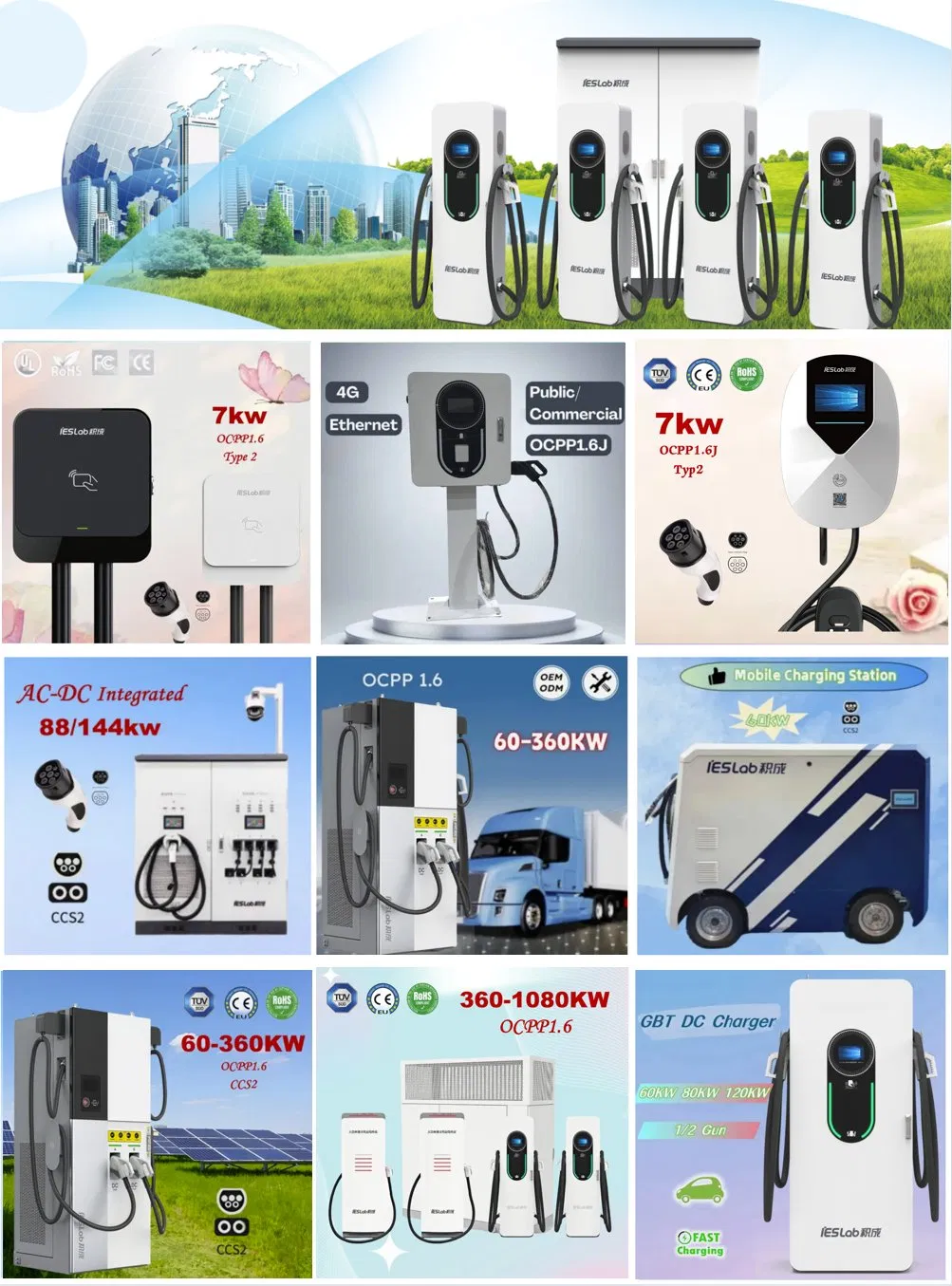

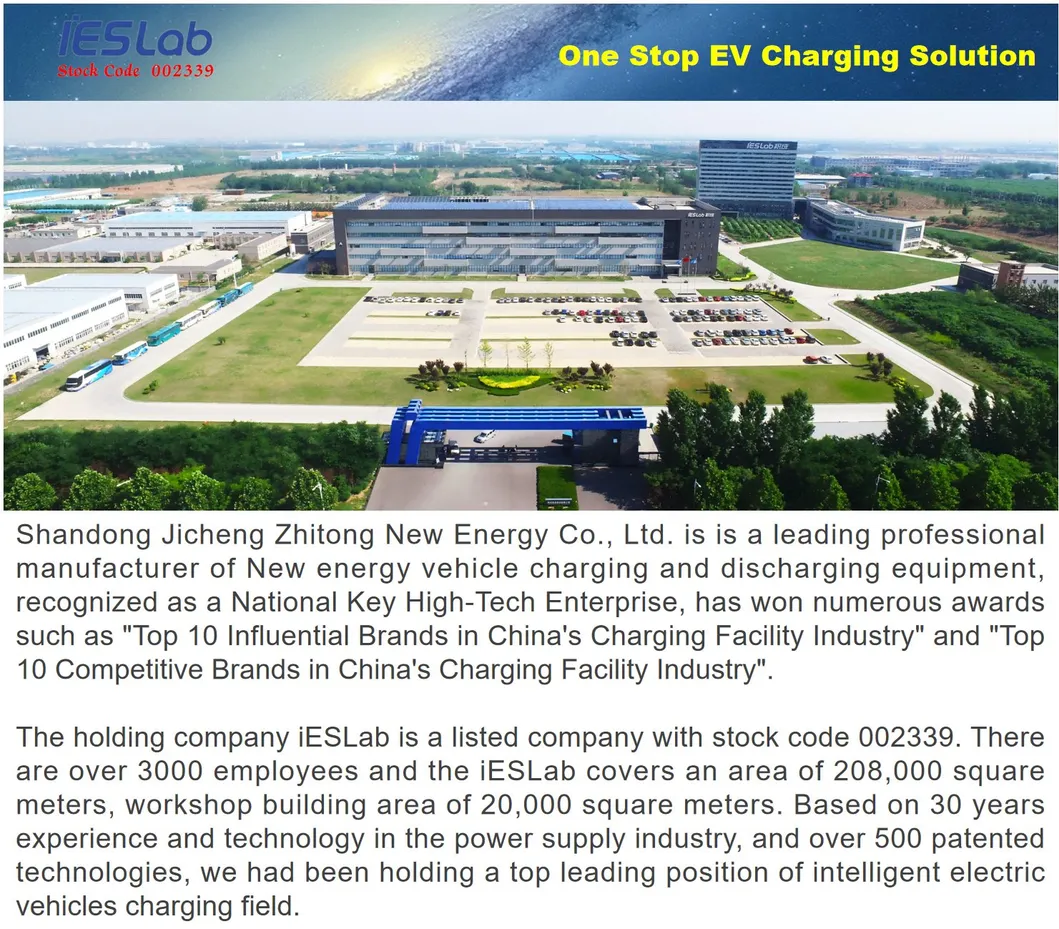

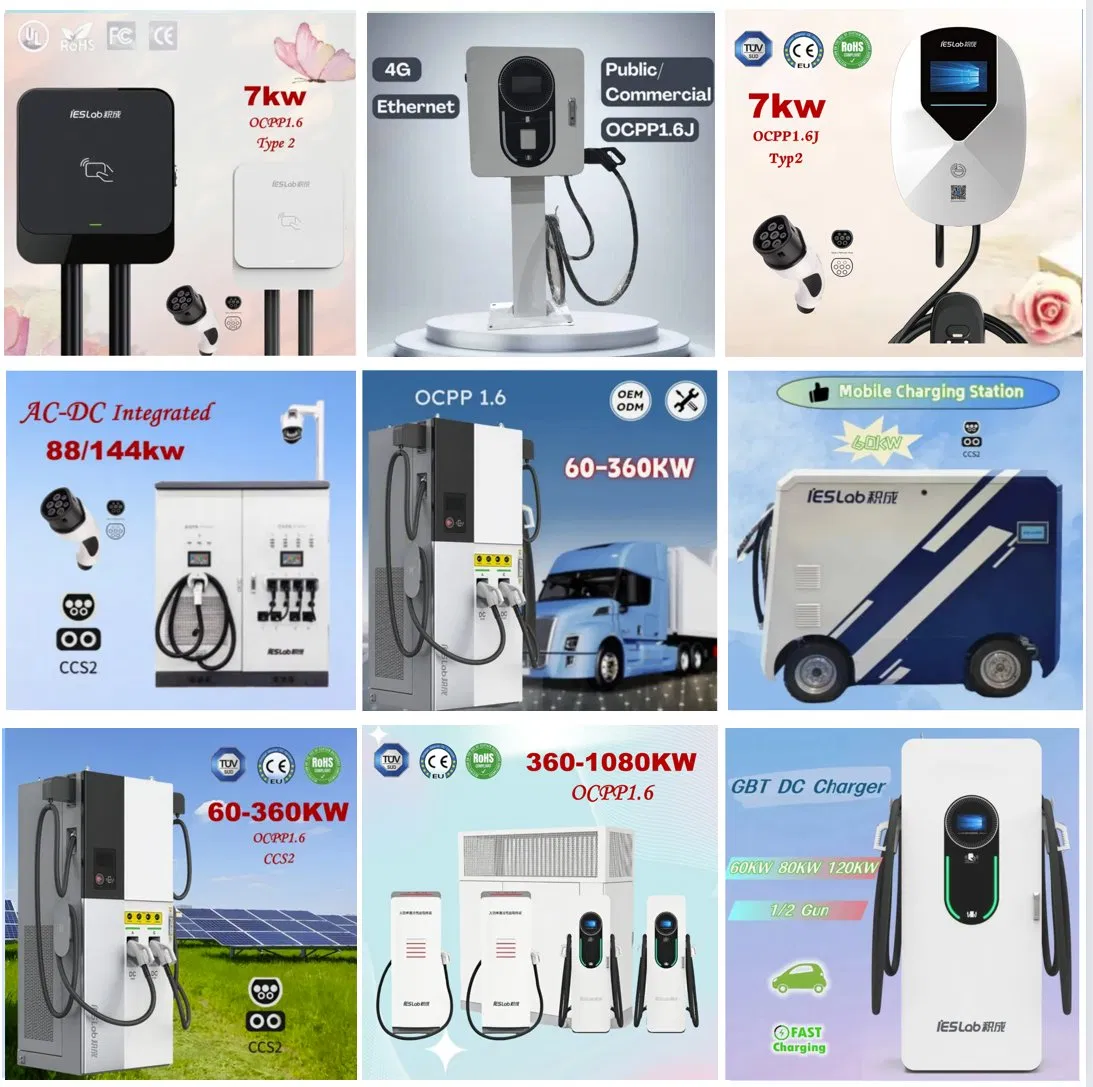

Main Products & Factory

🏅

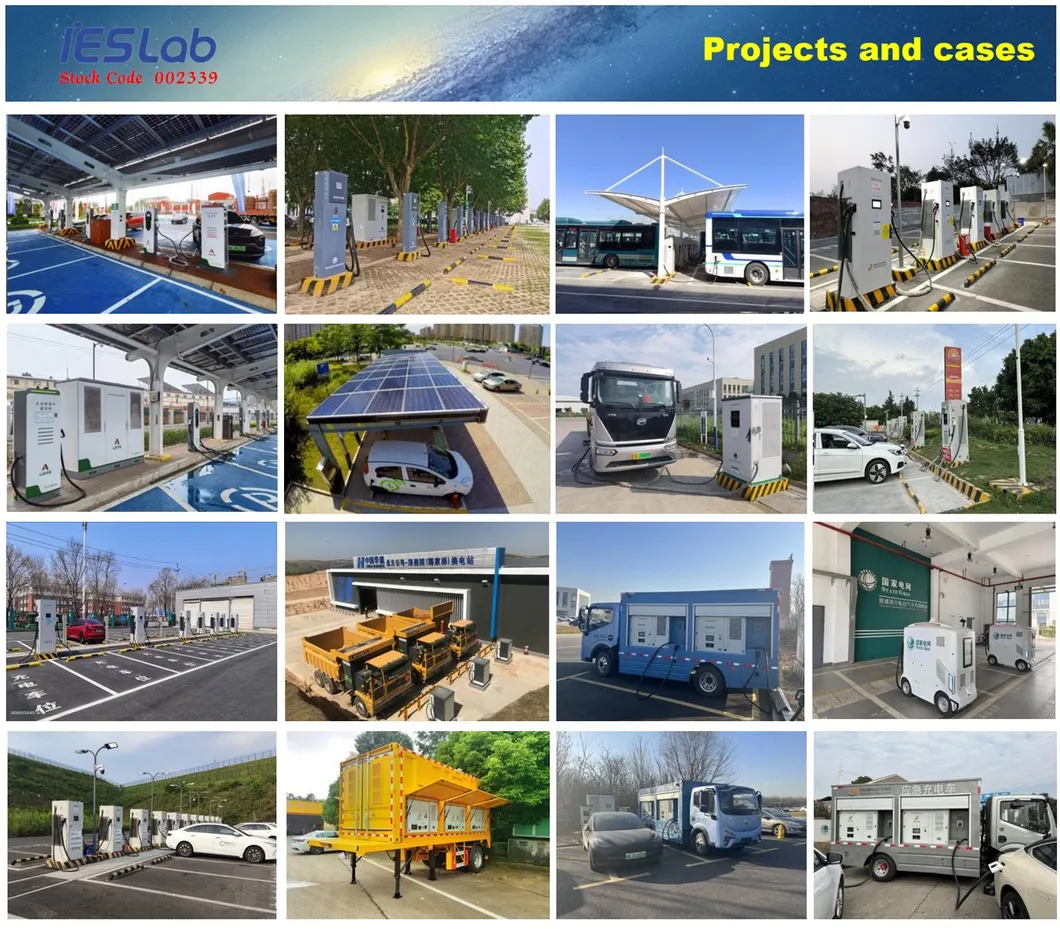

Application & Certifications

Frequently Asked Questions

Are you a manufacturer?
Yes, we are a professional manufacturer with 20 years of R&D and production experience in the EV charging industry.
Is product customization acceptable?
Absolutely. You can customize the appearance, power levels, payment methods, and branding to suit your specific needs.
What is the warranty period for these chargers?
We provide a 2-year warranty. During this period, we offer technical support and replacement parts for any quality-related issues.
Can you produce based on technical drawings or samples?
Yes, we have the capability to manufacture products according to your samples or technical specifications, including creating necessary molds.
Do you test the chargers before they are shipped?
Yes, all major components undergo testing before assembly, and every completed charger is fully tested before shipping to ensure reliability.
Is the charging station installation difficult?
No, our stations feature a modular design for fast and convenient installation. We also provide comprehensive training for installation and usage.
