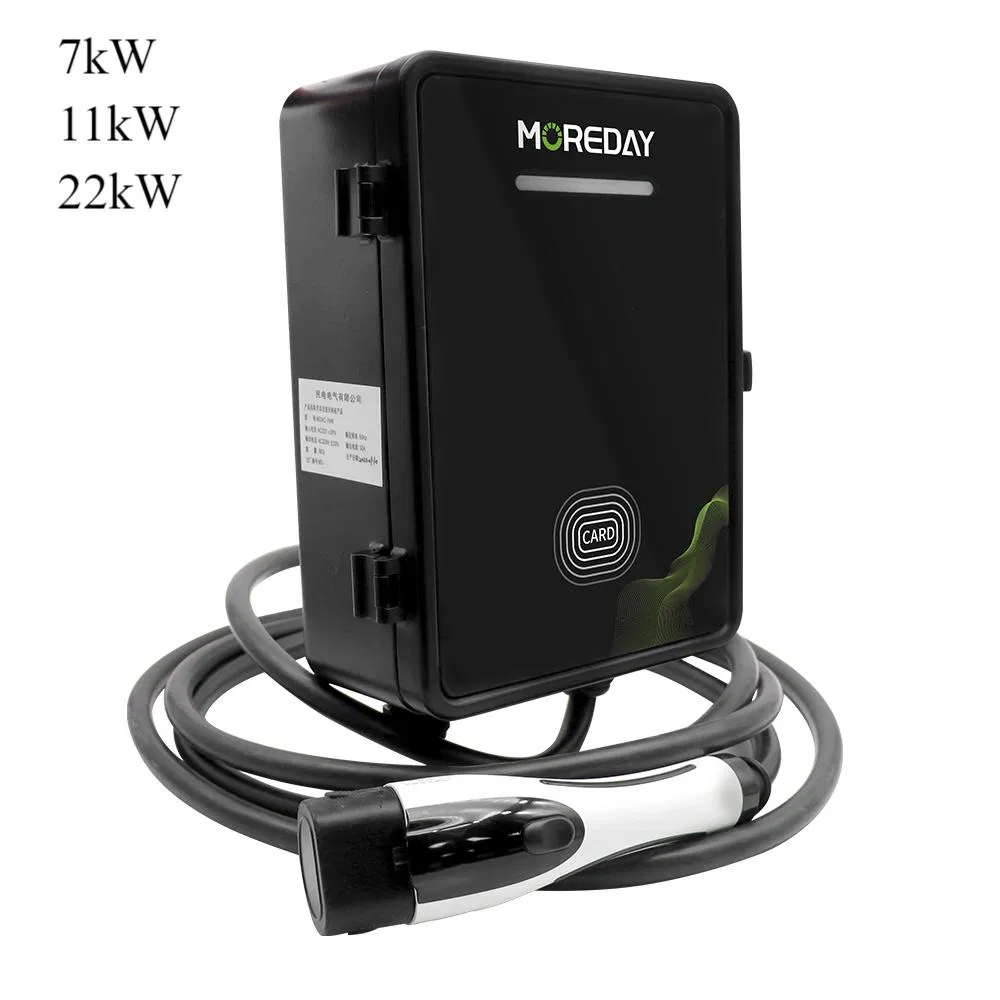

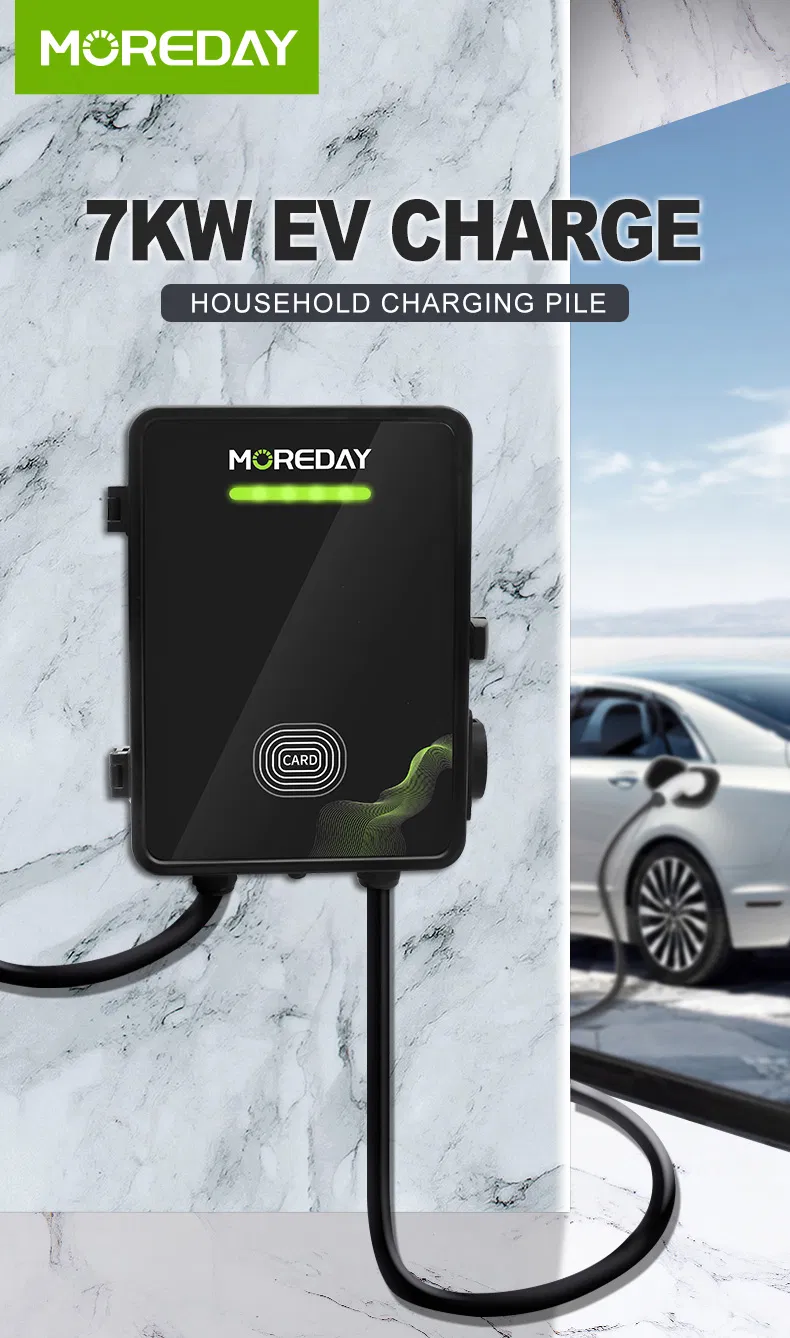

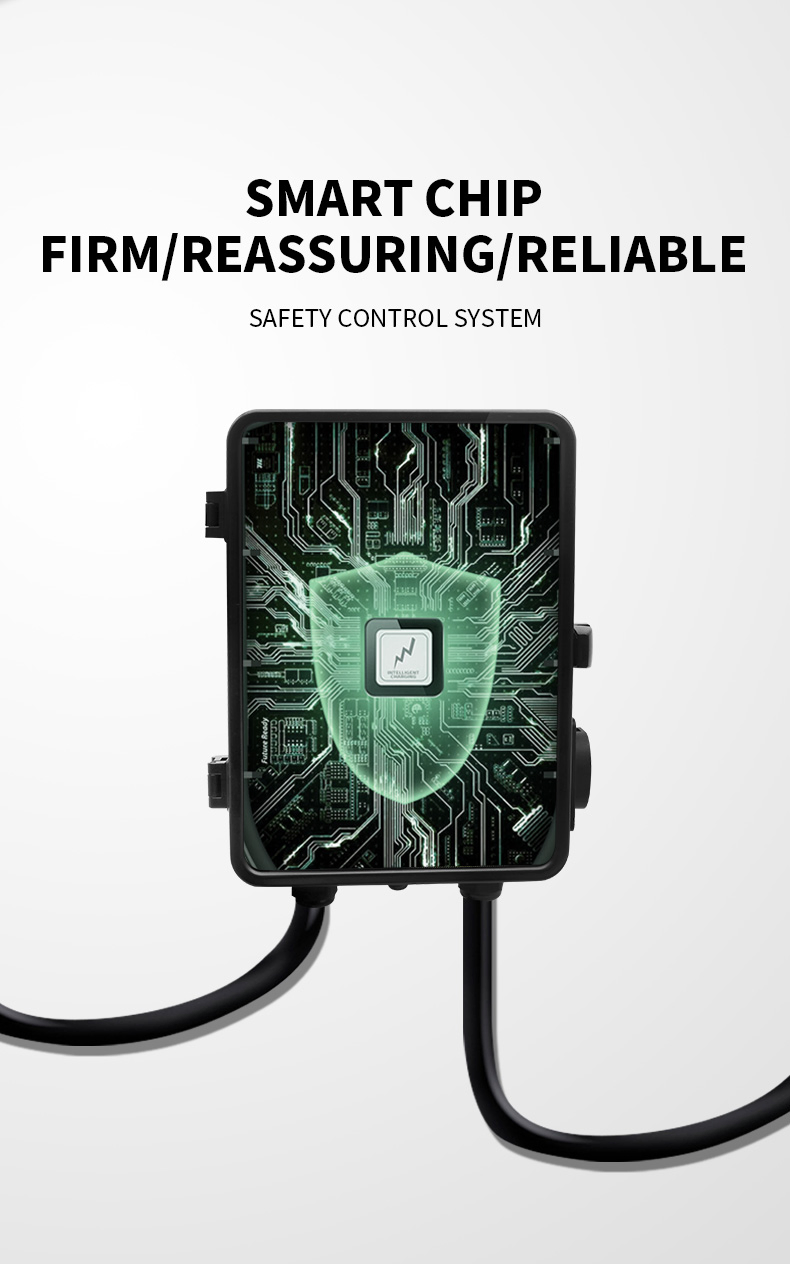

Mode 3 Type 2 Plug 1 Phase 3 Phase 7.4kw 22kw AC Wallbox Electric Car EV Charger Charging Station with WiFi

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Overview - Basic Info

Model NO.
MDAC
Installation
Wall Mounted
Charge Method
Normal Charge
Voltage
220V-230V
Output
220V 32A
Material
Aluminum Alloy
Connector
Type2 Plug or Gbt
Power
7kw
Type
Slow EV Charging Station
Certification
CCC, CE, TUV
Warranty
12 Months
HS Code
8504409999
📦

Packaging & Delivery

Package Size
45.00cm * 40.00cm * 35.00cm
Gross Weight
6.000kg
Transport Package
Carton
💡

Product Description

A wall-mounted electric vehicle (EV) charger is a device that is mounted on a wall and used to charge the battery of an electric vehicle. It typically consists of a charging cable with a plug on one end that is plugged into an outlet, and a connector on the other end that is plugged into the EV. The charger converts the AC power from the outlet into DC power, which is used to charge the EV battery.

Wall-mounted EV chargers are generally more convenient than portable chargers, as they are permanently installed and do not need to be carried around. They are also typically more powerful, with higher charging speeds, and can charge an EV battery much faster than a portable charger.

There are various types of wall-mounted EV chargers available, with different levels of power and charging speeds. Some are designed for use in residential settings, while others are intended for commercial or public use. Most wall-mounted EV chargers can be installed by a qualified electrician, and may require additional electrical wiring or modifications to the electrical system in order to be installed properly.

📊

Technical Parameters

Category Parameter Specification
Structure Size(mm) 350(H)*240(W)*95(D)mm
Installation Wall-mounted / Floor-standing
Charging Cable 5M Standard (Customizable to 7.5m/10m)
Weight 8.0kg (Including charging gun)
Electrical Input Voltage AC220V±20% / AC380V±10%
Power Rating 7KW / 11KW / 22KW Optional
Output Current 7KW:32A | 11KW:3*16A | 22KW:3*32A
Frequency 45~65HZ
Operating Conditions Temperature -40~+65ºC
IP Grade ≥IP55
Altitude ≤3000m
📷

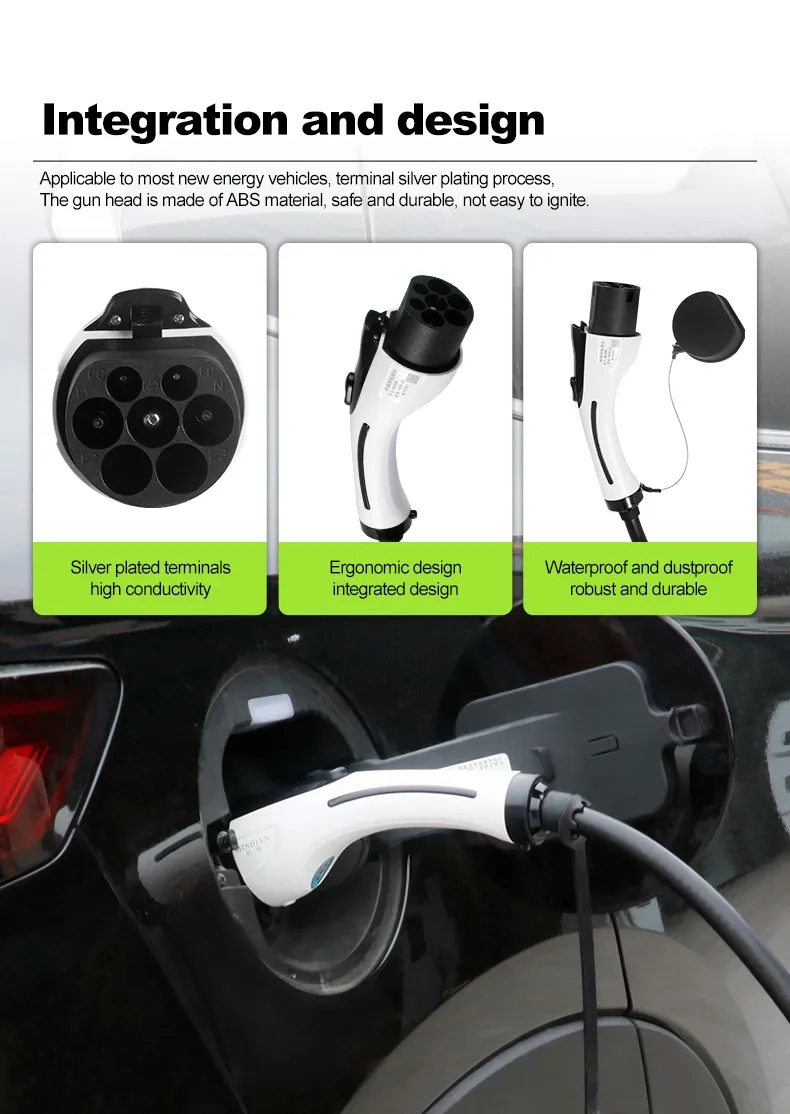

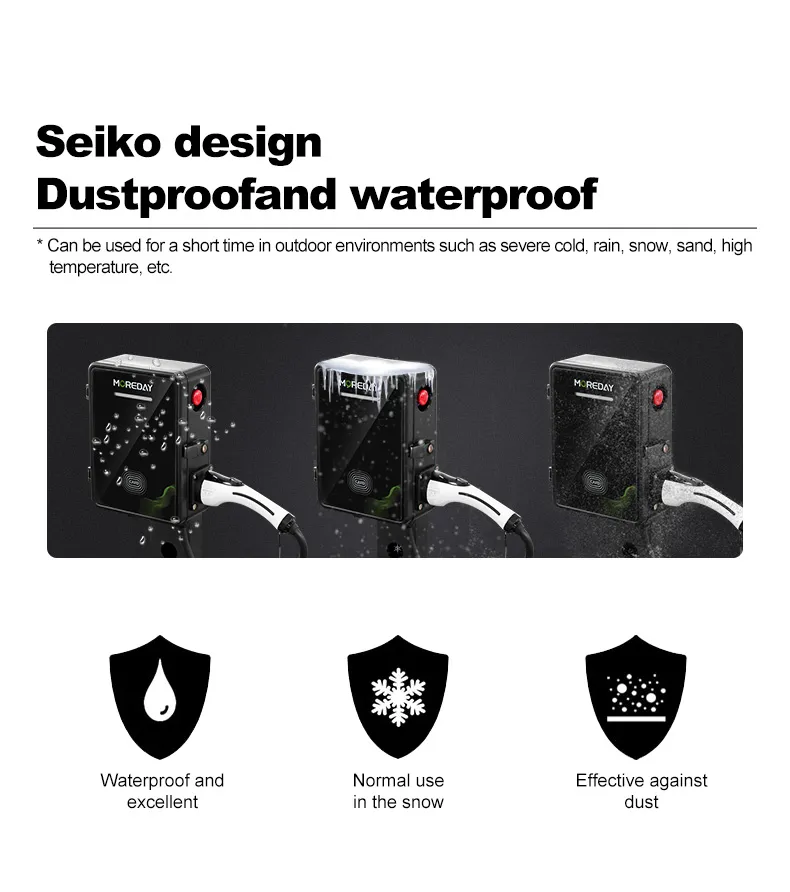

Detailed Photos

📜

Certifications

Safety Certifications

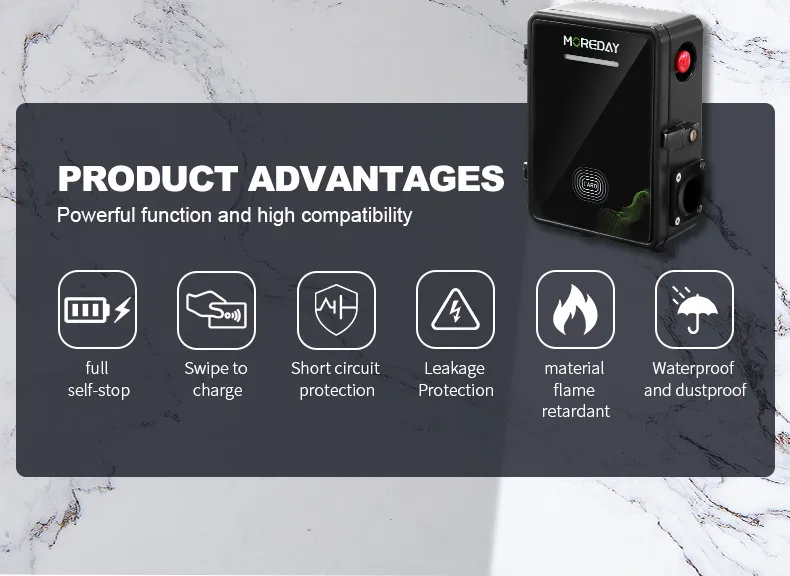

Our Advantages

🏭

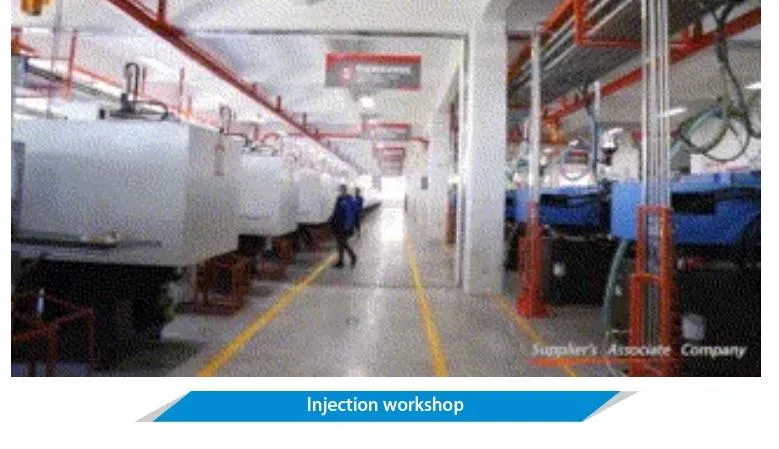

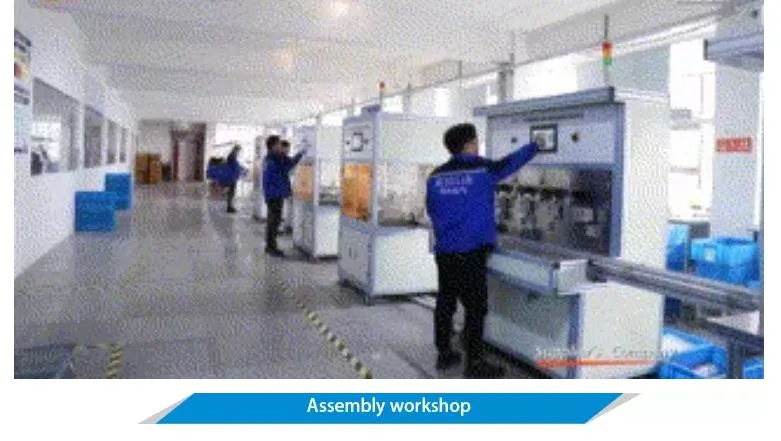

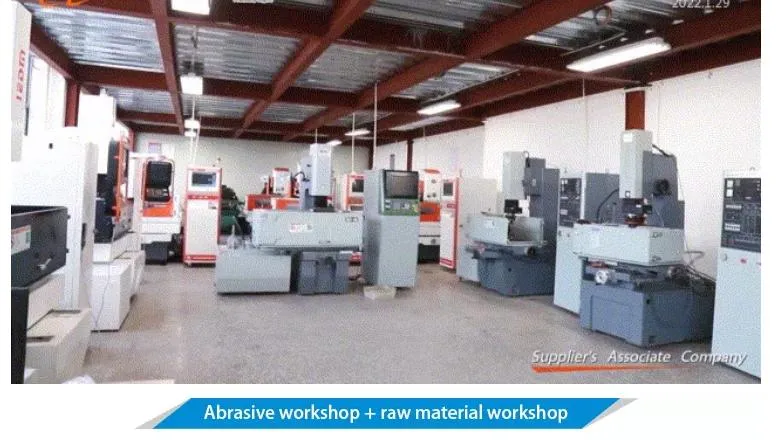

Production Display

Frequently Asked Questions

Can you provide samples for testing?
Yes, we can provide samples for checking and quality verification for all clients.
How long is the typical delivery time?
Samples usually take 1-2 days, small orders 3-5 days, and mass production orders approximately 7-10 days depending on quantity.
What safety certifications do your chargers hold?
Our products are fully certified with CE, CB, TÜV, SAA, and CCC standards to ensure global safety compliance.
Are these chargers suitable for outdoor installation?
Yes, with an IP55 or higher rating and UV resistance, our chargers are designed to operate reliably in both indoor and outdoor environments.
Do you support OEM or custom branding?
We accept OEM business and can customize products with your branding given the appropriate authorization.
What kind of after-sales support do you offer?
We provide necessary spare parts and our English-speaking technical team offers comprehensive online support for any operational queries.
