Product Description

i

Basic Information

Model NO.WY-PCU
Mathematical ModelLinear
SignalContinuous
FunctionControl, Protection, Monitoring
CertificationRoHS, ISO: 9001
ConditionNew
MaterialAluminum Alloy
Rated VoltageDC12V
Operating Temp.-40℃ ~ +80℃
Capacity50,000 pieces/Year
★

Product Description

WY-PCU: Core Management and Coordination Unit in DC Charging Controllers
The PCU module serves as the core management and coordination unit within the DC charging controller, functioning as the "nerve center" of the entire charging system. It primarily handles critical tasks such as high-voltage DC contactor control, communication with charging modules, and thermal management system control, ensuring safe, efficient, and stable charging operations.

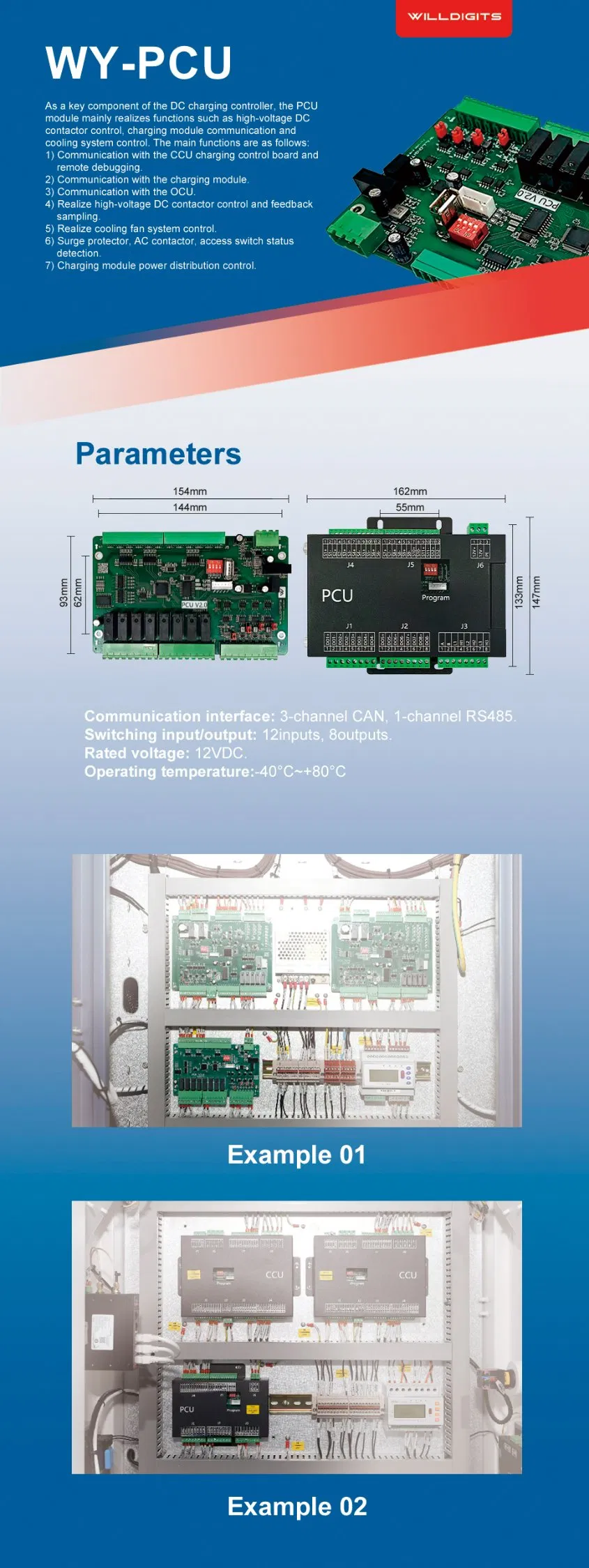

Power Control Unit Overview
PCU Detail 1
PCU Detail 2
Key Functions:
1) Real-time communication with charging control boards for remote debugging and upgrades.
2) Efficient data exchange with charging modules for voltage and current monitoring.
3) Integration with Operator Control Units for user feedback and interaction.
4) Control of high-voltage DC contactors with real-time diagnostic sampling.
5) Intelligent thermal management by adjusting cooling fan speeds.
6) Continuous monitoring of surge protectors and AC contactor signals.
📋

Technical Specification

Dimensions (L x D x H)154mm x 93mm x 30mm
Shell Dimensions162mm x 147mm x 40mm
Weight0.5kg
Connectors SupportedGBT, CCS2, CCS1, CHAdeMO, NACS
Rated Voltage12VDC
I/O Channels12 inputs, 8 outputs
Communication1-channel RS485, 3-channel CAN
Humidity Range≤ 95% RH (Non-condensing)
Spec Image 1
Spec Image 2
Spec Image 3
▶

Production Showcase

✔

R&D and Capabilities

As a high-tech enterprise dedicated to providing comprehensive energy solutions, we consistently prioritize technology as our foundation. The R&D team constitutes over 50% of our workforce, with core members possessing over 10 years of experience in the new energy sector.
R&D Center
Production Line
Support for OEM/ODM manufacturing is a key strength. Our energy storage and charging products are exported globally, including to the United States, Germany, India, and South Korea, providing sustainable energy transitions for users worldwide.
📦

Packing & Certifications

Packing Process
Warehouse
Certification
?

Frequently Asked Questions

Q1. Are you a factory or trading company?
We are a professional manufacturer of new and sustainable energy applications for over 5 years.
Q2. What is the warranty period?
12-60 months. During this period, we supply technical support and free replacement parts.
Q3. What are your terms of packing?
We use standard wooden box packaging and standard carton packaging for safe transit.
Q4. How about your delivery time?
Generally, it takes 5 to 25 working days after receiving payment, depending on the order quantity.
Q5. Do you test all goods before delivery?
Yes, we conduct 100% testing on all products before delivery to ensure quality.
Q6. What's the difference between Movable and Wallbox Chargers?
Portable chargers are for mobile use and temporary top-ups, while wallbox chargers are fixed for permanent installation.
