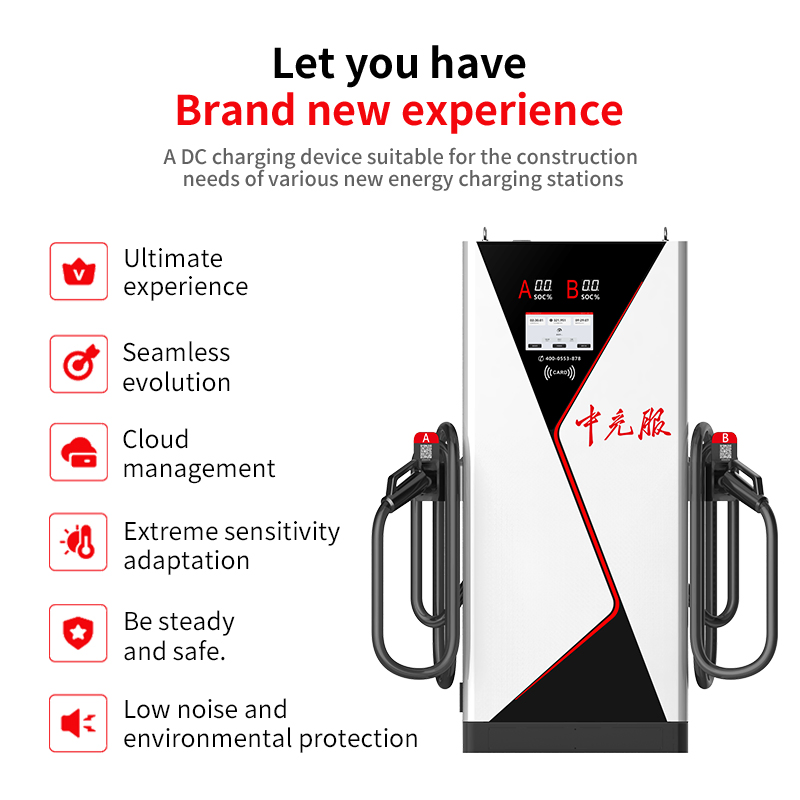

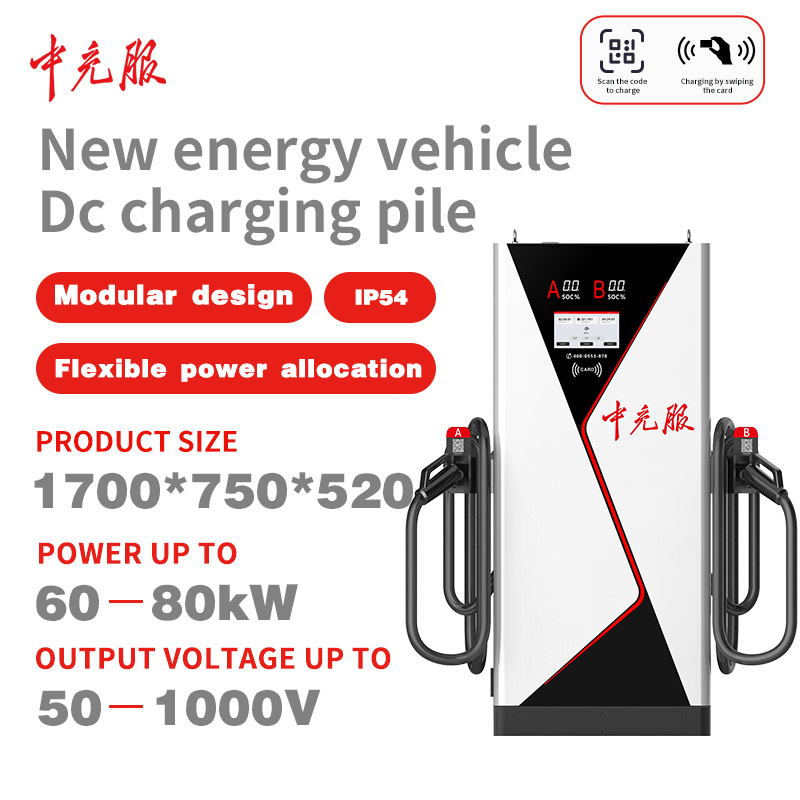

Zap Charger
1 / 5
| Model NO. | ZCF DC / Zcf300K4060 II |
| Location | Public Use |
| Charging Interfaces | One Pile with Multiple Charges |
| Start Mode | Mobile Remote Operation, RFID Authentic |
| Charge Method | DC Charger |
| Total Power | 60-80 kW |
| Certification | CE, ISO9001, ISO14001, ISO45001 |

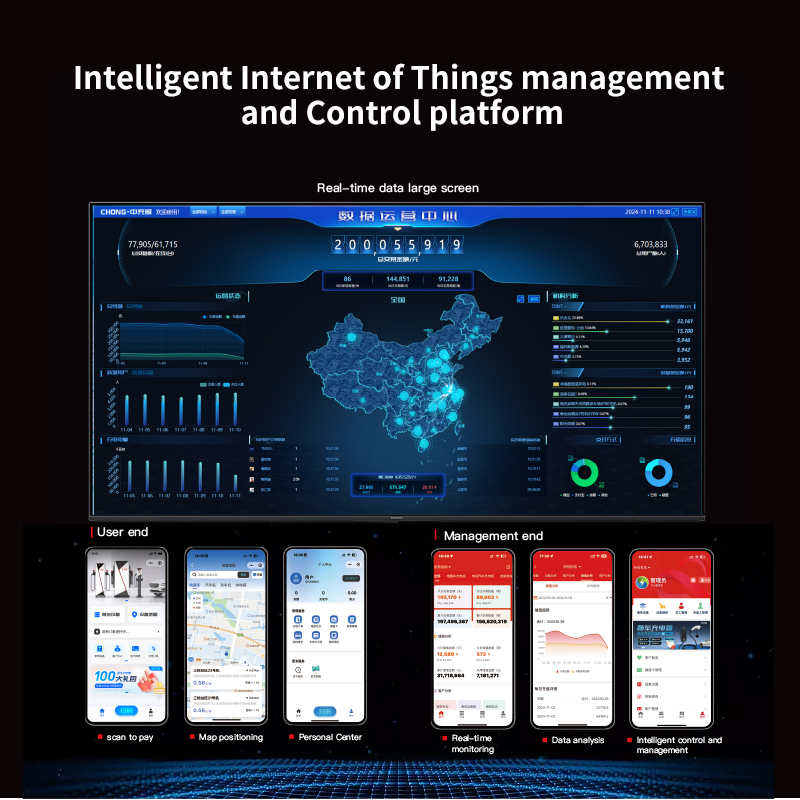

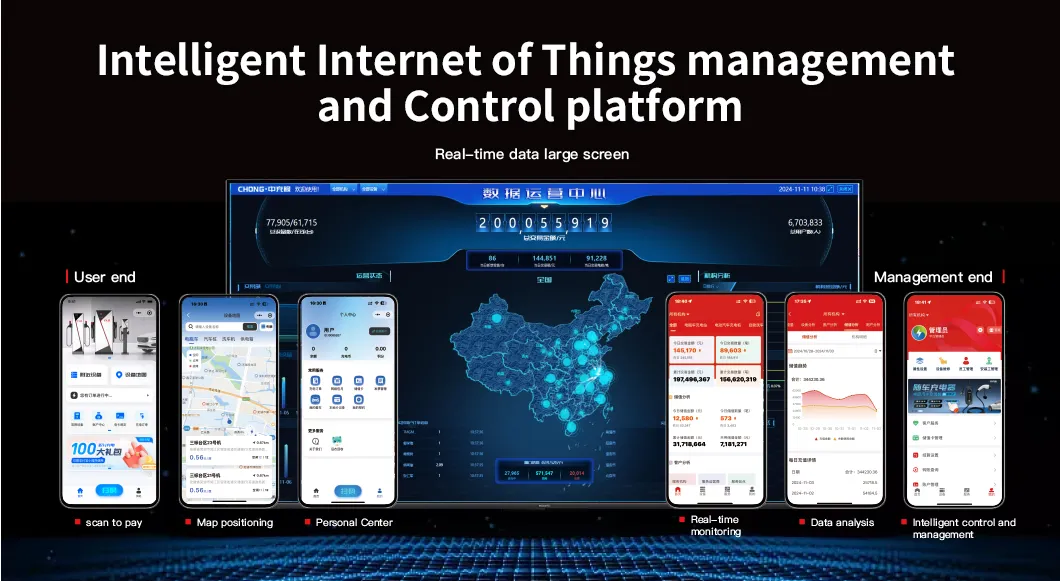

| Communication | 4G, Bluetooth, WiFi |
| IP Class | IP 54 |
| AC Input Voltage | 380V(-25%, +25%) AC |
| Output Voltage Range | 50-1000V DC |

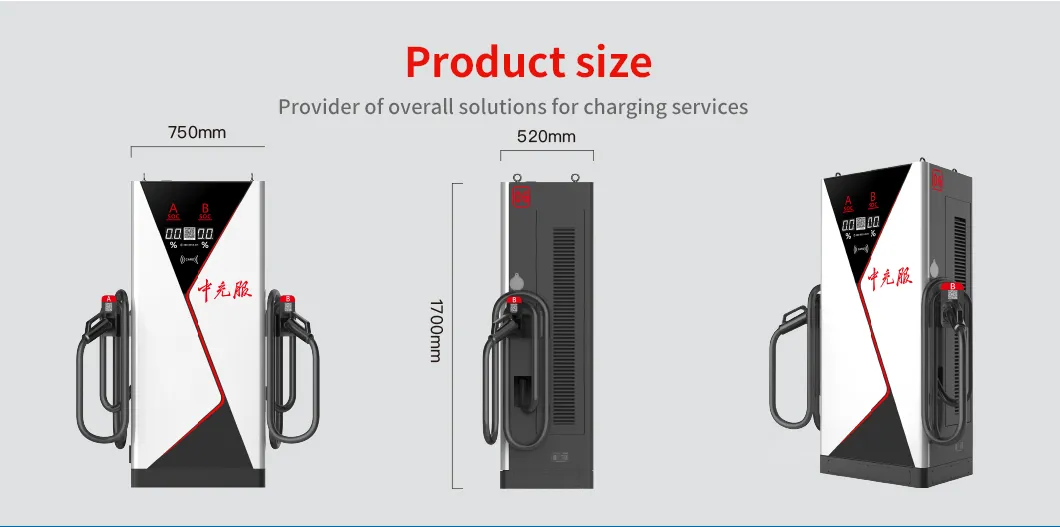

| Appearance Size | 706(W) X 496(D) X 1696(H) mm |

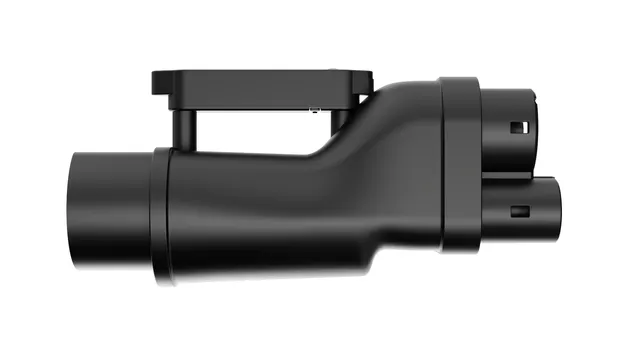

DC charging pile adapter

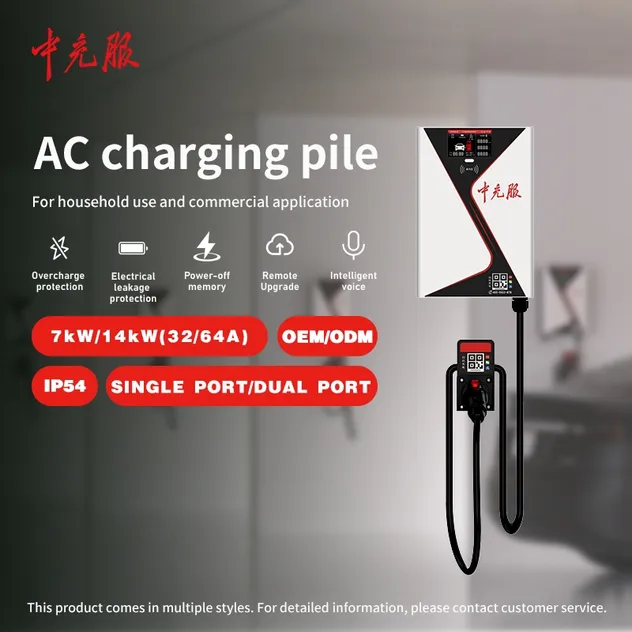

7/14 kW AC charging pile

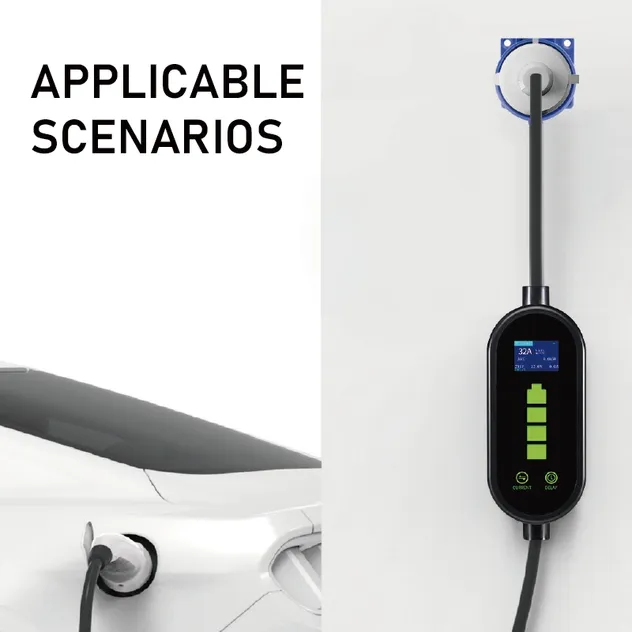

7kW portable charging pile
| Product Specifications | Parameter Value |
|---|---|
| Implementation Standards | GBT/CCS2 |
| Power Factor | ≥0.99 |
| Voltage Regulation Accuracy | ≤0.5% |
| Current Regulation Accuracy | ≤1% |
| AC Input Frequency | 50Hz±10% |
| Output Mode | Single/dual gun average power distribution |

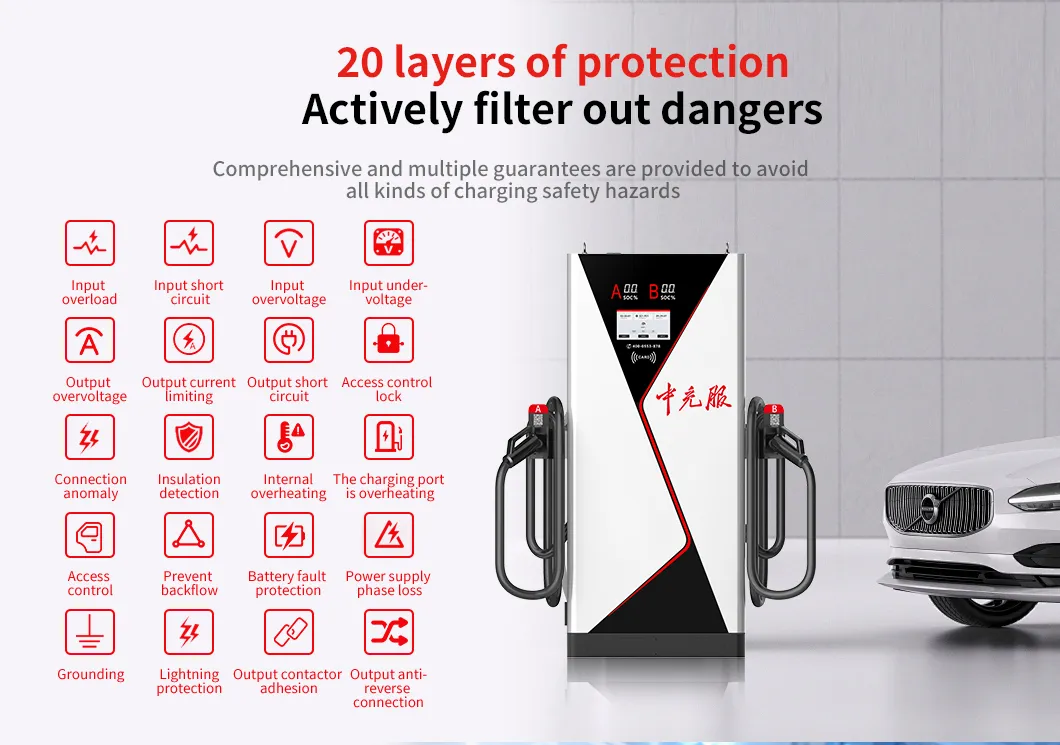

| Protection Functions | Input overloading, short circuit, overvoltage, undervoltage, output current limiting, gun lock, insulation detection, overtemperature, reverse polarity protection, lightning protection. |
