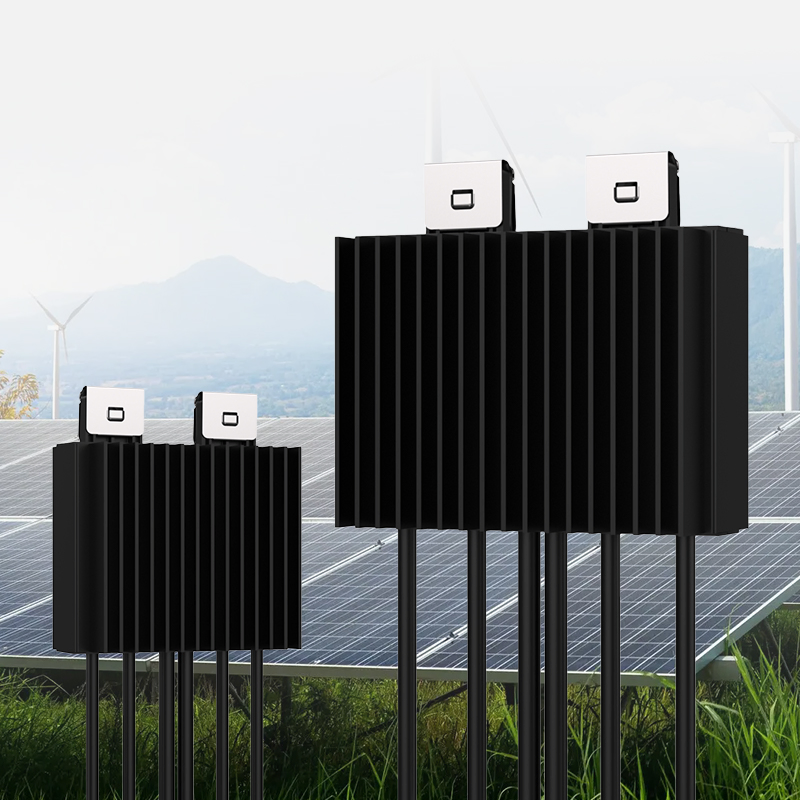

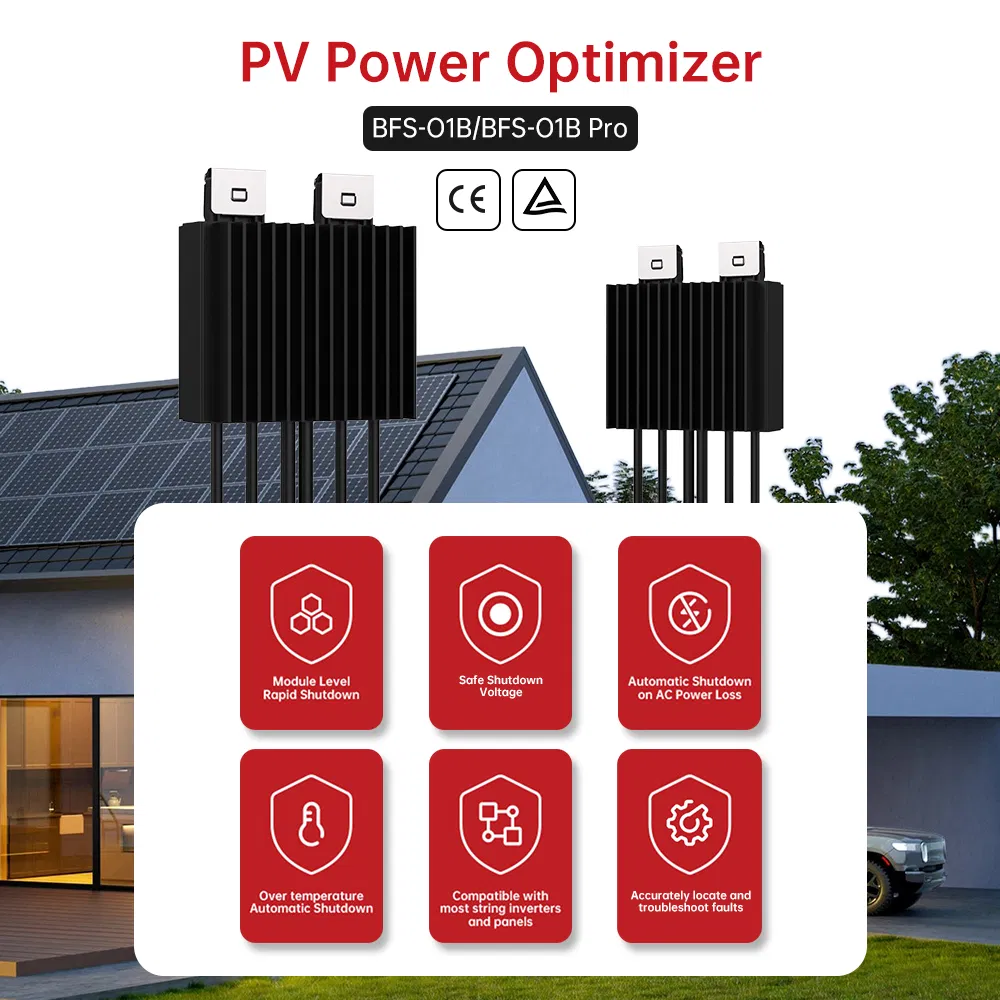

Beny for Solar Panels Emergency Shutdown Switch PV Power Optimizer Solar Rapid Shutdown Device for PV with 5 Years Warranty

Customization: Available
After-sales Service: 5 Years Warranty
Warranty: 5 Years Warranty

Product Description

1

Basic Information

Model NO.
BFS-01B
Condition
New
Certification
CE
Application
PV Solar
Specification
15X15X5 Cm
Product Name
Solar Roof Mounting System
Input Voltage
Max 70V
Operating Temp
-40°c to +85°c
IP Protection
IP68
Package Size
46.50cm * 38.50cm * 30.00cm
2

Why Choose Us

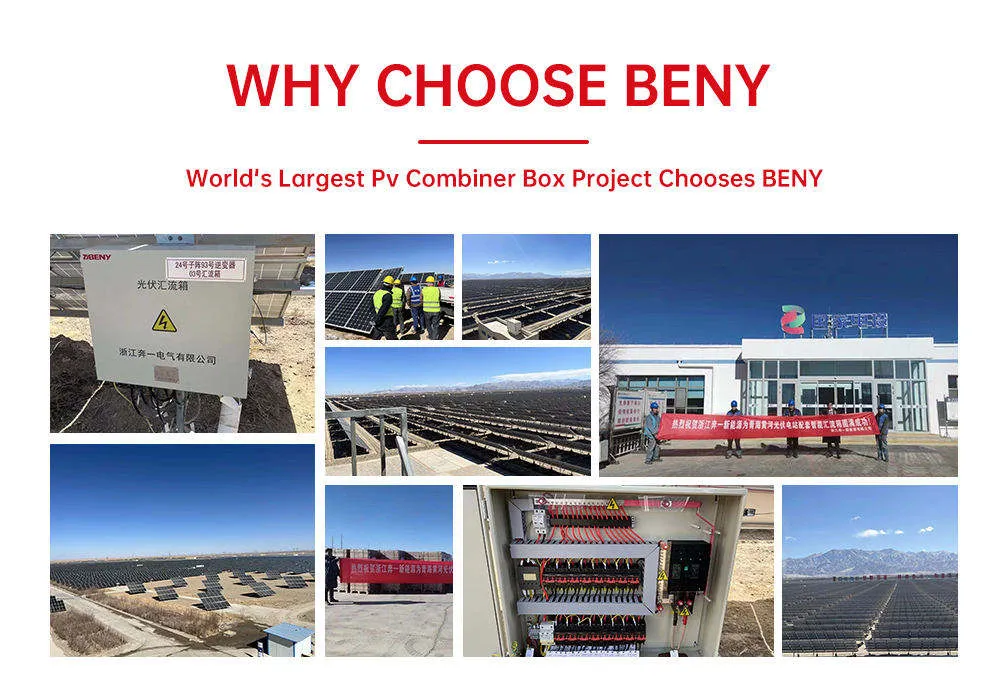

Solar Solution Power Optimizer

30+ Years Industry Experience: Working in the electrical industry offering a full range of solar PV solutions for residential, commercial, and utility-scale renewable energy projects.

High Production Capacity: Over 10 production lines, producing over 200w annually to handle orders at any volume with strict quality durability testing.

Professional Service
3

Product Description

Series Solar Module Level Power Optimizer:

  • Independent low-voltage communication channel for enhanced reliability.
  • Wider operating temperature range: -40°C~85°C without derating.
  • Excellent MPPT efficiency up to 99.8%.
  • Flexible matching suitable for various installation environments.

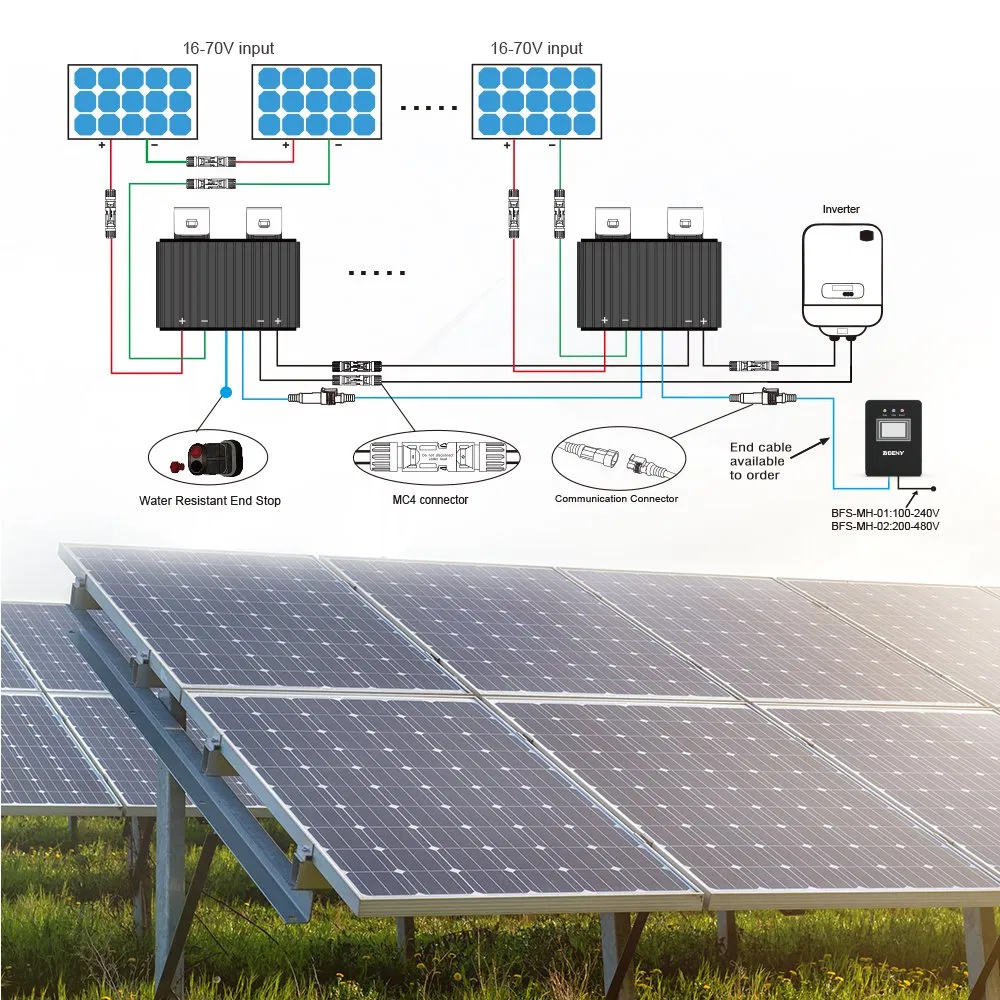

This PV Power Optimizer optimizes generation efficiency and ensures normal operation by tracking the maximum power point (MPPT) of each module. It features module-level rapid shutdown and monitoring, ideal for obstructed panels or aging systems. Installation is simple using snap fasteners.

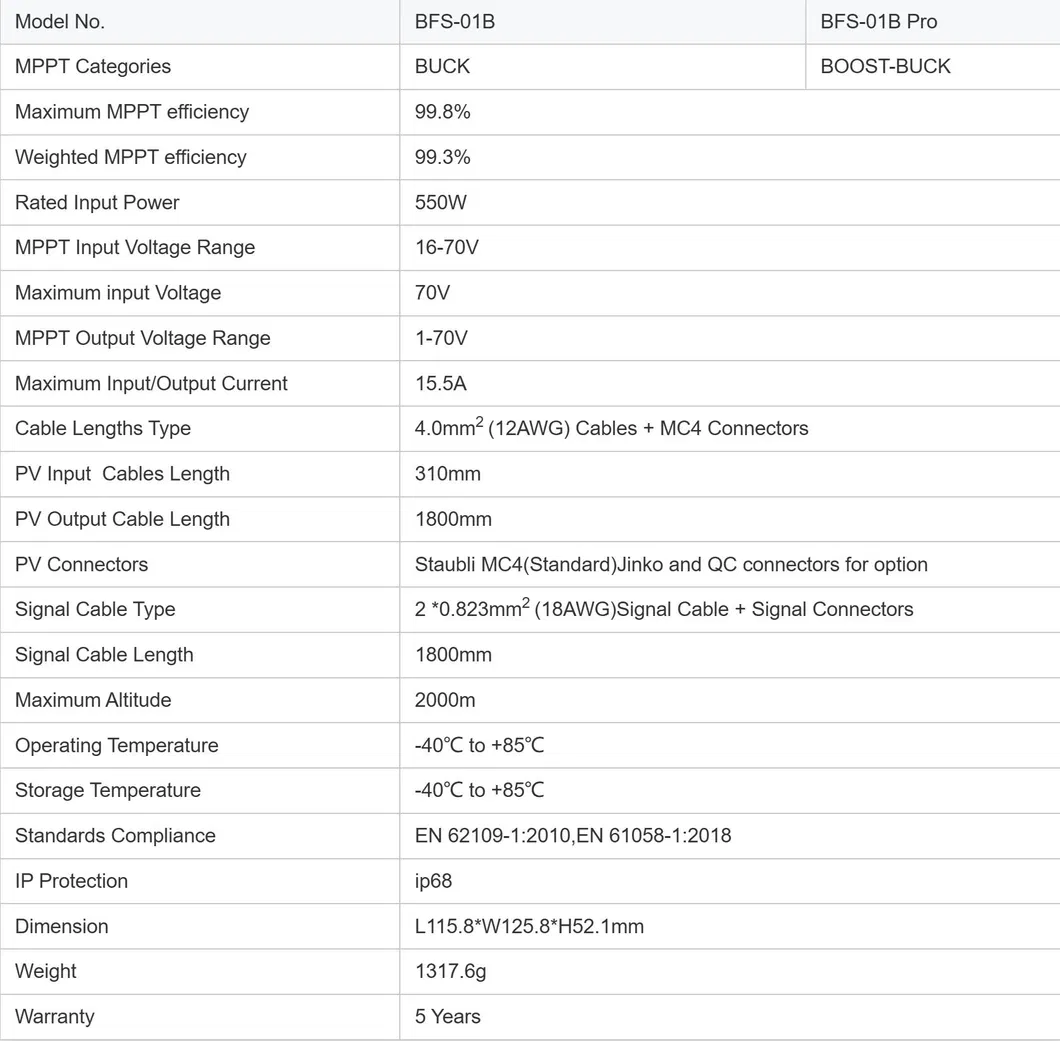

Technical Specifications
4

Customization Options

We offer custom features to ensure client preferences are met for various project requirements:

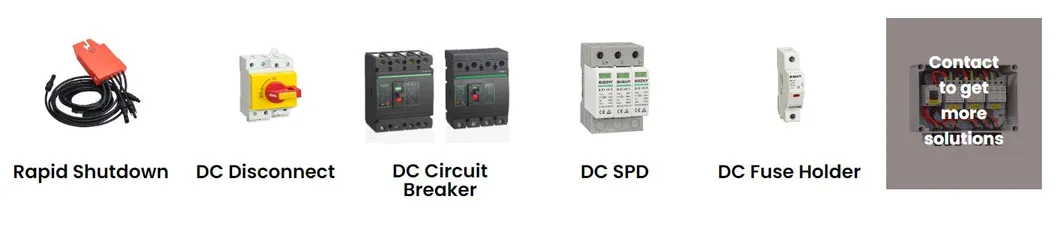

Custom Branding Technical Customization

Options include: Box measurements, specific components, DC inputs/outputs, and chosen over-voltage protection degrees (Class I or II).

5

Detailed Photos

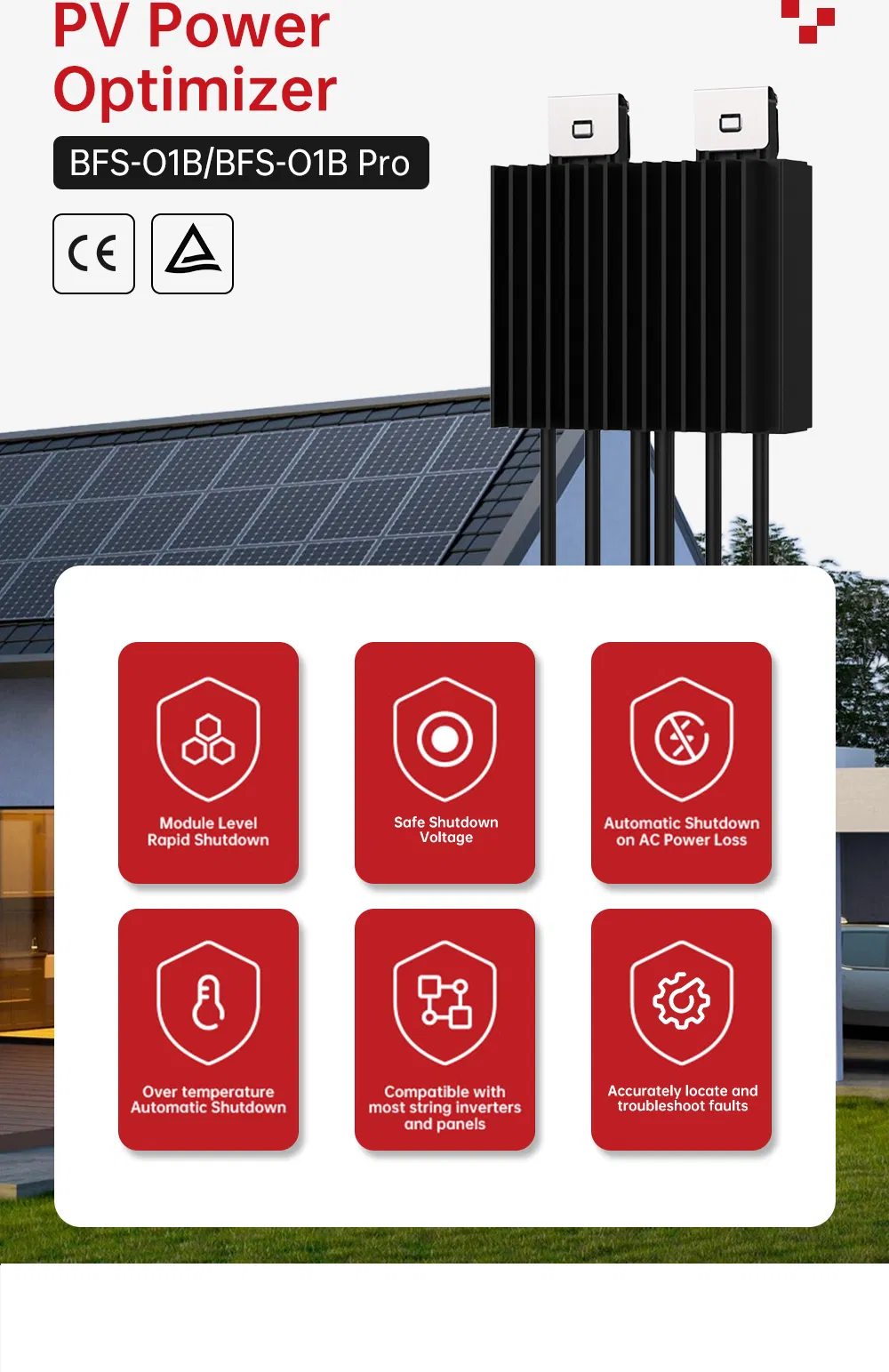

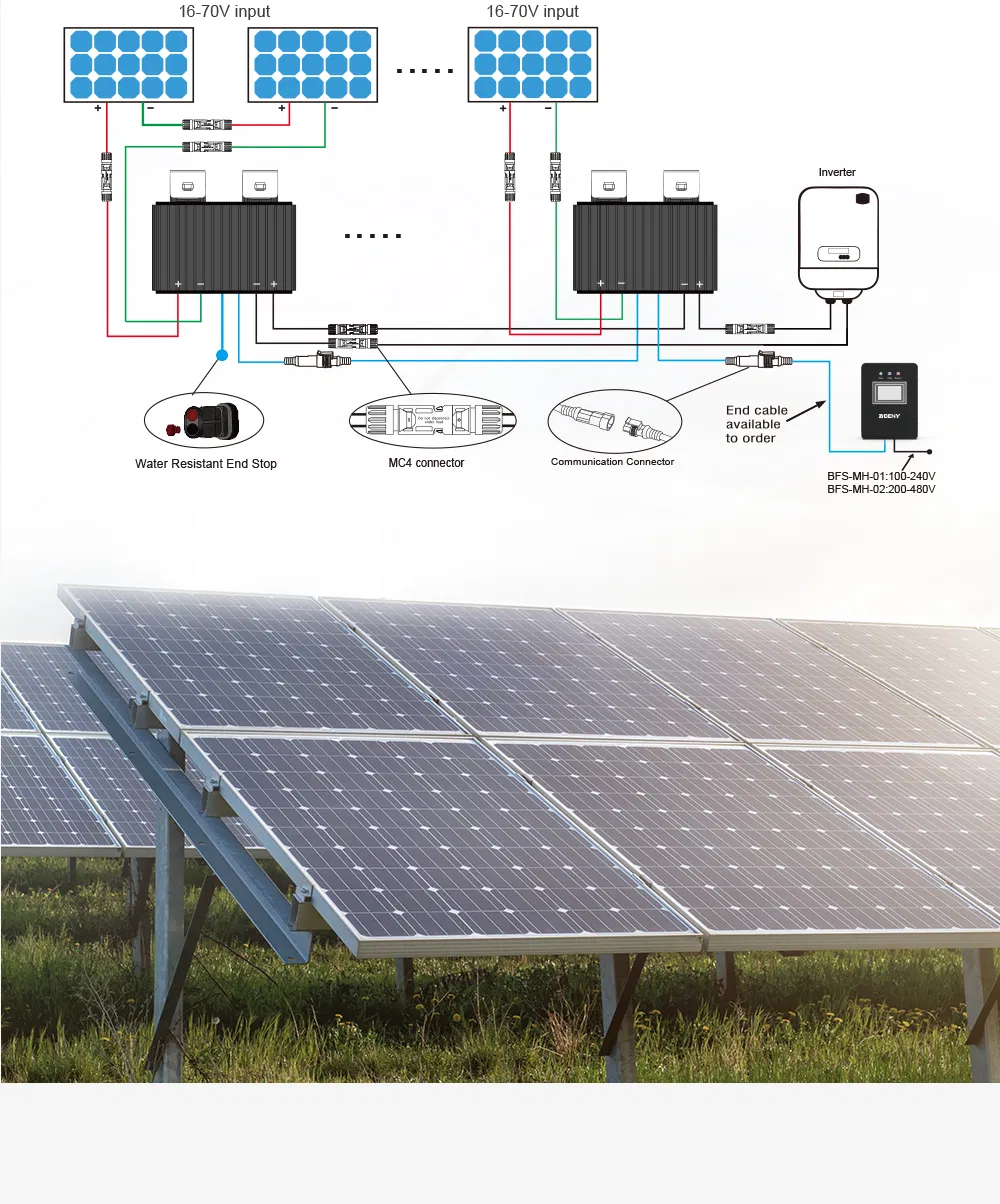

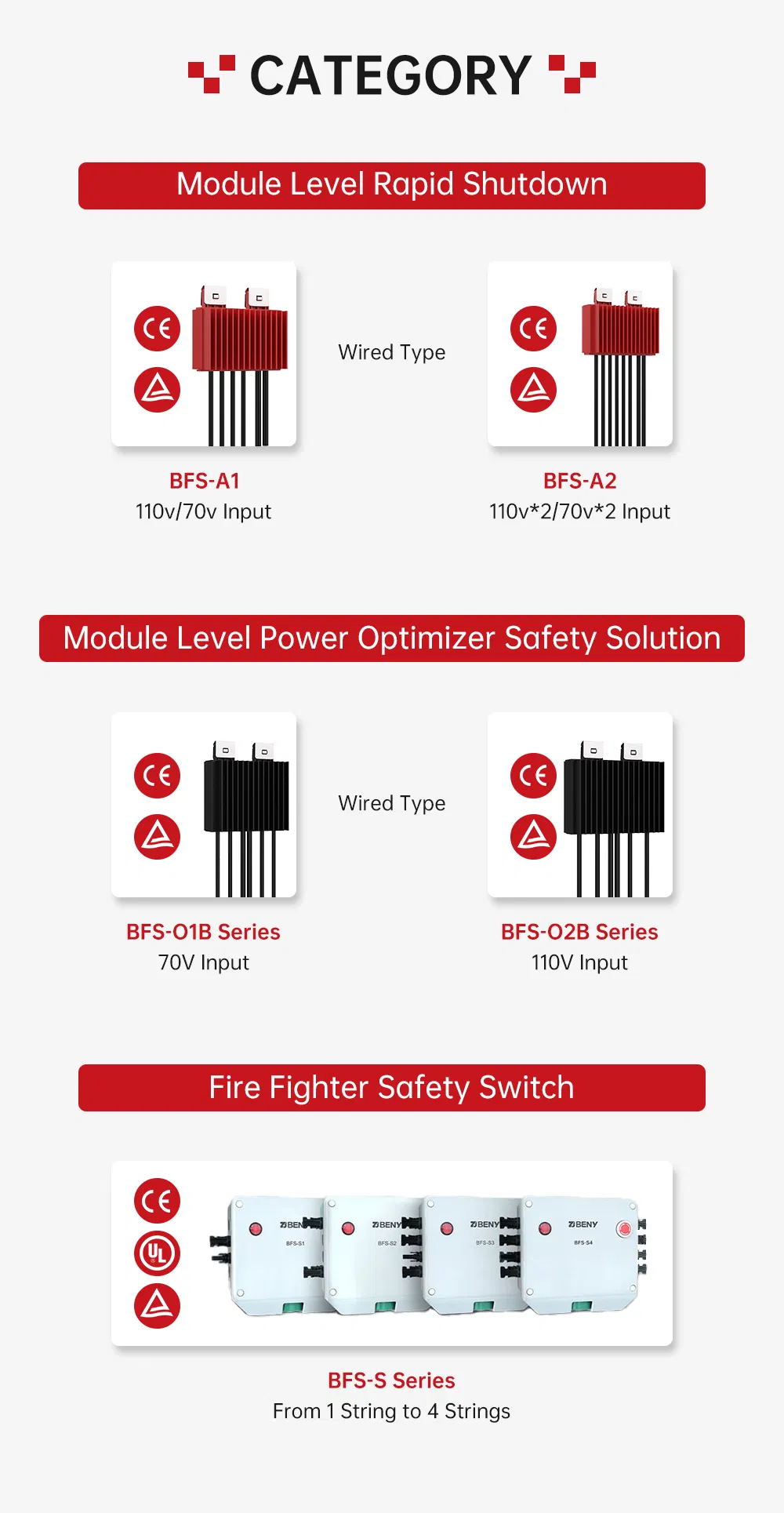

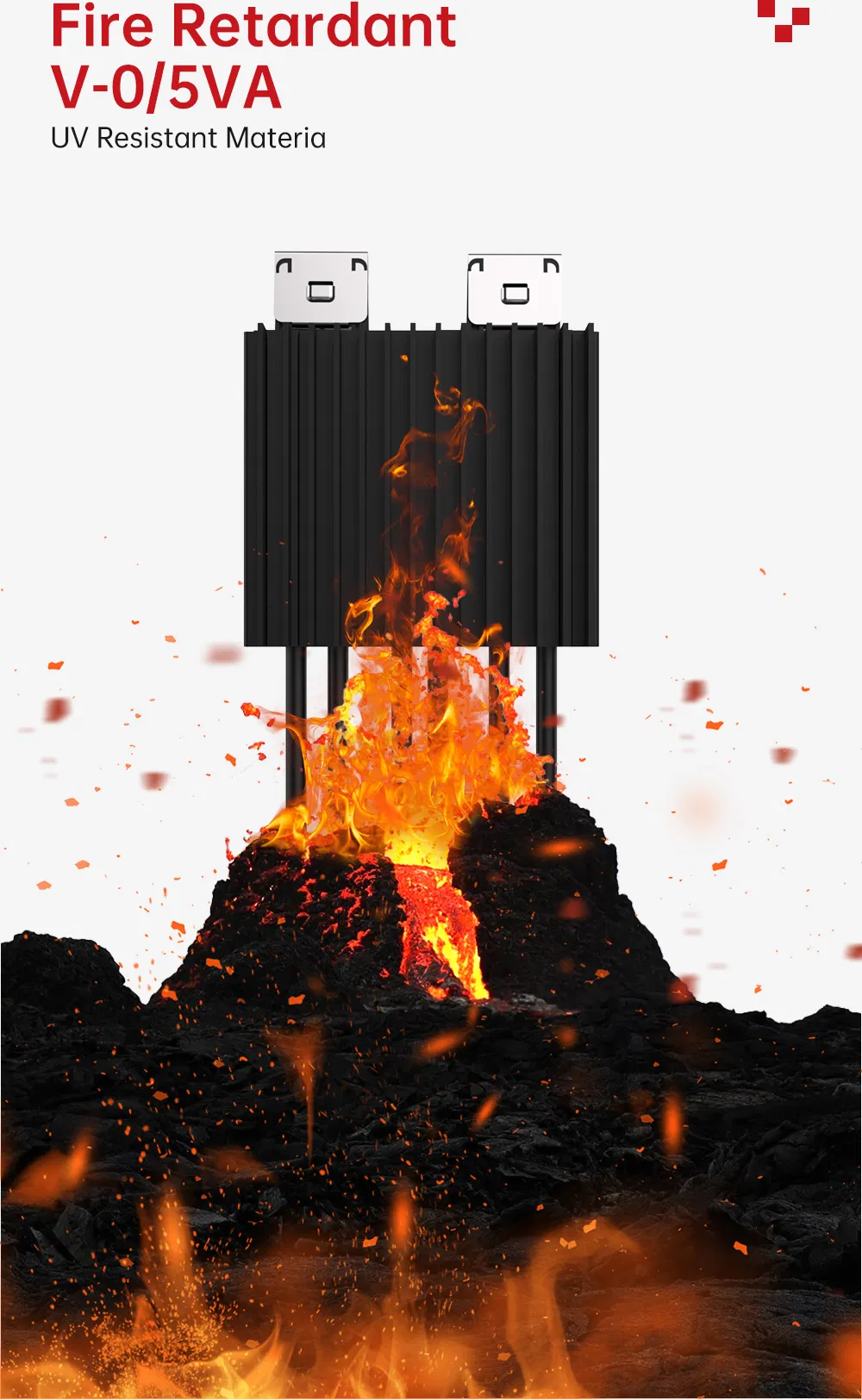

Detailed View 1 Detailed View 2 Detailed View 3

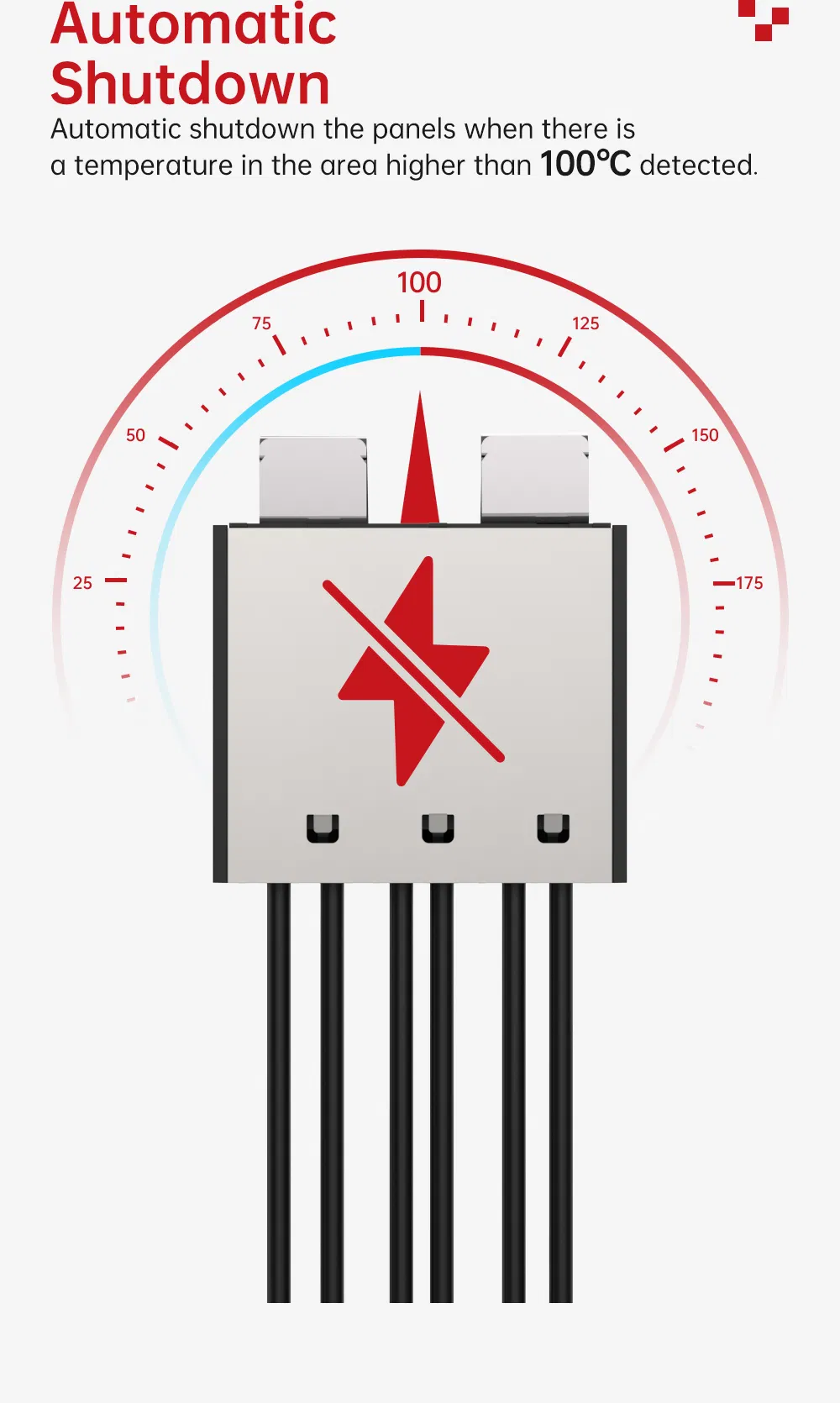

Detailed View 4 Detailed View 5 Detailed View 6
6

Global Experience & Exhibitions

As a trusted manufacturer of protective components for photovoltaic systems, we comply with the latest DC standards and are dedicated to both PV protection and EV charging fields.

Global Reach Exhibition Team

Frequently Asked Questions

What is the MPPT efficiency of the power optimizer?
The system offers excellent MPPT (Maximum Power Point Tracking) efficiency of up to 99.8% to maximize power generation.
What is the operating temperature range?
The device is designed to work reliably in extreme conditions, with an operating temperature range of -40°C to +85°C without derating.
Does the product support module-level monitoring?
Yes, it features module-level rapid shutdown and monitoring, allowing for precise identification of problems at the individual panel level.
How is the optimizer installed on existing panels?
The installation is simple and efficient, utilizing snap fasteners that do not require additional drilling or complex wiring.
Is the device protected against outdoor elements?
Yes, the product comes with an IP68 protection rating, ensuring it is fully dust-tight and protected against long-term immersion in water.
Can the combiner boxes be customized?
Absolutely. Customization options include logo integration, specific box measurements, different component configurations, and varying levels of over-voltage protection.
