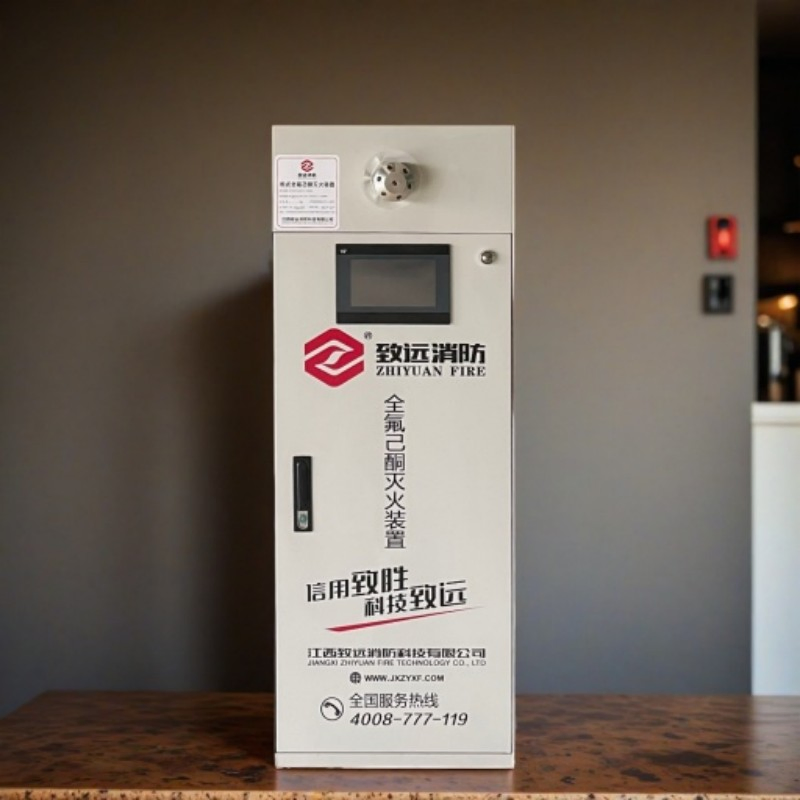

Cabinet Perfluorohexanone Fire Extinguishing Device for EV Charging Stations

1 / 5

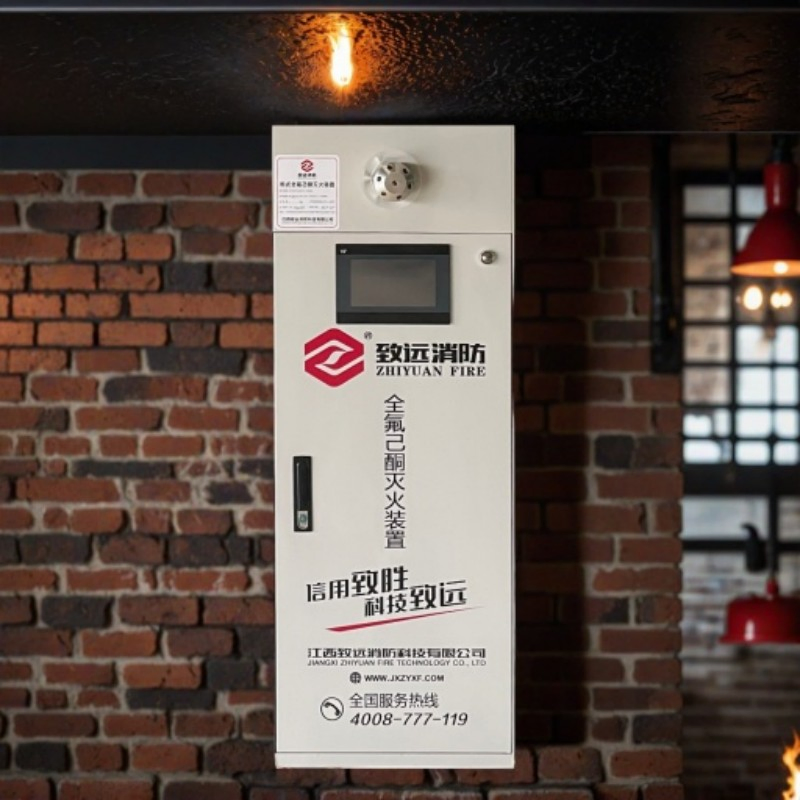

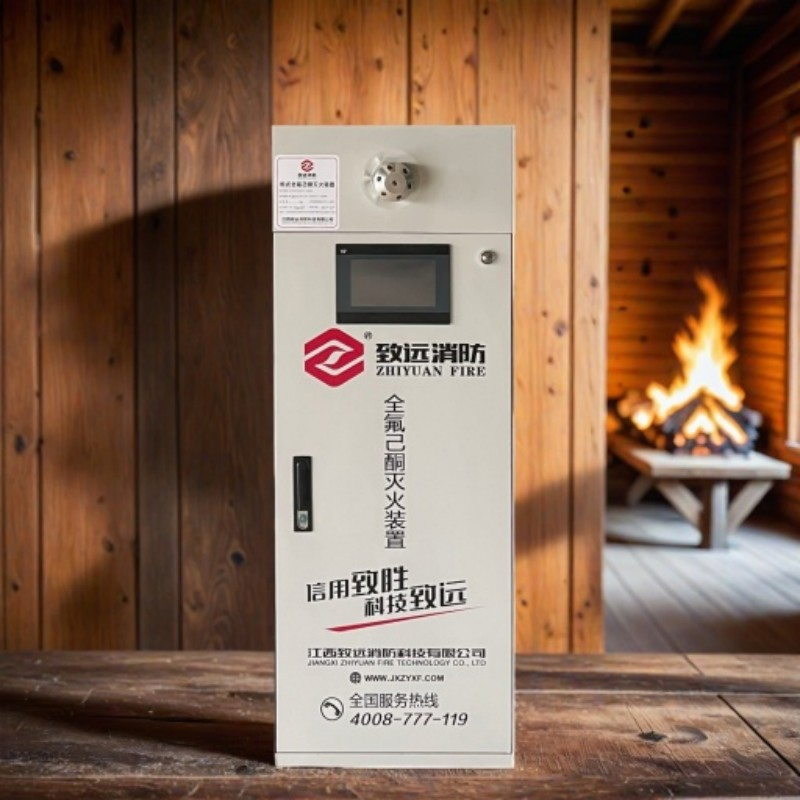

Cabinet Perfluorohexanone Fire Extinguishing Device for EV Charging Stations

Customization:	Available
Agent:	Hfc-227ea
Type:	Automatic Fire System

Send Inquiry

Product Description

📊 Basic Information

Model NO.

YF40/2.5-N-Y-ZY

Certification

CCCF, GB8013-2005, CCC, CE

Extinguisher Type

Automatic / Industrial Grade

Effective Range

4.5m

Retirement Life

10 Years

Material

Stainless Steel

Filling Pressure

2.5MPa / 4.2MPa / 5.6MPa

Capacity Range

16L to 500L options

📦 Packaging & Delivery

Package Size

68.00cm * 21.00cm * 71.00cm

Gross Weight

60.000kg

🛡️ Product Description

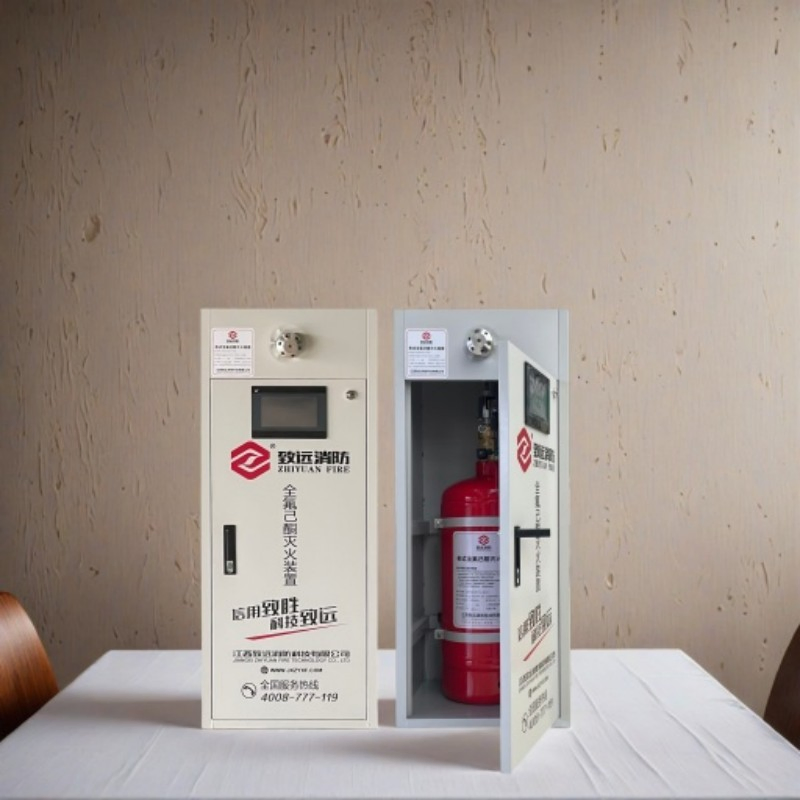

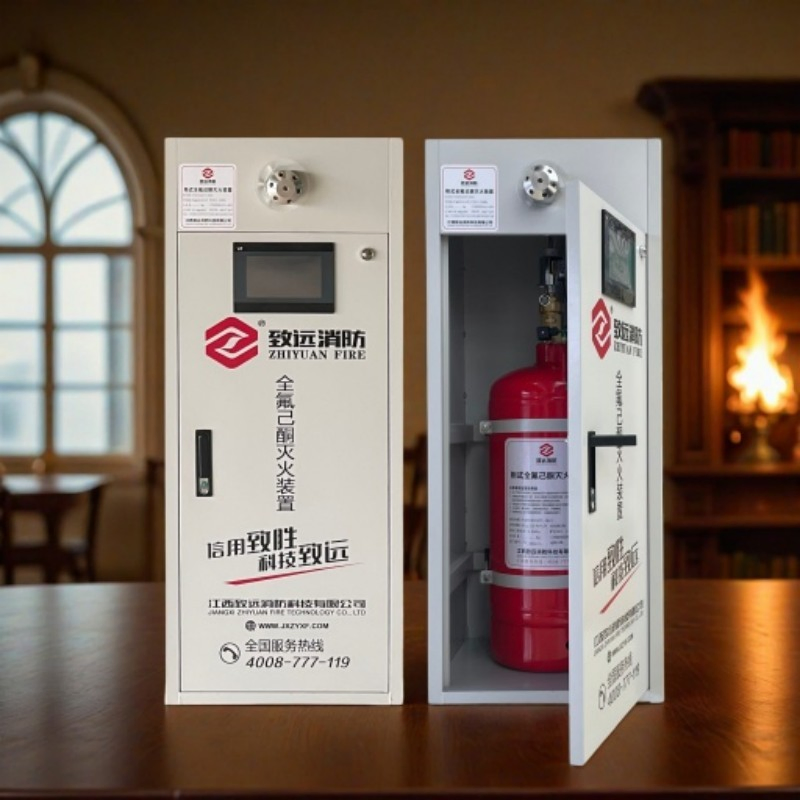

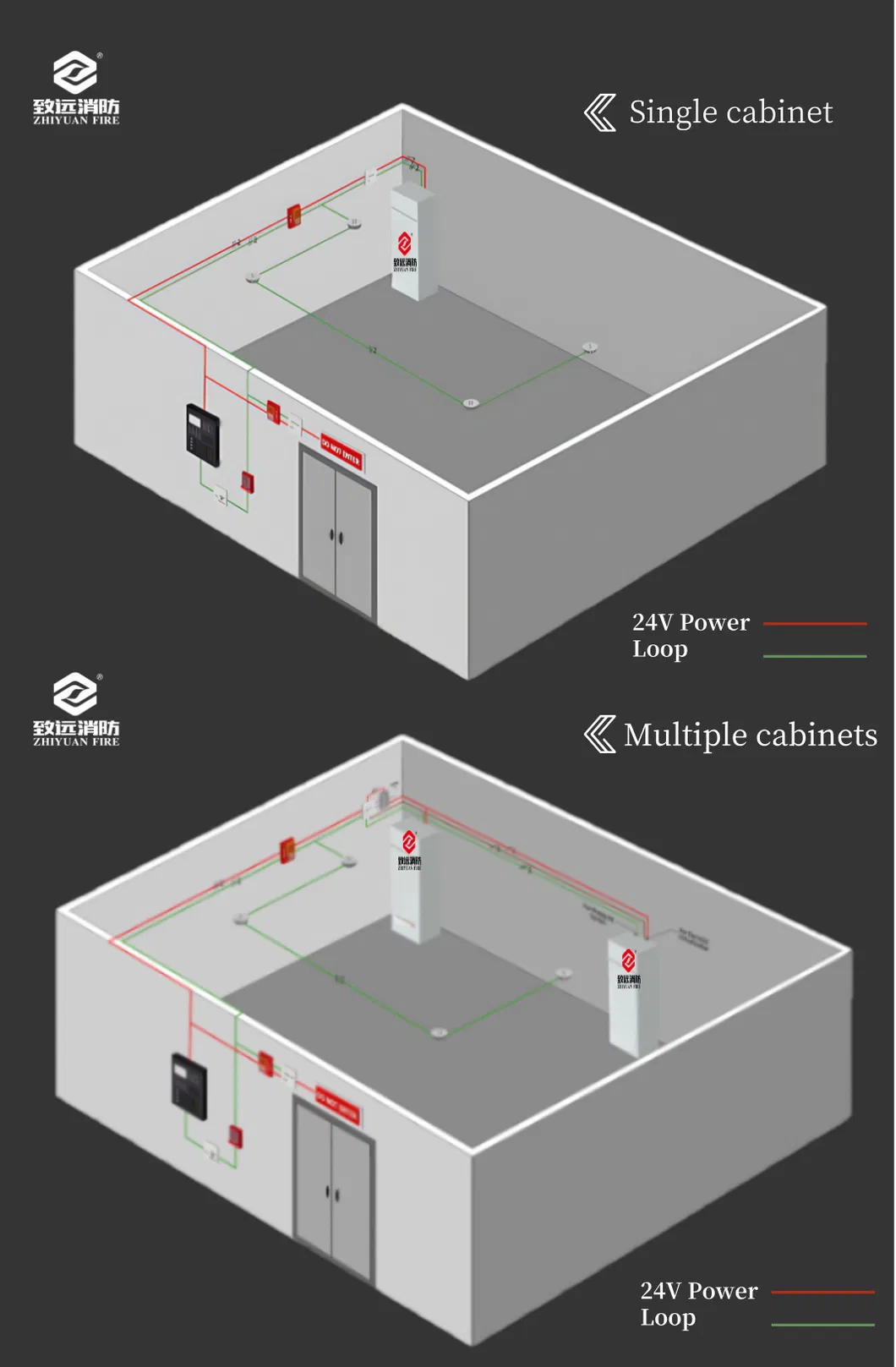

Single & Double Cabinet HFC-227ea Fire Suppression System

The Cabinet Type HFC-227ea Fire Extinguishing System is an advanced clean agent solution designed to protect precision equipment and vital facilities. Known for its safety and efficiency, it leaves no residue upon activation.

Compact design eliminates the need for a separate cylinder room.
Standalone system for effortless installation and minimal maintenance.
Effectively combats Class A, B, and C fires.
Ideal for IT rooms, data centers, archives, and distribution rooms.

⚙️ Technical Specifications

Single Cabinet Type

Model	Dimensions (mm)	Agent Weight (kg)	Protection Vol (m³)	Ext. Conc.	Working Temp.	Actuation	Pressure
GQQ40/1.2-5.2Y	500×450×1200	0-44.8	≤58	6.0-8.0%	0-50°C	Auto / Manual	2.5MPa
GQQ70/1.2-5.2Y	500×450×1400	0-74.8	≤102
GQQ120/1.2-5.2Y	500×450×1700	0-112.9	≤145
GQQ210/1.2-5.2Y	500×500×2100	0-186.9	≤262

Double Cabinet Type

Model	Dimensions (mm)	Agent Weight (kg)	Protection Vol (m³)	Ext. Conc.	Working Temp.	Actuation	Pressure
GQQ40×2/2.5-ZY	980×450×1200	0-89.6	≤116	~6.0-8.0%	0-50°C	Auto / Manual	2.5MPa
GQQ90×2/2.5-ZY	980×450×1700	0-201.6	≤262
GQQ150×2/2.5-ZY	980×500×1950	0-276.9	≤363
GQQ210×2/2.5-ZY	980×500×2100	0-373.8	≤504

🏢 Profile Overview

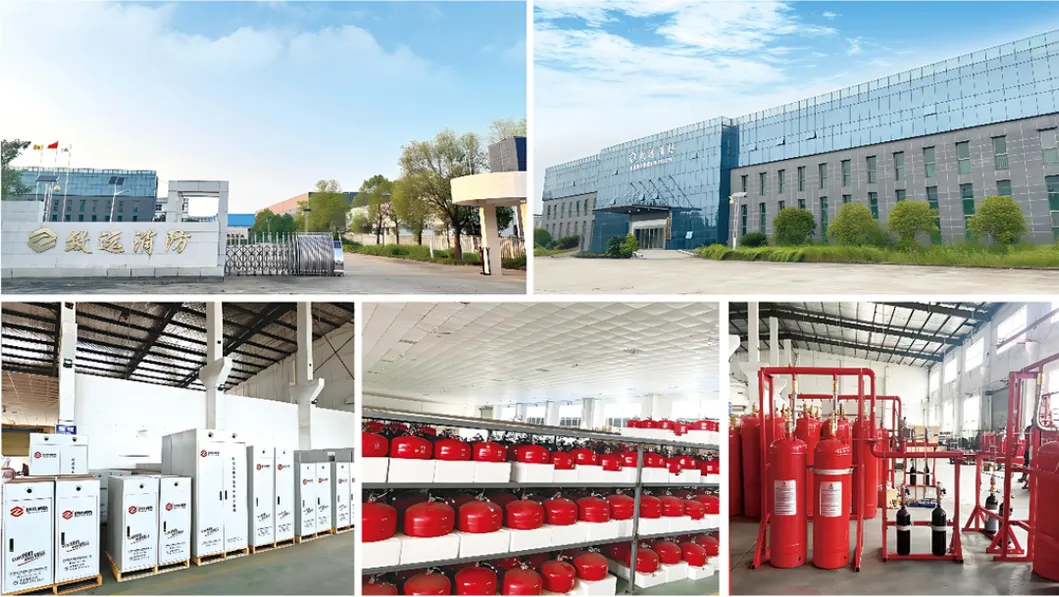

Our enterprise stands as a paragon of excellence with two decades of distinguished heritage in the fire protection industry. Renowned for a "high starting point, high standard, high quality" ethos, we integrate research, development, design, manufacturing, and engineering services. Our facilities include expansive modern workshops and laboratories housing cutting-edge testing apparatus. With continuous investment in top-tier talent and innovative extinguishing agent technology, we have cultivated a robust quality management system ensuring reliable fire safety products across diverse industries.

❓ Frequently Asked Questions

Q1: What are the advantages of a Cabinet Type HFC-227ea system?

It features a compact design that eliminates the need for a dedicated cylinder room, making it easy to install in existing spaces like server rooms or archives.

Q2: Is HFC-227ea safe for electronic equipment?

Yes, HFC-227ea is a clean agent that is electrically non-conductive and leaves no residue, making it ideal for protecting sensitive electronics and data centers.

Q3: What fire classes does this system combat?

The system is designed to effectively suppress Class A (solid materials), Class B (flammable liquids), and Class C (electrical) fires.

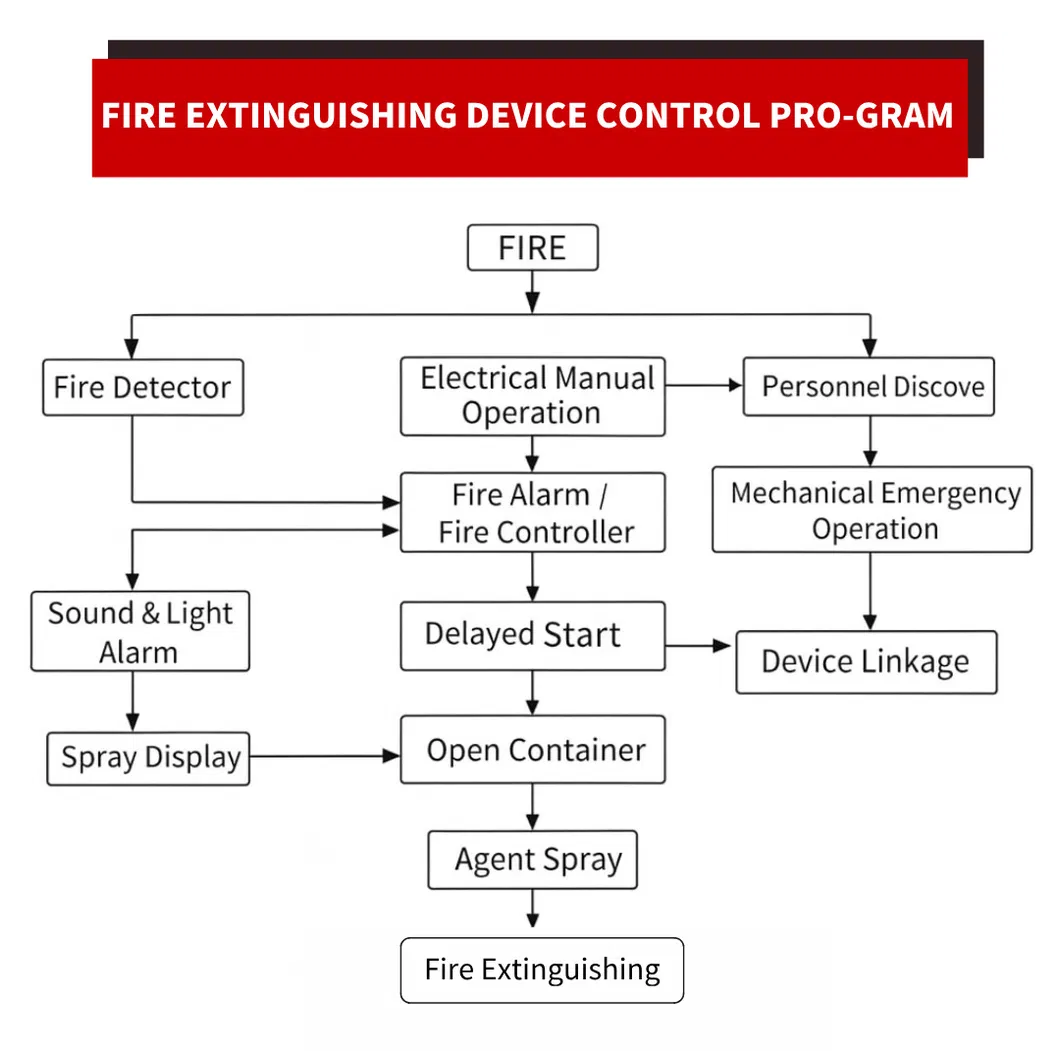

Q4: How is the fire suppression system actuated?

The system supports both automatic and manual actuation modes, controlled through electrical feedback for maximum reliability.

Q5: What is the typical delivery timeframe for orders?

Standard sample orders can often be processed within 7 days, while bulk production timelines range from 3 to 30 days depending on the quantity.

Q6: What maintenance is required for these units?

Due to the standalone cabinet design, maintenance is minimal. Regular pressure checks and professional inspections are recommended to ensure long-term readiness.
