Water Exposure: Ensure the EV charging box is never submerged in water.
🔌
Cable Care: Avoid stepping on the cable or subjecting it to excessive bending or knotting.
🛡️
Impact and Pressure: Protect the EV charging box from impacts and do not place heavy objects on top of it.
🌡️
Heat Exposure: Do not position the charging cable near objects with high temperatures during the charging process.
❄️
Temperature Range: Operate the device within the prescribed temperature limits, ranging from -30°C to 50°C.
⚡
Power Supply: The input cable on the power supply side should have a minimum cross-section of 3*6mm².
👷
Installation: Installation and power distribution should be carried out by qualified professionals.
🚫
Charging Connector: Do not insert fingers into the charging connector when the power plug is connected to the power supply.
⚠️
Damaged Cables: Do not use the EV charging box if the cable is damaged.
🚗
Designated Use: This EV charging box is exclusively designed for EV charging purposes.
Frequently Asked Questions
What types of EVs are compatible with this charger?

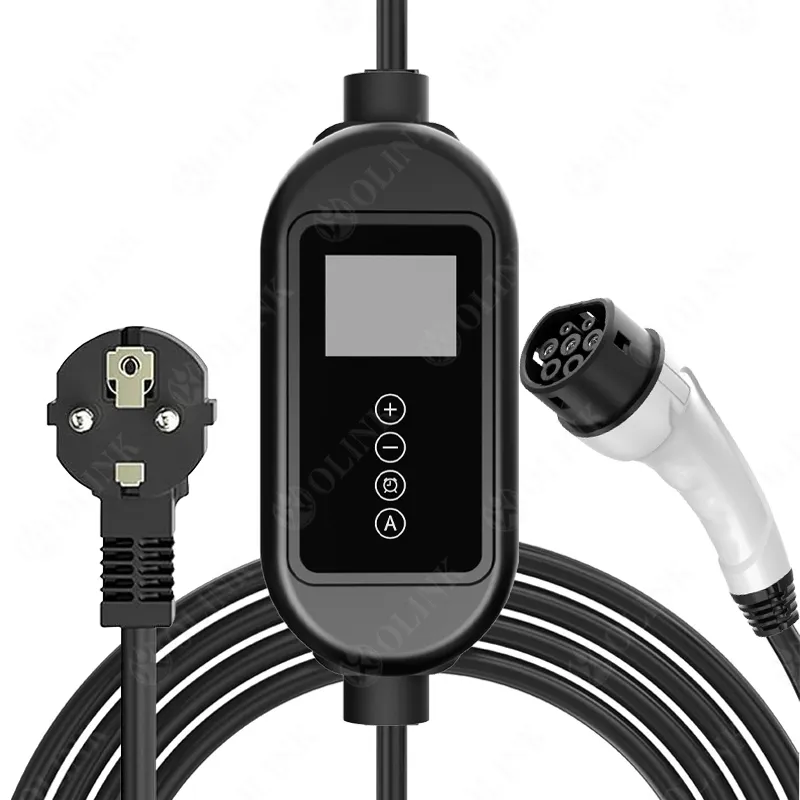

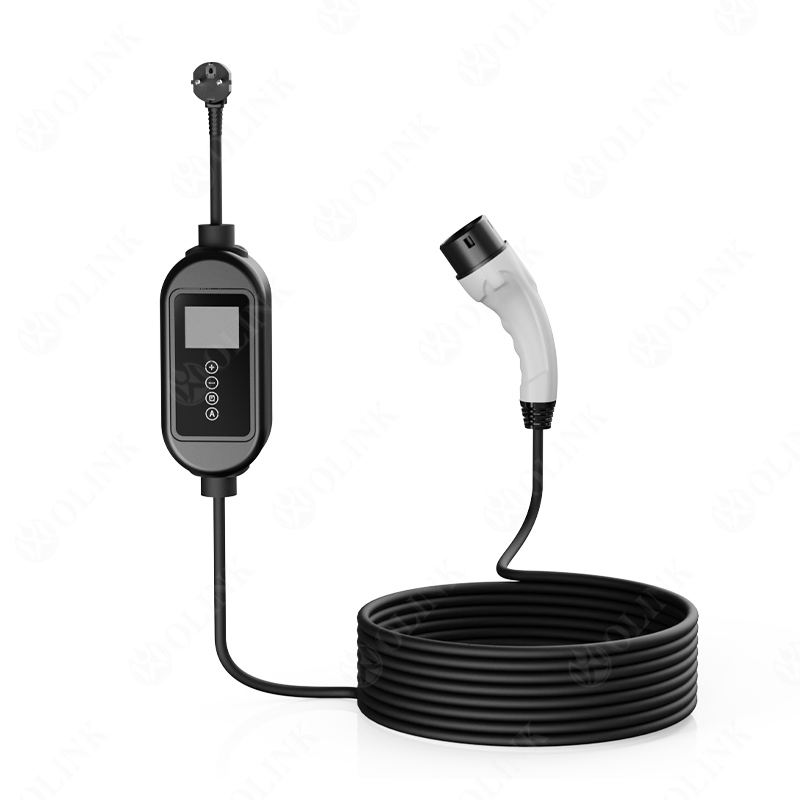

This is a Type 2 portable charging device, designed to be compatible with electric vehicles that utilize the standard Type 2 charging interface common in Europe and other regions.
Can I use this charger in rain or wet conditions?
The device features an IP55 protection grade, which provides resistance to dust and low-pressure water jets. However, it should never be submerged in water, and users should ensure the connectors remain dry during use.
What are the power requirements for installation?
The input power supply side should use a cable with a minimum cross-section of 3*6mm². We strongly recommend that all power distribution and installation be handled by a qualified professional to ensure safety.
Is the charging current adjustable?
Yes, this model supports multiple rated current settings including 16A, 32A, 40A, and 48A, allowing for flexible charging depending on your vehicle's requirements and power supply capacity.
How does the "Remote Control" start mode work?
The Remote Control start mode allows users to initiate or stop the charging process conveniently from a distance, providing better control over the charging session without manual plugging adjustments every time.
What is the operating temperature range?
The device is engineered to perform reliably in a wide range of climates, with an operational temperature tolerance from -30°C up to +50°C.
