Product Description

🔹 Basic Information
Model NO.
ADC-BMS
Type
Battery String, Battery Cell
Test Region
Internal Resistance, Voltage, Current, Temperature
Application
Lead-acid Battery
Communication
Modbus
Measured Data
Internal Resistance, Voltage, Temperature
Capacity
648 PCS 2V Cells or 300 PCS 12V Cells
Package Size
50.00cm * 33.00cm * 40.00cm
Gross Weight
10.000kg
Origin
China
💡 Product Description
✅
Efficiency & Prevention: Battery monitoring systems help use battery energy efficiently and prevent unexpected failures and downtime.
✅
Life Extension: It avoids overcharging and undercharging to keep batteries consistent and extend their service life.
✅
Comprehensive Data: The system monitors key data such as cell voltage, internal resistance (impedance), cell temperature, string voltage, string current, and SOC/SOH.

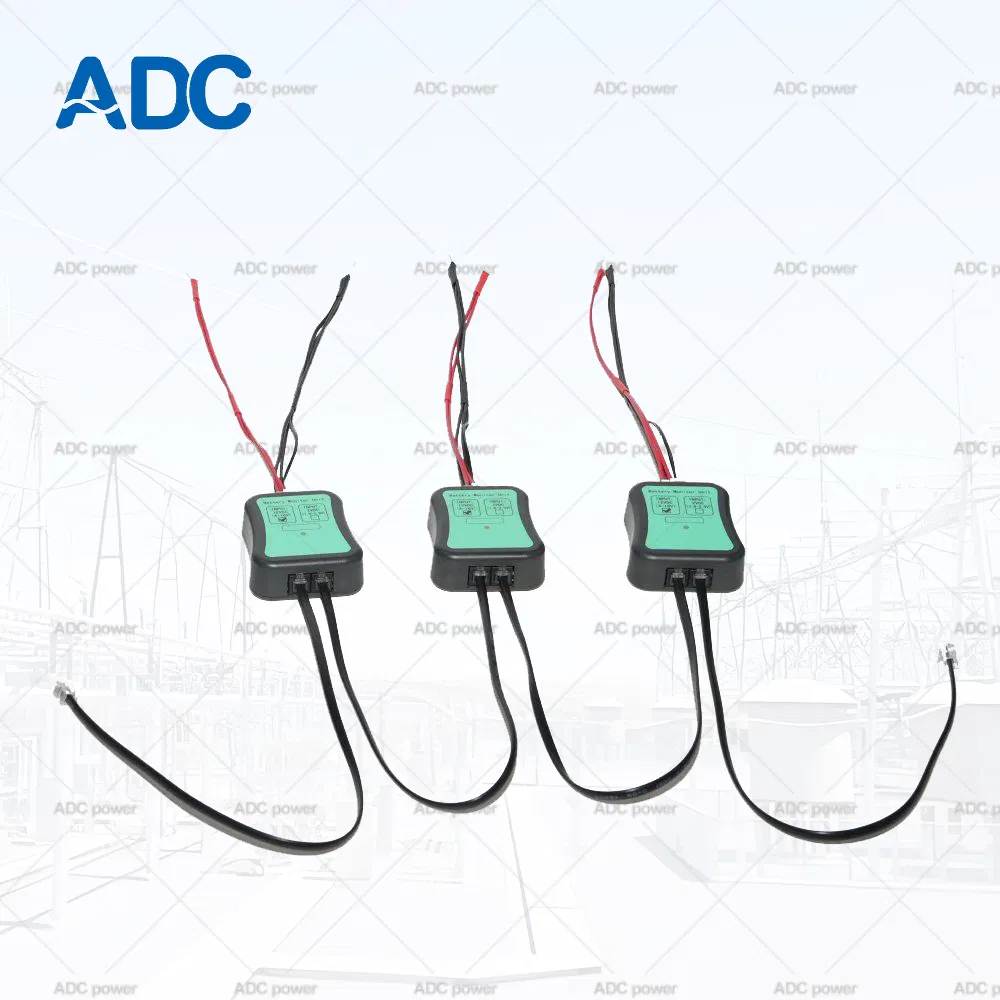

Battery Monitoring Device

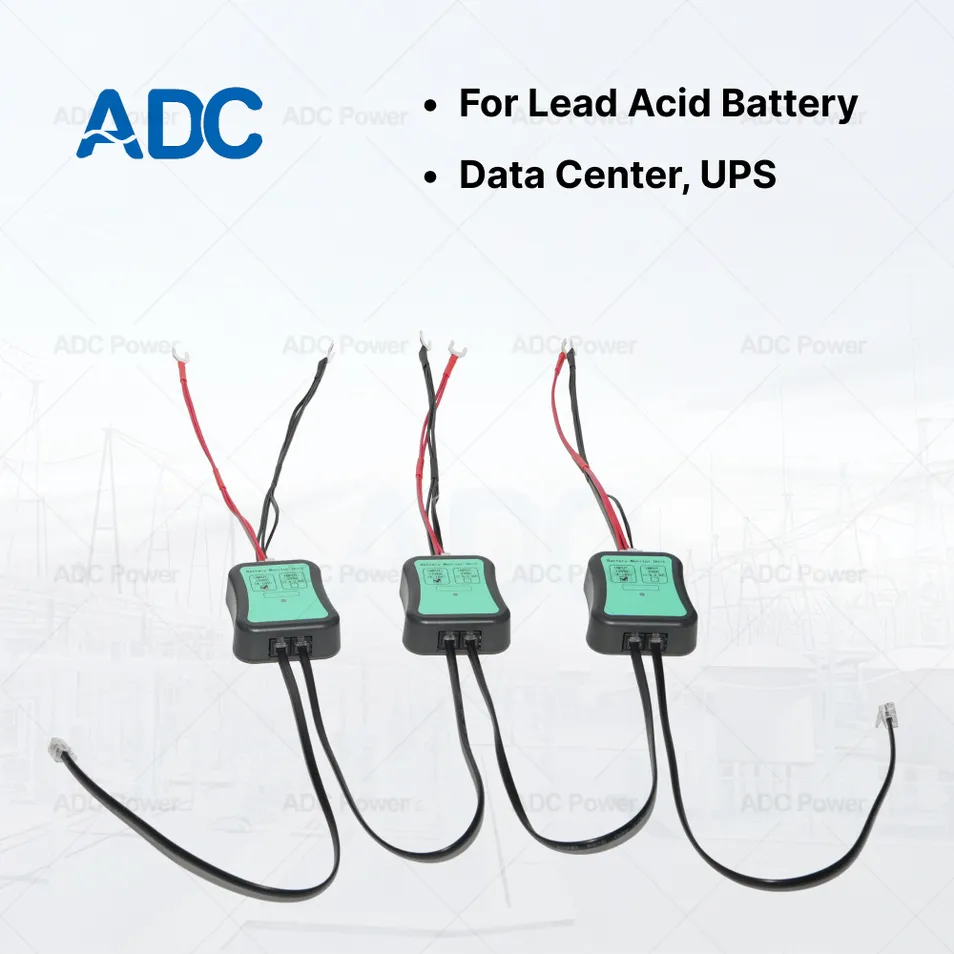

Real Time Solar Battery Monitoring
System Architecture
📊 Specifications

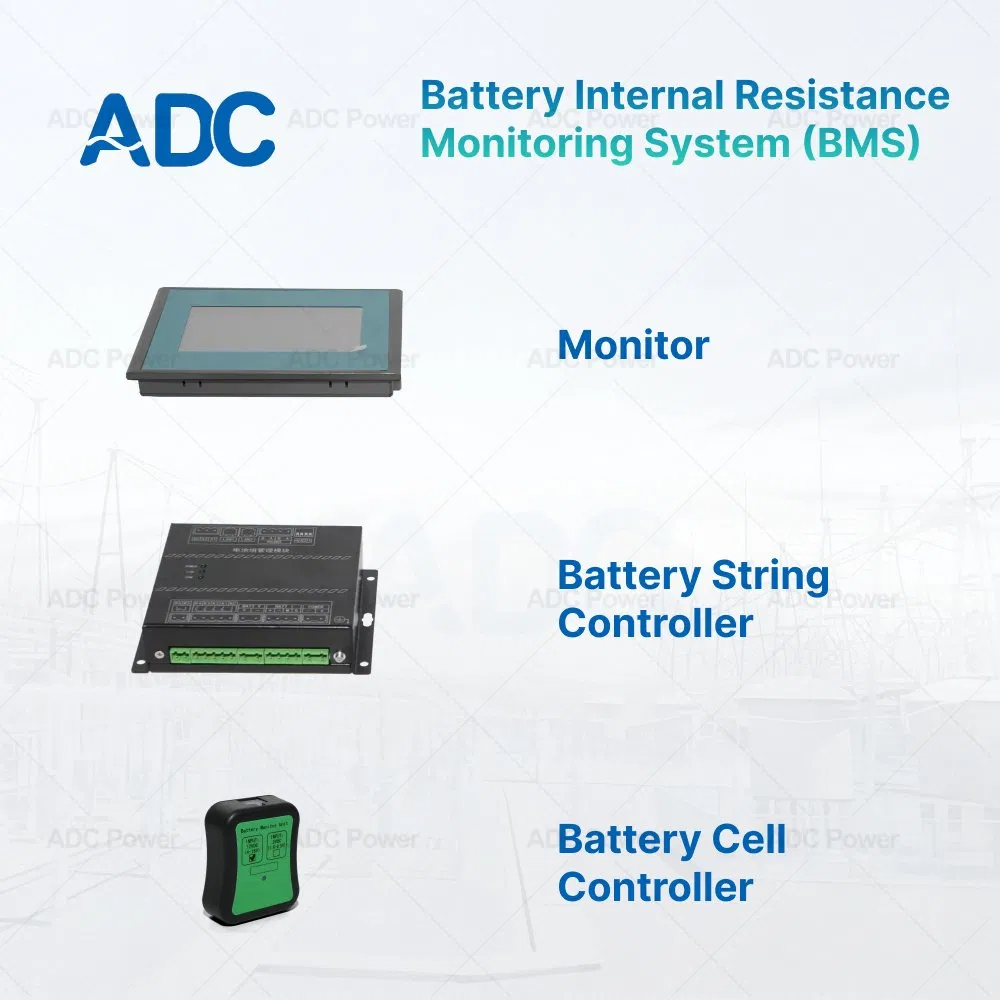

Battery Internal Resistance Monitoring System
Components Monitor + Battery Group Controller + Battery Cell Controller
Battery Type Lead Acid Battery
Application UPS / Data Center / Telecommunications / Fire & Safety System
Communication Modbus RTU via RS485/RS232; Modbus TCP via RJ45 Ethernet (optional)
Battery String Controller
Total Battery Strings 1~6 Strings
Measure Data Voltage, Current and Temperature
Battery Cell Controller
Cell Voltage 2V / 12V
Max Capacity 648 pcs 2V cells / 300 pcs 12V cells
Sensor LED Green: Normal Status | Red: Abnormal Status

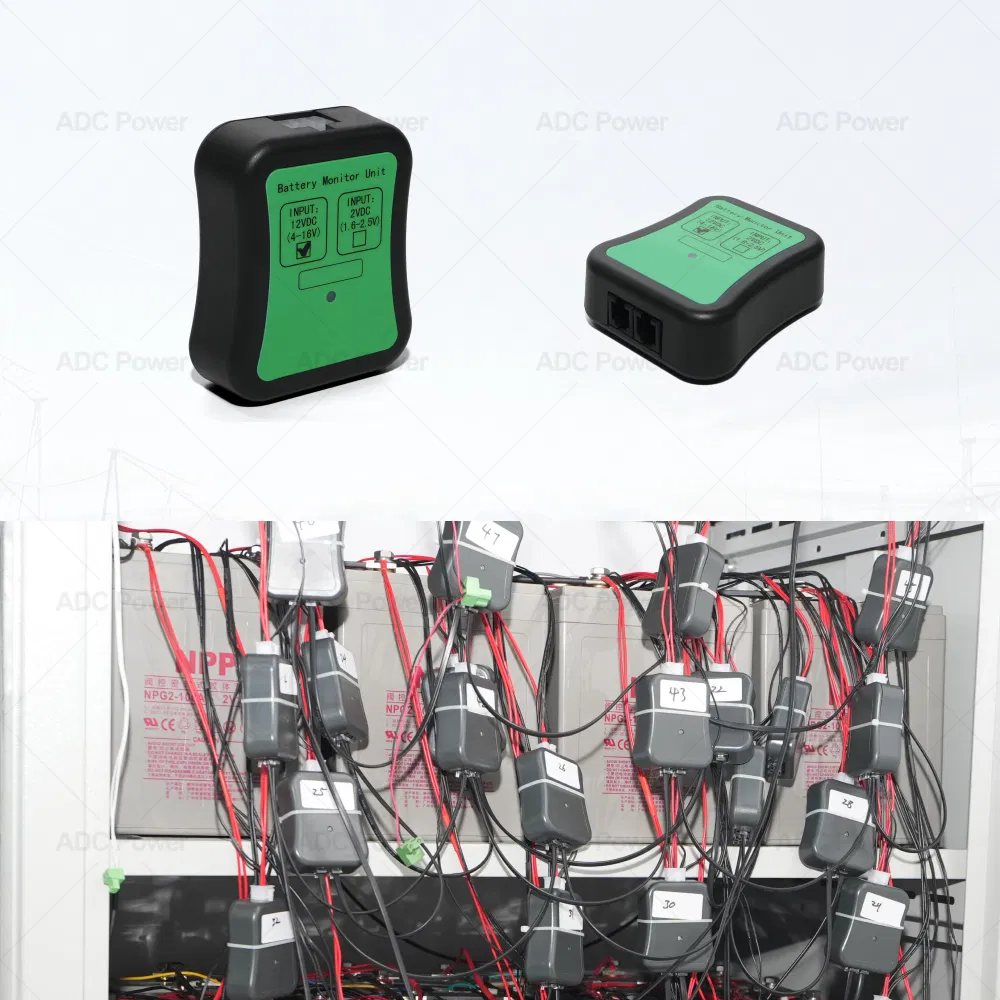

Specification Details
🏗️ Professional Capabilities

With over 20 years in power technology, the focus remains on AC to DC, DC to AC, battery monitoring, and new energy system developments. Core solutions include:

  • 🔹 Industrial AC to DC charger modules and controllers
  • 🔹 EV DC fast charger modules and controllers
  • 🔹 Battery energy storage and monitoring systems
  • 🔹 Power equipment analyzing and measuring devices

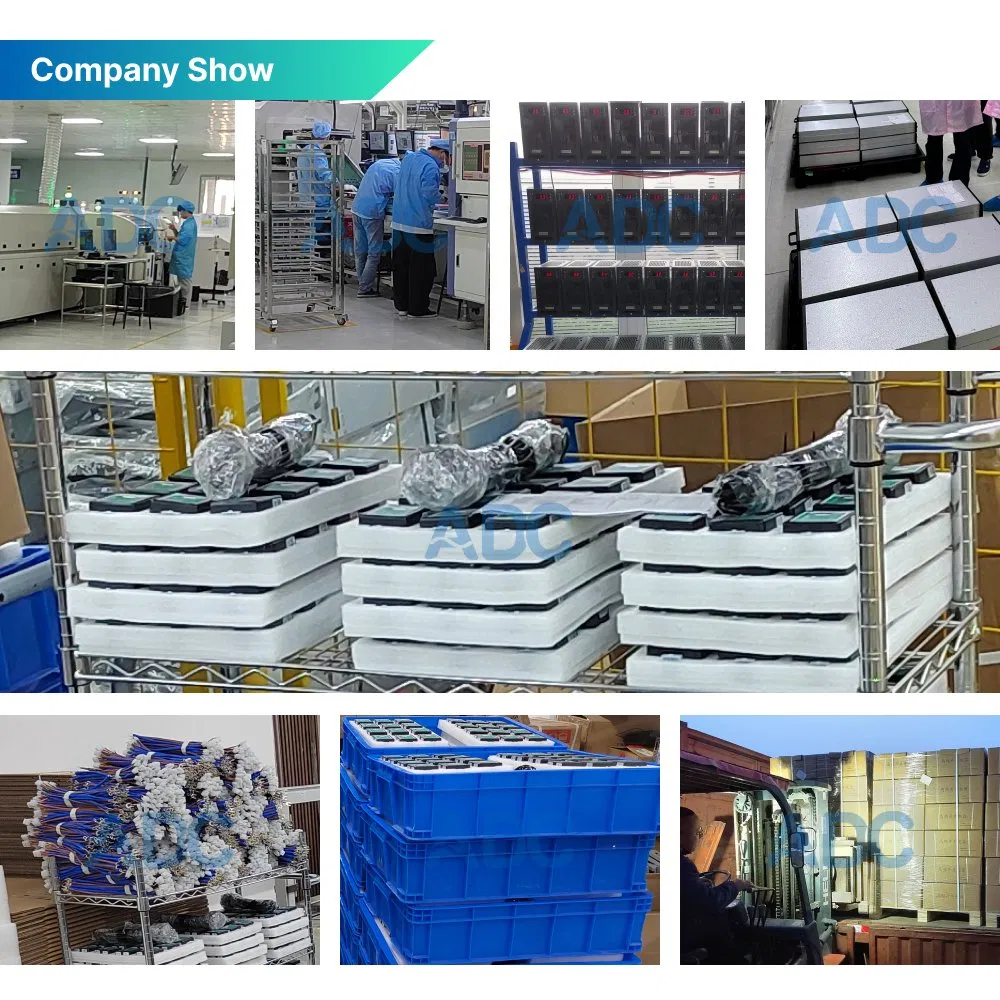

Production Facility
R&D Center
Testing Equipment
📜 Certifications

Operations are managed under ISO9001 and ISO14001 certifications, ensuring high-quality production and reliable product development to meet global standards.

Quality Certifications
❓ Frequently Asked Questions
Q: What types of batteries can this system monitor?
A: This system is primarily designed for Lead-acid batteries, including both 2V and 12V battery cells.
Q: Which parameters are measured by the battery monitoring system?
A: The system measures internal resistance, voltage, current, and temperature for both individual cells and battery strings.
Q: How many battery cells can one system handle?
A: The system can measure a maximum of 648 pieces of 2V battery cells or up to 300 pieces of 12V battery cells.
Q: What communication protocols are supported for integration?
A: It supports Modbus RTU via RS485/RS232 as standard, with an optional Modbus TCP via RJ45 Ethernet connection.
Q: Does the system provide status indicators?
A: Yes, each sensor features LED indicators: Green for normal operation and Red for abnormal status detection.
Q: What is the typical lead time for orders?
A: Standard goods typically require about 15 days for preparation. Large-scale or customized orders may require additional time.
