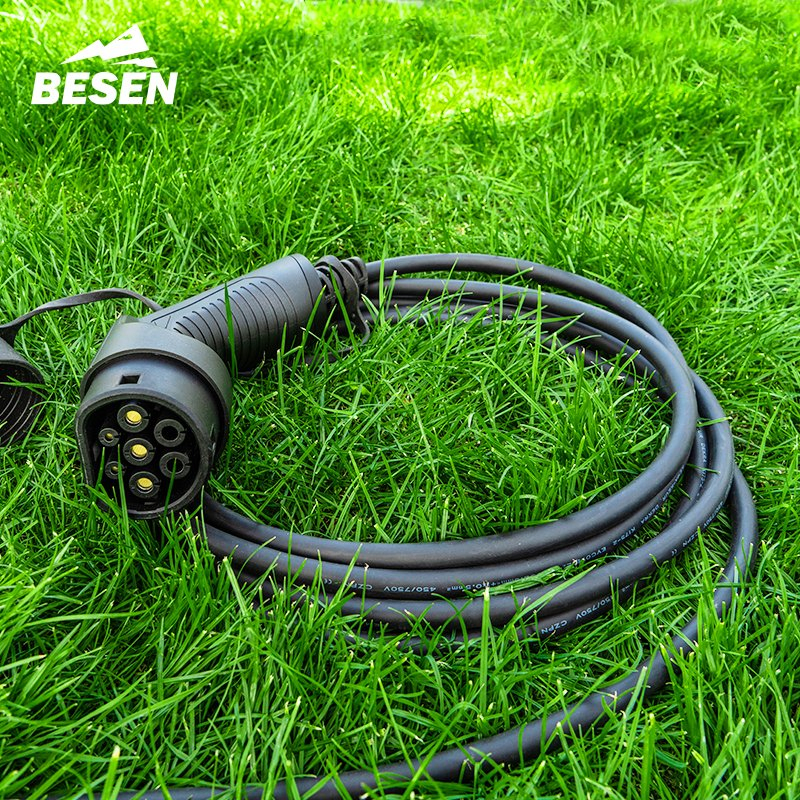

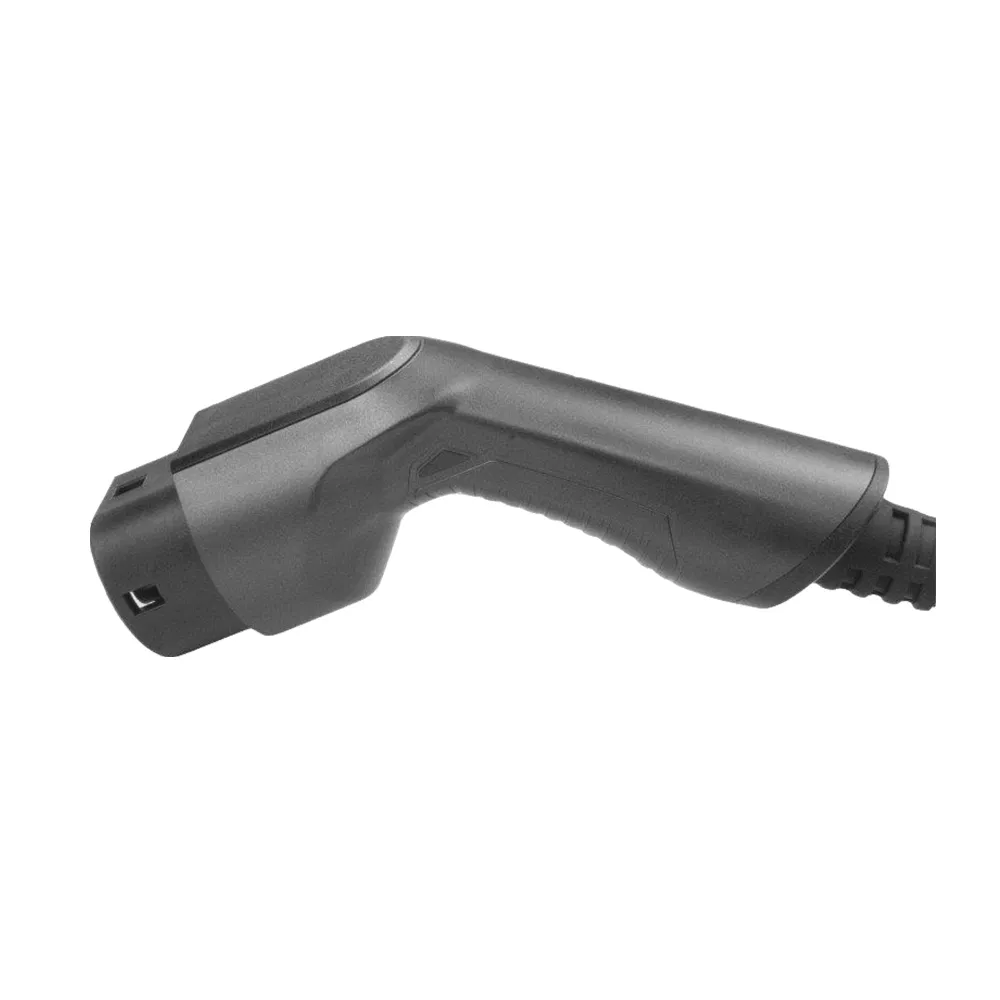

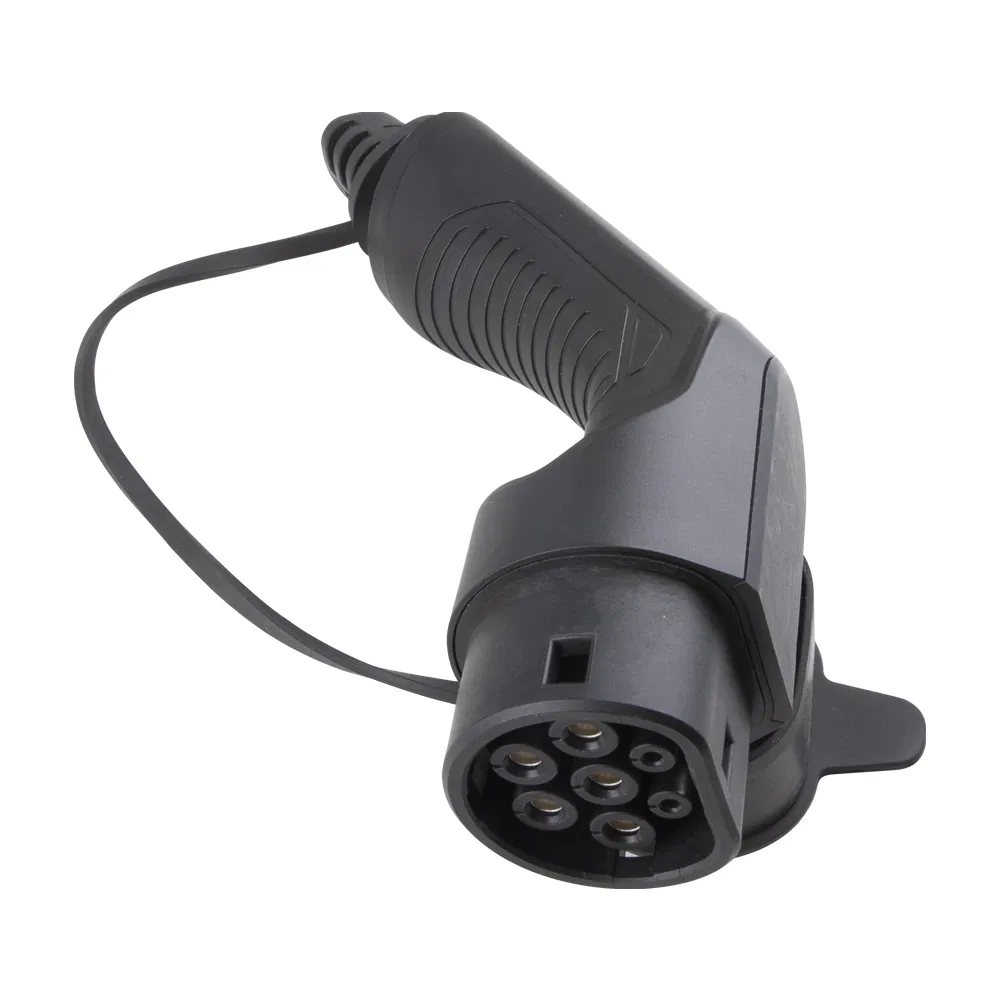

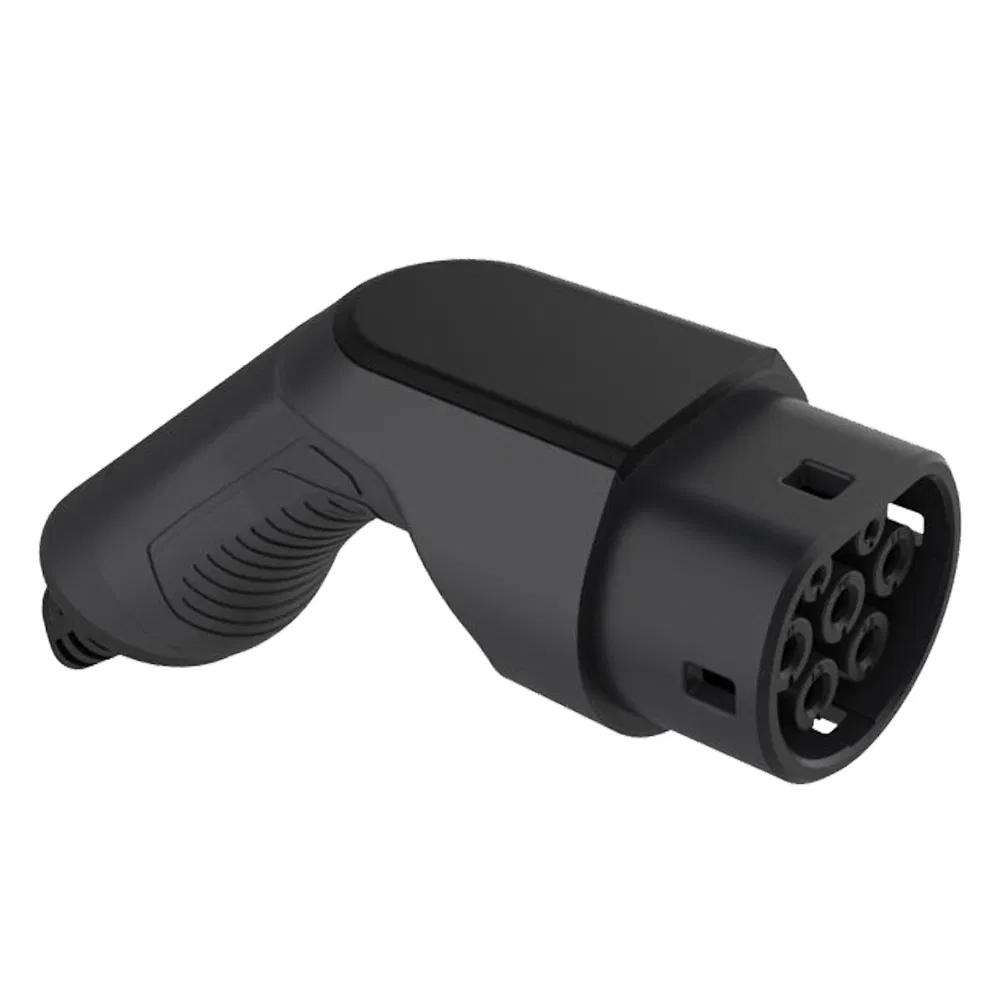

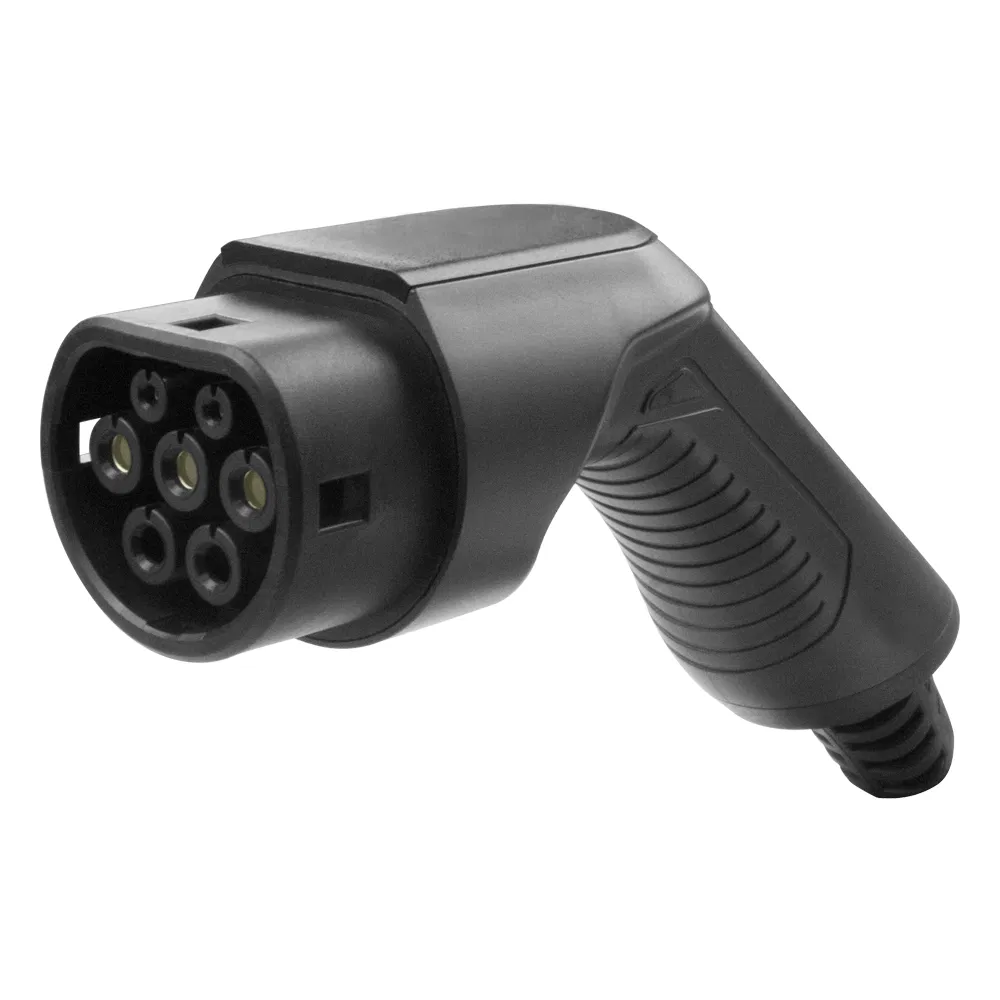

OEM ODM 32A 3 Phase 22kw IEC 62196-2 Type 2 EV Charging Connector Plug with TPU
OEM ODM 32A 3 Phase 22kw IEC 62196-2 Type 2 EV Charging Connector Plug with TPU
OEM ODM 32A 3 Phase 22kw IEC 62196-2 Type 2 EV Charging Connector Plug with TPU
OEM ODM 32A 3 Phase 22kw IEC 62196-2 Type 2 EV Charging Connector Plug with TPU
OEM ODM 32A 3 Phase 22kw IEC 62196-2 Type 2 EV Charging Connector Plug with TPU
1 / 5
OEM ODM 32A 3 Phase 22kw IEC 62196-2 Type 2 EV Charging Connector Plug with TPU
OEM ODM 32A 3 Phase 22kw IEC 62196-2 Type 2 EV Charging Connector Plug with TPU
OEM ODM 32A 3 Phase 22kw IEC 62196-2 Type 2 EV Charging Connector Plug with TPU
OEM ODM 32A 3 Phase 22kw IEC 62196-2 Type 2 EV Charging Connector Plug with TPU
OEM ODM 32A 3 Phase 22kw IEC 62196-2 Type 2 EV Charging Connector Plug with TPU

OEM ODM 32A 3 Phase 22kw IEC 62196-2 Type 2 EV Charging Connector Plug with TPU

Customization: Available
Color: Black
Nominal Voltage: 220V
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
BS-EVP001-F (32A 3 Phase TPU)
Plug Type
Type 2
Rated Current
32A 3 Phase
Service
OEM ODM Customized
IP Grade
54
Working Temp.
-30°c ~+ 50°c
Insulation Resistance
> 1000m Ω (DC500V)
Insertion Force
45N < 100N
Operate Voltage
AC 220V ± 10%
Standard
European / American Standard
Certification
CCC
Warranty
1 Year
Origin
China
⚡

Product Description

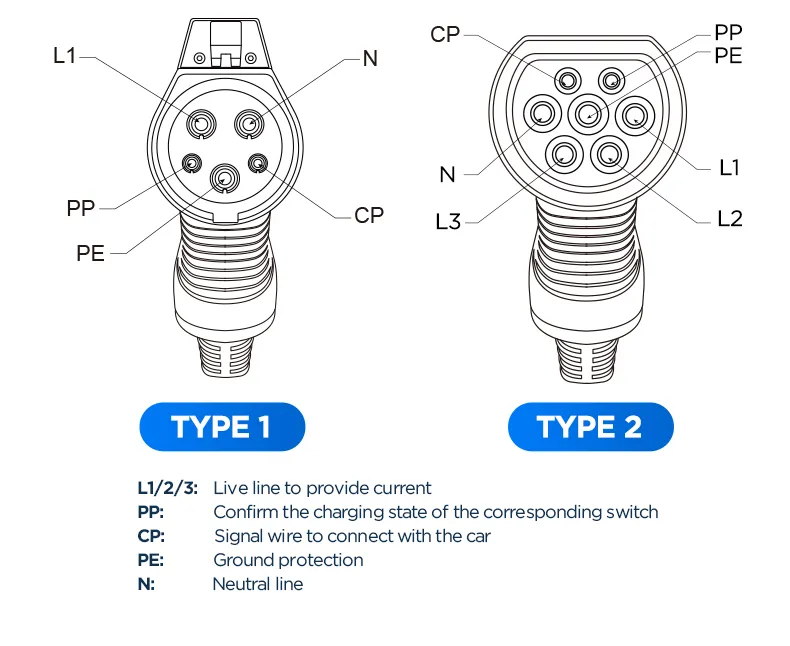

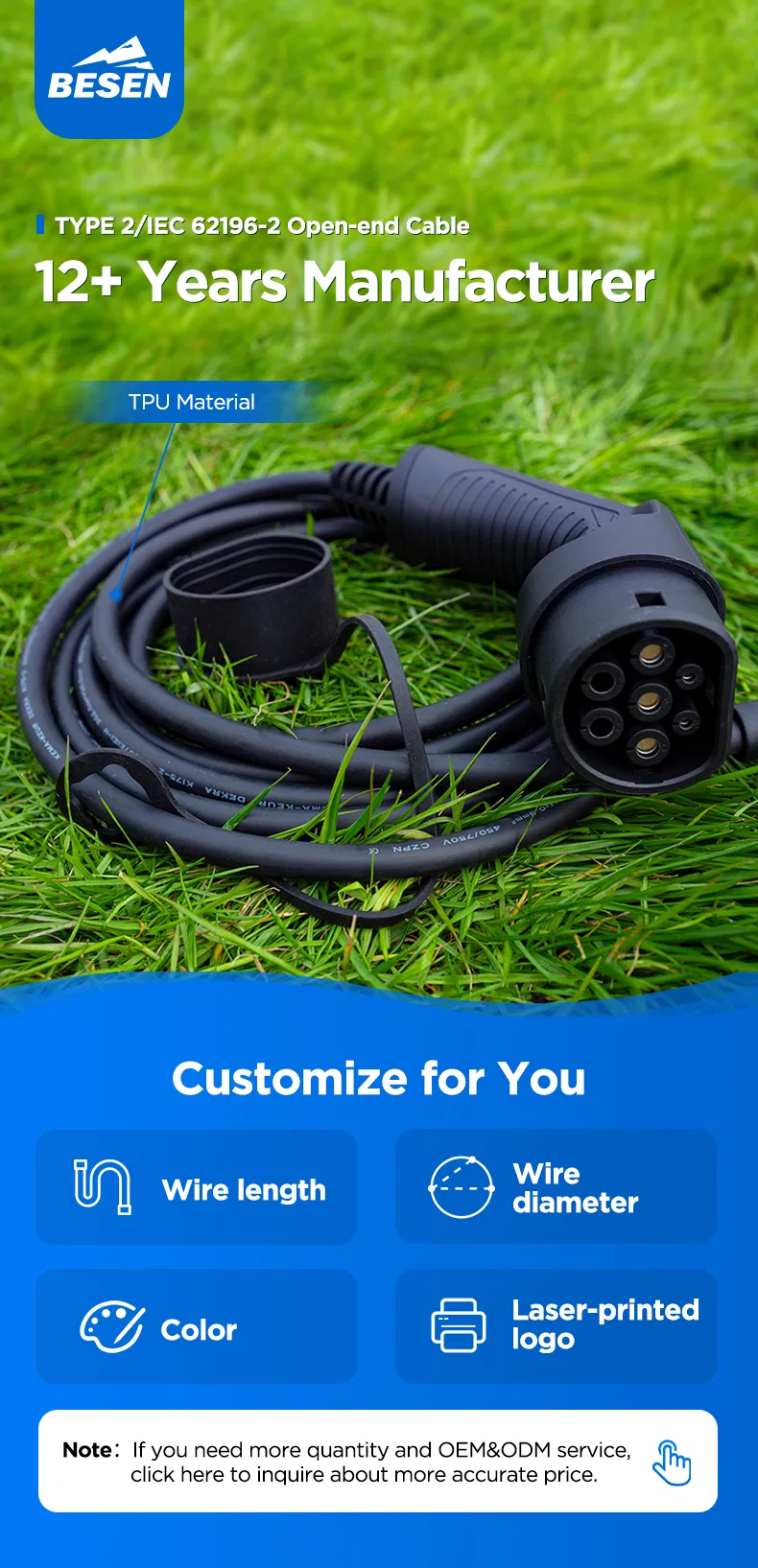

EV Charging Connector Layout

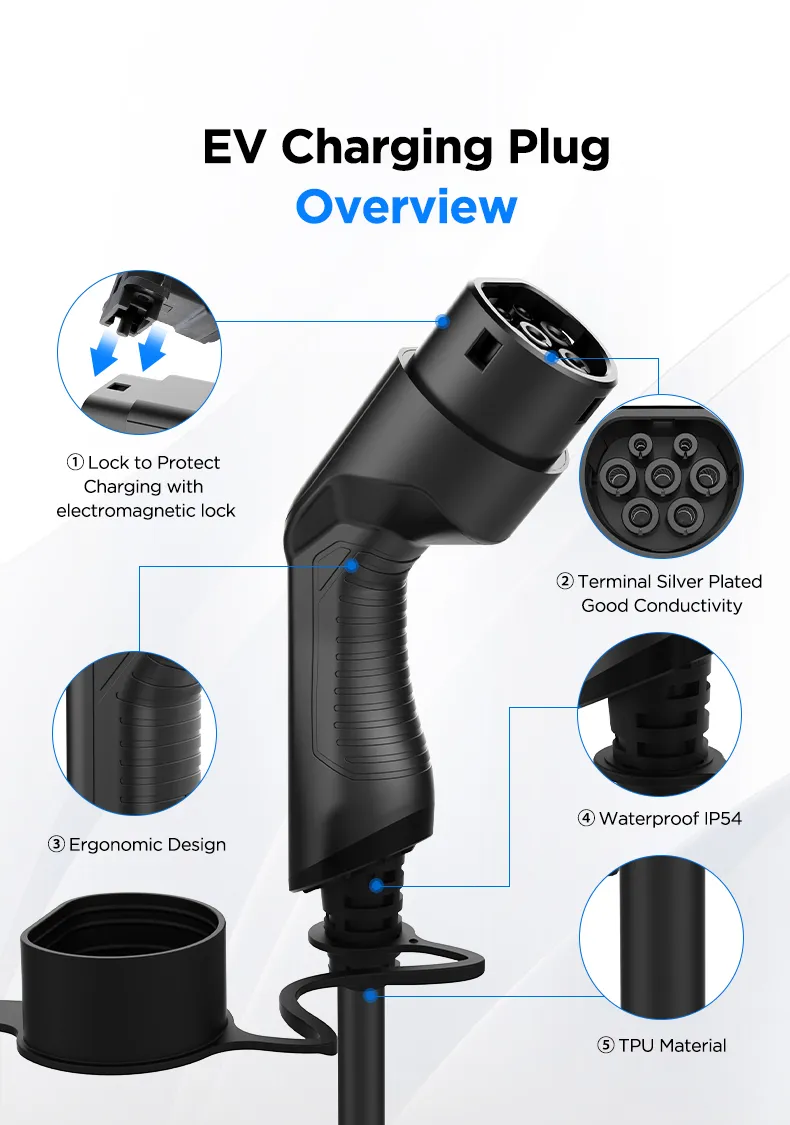

32A 3 Phase Plug Details
Certification Header
Rated Current IEC 62196-2/Type 2 (32A 3 Phase)
Operate Voltage AC 380V ± 10 %
Mechanical life No-load plug in /out >20000 times
Terminal Temp Rise <50K
Withstand Voltage 2000V
Contact Impedance 0.5m Ω Max
UV Resistant Yes
Plug Material PC+nylon alloy, flame retardant UL94 V-O
Terminal Material Copper alloy, silver plating
External Impact 1M height drop and 2T vehicle rolling resistance
Customization Wire length, diameter, color, laser logo, etc.
EV Connector Feature
Technical Drawing
Internal Structure
TPU Cable Material
Usage Scenario
Quality Control
Package Info
❓

Frequently Asked Questions

What standard does this EV charging plug follow?
This connector follows the IEC 62196-2 (Type 2) standard, making it compatible with most European electric vehicles.
Is the cable durable for outdoor environments?
Yes, it features an IP54 rating, UV resistance, and is made with TPU material that operates effectively between -30°C and +50°C.
What are the power capabilities of this model?
This is a 3-phase connector rated for 32A, supporting high-speed AC charging for compatible EVs.
Can I customize the charging cable?
Absolutely. We offer customization options for wire length, wire diameter, color, and even laser-printed logos.
How robust is the plug against physical damage?
The plug is designed to withstand a 1-meter drop and the rolling weight of a 2-ton vehicle without functional failure.
What is the expected lifespan of the connector?
The connector is tested for over 20,000 no-load plug-in and plug-out cycles, ensuring long-term reliability.
