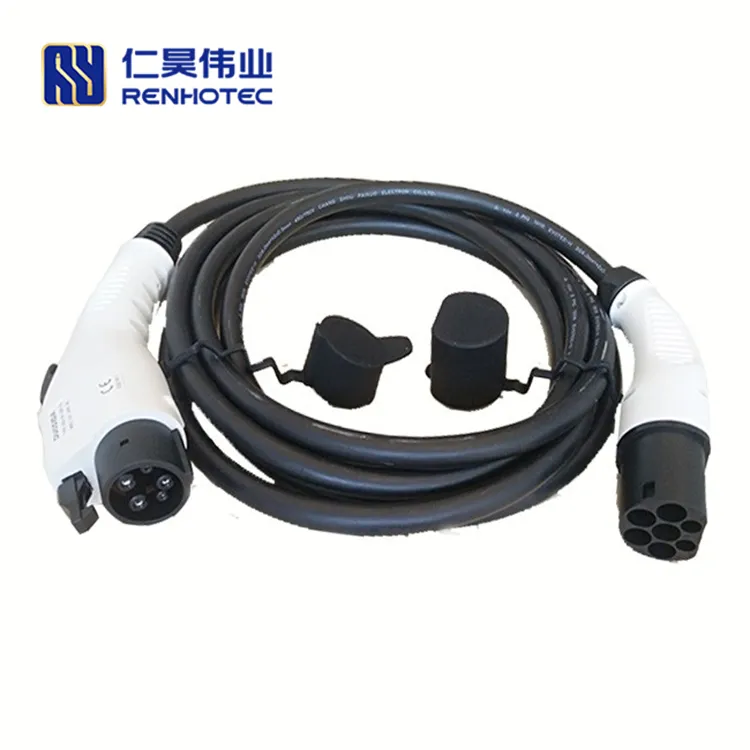

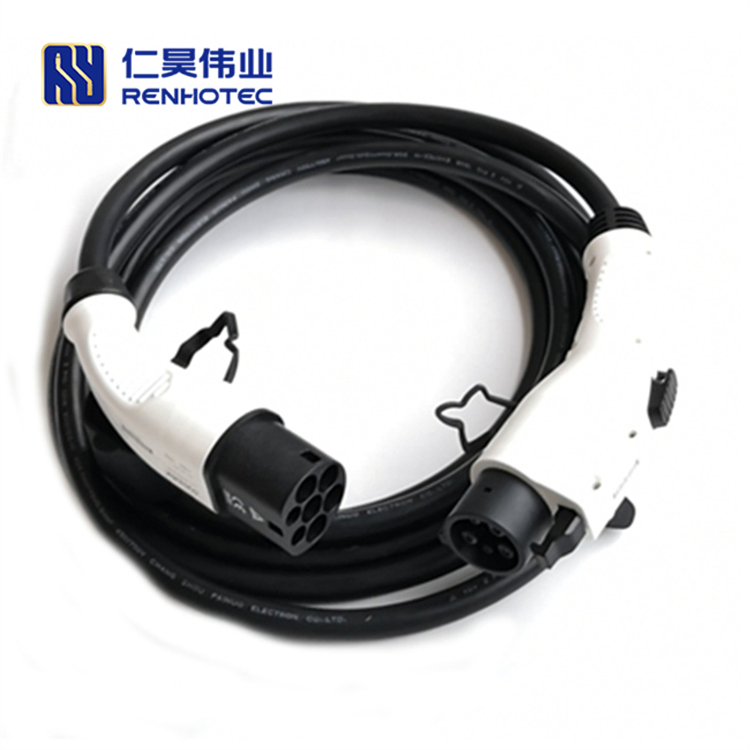

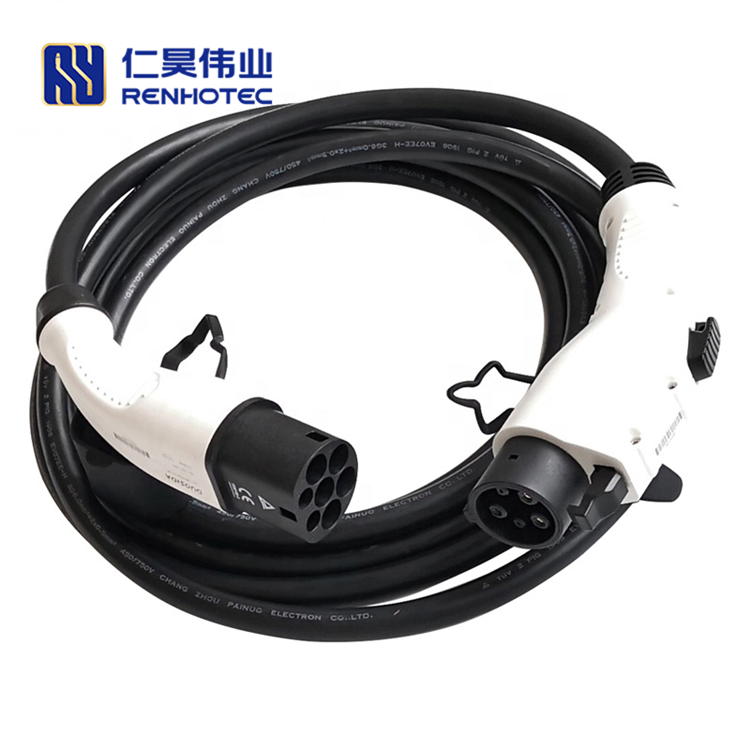

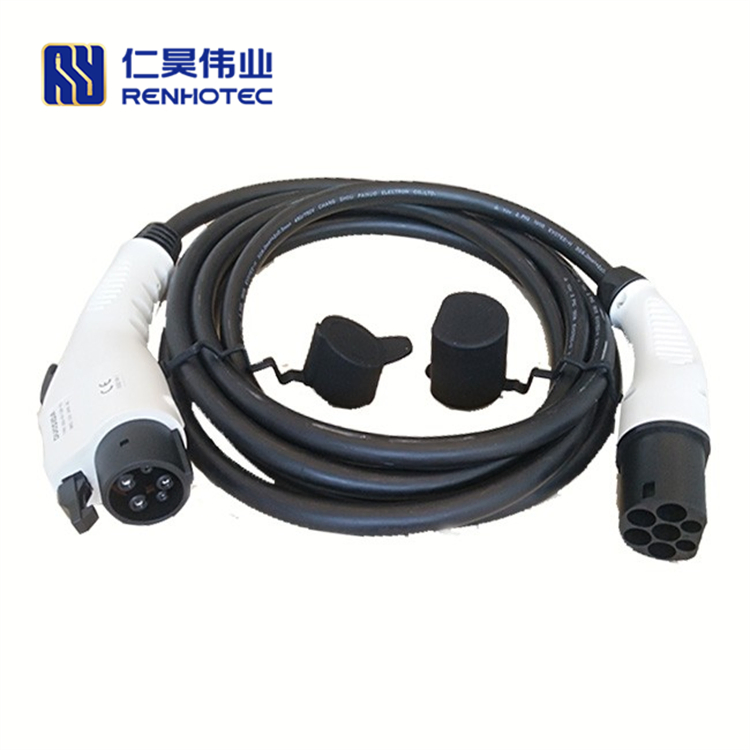

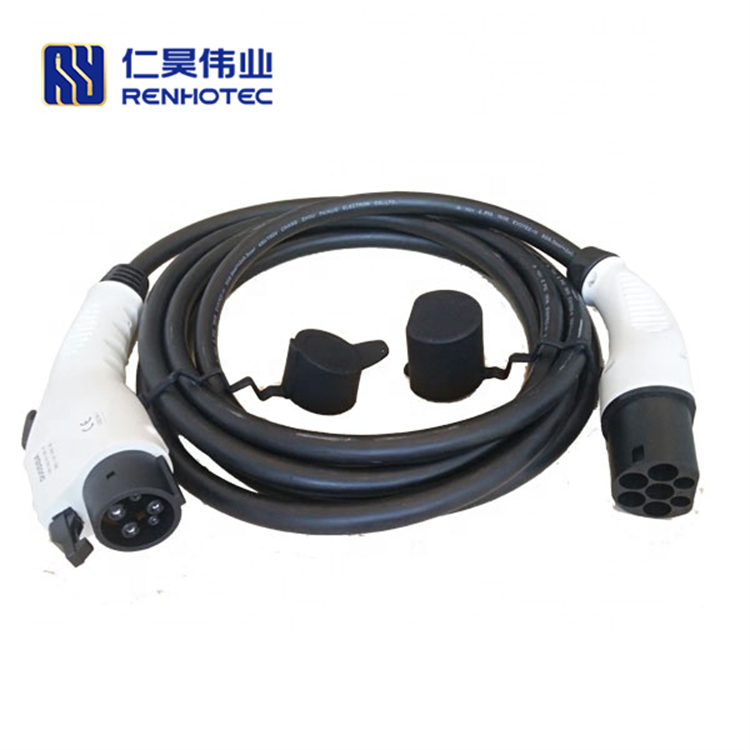

Mode 3 EV Charger IEC 62196 Type 2 to Type 1 Connector 16A 32A Charging Plug with 5 Meters Cable

1 / 5

Mode 3 EV Charger IEC 62196 Type 2 to Type 1 Connector 16A 32A Charging Plug with 5 Meters Cable

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.Type 2 To Type 1 Connector

Rated Current16A / 32A

Rated Voltage250V

IP DegreeIP65 / IP55

Mechanical Life>10000 Times

Cable Length5m / 10m / Customized

Weight1kg

TypeFast EV Charging Station

CertificationCE, ISO, TUV, RoHS

Warranty24 Months

Seeking a Reliable EV Charger Manufacturer to Support Your Project?

Full Series EV Charger Overview

All types of High Voltage Connectors from OEM Manufacturer.

Products comply with GB/T20234-2011 standard.
Various types: DC charging connectors (125A, 250A) and AC charging connectors (16A, 32A).

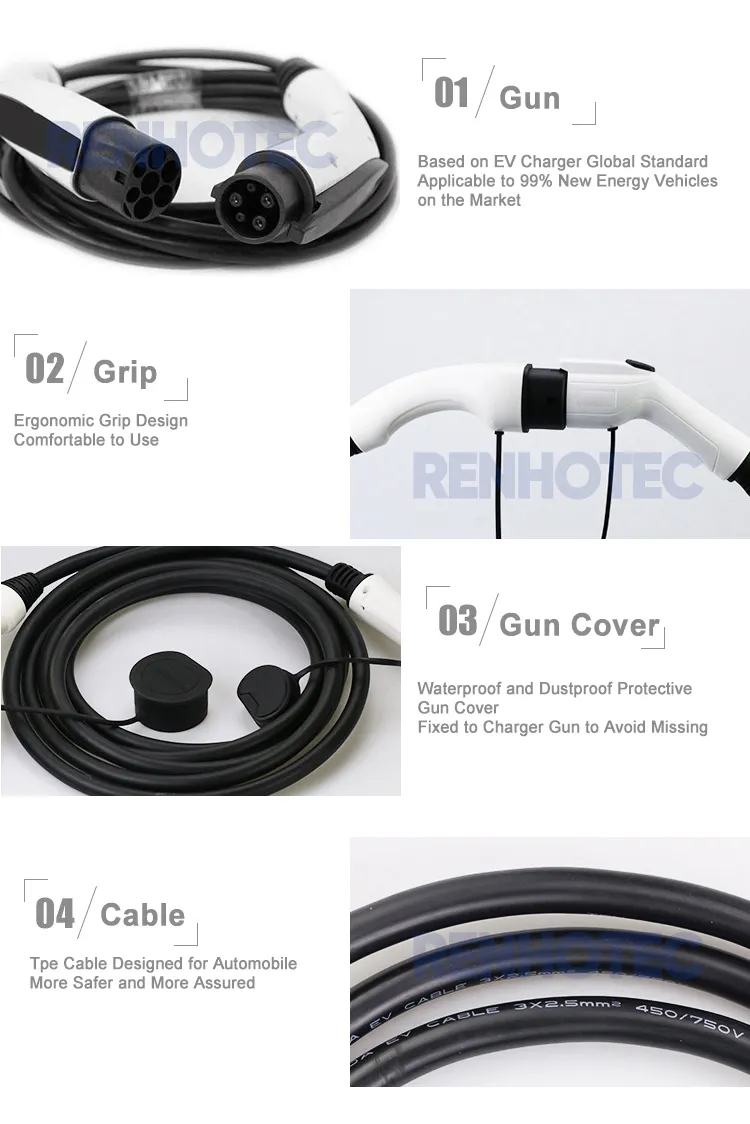

Humanized design with a good grasp feel, easy to use.
Various accessories available: protection caps including damping caps and metal string caps.
Termination type: Wire crimping for both plug and socket.
High degree of protection: IP55.

Product Features & Specs

EV Charger Technical Data
Model	GB/T Series / SAEJ1772 / Type 1 Series / Type 2 Series
Connector Type	Plug / Receptacle / Dummy Socket
Current Type	AC / DC
Rated Current	16A / 32A / 70A / 80A / 125A / 200A / 250A
Application	Vehicle End / Power Supply Side

Material Quality:

Shell & Insulator: High-grade Thermoplastics (UL94-V0 Flame Retardant)
Sealing: Premium Rubber Material
Contacts: Copper Alloy with Gold-plating for signal and power

Environmental Performance:

Operating Temperature: -30ºC to +50ºC
Relative Humidity: 98% at 40ºC
Durability: Exceeds 10,000 mating cycles

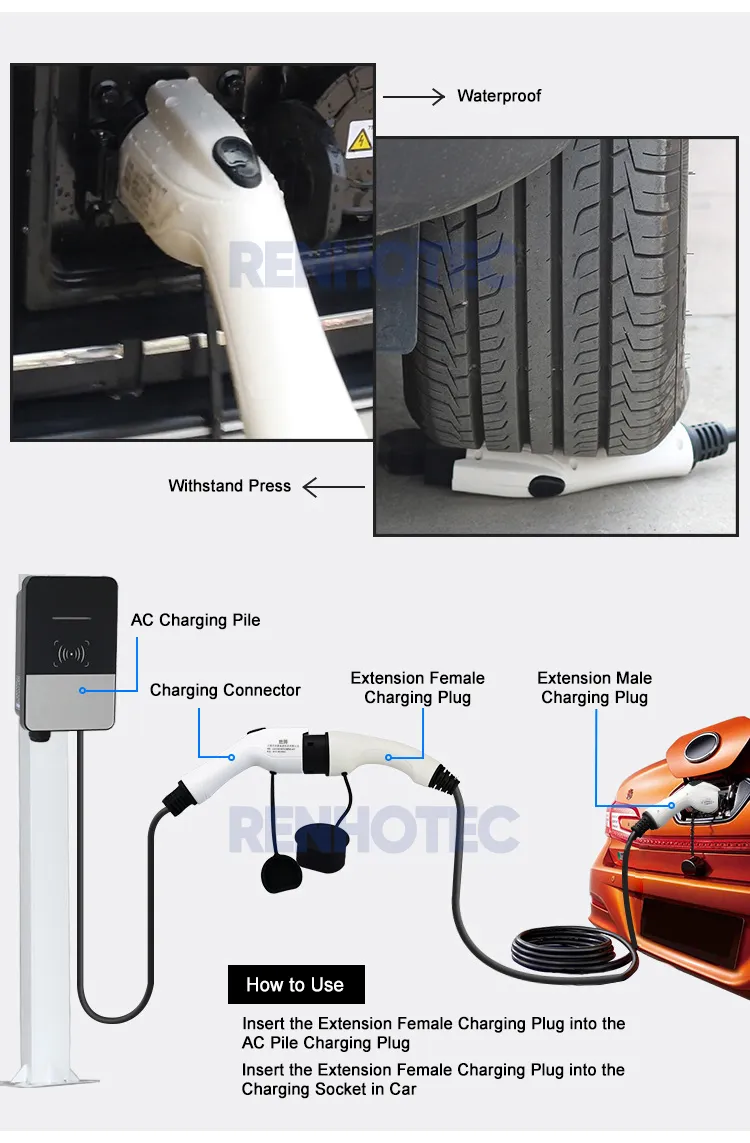

Application & Usage

Specifically designed for high-voltage cable connections within electric vehicles, ensuring stable power transmission.

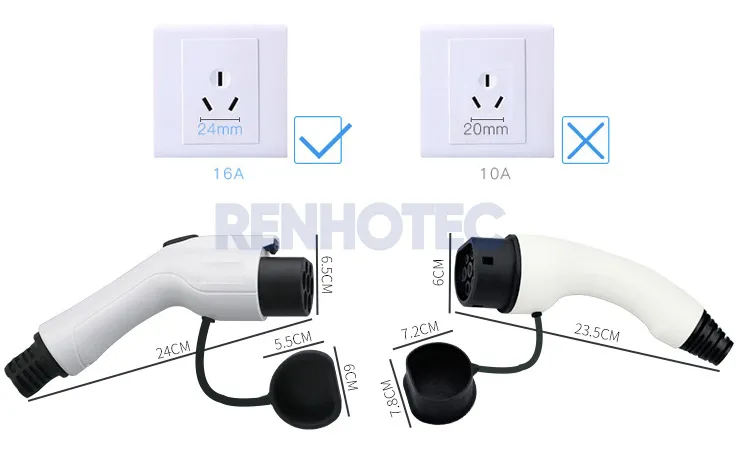

* Note: Sizes are measured manually; please refer to the actual product for precision.

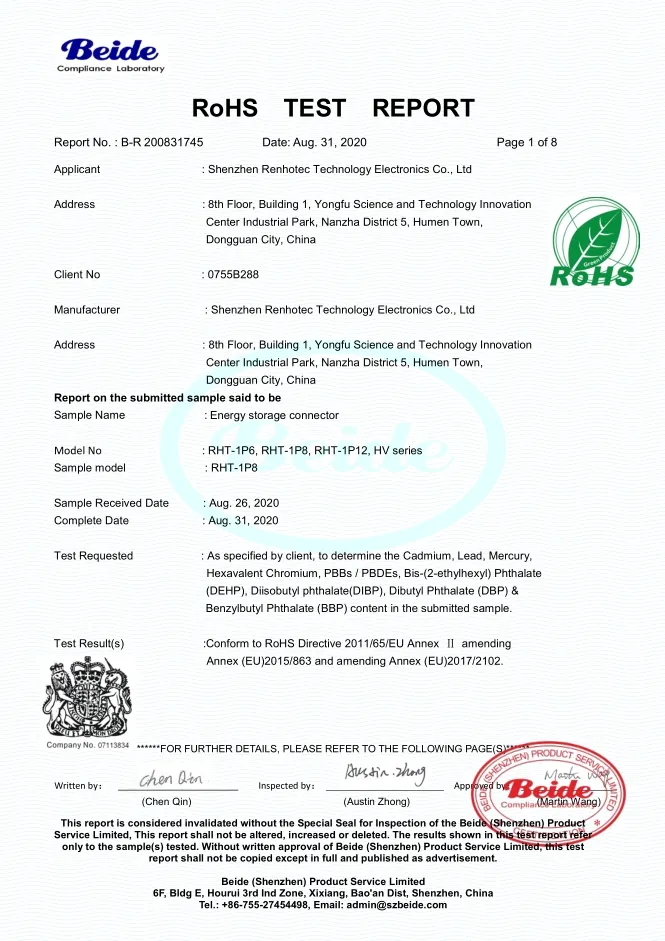

Certifications & Quality

Packing & Shipping

Packing Details:

1. Standard: Individual parts in transparent PE bags with labels.

2. Customized OEM packaging is available upon request.

Shipping Info:

Express: FedEx, DHL, UPS, TNT, SF (Door to Door)
Bulk: Air, Sea, or Rail transport
Lead Time: 1-7 days (Samples), 7-15 days (Mass Production)

Frequently Asked Questions

What is the waterproof rating of this EV connector?

The connector features an IP55 or IP65 rating (depending on the model), ensuring protection against dust and low-pressure water jets during charging.

Does this charger support both Type 1 and Type 2 vehicles?

Yes, we provide Type 2 to Type 1 connectors as well as full series for GB/T, SAEJ1772, and specific Type 1/Type 2 requirements.

How long is the service life of the plug?

The mechanical life is tested to exceed 10,000 mating cycles under non-charged states, ensuring years of reliable daily use.

Can I customize the cable length for my project?

Absolutely. While 5m and 10m are our standard lengths, we offer fully customized cable lengths to meet your specific installation needs.

What safety certifications do your EV chargers hold?

Our products are fully certified with CE, ISO, TUV, and RoHS standards, complying with international safety and environmental regulations.

What materials are used for the contact pins?

The contacts are made of high-quality copper alloy with gold plating for both power and signal pins to ensure maximum conductivity and corrosion resistance.
