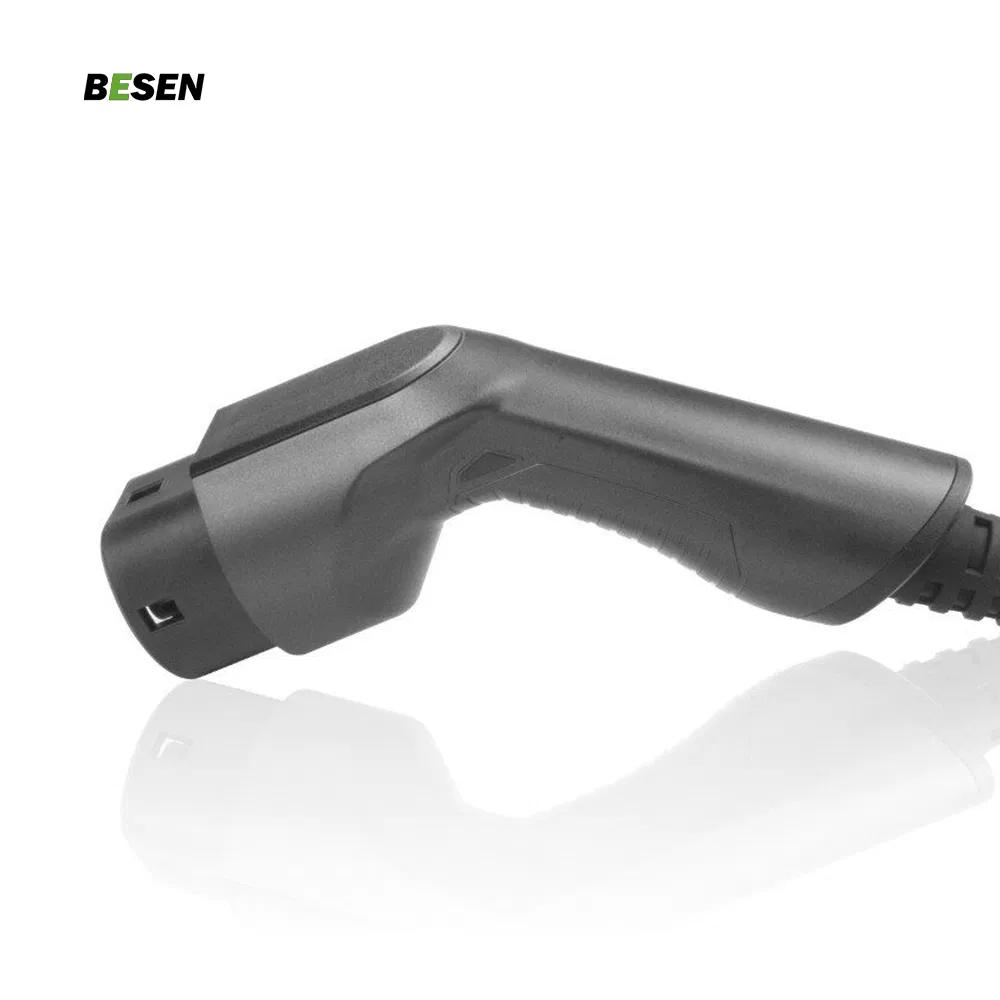

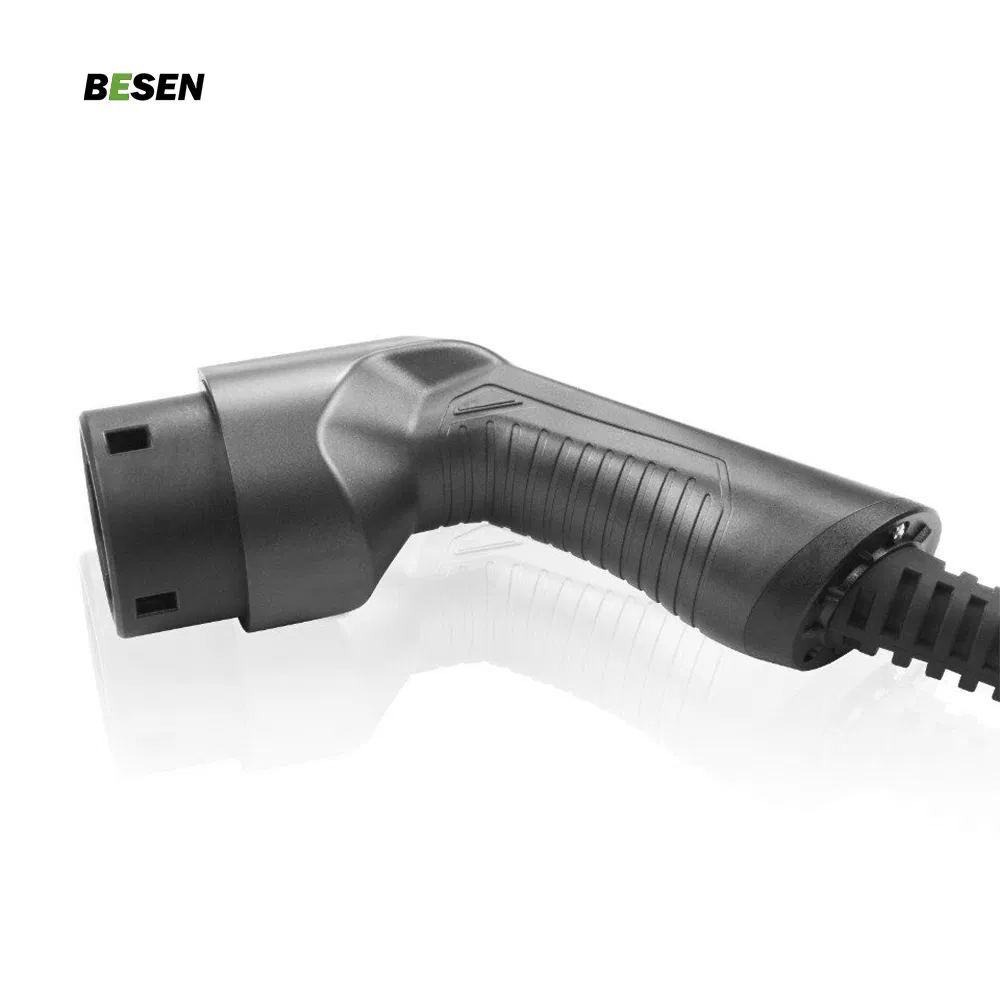

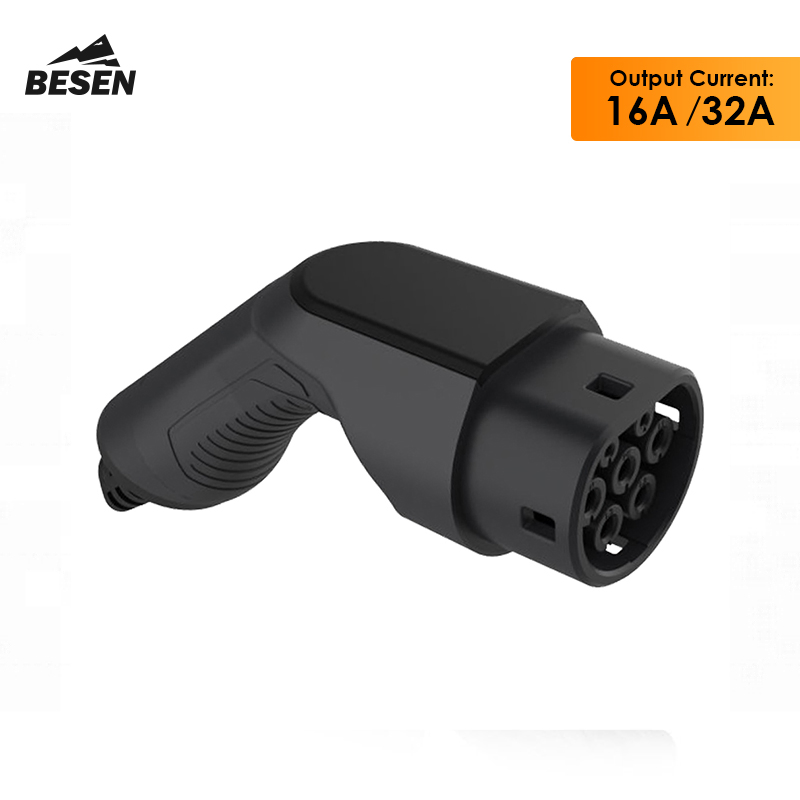

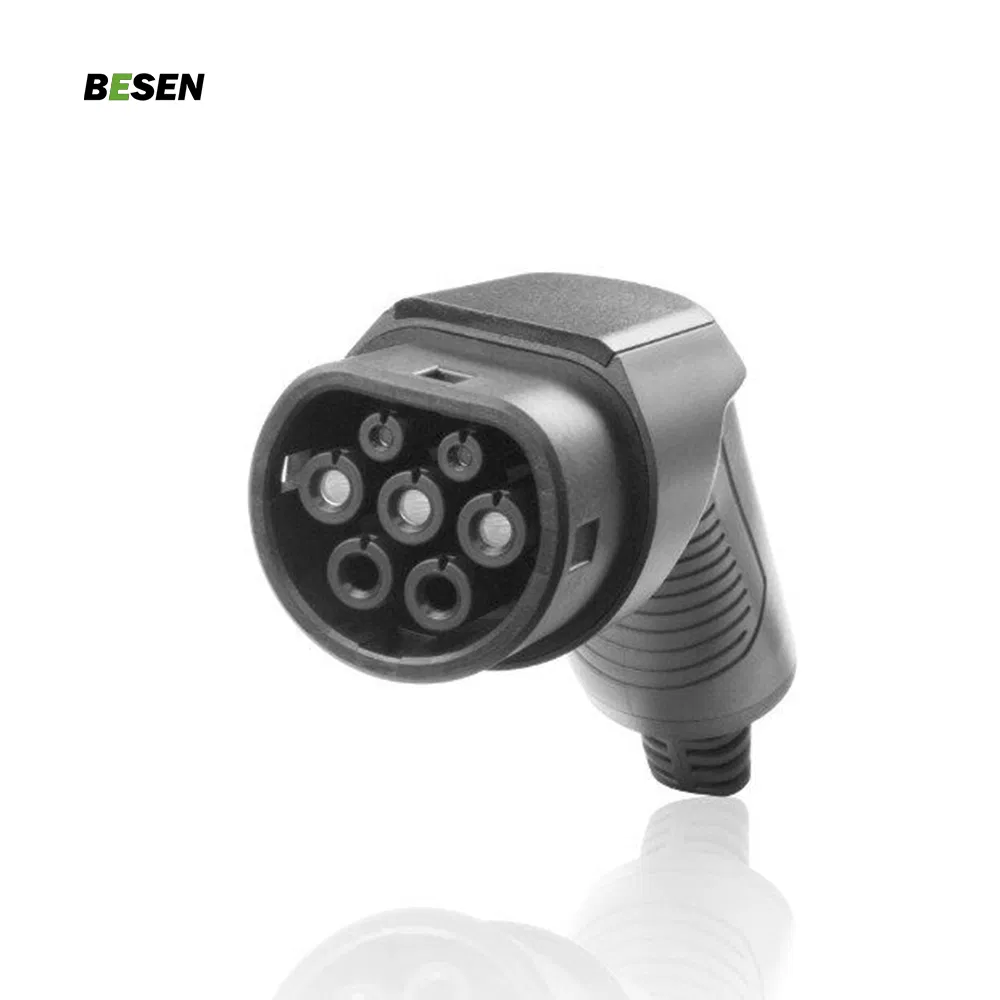

Type 2 Connector EV IEC 62196 Plug Manufacturer Charging Plug
Type 2 Connector EV IEC 62196 Plug Manufacturer Charging Plug
Type 2 Connector EV IEC 62196 Plug Manufacturer Charging Plug
Type 2 Connector EV IEC 62196 Plug Manufacturer Charging Plug
Type 2 Connector EV IEC 62196 Plug Manufacturer Charging Plug
1 / 5
Type 2 Connector EV IEC 62196 Plug Manufacturer Charging Plug
Type 2 Connector EV IEC 62196 Plug Manufacturer Charging Plug
Type 2 Connector EV IEC 62196 Plug Manufacturer Charging Plug
Type 2 Connector EV IEC 62196 Plug Manufacturer Charging Plug
Type 2 Connector EV IEC 62196 Plug Manufacturer Charging Plug

Type 2 Connector EV IEC 62196 Plug Manufacturer Charging Plug

Customization: Available
Grounding: Isolated Ground
Rated Current: 32A
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
EVP001-F(32A)
IP Grade
IP 66
Operating Voltage
250V
Withstand Voltage
2000V
Standard
European Standard
Function
AC Plug, Charger Plug
Certification
CCC
Interface Type
AC/DC
Application
Industrial
Specification
IEC62196-2
Production Capacity
10000/Month
✓

Product Description

Type 2 Connector EV Plug
EV IEC 62196 Plug
Charging Plug Manufacturer
Rated CurrentIEC 62196-2/Type 2 (16A/32A)
Rated Current Phase3 Phase
Operate VoltageAC 380V ± 10 %
Mechanical lifeNo-load plug in /out >20000 times
Insulation Resistance>1000M Ω (DC500V)
Terminal Temperature Rise<50K
Withstand Voltage2000V
Contact Impedance0.5m Ω Max
UV ResistantYes
Coupled Insertion Force45N<100n
Working Temperature-30ºC~+50ºC
Plug MaterialPC+nylon alloy, flame retardant grade UL94 V-O
TerminalCopper alloy, silver plating
Sealing GasketRubber or silicon rubber
Impact of External ForceWithstand 1M height drop and 2T-vehicle rolling
CustomizationWire length, diameter, color, laser-printed logo
Product Detail

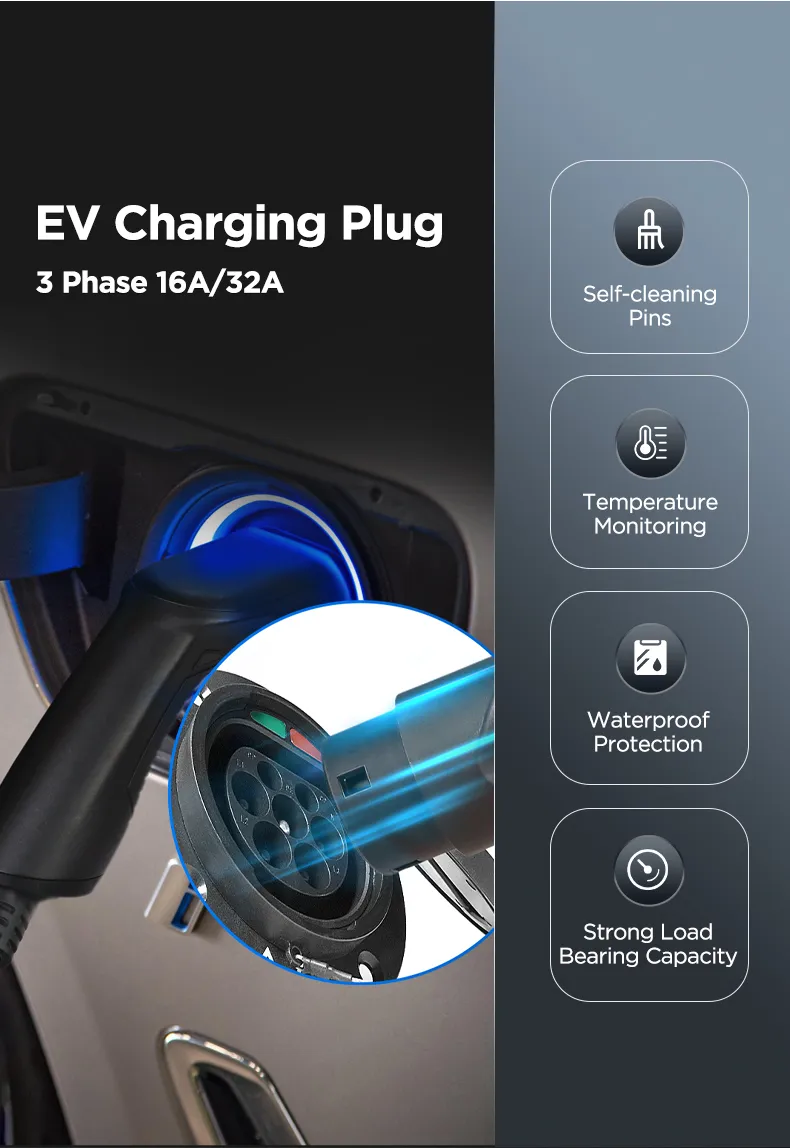

Charging Specification

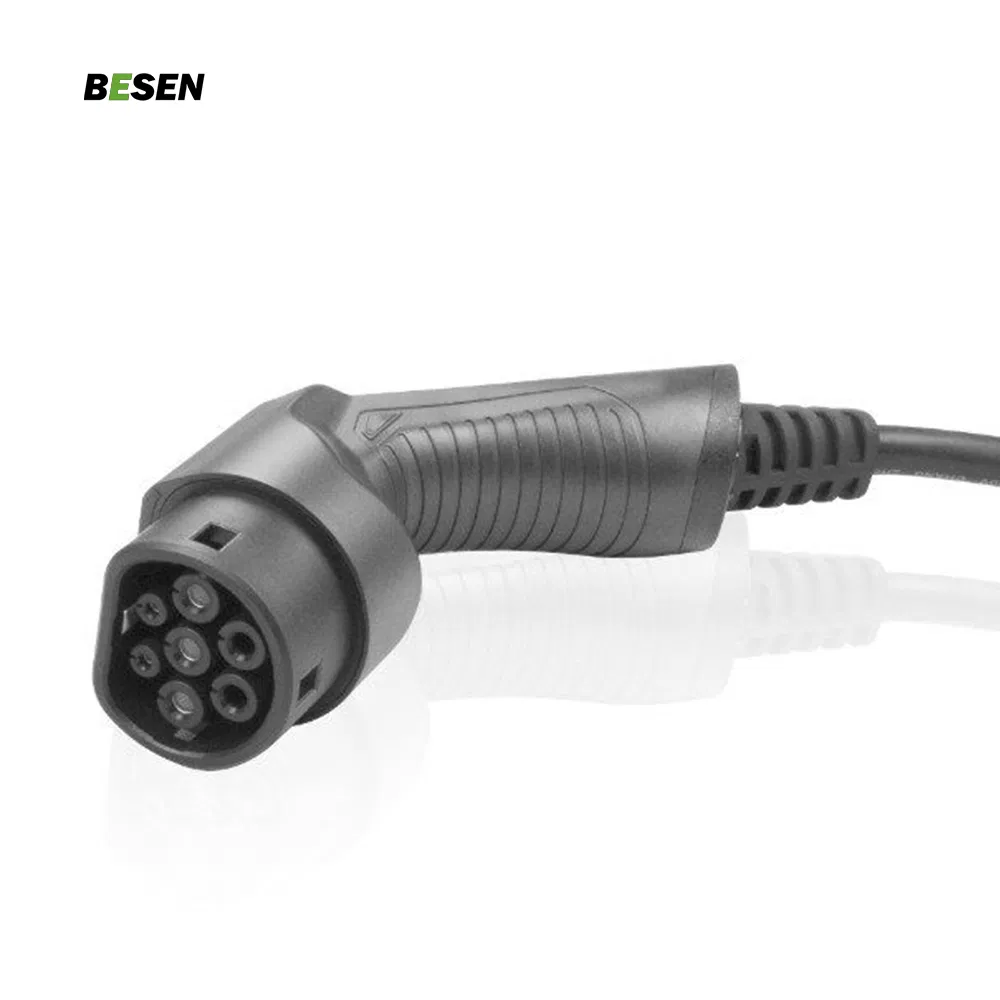

Connector View

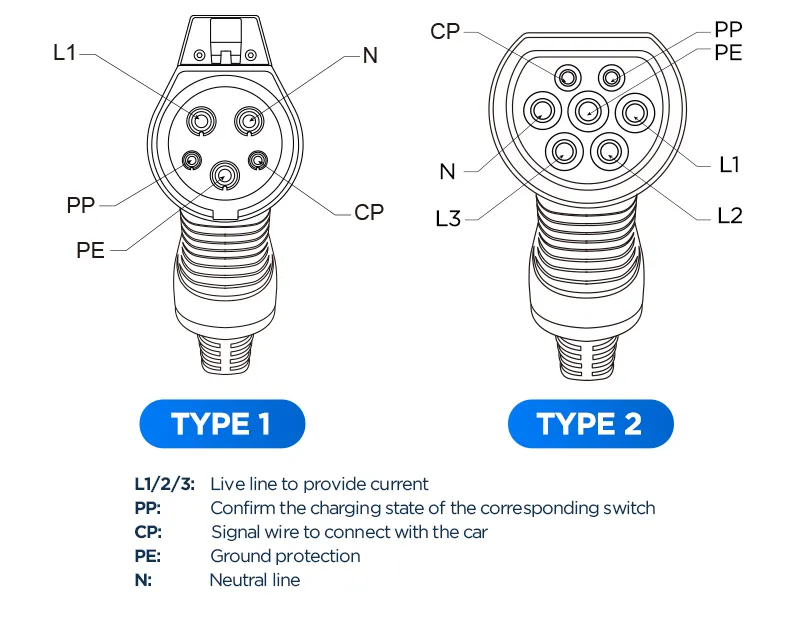

Technical Drawing
Interface Type
Material Display
Product Summary
?

Frequently Asked Questions

What is the standard of this EV charging plug?
This plug follows the European Standard IEC 62196-2 (Type 2), which is widely used for EV charging across Europe and other regions.
How durable is the plug for daily use?
The mechanical life of the plug exceeds 20,000 no-load plug-in and plug-out cycles, ensuring long-term reliability.
What is the IP rating for weather protection?
It has an IP66 grade, meaning it is highly protected against dust and heavy seas or powerful jets of water.
Can the plug handle extreme temperature conditions?
Yes, the working temperature range is -30ºC to +50ºC, making it suitable for various environmental conditions.
Is the plug material safe and flame retardant?
The plug is made of PC+nylon alloy with a flame retardant grade of UL94 V-O, providing excellent safety performance.
What kind of impact resistance does it offer?
It is designed to withstand a 1-meter height drop and the rolling pressure of a 2-ton vehicle without losing functionality.
