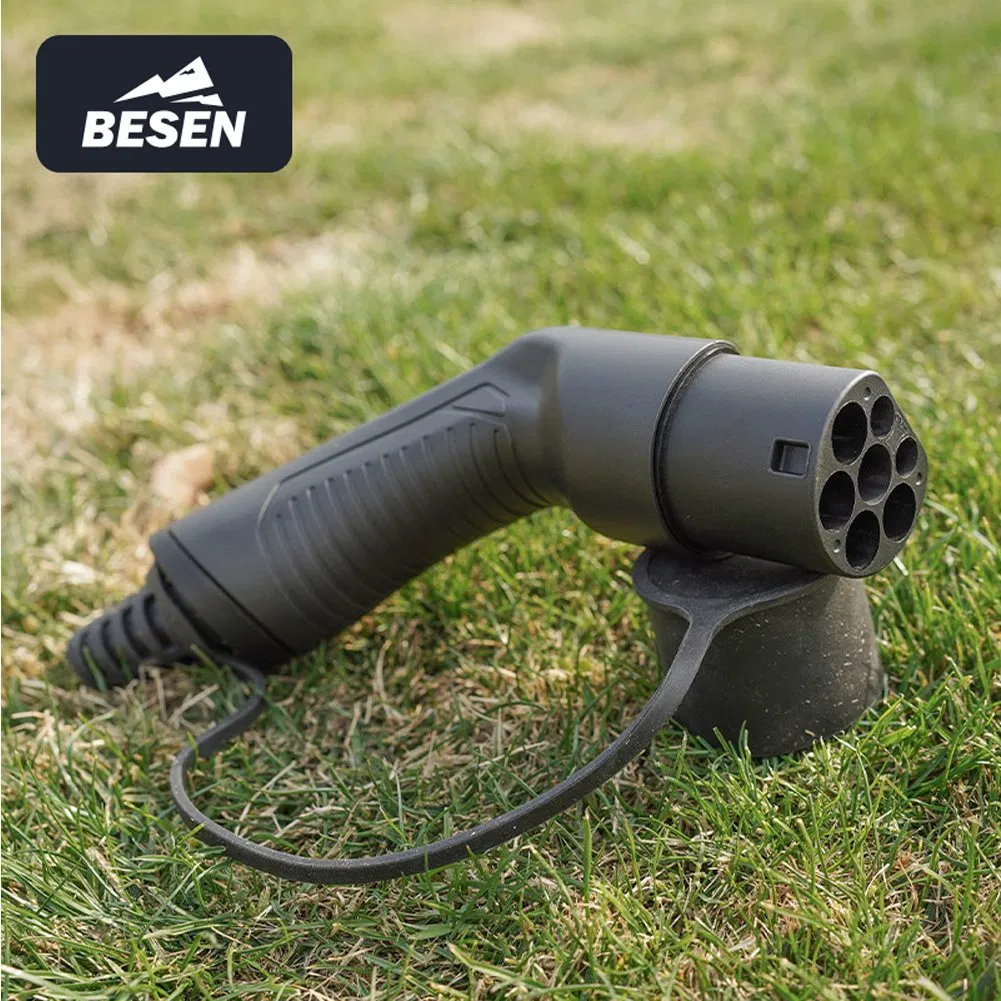

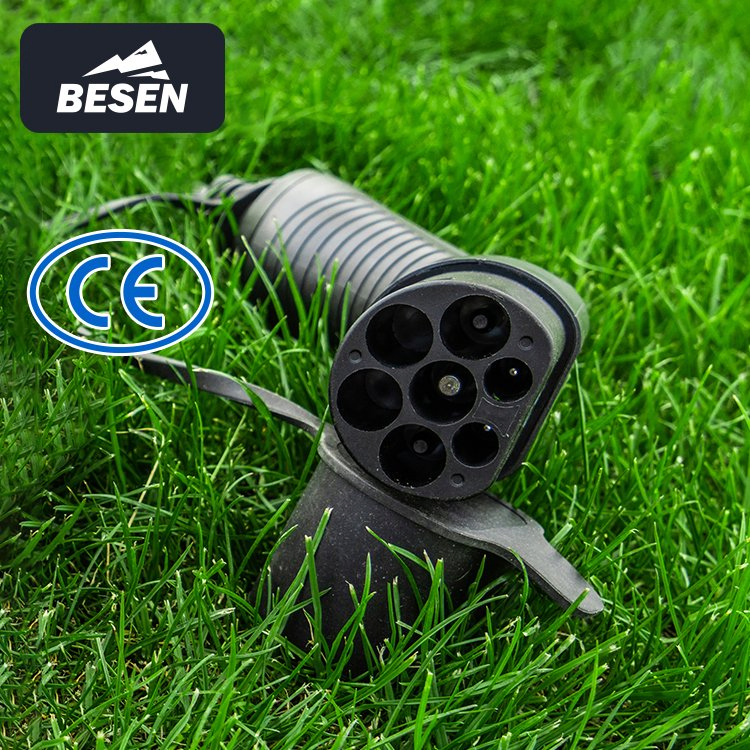

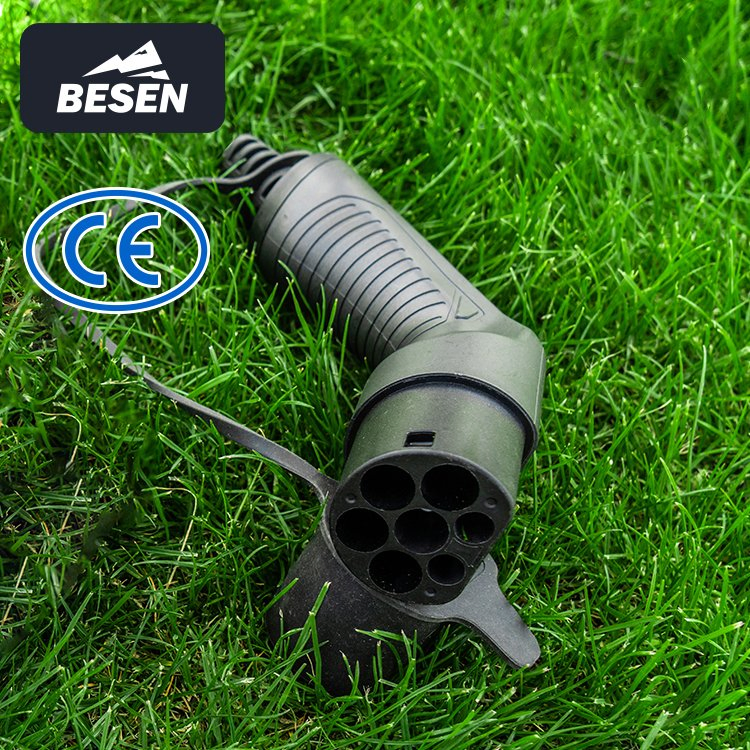

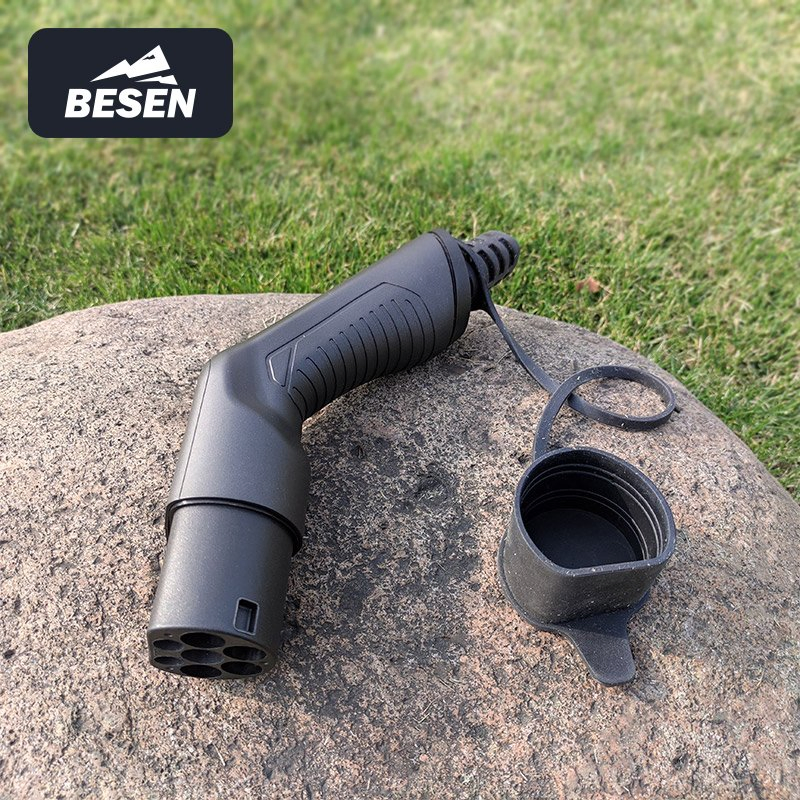

IEC 62196-2 Type 2 EV Charging 32A Male Plug

1 / 5

IEC 62196-2 Type 2 EV Charging 32A Male Plug

Customization:	Available
Certification:	CCC
Color:	Black

Send Inquiry

Product Description

Basic Specifications

Model NO.

EVP001-M(32A)

IP Rating

IP 66

Product Name

EV Charging Connector

Rated Current

32A

Operating Voltage

250V

Withstand Voltage

2000V

Car Fitment

Adapted All Models

Weight

0.5kg

Standard

European Standard

Interface Type

AC/DC

Warranty

1 Year Warranty

Specification

IEC 62196-2

✓

Product Description

The Type 2 plug is a standardized EV charging connector specified under the IEC 62196-2 standard. It was first developed in Europe and is widely adopted by car manufacturers and charging network providers globally.

★

Key Characteristics of the Type 2 Plug

▶

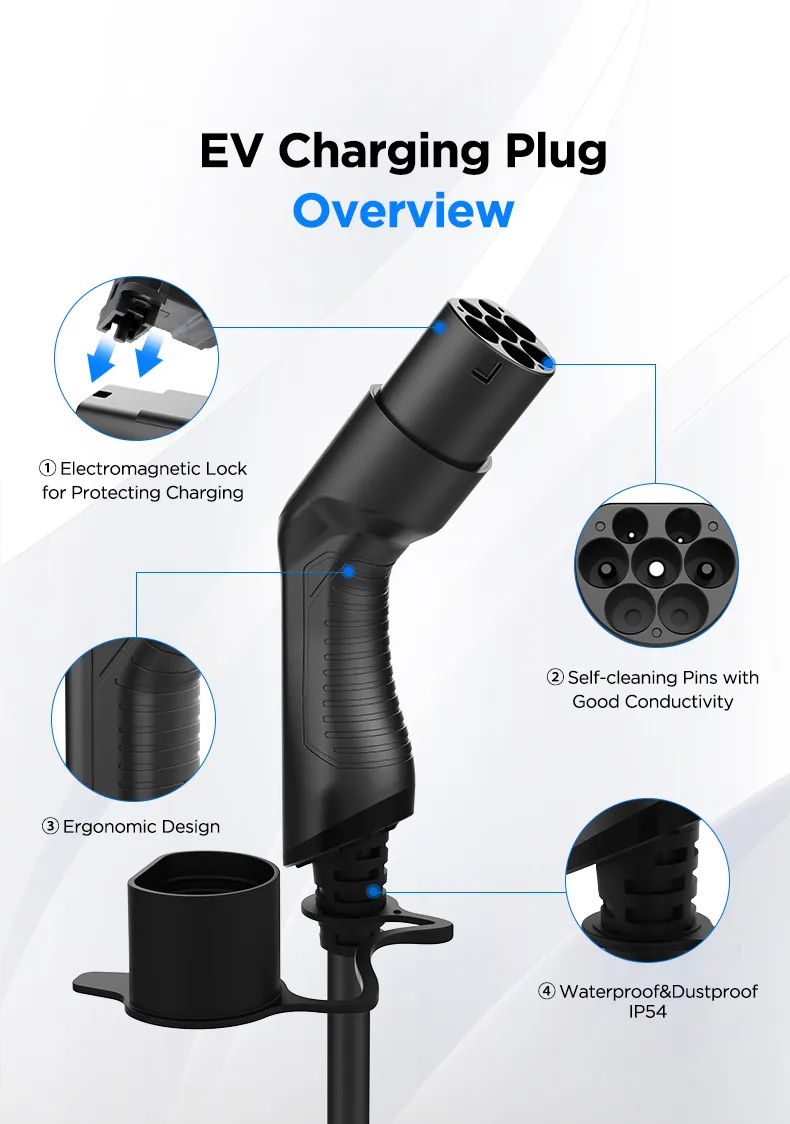

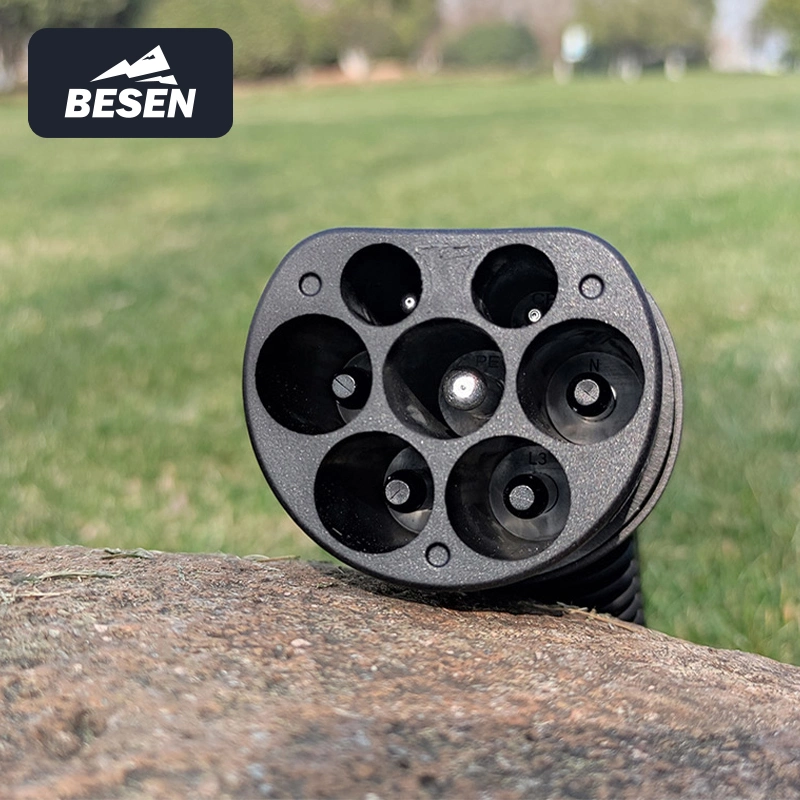

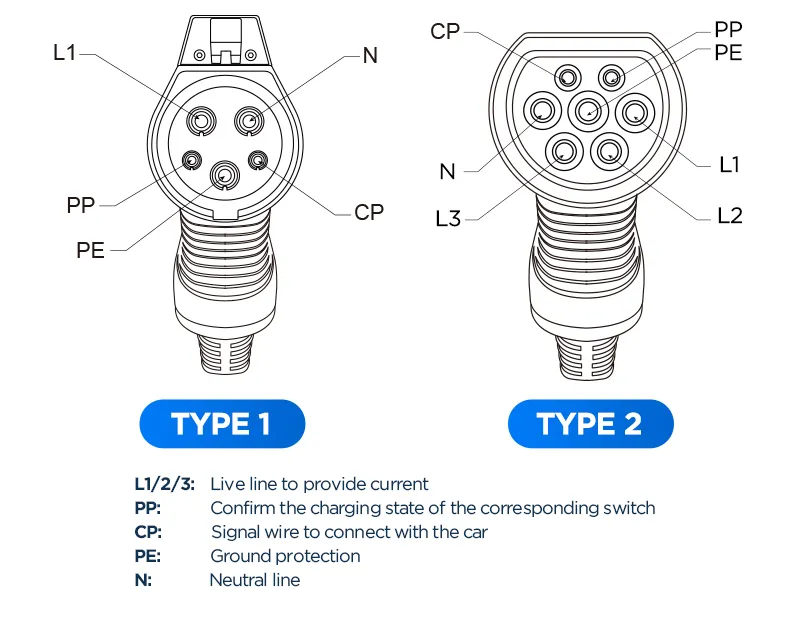

Seven-Pin Design: The Type 2 connector has seven pins, enabling efficient communication and charging between the EV and the charging station.

▶

Supports AC Charging: Designed primarily for alternating current (AC) charging, supporting both single-phase and three-phase systems.

▶

Global Adoption: The standard for EVs in Europe and increasingly popular in other regions like Asia, South America, and Australia.

Rated Current	IEC 62196-2/Type 2 (16A/32A)
Rated Current Phase	3 Phase
Operate Voltage	AC 380V ± 10 %
Mechanical life	No-load plug in /out >20000 times
Insulation Resistance	>1000M Ω (DC500V)
Terminal Temperature Rise	<50K
Withstand Voltage	2000V
Contact Impedance	0.5m Ω Max
UV Resistant	Yes
Working Temperature	-30ºC~+50ºC
Plug Material	PC+nylon alloy, flame retardant grade UL94 V-O
Terminal	Copper alloy, silver plating
Impact of External Force	Ability to withstand 1M height drop and the rolling of a 2T-vehicle

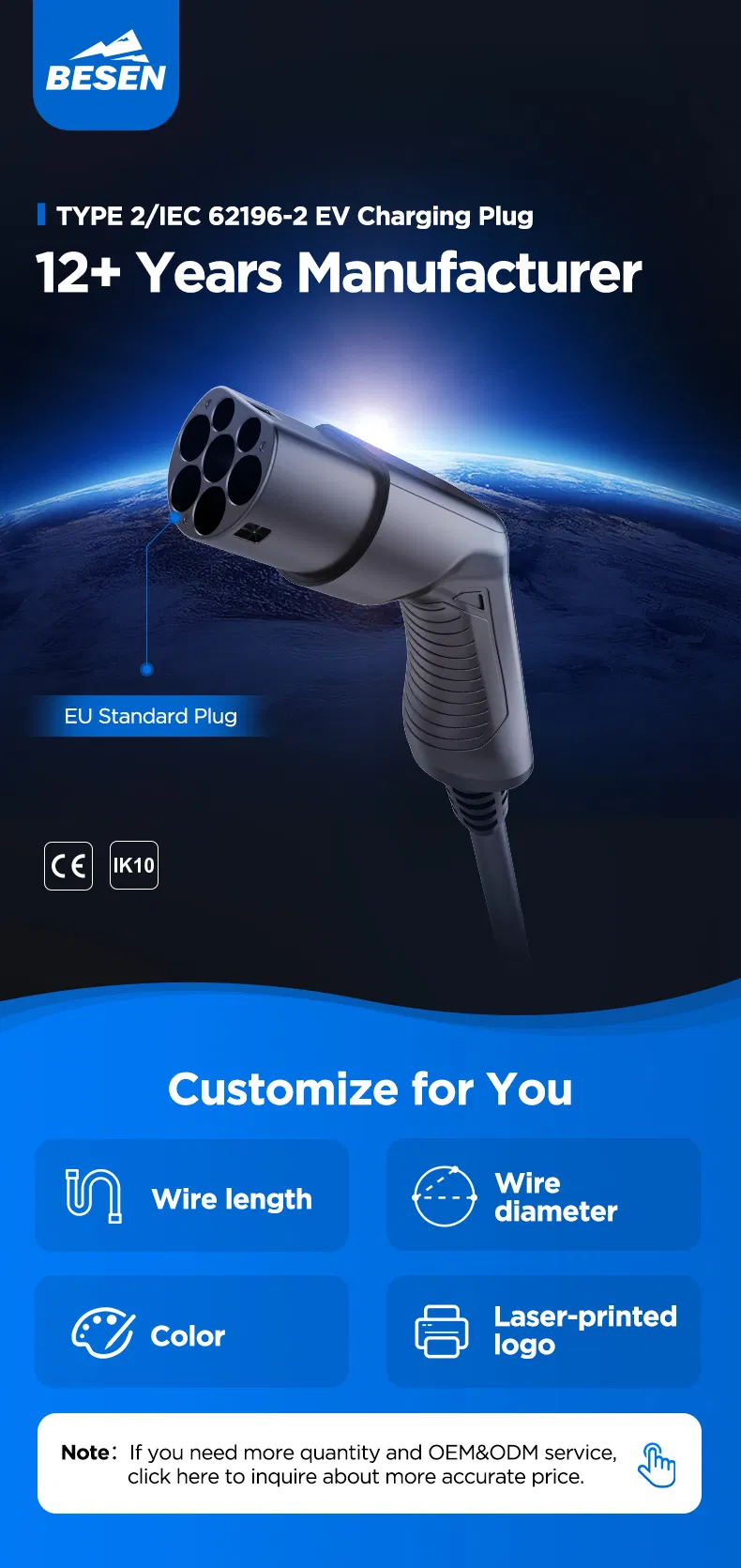

Customization	Wire length, wire diameter, color, laser-printed logo, etc

Frequently Asked Questions

What is the standard of this EV charging connector?

This connector follows the IEC 62196-2 standard, commonly known as the Type 2 plug, which is the standard for electric vehicles in Europe and many other international regions.

Does this plug support three-phase charging?

Yes, the Type 2 connector is designed to support both single-phase and three-phase alternating current (AC) systems for efficient charging.

What is the durability of the connector?

The plug features a mechanical life of over 20,000 no-load plug-in/out cycles and can withstand a 1-meter drop or being rolled over by a 2-ton vehicle.

Is the connector suitable for outdoor use?

Yes, it has an IP66 rating, meaning it is highly protected against dust and powerful water jets, making it suitable for various weather conditions.

What materials are used for the safety of the plug?

The plug is made of PC+nylon alloy with a flame retardant grade of UL94 V-O. The terminals are copper alloy with silver plating for optimal conductivity.

Can the product be customized?

Yes, we provide customization options for wire length, wire diameter, color, and laser-printed logos to meet specific industrial requirements.
