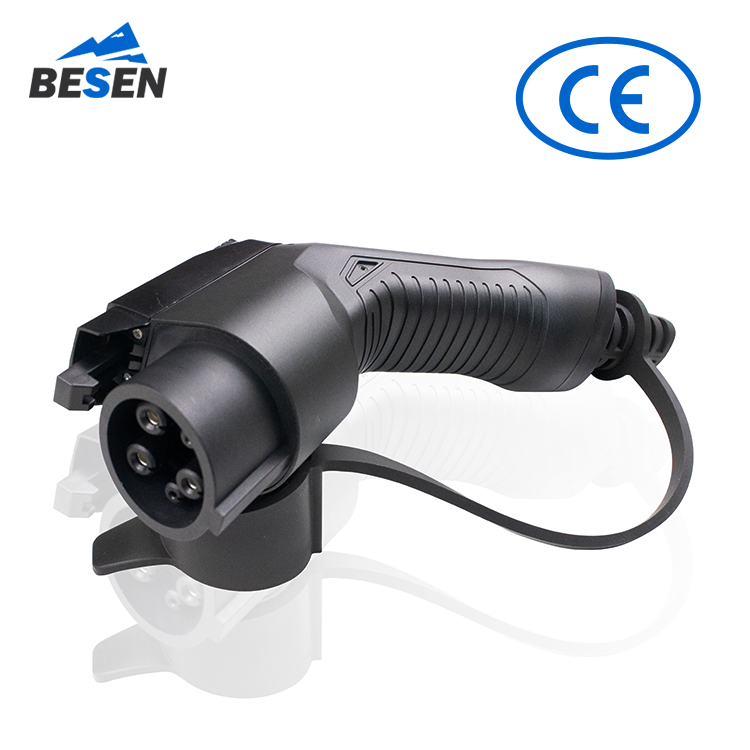

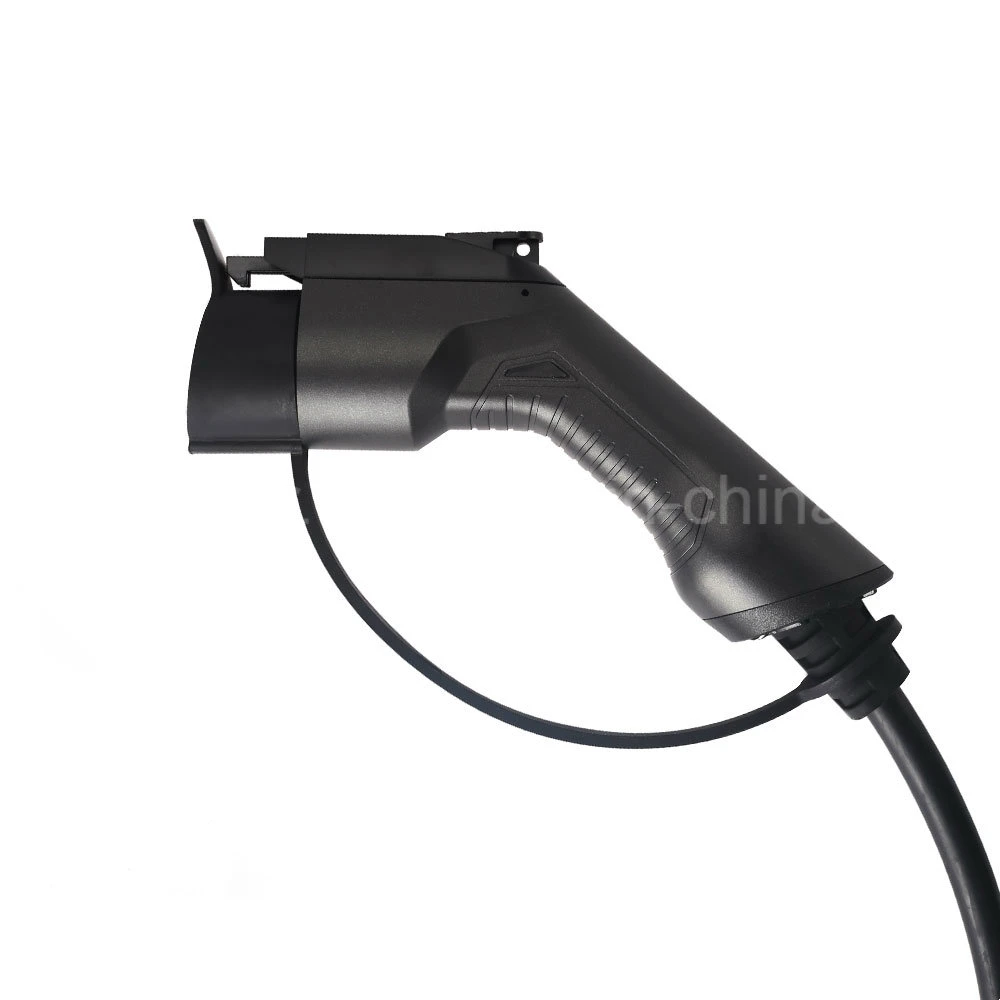

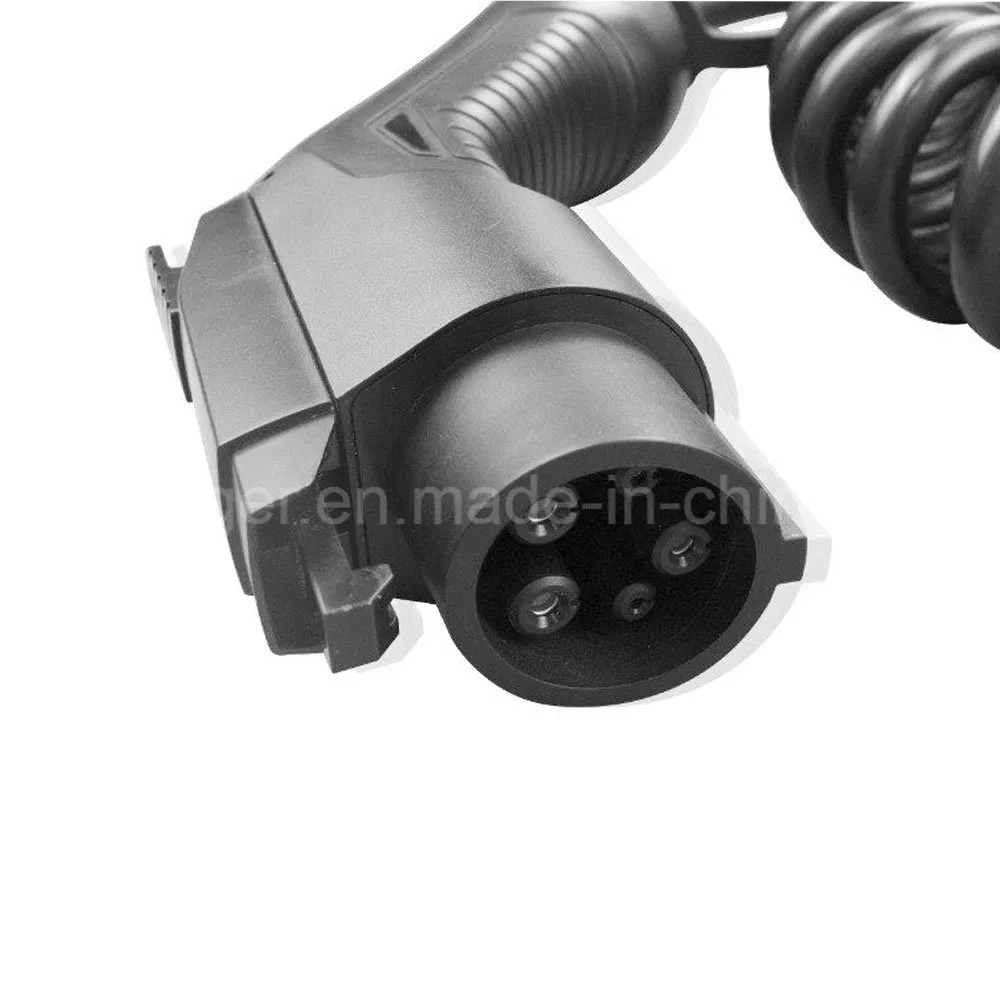

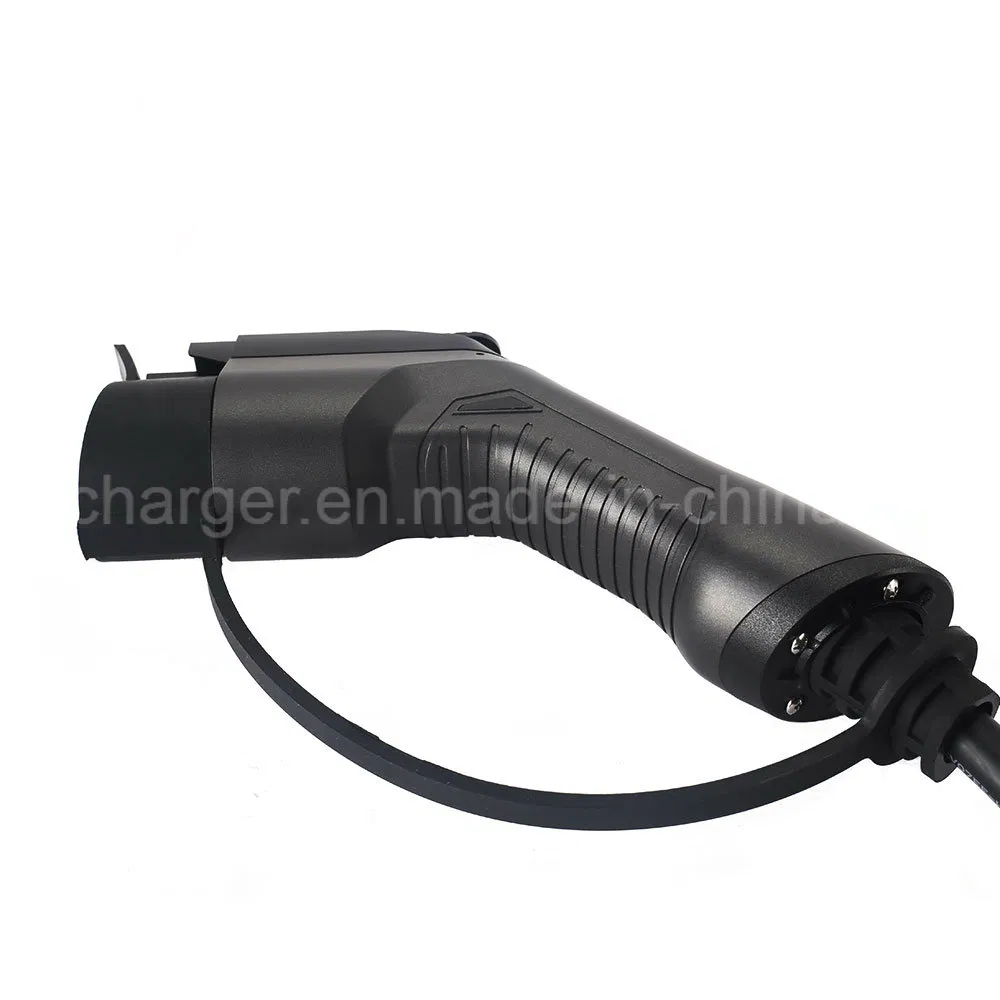

32A SAE J1772 Type 1 EV Plug for Electric Vehicle Charging

1 / 5

32A SAE J1772 Type 1 EV Plug for Electric Vehicle Charging

Customization:	Available
Grounding:	Isolated Ground
Rated Current:	32A

Send Inquiry

Product Description

Basic Information

Model NO.

BS-EVP001-L

IP Grade

IP 66

Operating Voltage

250V

Withstand Voltage

2000V

Standard

SAE J1772 (American Standard)

Function

AC/Charger Plug

Certification

CCC

Interface Type

AC/DC

Current

AC 32A

Application

Industrial

Package

Carton

Origin

China

HS Code

8536690000

Capacity

10000/Month

✓

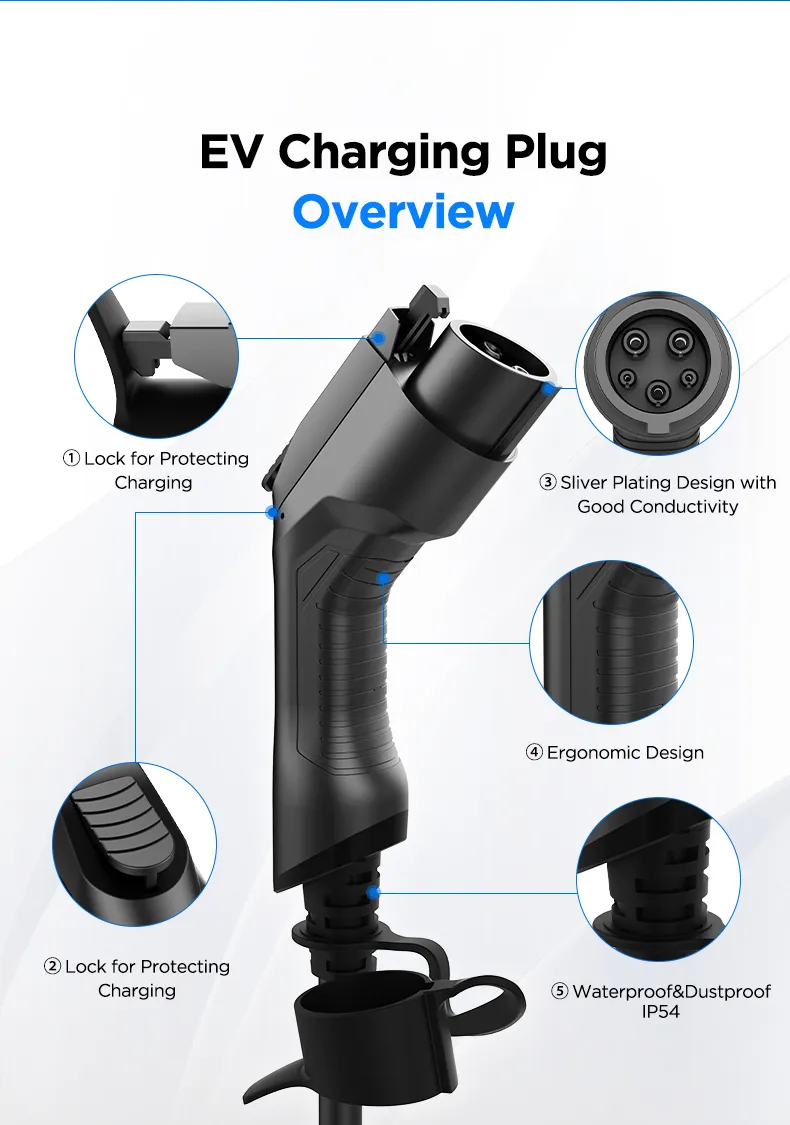

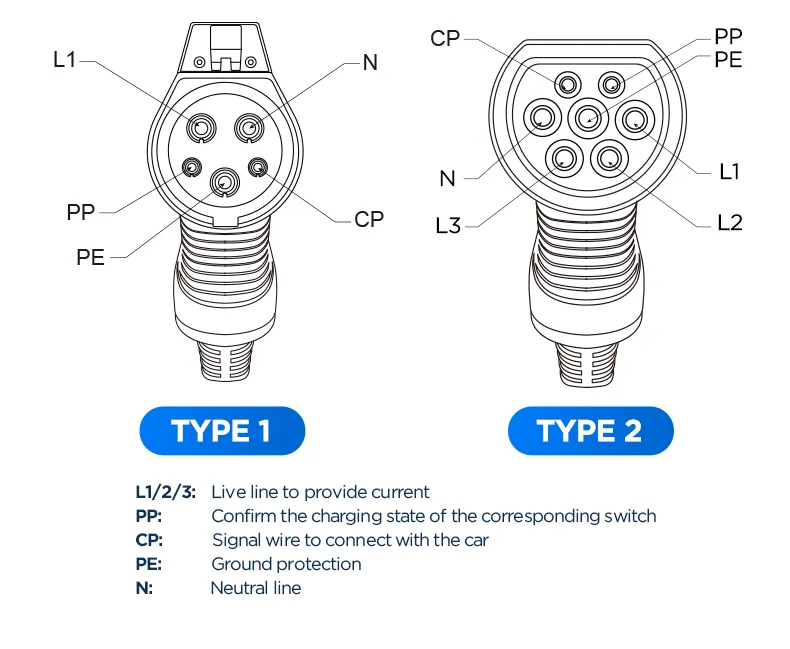

Product Showcase

⚙

Technical Specifications

Rated Current	SAE J1772/Type 1 (16A/32A/40A/48A/50A)
Phase	1 Phase
Operate Voltage	AC 220V ± 10 %
Mechanical Life	No-load plug in /out >20000 times
Insulation Resistance	>1000M Ω (DC500V)
Terminal Temp Rise	<50K
Contact Impedance	0.5m Ω Max
UV Resistant	Yes
Working Temperature	-30ºC ~ +50ºC
Plug Material	PC+nylon alloy, flame retardant grade UL94 V-0
Terminal	Copper alloy, silver plating
Sealing Gasket	Rubber or silicon rubber
Impact Resistance	Ability to withstand 1M height drop and 2T vehicle rolling
Customization	Wire length, diameter, color, laser-printed logo

Frequently Asked Questions

What is the protection rating of this EV plug?

The plug is rated at IP66, ensuring excellent protection against dust and high-pressure water jets, making it suitable for various environmental conditions.

How durable is the mechanical structure of the plug?

The plug is designed for longevity with a mechanical life of over 20,000 no-load plug-in/out cycles. It can also withstand a 1-meter drop and the pressure of a 2-ton vehicle rolling over it.

What materials are used in the construction?

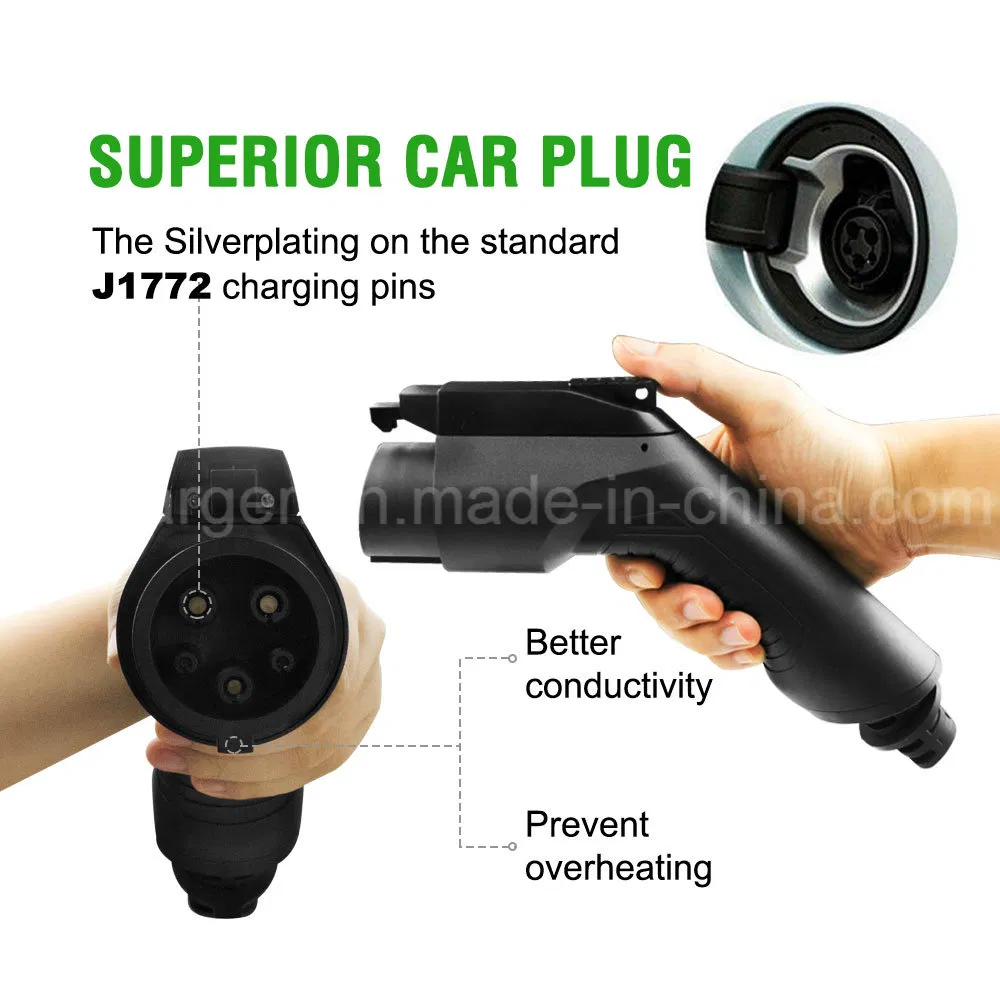

The shell is made of PC+nylon alloy with a UL94 V-0 flame retardant rating. The terminals are crafted from silver-plated copper alloy for optimal conductivity.

Can this plug work in extreme temperatures?

Yes, the operating temperature range is -30ºC to +50ºC, allowing it to function reliably in both cold and hot climates.

Does the plug comply with international standards?

It follows the SAE J1772 (American Standard) and has received CCC certification, ensuring it meets strict safety and quality requirements.

Are customization options available for this product?

Yes, we offer various customization options including wire length, wire diameter, color, and laser-printed logos to meet specific industrial needs.
