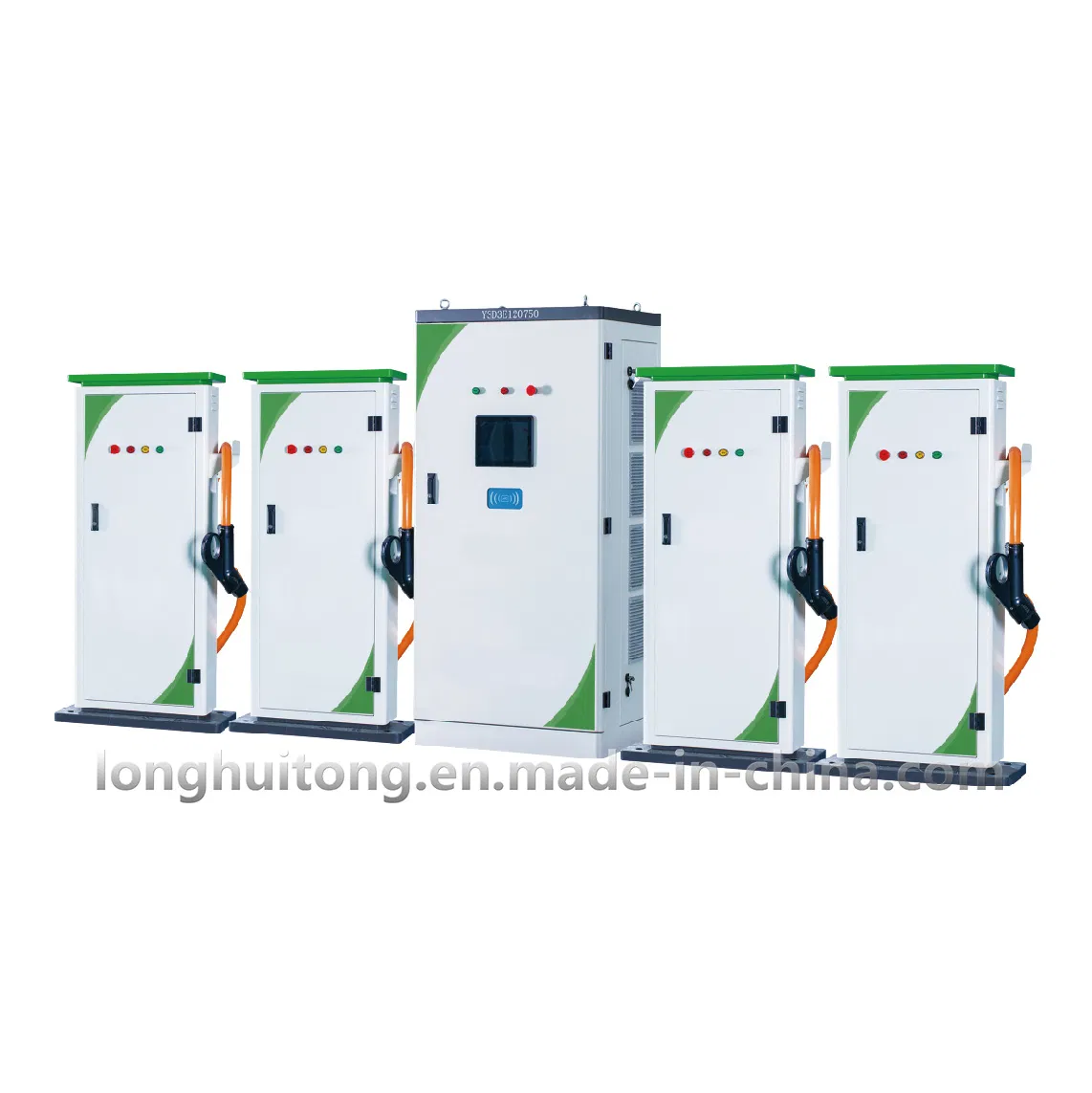

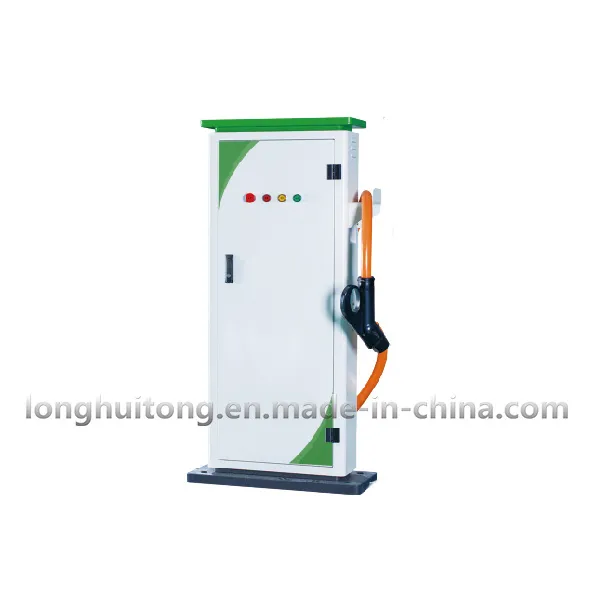

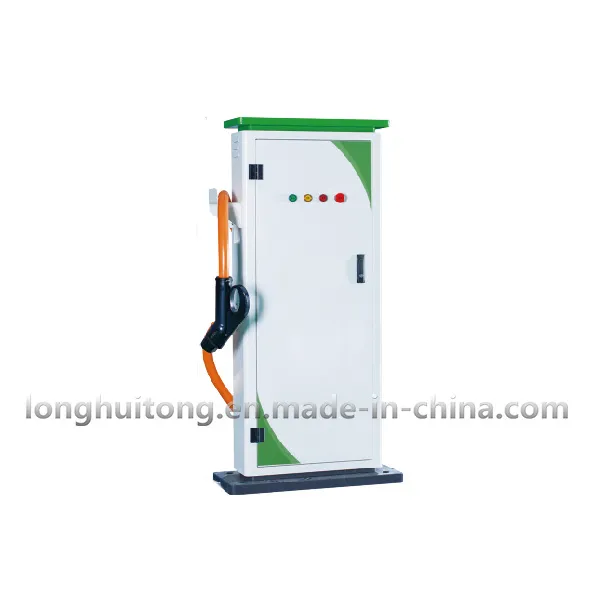

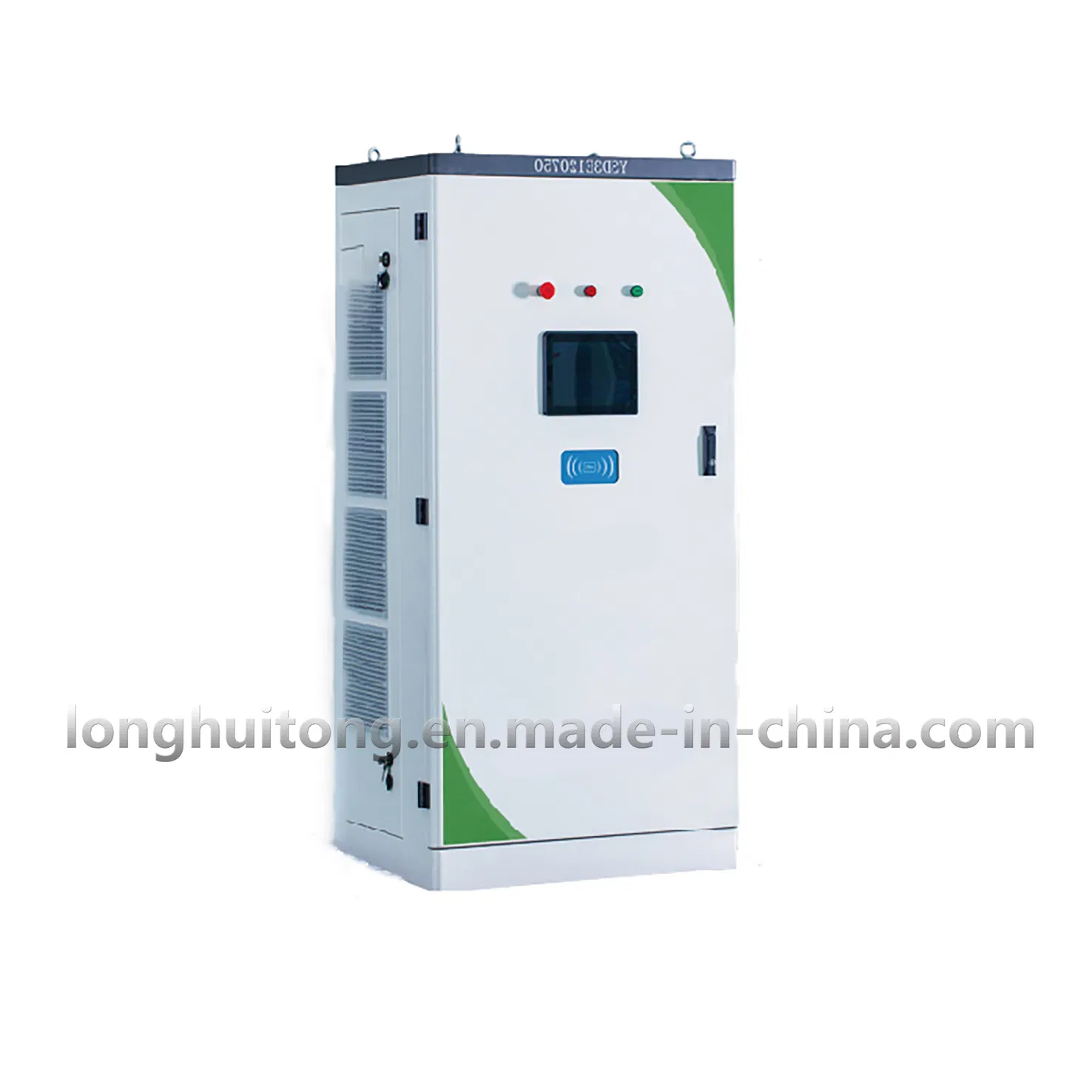

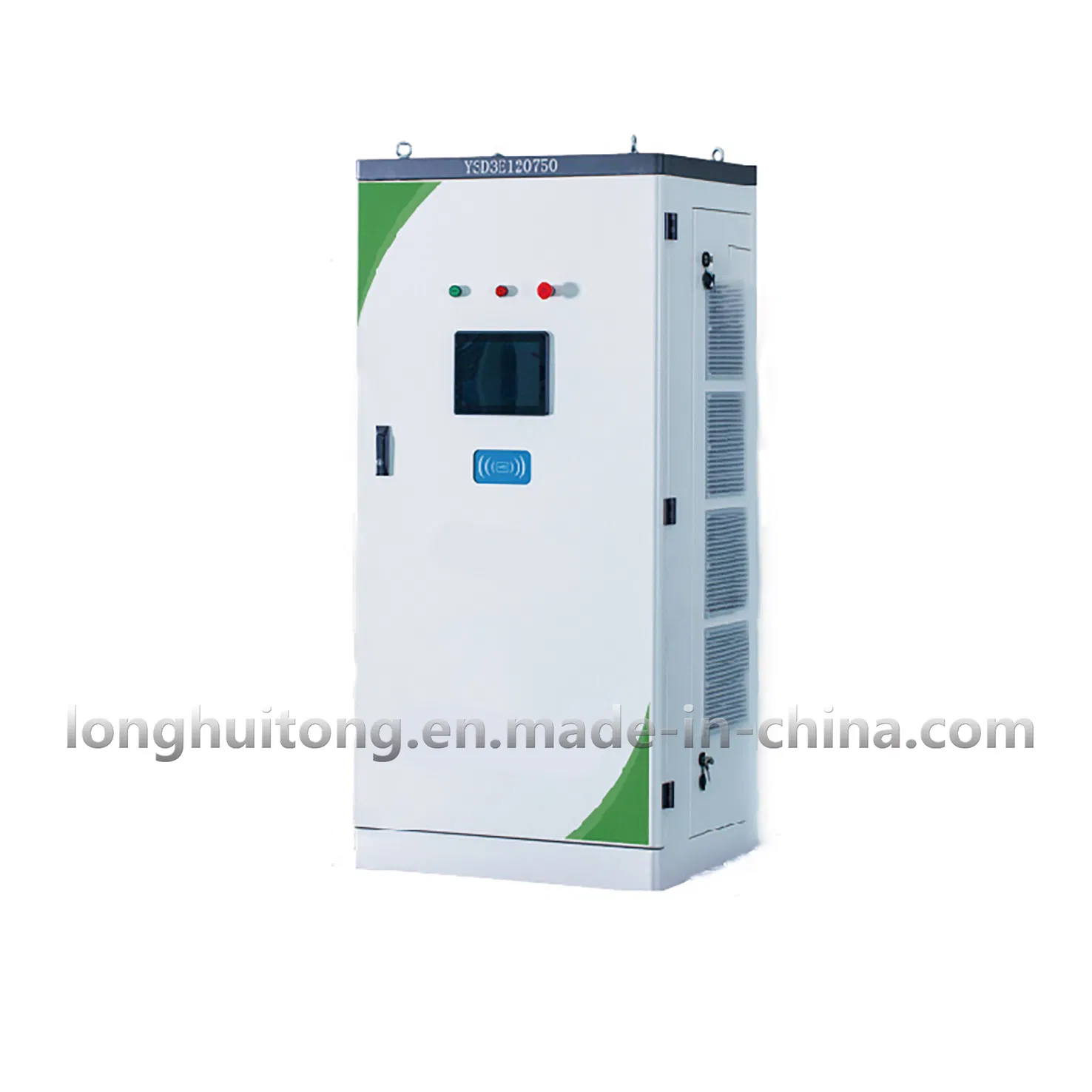

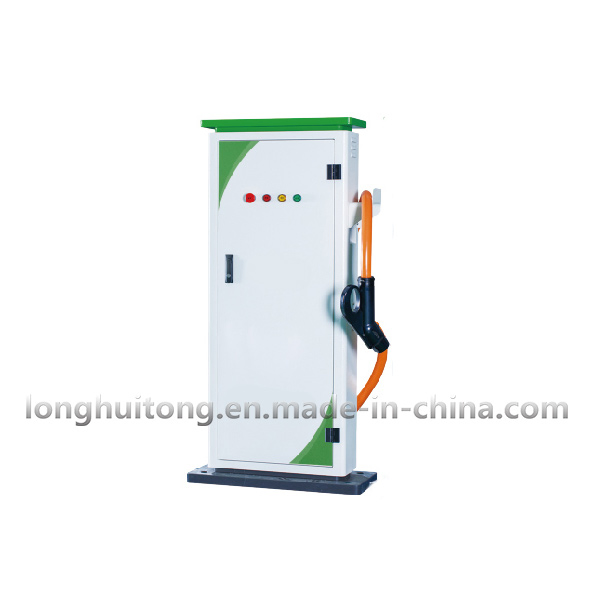

Smart Charging Stack (Single-Gun)
The Smart Charging Stack is a highly efficient and flexible electric vehicle charging device with a modular design. It supports a wide power range from 120kW to 360kW, with output voltage intelligently adjustable between DC250V and 750V. The system is expandable up to 12 terminals, making it ideal for commercial charging stations and parking lots.
| Parameter | Details |
|---|---|
| Charger Power | 120kW, 150kW, 180kW, 300kW, 360kW |
| Output Voltage Range | DC250 - 750V |
| Input Voltage | AC380V ± 15% |
| Constant Power Range | DC400V - DC750V (Optional) |
| Cabinet Size (Host) | 800*900*1700mm |
| Weight | 283KG ± 10KG (Host) / 96KG ± 10KG (Terminal) |
| Networking | Support Ethernet, 4G Network |
| Protection Functions | Overvoltage, Overcurrent, Phase Loss, Emergency Stop, Battery Reverse Connection |
1. Manufacturing Excellence: We specialize in crafting exceptional engine systems, advanced chassis, and high-tech body electronics integrated into commercial and new energy vehicles.
2. Intelligent R&D: Dedicated research into advanced sensors, on-board electronic modules, and revolutionary "three-electric" systems (batteries, motors, electronic controls).
3. Global Standards: Our production adheres to rigorous international standards including IATF 16949, ensuring unparalleled quality and reliability.
