AC/DC Hybrid System 215 362 Kwh Lithium Ion Solar Storage EV Charging Integrated Solution with Smart Energy Management

📊

Basic Information

Model NO.

Optional

Rechargeable

Chargeable

Discharge Rate

Medium

Battery Type

LiFePO4 Lithium Ion

Standard Voltage

250V-750V DC

Capacity

215kwh/305kwh/362kwh

Cycle Life

6000 Cycles @ 80% DOD

Warranty

2 Years

Usage

Solar Energy Storage System

Communication

CAN/RS-485/RS-232

Certification

CE/UN38.3/MSDS

Protection

IP54

🔋

Product Description

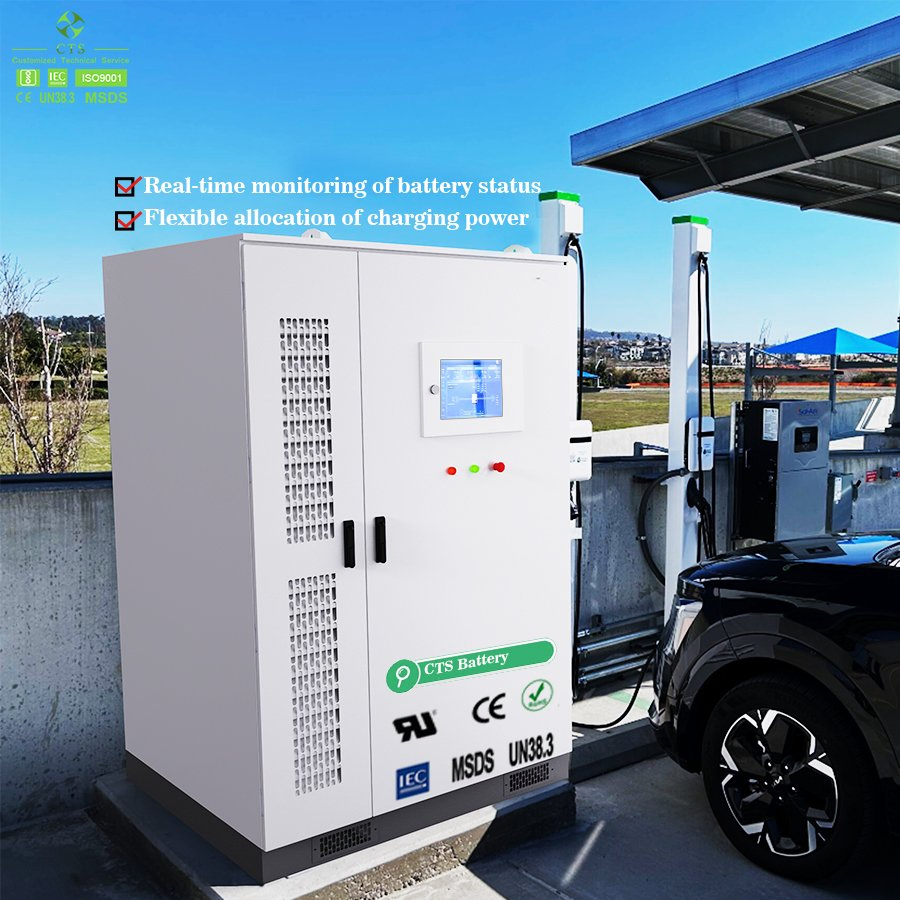

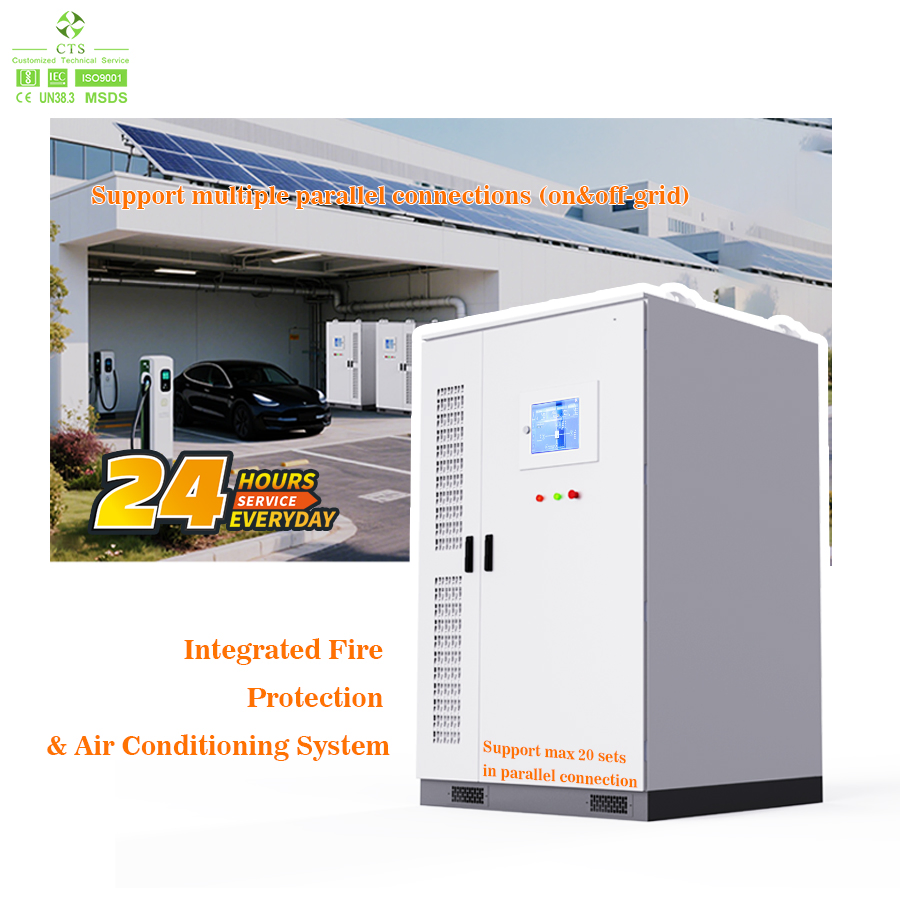

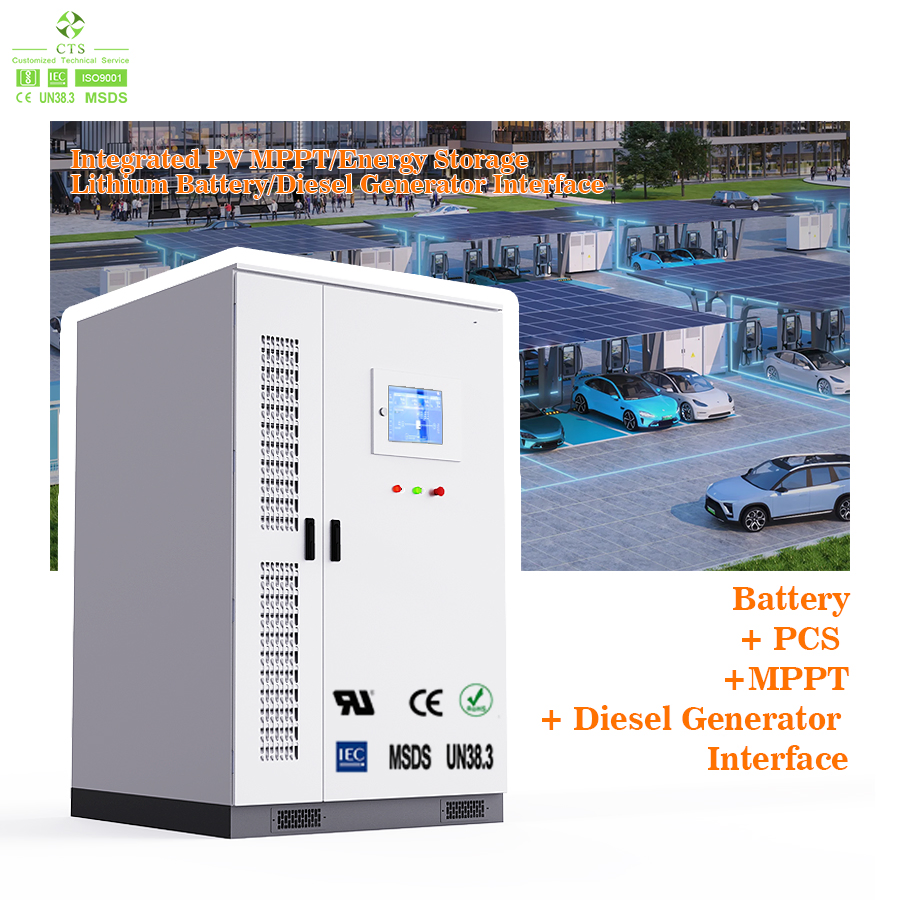

AC/DC Hybrid System 215 362 kWh Lithium Ion Solar Storage EV Charging Integrated Solution

We deliver fully-integrated solar-storage-charging solutions that seamlessly blend rooftop or ground-mounted PV, high-density battery storage, and ultra-fast EV chargers into a single, intelligent ecosystem. During daylight hours, clean power is routed to vehicles; surplus energy is captured in modular, liquid-cooled LFP battery racks. This system eliminates peak charges and ensures power availability during grid outages.

All-in-One Energy Solution: Integrated PV panels, battery storage, and EV charger for commercial and industrial use.
Smart Energy Management: Built-in EMS for self-consumption optimization and intelligent scheduling.
High Efficiency & Safety: Safe LiFePO4 batteries with advanced BMS.

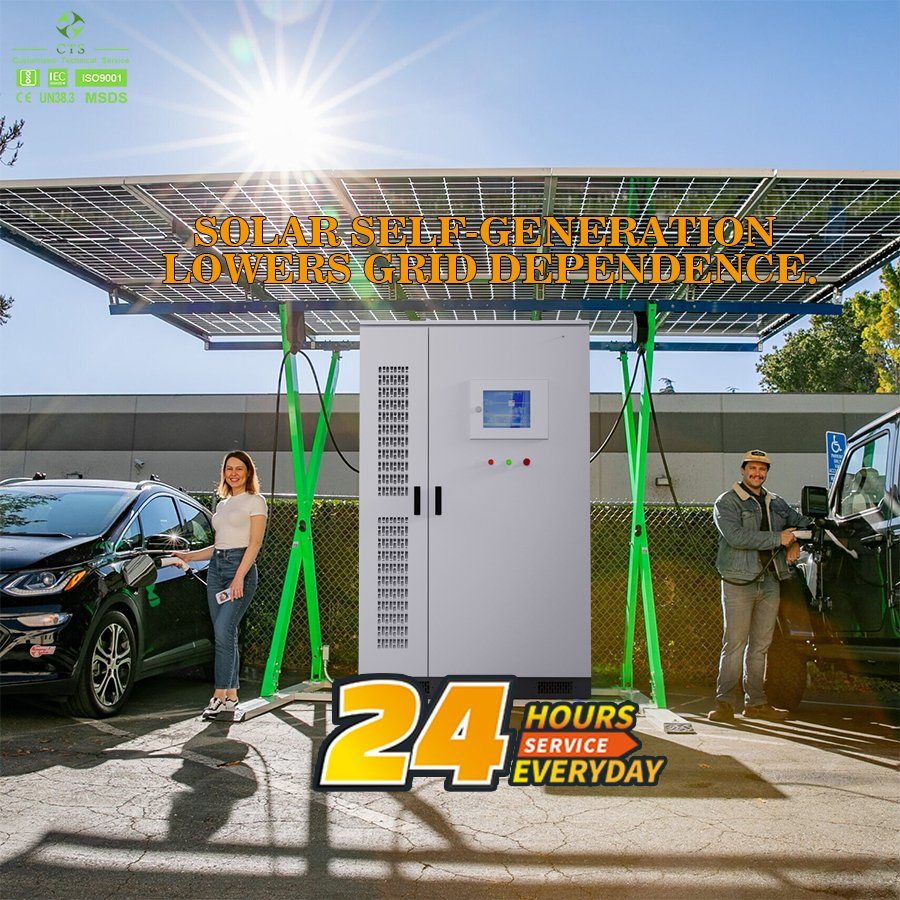

Energy Independence: Reduces dependence on the power grid through self-generation.
Peak Shaving: Charges during valley hours and discharges during peak hours to reduce electricity costs.

Parameter Item	215KWh+100KW	305KWh+100KW	362KWh+100KW
Battery Energy	215KWh	305KWh	362KWh
PCS Power	100KW	100KW	100KW
MPPT Power	120KW	120KW	120KW
AC Voltage	400V/230V	400V/230V	400V/230V
MPPT Range	250~850Vdc	250~850Vdc	250~850Vdc
Protection Level	IP54	IP54	IP54
Size (mm)	158010502090	158011902355	158011902355
Weight (kg)	~2500kg	~2930kg	~3230kg

⚙️

Integrated Solutions

AC-Coupled Solution

Connects PV, storage, and charging facilities to a common AC bus through respective inverters, enabling versatile energy exchange.

DC-Coupled Solution

Connects components directly to a high-voltage DC bus. Reduces DC/AC conversions to significantly improve efficiency.

AC/DC Hybrid Solution

Provides dynamic energy routing by selectively connecting storage and charging equipment to respective AC or DC buses.

🏭

Applications

Industrial Parks

Self-use during the day, storage for night use or peak hours to reduce operational overhead.

Charging Stations

Urban public parking and highway service areas, combining storage to solve grid expansion issues.

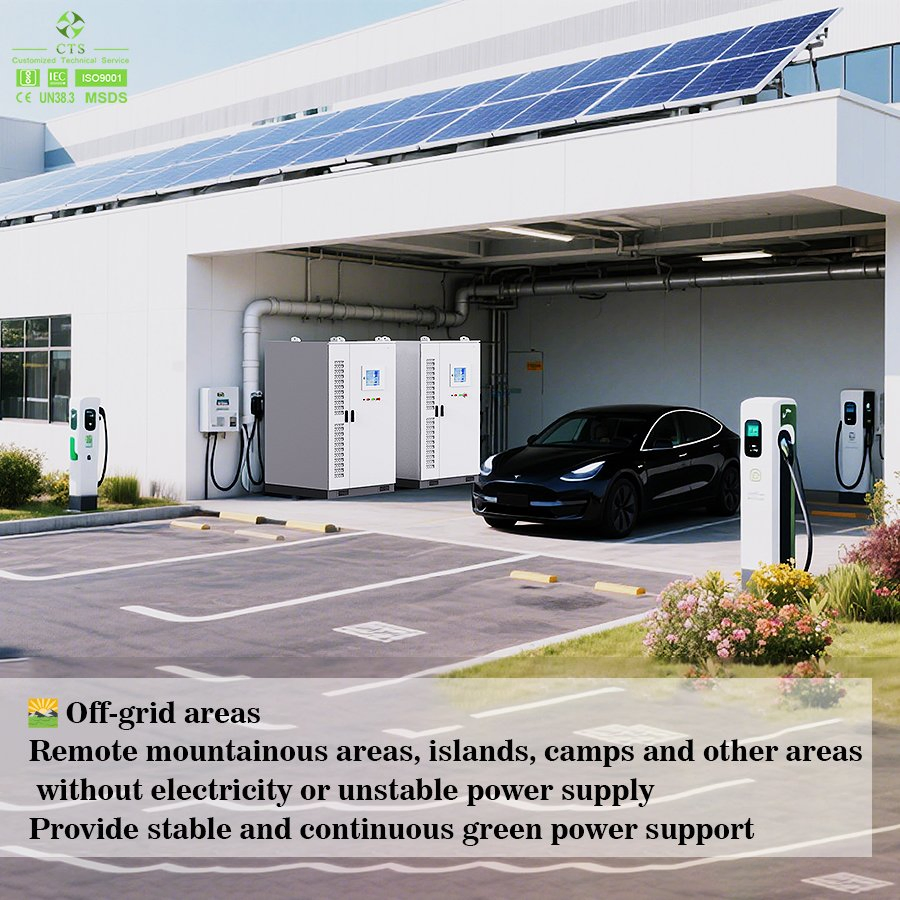

Off-grid Areas

Remote areas, islands, and camps requiring stable and continuous green power support.

Smart Buildings

Emergency power supply and smart energy storage for families and commercial buildings.

⭐

Why Choose Us?

Professional team with 30+ senior engineers providing specialized support.
Large scale manufacturing with 10,000m² factory and 1GWH annual capacity.
One-stop customized service for 12V to 1000V battery systems.
Strict quality control with 100% OQC testing and 25 detection contents.
Over 14 years of lithium battery design and production experience.
Certified quality via ISO9001 & IATF16949 management systems.

❓

Frequently Asked Questions

What is the expected lifespan of the battery system?

The system utilizes high-grade LiFePO4 cells offering a cycle life of over 6000 cycles at 80% Depth of Discharge (DOD).

Is the system suitable for outdoor installation?

Yes, the energy storage system is designed with an IP54 protection level, making it resistant to dust and water splashes for various environments.

Can this system handle both on-grid and off-grid scenarios?

Absolutely. The system supports flexible switching between off-grid and on-grid modes, providing energy independence and emergency backup.

What communication protocols are supported?

The system supports standard industrial communication protocols including CAN, RS-485, and RS-232 for seamless integration with inverters and EMS.

Does the system include a cooling mechanism?

Yes, the battery racks are modular and utilize liquid-cooled or optimized air-cooled designs (depending on configuration) to ensure high safety and thermal stability.

What is the standard warranty provided?

The system comes with a standard 2-year warranty, backed by professional technical support and remote fault diagnosis.
